Sealey CP6001 User manual

14.4V 3/8”SQ DRIVE CORDLESS IMPACT
WRENCH 140NM - 2 BATTERIES
MODEL NO: CP6001, CP6011 (BODY ONLY)
Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these instructions,
and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
1. SAFETYi
1.1. ELECTRICAL SAFETY
WARNING! It is the user’s responsibility to check the following:
Check all electrical equipment and appliances to ensure that they are safe before using. Inspect power supply leads, plugs and
all electrical connections for wear and damage. Sealey recommend that an RCD (Residual Current Device) is used with all electrical
products. You may obtain an RCD by contacting your local Sealey stockist.
If the product is used in the course of business duties, it must be maintained in a safe condition and routinely PAT (Portable
Appliance Test) tested.
Electrical safety information, it is important that the following information is read and understood.
1.1.1. Ensure that the insulation on all cables and on the appliance is safe before connecting it to the power supply.
1.1.2. Regularly inspect power supply cables and plugs for wear or damage and check all connections to ensure that they are secure.
1.1.3. Important: Ensure that the voltage rating on the appliance suits the power supply to be used and that the plug is tted with the
correct fuse - see fuse rating in these instructions.
8DO NOT pull or carry the appliance by the power cable.
8DO NOT pull the plug from the socket by the cable. Remove the plug from the socket by maintaining a rm grip on the plug.
8DO NOT use worn or damaged cables, plugs or connectors. Ensure that any faulty item is repaired or replaced immediately by a
qualied electrician.
1.1.4. This product is tted with a BS1363/A 13 Amp 3 pin plug.
If the cable or plug is damaged during use, switch the electricity supply and remove from use.
Replace a damaged plug with a BS1363/A 13 Amp 3 pin plug. If in doubt contact a qualied electrician.
Class II products are wired with live (brown) and neutral (blue) only are marked with the
Class II symbol;
A) Connect the BROWN live wire to the live terminal ‘L’.
B) Connect the BLUE neutral wire to the neutral terminal ‘N’.
C) After wiring, check that there are no bare wires and ensure that all wires have been correctly connected.
Ensure that the cable outer sheath extends inside the cable restraint and that the restraint is tight.
8DO NOT connect either wire to the earth terminal.
Sealey recommend that repairs are carried out by a qualied electrician.
1.2. BATTERY CHARGER SAFETY INSTRUCTIONS
WARNING! DO NOT use the charging base to charge any battery other than that required for the tool. Other types of batteries may
explode!
9Inspect the plug, cable and the charging base for wear and damage to ensure items are safe before connecting to the mains power
supply. If worn or damaged DO NOT use, immediately replace, or contact a qualied electrician.
9Check cables are always protected against short circuit and overload.
9 Uncoil the power cable between the plug and the charging base before use.
8DO NOT pull or carry the charging base by the charger power lead, or pull the plug from the mains socket by the power lead.
8DO NOT use any other type of transformer with the charging base.
8DO NOT try to open or dis-assemble the plug or charging base.
8DO NOT use the plug to power any other electrical item.
9Disconnect the charging base from the mains power supply when not in use.
8DO NOT expose the charging base to damp or wet conditions (for indoor use only).
8DO NOT operate the charging base if it has been dropped, or has received a sharp knock, or is damaged. Contact an authorised
service agent.
8DO NOT dismantle the charging base as this may cause damage or personal injury and will invalidate your warranty.
8DO NOT insert foreign objects or material into the slot reserved for the battery.
8DO NOT immediately charge a second battery. Consecutive charging will overheat the charging base. Allow the unit to cool for 15
minutes before charging the next battery.
9Ensure that the insulation on all cables and on the appliance is safe before connecting it to the power supply.
9Ensure that cables are always protected against short circuit and overload.
8DO NOT use worn or damaged cables, plugs or connectors. Immediately have any faulty item replaced by a qualified electrician.
Original Language Version
© Jack Sealey Limited
Refer to
instruction
manual
Wear protective
gloves
Wear eye
protection
Wear ear
protection
Charger:
Indoor
use only
Recommended fuse rating:
3 Amps
CP6001, CP6011 Issue: 2 (2, F) 01/10/19

1.3. BATTERY SAFETY PRECAUTIONS
WARNING! Battery contains Lithium-ion which is dangerous. Handle with care to avoid damage, re, corrosion or personal injury.
9 Charge battery prior to its rst use. The battery will have been shipped in a low charge state. To reduce the risk of burns or re:
8DO NOT Attempt to open, disassemble, modify or service the battery pack.
8DO NOT Crush, puncture, short external contacts or dispose of in re or water.
8DO NOT Expose to temperatures above 40°C (104°F).
9Replace only with the battery pack designated for this product.
9 Use only the supplied charging base provided to charge the battery.
8DO NOT attempt recharging the battery by means of an engine generator or a DC power source.
WARNING! Dispose of spent batteries correctly as they contain Lithium-ion. DANGER! DO NOT attempt to disassemble the
battery. For safety and environmental reasons DO NOT discard in domestic waste or by burning. ONLY discard or recycle
according to local authority regulations.
WARNING! DO NOT allow a leaking battery to contact your person.
2. INTRODUCTION
Powerful, compact, cordless impact wrench with electronic variable speed trigger. Forward, reverse and trigger lock control integrated
into housing for ease of use. Features a reliable motor which provides higher torque and efciency, requiring less maintenance. Integral
LED light illuminates work area when in use. Model CP6011 requires Model No. CP60BP 14.4V 2Ah Lithium-ion battery and Model No.
CP60MC battery charger.
3. SPECIFICATION
4. CHARGING
4.1. BATTERY PACK REMOVAL AND REPLACEMENT
4.1.1. Switch the machine off before removing the battery pack.
4.1.2. Press the battery latches in and withdraw the battery pack (g.1).
4.1.3. To replace the battery pack, push the stem into the wrench until the
latches engage. The battery pack can only be inserted in the
correct orientation.
4.2. BATTERY CHARGING
Batteries that have been out of use for some time or are new may not
accept a full charge. This is not a battery fault; the battery may need
to be discharged and charged a couple of times to restore full capacity.
4.2.1. Connect the charger to the electric power supply. A ashing green
LED will show.
4.2.2. Insert the battery into the charger (g.2). A steady red light will show.
4.2.3. When the battery is 80% full, the green LED will ash.
4.2.4. When fully charged, a steady green LED will show.
4.2.5. The battery is ready for use.
4.2.6. The LED indications are:
5. OPERATION
5.1. USING THE WRENCH
5.1.1. Fit the socket to the wrench by snapping it onto the square drive.
NOTE: Use only impact grade sockets.
5.1.2. Fit the battery pack to the wrench by aligning the tongue on the battery with the groove in the housing and slide into place.
Ensure that the battery pack is rmly located, A click will be heard when it has locked into position.
5.1.3. Select the required direction of rotation. To change direction, turn the direction control (g.3) to the left or right. DO NOT attempt to
change the direction of rotation whilst trigger is depressed.
5.1.4. Speed can be controlled by varying the nger pressure on the trigger. Initial pressure will switch on the worklight.
5.1.5. When tightening, take care not to over-torque small xings.
NOTE: On critical fixings always check the torque with a torque wrench according to the product or vehicle manufacturer’s
guidelines.
Original Language Version
© Jack Sealey Limited
Model No: ...............................CP6001 .............................................CP6011
Battery: ..................................14.4V 2Ah Li-ion ................... 14.4V 2Ah Li-ion (not included)
Drive: ...................................3/8"Sq ...............................................3/8"Sq
No Load Speed: . . . . . . . . . . . . . . . . . . . . . . . . . . . 0-2600rpm ........................................ 0-2600rpm
Impact Rate: ..............................3200bpm ...........................................3200bpm
Maximum Torque: ..........................140Nm(103lb.ft)................................140Nm(103lb.ft)
Replacement Battery:.......................CP60BP............................................CP60BP
Mains charger.............................CP60MC ...........................................CP60MC
Noise Power: .............................92dBA ............................................ 75.76dBA
Noise Pressure: ...........................81dBA ............................................ 64.76dBA

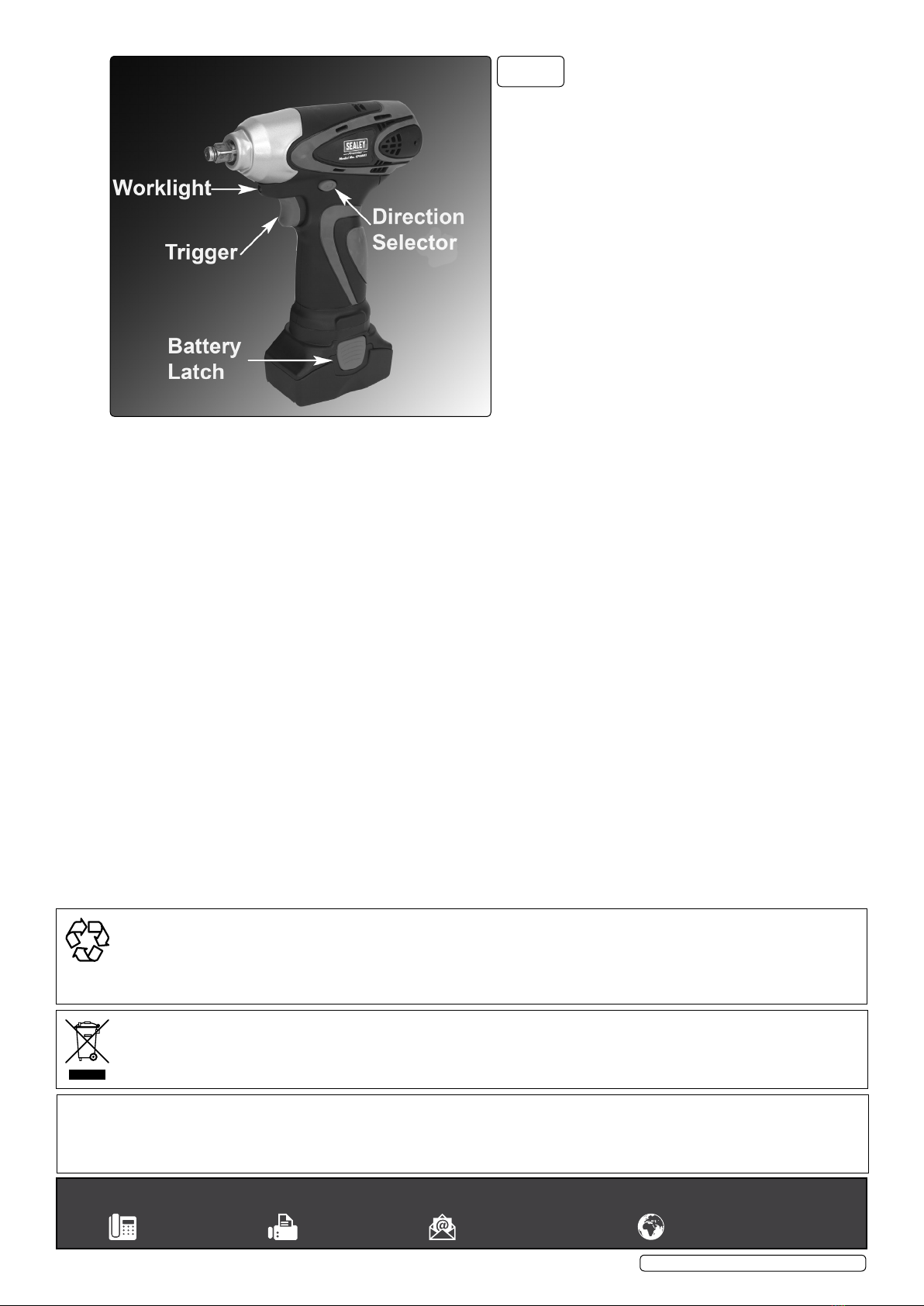

g.1 g.2
Allow temperature to stabilise.
Contact stockist or service agent.
CP6001, CP6011 Issue: 2 (2, F) 01/10/19

WARNING! – Risk of Hand Arm Vibration Injury.
This tool may cause Hand Arm Vibration Syndrome if its use is not managed adequately.
This tool is subject to the vibration testing section of the Machinery Directive 2006/42/EC.
This tool is to be operated in accordance with these instructions.
CP6001 Model
Measured vibration emission value (a): .........7.1m/s²
Uncertainty value (k): .........................1.5m/s²
CP6011 Model
Measured vibration emission value (a): .........7.1m/s²
Uncertainty value (k): .........................1.5m/s²
Please note that the application of the tool to a sole specialist task may produce a different average vibration emission. We recommend that a
specific evaluation of the vibration emission is conducted prior to commencing with a specialist task.
A health and safety assessment by the user (or employer) will need to be carried out to determine the suitable duration of use for each tool.
NB: Stated Vibration Emission values are type-test values and are intended to be typical.
Whilst in use, the actual value will vary considerably from and depend on many factors.
Such factors include; the operator, the task and the inserted tool or consumable.
NB: ensure that the length of leader hoses is sufficient to allow unrestricted use, as this also helps to reduce vibration.
The state of maintenance of the tool itself is also an important factor, a poorly maintained tool will also increase the risk of Hand Arm Vibration
Syndrome.
Health surveillance.
We recommend a programme of health surveillance to detect early symptoms of vibration injury so that management procedures can be
modified accordingly.
Personal protective equipment.
We are not aware of any personal protective equipment (PPE) that provides protection against vibration injury that may result from the
uncontrolled use of this tool. We recommend a sufficient supply of clothing (including gloves) to enable the operator to remain warm and dry and
maintain good blood circulation in fingers etc. Please note that the most effective protection is prevention, please refer to the Correct Use and
Maintenance section in these instructions. Guidance relating to the management of hand arm vibration can be found on the HSE website
www.hse.gov.uk - Hand-Arm Vibration at Work.
g.3
Original Language Version
© Jack Sealey Limited CP6001, CP6011 Issue: 2 (2, F) 01/10/19
