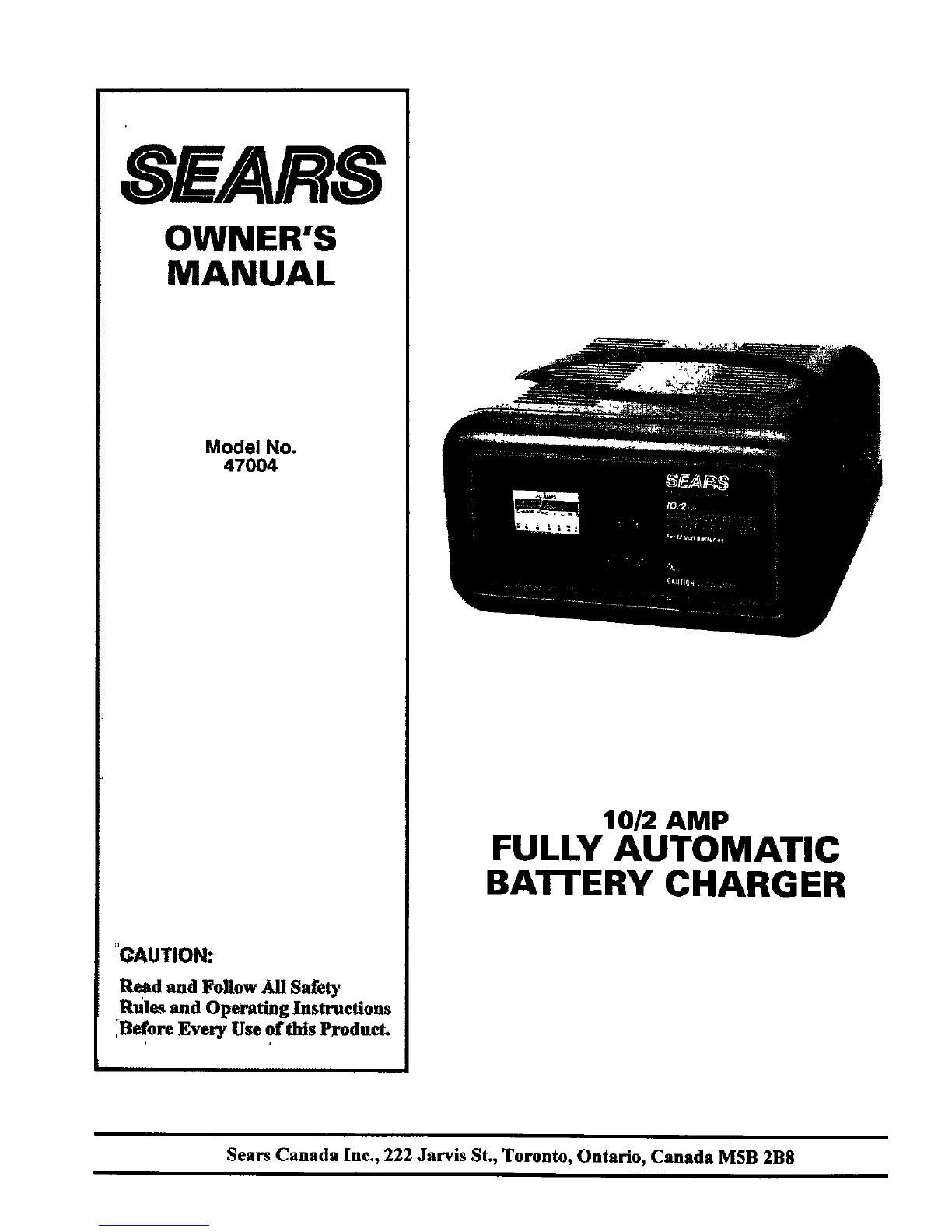

SEeARS
OWNER'S
MANUAL
Model No.
47004
E_
,CAUTION:
Read and Follow All Safety
Rules and Operating Instructions
iBefore Every Use of this Product.
10/2 AMP
FULLY AUTOMATIC
BATTERY CHARGER
Sears Canada Inc., 222 Jarvis St., Toronto, Ontario, Canada MSB 2B8

Table Of Contents
Warranty .................................................................. 1
Important Safety Instructions .................................. 2
Parts ......................................................................... 3
Before Using Your Battery Charger ....... _................ 4
Plugging it in .......................................................... 4
Using an extension cord ........................................ 4

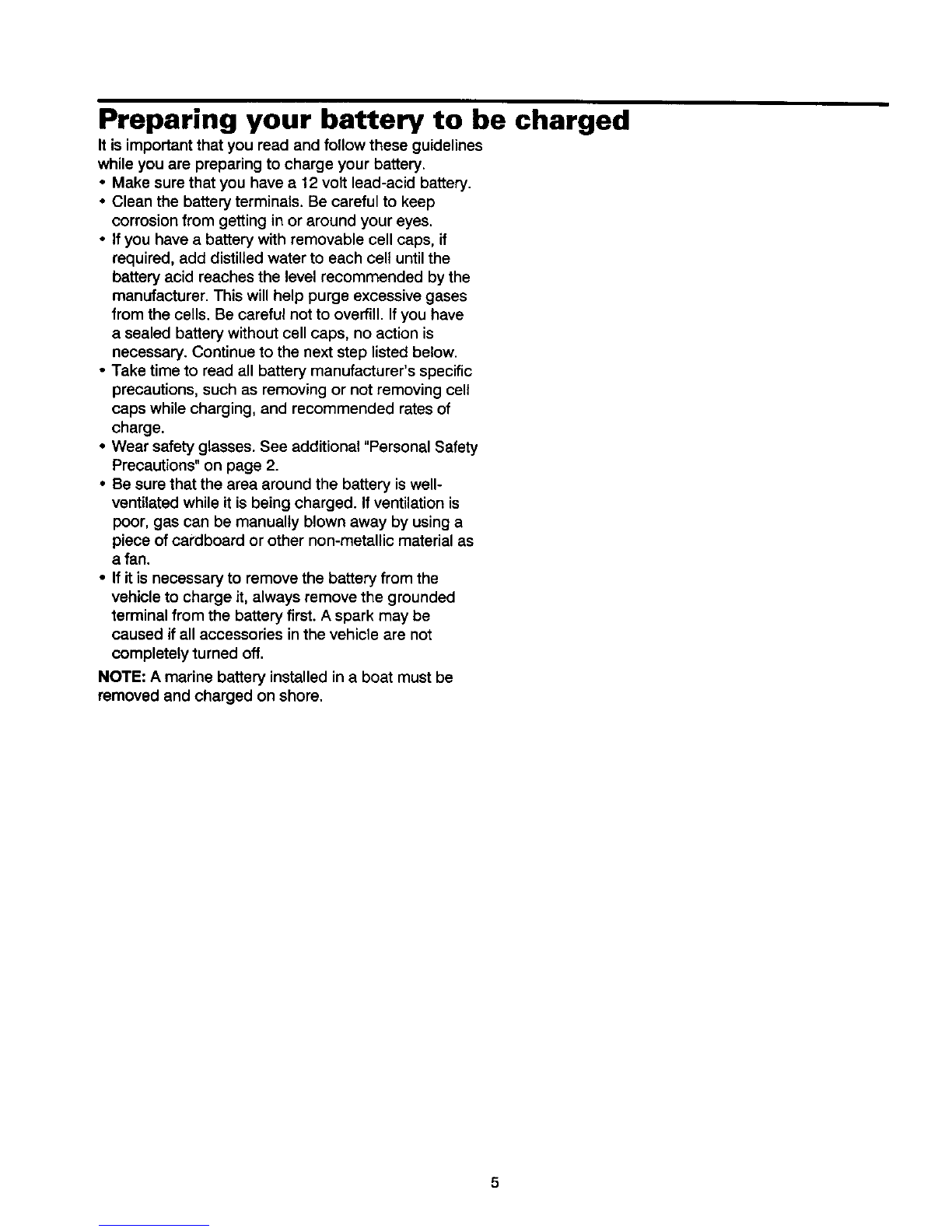

Preparing your battery to be charged .................... 5
Using Your Battery Charger .................................... 6
Setting the controls................................................ 6
Charging your battery ............................................ 6
Calculating charge time ......................................... 9
Maintenance and care ......................................... 10
Troubleshooting ..................................................... 10
Please read this Owner's Manual before using your Battery Charger
The Sears model 47004, Fully Automatic Battery Charger, offers awide range of features to accom-
modate the needs for home or light commercial use. This manual will show you how to use your charger
safely and effectively. Please read and follow these instructions and precautions carefully.
Warranty
FULL TWO-YEAR WARRANTY
If, within two years from the date of purchase this battery charger fails due to a defect in materials or work-
manship, simply RETURN IT TO THE NEAREST SEARS STORE IN CANADA, and Sears will replace it,free
of charge.
This warranty gives you specific legal rights, and you may also have other rights which vary from province to
province.
Sears Canada, Inc.
Toronto, Ontario, M5B 2B8

Important Safety Instructions
- SAVE THESE INSTRUCTIONS -
• Read all instructions and cautions printed on the
battery charger, battery, and vehicle or equipment
using battery.
• Use charger only on lead-acid type rechargeable
batteries, such as those used in cars, trucks, trac-
tom, airplanes, vans, RV's, trolling motors, etc.
This charger is not intended to supply power to
a low voltage electrical system other than in an
automotive application.
• Use only attachments recommended or sold by
manufacturer. The use of attachments not recom-
mended by the manufacturer may result in fire,
electric shock, or injury.
• Do not disassemble charger. Take it to a qualified
service professional if service or repair is required.
Incorrect assembly may result in fire or electrical
shock.
• To reduce riskof electrical shock, unplug the
charger from the outlet before attempting any
maintenance or cleaning.
• Always charge battery in a well ventilated area.
Help us help you
Remember:
•Place charger as far away from battery being
charged as the charger cables will permit.
• Do not expose charger to rain or snow.
• Never charge afrozen battery. If battery fluid (electro-
lyte) becomes frozen, bring battery into a warm area
to thaw before you begin charging.
•Never allow battery acid to drip on charger when
reading specific gravity or filling battery.
• Never set a battery on top ofthe charger.
•Never place charger directly above battery being
charged. The gases from the battery will corrode
and damage the charger.
• Never use charger for charging dry-cell batteries that
are commonly used with home appliances. These
batteries may burst and cause personal injury.
• Never touch the battery clamps together when the
charger is energized.
•Never operate charger if it has received a hard blow,
been dropped, or otherwise damaged. Take itto a
qualified professional for inspection and repair.
•Be sure to position the charger power cord to
prevent itfrom being stepped on, tripped over, or
damaged.
•Never pull out the plug by the cord when unplug-
ging the charger. Pulling on the cord may cause
damage to the cord or the plug.
•Do not operate the charger if ithas adamaged
power cord or plug. Have the cord replaced.
Personal Safety Precautions
For your own personal safety, please follow the follow-
ing precautions:
•Wear complete eye and clothing protection when
working with lead-acid batteries.
•Be sure that someone iswithin range of your voice
to come to your aid if needed while you work with or
are near a lead-acid battery.
•Have plenty of fresh water and soap nearby for use
in case battery acid contacts your eyes, skin, or cloth-
ing. Ifthis happens, wash immediately with soap and
water, Then get medical attention.
•Avoid touching your eyes while working with a
battery. Acid particles (corrosion) may get into your
eyes. If this occurs, flush eyes immediately with
running cold water for at least ten minutes. Then
immediately get medical attention.
•Remove all personal metal Items from your body,
such as rings, bracelets, necklaces, and watches
while working with a lead-acid battery. Abattery can
produce a short circuit current high enough to weld
a ring (or the like) to metal, causing a severe burn.
-Take care notto drop any metal tool or metal object
onto the battery. This may spark or short circuitthe
battery or another electrical device that may cause
an explosion.
•Always operate your battery charger in an open, well
ventilated area.
•Never smoke or allow a spark or flame inthe vicinity
of the battery or engine. Batteries generate explosive
gases.
•Neutralize any acid spills thoroughly with baking
soda before attempting to clean up.
2

Parts
This section shows an illustration of your battery charger. Use it to become familiar with where all the parts are
located, and what they look like.
item Description Part Number
1 Cover 3799001402
2 Heatsink/DiodeAssembly 2299000844
3 Base 3799001382
4 ACPowerCord 90026058
5 Transformer 93026334
6 OutputCable 3899000016
7 CircuitBreaker(20A) 3999000045
8 50AClamp(1) 2299000248
SleevingRed(2)required 0399000007
SleevingBlack(2)required 0399000008
9 Meter 5399100091
10 SwitchSPDT 0499000032
11 FrontPanel 3799001392
12 Decal 0899C00533
13 Handle 3599000240
14 Screw8-18x3/8"(4) 5191806256
15 Owner'sManualandPartsList(NotShown)0000000550
16 SwitchSP3P 0499C00030
17 ControlBoard 2299000718
SCRonly 3100100017
8
Wiring diagram
F
A.C, LINE
3

Before Using Your Battery Charger
It is important to understand your charger's requirements. This section will tell you about your charger's electrical
requirements and how to prepare a battery for charging.
Plugging it in
Your charger should be grounded to reduce the risk
of electrical shock.
Your charger is equipped with an electrical cord that has
an equipment grounding conductor and a grounding plug
designed to be used on a 120 volt circuit, The plug
must be plugged into an outlet that has been properly
installed and grounded in accordance with all
local codes and ordinances,
A TEMPORARY adapter may be used to connect the
charger to atwo-pole outlet if a properly grounded outlet
is not available. Use the adapter ONLY until a properly
grounded outlet can be installed by a qualified
electrician,
DANGER: Before using an adapter as illustrated, be
certain that the center screw of the outlet plate is
grounded. The green colored grounding clip of the
adapter must be attached by a screw to aproperly
grounded outlet. If unsure whether outlet is properly
grounded, contact a professional electrician. If
necessary, replace the original outlet cover screw with a
longer one that will secure the grounding clip to the
outlet cover and make a ground connection to the
grounded outlet.
®
11111
Using an extension cord
Use of an extension cord is not recommended. Ifyou
must use an extension cord, please make sure that you
follow these guidelines:
• Make sure that the pins on chargers power cord fit
firmly into the extension cord, and that the extension
cord fits firmly intothe receptacle.
•Use only 3-conductor (grounded) extension cord
when necessary.
•Check that the extension cord is properly wired and
in good electrical condition.
•Make sure that the wire size is large enough for its
length and for the AC ampere rating as specified in
the accompanying chart.
Length of Cord, in Feet 25 50 100 150
AWG* Size of Cord 18 18 16 14
*AWG =AmedcanWire Gauge
