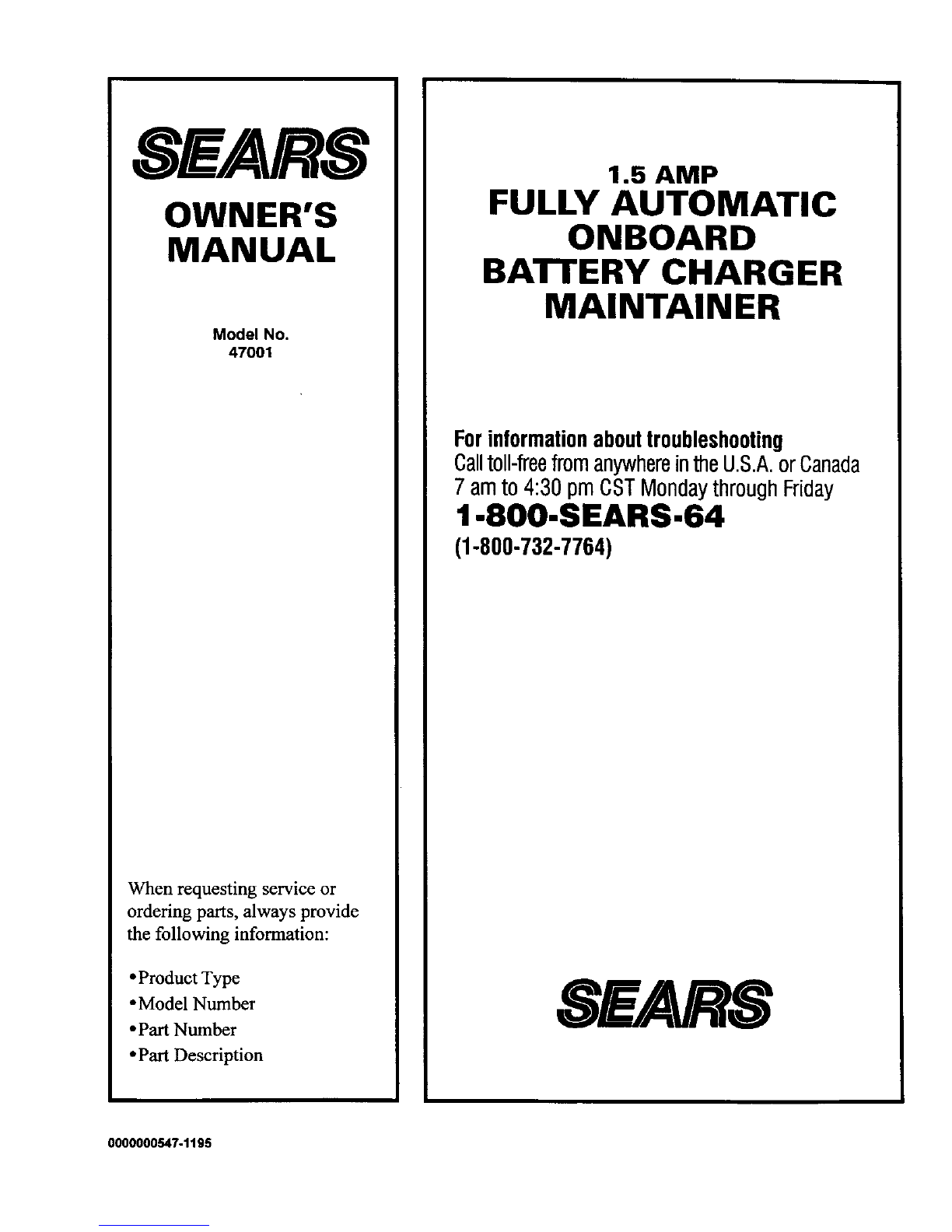

SEARS
OWNER'S
MANUAL
Model No.
47001
CAUTION:
Read and Follow All Safety
Rules and Operating Instructions
Before Every Use of this Product.
1.5 AMP
FULLY AUTOMATIC
ONBOARD
BATTERY CHARGER
MAINTAINER
Sears Canada Inc., 222 Jarvis St., Toronto, Ontario, Canada MSB 2B8

Table Of Contents
Warranty ..................................................................... 1
Important Safety Instructions ................................... 2
Before Using Your Battery Charger ......................... 3
Plugging it in .......................................................... 3
Extsnsion cords ..................................................... 3
Using Your Battery Charger ..................................... 4
What to expect from your charger ........................ 4
Installing the charger ............................................ 4
Preparing your battery to be charged .................. 5
Charging your battery ........................................... 5
Charging indicators .............................................. 6
Maintenance and care .......................................... 6
Please read this Owner's Manual before using your Battery Charger
The Sears model 47001 Fully Automatic Onboard Battery Charger/Maintainer, offers features to accom-
modate the needs for home or light commercial use. This manual will show you how to use your charger
safely and effectively. Please read and follow these instructions and precautions carefully.
Warranty
FULL TWO-YEAR WARRANTY
If,withintwo yearsfromthe date of purchase, thisbattery charger failsdue to adefect inmaterialsor workmanship,
simply RETURN IT TO THE NEAREST SEARS STORE IN CANADA, and Sears will replace it,free of charge.
This warranty gives you specific legal rights, and you may also have other rights which vary from province to
province.
Sears Canada, Inc.
Toronto, Ontario, M5B 2B8

Important Safety Instructions
- SAVE THESE INSTRUCTIONS -
•Read all instructions and cautions printed on the
battery charger, battery, and vehicle or equipment
using battery.
•Use charger only on lead-acid type rechargeable
batteries, such as those used in cars, trucks, trac-
tors, airplanes, vans, RV's, trolling motors, etc.
This charger is not intended to supply power to
a low voltage electrical system other than in an
automotive application.
• Use only attachments recommended or sold by
manufacturer. The use of attachments not recom-
mended by the manufacturer may result in fire,
electric shock, or injury.
• Do not disassemble charger. Take it to a qualified
service professional if service or repair is required.
Incorrect assembly may result in fire or electrical
shock.
•To reduce risk of electrical shock, unplug the
charger from the outlet before attempting any
maintenance or cleaning.
Help us help you
Remember:
•Place charger as far away from battery being
charged as the charger cables will permit.
•Never charge a frozen battery If battery fluid (electro-
lyte) becomes frozen, bring battery into a warm area
to thaw before you begin charging
• Never allow battery acid to drip on charger when
reading specific gravity or filling battery
•Never set a battery on top of the charger.
•Never place charger directly above battery being
charged.
•Never use charger for charging dry-cell batteries that
are commonly used with home appliances These
batteries may burst and cause personal injury
•Never operate charger if ithas received a hard blow,
been dropped, or otherwise damaged. Take it to a
qualified professional for inspection and repair.
• Never pull out the plug by the cord when unplug-
ging the charger. Pulling on the cord may cause
damage to the cord or the plug.
•Do not operate the charger if it has a damaged
power cord or plug. Have the cord replaced.
• Never crank engine with charger attached to battery
and 120 volt line.
Personal Safety Precautions
For your own personal safety, please follow the follow-
ing precautions:
•Wear complete eye and clothing protection when
working with lead-acid batteries.
•Be sure that someone iswithin range of your voice
to come to your aid if needed while you work with or
are near a lead-acid battery.
• Have plenty of fresh water and soap nearby for use
in case battery acid contacts your eyes, skin, or cloth-
ing. Ifthis happens, wash immediately with soap and
water. Then get medical attention.
•Avoid touching your eyes while working with a
battery. Acid particles (corrosion) may get into your
eyes. Ifthis occurs, flush eyes immediately with
running cold water for at least ten minutes Then
immediately get medical attention.
• Remove all personal metal items from your body,
such as rings, bracelets, necklaces, and watches
while working with a lead-acid battery. A battery can
produce a short circuit current high enough to weld
a ring (or the like) to metal, causing a severe burn.
•Take care not to drop any metal tool or metal object
onto the battery This may spark or short circuit the
battery or another electrical device that may cause
an explosion.
•Always operate your battery charger in an open, well
ventilated area
•Never smoke or allow a spark or flame in the vicinity
ofthe battery or engine. Batteries generate explosive
gases.
•Neutralize any acid spills thoroughly with baking
soda before attempting to clean up.
2

Before Using Your Battery Charger
It is important to understand your charger's requirements. This section will tell you about your charger's electrical
requirements and how to prepare a battery for charging.
Plugging it in
Electrical Shock Hazard
Be sure that the power cord fits properly into the
outlet. If not, have a qualified electrician install a
proper outlet. Never alter the AC cord or plug
provided. Improper connection can result in
electrical shock.
Your charger should be grounded to reduce the risk
of electrical shock.
Your charger is equipped with an electrical cord that has
an equipment grounding conductor and a grounding
plug designed to be used on a 120 volt circuit.
The cord must be connected to an outlet that has been
properly installed and grounded in accordance with all
local codes and ordinances.
ATEMPORARY adapter may be used to connect the
charger to a two-pole outlet ifa properly grounded outlet
is not available. Use the adapter ONLY until a properly
grounded outlet can be installed by a qualified
electrician.
DANGER: Before using an adapter as illustrated, be
certain that the center screw of the outlet plate is
grounded. The green colored grounding clip ofthe
adapter must be attached by a screw to a properly
grounded outlet. If unsure whether outlet is properly
grounded, contact a professional electrician. If
necessary, replace the original outlet cover screw with a
longer one that will secure the grounding clip to the
outlet cover and make a ground connection to the
grounded outlet.
Extension cords
Improper extension cords present a risk of fire or electric
shock. Follow these guidelines for using an extension
cord:
•The pins on the charger's power cord must fit firmly
into the extension cord, and the extension cord
must fit firmly into the receptacle.
• Use only 3-conductor (grounded) extension cord
when necessary.
•The extension cord must be properly wired and in
good electrical condition.
•The wire size must be large enough for itslength
as specified in the following chart.
Length of Cord, in Feet! 25 50 100 150
AWG* Size of Cord 18 18 18 16
*AWG=American Wire Gauge
3

Using Your Battery Charger
For best results from your battery charger, learn to use it properly. Thissection tells how to install the charger and
how to charge a battery in or out of the vehicle.
What to expect from your charger.
Your charger is designed for use with 12-volt batteries
only. It has a control circuit designed to stop the
charging process when a battery reaches full charge.
This same circuit requires that a battery have at least 1
volt of charge to start the charging process.
Completely discharged batteries must be brought to this
minimum state-of-charge before this charger will
operate.
The charger is designed to:
maintain the charge level of 12-volt batteries used in
seasonal or special-purpose vehicles or engines
stored for long periods such as RVs, farm and
construction equipment, snowmobiles and the like.
•improve 12-volt battery performance during cold
weather.
Installing the charger
Location
Your charger can be mounted on asheet-metal fender
well near the battery.
The charger comes with a two-piece mounting bracket,
two bolts, and two nuts. Positionthe charger on the
selected location to be sure that the leads reach the
battery terminals.
Mounting
Figure 1 illustrates the charger mounting brackets.
Figure 2 illustrates surface mounting of the charger to the
fender well. If using the nut and bolt provided, drill two
holes between 3/16" and 1/4" in diameter. (For alignment
of holes use one of the brackets as a template.) If the
backside of the mounting surface is hard to reach, you
may consider using two 1/2" sheet-metal screws instead
of nut and bolt, drill a pilot hole if required, drill holes
between 1/8" and 5/32". CAUTION: Do not drill or
puncture battery.
Electrical installations - Route and secure supply cord
and output wiring away form gas line, carburetor or other
hot, sharp or moving and pinch parts to avoid damage to
the insulation. Secure the AC cord and plug to a cable or
frame using a self locking cable tie or equivalent.
J
FigureI
Figure 2
4

Preparing your battery to be charged
It is important that you read and follow these guide-
lines while you are preparing to charge your battery.
Make sure that you have a 12 volt lead-acid
battery.
Clean the battery terminals. Be careful to keep
corrosion from getting in or around your eyes.
•If you have a battery with removable cell caps, if
required, add distilled water to each cell until the
battery acid reaches the level indicated by the
manufacturer. This will help purge excessive
gases from the cells. Be careful not to overfill. If
you have a sealed battery without cell caps, no
action is necessary. Continue to the next step
listed below.
Take time to read all battery manufacturer's
specific precautions, such as removing or not
removing cell caps while charging, and recom-
mended rates of charge.
Wear safety glasses. See additional "Personal
Safety Precautions" on page 2.
Be sure that the area around the battery is well-
ventilated while it is being charged.
If it is necessary to remove the battery from the
vehicle to charge it, always remove the grounded
terminal from the battery first. A spark may be
caused if all accessories in the vehicle are not
completely turned off.
NOTE: A marine battery installed in a boat must be
removed and charged on shore.
Charging your battery
IALWAYS DISCONNECT CHARGER FROM POWER I
SOURCE WHEN CONNECTING OR 1.
DISCONNECTING CHARGER TO OR FROM
BATTERY. 2.
Charging a battery in the vehicle:
1. Arrange the power cord and charging leads
carefully to avoid damage that could be caused by
the hood, door, or moving engine parts.
2. Keep your hands, leads and power cord clear of
fan blades, belts, pulleys, and other parts that can
cause injury.
3. Check the polarity of the battery posts as indicated
on the battery case: POSITIVE (POS, P, or +) and
NEGATIVE (NEG. N or -). NOTE: The positive post
on top-post batteries is usually larger than the
negative post.
4. Identify which battery post isground or connected
to the chassis. THE NEGATIVE POST IS
NORMALLY THE ONE THAT IS GROUNDED.
5. On a negative grounded system:
Connect the red (POSITIVE) charger lead to the
ungrounded POSITIVE (POS, P, +) cable
connection to the battery. Then connect the black
(NEGATIVE) lead to the to the grounded
NEGATIVE (NEG, N, -) connection.
On a positive grounded system:
Connect the black (NEGATIVE) battery charger
lead to the NEGATIVE (NEG, N, -) connection to
the battery. Then connect the red (POSITIVE) lead
to the to the grounded POSITVE (POS, P, +)
connection.
IMPORTANT: Wear safety glasses and face away
from the battery while making connections.
Charging a battery outside the vehicle:
When removing battery, disconnect grounded
terminal first. Be sure all accessories are turned
off.
Check the polarity of the battery posts as indicated
on the battery case: POSITIVE (POS, P, +) and
NEGATIVE (NEG, N, -).
NOTE: On top-post batteries, the positive battery
terminal usually has a larger diameter than the
negative one.
3. Connect the red (POSITIVE) charger lead to the
POSITIVE post of the battery. Note: For top or
side post batteries, you will need to purchase
connectors at an automotive accessory outlet.
TOP-POST ADAPTER
REQUIRED FOR CONNECTION
SIDE-POST ADAPTER
REQUIRED FOR CONNECTION
5

Charging indicators
Red and green lights indicate charger activity. When the charger is operating, indicator lights will show current
activity:
;COLOR STATE CONDITION
Green Off No power supply. Check connection to power source. Check lead connectons.
Green On AC power is connected.
Red On Battery voltage is about 14 volts and charging has stopped.
Red Off Battery voltage has dropped and charging has resumed
Maintenance and care
Very little maintence is needed. Keep the connections free of corrosion and accumulated soil.
6

SEARS
OWNER'S
MANUAL
Model No.
47001
When requesting service or
ordering parts, always provide
the following information:
•Product Type
• Model Number
• Part Number
• Part Description
1.5 AMP
FULLY AUTOMATIC
ONBOARD
BATTERY CHARGER
MAINTAINER
Forinformation abouttroubleshooting
Calltoll4reefromanywhereintheU.S.A.orCanada
7 amto 4:30 pmCSTMondaythroughFriday
1-800-SEARS.64
(1-800-732-7764)
8EARS
0000600547-1195
