Sebo AUTOMATIC X Series User manual

OWNE ’S MANUAL
For Household Use Only

TABLE OF CONTENTS
TECHNICAL DETAILS
U.S. Patents: 5,056,175
4,955,106
5,028,245
Vacuum motor 1300 watts (10.8 amps)
Water lift (at motor) 92 inches
Airflow (at motor) 103.8 CFM
Filter bag capacity 1.4 gal.
Sound level 69 dBA
Body weight X4-16.7 lbs / X5-16.9 lbs
Motor protection electronic cut-out
Working width X4-12 inches / X5-15.1 inches
Brush drive toothed belt
Brush speed 3100 rpm
Floor adjustment automatic sensor control
Cord length 40 feet
Radio suppression EN 55014 Verf. 242/91
Technical Details 2

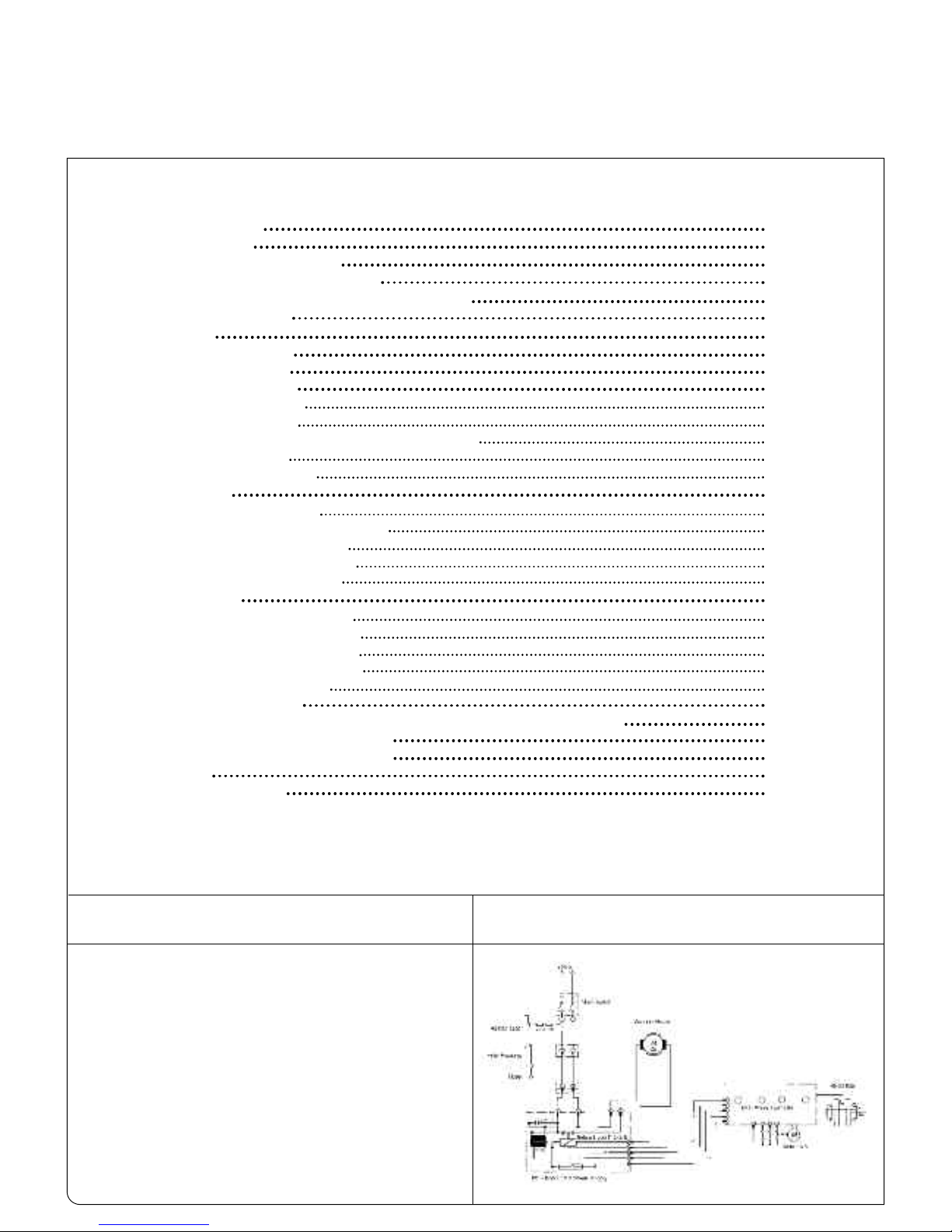

Wiring Diagram 2
Important Safety Instructions 3
SEBO Automatic X Product Features 4
Optional Attachments, Accessories, Bags & Filters 5
Identification of Parts 6
Assembly 6
Standard Attachments 6
Optional Attachments 6
Operating Instructions 7
Starting the Machine 7
Operating Positions 7
Using the Attachment Tube, Hose & Attachments 8
The Display Panel 8
The Adjustment Wheel 8
aintenance 9
Changing the Dust Bag 9
Changing the Micro-Hygiene Filter 9
Changing the Exhaust Filter 9
Changing the Brush Roller(s) 9
Changing the Sealing Strip 9
Clog Removal 10
Clogs in the Airflow Pathway 10
Clogs in the Attachment Hose 10
Clogs in the Attachment Tube 10
Clogs in Entrance to Dust Bag 10
Clogs in the Swivel Neck 10
Trouble-Shooting Guide 11
AUTO ATIC X Filter Bag Housing and Handle Schematic and Part Numbers 12

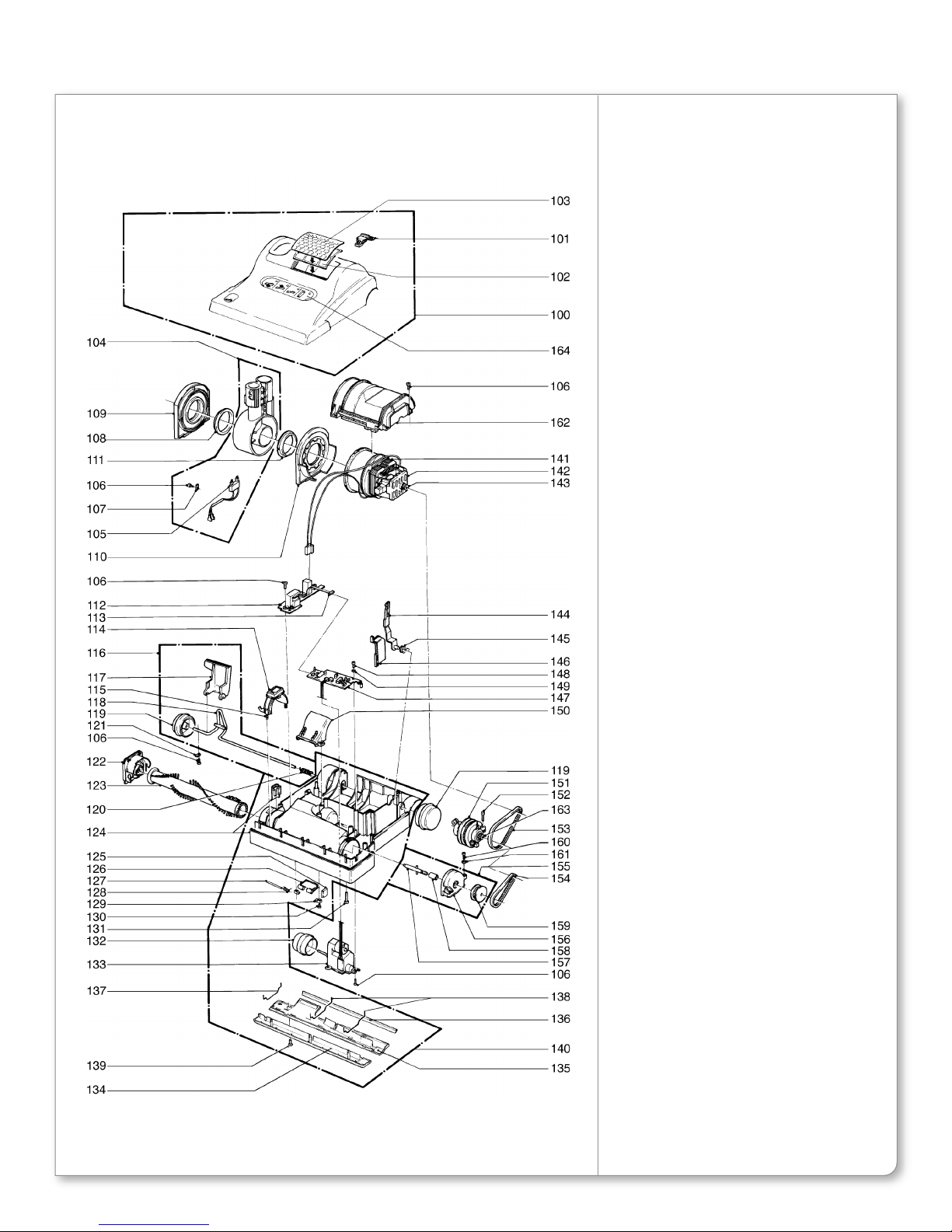

X4 Base Schematic and Part Numbers 13

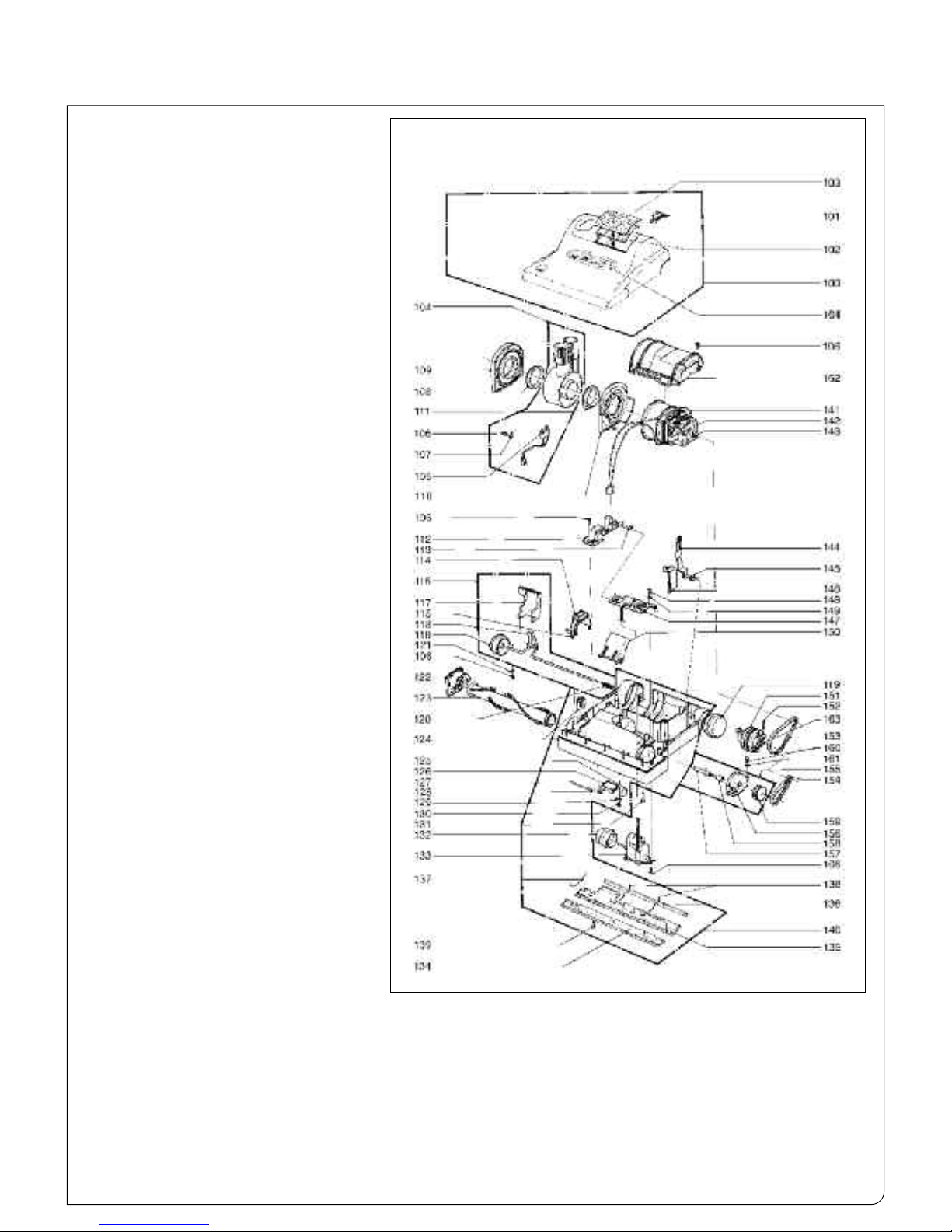

X5 Base Schematic and Part Numbers 14
Warranty 16
How To Contact SEBO 16
WI ING DIAG AM
2

1. Do not leave vacuum while plugged in. Unplug from
outlet when not in use and before servicing.
2. Do not use outdoors or on wet surfaces.
3. Do not use near small children or pets. Do not allow
to be used as a toy. Use of this product by children
should always be supervised by an adult.
4. Use only as described in this manual. Use only
manufacturer-recommended attachments.
5. Do not use with a damaged cord or plug. If vacuum
is not working as it should, has been dropped,
damaged, left outdoors, or dropped into water, take
it to a SEBO service center.
6. Do not pull or carry by cord, use cord as a handle,
close a door on cord, or pull cord around sharp
edges or corners. Do not run vacuum over cord.
Keep cord away from heated surfaces.
7. Do not unplug by pulling on cord. To unplug, grasp
the plug – not the cord.
8. Do not plug in if switch is in the “I” (ON) position.
9. Do not use outlets above counters to plug in vacuum –
damage to items in the surrounding area could
occur.
10. Always carry the vacuum over steps and sills.
11. Do not handle plug or vacuum handle with wet hands.
12. Do not put any object into vacuum openings. Do not use
machine with any openings blocked. Keep openings
free of lint, hair, and anything that may reduce air flow.
13. Do not re-use filter bags or wash the filters.
14. Do not remove any screws from vacuum.
15. Do not vacuum up anything that is burning or
smoking, such as cigarettes, matches, or hot ashes.
16. Do not use vacuum without filter bag and/or filters in
place.
17. Turn off all machine controls before unplugging.
18. Use extra care when cleaning on stairs.
19. Do not use machine to vacuum up flammable or
combustible liquids such as gasoline or use in areas
where they may be present.
20. Machines can cause a fire when operated near
flammable vapors or materials. Do not operate this
vacuum near flammable fluids, dust or vapors.
21. Maintenance and repairs must be done by qualified
personnel.
22. Use only original SEBO replacement parts.
23. Do not use vacuum as a step.
24. If vacuum is used on plush carpet or carpet with thick
padding, do not leave machine standing in one place
with machine turned on.
25. Do not use the operator’s handle, which inserts into the
top of the filter bag housing, to carry the machine. The
carrying handle is located on the backside of the
machine’s bag housing.
26. Keep hair, loose clothing, fingers, and all parts of body
away from vacuum openings and moving parts. Do not
place fingers or other body parts under vacuum unless
it is unplugged.
27. Do not place the power head over rug or carpet edges.
28. The vacuum has a manual reset thermal protector. The
protector is reset by switching off the vacuum. The
thermal protector needs some time to cool down after
switching off! Check the vacuum for air blockages or
mechanical failures before switching on.
29. Store the vacuum in a dry place at room temperature.
When the vacuum is not in use, you should wrap the
cord on the cable hooks.
30. Any other servicing should be performed by an
authorized service representative.
IMPO TANT SAFETY INST UCTIONS
READ ALL INSTRUCTIONS BEFORE USING THIS ACHINE
3
When using an electrical appliance, basic precautions must always be followed.
To reduce the risk of electric shock, this vacuum cleaner has a polarized plug; one blade is wider than
the other. This plug will fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the
plug. If it still does not fit, contact a qualified electrician to install the proper outlet. Do not change the plug in any
way. Connect only to the outlet type specified on the serial number plate underneath the machine.
SAVE THESE INSTRUCTIONS.
WARNING: To reduce the risk of fire, electric shock, or injury:
!

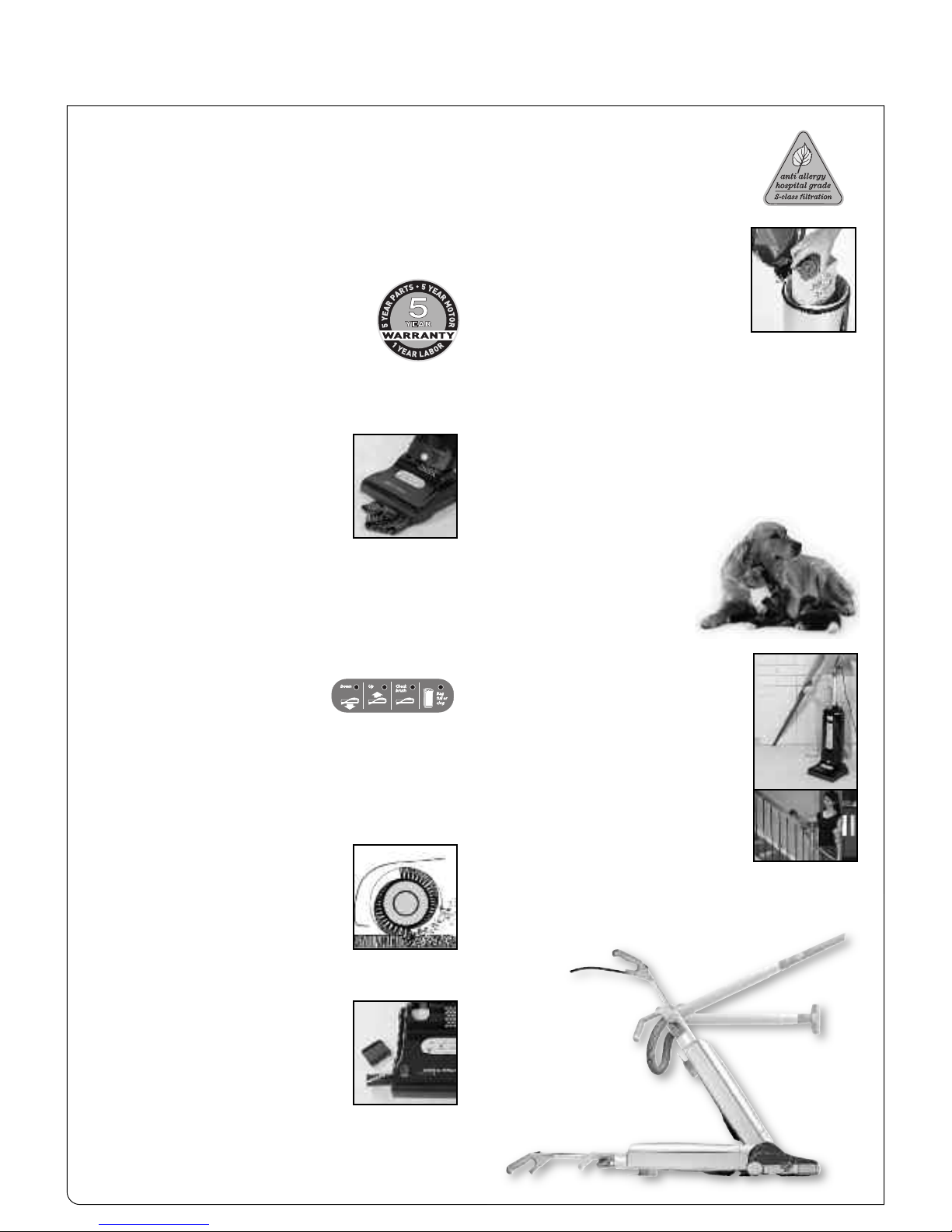

SEBO AUTOMATIC X P ODUCT FEATU ES
4
SEBO Va uums Save Money! – SEBO vacuums are the highest
quality machines available. In fact, if properly maintained,
SEBO vacuums can save ordinary residential users hundreds
of dollars by providing excellent performance for ten to fifteen
years or more. Typical vacuums perform poorly and usually do
not last beyond two years. So, in the long run, SEBO vacuums
cost less money than the five to six other vacuums purchased
during that time period.
Outstanding Warranty Coverage – SEBO is
confident about the quality of all its vacuums.
Therefore, all models include a five-year war-
ranty on the motor and all non-wear parts and
a1-year warranty on labor charges. The
AUTOMATIC X vacuums include a lifetime war-
ranty on the belts.
Brush Obstru tion Light & Auto Shut Off – A warning light will
quickly flash, the brush roller will immediately stop spinning
and the vacuum will shut off, if an obstruc-
tion becomes jammed in the brush roller.
This prevents the belt from breaking and
protects the motor from damage.
The user
should turn the switch off, unplug the
machine and immediately remove the
obstruction. If the user restarts the machine
without removing the obstruction, the machine will again shut off
in 3 seconds and the “CHECK BRUSH” light will flash.
Bag Full or Clog Light & Auto Shut Off – A warning light will
illuminate and the machine will automatically shut off, when it
senses a full bag, a clog in the airflow pathway, or an exces-
sively dirty micro filter.
If the user ignores this warning for
approximately 30 seconds, the machine will shut off and the “BA
FULL OR CLO ” light will flash. The user
should turn the switch off, unplug the
machine and immediately insert a new
bag or remove the clog (to remove a clog,
refer to the Clog Removal section on page 10). If the user restarts
the machine without having solved the problem, the “BA FULL
OR CLO ” light will again illuminate and the machine will shut off
in 30 seconds.
This feature prevents damage to the motor due
to overheating.
Brush Deterioration Light – To ensure optimum cleaning at all
times, a warning light will illuminate to
indicate when the brush roller should be
replaced due to excessive wear.
The red
“CHECK BRUSH” light will illuminate (after a
10 second delay) to notify the user that the
brush roller is too worn and, therefore,
should be replaced. The light will remain illu-
minated until the worn brush roller is replaced, but the machine
will continue to operate.
Easy Brush Roller Removal – Quick brush
cleaning or replacement is easy, and no
tools are required!
Anti-allergy Hospital-grade, S- lass
Filtration – An excellent choice for users
with allergies or asthma.
Liberation from Bagless! SEBO Bags are
Hygieni – The three-layer filter bag is an
integral part of SEBO’s filtration system
because it effectively contains nearly all
dirt captured by the vacuum. And SEBO
bags can be sealed when full, so no dust
can escape into the air during disposal. In
contrast, a lot of dust becomes airborne
when emptying the dirt containers of bag-
less vacuums, and their micro filters quickly clog and must be
replaced often, or a loss of suction will occur. And bagless
vacuum micro filters are expensive, usually costing much
more than SEBO’s filter bags.
Mi ro Filters are Inexpensive and Easy to Change – Unlike
most other vacuums, SEBO’s replacement micro filters are
reasonably priced and can be easily changed in seconds,
without any tools. And the micro filters last a long time before
replacements are necessary because nearly all dust particles
and debris are first captured by the three-layer filter bags.
Remarkably Quiet Operation – A
SEBO vacuum is so quiet, it will
not scare pets, and the feature
will be appreciated by family
members.
Instant-use Wand and Su tion Hose – The
integrated instant-use wand or suction
hose is always ready. Just pull out either
tool, or both together, to clean hard-to-
reach corners, edges and crevices. The
suction hose is ideal for cleaning furni-
ture. And an optional nine-foot extension
hose is available, which creates a total
hose length of 15-feet, perfect for cleaning
stairs. Choose from a range of optional
attachments that can be fitted to the wand
or hose. The wand and hose together have
an eight-foot reach for instant cleaning of
hard-to-reach areas.

SEBO AUTOMATIC X P ODUCT FEATU ES
5
Designed for All Floor Surfa es.
Automati Height Adjustment for All
Floors – Based upon the resistance of the
brush roller against the floor, the power
head automatically adjusts up or down to
the appropriate cleaning height, providing
optimal cleaning of all floor surfaces.
The
height adjustment chosen by the machine
ensures aggressive brush action, while pro-
viding optimal air flow. This prevents suffo-
cation of air flow due to improper height
selection.
Never again manually adjust the brush height or
use different vacuums for various floor surfaces; the SEBO X
cleans them all, automatically!
Brush Adjustment Indi ator Lights – Two
lights, one for “up” and one for “down,”
illuminate to indicate when the brush
roller is in the process of adjusting to the
proper cleaning height. Optimum cleaning
occurs when both lights are off.
Stationary Use Light – A warning light will slowly flash when
the machine is standing in its upright locked position (which
causes the power head to rise to its highest point from the
floor) yet the brush remains in contact with the carpet fibers.
This feature warns of potential carpet damage caused by
excessive time in a stationary position, during which carpet
fibers remain engaged with the brush, usually on medium to
high pile carpet.
Lifetime Belt Warranty - No more chang-
ing belts...they should last the life of the
machine!
Va uum Motor – The AUTOMATIC X has a
1300 watt motor.
Forty-foot Cord – A 40-foot cord saves time because it mini-
mizes the number of electrical outlets needed during use.
Two Power Head Widths – The AUTOMATIC X4 power head is
12-inches wide, with a
cleaning width of 10 ½-
inches. The AUTOMATIC
X5 power head is 15-
inches wide, with a
cleaning width of 14 ½-
inches.
A Flat-to-the-floor, 5.5-in h Profile – Such a low profile
makes cleaning under furniture and beds easy!
Three On-board, Full-size Tools and Large Filter Bag – The
vacuum comes standard with a crevice nozzle, dusting brush
and upholstery nozzle. Many optional accessories are also
available. The filter bag is also SEBO’s largest, with a dirt
capacity of 1.4 gallons.
Crevice Nozzle Dusting Brush Upholstery Nozzle
X4X5
In addition to the standard on-board tools, a variety of
optional attachments are available. The nine-foot exten-
sion hose (extends suction hoses) and the 19-inch exten-
sion tube (extends instant-use wands) are very popular
because they create useful tools for cleaning stairs and
out-of-reach areas. These two items are sold separately or
as part of multiple item attachment kits. Another popular
attachment is the hand held turbo brush for removing pet
hair from upholstery.
Extension Tube Nine-foot Extension Hose Charcoal Odor Filter Hand-held Turbo Brush Radiator BrushFilter Bags
SEBO filter bags can be purchased in boxes of ten (or some-
times eight) and filters are sold separately. Also, bags and
filters can be purchased together in model-specific kits
called “Service Boxes.” SEBO bags, filters and accessories
are reasonably priced and widely available.
To create a fresh scent while vacuuming, “SEBO FRESH” is
available. To use, deposit a scented stick in the filter bag.
SEBO FRESH
OPTIONAL ATTACHMENTS, ACCESSO IES, BAGS & FILTE S

6
IDENTIFICATION OF PA TS
ASSEMBLY
1. Handle grip
2. On/Off switch
3. Handle assembly
4. Retaining ring
5. Cover release flap
6. Dust bag housing
7. Front cover
8. Housing release button
9. Power head with brush
10. Cable (cord)
11. Attachment tube handle
12. Attachment hose
13. Handle catch
14. Carrying handle
15. Cable (cord) hook
16. Attachment tube (active wand)
17. Crevice nozzle
18. Upholstery nozzle
19. Foot pedal
20. Swivel neck
21. Support lever
22. Protruding tab
23. Connecting tube
Place the power head (9) on the floor with the swiv-
el neck (20) and the support lever (21) upright. Hold
the dust bag housing (6) vertically and place it over
the swivel neck and support lever. Push firmly and
evenly down so that the housing release button (8)
snaps outward to its “locked” position.
Slide the dusting brush clamp (24) onto the handle
tube and tighten the screw. The handle of the dust-
ing brush (25) will now snap into the clamp.
To lock the handle (3) to the dust bag housing (6),
turn the handle catch (13) at the handle joint of the
filter bag housing (6) forward to “open” position.
Then slide the handle assembly (3) in as far as pos-
sible and lock it in by turning the handle catch to the
closed position.
Push the black end of the attachment hose (12) into
the connecting tube (23) so that it clicks into place.
Insert the attachment tube (16) into the swivel neck
and push the handle (11) over the protruding tab (22).
Insert crevice nozzle (17) and upholstery nozzle (18)
into the recesses in the back of the machine.
Attach dusting
brush clamp
with screw
24
25
25
18 17
24
Optional Attachments
41. Wall and floor brush - Part #1325H
42. Turbo brush for stairs - Part #6179DA
43. Radiator brush - Part #1496H
44. Extension hose (9’3”) - Part #1495AM
45. Straight tube - Part #1084H
46. Flat upholstery nozzle - Part #1090H
Also available for odor control - the combined
micro/charcoal filter - Part #5425AM
45
Standard Attachments
17. Crevice nozzle
18. Upholstery nozzle
24. Dusting brush clamp
25. Dusting brush
42
43
46
44
41
NOTE: All illustra-
tions shown in this
manual represent
the X4 model except
where part numbers
and instructions are
different for each
model. In those
instances, illustra-
tions for both the X4
and X5 will be
shown.

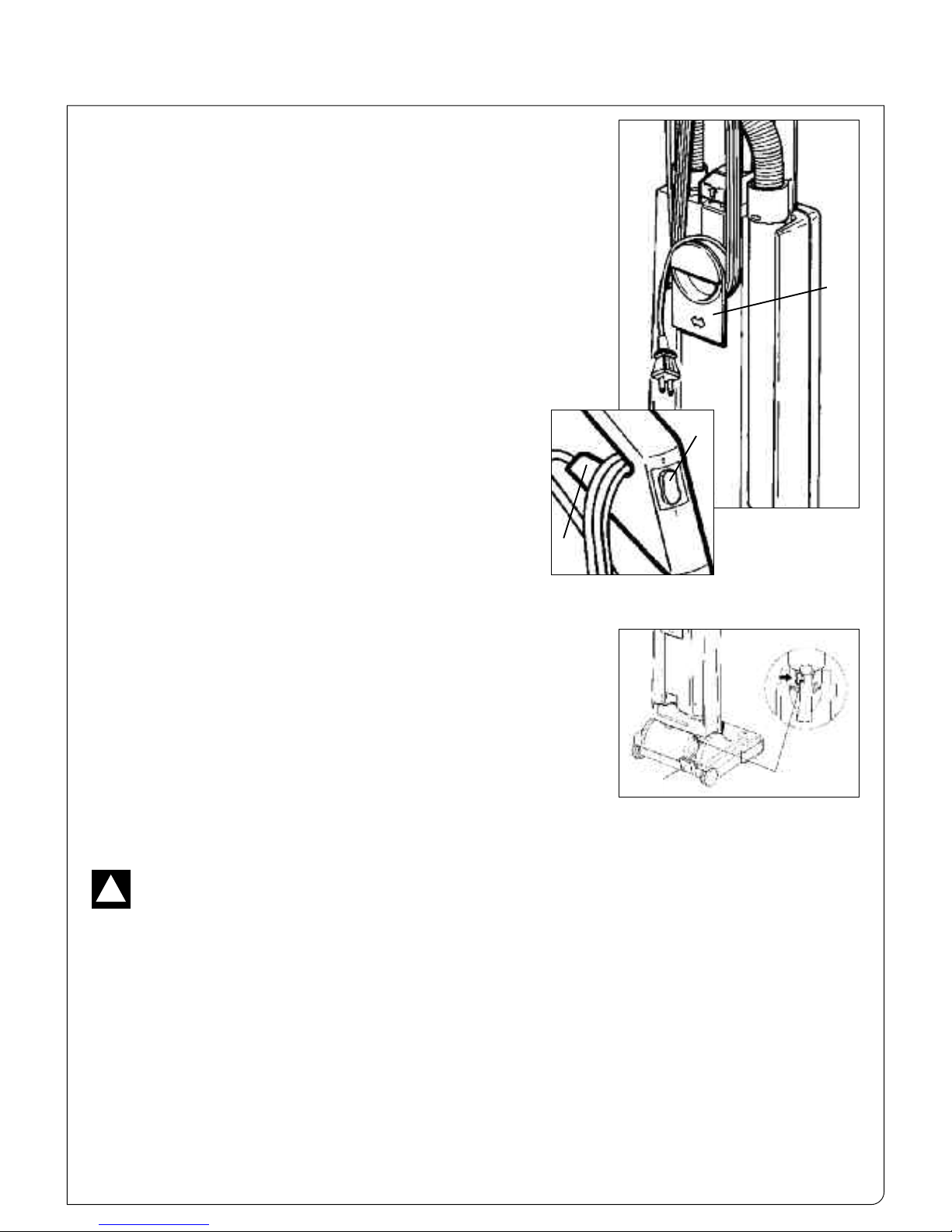

OPE ATING INST UCTIONS ALL AUTOMATIC X VACUUMS
Starting The achine - Figures 1 & 2
Before turning on your vacuum cleaner, make sure that the vacuum handle is in
its upright locked position and that you have a firm hold on the handle grip to keep
the machine from moving forward.
1. Turn the quick release cable hook (#15, figure 1) to the up position
by moving it to the left or right.
2. Release the power cord plug from the power cord
and lift the cord off of the upper cord hook (#26, figure 2).
3. With the switch (#2, figure 2) in the “O” (OFF) position, plug the
polarized power cord into a 120 volt outlet located near the floor.
Switch Position
O = OFF
I = ON
Operating the achine - Figure 3
When the machine is switched on with the handle in the upright locked position,
the power head and brush automatically rise from the carpet. To release the
machine from the upright locked position, press down on the foot pedal (19) and
lower the handle into the normal operating position. The power head and brush
will automatically lower to the appropriate height.
The handle can be lowered to an intermediate stop position in order to lift up the
brush head for maneuvering over rugs, etc. To lower the handle to a horizontal
position useful for vacuuming under beds, the foot pedal must be pressed a sec-
ond time. The intermediate stop position can be closed off by the orange-colored
slider (27) on the back of the swivel neck (20), so that the handle will go from ver-
tical to horizontal in one movement.
WARNING! The quality, condition, coating, texture, age and manufacturing technique of all floor surfaces vary.
Therefore, upright vacuums with rotating brushes, including your SEBO, may damage some floor coverings or surfaces. Some
types of high-gloss hardwood floors, cushion vinyl, berber carpets, long shag, and delicate or hand-woven carpets are particu-
larly vulnerable to damage by rotating brushes. When possible, consult the materials supplied by your floor’s manufacturer for
information on proper upkeep and cleaning. To ensure that your new SEBO vacuum cleaner is compatible with your floor,
please test the vacuum cleaner on each type of flooring surface in a small inconspicuous area to determine if any damage
occurs. If damage occurs, stop using the vacuum cleaner immediately!
The standard brush roller on your SEBO vacuum is appropriate for most types of floor surfaces. However, a soft-bristle brush
roller (X4 part # 5010GE or X5 part # 5290GE) that is designed for use on sensitive looped-pile carpets and/or hard floors is
available for an additional charge. As with the standard brush roller, you should test the machine using the soft-bristle brush
roller in an inconspicuous area prior to widespread use. The soft-bristle roller will wear more quickly than the standard brush
roller, so it will need to be replaced more often. Also, because the bristles are softer, the height adjustment on the machine
will be slightly lower than normal. Care must be taken to ensure that the bottom of the machine does not contact the floor.
If this happens, damage to the floor could occur. If damage occurs, stop using the vacuum cleaner immediately!
15
2
26
27
19
!
Figure 1
Figure 3
Figure 2
7

Using the Attachment Tube, Hose & Attachments -
Figures 4, 5 & 6
The attachment tube (16) is useful for vacuuming corners and hard-to-reach
areas. The handle grip (1) should be in the upright, locked position (as shown
in figure 4). rip the attachment tube handle (11), pull it up and away from the
machine and stretch out the hose (12) until it locks to the back of the tube (this
locking action will prevent the hose from retracting back into the attachment
tube while it is in use). Various attachments may be inserted onto the end of the
tube. After use, remove attachment and re-insert the attachment tube into the
back of the machine. Be sure that the attachment tube handle (11) is inserted
over the protruding tab (see #22, page 6). If the attachment tube handle is
properly seated over the protruding tab, the hose will automatically retract and
you may resume vacuuming. There is no need to turn off the vacuum while
switching from upright vacuuming to using the attachment tube or hose.
To use the hose without the attachment tube (as shown in figure 5), pull the hose
out of the attachment tube while the tube is still attached to the machine and
securely seated over the protruding tab (22). Insert an attachment tool, if desired,
onto the end of the flexible hose. You may also release the hose while the attach-
ment tube is disengaged from the machine by pressing the release button at the
base of the handle (11).
While using attachment tools, if the the power head brush roller is not able to
disengage from the floor surface, the stationary-use warning light will flash.
You may keep the brush roller off the carpet by placing the handle (1) in its
upright locked position and lowering the handle with one hand to raise the
brush roller off of the floor. Operate attachment accessories with the other
hand. Or, with the handle in the upright locked position, the machine may be
tipped backward so that it rests against furniture or the floor on the back side
of the bag housing (6), and the power head is locked in a perpendicular position
to the floor. Ensure that no children or pets can come into contact with the spin-
ning brush roller.
To vacuum walls, under beds, or higher-reach areas, etc., the SEBO AUTOMATIC
X can be fitted with an additional straight tube (45) and the wall and floor brush
(41). The machine will then perform as a canister vacuum (as shown in figure
6).
The Adjustment Wheel - Figures 8 & 9
On hard floors (figure 8), the adjustment wheel (40), moves upward into the
machine so that the brush lowers and becomes flush with the floor.
On carpeted floors (figure 9), the adjustment wheel (40) moves downward out of the
machine so that the brush rises. The adjustment wheel moves up and down auto-
matically to adjust the brush to the correct setting. This provides aggressive brush
action, while maintaining optimal air flow.
Hard Floor
Carpeted Floor
The Display Panel - Figure 7
reen light (a): Brush is lowering
reen light (b): Brush is rising
Red light (c): Flashing and motor off - brush jammed – clear jam
Red light (c): Flashing and motor on (when machine is in upright,
locked position) – Take care, brush in contact with carpet
Red light (c): Continuous – change brush roller
Red light (d): Continuous – change bag or clear clog
Red light (d): Flashing – motor switched off due to full bag or clog
For more information on the display panel, see pages 4 and 5.
Figure 4 Figure 5
Figure 6
Figure 7
Figure 9
Figure 8
45
41
1
11
16
12
6
40
40
8

VACUUM MAINTENANCE
Changing the Dust Bag - Figure 10
To change the dust bag, pull the cover release flap forward
(#5 on page 6) and lift the cover (7) from the dust bag
housing. The cover release flap must remain in a forward
“pulled-out” position to change dust bags and lock them
into place. Squeeze the clamps on both sides of the dust
bag sealing plate, slide the plate (28) from the holder (29)
and push the cap on to seal the bag. Slide the sealing
plate (28) of a new bag into the holder and push it in firm-
ly. Re-insert cover into dust bag housing, push it forward,
then lock it in place by pushing down the cover release
flap. You may find it convenient to store the bag cap inside
the dust bag housing below the dust bag.
Changing the icro-Hygiene Filter - Figure 11
The micro-hygiene filter (30) needs to be changed when it
becomes extremely dirty or clogged with dust, or after
approximately 20 dust bags have been used. To change
the micro-hygiene filter, pull the cover release flap (#5 on
page 6) forward and lift the cover from the dust bag hous-
ing. Then, slide the filter out at the bottom. To replace, lift
the safety lever (31) and slide the new filter in using the
tracks as guides.
Changing the Brush Roller(s) - Figure 13 (X4),
Figure 13a (X5)
To change the brush roller(s) (35 or 35a), push the but-
ton(s) (36 or 36a), remove the side plate(s) (37 or 37a),
turn the brush(s) clockwise a quarter of a turn, and pull
the old brush roller(s) out. Slide the new brush roller(s)
into the brush housing and turn it until it locks into posi-
tion. While slightly pushing the button(s) (36 or 36a),
press the side plate(s) (37 or 37a) back into the locked
position.
Figure 10
Figure 11
Figure 12
Figure 13 (X4)
Figure 14 (X4)
Always unplug vacuum from outlet
before dismantling any part of machine!
!
Dust Bags
Part #5093AM
Micro-Hygiene
Filter
Part #5036AM
Exhaust Filter
Part #5143
Brush Roller (X4)
Part #5010AM
Changing the Sealing Strip - Figure 14 (X4),
Figure 14a (X5)
The sealing strip (39) is located just behind the brush
roller opening. The sealing strip seals the power head to
hard floors to prevent kick-back of debris while vacuum-
ing. To replace a worn sealing strip, push the release but-
ton, remove the side plate (36 and 37 in figure 13 & 13a)
and slide old strip out. Insert the new strip into the slot
and slide into place.
Changing the Exhaust Filter - Figure 12
After 20 bags have been used, change the exhaust filter
(32). To remove the exhaust filter, push the catch (33)
backward and remove the filter cover (34) and exhaust fil-
ter. Insert the new filter and replace the filter cover.
39
Figure 13a (X5)
Figure 14a (X5)
Brush & Edge
Rollers (X5)
Part #5290AM
Sealing Strip
Part #5400-1 (X4)
Part #5400-2 (X5)
39
9

10
CLOG EMOVAL
Figure 19

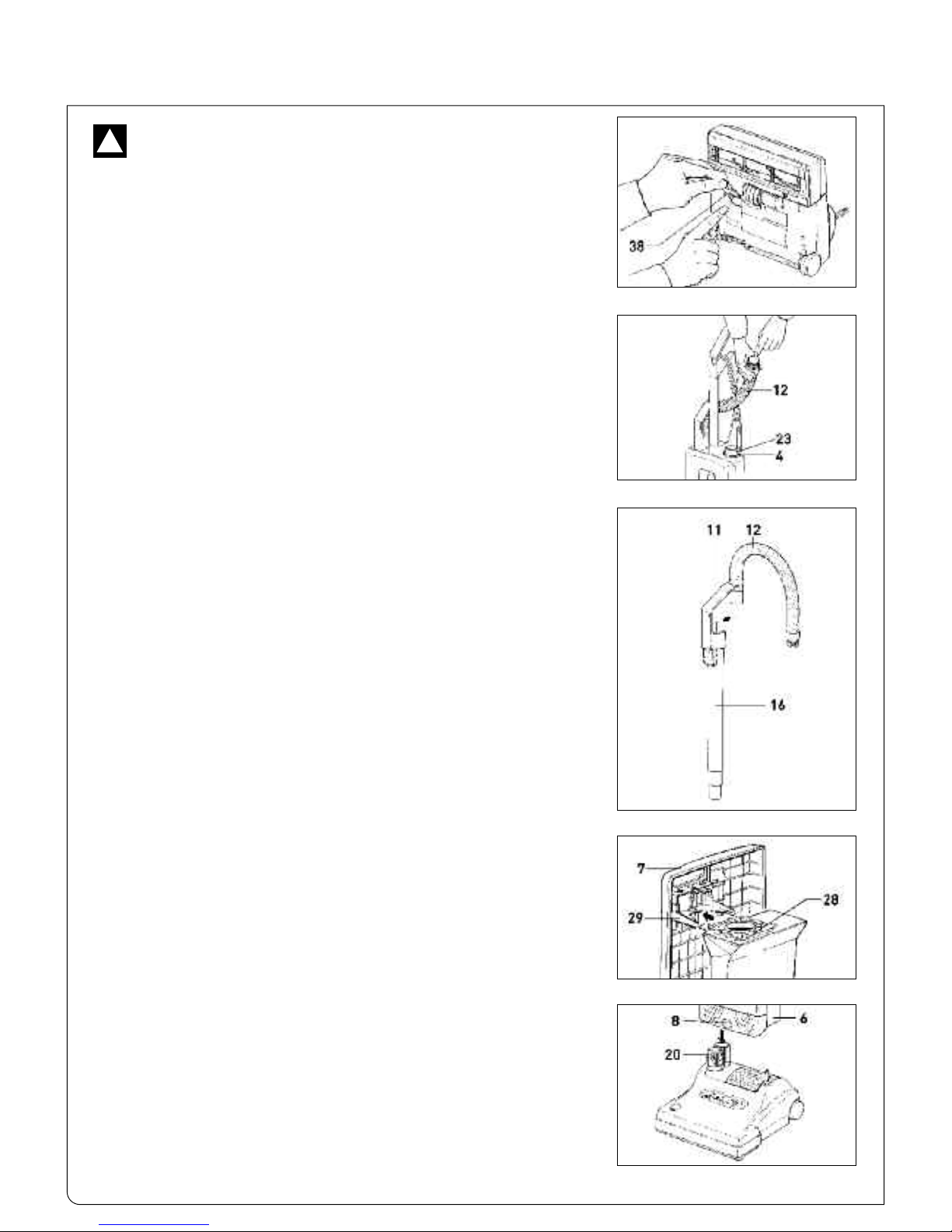

Clogs in the Attachment Hose - Figure 16
Blockages in the hose can be cleared by removing the attachment hose (12)
from the machine by squeezing the retaining ring (4) and inserting the oppo-
site end of the hose in the connecting tube (23). Hold the hose upright with
one hand blocking the top end and switch on the machine. If necessary,
quickly lift your hand on and off the end of the hose. If this procedure does not
clear the clog, a straight wire can be inserted into the hose to push out the
clog. Take care not to puncture the hose with the wire.
Clogs in the Airflow Pathway - Figure 15
Most clogs can be removed by accessing the airflow pathway via the orange
colored access door (38) located on the underside of the power head.
However, other clogs may only be removed by accessing the airflow pathway
by disassembling the machine in the opposite sequence of the machine’s
original assembly (see assembly, page 6).
Figure 16
Figure 15
Clogs in the Attachment Tube (Active Wand) - Figure 17
Remove attachment hose (12) from the attachment tube (16). Then, grip
attachment tube handle (11) and remove tube from the machine. A straight
wire can be inserted into the tube to push out the clog.
Always unplug vacuum from outlet before removing
any clogs!
!
Clogs in the Swivel Neck - Figure 19
Clogs in the swivel neck (20) can be removed by first pressing the housing
release button (8) and lifting off the dust bag housing (6). Lift upward firmly
and evenly to properly remove the dust bag housing. Then, release the foot
pedal (19), lower the swivel neck, check inside the swivel neck channel clos-
est to the foot pedal (see arrow), and clean out pathway.
Clogs in Entrance to Dust Bag - Figure 18
Remove attachment hose (12) from vacuum cleaner (see figure 16) and remove
front cover (7). Clean out connecting tube (23) and/or entrance to bag (28).
Figure 18
Figure 17

T OUBLE-SHOOTING GUIDE
PROBLE
Does not turn on
or machine shuts off
intermittently
Bag full or clog light on
or flashing &
machine shuts off
Brush light on
Brush light slowly
flashing
Brush light flashing &
machine shuts off
Up & down lights flicker
Does not pick up
Front bag door won’t
fully close
Hose doesn’t retract
after attachment tube is
inserted
REASON
1. Handle not fully inserted into the bag
housing, causing a faulty connection.
2. Not plugged into good outlet.
3. Cable worn.
4. Dust bag housing (6) not seated
fully into proper “locked” position
on top of power head.
1. Bag full.
2. Clog in airflow pathway, attach-
ment hose, attachment tube, swivel
neck or entrance to dust bag.
3. Microfilter dirty.
1. Brush worn.
1. Vacuum is stationary and in
upright locked position.
1. Brush jammed.
1. Operating on uneven floor.
1. Attachment tube not
correctly inserted.
2. Front cover not closed.
1. Cover release flap not fully closed.
2. Bag not inserted properly
3. Microfilter not properly inserted.
1. Attachment tube not properly
inserted.
SOLUTION
1. Release handle catch, push handle
down, close handle catch. See pg. 6.
2. Use another outlet.
3. Replace cable.
4. Housing release button (8) should
be snapped outward to its locked
position.
1. Replace bag. See Bag Replacement
on page 9. Also see page 4.
2. See Clog Removal on page 10.
Also see page 4.
3. Replace microfilter. See page 9
1. Replace brush. See page 9.
Also see page 4.
1. See page 7. Also see page 5.
1. Shut off the power switch, unplug
the machine and pull the obstruc-
tion from the brush roller. Also see
page 4.
1. Ignore.
1. Reinsert attachment tube, making
sure lower end of tube is in the
lower hole and handle is properly
seated over the protruding tab (22).
2. See below.
1. Reinsert bag. Lock the cover
release flap down firmly.
2. Reinsert bag with cover release
flap (5) up, until firmly latched in
bag holder (see pg. 9 figure 10).
3. Lift safety lever and insert filter with
vertical plastic ridge on filter facing
you (see pg. 9, figure 11).
1. Reinsert making sure top of handle
is pointing back and tube is fully
seated on the protruding tab (22)
on top of the dust bag housing.
Always unplug vacuum from outlet before dismantling any part of the machine!
!
11

12
AUTOMATIC X4 & X5 SCHEMATIC AND PA TS LIST
#9570A X4 and #9580A X5 White/Gray achine
Pos. Part # Des ription
1 5634AM Handle complete - dark gray/lightt gray
(incl. pos. 2 -13)
2 5297SE Handle grip (incl. pos. 3, 7 + 10)
3 5359D rommet
45450D Power supply cord
5 05112 Switch
65160H Switch cap - light gray
75161D Switch cap holder
8 5162 Cable clamp
90103 Screw C 3.9x16 DIN 7981
10 5253UL Wire-antistatic
11 5298ER Handle cable
12 0129 Screw M 4x12 DIN 966
13 5187 Handle tube
14 0102 Screw F 3.9x13 DIN 7981
15 5040H Hose, cpl.
16 5045D Extension tube
17 5707 W Cover - white
18 5319 Bag holder Spring
19 5706D Cover release - dark gray
20 5091 Safety catch spring
21 5360 Safety catch
22 5324 Bag holder cpl. (incl. pos. 20 + 21)
23 5750SE Front cover complete - white/dark gray
5454 Front cover seal
24 5093AM Dust bag pack
25 5036AM Micro hygiene filter
26 5380D Internal cover cpl. (incl. pos. 40 + 41)
27 1073 Clamp
28 5208 Filter safety catch
29 5210 Return spring
30 5164 Cable clamp
31 5722D Dust bag housing locking catch - dk gray
32 1859D Handle catch - dark gray
33 0161 Clip 4, DIN 6799
34 5721 W Carrying handle - white
35 5703 W Cable hook - white
36 5146 Stop spring
37 5424D Retaining ring
38 5299ER Internal cable
39 5266 Cable clamp
40 5842 Seal
41 5289 Seal
42 5764 W Dust bag housing - white (no bumper)
43 1823D Attachment clip - dark gray
44 5084 Spring for locking rod
45 5163 Seal
46 5083 Locking rod
47 5702 W Dust bag housing bumper base - white
48 5755 W Dust bag housing, cpl. - white/dk gray
(incl. pos. 9, 14 + 26-47)
49 1092D Crevice nozzle
50 1491D Upholstery nozzle
51 5460D Mounting clip with screw
52 1329D Dusting brush
#9501A X4 Onyx/Silver achine Exceptions
1 5640AM Handle complete - black/silver
(incl. pos. 2-13)
2 5295SW Handle grip (incl. pos. 3, 7 + 10)
3 5359SW rommet
6 5160SB Switch cap - silver
7 5161SW Switch cap holder -black
15 5040SW Hose - black
16 5045SW Extension tube - black
17 5707SW Cover - black
19 5706SB Cover release - silver
23 5774SE Front cover complete - black/silver
26 5380SW Internal cover (incl. pos. 40 + 41}
31 5722SB Dust bag housing locking catch - silver
32 1859SB Handle catch - silver
34 5721SW Carrying handle - black
35 5703SW Cable hook - black
37 5424SBAM Retaining ring
42 5764SW Dust bag housing - black
(incl. pos. 14, 26, 32, 33, 37 + 40-45)
43 1823SW Attachment clip - black
47 5702SW Dust bag housing bumper base - black
48 5763SW Dust bag housing complete - black
(pos. 9, 14, + 26-47)
49 1092SW Crevice nozzle - black
50 1491SW Upholstery nozzle - black
#9558A X4 Red/Gray achine Exceptions
1 5638AM Handle complete - dark gray/red
6 5160DR Switch cap - red
17 5707DR Cover - red
23 5751SE Front cover complete - red/dark gray
35 5768DR Cable hook (incl. pos. 34 carrying
handle) - red
42 5764DR Dust bag housing (no bumper) - red/dark gray
47 5702D Dust bag housing bumper - dark gray
48 5759DR Dust bag housing complete - red/dark gray
Filter Bag Housing and Handle #9501AM X4 Onyx/Silver
#9558AM X4 Red/ ray
#9570AM X4 White/ ray
#9574AM X4 Spring reen
#9577AM X4 Blue/Yellow
#9580AM X5 White/ ray
#9587AM X5 Blue/Yellow
#9577A X4 and #9587A X5
Blue/Yellow achine Exceptions
Pos. Part # Des ription
1 5636AM Handle complete - dark gray/yellow
6 5160S Switch cap - yellow
17 5707DB Cover - dark blue
19 5706S Cover release - yellow
23 5749SE Front cover complete - dark blue/
yellow
31 5722S Dust bag housing locking catch -
yellow
32 1859S Handle catch - yellow
34 5721DB Carrying handle - dark blue
35 5703DB Cable hook - dark blue
42 5764DB Dust bag housing (no bumper)- dark
blue/yellow
47 5702DB Dust bag housing bumper base -
dark blue
48 5763DB Dust bag housing complete - dark
blue/yellow)
#9574A X4 Spring Green achine Exceptions
Pos. Part # Des ription
1 5637AM Handle complete - spring
green (pos. 2-13)
6 5160F Switch cap - spring green
17 5707F Cover - spring green
23 5754SE Front cover complete
- spring green/dark gray
34 5721F Carrying handle - spring
green
35 5703F Cable hook - spring green
42 5764F Dust bag housing (no
bumper) - spring green
47 5702D Dust bag housing bumper
base
48 5759F Dust bag housing cpl.
(spring green)
(incl. pos. 9, 14 + 26-47)

13
AUTOMATIC X4 SCHEMATIC AND PA TS LIST
#9570A X4 White/Gray achine
Pos. Part # Des ription
100 5780AM Power head cover, complete
-white/dark gray
101 5712 W Exhaust filter catch - white
102 5143 Exhaust filter
103 5711 W Exhaust filter cover - white
104 5729UL Swivel neck assembly
105 5176UL Male contact holder
106 0102 Screw F 3.9 x 13 DIN 7981
107 2494 Cable clamp
108 5101 Swivel neck bearing r. h.
109 5178 Swivel neck support r. h (2 Screws)
5480 Swivel neck support r. h.(1 Screw)
110 5728 Swivel neck support l. h. (2 Screws)
5479 Swivel neck support l. h. (1 Screw)
111 5717 Swivel neck bearing l. h.
112 5203ER PCB 12 V power supply
113 5205 Ribbon cable
114 5713 W Brush roller release - white
115 5103 Spring
116 5051D Axle, assembly
117 5059OR Foot pedal - orange
118 5053 Axle
119 5819D Wheel
120 2010 Axle spring
121 2014 Axle clamp
122 5031 W Bearing block right hand- white/dark gray
123 5010AM Brush roller
124 5005D Bumper set
125 5155D Rubbing plate
126 5172OR Access door (incl. pos. 127 + 128)
127 5303 Access door axle
128 5304 Access door spring
129 5154D Hinge
130 0100 Screw C 2.9 x 9.5 DIN 7981
131 0176TL Screw AM 4 x 30 DIN 7985 TL
132 5174D Pile adjustment wheel
133 5060ER Servo motor with gear box
134 5411D Front bottom plate, complete
135 5412D Rear bottom plate, complete
(incl. pos. 136 + 139)
136 5400-1 Sealing strip
137 5401 Wire tie
138 5402 Wire tie
139 0197 Screw M 4 x 12
140 5320D Chassis, cpl. (Old - 4 screws)
5482D (New - 2 screws + 2 tabs)
141 5468 Vacuum motor 1300 W / 120 V
05117S Carbon brush set for vac motor
142 5100 Rubber mounting
143 5462 Motor pulley
144 5129 Support lever
145 5107-1 Support spring
146 5112SW Motor pulley cover
147 5740ER Computer controller
148 0107 Screw C 2.9 x 13 DIN 7981
149 0143 Washer 3.2 DIN 125
150 5173SW Cover for air channel
151 5464 Sensor
152 0104 Screw C 3.9 x 25 DIN 7981
153 5463 Belt 2MR-310-6
154 5110 Belt 219 3M HTDII-6
155 5766H Bearing block l. h., complete
156 5044H Bearing block l. h.
157 5017ER Drive shaft, complete
158 5327 Bushing
159 5179 Clutch
160 0103 Screw C 3.9 x 16 DIN 7981
161 0141 Locking washer
162 5018UL Motor cover
163 5117/1 Sensor pulley
164 5730D Display - dark gray
#9501A X4 Onyx/Silver achine Exceptions
100 5783AM Power head cover complete
(incl. pos. 101 - 103 + 164) - onyx/silver
101 5712D Exhaust filter catch - dark gray
103 5711SW Exhaust filter cover - onyx
114 5713SW Brush roller release - onyx
122 5031D Bearing block right hand
164 5730SB Display - silver
#9558A X4 Red/Gray achine Exceptions
100 5778SE Power head cover complete
(incl. pos. 101 - 103 + 164) -
red/dark gray
101 5712D Exhaust filter catch - dark gray
103 5711DR Exhaust filter cover - red
114 5713D Brush roller release
122 5031DR Bearing block right hand -
red/dark gray
Power Head #9501AM X4 Onyx/Silver
#9558AM X4 Red/ ray
#9570AM X4 White/ ray
#9577A X4 Blue/Yellow achine Exceptions
Pos. Part # Des ription
100 5786AM Power head cover complete
(incl.pos. 101 - 103 + 164)
- dark blue/yellow
101 5712DB Exhaust filter catch -
dark blue
103 5711DB Exhaust filter cover -
dark blue
114 5713DB Brush roller release -
dark blue
122 5031DB Bearing block right hand -
dark blue/dark gray
164 5730S Display - yellow
#9574A X4 Spring Green achine Exceptions
Pos. Part # Des ription
100 5779SE Power head cover complete
(incl. pos. 101 - 103 + 164)
- spring green/dark gray
101 5712D Exhaust filter catch
103 5711F Exhaust filter cover -
spring green
114 5713D Brush roller release
122 5031F Bearing block right hand -
spring green/dark gray
#9574AM X4 Spring reen
#9577AM X4 Blue/Yellow

AUTOMATIC X5 SCHEMATIC AND PA TS LIST
#9580A X5 White/Gray achine
Pos. Part # Description
100 5790AM Power head cover, complete
-white/dark gray
101 5712 W Exhaust filter catch - white
102 5143 Exhaust filter
103 5711 W Exhaust filter cover - white
104 5729UL Swivel neck assembly
105 5176UL Male contact holder
106 0102 Screw F 3.9 x 13 DIN 7981
107 2494 Cable clamp
108 5101 Swivel neck bearing r. h.
109 5178 Swivel neck support r. h.
110 5728 Swivel neck support l. h.
111 5717 Swivel neck bearing l. h.
112 5203ER PCB 12 V power supply
113 5205 Ribbon cable
114 5713 W Brush roller release - white
115 5103 Spring
116 5051D Axle, assembly
117 5059OR Foot pedal, orange
118 5053 Axle
119 5819D Wheel
120 2010 Axle spring
121 2014 Axle clamp
122 5031 W Bearing block right hand
- white/dark gray
123 5290AM Brush roller set
124 5230D Bumper
125 5155D Rubbing plate
126 5172OR Access door (incl. pos. 127 + 128)
127 5303 Access door axle
128 5304 Access door spring
129 5154D Hinge
130 0100 Screw C 2.9 x 9.5 DIN 7981
131 0176TL Screw AM 4 x 30 DIN 7985 TL
132 5174D Pile adjustment wheel
133 5060ER Servo motor with gear box
134 5413D Front bottom plate, complete
135 5414D Rear bottom plate, complete
(incl. pos. 136 + 139)
136 5400-2 Sealing strip
137 5401 Wire tie
138 5402 Wire tie
139 0197 Screw M 4 x 12
140 5321D Chassis, complete
141 5468 Vacuum motor 1300 W / 120 V
05117S Carbon brush set-vac mtr.
142 5100 Rubber mounting
143 5462 Motor pulley
144 5129 Support lever
145 5107-1 Support spring
146 5112SW Motor pulley cover
147 5740ER Computer controller
148 0107 Screw C 2.9 x 13 DIN 7981
149 0143 Washer 3.2 DIN 125
150 5173SW Cover for air channel
151 5465 Sensor
152 0104 Screw C 3.9 x 25 DIN 7981
153 5463 Belt 2MR-310-6
154 5110 Belt 219 3M HTDII-6
155 5767H Bearing block l. h., complete
156 5243H Bearing block l. h.
157 5236 Drive shaft, complete
158 5327 Bushing
159 5179 Clutch
160 0103 Screw C 3.9 x 16 DIN 7981
161 0141 Locking washer
162 5018UL Motor cover
163 5714 W Brush roller release - white
164 5244H Seal bearing
165 5249 W Brush cover - white/dark gray
166 5250 Edge brush
167 5246 Shaft extension, complete
168 5117/1 Sensor pulley
169 5730D Display - dark gray
#9587A X5 Blue/Yellow achine Exceptions
100 5796AM Power head cover complete -
dark blue/yellow
101 5712DB Exhaust filter catch - dark blue
103 5711DB Exhaust filter cover - dark blue
114 5713DB Brush roller release - dark blue
122 5031DB Bearing block right hand -
dark blue/gray
163 5714DB Brush roller release - dark blue
165 5249DB Brush cover - dark blue/dark gray
169 5730S Display - yellow
Power Head #9580AM X5 White/ ray
#9587AM X5 Blue/Yellow
14

15

SEBO VACUUM CLEANE WA ANTY
Five Years Non-Wear Parts - Five Years Motor - One Year Labor
1. Your authorized SEBO dealer or SEBO will provide the
original product purchaser with replacement of Non-
Wear Parts which fail due to a material or workman-
ship defect for a period of five (5) years from the orig-
inal date of purchase of new product. SEBO America
will provide a five (5) year warranty on suction motors
and brush drive motors. The drive belts on a SEBO
AUTOMATIC X are guaranteed for the life of the
machine.
2. Your authorized SEBO dealer or SEBO will repair (or will
cover labor charges associated with repair) a defective
SEBO vacuum cleaner at no cost to the original pur-
chaser, within one (1) year of original purchase of new
product.
3. SEBO America or an authorized SEBO dealer must
complete all warranty repairs.
4. To locate an authorized SEBO dealer in your area, or to
register a warranty claim in the United States of
America, please visit our website at www.sebo.us.
5. To locate an authorized SEBO dealer in your area, or to
register a warranty claim in Canada, please call Floor
Care Equipment, Ltd. at [phone].
6. The warranties provided for above apply exclusively to
SEBO Vacuum Cleaners which are used residentially.
No warranty is provided for SEBO vacuum cleaners
used commercially.
7. The Wear Parts excluded from warranty coverage
include filter bags, micro-hygiene filters, exhaust
filters, the cable (external cord), the attachment hose,
the brush rollers, the front bottom plate, the rear
bottom plate, the sealing strip, the telescopic tube, the
crevice nozzle, the upholstery nozzle, the dusting brush
and all of the optional attachments. (See “Optional
Attachments” on page 6 of this manual).
8. This warranty applies only while your SEBO Vacuum
Cleaner is physically located within the United States of
America and its territories or Canada.
9. The purchase receipt showing the date, price, and item
of purchase is the initial document of proof of purchase
and determines the validity of warranty. To be certain
that your warranty claim can be processed as quickly
and efficiently as possible, please retain your original
purchase receipt and mail in the warranty card provided
with your new SEBO vacuum cleaner. You may also reg-
ister on our website at www.sebo.us.
10. This warranty gives you specific legal rights. You may
also have other legal rights, which vary from
state/province to state/province.
11. SEBO America will not process nor will it accept
responsibility for warranty claims for machines pur-
chased from dealers located in Canada. Floor Care
Equipment, Ltd. will not process nor will it accept
responsibility for warranty claims for machines pur-
chased from dealers located in the United States.
EXCLUSIVE RE EDY: The remedies provided under the terms of this Warranty are the purchaser’s exclusive remedies
and are in lieu of any other remedies otherwise available.
THE WARRANTY DOES NOT COVER:
• Used or secondhand products.
• Products outside of the warranty period.
• Items not manufactured by SEBO.
• Normal maintenance service.
• Equipment damaged by improper use, accident,
other casualty or negligence.
• Machines equipped with nonauthorized
attachments or modifications.
• Machines on which the serial number has been
altered or removed.
LI ITATIONS AND EXCLUSIONS:
SEBO MAKES NO OTHER REPRESENTATIONS OR WARRANTIES,
EXPRESSED OR IMPLIED AND SPECIFICALLY EXCLUDES THE
IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS
FOR A PARTICULAR PURPOSE.
SEBO WILL NOT BE LIABLE FOR INCIDENTAL OR CONSEQUEN-
TIAL DAMA ES OF ANY KIND OR NATURE.
THIS DISCLAIMER OF IMPLIED WARRANTIES SHALL NOT
APPLY TO THE EXTENT SAID DISCLAIMER IS NOT ALLOWED BY
APPLICABLE STATE/PROVINCIAL LAW.
To contact SEBO in the United States of America:
SEBO America, LLC
Telephone: [phone]
Fax: [phone]
Website: www.sebo.us
To contact SEBO in Canada:
Floor Care Equipment, Ltd.
Telephone: [phone]
Fax: [phone]
Website: www.sebocanada.ca
© Copyright SEBO America, LLC • All rights reserved.
16

#9570AM X4 and #9580AM X5 White/Gray Machine
Pos. Part # Description
1 5634AM Handle complete - dark gray/lt, gray
(incl. pos. 2 -13)
2 5297SE Handle grip (incl. pos. 3, 7 + 10)
35359DG Grommet
4 5450DG Power supply cord
505112 Switch
6 5160HG Switch cap - light gray
75161DG Switch cap holder
8 5162 Cable clamp
90103 Screw C 3.9x16 DIN 7981
10 5253UL Wire-antistatic
11 5298ER Handle cable
12 0129 Screw M 4x12 DIN 966
13 5187 Handle tube
14 0102 Screw F 3.9x13 DIN 7981
15 5040SB Hose - silver, cpl.
16 5045DG Extension tube
17 5707GW Cover - white
18 5319 Bag holder Spring
19 5706DG Cover release - dark gray
20 5091 Safety catch spring
21 5360 Safety catch
22 5324 Bag holder cpl. (incl. pos. 20 + 21)
23 5750SE Front cover complete - white/dark gray
5454 Front cover seal
24 5093AM Dust bag pack
25 5036AM Micro hygiene filter
26 5380DG Internal cover complete
(incl. pos. 40 + 41)
27 1073 Clamp
28 5208 Filter safety catch
29 5210 Return spring
30 5164 Cable clamp
31 5722DG Dust bag housing
locking catch - dark gray
32 1859DG Handle catch - dark gray
33 0161 Clip 4, DIN 6799
34 5721GW Carrying handle - white
35 5703GW Cable hook - white
36 5146 Stop spring
37 5424DG Retaining ring
38 5299ER Internal cable
39 5266 Cable clamp
40 5842 Seal
41 5289 Seal
42 5764GW Dust bag housing - white (no bumper)
43 1823DG Attachment clip - dark gray
44 5084 Spring for locking rod
45 5163 Seal
46 5083 Locking rod
47 5702GW Dust bag housing
bumper base - white
48 5755GW Dust bag housing, cpl. - white/dark gray
(incl. pos. 9, 14 + 26 - 47)
49 1092DG Crevice nozzle
50 1491DG Upholstery nozzle
51 5460DG Mounting clip with screw
52 1387DG Dusting brush
1
Ba Housin with Handle
SEBO AUTOMATIC X4 & X5
#9501AM X4 - nyx/Silver
#9558AM X4 - Red/Gray
#9570AM X4 - White/Gray
#9574AM X4 - Spring Green
#9577AM X4 - Blue/Yellow
#9580AM X5 - White/Gray
#9587AM X5 - Blue/Yellow

#9558AM X4 Red/Gray Machine Exceptions
Pos. Part # Description
1 5638AM Handle complete - dark gray/red
6 5160DR Switch cap - red
17 5707DR Cover - red
23 5751SE Front cover complete - red/dark gray
35 5768DR Cable hook (incl. position 34 carrying handle) - red
42 5764DR Dust bag housing (no bumper) - red/dark gray
47 5702DG Dust bag housing bumper - dark gray
48 5759DR Dust bag housing complete - red/dark gray
#9577AM X4 and #9587AM X5 Blue/Yellow Machine Exceptions
Pos. Part # Description
1 5636AM Handle complete - dark gray/yellow
6 5160SG Switch cap - yellow
17 5707DB Cover - dark blue
19 5706SG Cover release - yellow
23 5749SE Front cover complete - dark blue/yellow
31 5722SG Dust bag housing locking catch - yellow
32 1859SG Handle catch - yellow
34 5721DB Carrying handle - dark blue
35 5703DB Cable hook - dark blue
42 5764DB Dust bag housing (no bumper)- dark blue/yellow
47 5702DB Dust bag housing bumper base - dark blue
48 5763DB Dust bag housing complete - dark blue/yellow
Ba Housin with Handle
X4 & X5 Machine Exceptions
#9501AM X4 Onyx/Silver Machine Exceptions
Pos. Part # Description
15640AM Handle complete - black/silver (incl. pos. 2 - 13)
2 5295SW Handle grip (incl. pos. 3, 7 + 10)
35359 Grommet
6 5160SB Switch cap - silver
75161SW Switch cap holder -black
15 5040SW Hose - black
16 5045SW Extension tube - black
17 5707SW Cover - black
19 5706SB Cover release - silver
23 5774SE Front cover complete - black/silver
26 5380SW Internal cover (incl. pos. 40 + 41
31 5722SB Dust bag housing locking catch - silver
32 1859SB Handle catch - silver
34 5721SW Carrying handle - black
35 5703SW Cable hook - black
37 5424AM Retaining ring
42 5764SW Dust bag housing - black
(incl. pos. 14, 26, 32, 33, 37 + 40 - 45)
43 1823SW Attachment clip - black
47 5702SW Dust bag housing bumper base - black
48 5763SW Dust bag housing complete - black
(pos. 9, 14, + 26 - 47)
49 1092SW Crevice nozzle - black
50 1491SW Upholstery nozzle - black
#9574AM X4 Sprin Green Machine Exceptions
Pos. Part # Description
1 5637AM Handle complete - spring green
(pos. 2 - 13)
6 5160FG Switch cap - spring green
17 5707FG Cover - spring green
23 5754SE Front cover complete
- spring green/dark gray
34 5721FG Carrying handle - spring green
35 5703FG Cable hook - spring green
42 5764FG Dust bag housing (no bumper) - spring green
47 5702DG Dust bag housing bumper base
48 5759FG Dust bag housing cpl. (spring green)
(incl. pos. 9, 14 + 26 - 47)
#9558AM X4 Red/Gray Machine Exceptions
Pos. Part # Description
100 5778AM2 Power head cover complete (incl. pos. 101 - 103 + 164)
- red/dark gray
101 5712DG Exhaust filter catch - dark gray
103 5711DR Exhaust filter cover - red
114 5713DG Brush roller release
122 5031DR Bearing block right hand - red/dark gray
#9577AM X4 Blue/Yellow Machine Exceptions
Pos. Part # Description
100 5786AM Power head cover complete (incl.pos. 101 - 103 + 164)
- dark blue/yellow
101 5712DB Exhaust filter catch - dark blue
103 5711DB Exhaust filter cover - dark blue
114 5713DB Brush roller release - dark blue
122 5031DB Bearing block right hand - dark blue/dark gray
164 5730SG Display - yellow
Power Head
X4 Machine Exceptions
#9501AM X4 Onyx/Silver Machine Exceptions
Pos. Part # Description
100 5783AM Power head cover complete
(incl. pos. 101 - 103 + 164) - onyx/silver
101 5712DG Exhaust filter catch - dark gray
103 5711SW Exhaust filter cover - onyx
114 5713SW Brush roller release - onyx
122 5031DG Bearing block right hand
164 5730SB Display - silver
#9574AM X4 Sprin Green Machine Exceptions
Pos. Part # Description
100 5779SE Power head cover complete (incl. pos. 101 - 103 + 164)
- spring green/dark gray
101 5712DG Exhaust filter catch
103 5711FG Exhaust filter cover - spring green
114 5713DG Brush roller release
122 5031FG Bearing block right hand - spring green/dark gray
2

#9570AM X4 White/Gray Machine
Pos. Part # Description
100 5780AM Power head cover, complete
-white/dark gray
101 5712GW Exhaust filter catch - white
102 5143 Exhaust filter
103 5711GW Exhaust filter cover - white
104 5729UL Swivel neck assembly
105 5176UL Male contact holder
106 0102 Screw F 3.9 x 13 DIN 7981
107 2494 Cable clamp
108 5101 Swivel neck bearing r. h.
109 5178 Swivel neck support r. h (2 Screws)
5480 Swivel neck support r. h.(1 Screw)
110 5728 Swivel neck support l. h. (2 Screws)
5479 Swivel neck support l. h. (1 Screw)
111 5717 Swivel neck bearing l. h.
112 5203ER PCB 12 V power supply
113 5205 Ribbon cable
114 5713GW Brush roller release - white
115 5103 Spring
116 5051DG Axle, assembly
117 5059 R Foot pedal - orange
118 5053 Axle
119 5819DG Wheel, complete
120 2010 Axle spring
121 2014 Axle clamp
122 5031GW Bearing block right hand
- white/dark gray
123 5010AM Brush roller
124 5005DG Bumper set
125 5155DG Rubbing plate
126 5172 R Access door (incl. pos. 127 + 128)
127 5303 Access door axle
128 5304 Access door spring
129 5154DG Hinge
130 0100 Screw C 2.9 x 9.5 DIN 7981
131 0176TL Screw AM 4 x 30 DIN 7985TL
132 5174DG Pile adjustment wheel
133 5060ER Servo motor with gear box
134 5411DG Front bottom plate, complete
135 5412DG Rear bottom plate, complete
(incl. pos. 136 + 139)
136 5400-1 Sealing strip
137 5401 Wire tie
138 5402 Wire tie
139 0197 Screw M 4 x 12
140 5320DG Chassis, cpl. ( ld - 4 screws)
5482DG (New - 2 screws + 2 tabs)
141 5468 Vacuum motor 1300 W / 120 V
05117S Carbon brush set for vac motor
142 5100 Rubber mounting
143 5462 Motor pulley
144 5129 Support lever
145 5107-1 Support spring
146 5112SW Motor pulley cover
147 5740ER Computer controller
148 0107 Screw C 2.9 x 13 DIN 7981
149 0143 Washer 3.2 DIN 125
150 5173SW Cover for air channel
151 5464 Sensor
152 0104 Screw C 3.9 x 25 DIN 7981
153 5463 Belt 2MR-310-6
154 5110 Belt 219 3M HTDII-6
155 5766HG Bearing block l. h., complete
156 5044HG Bearing block l. h.
157 5017ER Drive shaft, complete
158 5327 Bushing
159 5179 Clutch
160 0103 Screw C 3.9 x 16 DIN 7981
161 0141 Locking washer
162 5018UL Motor cover
163 5117/1 Sensor pulley
164 5730DG Display - dark gray
3
Power Head
SEBO AUTOMATIC X4
#9501AM X4 - nyx/Silver
#9558AM X4 - Red/Gray
#9570AM X4 - White/Gray
#9574AM X4 - Spring Green
#9577AM X4 - Blue/Yellow
#9580AM X5 - White/Gray
#9587AM X5 - Blue/Yellow

#9580AM X5 White/Gray Machine
Pos. Part # Description
100 5790AM Power head cover, complete
-white/dark gray
101 5712GW Exhaust filter catch - white
102 5143 Exhaust filter
103 5711GW Exhaust filter cover - white
104 5729UL Swivel neck assembly
105 5176UL Male contact holder
106 0102 Screw F 3.9 x 13 DIN 7981
107 2494 Cable clamp
108 5101 Swivel neck bearing r. h.
109 5178 Swivel neck support r. h.
110 5728 Swivel neck support l. h.
111 5717 Swivel neck bearing l. h.
112 5203ER PCB 12 V power supply
113 5205 Ribbon cable
114 5713GW Brush roller release - white
115 5103 Spring
116 5051DG Axle, assembly
117 5059 R Foot pedal, orange
118 5053 Axle
119 5819DG Wheel, complete
120 2010 Axle spring
121 2014 Axle clamp
122 5031GW Bearing block right hand
-white/dark gray
123 5290AM Brush roller set
124 5230DG Bumper
125 5155DG Rubbing plate
126 5172 R Access door (incl. pos. 127 + 128)
127 5303 Access door axle
128 5304 Access door spring
129 5154DG Hinge
130 0100 Screw C 2.9 x 9.5 DIN 7981
131 0176TL Screw AM 4 x 30 DIN 7985 TL
132 5174DG Pile adjustment wheel
133 5060ER Servo motor with gear box
134 5413DG Front bottom plate, complete
135 5414DG Rear bottom plate, complete
(incl. pos. 136 + 139)
136 5400-2 Sealing strip
137 5401 Wire tie
138 5402 Wire tie
139 0197 Screw M 4 x 12
140 5321DG Chassis, complete
141 5468 Vacuum motor 1300 W / 120 V
05117 S Carbon brush set-vac mtr.
142 5100 Rubber mounting
143 5462 Motor pulley
144 5129 Support lever
145 5107-1 Support spring
146 5112SW Motor pulley cover
147 5740ER Computer controller
148 0107 Screw C 2.9 x 13 DIN 7981
149 0143 Washer 3.2 DIN 125
150 5173SW Cover for air channel
151 5465 Sensor
152 0104 Screw C 3.9 x 25 DIN 7981
153 5463 Belt 2MR-310-6
154 5110 Belt 219 3M HTDII-6
155 5767HG Bearing block l. h., complete
156 5243HG Bearing block l. h.
157 5236 Drive shaft, complete
158 5327 Bushing
159 5179 Clutch
160 0103 Screw C 3.9 x 16 DIN 7981
161 0141 Locking washer
162 5018UL Motor cover
163 5714GW Brush roller release - white
164 5244HG Seal bearing
165 5249GW Brush cover - white/dark gray
166 5250 Edge brush
167 5246 Shaft extension, complete
168 5117/1 Sensor pulley
169 5730DG Display - dark gray
4
SEBO AUTOMATIC X5
#9587AM X5 Blue/Yellow Machine Exceptions
Pos. Part # Description
100 5796AM Power head cover complete
- dark blue/yellow
101 5712DB Exhaust filter catch - dark blue
103 5711DB Exhaust filter cover - dark blue
114 5713DB Brush roller release - dark blue
122 5031DB Bearing block right hand
- dark blue/gray
163 5714DB Brush roller release - dark blue
165 5249DB Brush cover - dark blue/dark gray
169 5730SG Display - yellow
#9580AM X5 - White/Gray
#9587AM X5 - Blue/Yellow
Power Head
