SECO-LARM SD-994C User manual




 
Electric Door Strikes
Manual
Model # Operating Voltage Door Type
SD-994C 12VDC Wood
SD-994C24 24VDC Wood
SD-995C 12VDC Metal
SD-995C24 24VDC Metal

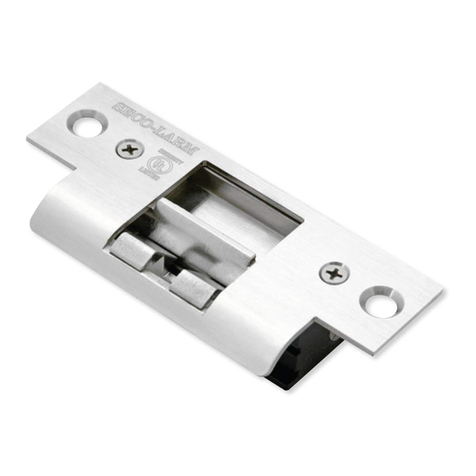

SD-994C
SD-995C
43RG
Note: This strike is not weatherproof and should only be installed indoors.

SECO-LARM Electric Door Strikes
2SECO-LARM U.S.A., Inc.














Features:
Converts cylindrical lock sets into an electronic
access-controlled locking system
Field-selectable for fail-safe or
fail-secure operation
Can be used with virtually any cylindrical door locking
system
Can use with an optional digital keypad
Suitable for office-type applications
Reversible non-handed design fits either right-hand or
left-handed doors
Shallow design for use with most metal doors
Powered by a solenoid, not a buzzer coil
For Indoor Use Only
Static strength – 1,000 lbs. (454kg)
Specifications:
Model # SD-994C SD-994C24 SD-995C SD-995C24
Operating voltage 12VDC 24VDC 12VDC 24VDC
Current draw 280m
A
140m
A
280m
A
140m
A
Operating temperature 14°~113° F (-10°~45° C)
Static strength 1,000 lbs. (454kg)
Dynamic strength 50 ft-lbs. (6.91 m-kgs)
Destructive attack Level 1
Line security Level 1
Endurance Level IV
Standby Powe
r
Level 1
Dimensions 715/16"x17/16"x11/4" (202x36x32 mm) 47/8"x11/4"x11/4" (124x32x32 mm)
Stainless-steel keeper for strength and long life
Non-polarized connection
Tested to 250,000 cycles (UL Tested)
The SD-994/994C24/995/995C24 is intended to be used
with UL Listed Exit Hardware
The SD-994/994C24/995/995C24 shall not impair the
intended operation of an emergency unit
The SD-994/994C24/995/995C24 shall not impair the
operation of panic hardware mounted on the door
Optional lip-extension brackets available:
oSD-995C-LE25 – 1" Extension
oSD-995C-LE50 – 2" Extension
Overview:
17/16" (36mm)
715/16"
(202mm)
75/16"
(186mm)
33/8"
(86mm) 21/2"
(64mm)
11/4" (32mm)
41/8"
(105mm)
47/8"
(124mm)
111/16" (43mm)
1/8" (3mm)
11/4" (32mm)
11/16"
(17mm)
Door Strike ....................................x 1
Mounting Plates ............................x 1
Mounting template ........................x 1
Electrical connectors.....................x 2
Trim plate ......................................x 1
Parts List:
Note: Not all parts will be used in
every installation.
Security screws .............................x 2
Black anchor nuts..........................x 2
Security Allen wrench....................x 1
Trim plate screws ......................... x 2
Mounting tabs............................... x 2
Wood screws................................ x 2
Machine screws............................ x 4
Machine screws (narrow) ............. x 2
13/4" (45mm)

SECO-LARM Electric Door Strikes
SECO-LARM U.S.A., Inc. 3



Installation: 
1. Measure the latch line (see fig. 1).
a. Measure the distance between the face of
the door
j
amb and the face of the door latch.
This is the vertical latch distance.
b. Measure the vertical latch distance on the
door
j
amb from the face of the door
j
amb. At
that point, draw a vertical line. This is the
latch line.
2. Measure the center line (see fig. 2).
a. Measure the distance from the floor to the
center of the door latch. Ignore the location
of the deadlatch pin when taking
measurements.
b. Measure the same distance as above along
the inside of the door jamb. This is the
center line.
3. Align the included mounting template to the latch
and center lines (see fig. 3)
4. Using the template as a guide, cut into the door
jamb to a depth of
11
/
16
" (17mm).
NOTE: If cutting into a wooden door, use a chisel
to knock out a
1
/
8
" (3mm) deep cut as shown on
the template.
5. Using two of the included small screws (M4x12)
and black clips, affix the mounting tabs to the
inside of the door jamb (see fig. 4).
6. Program fail-safe or fail secure (default – fail
secure, see "Programming for Fail-Safe or Fail-
Secure on page 4).
7. Connect the two wires to the access control or
egress device, e.g. keypad, push-button switch,
push-bar, etc. using the provided electrical
connectors. Polarity is not important. Ensure that
no bare wiring is exposed.
8. Conceal all wires in the door frame. Adjust trim
plate to cover an
y
g
aps in installation. Use two of
the included large screws (M5x12) to mount the
unit to the mounting tabs. Adjust as needed to
ensure the door closes smoothly (see fig.5).
Fig.1
Fig.
2
Fig.3
Fig.4
Fig.5
Note: Trim plate is optional and may not be required in all installations.
Only use the trim plate to cover any gaps in the door frame.
Door latch
Deadlatch pin
Latch line
Vertical latch distance
Door jamb

SECO-LARM Electric Door Strikes
4SECO-LARM U.S.A., Inc.

Selecting Fail-Safe or Fail-Secure Operation:
Troubleshooting:
Electric strike does not activate.
Unmount the strike and check that the two wires are
connected properly.
Ensure the wires are connected to a 12 or 24VDC source.
Use a multimeter to test that the strike is receiving the
proper voltage and amperage. If it is not, it may be
necessary to use heavier gauge wires, or increase the
output of the power supply.
Make sure the activation device (keypad or push-button
switch) is working properly.
Door does not open when the
electric strike is activated.
Check that the door latch is operating properly, and
replace if necessary.
The position of the electric strike may need to be adjusted
by moving it or adding washers or shims.
Strike makes a buzzing sound. Use DC power supply instead of AC power.
1. Remove the locking screw and loosen the sliding screw.
2. Slide the sliding screw to the desired setting. Replace the locking screw and retighten both
screws.
Factor
y
default: Fail-saf
e

Fail Safe: Fail Secure:

Locking
sc
r
e
w
Sliding
screw
NOTICE: The SECO-LARM policy is one of continual development and improvement. For that reason, SECO-LARM
reserves the right to change specifications without notice. SECO-LARM is also not responsible for misprints. All trademarks
are the property of SECO-LARM U.S.A., Inc. or their respective owners. Copyright © 2019 SECO-LARM U.S.A., Inc. All
rights reserved.
WARRANTY: This SECO-LARM product is warranted against defects in material and workmanship while used in normal
service for one (1) year from the date of sale to the original customer. SECO-LARM’s obligation is limited to the repair o
r
replacement of any defective part if the unit is returned, transportation prepaid, to SECO-LARM. This Warranty is void i
f
damage is caused by or attributed to acts of God, physical or electrical misuse or abuse, neglect, repair or alteration,
improper or abnormal usage, or faulty installation, or if for any other reason SECO-LARM determines that such equipment is
not operating properly as a result of causes other than defects in material and workmanship. The sole obligation o
f
SECO-LARM and the purchaser’s exclusive remedy, shall be limited to the replacement or repair only, at SECO-LARM’s
option. In no event shall SECO-LARM be liable for any special, collateral, incidental, or consequential personal or property
damage of any kind to the purchaser or anyone else.
