HD Analog to HDMI/CVBS Converter
SC-MAC02
User’s Manual

Release Version 2.1
1
Precaution and Safety Guidelines
The content of this guideline is to protect the safety of users and prevent property damage.
Be sure to read this user’s manual thoroughly and use the device correctly.
Warning (If you do not keep any of the below guidelines, you may get seriously injured or
cause somebody’s death.)
■Be sure to install the product after unplugging power cord. Also, do not use several power plugs
at the same time.
- It may cause abnormal heat, fire and electric shock.
■Do not leave the device at any place that water falls or splashes. Also, do not put anything full of
water such as a flower vase on the device.
- It may cause malfunction or fire if liquid goes into the device.
■Do not bend the power cord by excessive force. Make sure the power cord is not crushed by
heavy things.
- It may cause fire.
■Do not open the lid arbitrarily as this device has high voltage part inside. Never disassemble,
repair or modify it.
- By abnormal working, it may cause fire, electric shock and personal injury.
■Do not install this product in places with high humidity, dust, or soot.
- It may cause electric shock and fire.
■Do not tug at the power cord section or unplug the power plug with wet hands. If the power cord
is loose, do not plug in.
- There may be a risk of fire and electric shock.
■Always keep the location of the appliance clean during or after installation to prevent dust.
Especially when cleaning the device, wipe it with dry towel and do not use water, thinner or organic
solvent.
- It may damage the case of this device, and cause malfunction or electric shock.
■Keep the device in a cool place where doesn’t let direct sunlight. Keep it at a proper temperature
and avoid heating appliances like candle or heater. Also, keep the equipment or tools away from
places where people come and go.
- It may cause fire.
■Pay attention to possible hazards in the workplace, such as wet floor, ungrounded power
extension cables, old power cords and a lack of safety earth. Consult your place of purchase or
professional if problems arise.
- It may cause fire and electric shock.
■Keep the back of the product more than 15cm and the sides more than 5cm from the wall. If you
install the product too close to the wall, it can cause the cable to be bend, compressed too hard or
break, as various external input/ouput ports such as power cords protrude from the back of the
product.
- It may cause fire, electric shock and personal injury.
■Concerning the input voltage for operating this device, a voltage range must be within 10% of
rated voltage, and the power outlet must be grounded. Also, do not use a heat source such as a hair
dryer, iron and refrigerator to the same power unit.
- It may cause abnormal heat, fire and electric shock.

Release Version 2.1
2
Caution (If you do not keep any of the below guidelines, you may get injured or suffer
property loss.)
■Avoid installing near strong magnetic fields or radio waves and wireless devices such as radio or
TV.
- Install in places without any magnetics, radio waves or severe vibrations.
■Proper ambient temperature and humidity are recommended.
- Avoid extremely high temperatures(over 50°C) or low(below -10°C), and humid conditions.
■Do not place heavy items on the product or let foreign substances enter inside the device.
- It may cause failure.
■Install in well ventilated place, and avoid direct sunlight or heat appliance.
■Install at a flat and stable place. Do not use an upright or slanted position.
- It may not operate properly or might be dangerous due to the fall of the device.
■Strong shock or vibration may cause device failure, so be careful when using the device.
- Install in a place without severe vibration.
■If you notice any unusual noise or smell, unplug the power supply immediately and contact the
place of purchase or service center.
- There may be a risk of fire and electric shock.
■Circulate air properly in the system operating room and fix the cover of the main body of the
product firmly.
- It may cause failure by surrounding environment factors.
■Refer the device to the service center and get regular checkup to maintain the performance of the
system.
- We are not responsible for any damages caused by user’s carelessness.
■Be sure to plug the power cord with grounded outlet.
- There is a risk of electrical shock and personal injury.
■Place the power plug in a location that is easy to operate.
- If a failure of the product occurred, the power plug must be unplugged to power down completely. The power button on
the main body of the product does not completely cut off the power.
■The transmission medium(CABLE) must be a coaxial cable.
■Do not use this device in close proximity to a device that produces strong waves such as radio
set(TRANCEIVER, Walkie-talkie, etc.) or repeater. It may affect the video signal, or cause disorders
such as noise or crack on the screen.
■Transmission distance may vary depending on the type of coaxial cable.
■Disconnect the power plug with care during thunder and lightning.
■Refer to the user’s manual for problems or questions besides the above. Contact our service
center if you need assistance from a professional technician.

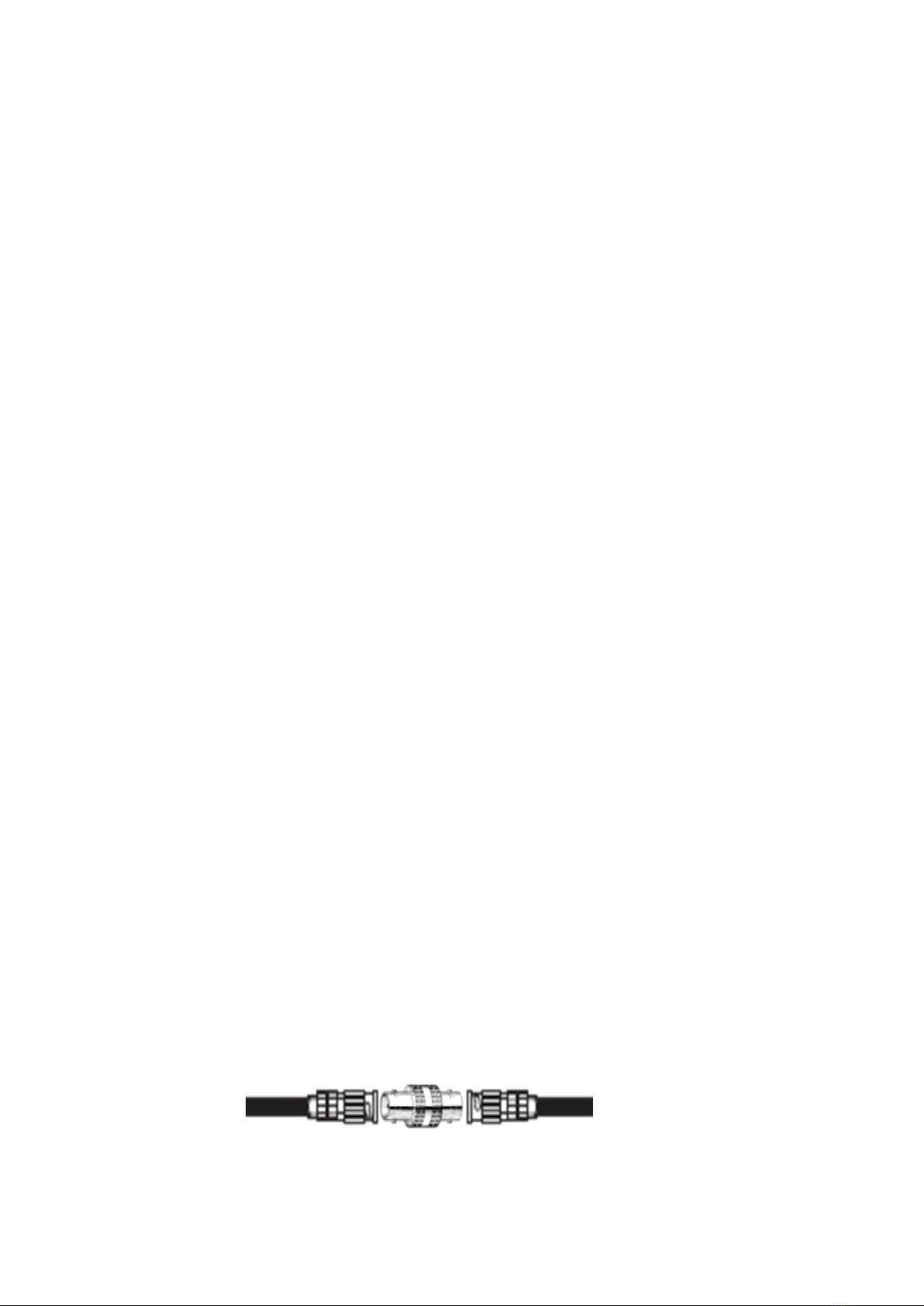

■When you extend or terminate coaxial cable, it should be connected in the following way.
- BNC-M(Male) - BNC-JJ - BNC-M(Male): BNC Connector
■Make the joint part of the cables insulated completely not to expose the metal parts.

Release Version 2.1
3
1. Introduction
1-1. Overview
SC-MAC02 is a converter which converts HD analog video input signals to HDMI & CVBS signals.
The available input signals are CVI, TVI and AHD. This product is able to transmit UTC signals to
camera side by connecting input video signal through Loop-Output port with DVR, recorder or
other devices.
1-2. Features
•Output of HDMI & CVBS images from HD-Analog images
•Available Loop-Output for HD-Analog signals
•Supports camera control through Loop-Output port
•Built-in surge protection circuit
2. Components
SC-MAC02
DC 12V Adapter
(Optional)
User’s Manual

Release Version 2.1
4
3. Product Parts & Peripheral Devices Connection
①HD-Analog Input: HD-Analog signal input port
②Loop Output: Video output & UTC communication port
③Switch Setting: Terminal Switch
Off
Use Loop Output
On
Not use Loop Output
④STATE LED: In case of Power input RED On, In case of Video input GREEN On
⑤Digital Output: HDMI video output port
⑥Analog Output: CVBS video output port
⑦DC 12V Input: DC 12V power input port
※Terminal Switch setting
•Terminal resistance is adjustable resistance when the video out with using Loop Output port for the
input video which adjust the output video status.
In case of DVR, terminal setting status is ON, therefore when connected to DVR with using Loop
Output port, you should OFF for the terminal setting.
- The default setting is ON.
•If you want to change the terminal setting, please use it after turning it OFF / ON.
•Please make sure to turn the switch ON when the Loop Output is not used.
•If Loop Output is not used, do not connect cable to the Loop Output port.
※Caution: Be sure to connect only Non-PoC camera (general camera).
If PoC(Power over COAX) camera is connected, it may cause product malfunction.
①
⑤
②
③
④
⑥
⑦

Release Version 2.1
5
4. Specifications
MODEL
SC-MAC02
HD-Analog Input
1920*1080p 25/30Hz, 2560*1440p 25/30Hz
Loop Output Resolution
Same as Input Resolution
HDMI Output Resolution
1920*1080p 50/60Hz
CVBS Output Resolution
NTSC, PAL
In/Output
Recommended
Transmission
Distance
HD Analog Input /
Output
Max. 300m / RG-59 (200m/20Ω)
Max. 600m / RG-6 (300m/12Ω)
Digital Output
Digital Cable 3m
CVBS
1Vp-p (75Ω Termination)
Input Power / Power Consumption
DC 12V: 0.5A, DC 12V: 150mA
Connection
Port
HD Analog Input
BNC-F 75Ω
Loop Output
BNC-F 75Ω
Digital Output
A Type
Analog Output
BNC-F 75Ω
Switch
Off
Use Loop Output
On
Not use Loop Output
LED
RED
In case of Power input
GREEN
In case of Video input
Temperature / Humidity
-10℃~ +50℃/ 0 ~ 80%
Case Body / Weight
Aluminum / 120g
Dimensions (mm)
103(W) x 60(D) x 26.5(H)mm
ㆍRG-59
Total Distance
Camera Output ~ HD Analog Input
Loop Output ~ DVR Input
200m
200m
1m
300m
200m
100m
150m
150m
100m
200m
200m
1m
200m
ㆍRG-6
Total Distance
Camera Output ~ HD Analog Input
Loop Output ~ DVR Input
400m
400m
1m
600m
400m
200m
300m
300m
200m
400m
400m
1m
400m
* The Max. transmission distance in CVI signal is 500m (over RG-6 Coax. cable).
※Total Distance
= (Distance between Camera and HD Analog Input port) + (Distance between Loop Output port and DVR)
※Distance of HD Analog Input and Loop Output are recommended to be within the total distance above.
※The transmission distance may vary depending on the specifications of camera and DVR.
※For AHD, TVI, CVI cameras, signal formats are not standardized, so the video may not be displayed or
UTC may not work properly depending on the manufacturer.

Release Version 2.1
6

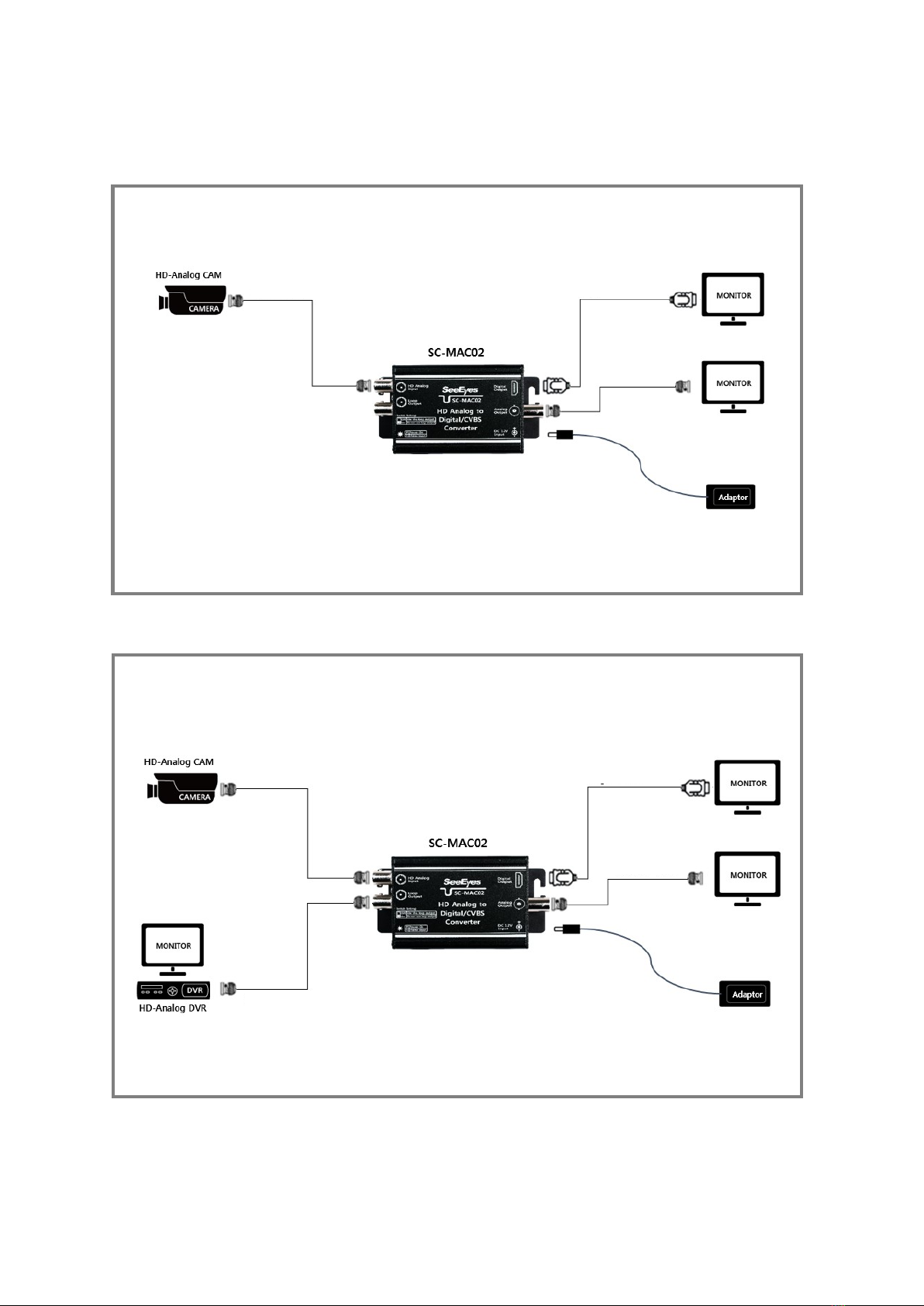

5. Connection Diagram
5-1. HDMI and CVBS Video Output Diagram (Terminal Switch ON)
5-2. Loop, HDMI and CVBS Video Output Diagram (Terminal Switch OFF)
RG-59
RG-59
RG-59
HDMI
HDMI
RG-59

Release Version 2.1
7
6. Trouble Shooting
Symptom
Identifying Method
There is
no power input.
•Please check the connection status of the power adapter.
•Please check if you connected the exclusive(DC12V) adapter.
•Please check if the RED LED is On.
No HDMI image
displayed.
•Please check if the GREEN LED is On.
•Please check the resolution of the input signal.
•Please check the connection status of the HDMI cable.
•Please check the resolution of monitor if it’s supported one.
•Please check HDMI cable’s length and capability.
No CVBS image
displayed.
•Please check if the GREEN LED is On.
•Please check the resolution of the input signal.
•Please check the connection status of the BNC connectors.
•Please check the resolution of monitor if it’s supported one.
•Please check BNC cable’s length and capability.
Video is not clear
•Please check the cable connection status.
•Please check the cable length & type.
•Please check if the camera and DVR are compatible mutually.
•Please check whether the switch setup status is correct or not.
-> In case of Switch On, do not use Loop output
-> In case of Switch Off, use Loop output
Camera control is
not available
•Please check if the camera and DVR are compatible mutually.

Release Version 2.1
8
7. Warranty Certificate
Model No
Serial No
Date of purchase
Place of purchase
User’s Info
Name
Address/Tel No
Warranty Period
Two (2) years from the date of purchase
This product has passed thorough quality control and test, and if this gets broken during normal
use, we provide two-year warranty service.
Contact your distributor after checking out any defect in the products.
Warranty covers only those defects that arise as a result of normal use of the product and
repair service free of any charge will be provided according to the warranty certificate.
We charge you with the fee for parts and services provided despite of free warranty service
period in case of :
- Breakage or trouble made by natural disaster.
- Breakage or trouble made by breaking the product guide or manual.
- Breakage or trouble made by wrong power voltage or frequency.
- When you want to reassemble for full system or replace parts within warranty service
period.
- When unauthorized person modified or made damage on the product trying to repair it.
- Thunderstroke.
