Seenergy SVR-632/664 User manual

SVR$632/664*User’s*Manual!
1
Version 1.0.0
SVR-632/664
User’s Manual
!
32/64-CH Network Video Recorder with Local Display

2*
SVR$632/664*User’s*Manual!
Table of Contents
System Overview ..................................................................... 5!
Front View .................................................................................... 5!
Rear View ..................................................................................... 5!
LED Definition ............................................................................... 6!
Installation .............................................................................. 7!
HDD Installation .............................................................................7!
Connect to the NVR.......................................................................10!
Use SEEnergy Device Search Utility ................................................ 10!
Access the NVR with its default IP address....................................... 15!
Set up Password .......................................................................... 16!
Camera Installation ......................................................................18!
Add a Camera -- Automatic Search................................................. 18!
Add a camera manually ................................................................ 20!
Live View................................................................................ 22!
Retrieve camera’s video stream ..................................................... 23!
Retrieve camera’s status ............................................................... 23!
Perform Sequence Viewing ............................................................ 24!
PTZ Control................................................................................. 26!
Perform PTZ Preset Viewing........................................................... 28!
Preset Point Viewing..................................................................... 29!
Auto Pan Viewing ......................................................................... 30!
Preset Point Sequence Viewing ...................................................... 30!
Live Video Controls ...................................................................... 31!
Display ratio and full screen .......................................................... 31!
Take a snapshot of a live video ...................................................... 32!
Perform Digital PTZ ...................................................................... 35!
Change Web UI Display Language .................................................. 38!
Live View through iPhone Safari Browser......................................... 39!
Live View through Blackberry Phones.............................................. 44!
Playback................................................................................. 50!
Methods to Search Playback Videos ................................................ 50!
Search by time chart .................................................................... 51!
Search by event........................................................................... 53!
Play by specific time..................................................................... 56!
Search by event (Most Recent) ...................................................... 57!
Certain functions you can perform to the playback video ................... 59!
Export Playback Videos to AVI Files ................................................ 60!
Play Exported Playback Videos with NVR Media Player....................... 63!
Open Event Snapshot images with NVR Media Player ........................ 66!
NVR Setup -- System Configurations ...................................... 67!
Network Setup..............................................................................67!

SVR$632/664*User’s*Manual!
3
Network Settings ......................................................................... 67!
DDNS Service.............................................................................. 69!
Time and Date ..............................................................................76!
User Account ................................................................................77!
Add a new user............................................................................ 78!
Change the password of the “admin” account .................................. 79!
Group Privilege .............................................................................80!
Disk Setup ....................................................................................83!
Build RAID Volume ....................................................................... 84!
Deleting RAID.............................................................................. 89!
Notes for RAID function ................................................................ 89!
NVR Setup -- Channel Configurations ..................................... 91!
Add a camera................................................................................91!
Automatic Search......................................................................... 91!
Add a camera manually ................................................................ 97!
OSD Settings.................................................................................98!
PTZ Setting .................................................................................101!
PTZ Preset Settings .....................................................................101!
PTZ Preset Sequence ...................................................................103!
E-Map Setting .............................................................................105!
Local E-Map Setting.....................................................................105!
Google Map Setting .....................................................................108!
NVR Setup -- Event Configurations....................................... 110!
Event Configuration ....................................................................110!
General Settings .........................................................................110!
I/O Settings ...............................................................................112!
Event Servers .............................................................................114!
Configuring an FTP server ............................................................114!
Configuring an SMTP server..........................................................116!
Event Triggers ............................................................................117!
NVR Setup -- Recording Configurations ................................ 119!
General Settings .........................................................................119!
Schedule Recording ....................................................................124!
To configure a schedule recording .................................................124!
NVR Setup -- System Options ............................................... 126!
Device Information.....................................................................126!
Logs and Reports ........................................................................127!
Maintenance ...............................................................................128!
Reboot the NVR at a specific time automatically ..............................129!
Firmware Upgrade.......................................................................129!
Through the web interface............................................................129!
Upgrade through USB thumb drive ................................................132!
Reset the NVR to Factory Default ..................................................132!
Disk Status .................................................................................134!
USB Backup ................................................................................135!
Things to pay attention to the USB Backup function .........................137!

4*
SVR$632/664*User’s*Manual!
Play the backup file with the NVR Media Player ...............................138!

SVR$632/664*User’s*Manual!
5

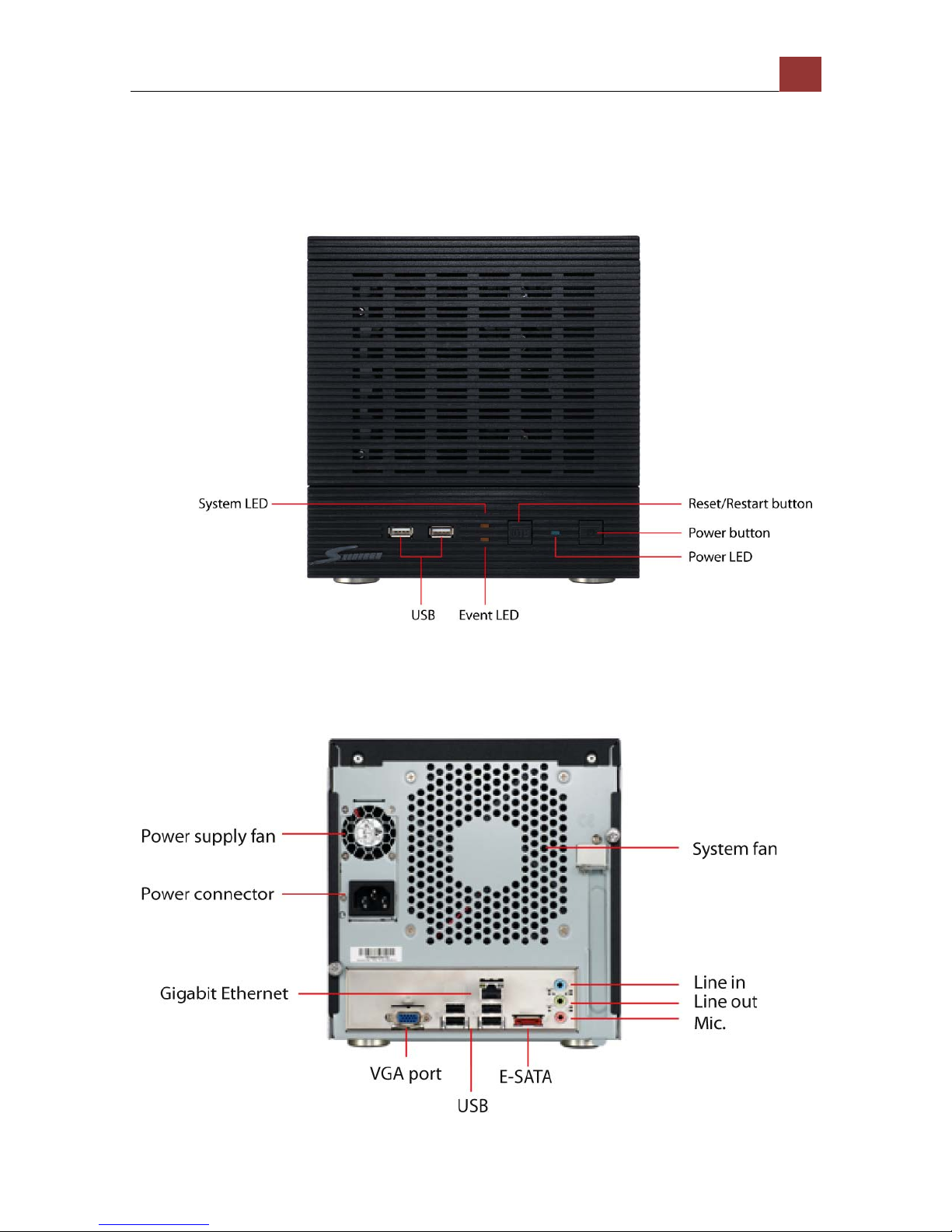

System Overview
Front View
Rear View

6*
SVR$632/664*User’s*Manual!

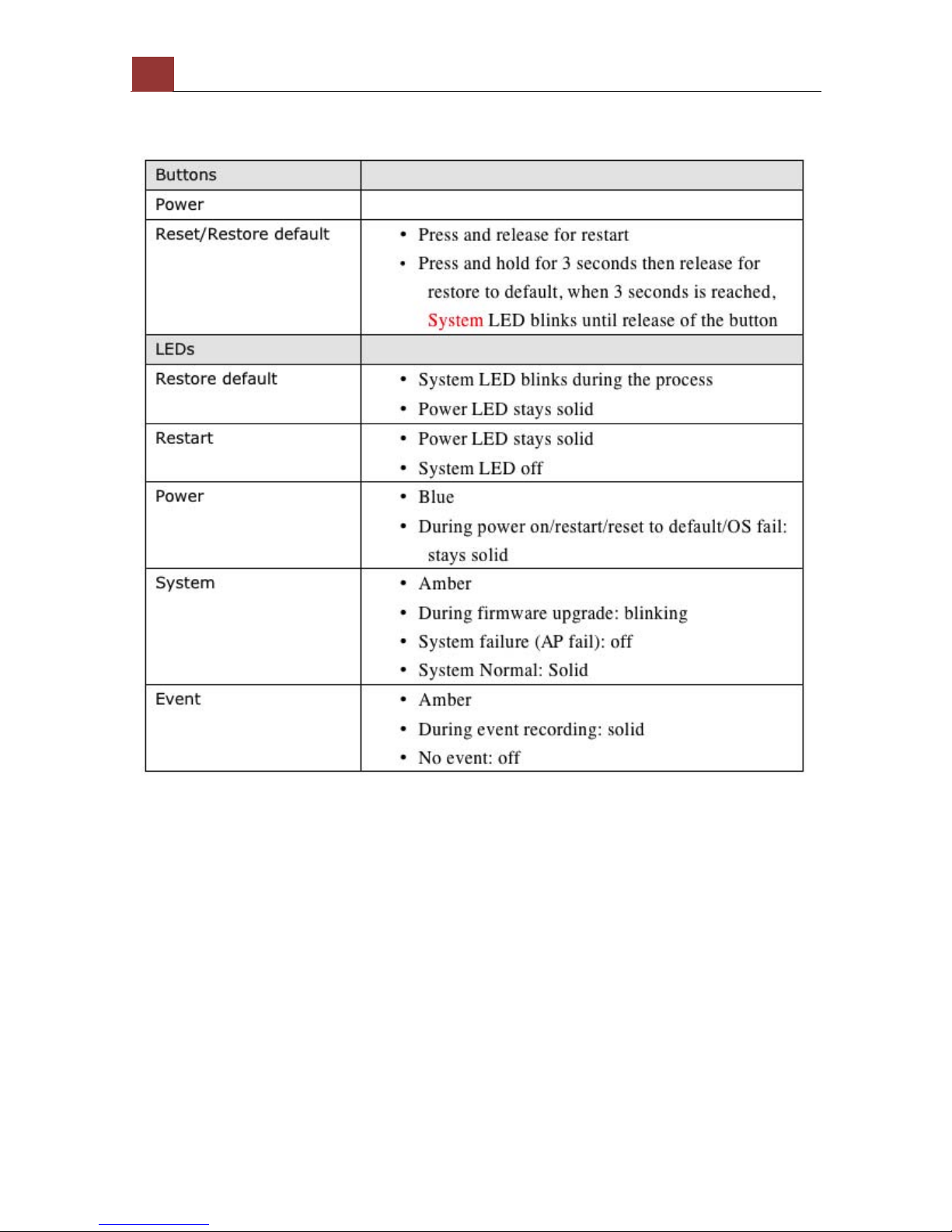

LED Definition

SVR$632/664*User’s*Manual!
7
Installation
HDD Installation

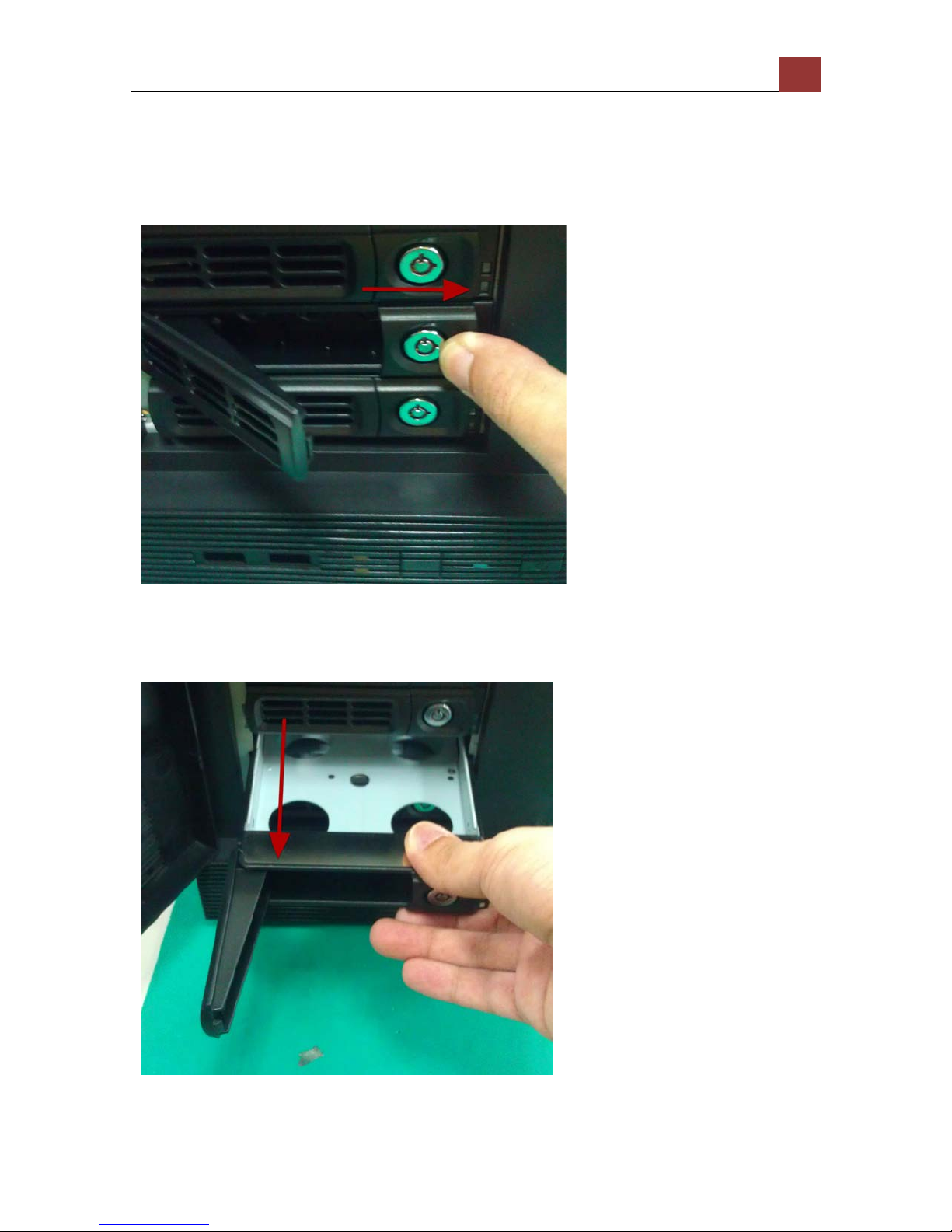

Release the HDD tray by pulling the lock to the right.
Pull the HDD tray out of the case.

8*
SVR$632/664*User’s*Manual!

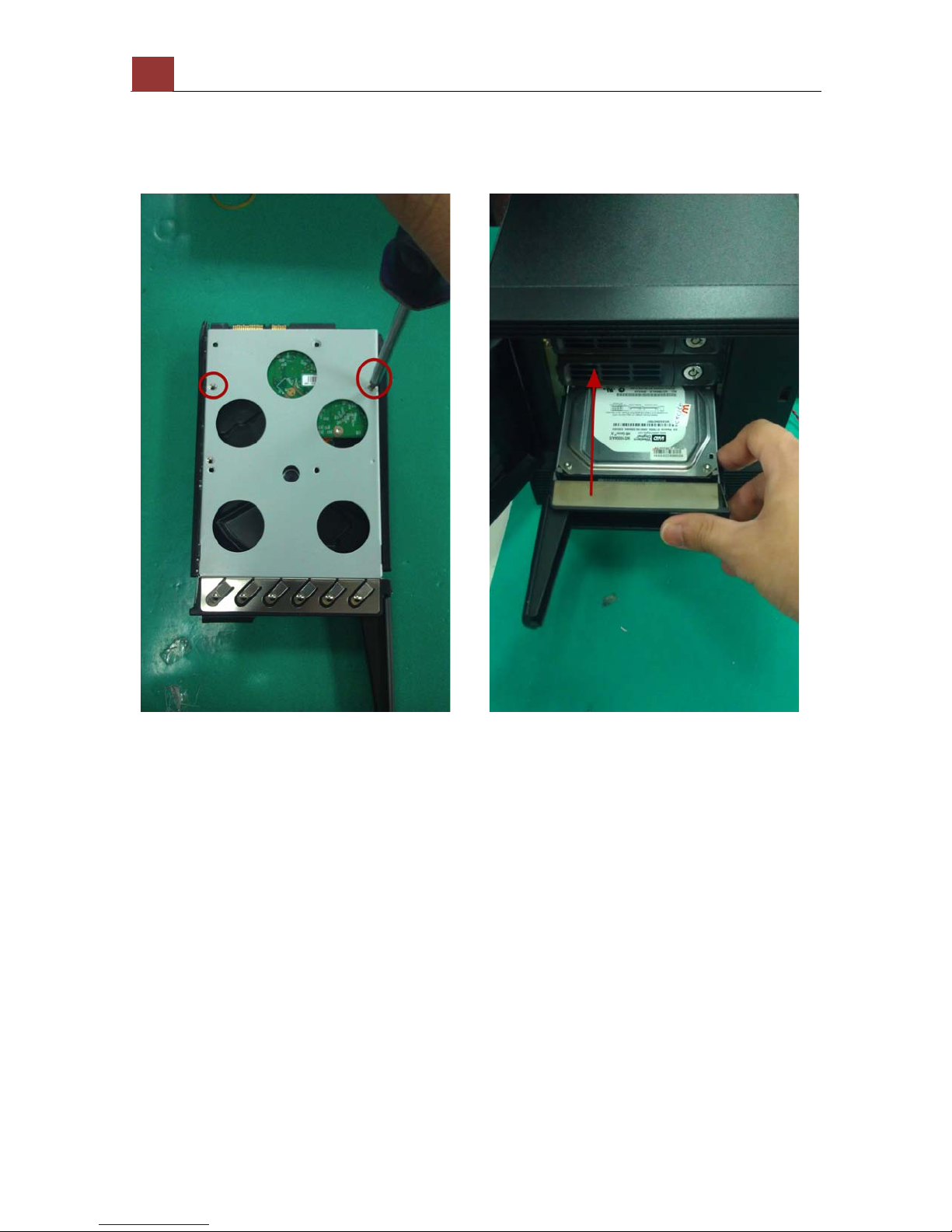

Place the HDD in the tray and Put the HDD tray back to the
case. Secure it with the screws at
the bottom of the tray.

SVR$632/664*User’s*Manual!
9

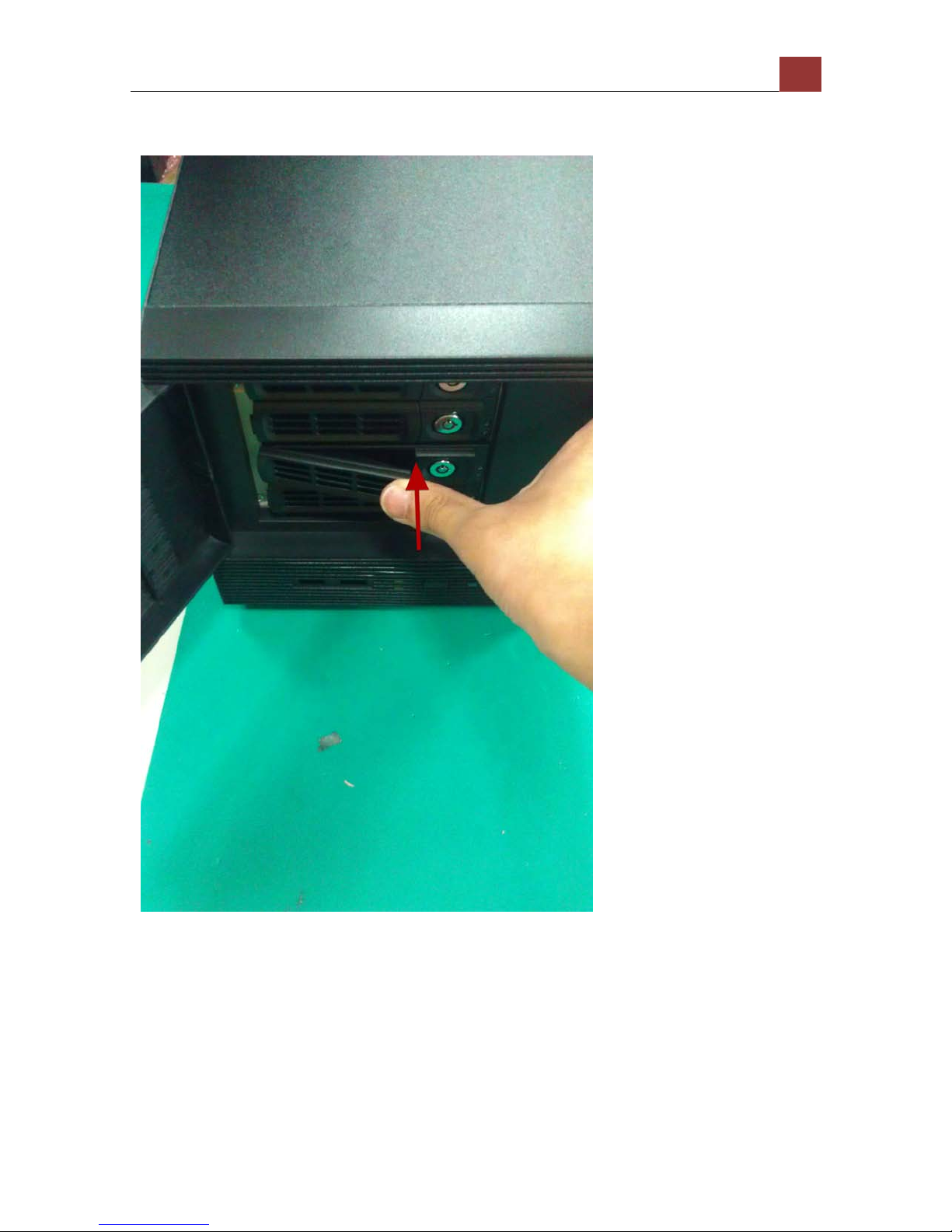

Push the tray door back to the case to secure it.

10*
SVR$632/664*User’s*Manual!
Connect to the NVR
There are various ways you can connect to the NVR and below are the
suggested methods for different network setup:
• The NVR is placed in a network with a DHCP server: Connect to
the NVR by using “SEEnergy Device Search” Utility
• The NVR is placed in a network without DHCP server (or you are
connecting to it directly): Access the NVR with its default IP
Use SEEnergy Device Search Utility
If the NVR is placed in a corporate network or a local area network
where a DHCP server is already presented, run the “SEEnergy Device
Search” utility from a computer that is on the same network and locate
the NVR with its IP address that is assigned by the top-level DHCP
server.

SVR$632/664*User’s*Manual!
11
To begin, launch the “SEEnergy Deivce Search” utility from the CD and
proceed with the installation:

12*
SVR$632/664*User’s*Manual!

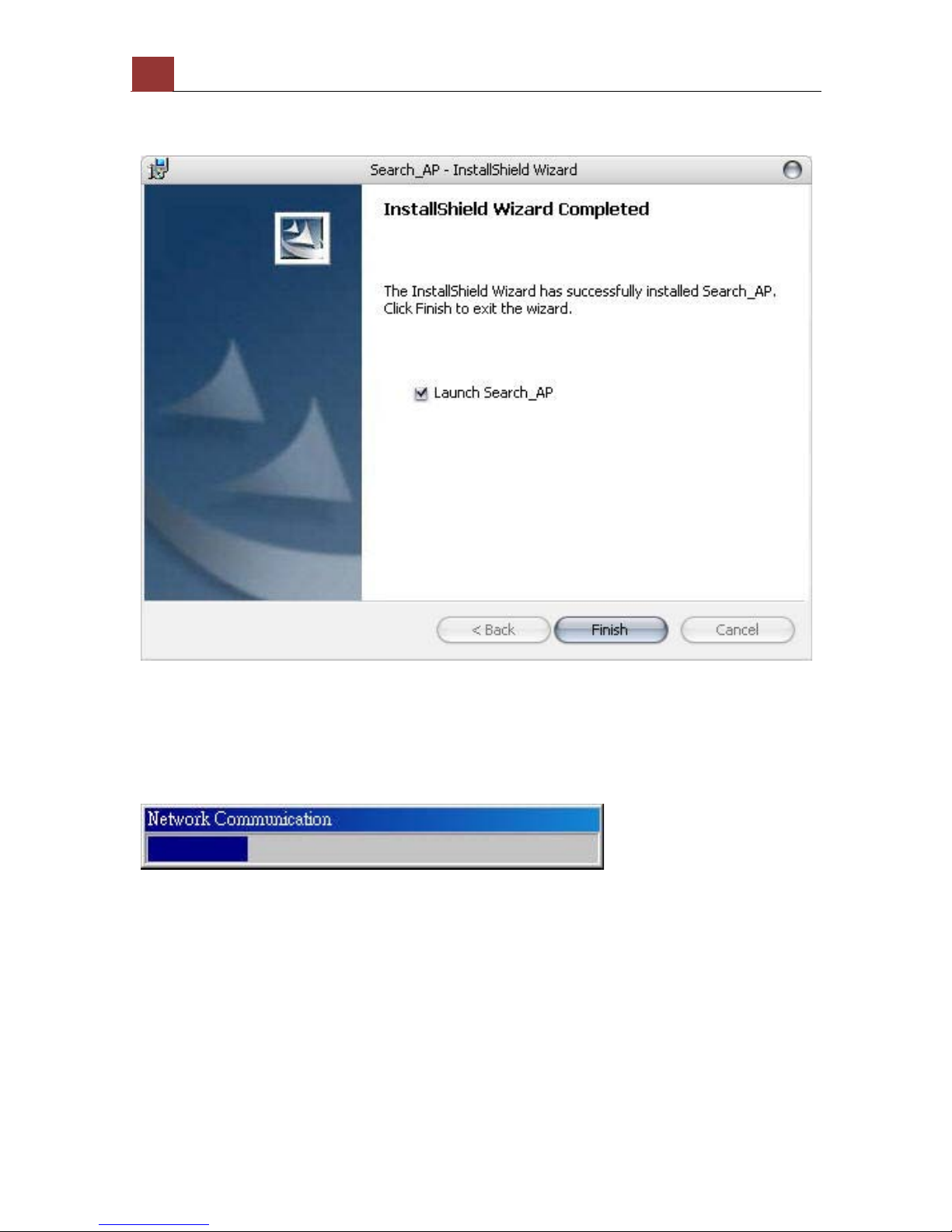

Once the installation is complete, check the “Launch the Search AP”
option and click “Finish”.
The search should start automatically and its status should be dis-
played.

SVR$632/664*User’s*Manual!
13
The NVR should be located and its IP address should be displayed.
Double-click on an NVR and the search program should automati- cally
access the NVR’s web administration page from your default browser.

14*
SVR$632/664*User’s*Manual!
You should be prompted for the the NVR’s username and password.
Enter its default username “admin” and password “admin” and
then click”OK” to enter the system

SVR$632/664*User’s*Manual!
15
Access the NVR with its default IP address
The NVR comes with a pre-configured static IP “192.168.101.50”.
However, it is only used when there is no DHCP server presented in
the network. The NVR will turn on its DHCP server function and act as
the DHCP server in the network. To connect to the NVR, use a PC that
is on the same network over a switch or hub, or connect the PC
directly to the NVR using a crossover CAT5 Ethernet cable.
The PC that is connected directly to the NVR (or within the same local
area network) should receive an IP from the NVR. Simply access the
NVR from your web browser with its IP address

16*
SVR$632/664*User’s*Manual!
Again, you should be prompted for the username and password. Enter
its default username “admin” and password “admin” and then
click”OK” to enter the system
Set up Password

SVR$632/664*User’s*Manual!
17
The default login username and password is admin/admin. To change
the password of the admin account, go to “Setup” --> “System Con-
figurations” --> “User Account”, click on the “admin” account in the
account list then press the “edit” button to change its password.
Finally, click “Apply” to save the change.

18*
SVR$632/664*User’s*Manual!
Camera Installation
Add a Camera -- Automatic Search

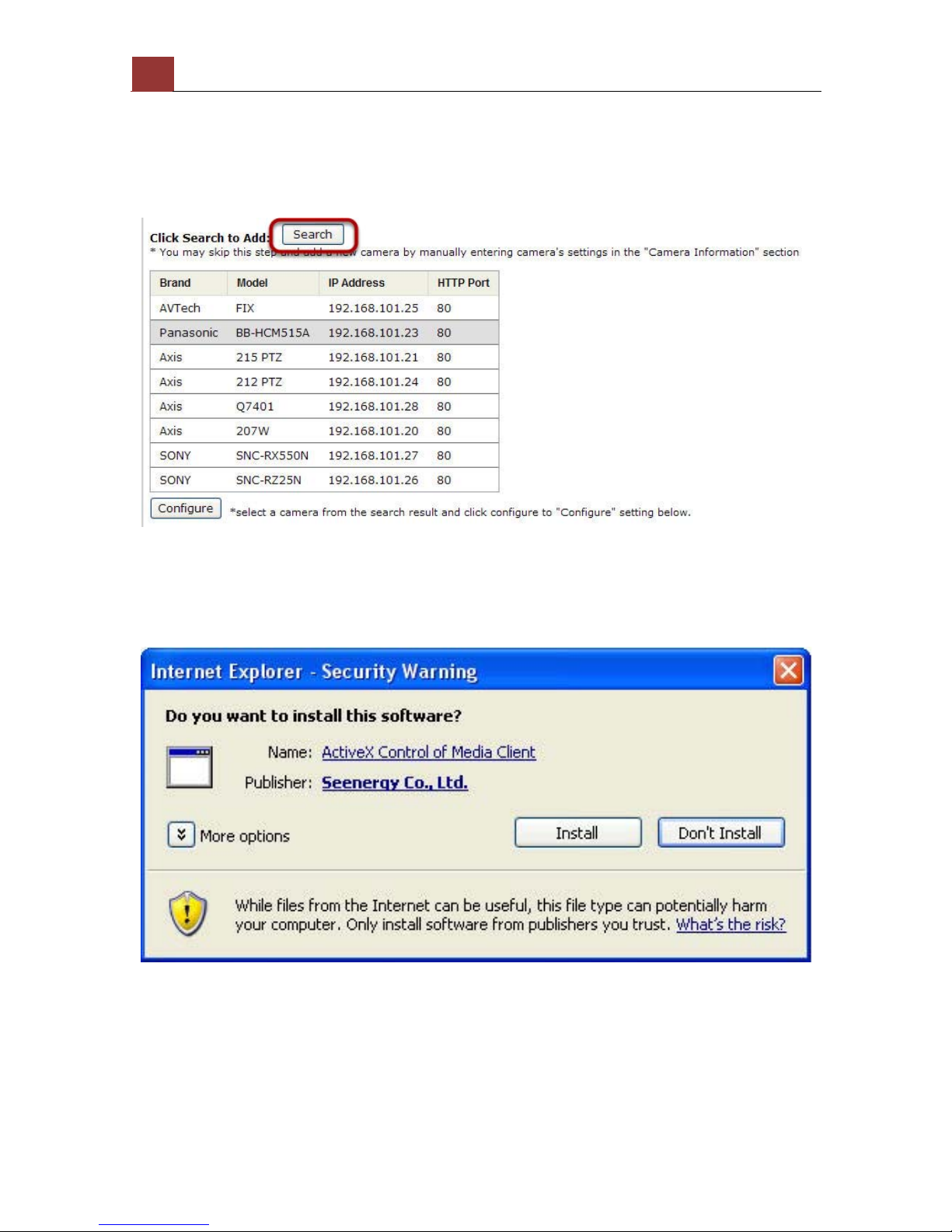

Click the “Search” button to perform the camera search.
You should be prompted to install Active Control component in order
for the search to function properly. Go ahead and click “Install”

SVR$632/664*User’s*Manual!
19
After that, the search should begin and its status should be displayed:

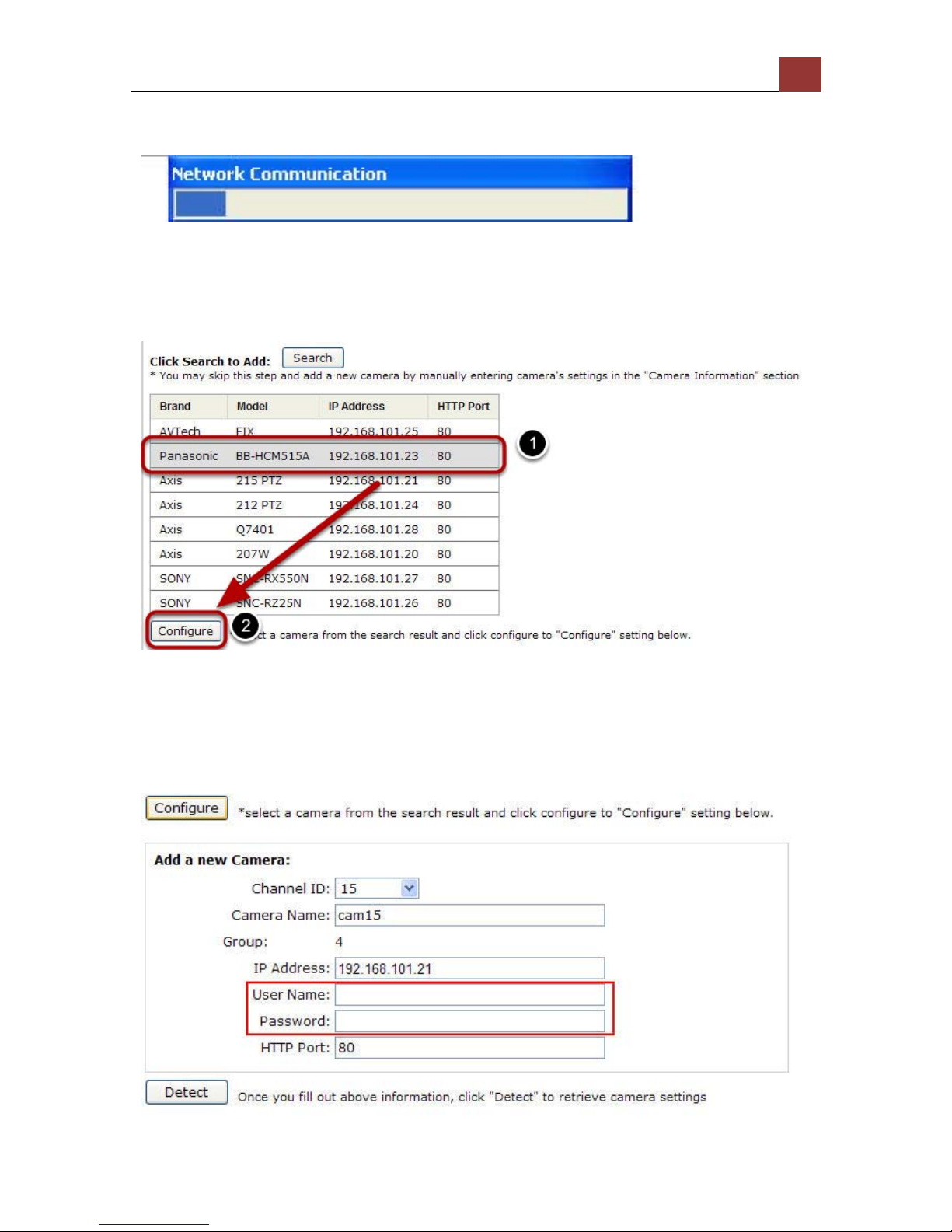

Found cameras should be listed and simply select a camera from the
list and press “Configure”

20*
SVR$632/664*User’s*Manual!
Its corresponding information should be displayed in the “Camera
Information” section. Enter its username and password and select the
channel ID and name the camera.
Click on “Detect” to establish connection between the recorder and the
camera. If connection establishes successfully, camera’s detailed
information should be polled and displayed as below.
Adjust its video format, frame rate, resolution or bitrate...etc if you
wish and then click “Add” to finish adding the camera
Add a camera manually
