SEI HO6041 User manual

STYLE NO. HO6041
MISSIONCORNERDESK
SOUTHERNENTERPRISESINC.
RELAX...If you can follow a few easy, step-by-step directions
in order .YOU CAN ASSEMBLE THIS ITEM.
PLEASE FIND HARDWARE IN RED POLYBAGBEFORE DISCARDINGPACKINGMATERIAL.
HARDWARE LIST
(1) WOOD DOWELS
32PCS
(6) LONG MACHINE SCREWS
8PCS
(2) CAM-BOLTS
23PCS
(7) LARGE WOOD SCREWS
8PCS
(3) CAM-LOCKS
23PCS
(8) HINGE
2PCS
(4) COVERS
23PCS
(9) SMALL WOOD SCREWS
12PCS
(5) WASHERS
8PCS
(10) PLASTIC COVER
1PC

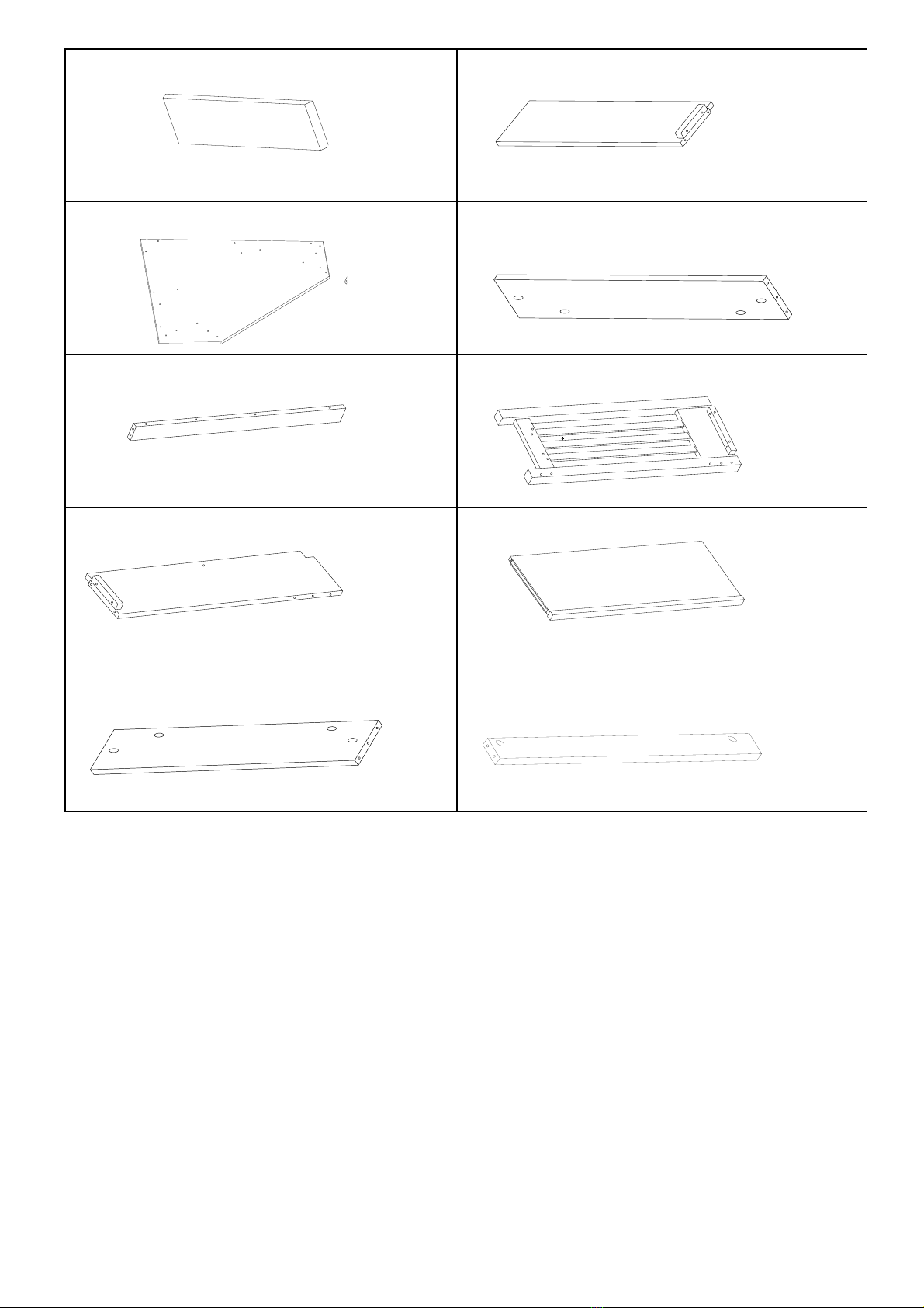

PARTS LIST
(A) FRONT PANEL
1PC
(I) RIGHT SIDEFRAME
1PC
(B) BACK PANEL
1PC
(J) BACK SUPPORT LEG
1PC
(C) LEFT SIDEPANEL
1PC
(K) LOWER LEFT CROSS BRACE
1PC
圓頭 8x32mm圓頭 8x45mm
圓頭 8x32mm圓頭 8x45mm

(D) RIGHT SIDE PANEL
1PC
(L) LEFT SHELF
1PC
(E) TOPPANEL
1PC
(M) UPPER LEFT CROSS BRACE
1PC
(F) LOWER RIGHT CROSS BRACE
1PC
(N) LEFT SIDEFRAME
1PC
(G) RIGHT SHELF
1PC
(O) KEYBOARD SHELF
1PC
(H) UPPER RIGHT CROSS BRACE
1PC
(P) FRONT CROSS BRACE
1PC
ASSEMBLY INSTRUCTION
1. SELECT ASMOOTH, SOFT SURFACE TO PREVENT SCRATCHING FINISH.
2. YOU MAY NEED A PHILLIP SCREWDRIVER.
3. INSERT SMALL WOOD SCREWS (9) THROUGH HINGES (8)AND TIGHTEN INTO PREDRILLED
HOLES ON FRONT PANEL(A) AND CROSS BRACE (P).AS SHOWN IN FIGURE 1.
4. INSERT WOOD DOWELS (1), CAM-BOLTS (2) INTO PREDRILLED HOLES ON LEFT SIDEPANEL (C)
AND FIT INTO CORRESPONDING HOLES ON ENDS OF FRONT CROSS BRACE (P)AND BACK PANEL
(B). INSERT CAM-LOCKS (3) INTO LARGE HOLES ON PARTS (B, P) WITHARROW FACING TOWARDS
HOLE. ROTATE CAM-LOCKS (3) CLOCKWISE TO SECURE CAM-BOLTS (2). PUSH COVERS (4) INTO
CAM-LOCKS (3).ASSEMBLE RIGHT SIDEPANEL (D) IN SAME MANNER. AS SHOWN IN FIGURE 2.
5. INSERT WOOD DOWELS (1), CAM-BOLTS (2) INTO PREDRILLED HOLES ON UNDERSIDE OF TOP
PANEL (E) AND FIT INTO CORRESPONDING HOLES ON PARTS (B, C, D). INSERT CAM-LOCKS (3)
INTO LARGE HOLES ON PARTS (B, C, D) WITHARROW FACING TOWARDS HOLE. ROTATE
CAM-LOCKS (3) CLOCKWISE TO SECURE CAM-BOLTS (2). PUSHCOVERS (4) INTO CAM-LOCKS (3).
AS SHOWN IN FIGURE 3.

FIGURE 1 FIGURE 2
FIGURE 3
6. INSERT WOOD DOWEL (1) INTO PREDRILLED HOLE ON LOWER RIGHT CROSS BRACE (F)AND FIT
INTO CORRESPONDING HOLE ON RIGHT SHELF (G). AS SHOWN IN FIGURE 4.
7. INSERT WOOD DOWELS (1), CAM-BOLTS (2) INTO PREDRILLED HOLES ON RIGHT SIDEFRAME (I)
AND FIT INTO CORRESPONDING HOLES ON ENDS OF PARTS (F, G, H). INSERT CAM-LOCKS (3) INTO
LARGE HOLES ON PARTS (F, H) WITHARROW FACING TOWARDS HOLE. ROTATE CAM-LOCKS (3)
CLOCKWISE TO SECURE CAM-BOLTS (2). PUSHCOVERS (4) INTO CAM-LOCKS (3). TIGHTEN
MACHINE SCREWS (6) THROUGH WASHERS (5), PREDRILLED HOLES ON RIGHT SHELF (G) INTO
PRETHREADED HOLES ON RIGHT SIDEFRAME (I). AS SHOWN IN FIGURE 5.
8. INSERT WOOD DOWELS (1), CAM-BOLTS (2) INTO PREDRILLED HOLES ON BACK SUPPORT LEG (J)
AND FIT INTO CORRESPONDING HOLES ON CROSS BRACE (F, H). INSERT CAM-LOCKS (3) INTO
LARGE HOLES ON CROSS BRACE (F, H) WITHARROW FACING TOWARDS HOLE. ROTATE
CAM-LOCKS (3) CLOCKWISE TO SECURE CAM-BOLTS (2). PUSHCOVERS (4) INTO CAM-LOCKS (3).
AS SHOWN IN FIGURE 6.

FIGURE 4
FIGURE 5 FIGURE 6
9. ASSEMBLE PARTS (K, L, M, N) IN SAME MANNER AS STEP6-8.AS SHOWN IN FIGURES 7, 8 & 9.
FIGURE 7 FIGURE 8

(K)
(G)
(J)
(L)
(H)
(1)
(1)
(1)
(1)
(2)
(2)
(2)
(3)
(3)
(3)
(4)
(4)
FIGURE 9
10. PUT TOPUNIT UPSIDE DOWN, INSERT WOOD DOWELS (1), CAM-BOLTS (2) INTO PREDRILLED
HOLES ON UNDERSIDE OF TOPPANEL (E), WITHAN ASSISTANT, FIT WOOD DOWELS (1),
CAM-BOLTS (2) INTO CORRESPONDING HOLES ON PARTS (H, I, M, N),. INSERT CAM-LOCKS (3)
INTO LARGE HOLES ON (H, M) WITHARROW FACING TOWARDS HOLE. ROTATE CAM-LOCKS (3)
CLOCKWISE TO SECURE CAM-BOLTS (2). PUSHCOVERS (4) INTO CAM-LOCKS (3). INSERT
MACHINE SCREWS (6) THROUGH WASHERS (5), PREDRILLED HOLES ON SIDEFRAMES (I, N)AND
TIGHTEN INTO PRETHREADED HOLES ON TOPPANEL (E). TIGHTEN LARGE WOOD SCREWS (7)
THROUGH PREDRILLED HOLES LOWER CROSS BRACE (F, K) INTO SHELVES (G, L). AS SHOWN IN
FIGURE 10 & 11.
11. UPRIGHT THE UNIT, INSERT PLASTIC COVER (10) INTO THE BIG HOLE ON TOPPANEL (E), AND
SLIDEKEYBOARD SHELF (O) INTO THE GLIDERS OF UNIT.AS SHOWN IN FIGURE 12.
(H)
(I)
(E)
(H)
(E)
(K)
(G)
(L)
(1)
(1)
(1)
(1)
(1)
(1)
(2) (2)
(2)
(2)
(3) (3)
(3)
(3)
(4) (4)
(4)
(4)
(6)
(5) (5)
(6)
(7)
(7)
(7)
(7) (7)
(7)
(7)
(7)
(H)
(I)
(E)
(H)
(E)
(K)
(G)
(L)
(1)
(1)
(1)
(1)
(1)
(1)
(2) (2)
(2)
(2)
(3) (3)
(3)
(3)
(4) (4)
(4)
(4)
(6)
(5) (5)
(6)
(7)
(7)
(7)
(7) (7)
(7)
(7)
(7)
FIGURE 10 FIGURE 11

(10)
(E)
FIGURE 12 READY
YOUR NEW MISSION CORNER DESK IS FINISHED AND READY TO USE.
Please count, identify and compare parts and hardware list to be sure all parts are present. It may help to
divide parts and label them to correspond with part list. Extra hardware may be included. If any items are
missing, please contact our parts/service department at [phone] or in Dallas [phone]/ 9am –
4pm Mon-Fri Central time. Missing or damaged hardware and/ or parts will be replaced free of charge.
WE DO NOT SELL PARTS. WE DO NOT RECOMMEND MODIFYING PRODUCT(S) AND WE ARE
NOT RESPONSIBLE FOR ANY DAMAGES DUE TO PRODUCT MODIFICATION(S). If this product
has not been purchased from our retail affiliates (within 9 months), we are under no obligation to provide
parts or replacement merchandise. Parts will not be available for items arriving fully assembled.
"We will shipparts if available" "Thisis nota warranty"
PARTS REPLACEMENT FORM
STYLE NO:HO6041
Customer Name
PARTS
LETTER
PART
DESCRIPTION
QUANTITY
NEEDED
Street, City, State, Zip
Phone#
Please indicate where you purchased thisitem.
Store/website/catalog
/ /
Please indicate color/size/style number
SOUTHERN ENTERPRISES INC.
P.O. Box 59996 Dallas, Texas75229
/ /
HOLE TO HOLE 402mm
