Sema Connect 6 Series User manual

Series 6 EV
Charging Station
1 — Last update: 04/29/2021
Installation Manuals
Copyright ©2021 SemaConnect, Inc. All rights reserved.

Table of Contents
1. Series 6 EV Charging Station Install Manual ........................................................................................ 1
1.1. Safety and Compliance ................................................................................................................... 2
1.2. Key Requirements / Wiring Diagram................................................................................................ 3
1.3. Parts List......................................................................................................................................... 4
1.4. Key Requirements........................................................................................................................... 7
1.4.1. Dimensions ............................................................................................................................. 8
1.4.2. Dedicated Power................................................................................................................... 10
1.4.3. Shared Power ....................................................................................................................... 12
1.5. Anchor Plate Installation................................................................................................................ 14
1.6. Pedestal Mount ............................................................................................................................ 17
1.7. Wall/Pole Mount Parts................................................................................................................... 19
1.8. Wall Mount Dimensions................................................................................................................. 21
1.9. Wall/Pole Mount Installation .......................................................................................................... 23

1. Series 6 EV Charging Station Install Manual
Installation Manuals Series 6 EV Charging Station - 1
Copyright ©2021 SemaConnect, Inc. All rights reserved. Page 1 of 25

1.1. Safety and Compliance
This document provides instructions to install the SemaConnect Charging station and should not be used for
any other product. This product must be installed in accordance with the National Electrical Code (NEC) or
the Canadian Electrical Code (CEC) whichever is applicable. Consult a licensed contractor and/or
electrician before installation to ensure compliance with local building practices, climate conditions, safety
standards, and state and local codes. Under no circumstances will compliance with the information in this
guide relieve the installer of responsibility to comply with all applicable codes and safety standards.
This document describes the most common installation and mounting methods. Contact SemaConnect
where it is not possible to perform an installation using the procedures provided in this document.
SemaConnect is not responsible for damages that may occur during or as a result of installation.
In no event shall SemaConnect, Inc. Or its authorized distributors be liable for any indirect, incidental,
special, punitive, or consequential damages, including without limitation, lost profits, lost data, loss of use,
cost of cover, or loss or damage to the SemaConnect charging station arising out of or relating to the use or
inability to use this guide, even if SemaConnect, Inc. Or its authorized distributors have been advised of the
possibility of such damages.
SemaConnect Charging station is a trademark of SemaConnect, Inc. All other products or services
mentioned are the trademarks, service marks, registered trademarks or registered service marks of their
respective owners.
The copyright laws of the United States and other countries protect this material. It may not be modified,
reproduced or distributed without the prior, express written consent of SemaConnect, Inc.
This guide assumes that the appropriate wiring, conduit and circuit protection is in place at the installation
site. Review this entire document to understand the installation process before installing the SemaConnect
Charging station.
Copyright ©2021 SemaConnect, Inc. All rights reserved.
Installation Manuals Series 6 EV Charging Station - 1
Copyright ©2021 SemaConnect, Inc. All rights reserved. Page 2 of 25

1.2. Key Requirements / Wiring Diagram
Key Requirements
1. Each EV charging station shall be on a dedicated electrical circuit.
2. Each station shall be protected with a 40 Amp 2-pole common trip circuit breaker (non-GFCI type).
3. Each station is designed to draw a maximum of 30Amps.
4. Each station can operate on either a 240V or 208V circuit.
5. Each station requires three electrical supply wires (two hot, one ground, no neutral).
6. All data communication is wireless, so there is no data cabling to install, but cellular communication is
required.
Wiring Diagram
Connect SemaConnect stations to any one of the power sources as shown:
1. 208 VAC three phase , Delta system, Center tap grounded (use only two phases)
2. 208 VAC three phase, Wye system (use only two phases)
3. 240 VAC single phase
In a delta system, connect the SemaConnect station only to a center-tapped grounded transformer only as
shown below. Connect the station to the side where ground is bonded (in figure C line A and C). This allows
voltages to remain constant regardless of other loads that may be using the lines. Please do not connect to
other type of power sources shown below.
Installation Manuals Series 6 EV Charging Station - 1
Copyright ©2021 SemaConnect, Inc. All rights reserved. Page 3 of 25

1.3. Parts List
Tools Required
• Electrical Tools: wire stripper, wire nut, insulation tape
• Mechanical Tools: spirit level, anchor plate J bolt, driver set
For Pedestal leveling
- 3/8” inch wrench
- key size 3 (metric)
- key size 10 (metric)
- Key size 3 (metric)
- Key size 2 (metric)
SemaConnect Parts List:
1) Station Head Unit with J1772 Cable (20ft)
Single pedestal: Qty 1 / Dual pedestal: Qty 2
2) Single Pedestal|
Single pedestal: Qty 1 / Dual pedestal: Qty 0
3) Dual Pedestal|
Single pedestal: Qty 0 / Dual pedestal: Qty 1

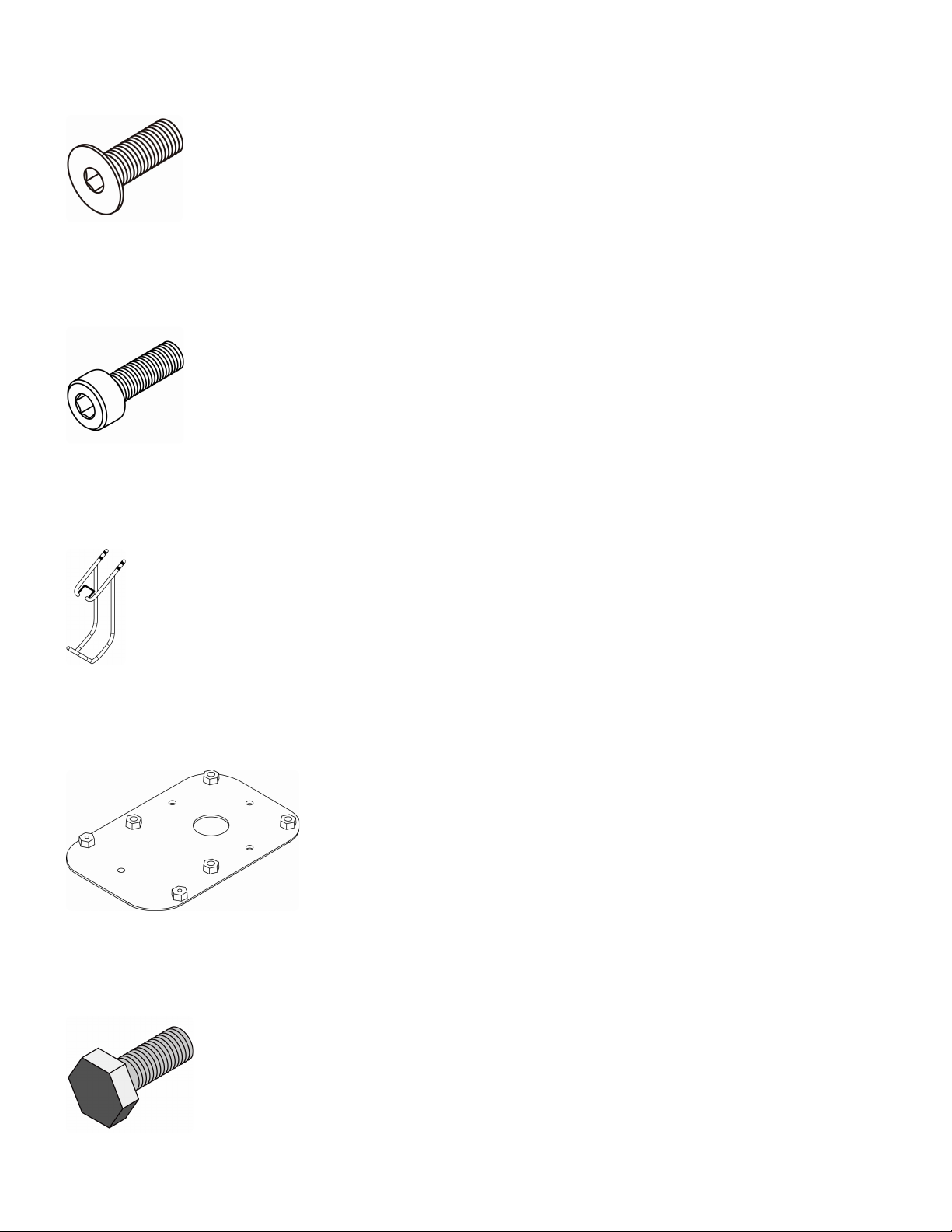

4) Head Unit Mounting Screws (M5×10)
Installation Manuals Series 6 EV Charging Station - 1
Copyright ©2021 SemaConnect, Inc. All rights reserved. Page 4 of 25

Single pedestal: Qty 4 / Dual pedestal: Qty 8
5) Pedestal Mounting Screw (M12×25)
Single pedestal: Qty 4 / Dual pedestal: Qty 4
6) Cable Hanger
Single pedestal: Qty 1 / Dual pedestal: Qty 1
7) Anchor Plate
Single pedestal: Qty 1 / Dual pedestal: Qty 1
8) Sacrificial Bolt (M12×25)
Single pedestal: Qty 4 / Dual pedestal: Qty 4
Installation Manuals Series 6 EV Charging Station - 1
Copyright ©2021 SemaConnect, Inc. All rights reserved. Page 5 of 25

9) Sacrificial Bolt (M6×30)
Single pedestal: Qty 2 / Dual pedestal: Qty 2
10) Anchor J-bolt set-3/8” ( three nuts, one flat washer, two spring washer, 1 J bolt)
Single pedestal: Qty 4 / Dual pedestal: Qty 4
Installation Manuals Series 6 EV Charging Station - 1
Copyright ©2021 SemaConnect, Inc. All rights reserved. Page 6 of 25

1.4. Key Requirements
Dimensions
Dedicated Power
Shared Power
Installation Manuals Series 6 EV Charging Station - 1
Copyright ©2021 SemaConnect, Inc. All rights reserved. Page 7 of 25

1.4.1. Dimensions
Series 6 Dual Pedestal Mount
Series 6 Single Pedestal Mount
Installation Manuals Series 6 EV Charging Station - 1
Copyright ©2021 SemaConnect, Inc. All rights reserved. Page 8 of 25

Single and Dual Pedestal
Installation Manuals Series 6 EV Charging Station - 1
Copyright ©2021 SemaConnect, Inc. All rights reserved. Page 9 of 25

1.4.2. Dedicated Power
All wiring used in the installation must meet EC guidelines for supplying 30A
continuously.
1. Each EV charging station shall be on a dedicated electrical circuit.
2. Each station shall be protected with a 40 Amp 2-pole common trip circuit breaker (non-GFCI type).
3. Each station is designed to draw a maximum of 30Amps.
4. Each station can operate on either a 240V or 208V circuit. Wire size should meet NEC guidelines for
40A circuit breaker supplying 30A current.
5. Each station requires three electrical supply wires (two hot, one ground, no neutral).
6. All data communication is wireless, so no data cabling needed, but cellular communication is required.
Station Wiring Diagram – Dedicated Power
Installation Manuals Series 6 EV Charging Station - 1
Copyright ©2021 SemaConnect, Inc. All rights reserved. Page 10 of 25

Installation Manuals Series 6 EV Charging Station - 1
Copyright ©2021 SemaConnect, Inc. All rights reserved. Page 11 of 25

1.4.3. Shared Power
All wiring used in the installation must meet EC guidelines for supplying 30A
continuously.
1. Each EV charging station shall be on a dedicated electrical circuit.
2. Each station shall be protected with a 40 Amp 2-pole common trip circuit breaker (non-GFCI type).
3. Each station is designed to draw a maximum of 30Amps.
4. Each station can operate on either a 240V or 208V circuit. Wire size should meet NEC guidelines for
40A circuit breaker supplying 30A current.
5. Each station requires three electrical supply wires (two hot, one ground, no neutral).
6. All data communication is wireless, so no data cabling needed, but cellular communication is required.

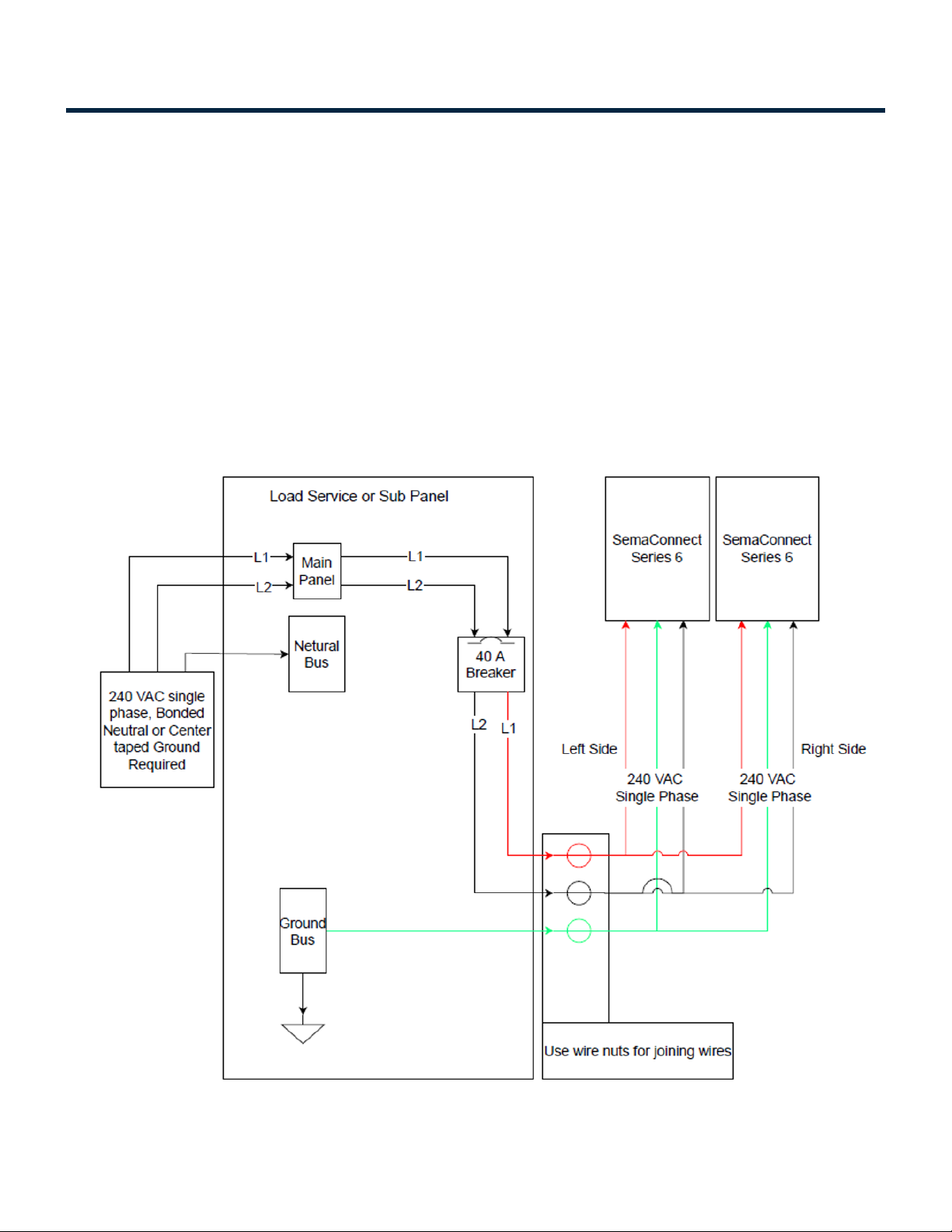

Station wiring Diagram – Shared Power
Installation Manuals Series 6 EV Charging Station - 1
Copyright ©2021 SemaConnect, Inc. All rights reserved. Page 12 of 25

Installation Manuals Series 6 EV Charging Station - 1
Copyright ©2021 SemaConnect, Inc. All rights reserved. Page 13 of 25

1.5. Anchor Plate Installation
Follow the same procedure for both Single and dual pedestal mount installation.
• Anchor Plate Key Dimensions
When pouring new concrete, request a SemaConnect Anchor Kit which contains:
Fit all J-Bolts (4), Pedestal (4) and CMS (2) Disposable Bolts to the anchor plate.
• The flat side on which 6 nuts are welded on the Anchor Plate face downwards.
• Do not remove Disposable Bolts (6) from the anchor plate until the pedestal is ready to be installed.
• Make sure that only one thread of the top nut is visible after the J-Bolts are fitted to the anchor plate.
Installation Manuals Series 6 EV Charging Station - 1
Copyright ©2021 SemaConnect, Inc. All rights reserved. Page 14 of 25

On ew Concrete
• Ensure that at least 40” of wire extends out of the conduit.
• Insert the anchor plate into the concrete immediately after pouring the concrete.
• It is recommended to vibrate the concrete to eliminate any air bubbles.
• Anchor plate surface should be in level with the ground.
On Existing Concrete
• Ensure that at least 40” of wire extends out of the conduit.
• Mark anchoring points with the help of anchor plate template.
• Drill 4 holes into the concrete, each minimum 2.2” deep.
• Put anchor bolts provided by SemaConnect, ensuring that bolts extend out.
• Place anchor plate on top of stud anchors.
Installation Manuals Series 6 EV Charging Station - 1
Copyright ©2021 SemaConnect, Inc. All rights reserved. Page 15 of 25

SemaConnect Single/Dual Pedestal Installation Procedure
• Once the concrete has set, remove the Sacrificial bolts from the anchor plate.
• Then place the pedestal on top of anchor plate and screw in four pedestal mounting screw. Do not
tighten it fully.
• Make sure the electrical wire is passed through the pedestal.
• Ensure that access panel is to your right, when seen from the front end.
• Align Pedestal for plumb with the help of Set screw on the pedestal. Once the Pedestal is plumb, fully
tighten the pedestal mounting screw.
Installation Manuals Series 6 EV Charging Station - 1
Copyright ©2021 SemaConnect, Inc. All rights reserved. Page 16 of 25

1.6. Pedestal Mount
Preparing the SemaConnect Series 6 Head Unit
• Loosen the Set screws (4 nos) in the head unit(s) and attach Cable rack to charging Station.
• Remove the access panel from the head unit.
• Place the J1172 in the holder and hang the cable in the cable rack.
Assembly of SemaConnect Series 6 onto Pedestal
• Now Slide the head unit onto pedestal and attach it with four mounting screw.
• Make sure that the wires are not pinched between pedestal and charging station
• Connect three electrical supply wires.
• Strictly adhere to the wire color codes to ensure proper installation (Green-Green). And use wire nut and
Insulation tape for safety.
• Carefully push the wire in and attach the access plate.
Installation Manuals Series 6 EV Charging Station - 1
Copyright ©2021 SemaConnect, Inc. All rights reserved. Page 17 of 25

The device, may be cleaned by following the instructions below:
• Use clean, soft cloth along with mild detergent to wash the dirt off.
• Do not use high pressure water. Pour water gently from the top and use a wet/dry cloth to clean all
the sides.
• Never use strong detergents or any other chemicals (Acids, petrol, thinner or any other solvent.)
• Do not exert too much of pressure on the device while cleaning.
• Do not open the device.
• Do not use a vacuum cleaner.
Power Up!
• To power up, flip the breakers.
• Call (800)-663-5633 to complete installation.
• Please have the station serial number ready with you. If you do not have it, you can find it on left-hand
side of the station.
