Senal MC5-MS User manual

Table of Contents:
Introduction .............................2
Precautions ..............................3
Overview ................................. 4
Powering the
Microphone ............................. 5
Mounting the
Microphone ............................. 5
Recording ................................ 6
Troubleshooting .....................7
Specifications .................. 8-10
Warranty ..................................11
USER’S GUIDE
MC5-MS
Dual-Channel Stereo Condenser Microphone

2
Thank you for choosing Senal.
The Senal MC5-MS is a professional dual-channel stereo microphone that delivers broadcast-quality
sound in the studio or on location. This microphone is designed and engineered to improve and
enhance the audio of professional camcorders or other recording devices that have two-channel
XLR mic inputs and 48 V phantom power.
The MC5-MS features two unidirectional condenser capsules set in an XY pattern to capture a wide
stereo field of detailed and accurate sound. The microphone features two high-quality Neutrik®
XLR connectors for flawless signal transfer. Superb audio quality is enhanced by metal construction
that eliminates unwanted noise from vibrations, resonance, and RF interference. The MC5-MS is an
ideal microphone to capture dialog or ambient soundscapes but offers stereo and mono operation
for versatility in diverse production and broadcast recording scenarios. The microphone’s compact
length ensures that it won’t extend into the picture frame when you mount it on a camera.
▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪
Introduction

3
Precautions
▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪
Precautions
• Please read and follow these instructions, and keep this manual in a safe place.
• Keep this product away from water and flammable gases or liquids.
• Do not attempt to disassemble or repair this product yourself.
• Handle this product carefully.
• Clean this product with only a soft, dry cloth.
• Make sure that this product is intact and that there are no missing parts.
• Do not leave this microphone in the open sun, or where temperatures exceed 122°F (50°C) for
extended periods. Extremely high humidity should also be avoided.
• All images are for illustrative purposes only.

4
▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪

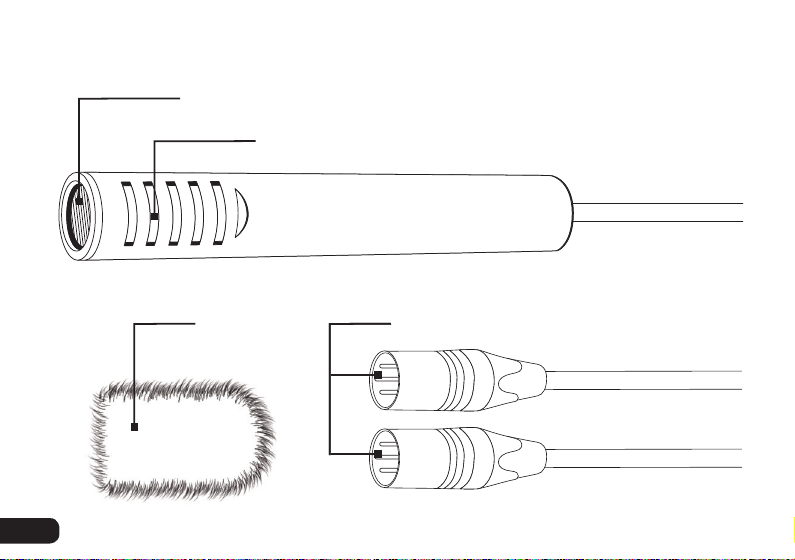

Overview
Overview
Fur windscreen
Grille
Microphone
ports
XLR connectors

5
Powering / Mounting the Microphone
▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪
Powering the Microphone
The MC5-MS microphone requires 48 V phantom power to operate. Phantom power is supplied by
most professional video cameras, mixing consoles, or recording devices.
Connect the XLR outputs to your device, and activate phantom power for both channels on your
source.
Mounting the Microphone
Attach the MC5-MS to a camcorder via the camcorder’s microphone mount or a shock mount (not
included). For mic-stand mounting, use a shock mount or standard microphone clip.
Important!
Make sure the microphone is in the correct orientation when it’s mounted. The word UP on the ring
at the base of the microphone should point up. Also make sure the microphone’s grille and ports
are not obstructed.

6
▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪
Recording Stereo / Mono
Recording with the MC5-MS
Two-channel stereo
1. Attach the XLR connectors to your camcorder, mixer, or recording device.
• Red—right channel
• White—left channel
2. Activate 48 V phantom power for both channels on your camcorder or device.
Mono
In mono mode, the microphone will only record sound to one channel.
Mono recording is convenient for using the MC5-MS to record background sound to one channel,
while the on-camera talent is using a hand-held or lavalier mic to record to the other channel.
For mono recording, turn off only the right channel’s phantom power. Continue to send phantom
power to the left channel.

7
Troubleshooting
▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪
Problem Solution
No sound is being
recorded.
Activate phantom power on your camcorder, mixer, or recording device.
Make sure the camcorder or mixer is turned on.
Your preamp gain may be turned all the way down. Gradually turn it up
until reaching a satisfactory input level.
Make sure the microphone is properly connected and that the
connections are secure.
The sound is
distorted.
Move the microphone away from the sound source.
The preamp gain may be too high. Gradually turn it down until reaching
a satisfactory input level.
Can’t record in
mono mode.
Make sure the phantom power for the right channel is turned off, and
the left channel is on.
If the problem persists, turn off phantom power to the right channel,
and disconnect the right channel XLR.
Troubleshooting

8
▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪
Performance Specifications
Transducer Back electret condenser
Polar Pattern Unidirectional, XY configuration
Frequency Response Stereo: 80 Hz to 20 kHz
Mono: 70 Hz to 20 kHz
Directivity Unidirectional
Output Impedance 30 Ω ±20%, balanced output
Sensitivity Stereo: -30 dB ±3 dB (0 dB SPL = 1 V/Pa, 1 kHz)
Mono: -35 dB (±3 dB)
Signal-to-Noise Ratio 69 dB or more (IEC 179 A-weighted, 1 kHz, 1 Pa)
Inherent Noise 25 dB SPL or less (0 dB SPL=2 × 10
-5
Pa)
Maximum Sound
Pressure Level (SPL)
125 dB SPL or more (input level for 1% waveform distortion at
1 kHz, converted into equivalent input sound pressure level)
Dynamic Range 106 dB SPL or more
Operating Temperature 32°F to 122°F (0°C to 50°C)
Storage Temperature -4°F to 140°F (-20°C to 60°C)
Performance Specifications

9
General Specifications
▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪
Type Back electret condenser
Power Supply External power supply 40 to 52 V DC
Power Consumption Stereo: 3 mA or less × 2 channels
Mono: 3 mA or less
Output Connector 3-pin XLRM (×2)
Dimensions Diameter: 0.94 in. (2.4 cm)
Length: 5.4 in. (13.7 cm)
Weight 5.6 oz. (160 g)
General Specifications

10
▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪
Frequency Response / Polar Patterns
-20
-10
0dB
120°
60°
30°
90°
150°150°
120°
90°
60°
30°
180°
180°
0
-30
Hz
20k10k5k2k1k5002001005020
-20
-10
+10
+20
dB
-20
-10
0dB
120°
60°
30°
90°
150°150°
120°
90°
60°
30°
180°
180°
0
-30
Hz
20k10k5k2k1k5002001005020
-20
-10
+10
+20
dB

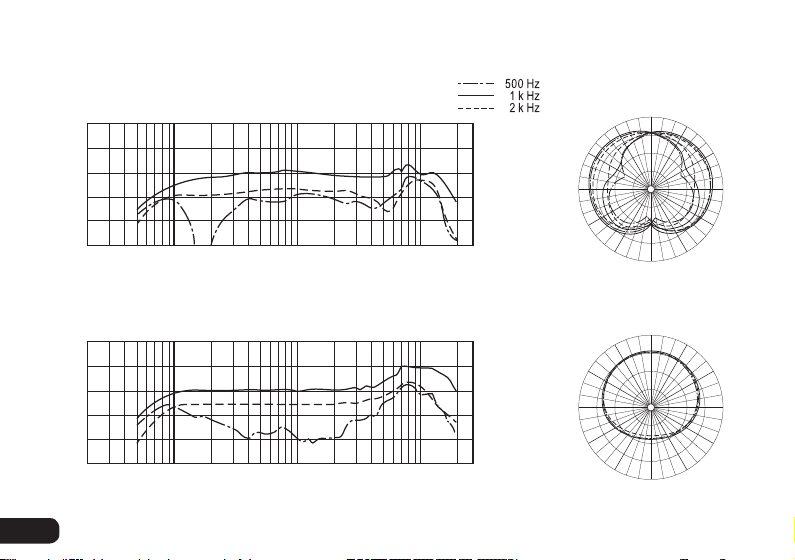

Frequency Response Graph - Stereo
Frequency Response Graph - Mono
Stereo Polar Pattern
Mono Polar Pattern

GG1
One-Year Limited Warranty
This Senal product is warranted to the original purchaser to be free from defects in materials and workmanship
under normal consumer use for a period of one (1) year from the original purchase date or thirty (30) days
after replacement, whichever occurs later. The warranty provider’s responsibility with respect to this limited
warranty shall be limited solely to repair or replacement, at the provider’s discretion, of any product that fails
during normal use of this product in its intended manner and in its intended environment. Inoperability of the
product or part(s) shall be determined by the warranty provider. If the product has been discontinued, the
warranty provider reserves the right to replace it with a model of equivalent quality and function.
This warranty does not cover damage or defect caused by misuse, neglect, accident, alteration, abuse,
improper installation or maintenance. EXCEPT AS PROVIDED HEREIN, THE WARRANTY PROVIDER MAKES
NEITHER ANY EXPRESS WARRANTIES NOR ANY IMPLIED WARRANTIES, INCLUDING BUT NOT LIMITED
TO ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. This
warranty provides you with specific legal rights, and you may also have additional rights that vary from state
to state.
To obtain warranty coverage, contact the Senal Customer Service Department to obtain a return merchandise
authorization (“RMA”) number, and return the defective product to Senal along with the RMA number and
proof of purchase. Shipment of the defective product is at the purchaser’s own risk and expense.
For more information or to arrange service, visit www.senalsound.com or call Customer Service at 212-594-2353.
Product warranty provided by the Gradus Group.
www.gradusgroup.com
Senal is a registered trademark of the Gradus Group. © 2018 Gradus Group LLC. All Rights Reserved.

www.senalsound.com
