Sennheiser Set 810 User manual

Set 810
Bedienungsanleitung
Instruction Manual
Notice d´emploi
Istruzioni per l´uso
Instrucciones para el uso
Gebruiksaanwijzing
Bruksanvisning
set 810_93286_0106_Sp7.book Seite 1 Donnerstag, 19. April 2007 4:29 16

1
English
SET 810
Thank you for choosing Sennheiser! Over half a century of accumulated
expertise in the design and manufacture of high-quality audio equipment
has made Sennheiser a world leader in the field of audiology.
TheSET810isanassistivelisteningsystemforyourradio,TV,hi-fisystemor
similar sound sources at the volume you choose. The system allows you to
move around freely without the constrictions of cables within the room
where the transmitter is placed. The system uses invisible infrared light for
sound transmission.
set 810_93286_0106_Sp7.book Seite 1 Donnerstag, 19. April 2007 4:29 16

2
English
Delivery includes
The Set 810 consists of the following
components and accessories:
- Stethoset receiver RI 810
- Transmitter
(charging unit) TI 810
- Rechargeable battery BA 151
- Power supply NT 810
- Connecting cable for headphone output
- Adapter for SCART socket
(except USA/Canada)
- Adapter for RCA sockets
(USA/Canada only)
- Replacement ear pads
- Instruction manual
set 810_93286_0106_Sp7.book Seite 2 Donnerstag, 19. April 2007 4:29 16

3
English
Connecting the transmitter (charging unit)
The rear of the transmitter is fitted
with two audio inputs: A socket
(LINE) for connection to the audio
output or the headphone socket on
your TV, and a microphone socket
(MIC).
Pluginoneendoftheconnectingcabletotheaudiooutputortheheadphone
socket on your TV, and the other end to the LINE socket on the transmitter.
If your TV set is fitted with a SCART socket, use the supplied adapter.
If your TV does not have a headphone or SCART socket, you can use an
external microphone which is described in the section ACCESSORIES.
Only use one of the two audio inputs on the transmitter (MIC or LINE).
Connect the power cable to the POWER socket on the transmitter. Plug the
power supply into a household electrical outlet.
set 810_93286_0106_Sp7.book Seite 3 Donnerstag, 19. April 2007 4:29 16

4
English
Where to place the transmitter
Place the transmitter so that the
infrared light beam is pointed
directly at the receiver, i.e. there
should be no obstacles in the light
path between transmitter and
receiver. Guide the cables
backwards.
Avoid exposure to direct sunlight.
Direct sunlight may interfere with
the reception and may damage the
transmitter.
Pull the power supply unit out of the electrical outlet when the unit will not
be used for extended periods of time.
set 810_93286_0106_Sp7.book Seite 4 Donnerstag, 19. April 2007 4:29 16

5
English
Using the stethoset receiver
Whenputtingthestethosetreceiveron,
make sure the operating control is
pointingdownwardsandthelettersare
at the front.

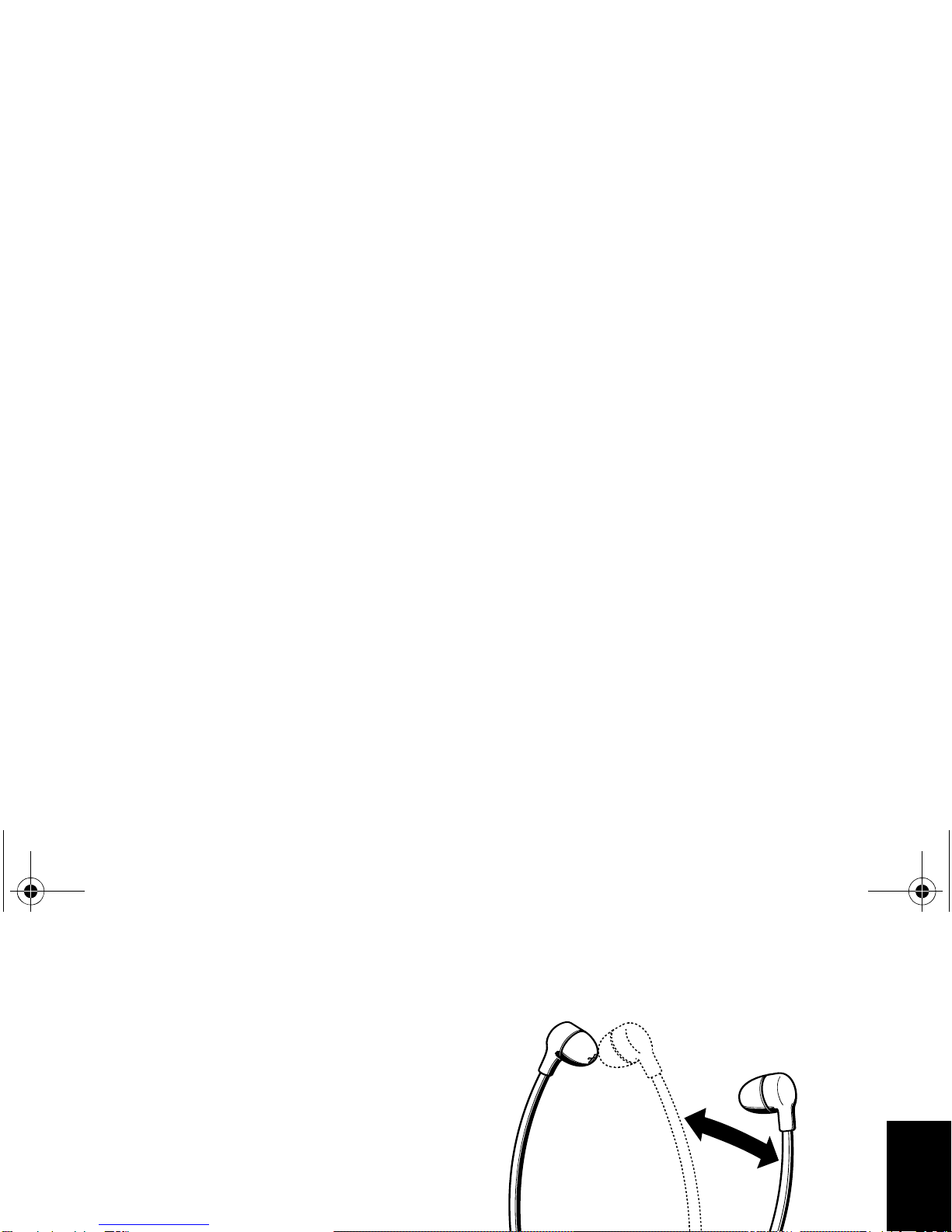

The stethoset receiver automatically
turns on if you pull the earbows apart.
set 810_93286_0106_Sp7.book Seite 5 Donnerstag, 19. April 2007 4:29 16

6
English
Adjusting the volume
Adjust the receiver's volume with
the operating control. Make sure
your hand doesn't cover the
operating control completely. This
may prevent interference-free
reception.
If you are not using the stethoset
receiver, store it on the transmitter
sothatthebatterycanberecharged.
set 810_93286_0106_Sp7.book Seite 6 Donnerstag, 19. April 2007 4:29 16

7
English
Turning the automatic compression system on
UsetheCOMswitch(compression)
at the rear of the transmitter to
turn the automatic compression
systemon.Thissystemreproduces
soft passages louder and de-
creases loud sounds. Choose the
setting that suits your listening
preferences.
Usethe MO/STswitch tochoose betweenmonoandstereotransmission.For
mono TVs and when using the MKE 800 TV microphone, the switch must be
set to mono (MO).
set 810_93286_0106_Sp7.book Seite 7 Donnerstag, 19. April 2007 4:29 16

8
English
Charging the battery
Place the receiver into the transmitter's
charging compartment, with the operating
control at the front. The left LED on the
transmitter must light up.
Chargethebatteryfor24hoursbeforeyouuse
it for the first time. The normal charging time
is 4-5 hours. A fully charged battery has an
operating time of approx. 4 hours.
Alwaysstorethereceiveronthetransmitterto
ensure that it is fully charged. The transmitter
is automatically turned off by the charging
process. The transmitter automatically
switches to trickle charging so that the battery cannot be overcharged. The
receivercanremaininthechargingcompartmentevenwhenthebatteryhas
been fully charged.
set 810_93286_0106_Sp7.book Seite 8 Donnerstag, 19. April 2007 4:29 16

9
English
Additional information
This system uses infrared light which is emitted by the transmitter and
receivedbythestethosetreceiver.Pleasenotethatinfraredlightemittedby
otherlightsources mayinterfere withtheusefulsignal oftheSET 810.If the
lightpathbetweentransmitterandreceiverisobstructedbyclothingsuchas
scarves etc., the reception may also be disturbed.
Varnish or furniture polish may degrade the rubber feet of the transmitter.
Place the transmitter on a nonslip pad to avoid potential staining of
furniture.
Deliveryincludesapairofreplacementearpads.Ifnecessary,removetheold
ear pads and slide on the new ones.
Use a soft cloth for cleaning the units. Do not use abrasive cleaners.
According to today's scientific knowledge, the infrared light emitted by this
unit is not harmful to humans or animals.
set 810_93286_0106_Sp7.book Seite 9 Donnerstag, 19. April 2007 4:29 16

10
English
WARNING: When people use headphones, they tend to choose a higher
volumethanwithloudspeakers.However,ifyourhearinghas
deteriorated and you need to rely on an assitive listening
system,pleaseavoidlisteningathighvolumelevelsforalong
time. Please protect your hearing.
set 810_93286_0106_Sp7.book Seite 10 Donnerstag, 19. April 2007 4:29 16

11
English
Accessories
Only use original Sennheiser spare parts and accessories.
ATTENTION: Componentsfromothermanufacturers(e.g.forpowersupply
or battery) may cause damage to the unit and will invalidate
the waranty.
The following accessories are available from your authorized dealer:
Rechargeable battery BA 151
Charger L 151-2
Stethoset receiver RI 810
Clip-on receiver with audio socket RI 810 S
Transmitter TI 810
External microphone MKE 800 TV
set 810_93286_0106_Sp7.book Seite 11 Donnerstag, 19. April 2007 4:29 16

12
English
BA 151 rechargeable battery
By using a spare accupack, you can use the stethoset receiver for more than
four hours of continuous operation. Always store the spare accupack in the
smallchargingcompartmentattheright ofthetransmitter.TherightLEDon
the transmitter lights up green to show charging is taking place. When
charginganbatteryinthe smallcharging compartment,thechargingtimeis
10-12 hours.
A battery has a service life of 1-2 years and should be replaced if the
operating time decreases.
Sennheiserbatteriescanberecycled.Pleasedisposeofthe batteryasspecial
waste or return them to your specialist dealer. To protect the environment,
only dispose of totally exhausted accupacks which cannot be recharged.
L 151-2 charger
Spare batteries can be charged via the L 151-2 charger.
set 810_93286_0106_Sp7.book Seite 12 Donnerstag, 19. April 2007 4:29 16

13
English
RI 810 additional stethoset receiver
Onetransmittercantransmittoseveralreceivers.AdditionalRI 810receivers
are available from your authorized dealer.
RI 810 S clip-on receiver
Instead of earbows, this receiver features a socket for connecting a
headphone or a connecting cable which allows its use with a hearing aid.
MKE 800 TV external microphone
If your TV doesn't have a headphone output, SCART or RCA socket, you can
use your SET 810 together with the MKE 800 TV microphone.
Fix the microphone to the loudspeaker of your TV by means of Velcro tape.
Connect the microphone connector to the MIC socket on the transmitter and
set the MO/ST switch to mono (MO).
set 810_93286_0106_Sp7.book Seite 13 Donnerstag, 19. April 2007 4:29 16

14
English
If problems occur...
- Are all jack plugs connected correctly?
- Are the receiver and sound source turned on and is the volume of the
receiver and sound source sufficient?
- Have you pulled the earbows apart?
- Is the battery inserted properly into the receiver?
- Have you charged the battery for at least 20 minutes?
- Are the transmitter's LEDs pointed at the receiver?
- Is the receiver's operating control pointed at the transmitter?
- Is there a free line of sight between transmitter and receiver?
- Should the problem persist, please contact your authorized dealer for
assistance.
Never open the unit!
set 810_93286_0106_Sp7.book Seite 14 Donnerstag, 19. April 2007 4:29 16

15
English
Additional information for hearing aid acousticians
Adjusting the earbow pressure
Loosen the screw at the rear of the stethoset receiver. Move the
screw in the long hole to the desired position (continuously
adjustable).
1 = Low earbow pressure
2 = High earbow pressure
Tighten the screw.
Adjustments for hearing disabilities

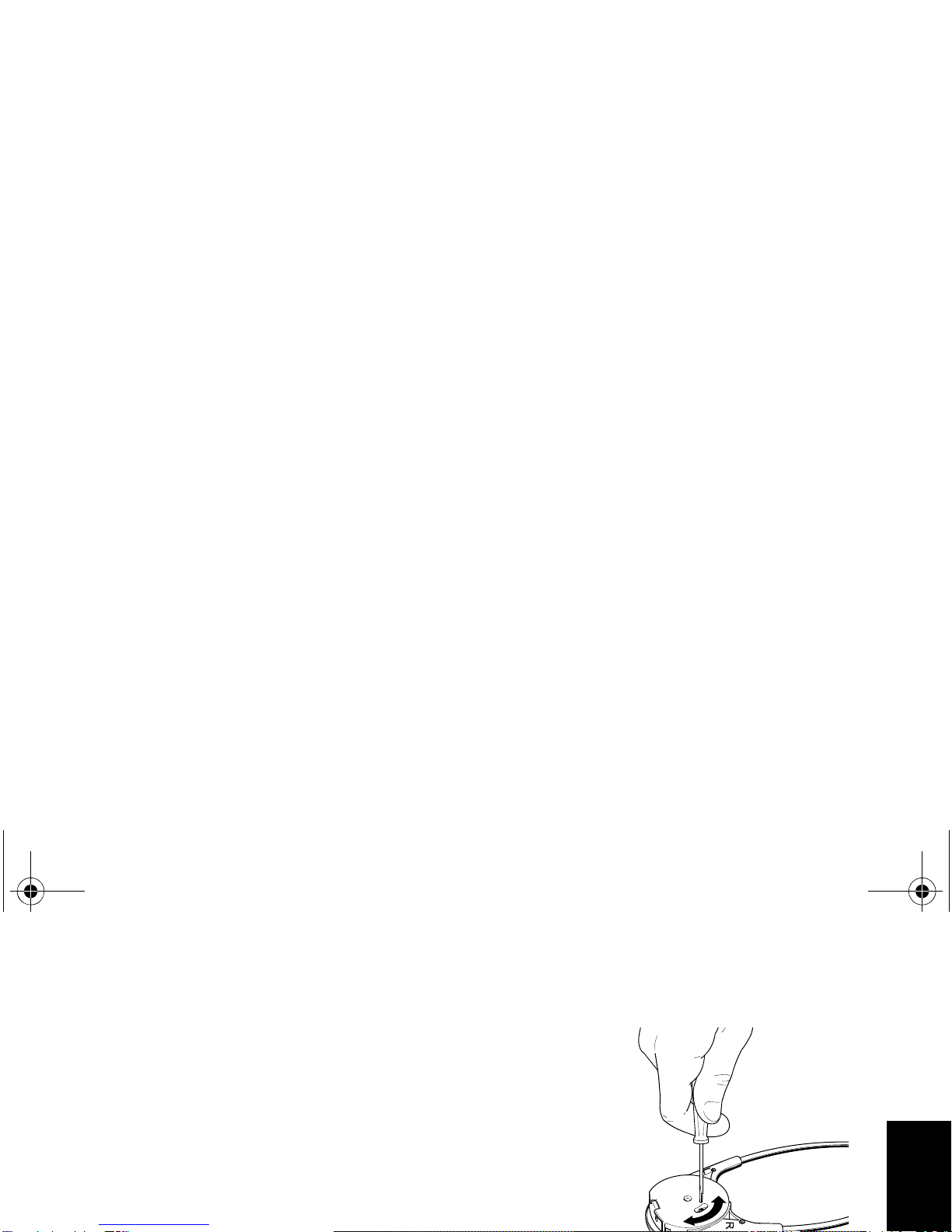

Turn the operating control fully counterclockwise (0). Remove
the operating control by carefully lifting it over the "snap-in
pins" on the inside. Use the 4 potentiometers on the circuit
board to individually adjust the max. volume and the bass
response for the left and right headphone system.
1 = Max. volume R/L
2 = Bass response R/L
2
1
1
2
set 810_93286_0106_Sp7.book Seite 15 Donnerstag, 19. April 2007 4:29 16

16
English
Adjusting the max. volume:
Potentiometer turned fully counterclockwise 0 dB
Potentiometer turned fully clockwise 125 dB
Adjusting the bass response:
Potentiometer turned fully counterclockwise attenuation of -25 dB at 100 Hz
Potentiometer turned fully clockwise attenuation 0 dB
The adjustments can also be made when the receiver is
being used.
When replacing the operating control, make sure the
"projections" on the inside of the operating control point in
the direction of the earbows.
After replacing the operating control, synchronize the
operatingcontrolwiththevolumecontrolbyonceturningit
fully counterclockwise and then fully clockwise.
set 810_93286_0106_Sp7.book Seite 16 Donnerstag, 19. April 2007 4:29 16

17
English
Technical Data
System
Modulation FM, stereo
Carrier frequencies 2.3 / 2.8 MHz
AF frequency response 40 Hz ....... 15 kHz
S/N ratio 60 dB A rms
Transmitter
AF input voltage 50 mV ...... 5 V
Audio input 3.5 mm jack, stereo/mono
Microphone socket 2.5 mm jack, mono
Charging time for battery approx. 4 h
Charging time (spare battery) approx. 10-12 h
Power supply 24 V DC via NT 810 mains unit
Weight approx. 94 g (without battery)
Dimensions diameter: 3.8 inch, heigth: 1.1 inch
Receiver
Max. sound pressure level > 125 dB
Power supply 2.4 V via BA 151 battery
Operating time more than 4 hours per battery
Weight approx. 60 g (without battery)
Dimensions length: 5.8 inch, width: 3.1 inch, heigth: 0.6 inch
set 810_93286_0106_Sp7.book Seite 17 Donnerstag, 19. April 2007 4:29 16

18
English
Manufacturer declarations
CE Declaration of Conformity
This equipment is in compliance with the essential requirements and other relevant provisions
of Directives 2006/95/EC. The declaration is available on the internet site at
www.sennheiser.com.
Before putting the device into operation, please observe the respective country-specific regulations!
WEEE Declaration
Your Sennheiser product was developed and manufactured with highquality materials and compon-
ents which can be recycled and/or reused. This symbolindicates that electrical and electronic equip-
ment must be disposed of separately from normal waste at the end of its operational lifetime.
Please dispose of this product by bringing it to your local collection point or recycling centre for such
equipment. This will help to protect the environment in which we all live.
Batteries
Thesuppliedrechargeablebatteriescanberecycled.Pleasedisposeofrechargeablebatteriesas spe-
cial waste or return them to your specialist dealer. In order to protect the environment, only dispose
of exhausted batteries.
set 810_93286_0106_Sp7.book Seite 18 Donnerstag, 19. April 2007 4:29 16

Sennheiser electronic GmbH & Co.KG
30900 Wedemark, Germany
Phone [phone]
Fax [phone]
www.sennheiser.com
Printed in Germany Publ. 04/07 093286 / A04
set 810_93286_0106_Sp7.book Seite 130 Donnerstag, 19. April 2007 4:29 16
