ew 352 G3 Head Set
ew 352 ©Head Set
RF Wireless Systems | evolution wireless G3
General Description
The system is ideal for hands-free vocal and speech applications, such
as presentations and lectures. The extremely small SK 300 G3 bodypack
transmitter and EM 300 G3 rack-mountable receiver each features 20
frequency banks with 6 user banks and 24 directly accessible frequency
presets. The system is ready for immediate use.
Technical Specifications
ew 300 ©
Modulation............................................... wideband FM
Frequency ranges .......................516–558, 566–608,
................... 626–668, 734–776, 780–822, 823–865
Transmission/Receiving
frequencies ............ 20 channel banks, 6 user banks,
...................................24 factory preset channels each
Switching bandwidth........................................42 MHz
Noise reduction system.....................Sennheiser HDX
AF frequency response.......................25 – 18,000 Hz
S/N ratio (at 1 mV and peak deviation) . ≥115 dBA
THD (at nominal deviation and 1 kHz) ........ .≤0.9 %
EM 300 ©
Receiver principle.................................True Diversity
Sensitivity (with HDX,
peak deviation).......................<2 µV at 52 dBAeff S/N
Adjacent channel rejection..............................≥75 dB
Intermodulation attenuation..........................≥70 dB
Blocking ...............................................................≥75 dB
Pilot-tone squelch....................................... detachable
Antenna inputs ...................................... 4 BNC sockets
AF output voltage (at peak
deviation, 1 kHz AF)...... 1/4“ (6.3 mm) jack socket,
................................ unbalanced: +12 dBu XLR socket,
...........................................................balanced: +18 dBu
Power supply......................................................12 V DC
Dimensions ................................7.95“ x 8.35“ x 1.69“
Weight ................................................. approx. 2.16 lbs
SK 300 ©
RF output power at 50 Ω..................typ. 30/10 mW,
......................................................................... switchable
AF frequency response...........25 – 18,000 Hz (Line)
......................................................80 – 18,000 Hz (Mic)
Max input voltage transmitter / line..................3 Veff
Input impedance transmitter / line ................ 40 kΩ,
.......................................................... unbalanced / 1MΩ
Power supply..............................2 AA batteries, 1.5 V
Nominal voltage..................................................... 2.4 V
Operating time...................................................typ. 8 h
Dimensions ................................3.23“ x 2.52“ x 0.94“
Weight .................................................. approx. 5.64 oz
ME 3-ew
Transducer principle.....................................condenser
Sensitivity ..................................................... 1.6 mV/Pa
Pick-up pattern .................................................cardioid
Max. SPL ....................................................... 150 dB SPL

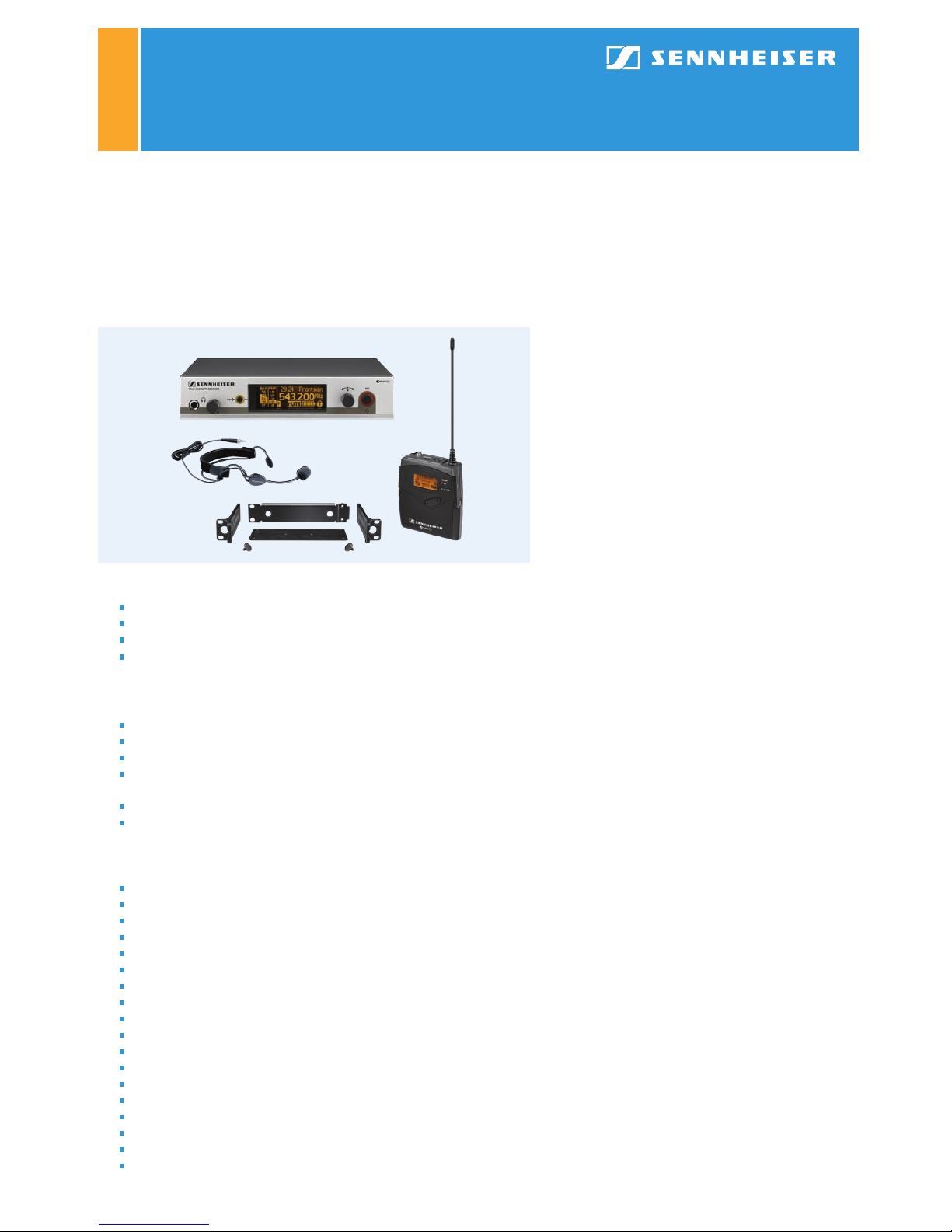

Kit includes:
EM 300 G3 rack-mountable receiver
(1) SK 300 G3 bodypack transmitter
(1) GA 3 rack-mount kit
(1) ME 3-ew headset microphone
For recommended accessories please visit www.sennheiserusa.com
Features
Sturdy metal housing
PC-supported frequency management for transmitter and receiver
Tunable UHF frequencies within a large switching bandwidth
Bodypack transmitter with programmable MUTE function and optional
external activation
Extremely small clip-on microphone
Ethernet port for connecting to the Wireless Systems Manager (WSM)
software for control via computer – this delivers a good overview of
monitoring and professional data management for multi-channel
systems
Programmable MUTE switch
Wireless synchronization of transmitters via infrared interface
Enhanced frequency bank with up to 24 switchable frequencies
42 MHz bandwidth, 1,680 switchable frequencies
Increased range for audio sensitivity
Large, illuminated dot matrix display with dual color warning indicator
More control options (menu)
Enhanced AF frequency range
Soundcheck mode
Integrated equalizer
Switchable RF output power (10/30 mW)
(2) AA batteries for over 8 hours of use
4-level battery indicator for transmitter
Contacts for recharging the BA 2015 accupack directly in the transmitter
HDX compander for crystal-clear sound
True diversity receiver for optimum reception
Includes installation kit for 19” rack mounting
Optional RMS 1 (Remote Mute Switch)

ew 352 ©Head Set
RF Wireless Systems | evolution wireless G3
Architect and Engineering Specifications
The wireless microphone system shall feature a true-diversity receiver with 42 MHz of available tuning bandwidth with a total
of 1,680 frequencies accessible in 25 kHz steps. The wireless microphone receiver must feature one Balanced XLR output with a
max. output of +18 dBu, and one unbalanced ¼” output with a max. output of +12 dBu. The wireless microphone receiver must
feature two BNC antenna inputs, one for each receiver module in the true diversity system. The wireless microphone receiver must
feature a backlit display that displays AF and RF levels, battery telemetry from the transmitter, operating frequency, and diversity
switching information. The wireless microphone receiver must feature an automatic frequency scanning function that utilizes
eight banks of pre-coordinated frequencies that are free of intermodulation interference. The wireless microphone receiver must
also feature a user bank in order to store user defined frequencies. The wireless microphone transmitter must operate on two
1.5V AA battery cells. The wireless microphone transmitter must have access to 1,680 frequencies tuned in 25 kHz steps across a
defined 42 MHz bandwidth. The wireless microphone transmitter must feature a backlit display that displays frequency informa-
tion, AF level, battery level. The wireless microphone transmitter must transmit a pilot-tone squelch. The wireless microphone
transmitter must have a specified RF output power of 30mW. The wireless microphone receiver must accept 12V DC power via
BNC antenna inputs.
