Sensidyne Gilian Gilibrator STABLFLOW User manual

Operation Manual
(This Manual Covers All Gilibrator® 3 Kit Models)
Sensidyne Document No. 360-0213-01 - Rev B
1000 112TH Circle N, Suite 100 • St. Petersburg, FL 33716 USA
[phone] • [phone]
www.Sensidyne.com • [e-mail]

Sensidyne Document No. 360-0213-01 - Rev B © 2018 Sensidyne, LP
Page I
Gilian Gilibrator® 3 Dry Cell Calibrator – Operation Manual

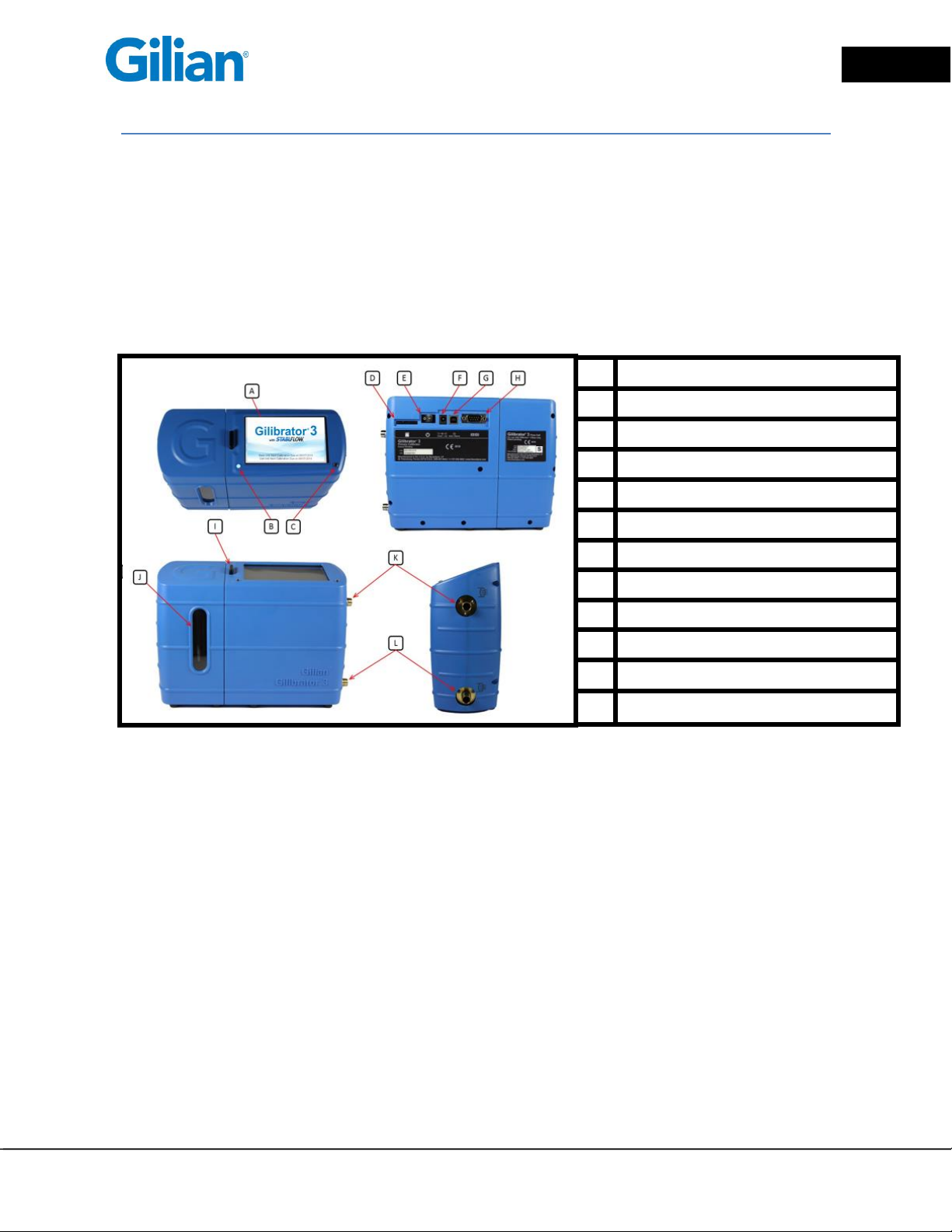

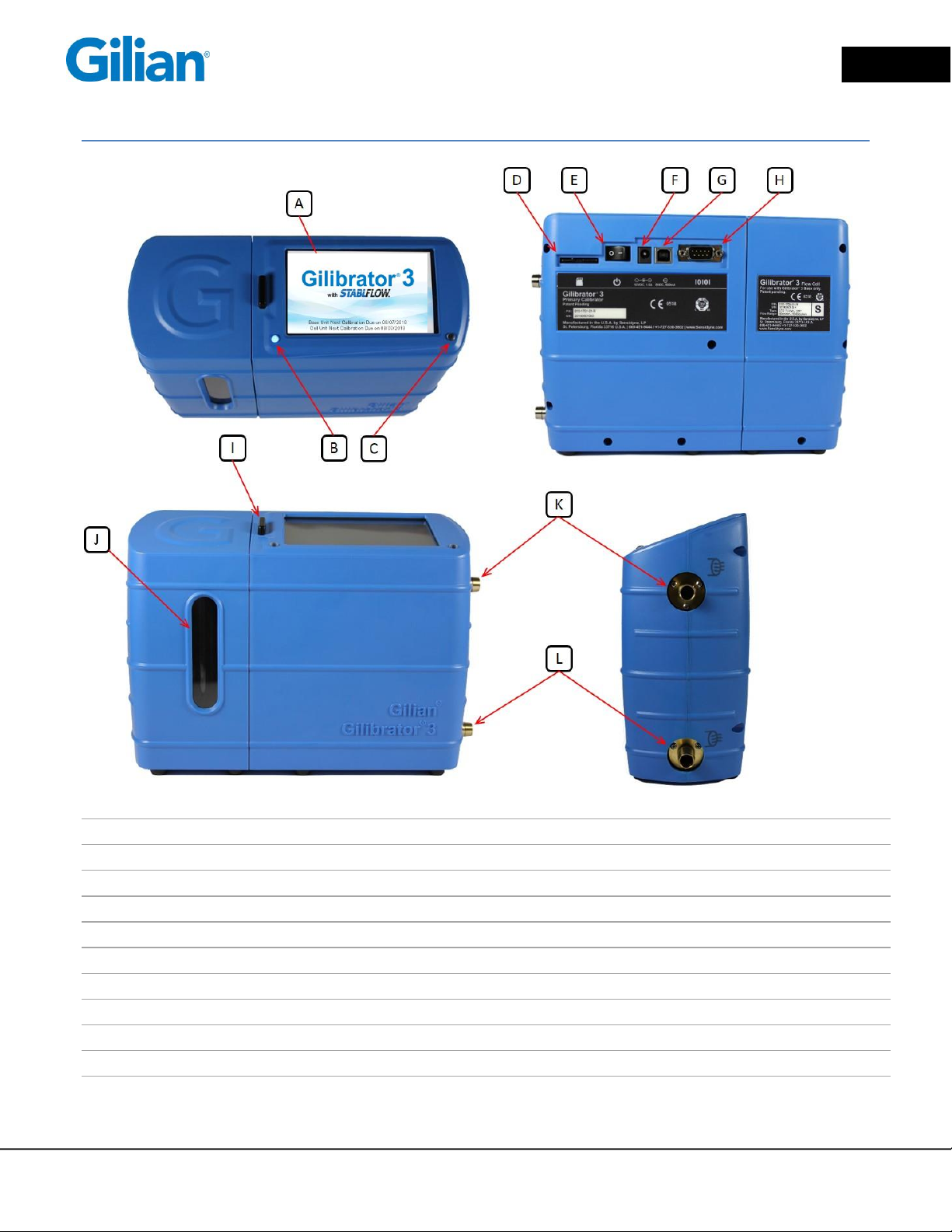

Gilibrator 3 Identifiers:
A LCD Display
B Status and Notification LED
C Ambient Light Sensor and Charge Indicator LED
D SD Card Port
E Power Switch
F Power Port
G USB Port
H DB9 Port
I Cell Release Button
J Viewing Window
K Inlet
LOutlet

© 2018 Sensidyne, LP Sensidyne Document No. 360-0213-01 - Rev B
Page II
Gilian Gilibrator® 3 Dry Cell Calibrator – Operation Manual
Quality Policy Statement
At Sensidyne, we are committed to providing products and services that
consistently meet customer needs and comply with all applicable statutory
and regulatory requirements.
Our products are designed, manufactured and calibrated in accordance with
standards ISO 9001:2015, ISO/IEC 17025:2017, ISO/IEC 80079-34, ATEX
Directive 2014/34/EU, and IECEx, where applicable. Through ongoing review
of our designs, supplier performance, and customer feedback we strive to
ensure continuous improvement.
All employees at Sensidyne share the responsibility to provide products that
are produced efficiently and economically representing the best value to our
customers. We are committed to meeting or exceeding customer expectations
in everything we do.
Sensidyne, LP

Sensidyne Document No. 360-0213-01 - Rev B © 2018 Sensidyne, LP
Page III
Gilian Gilibrator® 3 Dry Cell Calibrator – Operation Manual
Warranty
Sensidyne warrants that, at the time of delivery, the Gilibrator 3 shall be free of all defects
in workmanship and material. Sensidyne will repair or replace, at its sole option, any
Gilibrator 3 found to be defective by Sensidyne, if notified by Purchaser within the
Warranty time period.
The warranty time period shall be for two (2) years from the date of original shipment by
Sensidyne, except as noted below.
A. Exceptions to the above two year warranty time period:
1. The rechargeable LiFePO4 battery pack has a one (1) year warranty.
B. This warranty shall be null and void on any product which:
1. is operated or used in excess of the product’s operating specifications; or
2. is not properly maintained in accordance with its maintenance manual or
specifications; or
3. has been repaired or modified by persons other than authorized Sensidyne
personnel or Factory Trained Service Centers, unless such work is authorized in
advance in writing by Sensidyne; or
4. has been damaged, abused, or misused.
C. Warranty on Service and Repairs:
1. Goods, which have been repaired or replaced during the warranty period, are
warranted only for the remainder of the unexpired portion of the original warranty
period.
2. Repairs or service provided not pursuant to warranty: 180 days from date of
shipment by Sensidyne.
THIS WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESSED OR
IMPLIED, INCLUDING BUT NOT BEING LIMITED TO THE IMPLIED WARRANTIES
OF MERCHANTABILITY AND FITNESS FOR USE FOR A PARTICULAR PURPOSE,
WHICH ARE EXPRESSLY DISCLAIMED, AND CONSTITUTES THE ONLY
WARRANTY OF SENSIDYNE WITH RESPECT TO GOODS SOLD OR DELIVERED.

© 2018 Sensidyne, LP Sensidyne Document No. 360-0213-01 - Rev B
Page IV
Gilian Gilibrator 3® Dry Cell Calibrator – Operation Manual
Table of Contents
Gilibrator 3 Identifiers: .................................................................................................. I
Quality Policy Statement ............................................................................................. II
Warranty ..................................................................................................................... III
Table of Contents ....................................................................................................... IV
SECTION ONE: Preface ............................................................................................. 1
WARNINGS ................................................................................................................ 3
Certifications, Approvals and Compliances ................................................................. 5
Battery Pack Labels .................................................................................................... 5
SECTION TWO: Introduction ...................................................................................... 6
2.1. Product Description .......................................................................................... 6
2.2. Theory of Operation .......................................................................................... 7
2.3. Gilibrator 3 Dry Cell Calibration Kit Descriptions .............................................. 8
SECTION THREE: Set-Up .......................................................................................... 9
3.1. System Components ........................................................................................ 9
3.2. Base Unit Components ................................................................................... 10
3.3. Flow Cell Components ................................................................................... 12
3.4. Preparation ..................................................................................................... 13
3.5. System Set Up................................................................................................ 14
3.6. Connecting the Sampling Source ................................................................... 15
SECTION FOUR: General Operation ........................................................................ 16
4.1. Overview ........................................................................................................ 16
4.2. Navigation ...................................................................................................... 17
4.3. Setting Operational Functions ........................................................................ 18
4.4. Home Screen Displays and Operation Features ............................................ 27
4.5. Reports and Data Storage .............................................................................. 32
4.6. Help and Information ...................................................................................... 35
4.7. SmartCal ........................................................................................................ 35
4.8. Maintenance ................................................................................................... 36
4.9. Short-Term Storage ........................................................................................ 36
4.10. Long-Term Storage ........................................................................................ 36
4.11. Battery Charging and Capacity ....................................................................... 36
4.12. Troubleshooting .............................................................................................. 37
4.13. Icon Glossary.................................................................................................. 37

Sensidyne Document No. 360-0213-01 - Rev B © 2018 Sensidyne, LP
Page 1
Gilian Gilibrator® 3 Dry Cell Calibrator – Operation Manual
SECTION ONE: Preface
Proprietary Notice
The intended use of this manual is exclusive to owners of Gilian Gilibrator 3 Dry
Cell Calibrator. The material within this manual is proprietary information and is
to be used only to understand, operate, and service the instrument. By receiving
this document, the recipient agrees that neither this document, the information
disclosed within, nor any part thereof shall be reproduced or transferred,
physically, electronically or in any other form or used or disclosed to others for
manufacturing or for any other purpose except as specifically authorized in
writing by Sensidyne, LP.
Copyright Notice
© 2018 Sensidyne, LP All Rights Reserved. Reproduction, transmittal,
transcribing, storing in a retrieval system or translation of this document in part
or in its entirety is strictly prohibited without the prior written permission of
Sensidyne, LP.
Trademark Notice
Sensidyne, the Sensidyne logo, Gilian®, and Gilibrator® names and logos are
registered trademarks of Sensidyne, LP. Other trademarks and service marks
used in this document are the property of their respective companies and are
used only for informational and explanatory purposes.
Firmware/Software License
The firmware and the associated PC application software installed in or
provided with the Gilibrator 3 Dry Cell Calibrator is the property of Sensidyne,
LP and shall remain the property of Sensidyne, LP in perpetuity. The
firmware/software is protected by U.S. and international copyright laws and is
licensed for specific use with the Gilian Gilibrator 3 Dry Cell Calibrator. The user
may NOT reverse-engineer, disassemble, decompile, or make any attempt to
discover the source code of the firmware/software. The firmware/software may
NOT be translated, copied, merged or modified in any way. The user may NOT
sublicense, rent, or lease any portion of the firmware/software. The right to use
the firmware/software terminates automatically if any part of this license is
violated.

© 2018 Sensidyne, LP Sensidyne Document No. 360-0213-01 - Rev B
Page 2
Gilian Gilibrator 3® Dry Cell Calibrator – Operation Manual
Disclaimer
THE SELLER ASSUMES NO RESPONSIBILITY WHATSOEVER, TO ANY
PARTY WHOSOEVER, FOR ANY PROPERTY DAMAGE, PERSONAL
INJURY, OR DEATH RECEIVED BY OR RESULTING FROM, IN WHOLE, OR
IN PART, THE IMPROPER USE, INSTALLATION, OR STORAGE OF THIS
PRODUCT BY THE USER, PERSON, FIRM, ENTITY, CORPORATION OR
PARTY NOT ADHERING TO THE INSTRUCTIONS AND WARNINGS IN THIS
MANUAL, OR OTHERWISE PROVIDED BY THE SELLER OR FROM NOT
ADHERING TO ALL FEDERAL, STATE, AND LOCAL ENVIRONMENTAL
AND OCCUPATIONAL HEALTH AND SAFETY LAWS AND REGULATIONS.
THE SELLER SHALL NOT BE LIABLE FOR DIRECT, INDIRECT,
CONSEQUENTIAL, INCIDENTAL OR OTHER DAMAGES RESULTING
FROM THE SALE AND USE OF ANY GOODS AND SELLER’S LIABILITY
HEREUNDER SHALL BE LIMITED TO REPAIR OR REPLACEMENT OF ANY
GOODS FOUND DEFECTIVE.

Sensidyne Document No. 360-0213-01 - Rev B © 2018 Sensidyne, LP
Page 3
Gilian Gilibrator® 3 Dry Cell Calibrator – Operation Manual
WARNINGS
READ AND UNDERSTAND ALL WARNINGS AND INSTRUCTIONS BEFORE
USE.
Failure to read, understand, and comply with ALL accompanying literature,
instructions, product labels, and warnings could result in property damage, severe
personal injury, or death.
Read and understand ALL applicable environmental health and safety laws and
regulations before operating this product. Ensure complete compliance with ALL
applicable laws and regulations before and during the use of this product.
UNDER NO CIRCUMSTANCES should this product be used except by qualified,
trained, technically competent personnel and not until the warnings, Operation and
Service Manual, labels, and other literature accompanying this product have been read
and understood. DO NOT remove, cover, or alter any label or tag on this product, its
accessories, or related products.
The Gilibrator 3 Dry Cell Calibrator is intended for both indoor and outdoor use. The
unit is not waterproof. NEVER submerge the unit in water or draw liquids of any type
into the unit. Pump failure, faulting or user injury may result.
Do Not operate this unit with corrosive gasses or gasses that condensate.
Do Not pressurize the calibrator.
The Gilibrator 3 Dry Cell Calibrator is not intrinsically safe and should not be
used in explosive atmospheres. Refer to the Certifications and Approvals section
for approval ratings.
DO NOT operate this product should it malfunction, require repair, or have a cracked
or broken case or other visible or known damage. Operation of a malfunctioning
product, or a product requiring repair may result in serious personal injury or death.
DO NOT operate with a dirty or blocked inlet filter or kinked tubing.
DO NOT attempt to repair or modify the instrument, except as specified in the
Operation and Service Manual. If repair is needed, contact the Sensidyne Service
Department to arrange for a Returned Material Authorization (RMA).
Use ONLY genuine SENSIDYNE® replacement parts when performing any
maintenance procedures described in this manual. Failure to do so may seriously
impair instrument performance. Repair or alteration of the product beyond the scope
of these maintenance instructions, or by anyone other than an authorized
SENSIDYNE® serviceman, could cause the product to fail to perform as designed.

© 2018 Sensidyne, LP Sensidyne Document No. 360-0213-01 - Rev B
Page 4
Gilian Gilibrator 3® Dry Cell Calibrator – Operation Manual
This product uses rechargeable Lithium Iron Phosphate (LiFePO4) batteries. Always
fully charge before use. DO NOT attempt to deeply discharge the internal battery
pack. The internal LiFePO4 battery pack should be drained to 25% prior to
shipping.
DO NOT open the Gilibrator 3 Dry Cell Calibrator, charge or replace batteries in
an explosive atmosphere. Use only the charging cable provided for the Gilibrator 3
Dry Cell Calibrator as specified in the Parts List. Battery Pack is nominal 3.2V (3.6V
max.). Caution: Both base and battery may become warm during charging.
Gilibrator 3 batteries may only be replaced by an authorized Sensidyne Service
Center. LiFePO4 batteries must be promptly disposed of in a manner that corresponds
to local regulatory requirements for Lithium Batteries. Keep away from children. The
battery used in this device may present a risk of fire or chemical burn if mistreated. Do
no disassemble, heat above 140⁰ F (60⁰C), or incinerate. Replace battery with
Sensidyne Battery Pack (P/N 615-1703-011-R) only. Use of another battery may
present a risk of fire or explosion.
Do not disassemble or reconstruct battery pack. The battery pack has safety
functions and a protection circuit to avoid danger. If those have serious damage, the
pack may generate heat, smoke, rupture, or burn.
Do not short-circuit battery pack. Do not connect the + and - terminals with metals
(such as wire). Do not carry or store the battery pack with metal objects (such as wire,
necklace, or hairpins). If the battery pack is short-circuited, excessive large current will
flow and then heat generation, smoking, rupture, or burning will occur. In addition, it
causes heat generation at metals.
Do not incinerate or heat the battery pack. These cause the melting of insulator,
damage of gas release vent or safety function, or ignition of electrolyte. The above
mentioned actions cause heat generation, smoking, rupture, or burning.
Do not reverse-charge or reverse-connect. The battery pack has polarity. In case
the battery pack is not connected with charger or equipment smoothly, do not force
them to connect, but do check polarity of battery pack. If the battery pack is connected
to opposite polarity with charger, it will be reverse-charged and abnormal chemical
reaction will occur. It causes heat generation, smoking, rupture, or burning.
If the Gilibrator 3 Dry Cell Calibrator comes into contact with a destructive substance(s)
it is the responsibility of the user to take suitable precautions that prevent the unit from
being adversely affected. Destructive substances include acidic liquids or gases that
may attack metals, solvents that may affect polymeric materials, other solvents, or
corrosives. Suitable precautions are regular checks as part of routine inspections and
establishing from material data sheets that chemicals known to be present do not have
an adverse effect on the material of the pump (polycarbonate, polyester, silicone,
Buna-N, Neoprene, Stainless steel, brass and epoxy).

Sensidyne Document No. 360-0213-01 - Rev B © 2018 Sensidyne, LP
Page 5
Gilian Gilibrator® 3 Dry Cell Calibrator – Operation Manual
Certifications, Approvals and Compliances
The Gilibrator® 3 is EN 61010-1, CE, RoHS and EMC compliant. The Gilibrator® 3
contains an internal battery which has been approved for shipping and transport per
UN/DOT 38.3 and IEC 62133-2 (2nd Edition).
Examples of Product Labeling shown below:
Base Unit and Dry Flow Cell Labels
Battery Pack Labels

© 2018 Sensidyne, LP Sensidyne Document No. 360-0213-01 - Rev B
Page 6
Gilian Gilibrator 3® Dry Cell Calibrator – Operation Manual
SECTION TWO: Introduction
2.1. Product Description

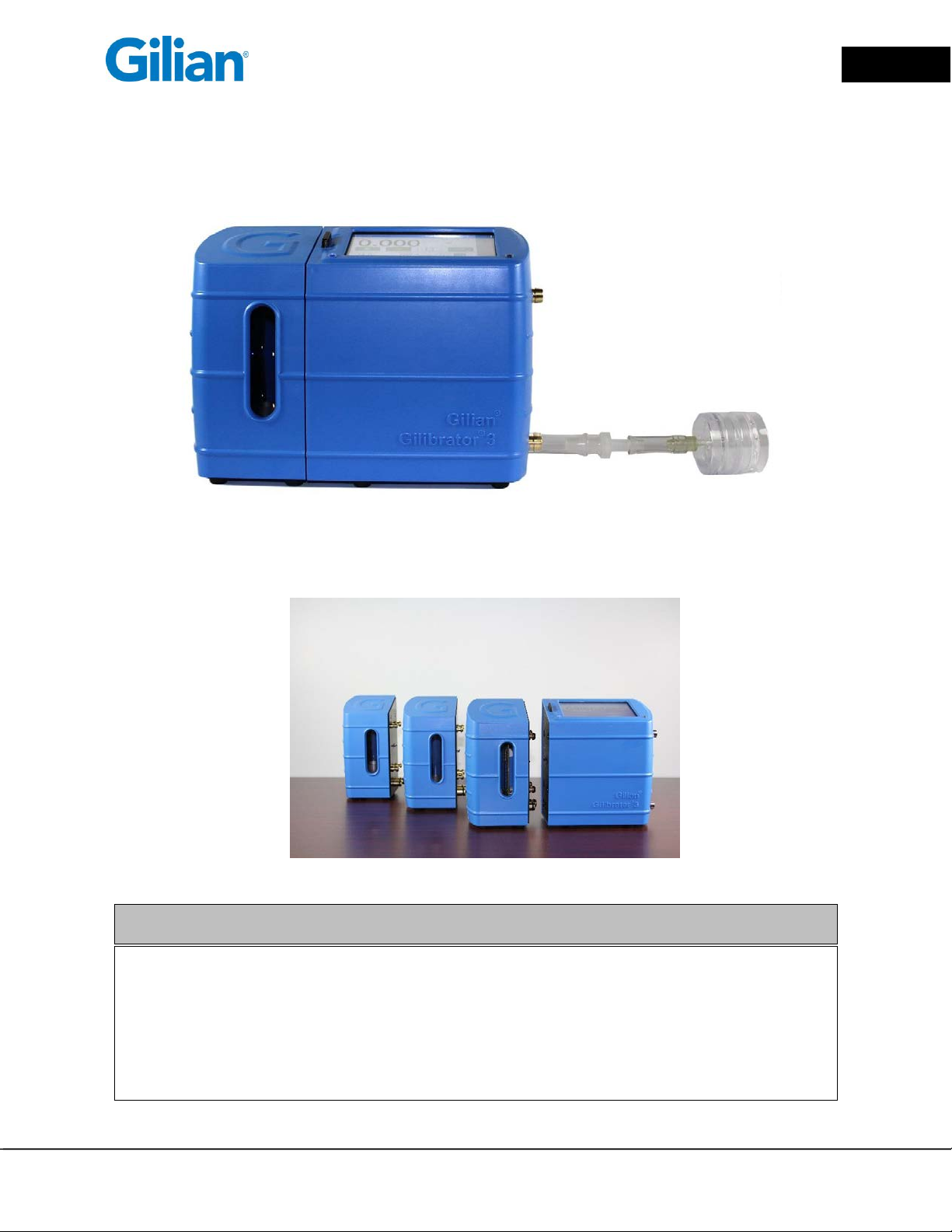

The Gilibrator 3 Dry Cell Calibration System is an easy to use Primary Standard for the
calibration of air sampling equipment. The system includes a high accuracy, volumetric
flow meter that provides quick air flow readings and cumulative averaging of multiple
samples. Three Dry Cell Assemblies provide a wide range of flow rates and are easily
interchangeable using the quick release system for mounting the Flow Cell to the Base.
Features of the Gilibrator 3 Dry Cell Calibration System include an easy-to-read color
touch screen LCD display; multi-screen user interface with drop down menus and
screen keyboard input capabilities; corrections for standard temperature and pressure;
statistical analysis and confidence level percentages; ability to save and name
individual calibration records; and the ability to preview and export calibration records
in Bitmap and CSV formats. You can also specify the number of samples to be taken
(3 to 20) for averaging.
Gilibrator 3 Dry Cell Calibration System Kits include a Dry Cell Assembly (Flow Cell),
Control Unit Base (Base), Battery Charger, Tubing, Adapters, Fittings and Manual.
Interchangeable Flow Cell Assemblies are available as follows:
• Low Flow Dry Cell (5 to 450 cc/min)
• Standard Flow Dry Cell (50 to 5000 cc/min)
• High Flow Dry Cell (1 to 30 LPM)

Sensidyne Document No. 360-0213-01 - Rev B © 2018 Sensidyne, LP
Page 7
Gilian Gilibrator® 3 Dry Cell Calibrator – Operation Manual
2.2. Theory of Operation
To be a primary standard, all values must be absolute and measured as absolute. A
primary standard airflow measurement is a volume divided by a time interval as
performed by the Control Unit of the Gilibrator 3 Dry Cell Calibration System. The
volume (V) is measured volume of space between a pair of sensors. The time (t) is that
interval needed for the puck to travel between the two sensors which bound the
volume. Thus, the volume per unit of time (V/t) becomes the flow rate. Because the
electronic clock is far more accurate than the volume measurements, the volume
measurement accuracy determines the overall accuracy of the unit.
The Gilibrator 3 Dry Cell Calibration System consists of two elements, the Dry Flow
Cell Assembly and the Control Unit Base. The function of the Flow Cell Assembly is to
provide a means for measuring the puck traveling up a flow tube through a known
volume of space.
Measurement of the travel time is done by means of a reflective sensor array mounted
along the flow tube. The volume bound by these sensors is set accurately to a primary
volume standard.
As the puck moves up the tube, the device records the time between a pair of sensors.
Once a complete cycle has occurred, the time difference between the sensors
becomes the elapsed travel time. This timing information (along with the volume
information) is sent to the microprocessor in the Control Unit Base. The calculated flow
and sample information are then displayed directly on the Liquid Crystal Display.

© 2018 Sensidyne, LP Sensidyne Document No. 360-0213-01 - Rev B
Page 8
Gilian Gilibrator 3® Dry Cell Calibrator – Operation Manual
2.3. Gilibrator 3 Dry Cell Calibration Kit Descriptions
Kits are available in one cell, two cell and three cell configurations, with power cords
in US, Euro and UK versions. A matrix chart for the available kits are provided below.
Kit
Type
Gilibrator 3
Base
Dry Cell
Carrying
Case
• Low Flow Dry Cell (5 to 450 cc/min)
• Standard Flow Dry Cell (50 to 5000 cc/min)
• High Flow Dry Cell (1 to 30 LPM)
Single
Cell
Base
Pack
1
Choose 1 Dry Cell
910-1708-US-R† Gilibrator 3 Low Flow Dry Cell
910-1709-US-R† Gilibrator 3 Standard Flow Dry Cell
910-1710-US-R† Gilibrator 3 High Flow Dry Cell
No
Single
Cell
Kit
1
Choose 1 Dry Cell
910-1702-US-R* Gilibrator 3 Low Flow Dry Cell
910-1703-US-R* Gilibrator 3 Standard Flow Dry Cell
910-1704-US-R* Gilibrator 3 High Flow Dry Cell
Yes
Two
Cell
Kit
1
Choose 2 Dry Cell
910-1705-US-R* Gilibrator 3 Low Flow and Standard Flow Dry
Cell
910-1706-US-R* Gilibrator 3 Standard Flow and High Flow Dry
Cell
910-1707-US-R* Gilibrator 3 Low Flow and High Flow Dry Cell
Yes
Deluxe
Kit
1
All Three Dry Cells
910-1701-US-R* Gilibrator 3 Base and All Three Dry Cell Sizes
Yes
† Base Packs are available with US, EU, UK, and No cords options for charging system.
All Base Packs include control base, interchangeable dry cell, DC charger/AC power
supply, and tubing. Carry case is NOT included.
* Kits are available with US, EU, and UK cords for charging system. All kits include
control base, interchangeable dry cell, DC charger/AC power supply, and tubing, in
hard shell carry case.

Sensidyne Document No. 360-0213-01 - Rev B © 2018 Sensidyne, LP
Page 9
Gilian Gilibrator® 3 Dry Cell Calibrator – Operation Manual
SECTION THREE: Set-Up
3.1. System Components
The Gilibrator 3 Dry Cell Calibration System (refer to Figure 3.1) contains a crystal-
controlled microprocessor timing system. This type of microprocessor, used in
conjunction with the built-in software, provides an extremely accurate method for
calculating the flow rate parameters.
The Gilibrator 3 Dry Cell Calibration System contains the following components:
Figure 3.1
A
LCD Display
B
Status and Notification LED
C
Ambient Light Sensor/Charge LED
D
SD Card Port
E
On/Off Power Switch
F
Power Port
G
USB Port
H
DB9 Port
I
Cell Release Button
J
Viewing Window on Dry Cell
K
Inlet
L
Outlet

© 2018 Sensidyne, LP Sensidyne Document No. 360-0213-01 - Rev B
Page 10
Gilian Gilibrator 3® Dry Cell Calibrator – Operation Manual
3.2. Base Unit Components
The ON / OFF Power Switch, located on backside of the unit, turns the Control Unit
Base on and off. Once turned on, the Control Unit Base has an LCD Display screen
that will illuminate and display the “Gilibrator 3” insignia, along with the Calibration Due
dates for the base and the cell.
The Control Unit Base is powered by an internal LiFePO4 battery and whist charging
is powered from an external 12 volt, 5 amp AC adapter that connects to the Power
Port on the backside of the unit (Adjacent Right of Power Switch). The Control Unit
Base may also be slow charged through the provided USB Cable, via a 5 volt, 0.5 amp
source.
The Status and Notification LED, located adjacent to the lower left corner of the LCD
Display, will display the following status codes:
 Solid Blue – Gilibrator-3 is on.
 Green – Firmware update pending or in progress.
 Blue-Red flash – Extremely low battery. Gilibrator-3 will shut itself off.
The Charge Indicator LED and Ambient Light Sensor is located adjacent to the
lower right corner of the LCD Display. The LED indicates the status of battery charging.
The sensor allows the LCD backlight to increase to full brightness when direct sunlight
is detected. The LED will briefly be turned off as necessary to measure the ambient
light level.
 Off – No power supply connected
 Red – Charging
 Green – Charged or trickle charging
 Alternating Red / Green – USB power insufficient to charge the battery while
running.
Communications to your personal computer is achieved via a USB Port, located on
backside of the unit. Calibration records may also be exported to a SD Card, located
inside the SD Card Port (Adjacent Left of Power Switch).
The Gilibrator 3 Dry Cell Calibration System can be used with the Gilian GilAir Plus
Pumps to perform SmartCal Calibrations. This is achieved by connecting the Control
NOTE: USB input power is limited to 500mA, regardless of the rating of the USB
supply, which may be less than the power necessary to operate the Gilibrator-3.
In this case, the battery will not charge because incoming power is going directly
to running the Gilibrator-3. The battery may even discharge, however it will not
discharge as quickly as if USB was not connected. For continuous operation,
please connect the 12V power supply.

Sensidyne Document No. 360-0213-01 - Rev B © 2018 Sensidyne, LP
Page 11
Gilian Gilibrator® 3 Dry Cell Calibrator – Operation Manual
Unit Base to the Gilian GilAir Plus docking stations using the provided cable inserted
into the DB9 Port located on backside of the unit.
The Cell Release Button is located to the left of the LCD Display and protrudes
upwards from the top of the base unit. Depressing this button will release the Flow Cell
from the Base Unit. Additionally, depressing this button during a sample will reset the
puck to the bottom position to start a new flow cycle.
The Inlet Fitting is located on the side of the base unit towards the top. The inlet is
used for makeup air when calibrating a device in suction mode. The inlet fitting can
also be used to connect a hose to measure positive pressure flow. An icon is located
to the right of the inlet fitting depicting the fitting with three wavy arrows pointing into
the fitting.
The Outlet Fitting is located on the side of the base unit towards the bottom. The
outlet is used for when calibrating a device in suction mode. The outlet fitting
exhausts airflow when calibrating positive pressure flow through the inlet fitting. An
icon is located to the right of the outlet fitting depicting the fitting with three wavy arrows
pointing out from the fitting. See Figure 3.2.
Figure 3.2

© 2018 Sensidyne, LP Sensidyne Document No. 360-0213-01 - Rev B
Page 12
Gilian Gilibrator 3® Dry Cell Calibrator – Operation Manual
3.3. Flow Cell Components
The Dry Flow Cell Assembly consists of a tube and puck flow measurement system.
The puck is carried by airflow through the Dry Flow Cell. Flow rate is calculated based
on the amount of time it takes the puck to travel between a pair of calibrated detectors.
White LED lights can be seen through the Viewing Window on Dry Cell. These lights
will illuminate when connected to the base and the base is turned on. A solid green
LED indicates the cell is in bootloading mode and is awaiting a firmware update. A
solid blue LED indicated the cell is in normal operating mode.
Dry Flow Cell Assemblies come in three sizes:
• Low Flow Dry Cell (5 to 450 cc/min)
• Standard Flow Dry Cell (50 to 5000 cc/min)
• High Flow Dry Cell (1 to 30 LPM)
Figure 3.3

Sensidyne Document No. 360-0213-01 - Rev B © 2018 Sensidyne, LP
Page 13
Gilian Gilibrator® 3 Dry Cell Calibrator – Operation Manual
3.4. Preparation
The Gilibrator 3 Dry Cell Calibration System Kits include a Dry Cell Assembly (Flow
Cell), Control Unit Base (Base), Battery Charger, Tubing, Adapters, Fittings and
Manual.
Figure 3.4
The Gilibrator 3 Dry Cell Calibration System arrives assembled, and has
interchangeable Flow Cells that connect into the base unit.
Figure 3.5
IMPORTANT
Before proceeding, you MUST charge the battery to full capacity prior to using the
calibrator. To charge the calibrator, plug the power supply into the Base Unit and the
AC power cord into the power supply. Connect the AC power cord to mains supply.
The supply can accept 100-240 VAC at 50 or 60 Hz.
Allow up to 3 hours for a complete charge. A red LED on the calibrator indicates
charging in progress. A red LED turning off indicates the unit is fully charged.

© 2018 Sensidyne, LP Sensidyne Document No. 360-0213-01 - Rev B
Page 14
Gilian Gilibrator 3® Dry Cell Calibrator – Operation Manual
3.5. System Set Up
This section describes the steps necessary to set up the Gilibrator 3 Dry Cell
Calibration System. This includes initial setup, mounting the Flow Cell Assembly,
connecting the tubing, and setting up the sampling source. Figure 3.6 shows how a
complete Gilibrator 3 Dry Cell Calibration System may be configured.
Prior to setup make certain you have properly connected the battery charger to the
power port on the backside of the Base Control Unit and to an appropriate AC wall
outlet. If the charger/adapter is properly connected, the Charge Indicator should light
up. If you plan to use the Gilibrator 3 in the field, make certain the unit is fully charged
before operating the unit. If you plan to use the unit in the lab/office (i.e., near an AC
wall outlet), you can continue with setup and operation immediately.
Figure 3.6
