FTK100
Optical Fiber Test Kit
Users Guide
April 2000, Rev.1 4/03
© 2000, 2003 Fluke Corporation. All rights reserved. Printed in USA.
All product names are trademarks of their respective companies.

LIMITED WARRANTY AND LIMITATION OF LIABILITY
Each Fluke product is warranted to be free from defects in material and workmanship under normal use and service. The warranty period is
one year and begins on the date of shipment. Parts, product repairs, and services are warranted for 90 days. This warranty extends only to
the original buyer or end-user customer of a Fluke authorized reseller, and does not apply to fuses, disposable batteries, or to any product
which, in Fluke’s opinion, has been misused, altered, neglected, contaminated, or damaged by accident or abnormal conditions of operation
or handling. Fluke warrants that software will operate substantially in accordance with its functional specifications for 90 days and that it has
been properly recorded on non-defective media. Fluke does not warrant that software will be error free or operate without interruption.
Fluke authorized resellers shall extend this warranty on new and unused products to end-user customers only but have no authority to ex-
tend a greater or different warranty on behalf of Fluke. Warranty support is available only if product is purchased through a Fluke authorized
sales outlet or Buyer has paid the applicable international price. Fluke reserves the right to invoice Buyer for importation costs of re-
pair/replacement parts when product purchased in one country is submitted for repair in another country.
Fluke’s warranty obligation is limited, at Fluke’s option, to refund of the purchase price, free of charge repair, or replacement of a defective
product which is returned to a Fluke authorized service center within the warranty period.
To obtain warranty service, contact your nearest Fluke authorized service center to obtain return authorization information, then send the
product to that service center, with a description of the difficulty, postage and insurance prepaid (FOB Destination). Fluke assumes no risk
for damage in transit. Following warranty repair, the product will be returned to Buyer, transportation prepaid (FOB Destination). If Fluke
determines that failure was caused by neglect, misuse, contamination, alteration, accident, or abnormal condition of operation or handling,
including overvoltage failures caused by use outside the product’s specified rating, or normal wear and tear of mechanical components,
Fluke will provide an estimate of repair costs and obtain authorization before commencing the work. Following repair, the product will be
returned to the Buyer transportation prepaid and the Buyer will be billed for the repair and return transportation charges (FOB Shipping
Point).
THIS WARRANTY IS BUYER'S SOLE AND EXCLUSIVE REMEDY AND IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IM-
PLIED, INCLUDING BUT NOT LIMITED TO ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR
PURPOSE. FLUKE SHALL NOT BE LIABLE FOR ANY SPECIAL, INDIRECT, INCIDENTAL, OR CONSEQUENTIAL DAMAGES OR
LOSSES, INCLUDING LOSS OF DATA, ARISING FROM ANY CAUSE OR THEORY.
Since some countries or states do not allow limitation of the term of an implied warranty, or exclusion or limitation of incidental or conse-
quential damages, the limitations and exclusions of this warranty may not apply to every buyer. If any provision of this Warranty is held inva-
lid or unenforceable by a court or other decision-maker of competent jurisdiction, such holding will not affect the validity or enforceability of
any other provision. Fluke Corporation
P.O. Box 9090
Everett, WA 98206-9090
U.S.A.
Fluke Europe B.V.
P.O. Box 1186
5602 BD Eindhoven
The Netherlands
11/99

i
Table of Contents
Title Page
WSafety Information ..................................................................................................... iv
Cleaning Fiber Connections........................................................................................... iv
Introduction....................................................................................................................1
Contacting Fluke Networks............................................................................................ 2
Unpacking...................................................................................................................... 2
Features......................................................................................................................... 4
Measuring Optical Power............................................................................................... 6
Setting a Reference for Loss Measurements................................................................. 8
Measuring Optical Power Loss...................................................................................... 10
Maintenance.................................................................................................................. 12
Battery Replacement ................................................................................................ 12
Accessories and Replacement Parts........................................................................ 13
Calibration and Service............................................................................................. 14
FM130 Fiber Meter Specifications................................................................................. 14
FOS-850/1300 Fiber Optic Source Specifications ......................................................... 15
Appendix A: Glossary.................................................................................................... 17

FTK100
Users Guide
ii

iii
List of Figures
Figure Title Page
1. Standard Equipment.............................................................................................................3
2. FM130 Fiber Meter Features................................................................................................4
3. Display Features...................................................................................................................5
4. FOS-850/1300 Fiber Optic Source Features ........................................................................6
5. Measuring Optical Power......................................................................................................7
6. Setting a Reference..............................................................................................................9
7. Measuring Loss.....................................................................................................................11
8. Battery Replacement ............................................................................................................12

FTK100
Users Guide
iv
WSafety Information
Warning
To avoid possible eye damage caused by
hazardous radiation:
•Never look directly into optical output
connectors. Some sources produce in-
visible radiation that can permanently
damage your eyes.
•Do not open the case, except to change
the battery; no user-serviceable parts are
inside.
Caution
To avoid false test results, replace the bat-
tery as soon as the low battery indicator
(BAT) appears.
Cleaning Fiber Connections
Always clean the fiber ends before making connections.
Use any of the following:
•Lint-free swabs or wipes moistened with isopropyl
alcohol
•Pre-moistened swabs or wipes approved for use on
fiber connectors
Canned air approved for use on fiber connectors is also
useful for dislodging contamination. Protect all connectors
with dust caps when not in use.

1
Optical Fiber Test Kit
Introduction
The FTK100 Optical Fiber Test Kit is used to measure
optical power and optical power loss at 850 nm, 1300 nm,
1310 nm, and 1550 nm. The FM130 Fiber Meter (also
referred to as “the meter”) includes the following features:
•Measures optical power loss of multimode or
singlemode fibers.
•Measures output power from optical sources such as
network interface cards and optical test equipment.
•Displays output power measurements in dBm or µW.
•Operates for up to 50 hours on a single 9 V battery.
Automatic power-down feature helps conserve
battery power.
•Displays remaining battery life.
•Designed to use the optional ToolPakMeter
Hanging Kit from Fluke.
The FTK100 Kit includes a Fluke FOS-850/1300 Fiber
Optic Source, which provides light for multimode testing
at 850 nm and 1300 nm. For testing singlemode fiber,
Fluke offers the optional LS-1310/1550 Laser Source.
The instructions in this guide assume you are using the
FOS-850/1300 source included. For other optical
sources, refer to the manufacturer’s instructions.

FTK100
Users Guide
2
Contacting Fluke Networks
Visit the Fluke Networks web site at
www.flukenetworks.com.
For operating assistance in the USA, call 1-800-283-5853.
To order accessories or get the location of the nearest
Fluke distributor or Service Center, call:
•USA: 1-800-283-5853
•Canada: 1-800-363-5853
•Europe: [phone]
•Japan: [phone]
•Singapore: [phone]
•Anywhere in the world: [phone]
Unpacking
The equipment listed below and shown in Figure 1 is
included with the FTK100 Kit. If anything is missing or
damaged, contact the place of purchase immediately.
•FM130 Fiber Meter (with 9 V battery installed)
•ST adapter cap with dust cap
•FOS-850/1300 Fiber Optic Source (with 9 V battery
and dust cap installed)
•2 ST/ST 3 ft (1 m) 62.5 µm multimode patch cords
•1 ST/ST 1 ft (0.3 m) 62.5 µm multimode test jumper
•1 ST/ST adapter (singlemode quality)
•2 recording pads
•Warranty registration card
•Hard carrying case
•FTK100/FTK200 Manuals CD-ROM

Optical Fiber Test Kit
Unpacking
3
FOS 850/1300
FIBER
OPTIC
SOURCE
1300
850
OFF
2 ST/ST 3 ft (1 m)
multimode patch cords
FOS-850/1300
Fiber Optic Source
(with 9V battery
and dust ca
p
s
)
FM130 Fiber Meter
(with 9V battery,
adapter cap
and dust cap) ST/ST ada
p
te
r
Warranty registration card
Hard carrying case
1 ST/ST 1 ft (0.3 m)
test jumper
FM1
30
FIBER METER
dB
d
B
m
W
REF
S
E
T
BAT
2 recording pads
FlukeRecordingPad
FTK100/FTK200
Manuals CD-ROM
afr02f.eps
Figure 1. Standard Equipment

FTK100
Users Guide
4
Features
Figures 2 and 3 show the meter’s features. Figure 4 shows the features of the FOS-850/1300 Fiber Optic Source.
4
FM130
FIBER METER
dB
dBm
W
REF
SET BAT
35
2
1
6
afr01f.eps
AOn/off key. The automatic power-down feature, which turns the
meter off if no keys are pressed for 5 minutes, is enabled when you
turn the meter on. To disable this feature, turn the meter off; then
hold down Ountil Pis displayed.
BToggles the meter between power (dBm) and loss (dB)
measurements. Loss readings are compared to the stored
reference level. Hold down Duntil HELD appears to change the
measurement units to µW.
CLCD display. See Figure 3 for details.
DRemovable adapter cap with an ST connector for connecting to
multimode or singlemode patch cords.
EDisplays the reference value for the currently selected wavelength.
Hold down rto store a new reference value for the displayed
wavelength.
FChanges the wavelength to be measured. To see the percentage of
battery life remaining, hold down Nuntil HELD appears.
Figure 2. FM130 Fiber Meter Features

Optical Fiber Test Kit
Features
5
1
5
4
3
2
afr03f.eps

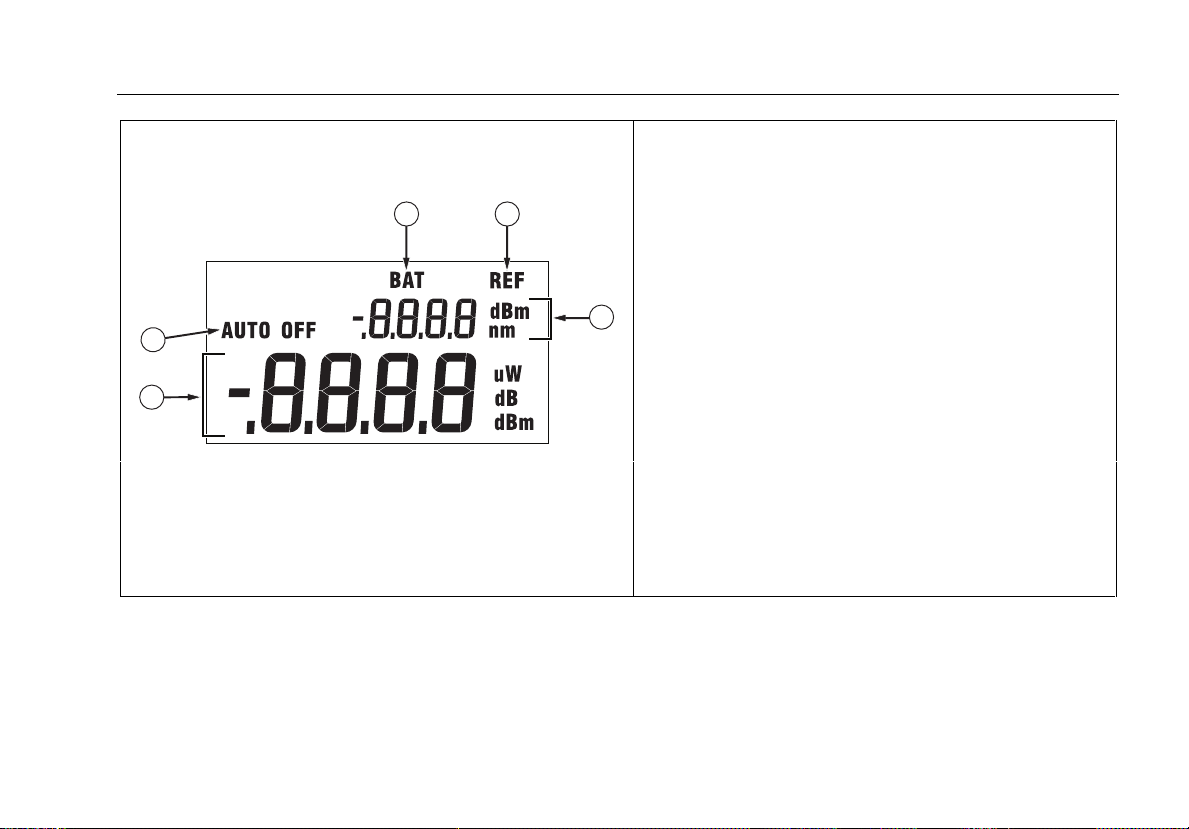

AMeasurement display. LO is displayed if the optical
power reading is too small to display. HI is displayed
if the reading is too large to display. For output power
measurements, the unit is µWor dBm. For loss
measurements, the unit is dB.
BAUTO OFF indicates that the meter will automatically
turn off if no keys are pressed for about 5 minutes.
To disable this feature, turn the meter off; then hold
down Ountil Pis displayed.
CBAT indicates that the battery needs to be replaced.
DREF appears when you briefly press rto see the
reference for the currently selected wavelength. REF
and the reference value appear for about 4 seconds.
EThis area shows the currently selected wavelength.
Press Nto change the wavelength.
Figure 3. Display Features

FTK100
Users Guide
6
FOS 850/1300
FIBER
OPTIC
SOURCE
1300
850
OFF
43
2
1
afr04f.eps
APower LED. The LED is on when the source is
active. The LED blinks when the battery is low.
BSlide switch for selecting 850 nm or 1300 nm light
output.
CST connector for 850 nm light output.
DST connector for 1300 nm light output.
Figure 4. FOS-850/1300 Fiber Optic Source Features
Measuring Optical Power
Optical power is the output power produced by a source
such as an optical network interface card or optical test
equipment. You can measure power at a source or at the
end of a fiber link.
To measure optical power, proceed as follows:
1. Verify that the meter and source are set to the proper
wavelength. Let the source warm up for two minutes,
if necessary.
2. Clean all fiber ends.

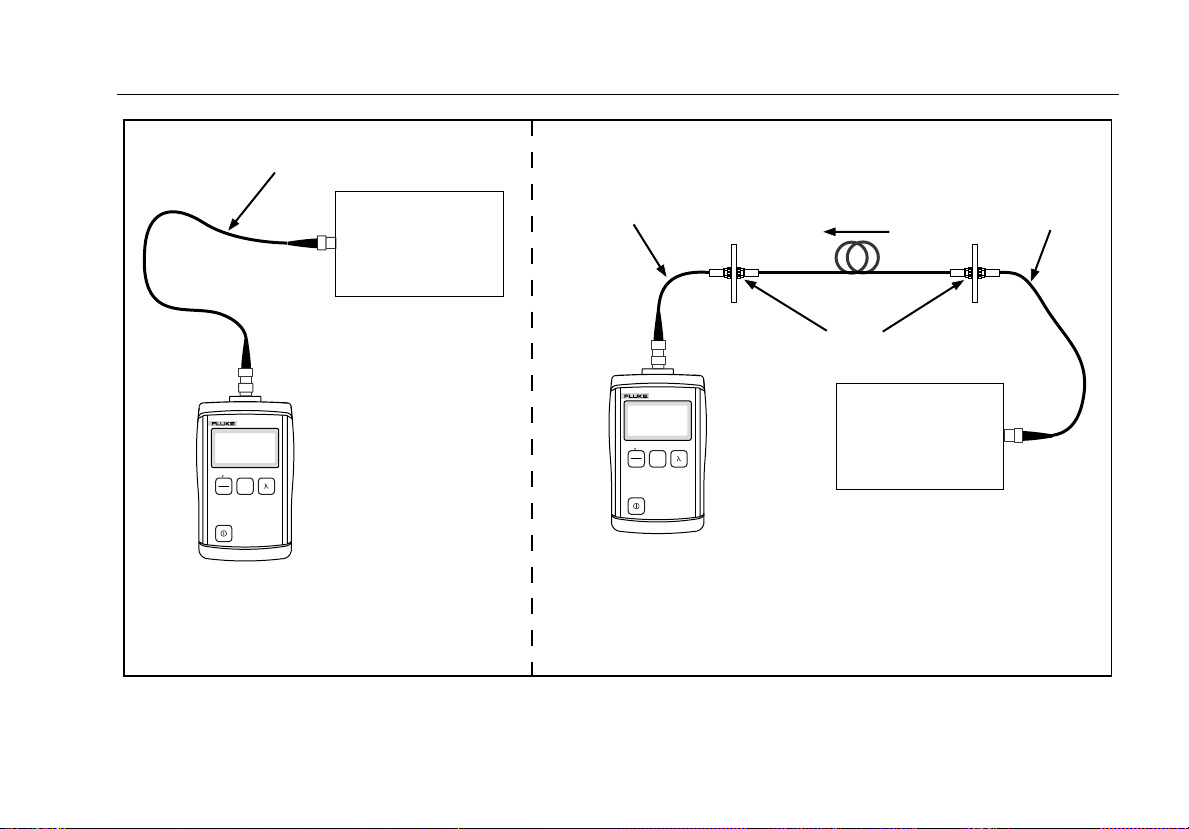

3. Make the connections shown in Figure 5.
4. Verify that the meter is in the power measurement
mode. The measurement unit should be dBm. If
necessary, press Dto change the measurement unit
to dBm. To change the unit to µW, hold down Duntil
HELD appears.
5. Read the power measurement.

Optical Fiber Test Kit
Measuring Optical Power
7
Fiber link
OUTPUT
Optical
connections
Optical patch cord
Optical patch cord
FM130
Fiber Meter
FM130
Fiber Meter
Optical
patch cord
OUTPUT
Measuring optical
power at a source Measuring optical power
at the end of a link
Optical network interface
card or optical source
Optical network interface
card or optical source
FM130
FIBER METER
dB
dBm
W
REF
SET BAT
FM130
FIBER METER
dB
dBm
W
REF
SET BAT
afr05f.eps
Figure 5. Measuring Optical Power

FTK100
Users Guide
8
Setting a Reference for Loss
Measurements
Setting a reference lets the meter automatically subtract
from loss measurements the losses due to patch cords.
The loss for a fiber under test is automatically calculated
as the difference between the reference loss and the loss
with the fiber inserted.
For the most accurate test results, you should set the
reference at these times:
•Anytime you start using a different optical source for
loss measurements.
•Anytime you change the patch cord used on the
meter or source.
Note
For the most accurate test results, set the
reference at the beginning of each day using the
patch cords and wavelength settings you will use
for testing.
The meter stores a separate reference value for each
wavelength. The reference values are not affected when
you turn the meter off or change the battery.
To view the reference for the selected wavelength, press
rbriefly.
To set a reference, proceed as follows:
1. Set the source to the wavelength you will use for
testing. Let the source warm up for two minutes.
2. Select two known-good patch cords of the same type
as the fiber to be tested. Select one known-good
adapter of the appropriate type. Clean all fiber ends.
3. Make the connections shown in Figure 6. Turn on the
meter. Press Nto select the proper wavelength.
Normally, the reading will be about -20 dBm. If the
reading is too low, check the source connections and
wavelength, or clean the fiber ends again, or select
different patch cords, or use a different adapter.
4. To set the reference, hold down runtil HELD
appears on the display. The loss reading should then
change to 0 dB. The last digit may vary slightly
because of fiber movement and minor variations in
the output power of the source.
5. If you are testing with more than one wavelength,
change the meter and source to the new wavelength,
then repeat step 4.

Optical Fiber Test Kit
Setting a Reference for Loss Measurements
9
FOS 850/1300
FIBER
OPTIC
SOURCE
1300
850
OFF
Known-good adapter
FM130 Fiber Meter FOS-850/1300 Fiber Optic Source
Connect to the output
that matches the
wavelength to be tested
Known-good patch cords of the
same type as the fiber to be
tested and ST at the meter end
FM130
FIBER METER
dB
dBm
W
REF
SET BAT
afr06f.eps
Figure 6. Setting a Reference

FTK100
Users Guide
10
Measuring Optical Power Loss
Optical power loss is the light energy lost through the
fiber, adapters, splices, and other components in a fiber
link. The loss for a fiber under test is automatically
calculated as the difference between the loss with the
fiber inserted and the reference loss. (See Figures 6
and 7.)
To measure loss, proceed as follows:
1. Verify that the meter and source are set to the proper
wavelength. Let the source warm up for two minutes,
if necessary.
Note
The patch cords used for loss measurements
should be the same patch cords used to set the
reference at the wavelength you are testing. If
the patch cords have been disconnected from
the meter or source since the reference was set,
set the reference again before measuring loss.
2. Clean all fiber ends.
3. Set a reference, if necessary. (See the previous
section “Setting a Reference for Loss
Measurements”for details.)
4. Make the connections shown in Figure 7.
Note
The additional test jumper used during loss
measurement ensures that the loss you measure
includes the fiber to be tested and the
connections at both ends of the fiber.
5. Verify that the meter is in the loss measurement
mode. If so, the unit of measurement will be dB. If it
is not, press D.
6. Read the loss measurement.

Optical Fiber Test Kit
Measuring Optical Power Loss
11
FOS 850/1300
FIBER
OPTIC
SOURCE
1300
850
OFF
Optical
connectons
Patch cords and adapter
used to set the reference
FM130 Fiber Meter Connect to the appropriate output
on the FOS-850/1300 Fiber Optic
Source (or optional laser source)
Fiber Link
Optical test jumper
FM130
FIBER METER
dB
dBm
W
REF
SET BAT
afr07f.eps
Figure 7. Measuring Loss

FTK100
Users Guide
12
Maintenance
Clean the case with a soft cloth dampened with water or a
mild detergent. Do not use solvents or abrasive
cleansers.
Always cover the connector with the dust cap when not
using the meter.
Do not open the case (except to replace the battery). No
user-serviceable parts are inside.
Battery Replacement
Replace the battery in the FM130 Fiber Meter when BAT
appears at the top of the display. Refer to Figure 8.
Replace the battery in the FOS-850/1300 Fiber Optic
Source when LED blinks or does not turn on. Refer to
Figure 8.
afr08f.eps
Figure 8. Battery Replacement

Optical Fiber Test Kit
Maintenance
13
Accessories and Replacement Parts
Table 1 shows the accessories and replacement parts
available from Fluke for the FTK100 Optical Fiber Test
Kit.
Table 1. Accessories and Replacement Parts
Description Fluke Model or Part Number
Recording pads, pack of 10 NF410
ToolPakmeter hanging kit TPAK
ST adapter cap for FM130 Fiber Meter 1568277
ST/ST 62.5 µm multimode patch cord FOC-ST/ST
ST/SC 62.5 µm multimode patch cord FOC-ST/SC
ST/ST 62.5 µm short test jumper NF230
ST/ST adapter NF300SM
SC/SC adapter NF310SM
Table 1. Accessories and Replacement Parts (cont.)
Description Fluke Model or Part Number
LS-1310/1550 Laser Source LS-1310/1550
Battery door for FOS-850/1300
Fiber Optic Source 200474
Battery door for FM130 Fiber Meter 1568289
FTK100/FTK200 Manuals CD-ROM 2072094

FTK100
Users Guide
14
Calibration and Service
Have the meter calibrated at an authorized Fluke Service
Center every 12 months.
For service, contact an authorized service center. To
locate the nearest service center, contact Fluke as
described at the beginning of this guide.
FM130 Fiber Meter Specifications
Detector type Germanium
Calibrated wavelengths 850 nm, 1300 nm, 1310, and 1550 nm
Measurement range +6 dBm to -50 dBm
Resolution 0.01 dB
Loss and power measurement
accuracy ±0.25 dB at 25 °C and -10 dBm
Temperature range Operating: 0 °C to +50 °C; Storage: -30 °C to +60 °C
Humidity range Operating: 0 to 95 % RH, non-condensing
Battery type and life 9 V alkaline (NEDA 1604A or IEC 6LR61); 50 hours typical with alkaline battery
Low battery indication BAT appears on the display
Display 4-digit LCD display
