1. About this instruction manual
Read these instructions for installation and use carefully and keep them within
reach of the infrared cabin. This ensures that you can refer to information about
your safety and the operation at any time.
Symbols used for warning notices
In these instructions for installation and use, a warning notice located next to
an activity indicates that this activity poses a risk. Always observe the warning
notices. This prevents damage to property and injuries, which in the worst case
may be fatal.
The warning notices contain keywords, which have the following meanings:
DANGER!
Serious or fatal injury will occur if this warning notice is not observed.
WARNING!
Serious or fatal injury can occur if this warning notice is not observed.
CAUTION!
Minor injuries can occur if this warning notice is not observed.
ATTENTION!
This keyword is a warning that damage to property can occur.
Other symbols
This symbol indicates tips and useful information.
Do not cover
These installation and operating instructions can also be found in the
downloads section of our website: www.sentiotec.com/downloads.

Instructions for installation and use p. 4/40
2. Important information for your safety
The infrared cabin has been produced in accordance with the safety
regulations applicable for technical units. However, hazards may
occur during use. Therefore adhere to the following safety informa-
tion and the specic warning notices in the individual chapters.
2.1. Intended use
The infrared cabin serves for warming the human body.
The location of the cabin has to be protected against splash water.
For optimum operation, the site should have an ambient tempera-
ture of at least 20 °C. The maximum ambient humidity should not
exceed 95%.
The cabin has to be placed on a at surface. A distance of at least
5 cm from the wall must be maintained.
Any use exceeding this scope is considered improper use. Improper
use can result in damage to the product, severe injuries or death.

EN
Instructions for installation and use p. 5/40
2.2. Safety information
●Installation and connection of the electrical parts (control unit,
radiator, etc.) may only be performed when the power supply is
disconnected.
●Also comply with the regulations applicable at the installation
location.
●For your own safety, consult your supplier in the event of prob-
lems that are not explained in su󰀩cient detail in the installation
instructions.
●The cabin must not be used by children under 8 years old.
●The cabin may be used by children above 8 years old, by persons
with limited psychological, sensory or mental capabilities or by
persons with lack of experience/knowledge only when:
– They are supervised.
– They have been shown how to use the device safely and
are aware of the hazards that could occur.
●Children must not play with the cabin.
●Children under 14 years of age may only clean the cabin if they
are supervised.
●The cabin must not be cleaned with steam cleaners, high-pres-
sure cleaners or splash water.
●For health reasons, do not use the sauna when under the in-
uence of alcohol, medication or drugs.
● Make sure that no ammable objects have been placed on the
heater element before the control unit is switched on.

Instructions for installation and use p. 6/40
3. Product description
3.1. Scope of delivery VitaMy 164 Basic (1-037-765)
●1x Infrared cabine VitaMy 164
●1x 1-037-357 / Power unit wave.com4 Infra
●1x 1-012-222 / Control panel wave.com4 Infra
●1x 1-009-265 / Power supply cord infrared 2.5m
●2x 1-028-862 / Cable GST18i/3s – GST18i/3B 0.5m
●2x 1-028-731 / Distributor T-Form (3-pole) IR-1P2
●2x 1-027-788 / Infrared radiator ECO 500 - dark (pre-mounted ) front radiator
●2x 1-027-785 / Infrared radiator ECO 350 - dark rear radiator
●2x 1-028-348 / IR- Thermal plate 380 mm x 700 mm, 230V/100W (pre-mounted)
●2x 1-037-397 / Switch set IR thermal plate (pre-mounted)
●1x 1-028-660 / Vent round Espe 631-A
●2x 1-028-629 / Soapstone bow
●1x 1-052-935/ LED-Set WC4-Infra
3.2. Scope of delivery VitaMy 164 S&L (1-037-768)
in addition to VitaMy 164 Basic
●1x 1-028-257 / sound & light Set (colour lamp, power supply, control panel,
USBDock)

EN
Instructions for installation and use p. 7/40
3.3. Product functions
Infrared cabin
Solid cabin made of spruce for the infrared radiation of 2 people.
Resin pockets are not grounds for complaint. This is because resin pockets
often occur in spruce and the depth at which they are located cannot be
determined during sorting.
If they are just below the surface, they break open during heat genera-
tion and "bleed".
The leaking resin can be removed with an acetone rag. If only resin drops
appear, let them cure and then scrape them o󰀨 carefully with a knife.
Infrared control wave.com4 Infra
Control for the dimming of 2 heating circuits each with a maximum of 1.5 kW as
well as the dimming of light and an optional fan.
The control unit only supports the operating mode “Intensity mode”.
sound & light colour light (only version VitaMy 164 S&L)
The sound & light colour light lets music be played via a USB stick and the cabins
be lit with di󰀨erent colours.
The colour of light can be selected manually or di󰀨erent colours can be displayed
in automatic mode.

Instructions for installation and use p. 8/40
4. Installation of the VitaMy 164 infrared cabin
Before you start work, check the parts list to see whether all the items have
actually been delivered. If individual items are missing, notify your dealer within
14 days after receipt of the cabin.
For the installation, you will need to have a helper!
We also recommend that the screw holes be pre-drilled.
4.1. Necessary tools
●Hammer and insert wood or a rubber mallet
●Cordless screwdriver with bits for Phillips screws and Torx
●Measuring tape
●Water level
●Drift punch or wooden blocks 12 mm
●Allen 1.5 mm
Pre-drill
60 cm
80 cm
100 cm
Check the right angle:
Handle glass with care: Special care must be taken with the edges of
the glass – hardened glass can shatter into small pieces in the event of
impact. Insert protective cushioning (e.g: cardboard box) under the edge
of the glass.

EN
Instructions for installation and use p. 9/40
4.2. Infrared cabine VitaMy 164 Basic / S&L parts list
Base frame
1Rear oor frame 164 x 9 x 4 cm
2 Floor frame 114 x 9 x 4 cm
Wall elements
4 A/A Wall elements with Multiclip, W1,W2,W5,W6 193 x 54 x 4 cm
1 Electrical element according to type (see end
parts list) 193 x 20,6 x 4 cm
2 A/B wall elements with cutout, W3,W4 193 x 65,7 x 4 cm
Corner posts
2 Multi-clip corner plug 193 x 6 x 6 cm
1 Multi-clip corner plug left front 202 x 6 x 4 cm
1 Multi-clip corner plug right front 202 x 6 x 4 cm
1 Skirting above glass front 152 x 10 x 4 cm
Support slats
1 Roof support slat 156 x 4 x 4 cm
1 Roof support slat with drilled holes 156 x 4 x 4 cm
2 Roof support slat 112 x 4 x 4 cm
Ceiling elements
1 A/B ceiling element 152 x 54 x 4 cm
1 A/B ceiling element with fan recess 152 x 54 x 4 cm
Interior ttings
2 Spruce heater boxes 105 x 23 x 12 cm
2 IR thermal panel VitaMy 73,8 x 42 x 4,3 cm
2 U-Strip for IR thermal plate, left, right 41 x 6 x 6,5 cm
1Sti󰀨ener bar for thermal plate 156 x 4 x 2,5 cm
1 Bench 156 x 56 x 10 cm
2 Bench support slats, left, right 46 x 41 x 4 cm
1 Bench support slat 30 x 4 x 4 cm
4 Ergonomic backrest 70 x 18 x 10,5 cm
2 Headrest VitaMy 35 x 27,5 x 8 cm
2 Frame for 350 W heater, lime wood 73,5 x 23 x 2 cm
1 LED Cover strip 156 x 3 x 3 cm
1 Spruce base 155,4 x 64 cm
No.of
Items Name Dimensions

Instructions for installation and use p. 10/40
Glass element
1 Clear glass without wholes 194,5 x 47,4 x 0,8 cm
1 Clear glass with wholes for door hinges 194,5 x 47,4 x 0,8 cm
1 Clear glassdoor with wholes for door hinges 191,5 x 59 x 0,8 cm
Accessories
2Alu-Prole L=46 cm
1 Door handle set VitaMy
1 2 Door hinges 8652-02
1 Glasdoor seal 192 cm
2 Mounting rail for headrest 13,5 x 2 x 2 cm
1 Template for Multiclip installation backrest
1 Template for Multiclip installation glass front
2 Rear wall cover strip 202 x 5 x 4 cm
1 Installation material
1 Installation instructions
Elektroelement VitaMy 164 Basic 2 cutouts
Elektroelement VitaMy 164 - S&L 4 cutouts
No.of
Items Name Dimensions

EN
Instructions for installation and use p. 11/40
4.3. Cabin installation
Observe the layout “oor plan” on page 39.
Installing the oor frame
Fig. 1: Placing the three oor frame elements
Fig. 2: Connect the oor frame elements
Hit the plastic swallows gently with a hammer at the two corners of the oor
frame until they are ush with the groove of the element.
Use a drift punch or a wooden block so that the plastic swallow is well sunk.

Instructions for installation and use p. 12/40
Wall element installation
Begin the installation of the wall elements with Wall Elements W2 and W3 or W4
and W5 respectively (see the chapter Layout on page 43). The wall elements
are connected with the "multi-clips" with the corner posts.
Make sure that the elements with the opening for the infrared radiators W3 and
W4 are used at the back of the cabin. The lower edge of the IR radiator cut-out
is at a height of 64 cm, with the bevel facing outwards.
Fig. 3: Multi-clips
Corner post
Pre-install the wall elements with the corner posts on the ground and then
put these corners on the oor frame (see Fig. 5, 6 and 7)

EN
Instructions for installation and use p. 13/40
Fig. 4: Connect the wall element with the corner post
Insert the corner post from top to bottom on the wall elements. When doing so,
pay attention to the correct alignment of the "multi-clips" (see Fig. Abb. 4). The
corner post has to be ush with the wall elements.
Fig. 5: Installation on the oor frame
Place a pre-assembled corner on the oor frame, this is connected loosely with
a notch and spring.

Instructions for installation and use p. 14/40

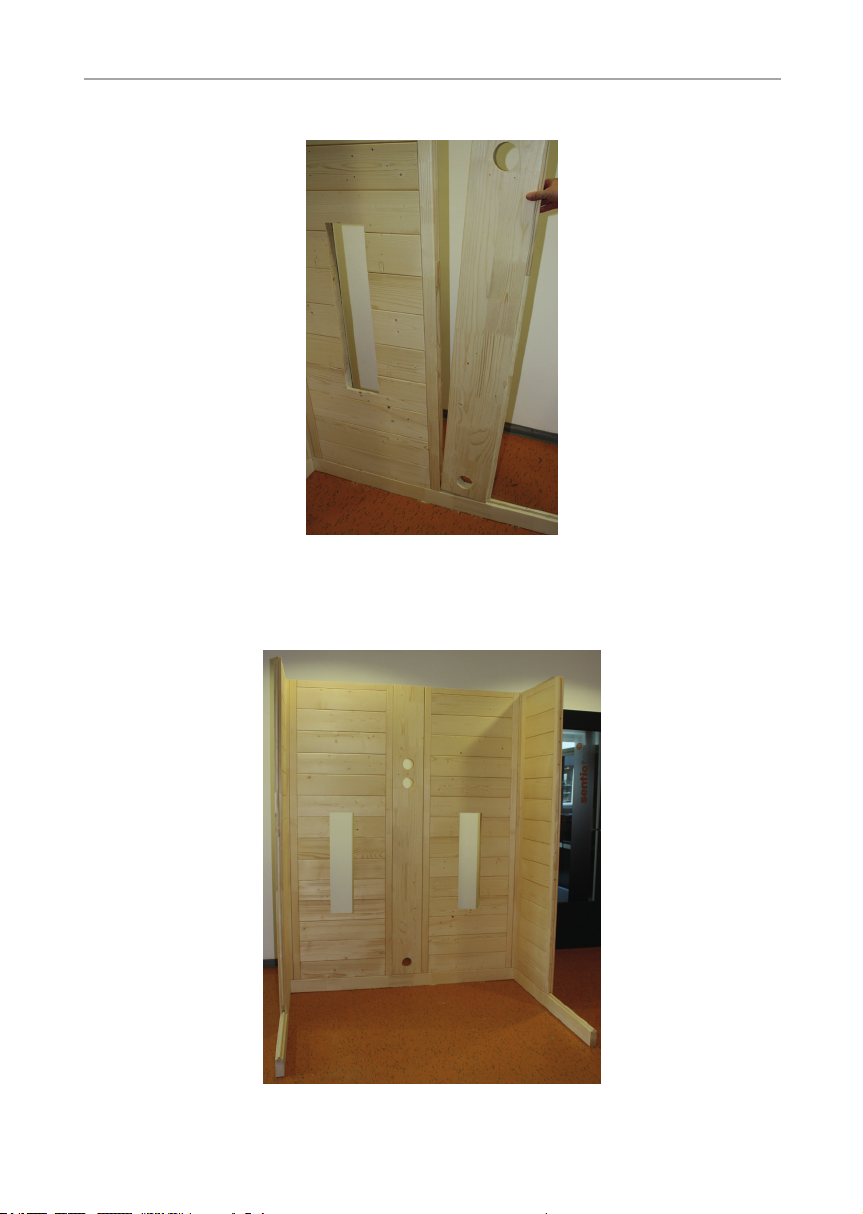

Fig. 6: Install the electrical element in place
Fig. 7: Pre-assembled rear wall
After you have put the electric element in place, continue with the second corner.

EN
Instructions for installation and use p. 15/40
Fig. 8:
Installation of side wall elements
W1 and W6
Installation of the two front corner-
posts with a groove for glass
Fig. 9: Installed wall elements

Instructions for installation and use p. 16/40
Fig. 10: Attach the U-proles to the glass plates
Insert the U-prole ush to the glass plate. When doing so, pay attention to the
ush meeting of the proles with the glass on the side where the door will be.
WARNING!
After the cabin has been positioned correctly, glue the U-proles with
silicone or installation glue to the oor.
When installation the two glass plates, you can decide whether the door
should be hinged on the right or left. On the glass, pay attention to the
holes for the ttings of the door.
Glass element installation

EN
Instructions for installation and use p. 17/40
Fig. 11: Inserting the glass sheet in the groove of the corner post
Slide the glass gently into the groove of corner post. Do this for both glass side
panels.
Fig. 12: Installing the skirting over the glass front
To install the skirting, press the two front corner posts outwards and insert the
skirting by means of dowel joints.
Be sure that the glass side panels remain stably in the groove of corner post.

Instructions for installation and use p. 18/40
Fig. 13: Attaching the skirting
Attach skirting by squeezing the side wall elements until the anchors are no
longer visible.
Screw the roof support slats on all the walls of the cabin rmly, as shown in Fig-
ures Abb. 14 and Abb. 15. Be sure that the wall elements and the roof support
slat are ush.
WARNING!
Be sure that each support slat is correctly attached and that all of the
screws have been used.
Roof element installation
Screws
14 units: 3.5 x 50
Check the right angle alignment of the cabin in the corners or use the measuring
tape to measure the two diagonals of the cabin; if these are the same length,
the cabin is properly aligned.
Fig. 14: Roof support slats installation

EN
Instructions for installation and use p. 19/40
Fig. 15: Roof support slats
Fig. 16: Installing the roof element in the back with the fan cut-out
Fig. 17: Installing the roof element in the front

Instructions for installation and use p. 20/40
Fig. 18: Attaching the roof element
Fig. 19: Installing the door insulation strips
The insulation is placed on the glass element which does not have any holes
for the door ttings. Make sure that the stop of the insulation is on the inside.
Door installation
Screws
14 units: 3.5 x 35
After the roof elements have been inserted, they have to be screwed in with the
roof support slat.
