Sentry Saf-T-Vise STV-XH1 Instruction manual

Original Instructions
Installation, Operation
&Maintenance Manual
Saf-T-Vise STV-XH1
Insertable Tool Holders
S-CM-IOM-00605-1 03-22

2 Sentry Equipment Corp
Do not install, maintain, or operate this equipment without reading, understanding, and following the
appropriate Sentry Equipment Corp instructions. Otherwise, injury, damage, or both may result.
Copyright
© 2022 by Sentry Equipment Corp. All rights reserved. All product and company names are property of their respective
owners. This document contains proprietary information. No part of this document may be photocopied or reproduced
without the prior written consent of Sentry Equipment Corp.
Limit of Liability
Sentry Equipment Corp, its employees, agents, and the authors and contributors to this document specically disclaim
all liabilities and warranties, express or implied (including warranties of merchantability and tness for a particular
purpose), for the accuracy, currency, completeness, and/or reliability of the information contained herein and/or for the
tness for any particular use and/or for the performance of any material and/or equipment selected in whole or part
with the user of/or in reliance upon information contained herein. Selection of materials and/or equipment is at the
sole risk of the user of this publication.
Note
The information contained in this document is subject to change without notice.

Saf-T-Vise STV-XH1 3
Table of Contents
Safety Information .........................................4
General Safety Precautions .................................5
General Description ........................................6
Specications ..............................................6
STV-XH1 Diagrams...................................................7
Installation and Operation ..................................7
Maintenance ...............................................8
Inspecting the Safety Cap ............................................8
Prepping the Tool Holder for Reinstallation ...........................8
Cleaning the Rod/Probe Shaft ........................................8
Changing a Coupon .................................................10
Troubleshooting ...........................................11
Leaks................................................................11
Locking Collet .......................................................11
Service Parts List ...........................................12
STV-XH1-TF44 Series .................................................12
STV-XH1-TF3KH44 Series.............................................12
STV-XH1 and STV-T4-XH1 ............................................13
Standard Warranty .........................................14
Customer Support..........................................15

4 Sentry Equipment Corp
Safety Information
Please read the entire manual before attempting to unpack, set up, or operate this product. Pay careful attention to all
Warnings, Cautions, and Notes. Failure to do so could result in serious personal injury and/or equipment damage.
Use of Hazard Information
If multiple hazards exist, the signal word corresponding to the greatest hazard shall be used.
Denitions
DANGER indicates a hazardous situation which, if not
avoided, will result in death or serious injury.
WARNING indicates a hazardous situation which, if not
avoided, could result in death or serious injury.
CAUTION, used with the safety alert symbol, indicates a
hazardous situation which, if not avoided, could result in
minor or moderate injury.
NOTICE is used to address practices not related to personal
injury.
ÂNOTE
Information that requires special emphasis.
ÂTIP
Alternate techniques or clarifying information.
SHALL:
This word is understood to be mandatory.
SHOULD:
This word is understood to be advisory.

Saf-T-Vise STV-XH1 5
General Safety Precautions
Product Selection, Installation, and Use
Improper selection, installation, or use can cause personal injury or property damage. It is solely the responsibility of users,
through their own analysis and testing, to select products suitable for their specic application requirements, ensure they are
properly maintained, and limit their use to their intended purpose.
Follow proper local, state, and federal regulations for proper installation and operational requirements.
Always use caution and common sense when working with any chemical. Read the product label and Material Safety Data
Sheets (MSDS) carefully and follow the instructions exactly.
Potential Equipment Hazards
Hot surfaces! This equipment may have very hot surfaces. If an operator contacts a hot surface, injury may occur. Use
protective clothing to prevent injury. If other equipment comes in contact with a hot surface, damage to the equipment may
occur. Ensure the area around this equipment is kept clear to prevent damage from occurring.
High pressures! This equipment may contain uids at very high pressures. Prior to installing, removing or maintaining this
equipment, ensure that the equipment is isolated from all connecting piping, the equipment is depressurized, the contents
have been drained, and the equipment is cool.

6 Sentry Equipment Corp
General Description
The Sentry Saf-T-Vise STV-XH1 Series is an insertable tool holder designed to hold rod-style coupons at pressures up to
10,000 psig [689 barg]. The equipment has two process connection options: an API 2-1/16” 10000# ange or a Ø2.938
bolt circle designed to mate with an Aceco ball valve ange. The API version connects to an API ange of the same size
and pressure class.
Both the lower body and upper body assembly are constructed from a solid piece of bar stock of 410 stainless steel
as standard, with other materials available upon request. The graphite-lled PTFE seal provides excellent chemical
inertness and low friction during insertion/retraction of the coupon holder rod.
The holder is designed with a patented locking collet, which secures the rod within the process stream until released
by the operator. A process bleeder valve is standard on holders to allow depressurization of the holder after closure of
the process isolation valve. The ability to fully retract the rod out of the pipeline while under pressure allows for pigging
without bringing the line down.
The STV-XH1 series is designed to insert and retract coupon holders with the STV-T4-XH1 insertion/retractor tool (sold
separately).
Specications
Parameter STV-XH1-TF44 STV-XH1-TF3KH44
Weight 15 lbs [6.8 kg] 46 lbs [20.6 kg]
Materials Lower Body and Upper Body Subassembly: 410 Stainless Steel
Seals: Graphite-lled PTFE
Insertion Pressure (MOP) 10000 psi at 100°F
(689 bar at 38°C)
Pressure Rating (MAP)
Temperature Rating Max: 450°F (232°C)
Min: 0°F (-18°C)
Process Connection Flanged with 2.938”B.C. API 2-1/16” 10000 Class Flange
Insertion Depth Up to 132”
Rod OD 1/4” OD
Holder Types Coupon holder (Rod-style only)

Saf-T-Vise STV-XH1 7
Installation
Prior to installing the STV-XH1, ensure that the sealing surfaces are cleaned and free of debris. Then, place the
appropriate seal or ring joint on the mating ange.
With the coupon holder rod inserted through the body, place the STV-XH1 up against the mating ange. Install the
ange bolts, tightening them down in a star pattern.
For the Aceco ange version (STV-XH1-TF44), it is recommended to use the indicated 12-Point ange head cap screws
as these are the only standard screws with a head diameter small enough to not interfere with the lower body.
The API ange version (STV-XH1-TF3KH44) can accommodate hex bolts without interference issues. Insertion and
retraction of the rod under pressure requires use of the retractor tool, the STV-T4-XH1. Information on initial setup can
be found in the Saf-T-Vise STV-T Series Insertion Tools manual.
Operation
This tool is designed to work with the STV-T4-XH1 retraction tool. Details on the insertion and retraction operation of
this product can be found in the IOM for the STV-T series.

8 Sentry Equipment Corp
Maintenance
ÂNOTE
All maintenance procedures assume the Saf-T-Vise STV-XH1 insertable tool holder has been properly removed from the line.
See the Saf-T-Vise STV-T Series Insertion Tools manual for instructions.
Inspecting the Safety Cap

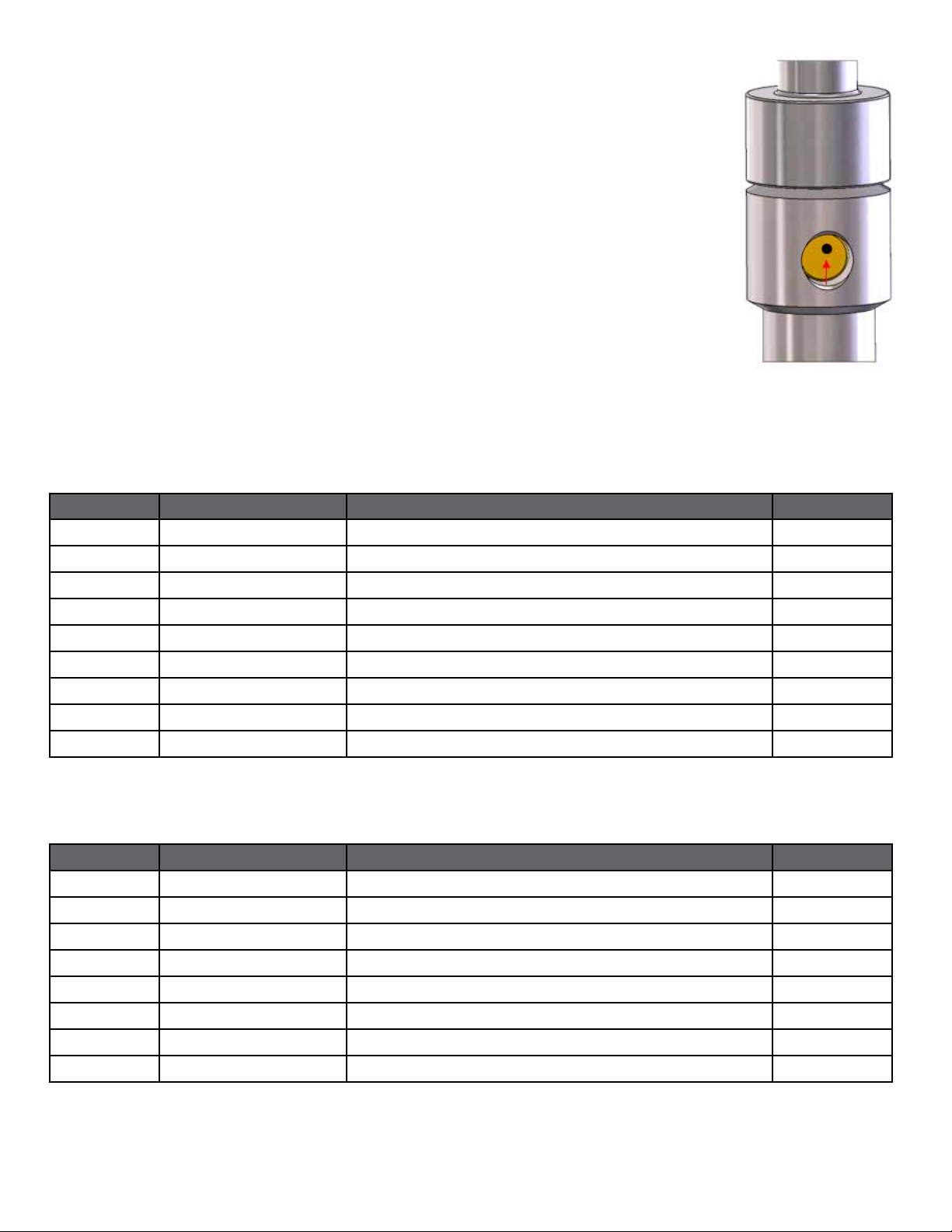

Remove safety cap from holder and ensure the red indicator is still in good condition.
If the indicator is faded, brittle, or missing, return the cap to the factory for indicator repair
Prepping the Tool Holder for Reinstallation
The rod should be cleaned each time the tool holder is removed from the line. This helps prevent buildup on the rod
and damage to the seal.
Tools needed
Clean rag
Cleaner/solvent
320 grit sandpaper or other ner grit paper
Medium crescent wrench
Molykote 55 lubricant or other ne viscosity lubricant
1. Remove the holder from the line.
2. Loosen the locking collet bolt and slide the rod to the fully inserted position (until the stop hits the top of the body).
Leave the locking collet loose so the rod can be spun inside the body.
3. Clean the exposed rod with 320 grit or ner sandpaper using a rotational motion.
4. When the exposed rod is cleaned of external debris, wipe the rod with a clean rag and solvent to remove any
leftover debris.
5. Slide the rod to the fully retracted position and repeat the steps to clean the remaining rod.
6. When the rod is thoroughly clean, wipe the rod with Molykote 55 lubricant or other ne viscosity lubricant.
Cleaning the Rod/Probe Shaft
Tools needed
Medium crescent wrench
Permanent marker
Hex key set
Small pick or screwdriver
Clean rag
New seal set for holder (P/N 6-05514G)
Molykote 55 lubricant or other ne viscosity lubricant
Anti-seize lubricant
320 grit or ner sandpaper
Cleaner/solvent

Saf-T-Vise STV-XH1 9
1. Remove the rod/shaft.
a. With the holder removed from the line, loosen the locking collet and slide the rod to the fully inserted position,
leaving 1” (2.5 cm) between the top of the holder and the adapter lock nut.
b. Tighten the locking collet bolt to 35 ft-lb (47.45 Nm).
c. Remove adapter.
– If using a at coupon, use a permanent marker to mark the rod to show where the orientation arrow points
on the shaft (reference the arrow at the top of the shaft).
– Use a medium crescent wrench to loosen the adapter lock nut.
– Remove both the adapter and the lock nut.
d. Loosen the collet and slide the shaft out of the holder.
2. Separate the upper and lower body of the holder.
a. Use a hex key to loosen (but not completely remove) the small set screw on the upper body.
Make sure the set screw is loose. Failure to loosen the set screw can cause permanent damage to the holder.
b. With the set screw loose, remove the upper body.
ÂNOTE
If the upper body is dicult to remove, stop immediately and make sure that the set screw is loose.
3. Replace the seal.
a. With the upper body removed, use a pick or small screwdriver to gently
pick out the old seal.
b. Clean the seal body of the holder with a clean rag.
c. Insert new seal:
– Coat the outside edges of the PTFE seals with Molykote 55 or
other ne viscosity lubricant by placing a dot of lubricant on your
nger, then slowly rolling your nger around the outside lip of the
seal, completely coating the outside edge.
– Push the PTFE seal straight into the holder body. Make sure to
push in straight to avoid side loading the seal.
4. Reassemble the holder.
a. Apply a small amount of anti-seize lubricant to the lower body threads where the upper body threads on.
Do not tighten the set screw until the upper and lower body of the holder are properly aligned. Tightening the set screw on
the threads will permanently damage the tool.
b. With the set screw loose, remove the upper body.
c. Thread the upper body of the holder onto the lower body.
– Tighten the upper body until it is snug against the lower body
– Tighten the set screw

10 Sentry Equipment Corp
5. Install the rod.
a. Clean the rod before installing.
– If reinstalling a used rod, thoroughly clean the rod with 320 grit or ner sandpaper using a rotational
motion, then wipe the rod with a clean rag and solvent to remove any leftover debris.
– If installing a new rod, wipe the rod down with solvent and a clean rag to remove any debris.
b. Add a small amount of Molykote 55 or other ne lubricant to the rod.
c. Wrap the threaded end of the rod with two (2) complete wraps of Teon tape to protect the seal during rod
insertion.
d. Place the rod into the holder carefully. If the rod cannot pass through the body, make sure the locking collet is
loose and oriented in the correct direction (dot on top). It is sometimes easier to completely remove the locking
collet from the body. Be careful not to lose the collet.
ÂNOTE
Each insertion collet assembly is unique to each retrieval tool. Be sure to keep the removed assembly with the specic tool
retractor.
e. Once the rod is through the body of the holder, reinstall the locking collet (if removed) with the orientation dot
facing the top of the tool, and tighten the collet.
f. Remove the protective Teon tape from the rod.
6. Finish reassembly.
a. Move rod through tool so that the last 1.5 inches are visible out the top of the holder.
b. Tighten the locking collet bolt to 35 ft-lbs (47.45 Nm).
c. Reinstall the adapter and lock nut securely on the rod.
d. The tool is now ready to go back into service.
Changing a Coupon
Tools needed
Clean rag
Cleaner/solvent
320 grit sandpaper or other ne grit paper
Medium crescent wrench
Molykote 55 lubricant or other ne viscosity lubricant
Flat tip screwdriver
1. Remove tool holder from the process pipeline by following instructions for specic insertion tool.
2. Remove old coupon or inspect the rod as needed.
3. Clean the rod.
4. Attach new coupon.
5. Reinstall the tool holder into the pipeline by following instructions for the STV-T4-XH1.

Saf-T-Vise STV-XH1 11
Troubleshooting
Leaks
Multi-Port Valve Leaks
1. Isolate and bleed down the pressure, and attempt to tighten the leak point. If leak persists, continue with next step.
2. Re-tape the ttings on the multi-port valve.
a. Remove the entire holder from the process line.
b. Remove the multi-port valve from the holder.
c. Disassemble and remove all the old Teon tape from the multi-port valve and then re-tape the ttings.
d. Reassemble the multi-port valve using a small amount of anti-seize lubricant on each tting. Do not over-tighten
the ttings as this can cause a leak point.
3. If the leak persists at a particular point, close the isolation valve, relieve pressure with bleeder valve, and contact
your representative or factory customer service.
Seal Leaks
If the holder is leaking from the top of the holder body where the rod and body meet, the PTFE seal is damaged and
requires replacement. See “Changing a Rod and Replacing the Seal Set”section.
Connection Leaks
1. If the holder leaks from any threaded portion, immediately isolate the holder from the line and remove process
pressure.
2. Remove the holder from the isolation valve.
3. Remove the threaded component and use a small pick or screwdriver to remove Teon tape from the threads.
4. After tape and debris are removed, wipe down the threads with a clean rag.
5. Reapply Teon tape and anti-seize lubricant to the threads.
ÂNOTE
This procedure can be used for all connection points on a holder, including the multi-port valve, probe shaft adapters,
bleeder valves, and any other connections that may be on the holder.
Bleeder Valve Leaks
If the holder leaks from the bleeder valve outlet or bleeder valve stem, the bleeder valve is damaged and should be
replaced. Contact the factory to order a replacement valve.
Locking Collet
Not locking shaft in place
If the locking collet fails to lock the rod/shaft in place with 35 ft-lb (47.45Nm) of torque applied to the collet locking
bolt, the locking collet is damaged and must be replaced. Please contact the factory to order a replacement.
Do not interchange collets between tool holders. Collets are specially machined for each tool holder individually and cannot
be interchanged. Collet repair must be performed by the factory.

12 Sentry Equipment Corp
Rod/shaft marred by collet
1. Check collet orientation. If the collet has an orientation indicator dot (see photo), the
indicator dot must always face toward the top of the holder. Collets without the indicator
dot are not dependent on orientation.
– If the collet is upside down, remove the locking collet bolt from the holder and gently
tap the holder on a hard surface to remove the collet.
– Reinstall the collet with the orientation indicator dot facing toward the top of the
holder, and then reinstall the locking collet bolt.
2. Check the collet for wear.
– A worn collet will not distribute pressure evenly on the rod/shaft and may cause
damage.
– If the collet is worn, the entire holder must be replaced immediately. Collets are
matched to a body assembly during manufacturing and cannot be replaced separately.
Service Parts List
STV-XH1-TF44 Series
Item Number Part Number Description Quantity
12-07786F 7/8” Lock Bolt (7/8”-18UNS) 1
24-01003G Screw, Set, Hex, Cup, .250”-20 x .500”, 18-8SS 1
36-05514G Seal Retainer 1
44-06422A Needle Valve, 1/4" MP x FP, 10000 PSI 1
54-00164CT Plug, 1/4 NPT, Sq. T316 SS 1
6SC100 Safety Cap Assembly, STV-XH1 1
74-00022J Nut, .250-20 Hex-Jam 18-8 Stn 1
82-07783M Rod Adapter, 1/4”-20 1
94-08026A Screw, 12-Point, Flange Head, .625”-11 x 2.00” 4
STV-XH1-TF3KH44 Series
Item Number Part Number Description Quantity
12-07786F 7/8” Lock Bolt (7/8”-18UNS) 1
24-01003G Screw, Set, Hex, Cup, .250”-20 x .500”, 18-8SS 1
36-05514G Seal Retainer 1
44-06422A Needle Valve, 1/4" MP x FP, 10000 PSI 1
54-00164CT Plug, 1/4 NPT, Sq. T316 SS 1
6SC100 Safety Cap Assembly, STV-XH1 1
74-00022J Nut, .250-20 Hex-Jam 18-8 Stn 1
82-07783M Rod Adapter, 1/4”-20 1

Saf-T-Vise STV-XH1 13

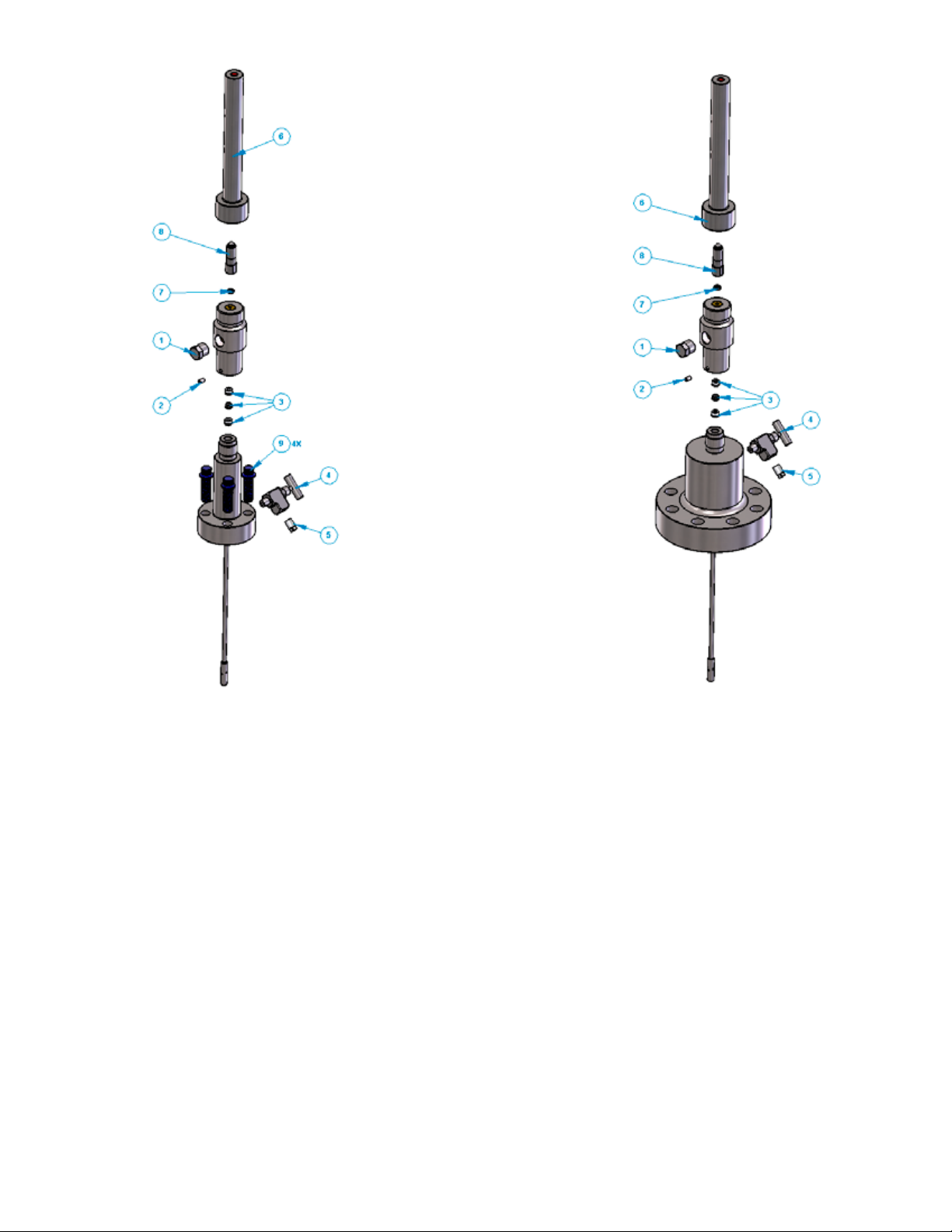

STV-XH1-TF44 Series STV-XH1-TF3KH44 Series
STV-XH1 and STV-T4-XH1
The STV-T4-XH1 retractor tool is required to insert and retract the rods from the pipeline. Note that the safety rod
capture tube is critical to safely operating this tool. It aims the rod through the top of the tool, preventing it from
veering in another direction and potentially striking the operator in the event of a loose rod.

14 Sentry Equipment Corp
Standard Warranty
Sentry Equipment Corp (“Seller”) warrants products manufactured by it and supplied hereunder (“Products”) to be free
from defects in workmanship and, to the extent materials are selected by Seller, to be free from defects in materials, in
each case for a period as dened in the table below:
Product Line Product Category Warranty Period
Sentry® 1. Automatic Sampling
2. Corrosion Monitoring
3. Manual Sampling
4. Sample Conditioning
5. Sampling & Analysis Systems
6. Replacement Parts (without expiration dates)
Eighteen months from date of shipment
or twelve months from startup, whichever
occurs rst
Waters Equipment 1. Sampling & Analysis Systems
2. Replacement Parts (without expiration dates)
Twelve months from date of shipment
To view the full warranty, go to
www.sentry-equip.com/warranty.

Saf-T-Vise STV-XH1 15
Customer Support
With proven sampling expertise since 1924, Sentry products and services provide business operations the critical
insights to optimize process control and product quality. We deliver true representative sampling and analysis
techniques to customers around the globe, empowering them to accurately monitor and measure processes for
improved production efficiency, output, and safety. Standing behind our commitments, we are determined to tackle
any application, anywhere.
We know that running an efficient operation isn’t easy. It requires thorough, careful analysis of controlled, real-
time data achieved through reliable, accurate, and repeatable process monitoring, and measuring. By effectively
conditioning, sampling, and measuring gas, liquid, slurry, powder, solids, steam, or water within their production
environments, our customers obtain the critical insights they need to control and optimize their processes.
Yet, controlling your processes also means reliable customer support throughout the life cycle of your equipment.
Customer Service—General information, warranty claims, order management.
Installation Service—For systems that require specialized expertise upon installation.
Technical Support—Troubleshooting, training, and technical manuals.
Field Service & Retrots—When a problem needs immediate attention.
Replacements Parts & Consumables—Order your replacement parts and consumables.
Sentry ProShield Services—Select from four ProShield Guardian service plans providing different levels of support to
protect your large system investments with regularly scheduled maintenance.
To learn more, go to
www.sentry-equip.com/support.

sentry-equip.com
966 Blue Ribbon Circle North, Oconomowoc,WI 53066 U.S.A. | +1-262-567-7256 | support@sentry-equip.com
Serving customers
in more than 50 countries
across six continents worldwide.
This manual suits for next models
2
Table of contents
Other Sentry Industrial Equipment manuals
