Sentryus ECO EIR35-F4840 Quick start guide

Copyright © 2010. All Rights Reserved. EIR35-F4840_I-305
REV12072010 EIR35-F4860_I-306
1
EIR35-F4840
EIR35-F4860
EIR35-F4840P
EIR35-F4860P
z1/3” Sony CCD
z480 TV Lines
zIR distance up to 100ft / 30m
zEIR35-F4840: 4.0mm Lens
zEIR35-F4860: 6.0mm Lens
PIC I-305 I-306
Model EIR35-F4840 EIR35-F4840P EIR35-F4860 EIR35-F4860P
TV System NTSC PAL NTSC PAL
Image Sensor 1/3” Sony CCD
Picture Elements 768(H) x 494(V) 752(H) x 582(V) 768(H) x 494(V) 752(H) x 582(V)
Sync System Internal
Scanning System 2:1 Interlace
Horizontal Resolution 480 TV Lines
Minimum Illumination 0 Lux @ IR “on”
IR LED 35 IR LED
IR Distance Up to 100ft / 30m
Wavelength 850nm
Lens 4.0mm Lens 6.0mm Lens
Signal to Noise Ratio Max 48dB
Electronic Shutter 1/60 ~ 1/10,000sec 1/50 ~ 1/10,000sec 1/60 ~ 1/10,000sec 1/50 ~ 1/10,000sec
White Balance Control Auto
AGC On
BLC Off
IP Rating IP67
Video Output Signal 1.0 V p-p Composite Video Output, 75Ω
Operating Temperature 23°F ~ 140°F / -5°C ~ 60°C
Power 12V DC
Power Consumption 448mA max @ IR “on” / 127mA @ IR “off”
Dimension 4.8” x 3.23” x 3.43” / 122 x 82 x 87mm
Weight 1.54 lbs / 700g
*Specifications are subject to change without notice
FEATURES
Please read the Operational Manual
before attempting to use this product.
SPECIFICATIONS
z35 IR LED
z0 Lux @ IR “on”
zIP67 Rating
z12V DC, 448mA max @ IR “on” / 127mA @ IR “off”
Wall Mount Bracket Included
Operational Manual
35 IR Day & Night Weatherproof Color Camera

Copyright © 2010. All Rights Reserved. EIR35-F4840_I-305
REV12072010 EIR35-F4860_I-306
2
zOne (1) EIR35-F4840/EIR35-F4840P or EIR35-F4860/EIR35-F4860P Camera with video/power cable
zOne (1) Wall Mount Bracket
zThree (3) Wall Mounting Screws
zThree (3) Wall Anchors
zOne (1) Operational Manual
* For any returns, please include all components listed above with original packaging in Resalable Condition. Absolutely No Returns will be accepted if any
component is missing/damaged.
1. Never point the camera toward the sun
Do not expose the lens directly to the sun or to strong light as this may damage the pick-up device.
2. Handle this camera with care
Avoid any shock or bumping of the camera. Improper handling could damage the camera.
3. Requires a proper operating environment
This camera is designed for outdoor or indoor use. The allowable temperature range for operation of this camera is between 23°F ~ 140°F / -5°C ~ 60°C.
4. Clean the front face to the pick-up device
It is recommended that the pick-up device surface be cleaned before lens installation or whenever the lens is changed. Cleaning should be done by using a
chamois, a very fine soft cloth, lens tissue, or cotton tipped applicator and ethanol to carefully remove any fingerprint or dust.
5. Check the power source voltage
The power source voltage should be within the specified range. (Camera must meet the specifications). Camera must be connected to a surge protector at all
times.
6. Objects and liquid entry
Never push objects of any kind into this camera as this may touch dangerous voltage points of short out parts that could result in a fire or electric shock. Never
spill any kind of liquid on the video product.
7. Servicing
Do not attempt to service this video product by yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all service
to qualified servicing personnel.
8. Damage requiring service
Unplug this video product from the wall outlet and refer service to qualified servicing personnel under the following conditions:
a. When the power supply cord or plug is damaged.
b. If liquid has been spilled, or objects have fallen into the video product.
c. If the video product has been dropped or the cabinet has been damaged.
d. When the video product exhibits a distinct change in performance.
This product is covered under warranty for one year from the date of purchase. The warranty will automatically be voided if any of the following occurs:
1. Camera sticker is removed
If the camera sticker is removed, we will not be able to confirm any information regarding when and where the product was purchased. We have no other way
to verify the purchase record without the serial number on the camera sticker; therefore, it should not be removed.
2.
Camera is modified in any way
If the camera is scratched, damaged, or modified in a manner not described in this manual, the warranty will be voided immediately. It is the customer’s
responsibility to keep the camera in good condition.
3. Video or power cable is cut
The video cable and the power cable should not be tampered with. Cutting or modifying of the cables will result in termination of the warranty.
LIST OF COMPONENTS
IMPORTANT NOTE
WARRANTY

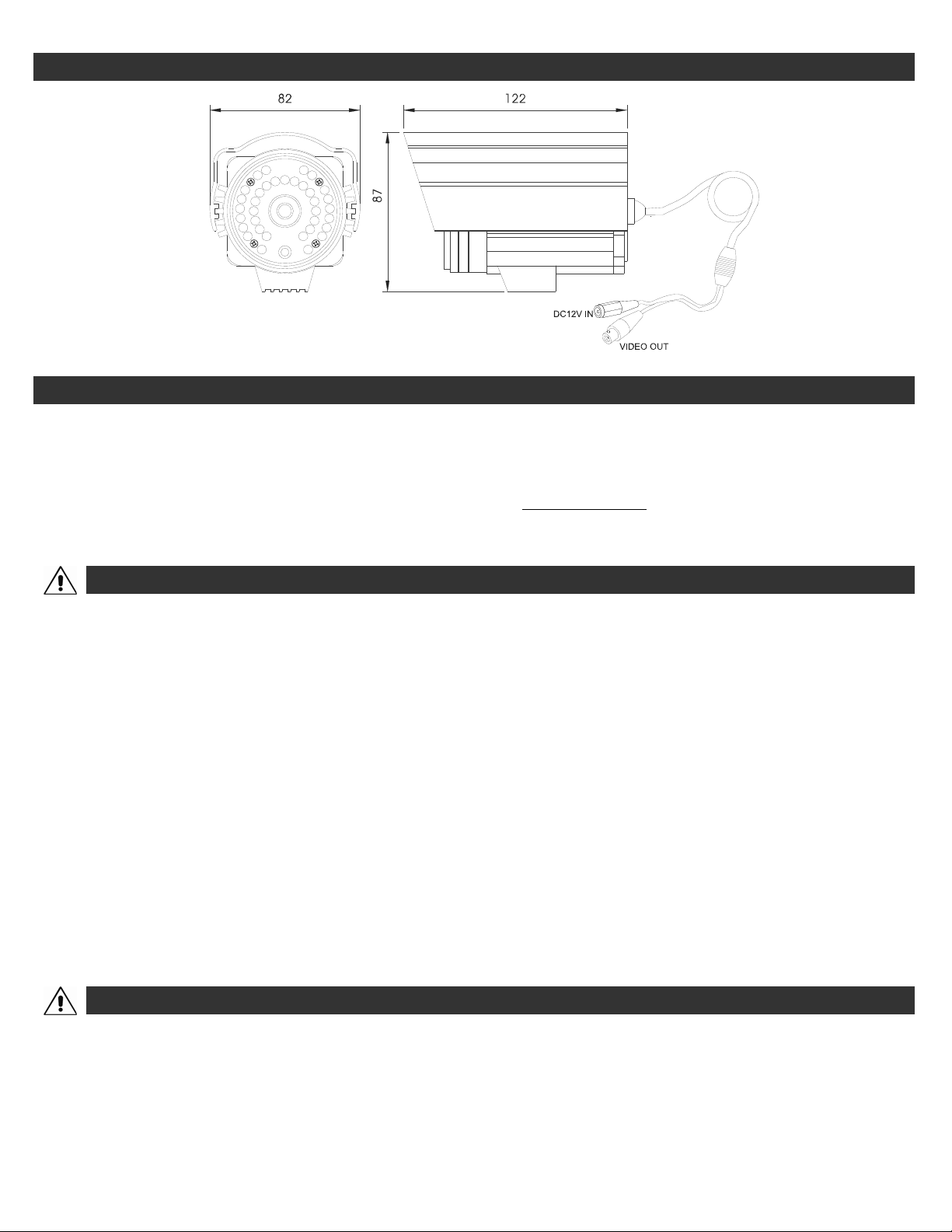

DIMENSIONS
(
Unit: mm
)
