P
Dear customer,
We would like to thank you for your trust in
purchasing our high-quality product.
The high quality, safety and easy use of the
SERVOX®INTON Speech Aid and the LA
2.40 Charger are what distinguish this pro-
duct from others.
In order to use the SERVOX®INTON and
the charger properly, please read these
instructions carefully before using it for
the first time!
Please note:
This instruction manual is not intended as
a replacement for comprehensive speech
therapy.
Although the SERVOX
®INTON Speech Aid
is relatively simple to use, please contact a
speech therapist in order to ensure optimal
use in view of good vocal rehabilitation.
Supply Contents . . . . . . . . . . . . . . . . . . . 18
IntendedUse ...................... 18
Safety Instructions . . . . . . . . . . . . . . . . . . 19
Warranty and Product Liability . . . . . . . . 19
Device Overview . . . . . . . . . . . . . . . . . . . 20
Device Description/Functions . . . . . . . . . 21
SERVOX®INTON Speech Aid . . . . . . . . . . 21
Inserting the Battery . . . . . . . . . . . . . . . 21
Adjusting the Volume. . . . . . . . . . . . . . 21
Adjusting the Pitch . . . . . . . . . . . . . . . . 21
Fine Pitch Settings . . . . . . . . . . . . . . . . 23
Operating the Buttons . . . . . . . . . . . . . 23
Intonation (Speech Melody) . . . . . . . . . 23
Other ........................ 23
Hip Bag/Holster . . . . . . . . . . . . . . . . . . 24
Accessories . . . . . . . . . . . . . . . . . . . . . . . . 24
Oral Connector with Adapter . . . . . . . . 24
LA2.40Charger.................... 25
General Instructions . . . . . . . . . . . . . . . 25
Functional Details . . . . . . . . . . . . . . . . . 26
ErrorMessages................... 26
Maintenance....................... 27
Cleaning ....................... 27
Repair ........................ 27
Note regarding serial number . . . . . . . . 27
Disposal ........................ 27
TechnicalData...................... 28
Dimensions ..................... 28
Weights ........................ 28
Electrical Values: Battery . . . . . . . . . . . . 28
Electrical Values: Charger . . . . . . . . . . . 28
Other .........................28
SymbolsKey..................... 29
Foreword Contents
4
4
5
5
6
7
7
7
7
7
9
9
9
9
10
10
10
11
11
12
12
13
13
13
13
13
14
14
14
14
14
14
15
3

18 Instructions for Use I
Supply Contents Intended Use
Supply Contents:
–SERVOX®INTON
Speech Aid
(electrolarynx)
–NiMH Battery
–Hip Bag
–Carrying Cord
–LA 2.40 Charger
(110 V or 230 V)
–Adjustment screwdriver
–Instructions for Use
S
T
(
s
d
o
t
The SERVOX
®INTON Speech Aid offers patients who
have lost their voice due to an injury, illness or surgical re-
moval of the larynx the opportunity to make themselves
quickly understood again.
The SERVOX
®INTON can also be used by patients who
experience a temporary speech loss after a tracheotomy
because they have to rest their vocal cords or are atta-
ched to a respiration device.
Even patients who have mastered the use of the oeso-
phageal voice can use the SERVOX
®INTON in various
situations, e.g. when speaking on the phone, during
business conferences, if tired, ill or in very stressful situa-
tions, in case of emergency and in environments where it
is necessary to raise the voice.
The SERVOX®INTON may only be used for the applica-
tions listed above. Servona is not liable for damages of
any kind resulting from any other use.
4

19
ENGLISH
Instructions for Use
S
S
(
(
Safety Instructions
The SERVOX®INTON Speech Aid has been developed using the latest technology.
The production is subject to constant quality control.
–Do not expose the device to extremely cold or hot temperatures!
–Protect the charger from temperatures above 30°C (86°F)!
(Do not place in direct sunlight, on top of or next to heat sources,
such as a heater or stove).
–Do not drop the SERVOX®INTON!
–Never drop the speech aid or charger in water or other fluids!
–Never use the charger in moist or wet areas!
–Never place the SERVOX®INTON against the tracheostoma!
–Do not hold the speech aid directly to the ear!
Please note:
The manufacturer is not liable for any
damages to people, items or pets which
occur as a result of failure to comply with
the instructions for use or safety precautions.
Warranty and Product Liability
The parts and materials are covered under a 24-month warranty (6-month warranty on batteries).
The owner or warranty claimant are responsible for settling the shipping costs. Only original re-
placement parts and accessories may be used.
In the case of non-compliance, or if repairs or alterations to the SERVOX®INTON and/or the LA
2.40 Charger or its components are carried out by unauthorised persons, the warranty becomes
invalid. In such cases any product liability on the part of Servona GmbH is ruled out.
T
5

20 Instructions for Use I
Device Overview D
Hard Membrane
Baseline Button (top operating button)
Accentuation Button (lower operating button)
Titanium Housing
Carrying Cord
Bottem Cover
Volume Control
Battery
Power Display (green LED)
Charger
Charging Port for SERVOX®INTON
Error Display (red LED)
Charging Compartment for Spare Battery
Charge Display (yellow LED)
6

21
ENGLISH
Instructions for Use
D Device Description/Functions
SERVOX®INTON Speech Aid
Inserting the Battery
Completely charge the NiMH battery in the charger before using the device for the first time (see
LA 2.40 Charger General Instructions). Remove the bottom cover and place the battery into the
device with the minus pole (‘–‘) pointing away from you.
Please note:
For optimal use the batteries should be alternated, i.e. after each
use the battery should be swapped. You can number the batte-
ries to make this easier.
H
1.
Adjusting the Pitch
It is recommended that a similar
pitch is chosen to that of the natu-
ral voice. The frequency must be
adjusted separately for each button.
The following steps are necessary for
changing the pitch:
1. Unscrew the bottom cover and
remove battery.
Adjusting the Volume
You can adjust the volume by using the volume control. By turning it upwards, the sound becomes
louder; downwards, the sound becomes softer. The quality of your voice will be best when the
volume is at the lowest possible (but still audible) setting when using the device directly on the
neck or cheek.
7

22 Instructions for Use I
2.
3.
2. Hold the top of the device and slide off the titanium
housing.
3. Place the battery back into the battery compartment
and screw the bottom cover back on.

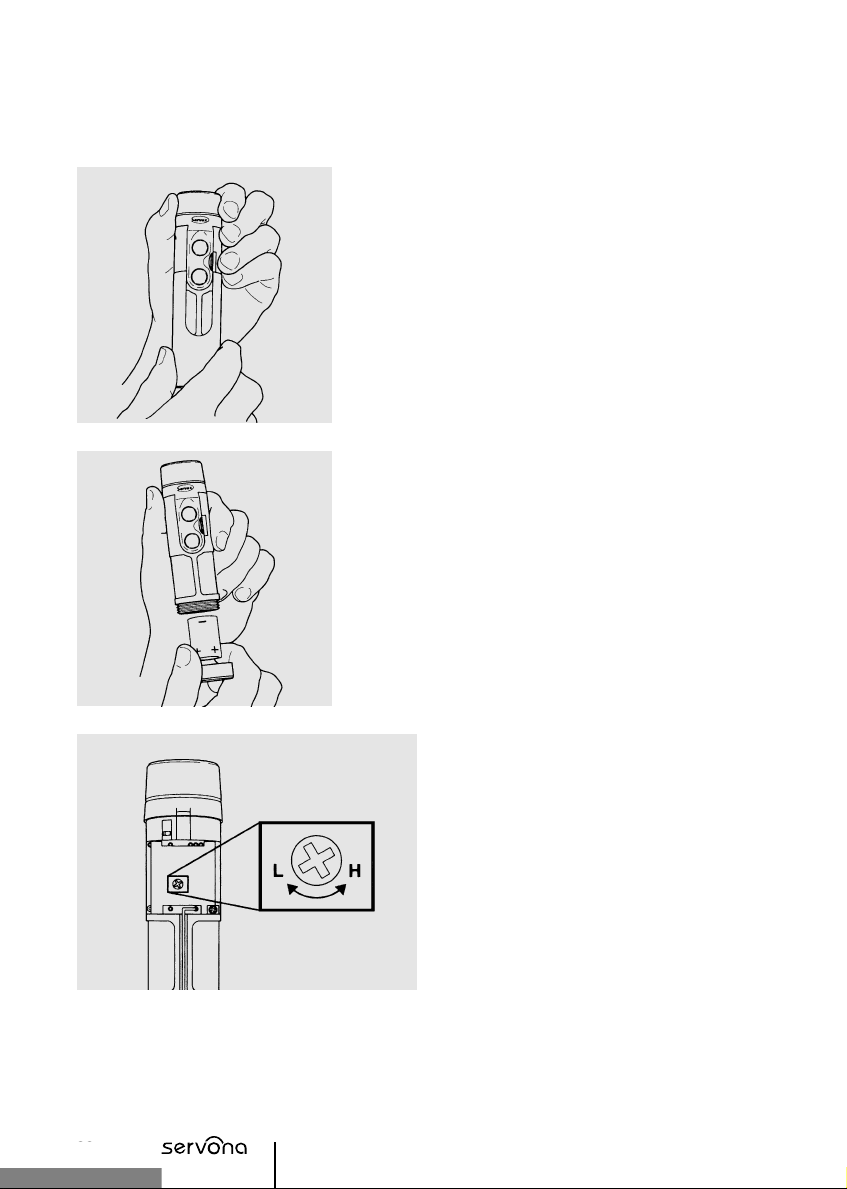

4. In order to adjust the baseline frequency, carefully
adjust the control (pictured in the diagram) using the
plastic screwdriver:
Higher pitch (H) = Turn anti-clockwise.
Lower pitch (L) = Turn clockwise.
5. Check if the new pitch meets your expectations by
using the basic tone button (top button). Family
members or close friends can help with finding the
‘right’ pitch by listening to you speaking at trial pitch
levels.
6. You can finely adjust the tone by turning the sound
cap (see chapter ’Fine Pitch Adjustment’).
7. After adjusting the basic pitch, unscrew the bottom
cover and remove the battery. Then slide on the
titanium housing, place the battery in the battery
compartment and screw on the bottom cover tightly.
4.
8

23
ENGLISH
Instructions for Use
Hold the top of the device and slide off the titanium
h
In order to adjust the baseline frequency, carefully
a
Check if the new pitch meets your expectations by
u
You can finely adjust the tone by turning the sound
c
Fine Pitch Settings
If the tone is too ‘unclear’, the sound cap must be
screwed on more tightly. Please be careful not to turn the
sound cap too far, as it could be damaged. To achieve
a pure tone at maximum volume, the sound cap can be
loosened slightly.
Please note:
To avoid over tightening, the speech aid is fitted with
an O-ring. After a too tight or too loose adjustment the
volume is reduced.
Operating the buttons
All SERVOX
®INTON Speech Aid users should first
practice speaking using the baseline button only. The
accentuction button should only be used once you have
become comfortable using the baseline pitch.
Switch off
The device can be switched off by turning the battery co-
ver halfway to the left (e.g. to avoid undesired sounds
while wearing).
You can wear the device around your neck using the
carrying cord.
9

24 Instructions for Use I
Hip Bag
Oral Connector with Adapter
With the help of the oral connector
with adapter, the SERVOX
®INTON
Speech Aid can be used directly after
the laryngectomy and during periods
of radiation treatment or when the
throat is still too sensitive or swollen
to use the speech aid alone.
Accessories
This bag can be adjusted to fit vari-
ous belt widths and is attached using
the Velcro closure on the back side.
A separate compartment allows for
the convenient and safe storage of a
replacement battery.
These products are not included in the supply contents.
These accessories can be ordered separately if desired.
Attention:
Read the separate instruction sheet!
L
A
date on the identification plate!
(
10

25
ENGLISH
Instructions for Use
R
LA 2.40 Charger
General Instructions
–Never use the charger in moist or wet areas!
–Never place the device on a heater or in direct sunlight while it is
being charged! The optimal performance of both the device and
battery is achieved at temperatures from +10°C to +30°C (50°F
– 86°F).
–Batteries placed in the device gradually discharge themselves if
the charger is not plugged into a power socket.
–To operate the charger, attach the power cord to a power socket.
Only after this the battery or the speech aid can be used.
Attention: Make sure that the main voltage corresponds to the
date on the identification plate!
–To charge the SERVOX®INTON Speech Aid, simply place it in the
LA 2.40 Charger and remove it when needed. A second battery can
be charged at the same time and is therefore always ready for use.
(Please make sure the polarity is correct!)
–The amount of charging time required depends
on the remaining battery capacity and whether
1 or 2 batteries are being charged at the same
time.
–The replacement battery and SERVOX®INTON
Speech Aid can always be kept in the charger,
as the electronics of the device prevent over-
charging.
11

26 Instructions for Use I
Only original SERVOX batteries should be used to
ensure problem-free and safe functioning.
Functional Details
OperatingDisplay Significance
Connect
power cord
Green control light remains
constantly illuminated
The charger is in
proper working order
Speech aid and/or
replacement battery
in charger shaft
Yellow control light
illuminates
The battery
is being charged
Yellow control light
flashes in
2-seconds interval
The battery is about 80-85%
charged. The charger switches
to a lower charging current
to ensure that the battery is
optimaly charged
Yellow control light
not illuminated
The battery
is optimally charged
Error Messages
Display Significance Solution
Yellow control light
flashes in 1-second interval.
– immediately The battery is defective. Insert a new battery. A defec-
tive battery must be disposed
properly.
– after 5 minutes Battery was deep discharged
and could not been formated.
Insert a new battery. A defec-
tive battery must be disposed
properly.
– after several hours The battery is defective. Insert a new battery. A defec-
tive battery must be disposed
properly.
Red control light illuminates
and yellow control light
flashes in 1-second interval.
The battery was inserted
incorrectly.
Insert the battery in such a
way that the polarity (+ and –)
is correct.
Please note:
If the battery is inserted incor-
rectly, a second battery will
not charge either!
M
12

27
ENGLISH
Instructions for Use
O
f
Maintenance
Cleaning
–The exterior of the SERVOX®INTON as well as the batteries can be
cleaned using a cloth soaked in alcohol.
–The charger may only be cleaned with a dry cloth.
–When using household cleaners, please observe the instructions
for use from the respective manufacturers.
–The battery contacts inside the SERVOX®INTON and on the bat-
tery themselves can be cleaned using an eraser. Clean the contacts
regularly. Dirty or oxidised contacts may lead to interruptions in
sound.
Note regarding serial number
To locate the speech aid serial number, unscrew the bot-
tom cover and slide off the titanium housing. The serial
number is on a label on the plastic housing below the
operating buttons.
The serial number of the LA 2.40 charger is found on the
bottom of the housing on the inscription plate.
For your safety and to maintain the warranty, only origi-
nal replacement parts may be used. If you have questions
about replacement parts and accessories, please contact
your local distributor. If you cannot locate anyone in
your country, call Servona GmbH directly in Germany at
+ 4 9 2 2 4 1 . 9 3 2 2 - 2 2 5 or-226.
Repair
Please do not attempt to make any repairs on your own! In the event that a re-
pair becomes necessary, send the SERVOX
®INTON, together with the char-
ger and batteries, in the original packaging to your local distributor. If you
have purchased the device directly from us, please send it to our address as in-
dicated on the envelope. To ensure prompt and smooth handling, please
call us to get a service number before sending the device (telephone: +49
22 41.93 22 – 225 or 226). Please write the service number in a conspicuous place
on the outside of the parcel. Please also enclose a defect description as well as a
copy of the invoice.
Disposal
This product is classified within the scope of EU Directive 2002/96/EU (WEEE) and is
not allowed to be disposed of in the normal household waste.
serial number
13
f
Repair
Please do not attempt to make any repairs on your own! In the event that a re-
pair becomes necessary, send the SERVOX
®INTON, together with the char-
ger and batteries, in the original packaging to your local distributor. If you
have purchased the device directly from us, please send it to our address as in-
d
f
Note regarding serial number
To locate the speech aid serial number, unscrew the bot-
tom cover and slide off the titanium housing. The serial
number is on a label on the plastic housing below the
operating buttons.
The serial number of the LA 2.40 charger is found on the
bottom of the housing on the inscription plate.
For your safety and to maintain the warranty, only origi-
nal replacement parts may be used. If you have questions
about replacement parts and accessories, please contact
your local distributor. If you cannot locate anyone in
your country, call Servona GmbH directly in Germany at
+ 4 9 2 2 4 1 . 9 3 2 2 - 2 2 5 or-226.
R
Disposal
This product is classified within the scope of EU Directive 2002/96/EU (WEEE) and is
not allowed to be disposed of in the normal household waste.
serial number

28 Instructions for Use I
Technical data
Dimensions
Speech Aid: L 118 x Ø 35 mm
(L 4.65 in x Ø 1.38 in)
Charger: 85 x 45 x 146 mm
(W 3.35 in x H 1.77 in x L 5.75 in)
Sound: Frequency range: ~ 60 – 160 Hz
Weights
Speech Aid: 110 g (0.24 lb) without battery
Charger: 380 g (0.84 lb) without battery
Battery: 60 g (0.13 lb)
Electrical Values NiMH Battery
Voltage: 7.2VDC
Electrical Values Charger
Input Voltage: 110 V~ or 230 V~/50 - 60 Hz
Output voltage: 18 V= max.
Power: 5.2VA
Charging current: 80 mA max.
Short Circuit Current 230 V: 50 mA max.
Short Circuit Current 110 V: 100 mA max.
Environment temperature: +10°C to +30°C (50°F - 86°F)
(fullperformance)
0°Cto+40°C(32°F-104°F)
(stillpermissible)
Rights reserved for technical changes!
T
t
– special instructions
E
R
t
14

29
ENGLISH
Instructions for Use
T
L 118 x Ø 35 mm
(L 4.65 in x Ø 1.38 in)
C85 x 45 x 146 mm
(W 3.35 in x H 1.77 in x L 5.75 in)
SFrequency range: ~ 60 – 160 Hz
W
110 g (0.24 lb) without battery
C380 g (0.84 lb) without battery
B60 g (0.13 lb)
E
7.2VDC
E
110 V~ or 230 V~/50 - 60 Hz
O 18 V= max.
P5.2VA
C 80 mA max.
S 50 mA max.
S
(fullperformance)
0°Cto+40°C(32°F-104°F)
(stillpermissible)
R
The battery charger is connected
to the mains voltage!
Battery is being charged
Warning: Please consult Instructions for Use
– special instructions
Enclosed safety transformer
Safety class II device
Only for indoor use
The device is a medical device and complies
with the conditions relevant to EU Guideline
93/42/EWG Annex I for Medical Products
and is inspected by the appropriate autho-
rities. It was classified as a Class IIa product
according to Annex I.
This product is not allowed to be dispo-
sed of in normal household waste. Please
contact the public waste management
organisations in your country regarding the
disposal of this product in accordance with
the applicable regulations.
Symbols Key
All rights reserved.
Reprint, including excerpts, only with
the permission of Servona GmbH.
15
L 118 x Ø 35 mm
(L 4.65 in x Ø 1.38 in)
C85 x 45 x 146 mm
(W 3.35 in x H 1.77 in x L 5.75 in)
SFrequency range: ~ 60 – 160 Hz
W
110 g (0.24 lb) without battery
C380 g (0.84 lb) without battery
B60 g (0.13 lb)
E
7.2VDC
E
110 V~ or 230 V~/50 - 60 Hz
O 18 V= max.
P5.2VA
C 80 mA max.
S 50 mA max.
S
(fullperformance)
0°Cto+40°C(32°F-104°F)
(stillpermissible)
R
t
– special instructions
E
All rights reserved.
Reprint, including excerpts, only with
the permission of Servona GmbH.
Servox Factory Authori ed
Distributor and Service Center
Bruce Medical Supply
411 Waverley Oaks Rd , Suite 154
Waltham, Massachusetts 02452
USA
www BruceMedical com
Email: sales@brucemedical com
Phone: [phone]

dena.voers.www
77-2223
02-23
rfdosoirT13835D-
rfdoisorT4238-5
:e
:s
:chrdubietr
138-3-001n 2ioers/V/FGB_D/ONNTI
®
OXVSERBA_3_G9818
:urte
bu
ibu
i
teenvetmiotucodPr
esalsndn aiotucodPr
terVdunngluelsterH
ri
st
ist
/:orutibtrisD
Di
|mcoa.onrvseo@nfi
3.9412)2(049+axF
9341.2)2(09+4.elT
|061092xBo.
.O
P. O
-D|264-2egrwibeB
mbHGnarvoSe
P
teenvetmiotucodPr
Servox Factory Authori ed
Distributor and Service Center
Bruce Medical Supply
411 Waverley Oaks Rd , Suite 154
Waltham, Massachusetts 02452
USA
www BruceMedical com
Email: sales@brucemedical com
Phone: [phone]
