Please read before operating your new Air Purier
The air purier draws in room air from the air intake, passes the air through a Pre-
Filter and a HEPA Filter inside of the unit, then discharges the air through the air
outlet. The HEPA Filter can remove 99.97% of dust particles as small as 0.3 microns
that pass through the lter.
Some odors absorbed by the lter may break down over time, resulting in additional
odor. Depending on the usage environment, especially when the product is used in
extreme environments (signicantly more severe than normal household use), this
odor may become strong in a shorter period than expected. If the odor persists, the
lter should be replaced.
NOTE
• The air purier is designed to remove air-suspended dust, but not harmful gases
(for example, carbon monoxide contained in cigarette smoke).

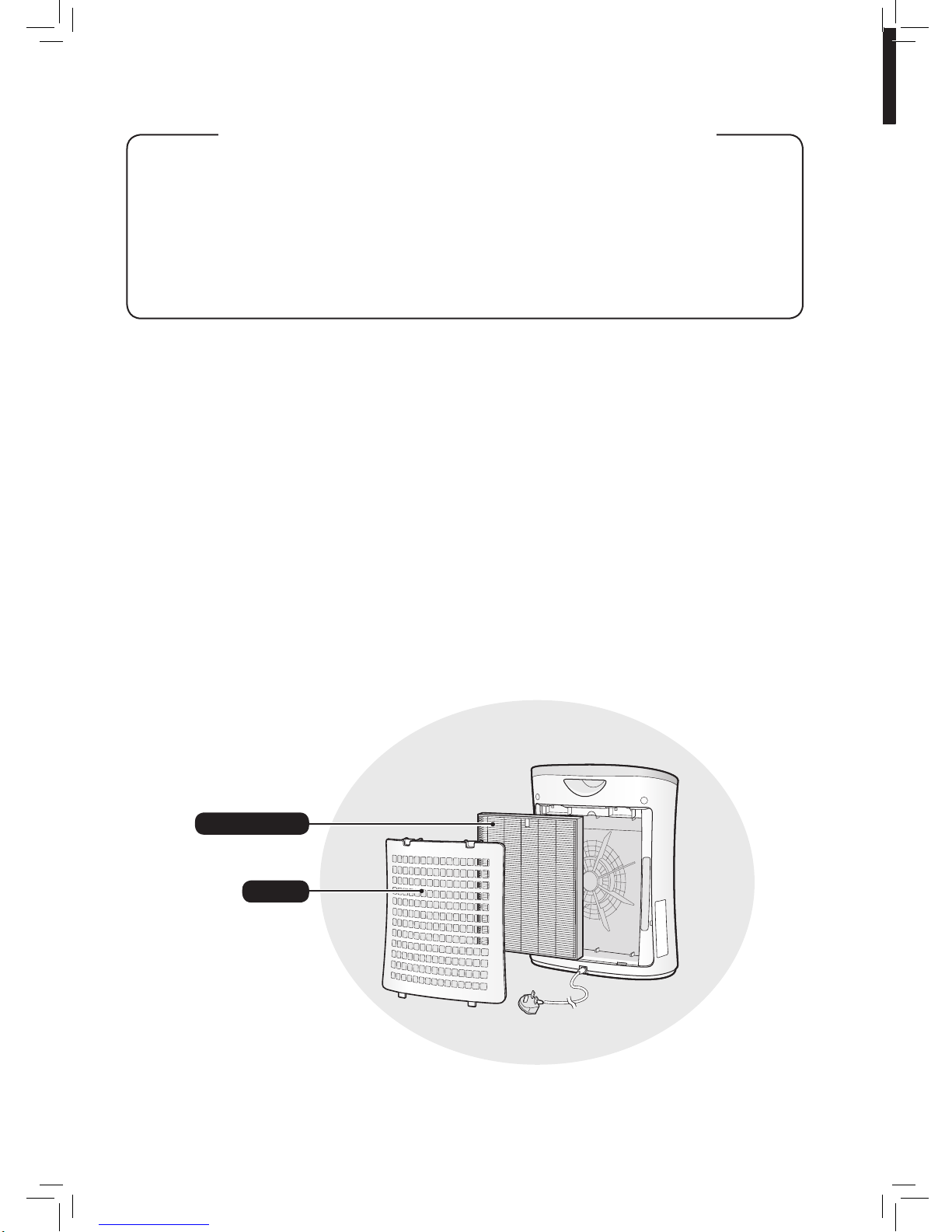

HEPA Filter
Pre-Filter
OM_FP-F30A_EN.indd 2 2015/10/14 10:53:04

ENGLISH
E-1
ENGLISH
Thank you for purchasing the SHARP
Air Purier. Please read this manual carefully.
Before using this product, be sure to read the
section: “Important Safety Instructions.”
After reading this manual, keep it in a
convenient location for future reference.
For your reference, we recommend to keep
this manual in the place where you can read
at any time.
IMPORTANT SAFETY INSTRUCTIONS
..... E-2
PART NAMES...............................................E-4
FILTER INSTALLATION ............................. E-5
OPERATION .................................................E-6
CARE AND MAINTENANCE ..................... E-8
TROUBLESHOOTING ..............................E-10
SPECIFICATIONS...................................... E-11
CONTENTS
FEATURES
Unique Combination of Air Treatment
Technologies
Filtration System + Plasmacluster Ions
TRAPS DUST*
Pre-lter traps dust and other large
airborne particles.
REDUCES POLLEN & MOLD*
HEPA lter traps 99.97% of particles as
small as 0.3 microns.
FRESHENS
Plasmacluster treats the air similar to
the way nature cleans the environment
by emitting a balance of positive and
negative ions.
*When air is drawn through the lter
system.
OM_FP-F30A_EN.indd 1 2015/10/14 10:53:04

E-2
IMPORTANT SAFETY INSTRUCTIONS
When using electrical appliances, basic safety precautions should be followed,
including the following:
WARNING - To reduce the risk of electric shock, re or injury to persons:
• Read all instructions before using the unit.
• Use only a 220 volt outlet.
• Do not use the unit if the power cord or plug is damaged or the connection to the
wall outlet is loosened.
•Periodically remove dust from the power plug.
• Do not insert ngers or foreign objects into the air intake or air outlet.
• When removing the power plug, always hold the plug and never pull the cord.
Electric shock and/or re from short circuit may occur as a result.
•
Be careful not to damage the power cord, it may cause electric shock, excess heat or
res.
• Do not remove the plug when your hands are wet.
• Do not use this unit near gas appliances or replaces.
• Remove the power plug from the wall outlet before cleaning the unit and when not
using the unit.
Electric shock from bad insulation and/or re from short circuit may occur as a result.
•When cleaning the unit, or when the unit is not in use, be sure to unplug the unit. Electric
shock and/or re from a short circuit may result.
• If the power cord is damaged, it must be replaced by the manufacturer, its service
agent, Sharp Authorized Service Centre or similarly qualified person in order to
avoid a hazard.
•Do not operate when using aerosol insecticides or in rooms where there is oily residue,
incense, sparks from lit cigarettes, chemical fumes in the air or in very high humidity
conditions, such as a bathroom.
•Be cautious when cleaning the unit. Corrosive cleansers may damage the exterior.
•Only a Sharp Authorized Service Centre should service this air purifier. Contact the
nearest Service Centre for any problems, adjustments, or repairs.
• This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge, unless they
have been given supervision or instruction concerning use of the appliance by a person
responsible for their safety. Children shall not play with the appliance. Cleaning and user
maintenance shall not be made by children without supervision.
NOTE - Radio or TV Interference
If this air purier should cause interference to radio or television reception, try to correct the
interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the unit and radio/TV receiver.
• Connect the equipment into an outlet on a circuit di󰀨erent from that to which the receiver
is connected.
• Consult the dealer or an experienced radio/TV technician for help.
OM_FP-F30A_EN.indd 2 2015/10/14 10:53:04

ENGLISH
E-3
CAUTIONS CONCERNING OPERATION
• Do not block the air intake and/or air outlet.
• Do not use the unit near or on hot objects, such as stoves or heaters or where it may
come into contact with steam.
• Do not lay the unit down when using.
• Always hold the handle on the back of the unit when moving it.
• Do not use without the lter installed inside the unit.
•Do not wash and reuse the HEPA lter.
Not only does it not improve lter performance, it may cause electric shock or malfunction.
INSTALLATION GUIDELINES
•
When using the unit, place it away from equipment utilizing electric waves such as
televisions or radios to avoid electrical interference.
• Avoid using in locations where furniture, fabrics or other items may come in
contact with and restrict the air intake and/or air outlet.
• Avoid using in locations where the unit is exposed to condensation or drastic
temperature changes. Appropriate condition is at room temperature 0 – 35 ºC.
• Place on a stable surface with su󰀩cient air circulation.
When placing the unit on a heavily carpeted area, the unit may vibrate slightly.
• Avoid locations where grease or oily smoke is generated.
The unit surface may crack as a result.
•Place the unit about 30 cm(1 ft) away from the wall in order to ensure proper
airow.
The dust collecting performance will be the same even if using the unit 3cm away from
the wall, but place it as far as possible(30cm away recommended) because it may dirty
the wall or oor around.
FILTER GUIDELINES
• Follow the instructions in this manual for correct care and maintenance of the lter.
OM_FP-F30A_EN.indd 3 2015/10/14 10:53:04

E-4
PART NAMES
13
14
16
2
1
1Main Unit 9 HEPA Filter
2Air Outlet 10 Upper Tabs
3Fan Speed Indicator Lights (green) 11 Back Panel (Pre-Filter)
4MODE Button / LIGHT ON/OFF Button (Press 3 sec.) 12 Bottom Tabs
5Plasmacluster Ion Indicator Light (blue) 13 Handle
6Plasmacluster Ion ON/OFF Button 14 Date Label
7POWER ON/OFF Button 15 Power Cord
8CLEAN ION SHOWER Button /
CLEAN ION SHOWER indicator Light (green) 16 Plug
FRONT
BACK
4
6
7
8
3
15
9
10
11
12
5
OM_FP-F30A_EN.indd 4 2015/10/14 10:53:04

ENGLISH
E-5
FILTER INSTALLATION
To maintain the quality of the lter, it is installed in the main unit and packed in plastic
bag. Be sure to remove the lter from the plastic bag before using the unit.
1
Remove the Back Panel.
2
Remove the plastic bag and
take out the Filter.
3
Place the Filter inside the main
unit.
Do not install the lter backwards or the
unit will not operate properly.
Upper Tabs
• Do not operate the unit without the lter.
Date Label
Pull Push
Be sure to remove the power plug
from the wall outlet.
4Replace the Back Panel to the
main unit.
5Fill in the usage start date on the
Date Label.
Use the date as a guide for the lter
replacement schedule.
Bottom Tabs
OM_FP-F30A_EN.indd 5 2015/10/14 10:53:05

E-6
OPERATION
MED MAX SLEEP
Releases high-density Plasmacluster ions and discharges strong air ow for 60 minutes.
CLEAN AIR
START
•Select the desired fan speed.
•Unless the power cord has been unplugged,
the operation starts in the previous mode it
was operated in.
STOP
CLEAN ION SHOWER
START
• If Plasmacluster Ion is OFF, Plasmacluster Ion will not be
released.
• When the operation nishes, the unit will return to the prior
operation mode.
It is able to change the other mode or turn o󰀨 during
this mode.
NOTE
FAN SPEED
SLEEP
• The unit will operate very quietly with low fan speed.
Plasmacluster Ion Indicator goes o󰀨 automatically. Even
though the indicator is o󰀨, Plasmacluster Ion is released
into air unless Plasmacluster Ion is turned o󰀨 by .
NOTE
OM_FP-F30A_EN.indd 6 2015/10/14 10:53:05

ENGLISH
E-7
If the , , lamp Lights up for 10 seconds, the setting is completed.
3 sec.
3 sec.
OFF
OFF
Light Control
Plasmacluster Ion ON/OFF
You can set the Plasmacluster Ion Indicator to OFF when the Plasmacluster Ion Indicator is bright.
ON
more than
3 sec.
more than
3 sec.
OFF
•When the unit starts operation, the
Plasmacluster Ion Indicator always
lights.
•In SLEEP mode, Light Control
button doesn’t operate.
NOTE
When Plasmacluster Ion is ON, the Plasmacluster Ion Indicator Light will turn on. (blue)
ON OFF
Auto RESTART
If the unit is unplugged or if there is a power failure, the unit will resume operation with the previous
settings after power is restored.
ON OFF
(with the unit OFF)
more 3 sec.
(with the unit OFF)
more 3 sec.
When Indicator is o󰀨,
•To turn OFF Plasmacluster Ion, the
indicator will ash for 3 seconds.
•To turn ON Plasmacluster Ion, the
indicator will light up for 3 seconds.
NOTE
Flashing
Lighting
Lighting Flashing
OM_FP-F30A_EN.indd 7 2015/10/14 10:53:06

E-8
Gently remove dust from the back panel
by using a vacuum cleaner attachment or
similar tool.
BACK PANEL (Pre-lter)
To maintain optimum performance of this air purier, please clean the unit including the lter
periodically.
Be sure to disconnect the power cord from the wall outlet before performing any maintenance.
CARE AND MAINTENANCE
Back Panel
Back Panel
UNIT
Wipe with a dry, soft cloth
For stubborn stains or dirt, use a soft cloth dampened with warm water.
•Do not use volatile uids
Benzene, paint thinner, polishing powder, etc. , may damage the surface.
•Do not use detergents
Detergent ingredients may damage the unit.
CAUTION
1. Add a small amount of kitchen detergent to
water and soak for about 10 minutes.
2. Rinse o󰀨 the kitchen detergent with clean
water.
3. Completely dry the lter in a well-ventilated
area.
How to clean stubborn dirtNOTE
Do not apply excessive pressure when
scrubbing the back panel.
CAUTION
Gently remove dust from the HEPA FILTER with a vacuum
cleaner attachment or similar tool.
HEPA FILTER
CAUTION
• Do not WASH in water and DRY in the sun.
• Apply the maintenance only on the side with the tag.
Do not clean the opposite side; otherwise, the lter will be
damaged.
The lter is fragile, be careful not to apply too much force.
Tag
OM_FP-F30A_EN.indd 8 2015/10/14 10:53:06

ENGLISH
E-9
FILTER REPLACEMENT GUIDELINES
Do not wash and reuse the lter
The lter life and replacement period are based on the condition of smoking 5 cigarettes per
day and the dust collection power is reduced by half compared with that of new lter.
Filter life varies depending on the room environment, usage, and location of the unit.
We recommend to replace the lter more frequently if the product is used in a condition signif-
icantly severer than normal household use.
REPLACING THE FILTER
Replacement Filter
Model : FZ-F30HFE
• HEPA Filter : 1 unit
• Please consult your dealer for purchase of replacement lter.
• Use only lter designed for this product.
Disposal of Filter
Please dispose the replaced lter according to the local disposal laws and regulations.
Filter materials :
•Filter : Polypropylene
•Frame : Polyester
See page E-5 for directions on how to
install the lter when replacing.
Replacement timing About 2 years after operating
Be sure to remove the power plug from the wall outlet.
Date Label
OM_FP-F30A_EN.indd 9 2015/10/14 10:53:06

E-10
Before calling for services, please review the list below, since the problem may not be a unit malfunction
.
TROUBLESHOOTING
SYMPTOM REMEDY (not a malfunction)
Dust and smoke are not removed. • Clean or replace the lter if they appear to be heavily
soiled. (Refer to E-8,E-9)
A clicking or ticking sound is heard
from the unit.
• Clicking or ticking sound may be audible when the unit
is generating ions.
The discharged air has an odor. • Check to see if the lter are heavily soiled.
Replace the lter.
• Plasmacluster Air Puriers emit small traces of ozone
which may produce an odor. These ozone emissions
are well below safety levels.
The Plasmacluster Ion Indicator
doesn’t Light on.
• Check to see if the SLEEP mode is selected.
The Plasmacluster Ion Indicator Light is turned o󰀨
3 seconds after the SLEEP mode is selected.
• Check to see if the Plasmacluster Ion OFF is selected.
Press to light on.
• Check to see if the Light Control is selected.
Press for 3 seconds to light On.
OM_FP-F30A_EN.indd 10 2015/10/14 10:53:07

ENGLISH
E-11
Power Supply 220V 50Hz
Fan
Speed
Operation
Fan Speed MAX MED SLEEP
Rated Power (W) 51 30 13
Airow (m3/hr) 180 120 60
Applicable Floor Area (m2)~21 *1
High density Plasmacluster ion recommended room size (m
2
) ~16 *2
Cord Length (m) 2.0
Dimensions (mm) 400(W) x 182(D) x 463(H)
Weight (kg) 4.0
*1 Size of a room which is appropriate for operating the unit at maximum fan speed.
•It indicates the space where a certain amount of dust particles can be removed in 30 minutes
(JEM1467).
*2 Size of a room in which approximately 7000 ions can be measured per cubic centimeter in the
center of the room (at a height of approximately 1.2 meters from the oor) when the product is
placed next to a wall and run at the MED fan speed.
Standby Power In order to operate the electrical circuits while the power plug is inserted in the
wall outlet, this product consumes about 1.0W of standby power.
For energy saving, unplug the power cord when the unit is not in use.
SPECIFICATIONS
OM_FP-F30A_EN.indd 11 2015/10/14 10:53:07

操作您的新空氣清新機之前， 請詳細閱讀本手冊
空氣清新機從進氣口吸入室內空氣， 讓空氣通過預濾網及主機內的 HEPA 過濾網，
然後將淨化後的空氣由出風口排出。
HEPA 過濾網可以去除 99.97% 穿過過濾網的約 0.3 微米的灰塵。
過濾網吸附的異味隨著時間可能會再次分解並散發出來， 從而產生其他異味。 視乎
不同的使用環境， 尤其是產品應用於極端環境下 （比家居使用環境嚴重）， 這些異
味可能在比預期更短的時間內變得更濃烈。 如果異味持續存在， 請更換過濾網。
注意
• 空氣清新機用於去除空氣中懸浮的灰塵， 而不是有害氣體
（如香煙煙霧中的一氧化碳）。
HEPA 過濾網
預濾網
OM_FP-F30A_CT(HK).indd 2 2015/10/14 10:53:16

中文
C-1
中文
感謝您購買 SHARP 空氣清新機。 請仔細閱
讀本說明書。 使用本產品之前， 請務必閱
讀 “重要安全事項” 一節。
閱讀後請妥善保存本說明書， 以便日後查
閱。
我們建議將本說明書保存於方便隨時查閱的
地方。
重要安全事項
................................................. C-2
各部份名稱.................................................... C-4
安裝過濾網.................................................... C-5
主機操作........................................................ C-6
日常保養........................................................ C-8
故障時的檢查事項 ..................................... C-10
規格.............................................................. C-11
目錄
特點
獨有多重空氣淨化技術
過濾網系統及 Plasmacluster Ions
去除灰塵 *
預濾網去除灰塵及其他較大的空氣粒子。
去除花粉與霉菌 *
HEPA 過濾網可去除 99.97% 約 0.3 微米
的微塵粒子。
淨化空氣
正如大自然潔淨環境的原理，
Plasmacluster Ions 在淨化空氣的同時，
釋放出數量相等的正離子和負離子來淨化
空氣。
* 空氣經過過濾網系統， 然後再排出。
OM_FP-F30A_CT(HK).indd 1 2015/10/14 10:53:16

C-2
重要安全事項
在使用電器產品時 , 必須遵守基本安全預防措施 , 包括以下各方面 :
警告 - 為了減少觸電、 火災或受傷等危險 ：
• 使用本機前， 請先閱讀說明書。
• 僅使用 220 伏特電源插座。
• 在電源線或電源插頭發生損壞、或是牆壁上的電源插座發生鬆脫的情況下 , 切勿使用本機。
•請定期清除電源插頭上的灰塵。
• 請勿將手指或異物插入進氣口或出風口。
• 移除電源插頭時， 請務必抓住插頭而不要拉扯電源線。
否則可能會由於短路而導致觸電或發生火災。
• 請注意不要損壞電源線， 否則可能導致觸電、 過熱或發生火災。
• 切勿在手濕時移除電源插頭。
• 切勿在氣體設備或壁爐附近使用本機。
• 清潔或不使用本機時， 將電源線從牆壁的插座上拔出。
否則可能會由於短路而導致觸電、 隔熱不良和 / 或發生火災。
•清潔或不使用本機時， 請確保拔出主機的插頭。 否則可能會由於短路而導致觸電或發生
火災。
• 如果電源線損壞， 必須由製造廠商、 其服務代理商、 聲寶公司授權服務中心或其他具有
同樣資格的人員進行更換， 以避免發生危險。
•使用噴霧殺蟲劑或房間中有含油殘餘物、 焚香、 點燃香煙的火花、 空氣中有化學煙霧或
在非常潮濕的環境 （如浴室） 中時， 請勿使用本機。
•清潔本機時請注意， 腐蝕性清潔劑可能會損壞外殼。
•只有聲寶公司授權服務中心可以對本空氣清新機進行維修。 若本機出現任何問題、 需要
調校或修理， 請聯絡最近的服務中心。
• 除非得到監護人或負責其安全人士的適當監督或指導， 否則， 本機不適合身體官能或心
智能力退化者， 或缺乏操作經驗和知識的人士 ( 包括兒童 ) 使用。 本機不應該作為兒童的
玩具。 在沒有監督的情況下， 兒童不應對本機進行清潔保養。
注意 - 收音機或電視機干擾
如果本空氣清新機對收音機或電視接收造成干擾， 請嘗試以下列其中一項或多項措施修正干擾：
• 改變接收天線的方向或擺放位置。
• 增加本機與收音機 / 電視機接收器之間的距離。
• 將本機與接收器分別連接至不同的電源插座或供電線路。
• 向經銷商或有經驗的收音機 / 電視機技術人員諮詢並請求幫助。
OM_FP-F30A_CT(HK).indd 2 2015/10/14 10:53:17

中文
C-3
操作的注意事項
• 切勿堵塞進氣口和 / 或出風口。
• 請勿靠近或在熱源物體上 （如爐灶、 暖爐或散熱器）， 或者在可以接觸到蒸氣的地方使
用本機。
• 使用時， 請勿平放本機。
• 移動本機時， 請緊握主機背部的手柄。
• 請勿在沒有安裝過濾網的情況下使用本機。
•請勿清洗和重複使用 HEPA 過濾網。
這樣不但不會提高過濾網效能， 反而可能引致觸電或機件故障。
安裝指南
• 使用本機時， 請遠離發出電波的設備 （例如電視機或收音機）， 以避免產生電波干擾。
• 避免在家具、 織物或其他用品可能會與進氣口和 / 或出風口接觸的地方使用本機。
• 請勿在溫差極大或導致本機直接暴露於冷凝環境的地方使用。 適當的使用環境是
0 – 35 ºC 的室溫環境。
• 安裝必須穩固， 且通風良好。
把本機放置在鋪有厚地毯的地方時， 可能導致本機微微震動。
• 請避免在產生油煙的地方使用本機。
否則本機外殼可能會裂開。
• 請將本機放置於距離牆壁大約 30 cm (1 ft) 的位置， 以確保適當氣流流動。
與牆壁保持 3cm 距離即可確保除塵性能， 但仍然應該儘量遠離牆壁 （建議 30cm），
因為本機可能會把周圍的牆壁或地板弄髒。
過濾網指南
• 請遵循本說時書的指示， 正確保養和維護過濾網。
OM_FP-F30A_CT(HK).indd 3 2015/10/14 10:53:17

C-4
各部份名稱
13
14
16
2
1
1主機 9 HEPA 過濾網
2吹出口 10 上扣勾
3風速指示燈 （綠色） 11 背板 （預濾網）
4MODE （模式） 按鈕 /
指示燈開 / 關按鈕 （按住 3 秒） 12 下扣勾
5Plasmacluster Ion 指示燈 （藍色） 13 手柄
6Plasmacluster Ion 開 / 關按鈕 14 日期標籤
7電源開 / 關按鈕 15 電線
8CLEAN ION SHOWER （強力 Ion 除菌） 按鈕 /
CLEAN ION SHOWER （強力 Ion 除菌） 指示燈 （綠色） 16 插頭
前面
背面
4
6
7
8
3
15
9
10
11
12
5
OM_FP-F30A_CT(HK).indd 4 2015/10/14 10:53:17

中文
C-5
安裝過濾網
為確保過濾網的品質， 過濾網以塑膠袋包裝並安裝在主機中。 使用本機前， 須將過濾網從塑
膠袋中取出。
1取下背板。
2
將過濾網從塑膠袋中取出來。
3
將過濾網安裝到主機中。
請勿反向安裝過濾網， 否則本機無法正
常操作。
上扣勾
• 請勿在沒有安裝過濾網的情況下操作本機。
日期標籤
拉出 推入
確保將電源線從牆壁的插座上拔出。
4將背板裝回主機。
5在日期標籤上填寫開始使用日期
該日期用作過濾網更換時間表的參考。
下扣勾
OM_FP-F30A_CT(HK).indd 5 2015/10/14 10:53:17

C-6
主機操作
中等 最大 睡眠
持續 60 分鐘於高風速釋放高濃度 Plasmacluster Ions。
空氣淨化
啟動
• 選擇所需的風速。
• 除非拔掉電源， 否則主機啟動後將維持前一
次的操作模式。
停止運轉
強力 Ion 除菌
啟動
• 如果 Plasmacluster Ion 為 「關」， 將不再釋放出離子。
• 此操作完成時， 該設備會恢復到之前的操作模式。
本機能在此模式下轉換成其他模式或 停止操作。
注意
風速
睡眠模式
• 本機在使用低風速時操作非常寧靜。
Plasmacluster Ion 指示燈將自動關閉。 即使指示燈關
閉後， 離子仍然釋放至空氣中， 除非按下 關閉
Plasmacluster Ion。
注意
OM_FP-F30A_CT(HK).indd 6 2015/10/14 10:53:18
