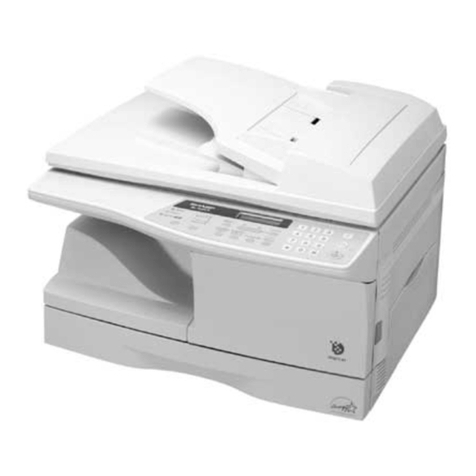

Sharp AL-1661CS User manual

MODEL
AL-1661CS
OPERATION MANUAL
(for facsimile)
•INSTALLATION
•INITIAL SETTINGS
•CHOOSING SUITABLE
MEDIA
•HOW TO USE THE FAX
FUNCTION
•SPECIAL FUNCTIONS
•TROUBLESHOOTING
•APPENDIX
11
13
49
51
66
84
91
Page

Caution
• Use only the line cable that was provided with the machine.
• To reduce the risk of fire, use only UL-Listed No.26 AWG or larger
telecommunication line cord.
Note
• This manual describes how to use the fax function of the machine.
Part names and functions shared with the copy function (for example, the
misfeed indicator and add paper indicator), are described in the Operation
Manual. For more information, please read the Operation Manual.
• This manual (fax function) refers to the Reversing Single Pass Feeder as
the "RSPF".
For users in the USA
This device complies with Part 15 of the FCC rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference,
and (2) this device must accept any interference received, including interference
that may cause undesired operation.
WARNING:
FCC Regulations state that any unauthorized changes or modifications to this
equipment not expressly approved by the manufacturer could void the user’s
authority to operate this equipment.
Note:
This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or more of
the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
●
●
●
●
♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠
♠
♠
♠
♠
♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠
♠
♠
♠
♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠
♠
♠
♠
♠
♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠
♠
♠
♠

i
INTRODUCTION
TYPE OF SERVICE
This equipment may not be used on coin service provided by the telephone company. Connection to party lines is
subject to state tariffs. Contact your state's public utility commission, public service commission, or corporation
commission for more information.
ABOUT THE TELEPHONE CONSUMER PROTECTION ACT OF 1991
The Telephone Consumer Protection Act of 1991 makes it unlawful for any person to use a computer or other
electronic device, including FAX machines, to send any message unless such message clearly contains in a margin
at the top or bottom of each transmitted page or on the first page of the transmission, the date and time it is sent and
an identification of the business or other entity, or other individual sending the message and the telephone number
of the sending machine or such business, other entity, or individual.
(The telephone number provided may not be a 900 number or any other number for which charges exceed local or
long-distance transmission charges.)
In order to program this information into your FAX machine, you should complete the following steps:
See page 21 of this Operation Manual.
Important safety information
• If any of your telephone equipment is not operating properly, you should immediately remove it from your
telephone line, as it may cause harm to the telephone network.
• The AC power outlet shall be installed near the equipment and shall be easily accessible.
• Never install telephone wiring during a lightning storm.
• Never install telephone jacks in wet locations unless the jack is specifically designed for wet locations.
• Never touch uninsulated telephone wires or terminals unless the telephone line has been disconnected at the
network interface.
• Use caution when installing or modifying telephone lines.
• Avoid using a telephone (other than a cordless type) during an electrical storm. There may be a remote risk of
electric shock from lightning.
• Do not use a telephone to report a gas leak in the vicinity of the leak.
• Do not install or use the machine near water, or when you are wet. Take care not to spill any liquids on the
machine.

ii
FCC Notice to users:
This equipment complies with Part 68 of the FCC rules and the requirements adopted by the ACTA.
On this equipment is a label that contains, among other information, a product identifier in the format
US:AAAEQ##TXXXX.
If requested, this number must be provided to the telephone company.
The REN is used to determine the number of devices that may be connected to a telephone line.
Excessive RENs on a telephone line may result in the devices not ringing in response to an incoming call.
In most but not all areas, the sum of RENs should not exceed five (5.0).
To be certain of the number of devices that may be connected to a line, as determined by the total RENs, contact the
local telephone company.
For products approved after July 23, 2001, the REN for this product is part of the product identifier that has the
format US:AAAEQ##TXXXX.
The digits represented by ## are the REN without a decimal point (e.g., 03 is a REN of 0.3).
For earlier products, the REN is separately shown on the label.
If this equipment causes harm to the telephone network, your telephone company may disconnect your service
temporarily. If possible, They will notify you in advance. If advance notice is not practical, you will be notified as soon
as possible. You will also be advised of your right to file a compliant with the FCC.
Your telephone company may make changes in its facilities, equipment, operations, or procedures that could affect
the operation of your equipment. If this happens, the telephone company will provide advance notice in order for you
to make necessary modifications to maintain uninterrupted service. If the equipment is causing harm to the
telephone network, your telephone company may ask you to disconnect the equipment until the problem is resolved.
If you have any questions or problems which cannot be solved by reading this manual, please contact
A plug and jack used to connect this equipment to the premises wiring and telephone network must comply with the
applicable FCC Part 68 rules and requirements adopted by the ACTA.
A compliant telephone cord and modular plug is provided with this product.
It is designed to be connected to a compatible modular jack that is also compliant. See installation instructions for
details.
This equipment connects to the telephone network through a standard USOC RJ-11C network interface jack.
If your home has specially wired alarm equipment connected to the telephone line, ensure the installation of this
equipment does not disable your alarm equipment.
If you have questions about what will disable alarm equipment, consult your telephone company or a qualified
installer.
Sharp Electronics Corporation
P.O. Box 650
Mahwah, NJ 07430-1163
Telephone: 1-800-BE-SHARP

1
TABLE OF CONTENTS
TABLE OF CONTENTS............................................................................................................................. 1
QUICK REFERENCE GUIDE .................................................................................................................... 3
LIST OF FAX FUNCTIONS........................................................................................................................ 6
1
INSTALLATION
CONNECTIONS .............................................. 11
● CONNECTING THE TELEPHONE LINE CORD ...11
FINAL PREPARATIONS ................................ 12
●CONNECTING OTHER DEVICES ................12
2
INITIAL SETTINGS
PART NAMES................................................. 13
A LOOK AT THE FAX OPERATION PANEL ..... 14
ABOUT THE LIQUID CRYSTAL DISPLAY.... 16
USING THE ARROW KEYS ........................... 16
ADJUSTING THE BEEP VOLUME ................ 16
ADJUSTING THE RINGING VOLUME........... 17
SETTING THE LENGTH OF ALARM BEEPS .... 18
ADJUSTING THE ALARM BEEP VOLUME .. 19
FAX SETUP .................................................... 20
●HOW TO ENTER CHARACTERS .................20
●
ENTERING YOUR NAME AND FAX NUMBER.....21
●SETTING THE DATE AND TIME ..................22
●SELECTING THE TRANSMISSION MODE ..26
●SELECTING THE RECEPTION MODE.........27
●SETTING THE NUMBER OF RINGS FOR
AUTO RECEPTION .......................................28
●SETTING THE NUMBER OF RINGS FOR
MANUAL RECEPTION ..................................29
●
SELECTING THE RECEPTION PAPER SIZE..29
●SETTING THE DIAL MODE ..........................30
●
SETTING THE NUMBER OF RECALL TIMES......31
●SETTING THE RECALL INTERVAL..............33
●SETTING THE INDEX FUNCTION................35
●SETTING RESOLUTION PRIORITY .............36
●SETTING UP THE MACHINE FOR USE WITH
A PC MODEM................................................37
●USING THE REMOTE RECEPTION
FUNCTION ....................................................38
●DISTINCTIVE RINGING ................................40
●STORING NUMBERS FOR AUTOMATIC
DIALING.........................................................41
●
STORING NUMBERS UNDER GROUP KEYS .....44
USING THE MACHINE WITH AN ANSWERING
MACHINE.........................................................47
●QUIET DETECT TIME .................................. 47
●ANSWERING MACHINE BACKUP............... 48
3
CHOOSING SUITABLE MEDIA
ORIGINALS SUITABLE FOR FAXING ...........49
●SIZE AND WEIGHT ...................................... 49
●UNSUITABLE ORIGINALS........................... 50

2
4
HOW TO USE THE FAX FUNCTION
SENDING ORIGINALS ................................... 51
●SETTING THE ORIGINAL .............................51
OPTIONAL TRANSMISSION SETTINGS ...... 53
●ORIGINAL SIZE.............................................53
●RESOLUTION................................................54
●CONTRAST ...................................................54
●COVER SHEET .............................................55
●MESSAGE FUNCTION..................................56
●TWO-SIDED ORIGINAL TRANSMISSION
FUNCTION ....................................................57
DIALING AND TRANSMITTING..................... 58
●DIRECT KEYPAD DIALING...........................58
●RAPID KEY DIALING ....................................58
●SPEED DIALING ...........................................58
●CHAIN DIALING ............................................59
●NORMAL DIALING USING THE [SPEAKER]
KEY................................................................59
●USING THE SEARCH KEY ...........................60
●REDIALING....................................................60
IF THE MEMORY BECOMES FULL WHILE
SCANNING AN ORIGINAL............................. 61
CANCELING (DELETING) A STORED FAX JOB...61
RECEIVING FAXES........................................ 62
●USING AUTO MODE.....................................62
●USING MAN. MODE......................................62
●USING A.M. MODE .......................................62
OPTIONAL RECEPTION SETTINGS ............. 63
●TWO-SIDED RECEPTION ............................63
●RECEIVE REDUCE .......................................64
WHEN USING MANUAL SENDING AND
RECEIVING..................................................... 65
5
SPECIAL FUNCTIONS
MEMORY .........................................................66
●MEMORY BACKUP ...................................... 66
DATA TRANSFER...........................................67
TRANSMISSION RESERVATION...................69
BROADCASTING ............................................70
POLLING .........................................................72
●POLLING ...................................................... 72
●SERIAL POLLING......................................... 73
●POLLING TRANSMISSION (MEMORY
POLLING) ..................................................... 74
●RESTRICTING POLLING MACHINES
(POLLING SECURITY)................................. 76
TIMER OPERATIONS .....................................78
● CANCELING A TIMER TRANSMISSION JOB..79
ANTI JUNK FAX ..............................................80
OPERATION IN COPY, PRINTER, SCANNER,
AND FAX MODES ...........................................83
6
TROUBLESHOOTING
PRINTING OUT REPORTS .............................84
●ACTIVITY REPORT AUTO LISTING............ 87
●PRINTING TRANSACTION REPORTS........ 88
TROUBLESHOOTING.....................................89
MESSAGES AND SIGNALS ...........................90
●DISPLAY MESSAGES.................................. 90
●AUDIBLE SIGNALS ...................................... 90
7
APPENDIX
SPECIFICATIONS ...........................................91
INDEX ..............................................................92

3
QUICK REFERENCE GUIDE
The following quick reference guide provides brief explanations the operation of the machine.
Selecting the transmission mode
Memory transmission mode
The indicator lights up when
memory transmission mode
is selected.
Press the
[MEMORY] key
to change modes.
Direct transmission mode
The indicator is off when
direct transmission mode
is selected.
MEMORYMEMORY
Place the original
Using the RSPF
Place the original face up
(up to 30 pages at once)
Using the document glass
Place the original face down

4
Sending a fax
Dialing methods
Search by fax numbers.
Speed Dial number or Rapid Key set for
Chain Dialing when stored.
Dial with the numeric keys and then
press the [REDIAL/PAUSE] key.
Direct Dialing
Press the numeric keys to dial.
Search Dialing
Speed Dialing
Enter a two-digit
Speed Dial number.
SPEED/
SEARCH
Rapid Key
Dialing
* It is not necessary to press the [START] key
after pressing a Rapid Key.
09
18
01
10
09
18
01
10
REDIAL/
PAUSE
Redial the last number dialed.
REDIAL/
PAUSE
Chain Dialing
SPEED/
SEARCH
Dial the next part of the number
(a Group Key cannot be used).
Enter the first letter of the
stored name.
SPEED/
SEARCH
Select the
destination.
Press when the first character of the
name is a special character or number.
Sending a fax
Using the RSPF
Using the document glass
Dial.
Adjust the resolution
and contrast.
CONTRAST
RESOLU-
TION
Place the original.
Specify the
original size. Dial.
Adjust the resolution
and contrast.
CONTRAST
RESOLU-
TION
Place the original.
Redialing
If you are faxing a
multi-page original,
change pages and
press the [START]
key ( ).

5
BROAD-
CAST
Sending a fax to multiple destinations (Broadcasting)
Place the original.
Dial.
Adjust the resolution
and contrast.
CONTRAST
RESOLU-
TION
Automatically sending a fax at a specified time (timer transmission)
To set up a timer transmission, see "TIMER OPERATIONS" (p.78).
Storing a fax job while another job is in progress
Place the original.
Fax transmission
or reception in
progress
Dial.
Adjust the resolution
and contrast.
CONTRAST
RESOLU-
TION
The fax will be
transmitted after
previous jobs are
completed.
Receiving a fax
Select "POLLING MODE".
Press until the desired
reception mode appears
in the display.
* Another fax machine can also call your fax machine and request automatic transmission of a original placed in
your machine. For this to take place, the reception mode of your machine must be set to "AUTO".
Selecting the reception mode
RECEPTION
MODE
"AUTO" :
"MAN." :
"A.M." :
Select this mode when an extension
phone is connected to the machine to
receive phone calls. To receive a fax,
answer the call on the phone and then
press the [START] ( ) key.
Select this mode when an answering
machine is connected to the machine.
Faxes will be received automatically.
Faxes are automatically received.
"AUTO"
"MAN."
"A.M."
Calling a fax machine and requesting automatic transmission of
an original placed in that machine
Dial.

6
LIST OF FAX FUNCTIONS
The FAX MAIN MENU is used to configure settings for the fax function and program information such as the fax
number of the machine. The settings in the FAX MAIN MENU are shown below.
The procedure for configuring settings is explained in "SELECTING SETTINGS FOR THE FUNCTION" (p.10).
Menu item Settings (factory default setting appears in bold) Page
0 : RX DATA TRANSFER
1 : DATA TRANSFER Enable transfer of received faxes to another fax machine when
printing is not possible. 68
2 : FAX NUMBER Program the fax number of the machine to which received faxes
will be transferred. 67
1 : TIMER MODE
1 : SET Set up a transmission or polling job to take place automatically
at a specified time. 78
2 : CLEAR Cancel a timer transmission job. 78
2 : ENTRY MODE
1 : FAX NUMBER Store (or delete) fax numbers in Rapid Keys, Speed Dial
numbers, and Group Keys.
1 : RAPID KEY
2 : SPEED #
3 : GROUP KEY
41, 43,
44, 46
2 : DATE&TIME SET Set the date and time in the machine. 22
3 : OWN PASSCODE SET Program the name and phone number of the user of the
machine. 21
4 : PASSCODE # MODE Store fax numbers that are allowed to poll the machine when
polling security is used. 77
5 : DAY LIGHT SAVING Enable automatic adjustment of the clock at the beginning and
end of daylight savings time. 25
3 : MEMORY STATUS Check and delete stored fax jobs waiting for transmission and
automatic recall jobs. 61
4 : USER PROGRAM
1 : DOC. GLASS SIZE Set the size of an original faxed from the document glass.
1 : 8.5x11
2 : 8.5x14
3 : A4
53
2 : FIXED DOC. SIZE Set the default size of originals faxed from the document glass.
1 : 8.5x11
2 : 8.5x14
3 : A4
53
3 : RESO. PRIORITY Set the default resolution for fax transmission.
1 : STANDARD
2 : FINE
3 : SUPER FINE
36
4 : # OF RINGS (AUTO) Set the number of rings on which the machine answers calls in
automatic reception mode.
0 - 9 (2)
28
5 : # OF RINGS (MANUAL) Set the number of rings on which the machine answers calls in
manual reception mode.
0 - 9 (0)
29

7
6 : AUTO LISTING Enable automatic printing of the Activity Report when
information on a total of 50 fax transmissions/receptions
accumulates.
1 : ON
2 : OFF
87
7 : PRINT SELECTION 1 : TRANSMISSION
Select the condition for printing reports on fax transmissions.
1 : ALWAYS PRINTS
2 : ERROR ONLY
3 : NEVER PRINTS
88
2 : BROADCAST
Select the condition for printing reports on broadcast
transmissions.
1 : ALWAYS PRINTS
2 : ERROR ONLY
3 : NEVER PRINTS
88
3 : RECEPTION
Select the condition for printing reports on received faxes.
1 : ALWAYS PRINTS
2 : ERROR ONLY
3 : NEVER PRINTS
88
4 : IMAGE MEM. PRINT
Enable printing of the original image on transaction reports.
1 : ALWAYS PRINTS
2 : ERROR ONLY
3 : NEVER PRINTS
88
8 : RECALL TIMES BUSY Set the number of recall attempts that are made when the line is
busy.
00 - 14 (02)
31
9 : RECALL TIMES ERR Set the number of recall attempts that are made when a
communication error occurs.
0 - 1 (1)
32
10 : RECALL INT. BUSY Set the interval between recall attempts when the line is busy. 1
to 15 minutes can be selected.
01 - 15 min. (03 min.)
33
11 : RECALL INT. ERR Set the interval between recall attempts when a communication
error occurs. 0 to 15 minutes can be selected.
00 - 15 min. (01 min.)
34
12 : SECURITY SELECT Enable the polling security function.
1 : ON
2 : OFF
76
13 : FAX REMOTE
NUMBER
Set the 1-digit number used to activate remote fax reception.
0 - 9 (5)39
14 : REMOTE RECEPTION Enable the remote reception function.
1 : ON
2 : OFF
38
15 : FAX SIGNAL RCV Enable automatic fax reception when a fax tone is heard after
answering a call on an extension phone.
1 : ON
2 : OFF
37
Menu item Settings (factory default setting appears in bold) Page

8
16 : RCV REDUCE When a fax is received that is larger that the printing paper,
enable reduction of the fax to the size of the paper to avoid the
fax being cut off.
1 : ON
2 : OFF
64
17 : BEEP LENGTH Set the length of the beep that sounds when fax transmission or
reception ends.
1 : 3 SEC
2 : 1 SEC
3 : NO BEEP
18
18 : RINGER VOLUME Set the volume of the ringer.
1 : OFF
2 : LOW
3 : MIDDLE
4 : HIGH
17
19 : BEEPER VOLUME Set the volume of the beep that sounds when a key is pressed.
1 : OFF
2 : LOW
3 : MIDDLE
4 : HIGH
19
20 : DIAL MODE Set the dial mode for the type of line you are on.
1 : TONE
2 : PULSE
30
21 : DISTINCTIVE RING Set the ring pattern for distinctive ring.
1 : OFF
2 : STANDARD
3 : PATTERN 1
4 : PATTERN 2
5 : PATTERN 3
6 : PATTERN 4
7 : PATTERN 5
40
22 : INDEX PRINT Enable printing of a black mark (index) at the top of each
received fax page.
1 : ON
2 : OFF
35
23 : DATE&TIME FORMAT 1 : TIME FORMAT
Select 12-hour or 24-hour format for the time set in the
machine.
1 : 12 HOUR
2 : 24 HOUR
23
2 : DATE FORMAT
Set the format of the date in the display and in printouts.
1 : MMDDYYYY
2 : DDMMYYYY
3 : YYYYMMDD
24
24 : 2-SIDED RX Print on both sides of the paper when a multi-page fax is
received.
1 : ON
2 : OFF
63
Menu item Settings (factory default setting appears in bold) Page

9
5 :ANTI JUNK FAX
1 : ANTI JUNK SELECT Enable the anti junk function to block fax reception from
specified fax numbers.
1 : ON
2 : OFF
80
2 : JUNK FAX # Program (or delete) fax numbers from which fax reception is to
be blocked.
1 : SET
2 : CLEAR
81
6 : A.M. MODE
1: QUIET DETECT TIME Activate fax reception when a period of silence longer than the
set time is detected.
00 - 10 (05)
47
2 : AUTO RECEIVE Enable fax reception when the answering machine is full and
cannot receive messages or otherwise fails.
1 : ON
2 : OFF
48
7 : MEMORY POLL MODE
1 : 1 TIME Perform polling transmission once. 74
2 : REPEAT Perform polling transmission repeatedly. 74
8 : POLLING MODE Poll another fax machine. 72
9 : SERIAL POLL MODE Sequentially poll multiple fax machines. 73
Menu item Settings (factory default setting appears in bold) Page

10
SELECTING SETTINGS FOR THE FUNCTION
The general procedure for configuring settings for the fax function is explained below. Follow this procedure to
configure the settings explained on pages 6 through 9.
1Press the [MODE SELECT] key to
select fax mode.
The "FAX" indicator lights
up to indicate that fax
mode is selected.
2Press the [MENU] key.
"FAX MAIN MANU" will
appear in the display.
3Press the [ ] key ( ) or [ ] key ( )
key to select a menu item and press
the [ENTER] key.
The item is selected.
Repeat this step until the
item that you wish to
configure appears.
4Select a setting or enter information
To select a setting:
Press the [ ] key ( )
or [ ] key ( ) until the
setting is selected.
To enter information:
Press the numeric keys
to enter characters or
numbers.
5Press the [ENTER] key
The setting or information
is entered.
6Press the [CLEAR ALL] key ( )
Press the [CLEAR ALL]
key ( ) to exit.
An item can also be selected after pressing the [MENU] key by pressing the numeric key for the item (the key
corresponding to the number that appears in front of the item). When the numeric key is pressed, the item is
selected or entered.
Note
R
• If you mistakenly select the wrong item,
press the [CLEAR] key ( ) and repeat
the procedure from step 2.
• To cancel a setting for a fax function,
press the [MENU] key.
Note

11
1
Chapter 1
INSTALLATION
CONNECTIONS
CONNECTING THE TELEPHONE LINE CORD
Plug one end of the telephone line cord into the jack on the machine marked
"LINE." Plug the other side into a standard (RJ11C) single-line telephone
wall jack. Be sure not to plug this telephone line cord into the "TEL" jack.
The "TEL" jack is used to attach an extension telephone or answering
machine to the machine. (See "CONNECTING OTHER DEVICES" (p.12))
ABOUT THE OPERATION MANUALS
The operation manuals for the machine are as follows:
Operation Manual (for facsimile) (this manual)
This manual explains the procedures for using the machine as a fax machine.
This manual only explains the fax functions of the machine. For general information on using the machine, including
safety information, installation, paper loading, removal of paper misfeeds, and peripheral equipment, see the
operation manual for the machine.
Operation Manual (for general information)
Explains the machine and how to use it as a copier. Also explains how to install the software that allows the machine
to be used as a printer and scanner for your computer.
The following information is contained in the operation manual for the machine :
Online Manual (on the CD-ROM)
This manual explains the procedures for using the machine as a printer and a scanner.
If your area experiences a high incidence of lightning or power
surges, we recommend that you install surge protectors for the
power and telephone lines. Surge protectors can be purchased
from your retailer or at most telephone specialty stores.
LINE
TEL
Note
OPERATION MANUAL contents Page
CAUTIONS
3
PART NAMES 9
CHECKING PACKED COMPONENTS AND
ACCESSORIES 12
PREPARING THE MACHINE FOR INSTALLATION 13
INSTALLING THE TD CARTRIDGE 14
POWER ON AND OFF 16
LOADING THE PAPER TRAY 19
BYPASS FEED (including special paper) 21
OPERATION MANUAL contents Page
CHANGING A TRAY'S PAPER SIZE
SETTING
23
MISFEED REMOVAL 80
TD CARTRIDGE REPLACEMENT 85
DRUM CARTRIDGE REPLACEMENT 86
CHECKING THE TOTAL COUNT AND
DRUM CARTRIDGE LIFE 87
CLEANING THE MACHINE 88
ABOUT SUPPLIES AND OPTIONS 91

12
FINAL PREPARATIONS
CONNECTING OTHER DEVICES
If desired, an answering machine or external telephone can be connected to the machine through the telephone
jack, labeled "TEL," on the rear of the machine.
●Connecting an answering machine to the machine allows you to receive both voice and fax messages when you
are out. To use this feature, first change the outgoing message of your answering machine, and then set the
reception mode of the machine to "A.M." (Answering Machine mode) when you go out.
Comments:
1. It is advisable to keep the length of the message under 10 seconds. If it is too long, you may have difficulty
receiving faxes sent by automatic dialing.
2. Your callers can even leave a voice message and send a fax message on the same call. Modify your outgoing
message to explain that this can be done by pressing their [START] key ( ) after leaving their voice message.
●You can connect an extension phone to the machine to make and receive calls like any other extension phone on
your line. Even if you pick up the extension phone and hear a fax tone, the machine will automatically cut in and
take over the line. Note, however, if you also have a PC modem on the same line, you must turn on the Remote
Reception function, and deactivate the Fax Signal Receive function. See "SETTING UP THE MACHINE FOR
USE WITH A PC MODEM" (p.37) and "USING THE REMOTE RECEPTION FUNCTION" (p.38).
If you are using distinctive ringing with an answering machine, you do not need to follow the procedure described
below. (Please note that when distinctive ringing is used, the answering machine must be distinctive ring
compatible.)
Note
The Remote Reception function is initially set to "ON".
Note

13
2
Chapter 2
INITIAL SETTINGS
PART NAMES
The following illustration shows the part names of the AL-1661CS.
Document glass
Operation panel
Front cover
Paper tray
Bypass tray paper guides
Paper output tray
Paper output tray extension
Power switch
Handles
Power cord
RSPF
Exit area
Reversing tray
LINE
TEL
2
3
4
1
5
6
7
8
9
TEL jack
LINE jack
Bypass tray
Original guides
Document feeder tray
Document
feeder cover
10
9
1
2
3
4
5
6
7
8
9
10

14
A LOOK AT THE FAX OPERATION PANEL
Rapid keys
Press one of these keys to dial a fax or telephone
number automatically.
[MEMORY] key / indicator
Used for sending faxes in memory (indicator is lit)
or direct sending (indicator is not lit).
[SPEED/SEARCH] key
Press this key to dial a two digit Speed Dial
number.
During character inputting, use this key to delete
an incorrect entry.
Also, press this key twice to search for an
automatic dialing number.
[BROADCAST] key
Press this key to send originals to a group of
receiving fax machines.
[RECEPTION MODE] key
Press this key to select the mode of reception.
[REDIAL/PAUSE] key
Press this key to automatically redial the last
number you dialed.
Also, press this key to insert a pause when
entering numbers.
Display
Shows various messages during fax operation and
programming.
[CLEAR] key ( )
Press this key to stop an operation before it is
completed, or to delete the number that was last
input.
When a setting menu appears, use this key to
move back to the previous menu level.
[CLEAR ALL] key ( )
This returns all functions to the default settings.
When pressed in a setting menu, this returns the
settings and display to the initial state.
[SHIFT] key / indicator
Press this key to switch between upper and lower
case.
[RESOLUTION] key
Press this key to adjust the resolution before
sending faxes.
[CONTRAST] key
Press this key to adjust the contrast before
sending faxes.
[COVERSHEET] key
Press this key to automatically add a cover sheet
and message to a fax.
LINE STATUS indicator
Lit when sending/receiving faxes, blinking when
receiving data.
AL-1661CS
01
10
06
15
02
11
07
16
03
12
08
17
04
13
09
18
05
14
SHIFT
MEMORY
CONTRAST
LINE STATUS SPEAKER
REPORT
SPEED/
SEARCH
BROAD-
CAST
COVER
SHEET
RECEPTION
MODE
REDIAL/
PAUSE
2-SIDE
TX
RESOLU-
TION
12
18
345 6
2019 21
171312 161411 1510
1
2
3
4
5
6
7
8
9
10
11
12
13
14

15
INITIAL SETTINGS
2
[REPORT] key
Press this key to print out a report of a fax
transaction and also when receiving a confidential
fax.
[SPEAKER] key
Press this key to begin manual dialing. (To close
the line, press the [SPEAKER] key again.)
[2-SIDED TX] key
Press this key to fax a two-sided original.
[MODE SELECT] key / Mode indicators
Press this key to select the mode. The indicator of
the selected mode lights (copy, printer, scanner,
fax mode indicators).
RSPF indicator
This lights up when an original is placed in the
RSPF.
Error indicator
This lights steadily or blinks when a paper misfeed
or other error occurs.
Tray location indicator
Indicates the selected paper tray. The indicator
blinks when the tray is out of paper or is not
closed.
[MENU] key
Press this key to configure a user program.
[]key(),[]key(),[ENTER]key
Press the [ ] key ( ) or [ ] key ( ) to
select an item in a function setting menu.
Press the [ENTER] key to enter a selection.
[ ] key
Press this key to enter symbols during a name
storing procedure.
Press the " " key to change from pulse dialing to
tone dialing mode.
Numeric keys
Press these keys to dial numbers, and enter
numbers and letters during number/name storing
procedures.
[#] key
Press this key to enter symbols during a name
storing procedure. The [#] key scrolls through
symbols in the opposite direction of the [ ] key.
When dialing, press this key after you are finished
scanning originals into memory from the document
glass.
[START] key ( )/ indicator
Used for the following:
• To begin sending a fax.
• Reading an original into memory from the
document glass.
• Manually receiving a fax.
• Entering and setting information.
Power save indicator
This lights up when the power save function is
activated.
28
7 8
272624 2523
9
22
15
16
17
18
19
20
21
22
23
24
25
26
27
28

16
ABOUT THE LIQUID CRYSTAL DISPLAY
The machine is equipped with a two-line liquid crystal display (LCD) on the operation panel for displaying various
messages and settings during operation. This LCD can display up to 20 characters on each line. When the machine
is idle, the LCD shows the date, time, reception mode and the stand-by memory available.
Example:
When an original is placed in the RSPF, the second line
changes from "STAND-BY" to "SEND READY".
When the [MENU] key is pressed to configure a setting, the display appears as shown below.
Example:
The selected setting or entered information appears on the
second line.
USING THE ARROW KEYS
To configure settings and program information, press the [MENU] key and then press the [ ] key ( ) or [ ]
key ( ) to select the item that you wish to configure.
The arrows keys can also be used while entering characters to move the cursor.
Example:
Press the [ ] key ( ) or [ ] key ( ) to change the
item selection that appears on the second line.
ADJUSTING THE BEEP VOLUME
You can adjust the volume of the beep that sounds when a key is pressed.
The key beep volume is adjusted with "KEY TOUCH SOUND" (Program number 15) in the user programs of copy
mode. See "User Programs" in the Operation Manual (for general information).
An item can also be selected after pressing the [MENU] key by pressing the numeric key for the item
(the key corresponding to the number that appears in front of the item). When the numeric key is
pressed, the item is selected or entered.
Note
