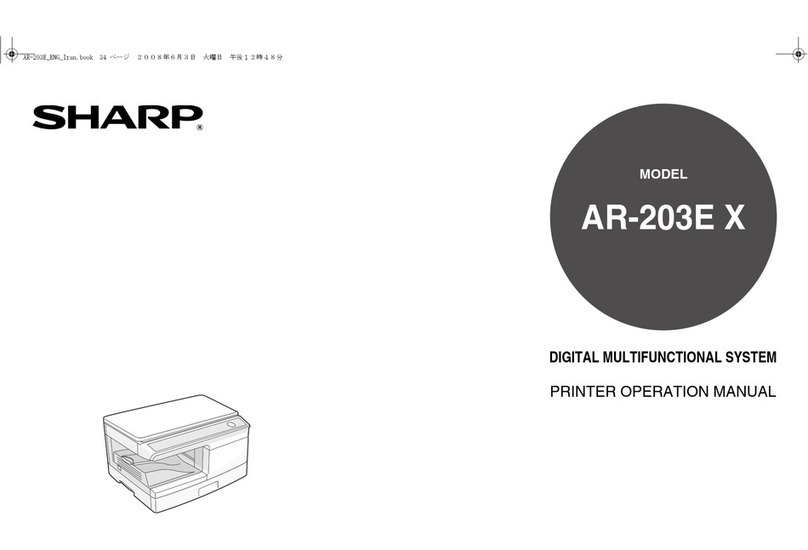

Sharp AR-203E X User manual

Parts marked with “ ” are important for maintaining the safety of the set. Be sure to replace these parts with
specified ones for maintaining the safety and performance of the set.
This document has been published to be used
for after sales service only.
The contents are subject to change without notice.
SERVICE MANUAL
CONTENTS
SHARP CORPORATION
CODE: 00ZAR203E/S2E
DIGITAL MULTIFUNCTIONAL
SYSTEM/DIGITAL COPIER
AR-203E
AR-203E X
AR-M200
AR-M201
MODEL AR-5420
(The descriptions of the AR-203E X are same as
those of the AR-203E unless otherwise specified.)
[1] GENERAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 - 1
[2] SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 - 1
[3] CONSUMABLE PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 - 1
[4] EXTERNAL VIEWS AND INTERNAL STRUCTURES . . . . . . . . . 4 - 1
[5] UNPACKING AND INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . 5 - 1
[6] COPY PROCESS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 - 1
[7] OPERATIONAL DESCRIPTIONS . . . . . . . . . . . . . . . . . . . . . . . . . 7 - 1
[8] DISASSEMBLY AND ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . 8 - 1
[9] ADJUSTMENTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 - 1
[10] SIMULATION, TROUBLE CODES . . . . . . . . . . . . . . . . . . . . . . . 10 - 1
[11] MAINTENANCE. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 - 1
[12] USER PROGRAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 - 1
[13] ELECTRICAL SECTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 - 1
[14] FIRMWARE DOWNLOAD PROCEDURES. . . . . . . . . . . . . . . . . 14 - 1

CAUTION
This laser radiation is not a danger to the skin, but when an exact focusing of the laser beam is achieved
on the eye’s retina, there is the danger of spot damage to the retina.
The following cautions must be observed to avoid exposure of the laser beam to your eyes at the time of
servicing.
1) When a problem in the laser optical unit has occurred, the whole optical unit must be exchanged as a
unit, not as individual parts.
2) Do not look into the machine with the main switch turned on after removing the developer unit, toner
cartridge, and drum cartridge.
3) Do not look into the laser beam exposure slit of the laser optical unit with the connector connected
when removing and installing the optical system.
4) The middle frame contains the safety interlock switch.
Do not defeat the safety interlock by inserting wedges or other items into the switch slot.
LASER WAVE – LENGTH : 770 ~ 795nm
Pulse times : 12.88µs ± 12.88ns/7mm
Out put power : MAX 0.2mW
CAUTION
INVISIBLE LASER RADIATION,
WHEN OPEN AND INTERLOCKS DEFEATED.
AVOID EXPOSURE TO BEAM.
VORSICHT
UNSICHTBARE LASERSTRAHLUNG,
WENN ABDECKUNG GEÖFFNET UND
SICHERHEITSVERRIEGELUNG ÜBERBRÜCKT.
NICHT DEM STRAHL AUSSETZEN.
VARO !
AVATTAESSA JA SUOJALUKITUS
OHITETTAESSA OLET ALTTIINA
NÄKYMÄTTÖMÄLLE LASERSÄTEILYLLE ÄLÄ
KATSO SÄTEESEEN.
ADVARSEL
USYNLIG LASERSTRÅLNING VED ÅBNING, NÅR
SIKKERHEDSBRYDERE ER UDE AF
FUNKTION. UNDGÅ UDSAETTELSE FOR
STRÅLNING.
VARNING !
OSYNLIG LASERSTRÅLNING NÄR DENNA DEL
ÄR ÖPPNAD OCH SPÄRREN ÄR URKOPPLAD.
BETRAKTA EJ STRÅLEN. – STRÅLEN ÄR
FARLIG.
This product is a class 1 laser product that complies with 21CFR 1040 of the CDRH standard and
IEC825. This means that this machine does not produce hazardous laser radiation. The use of controls,
adjustments or performance of procedures other than those specified herein may result in hazardous
radiation exposure.

At the production line, the output power
of the scanner unit is adjusted to 0.18
MILLI-WATT PLUS 20 PCTS and is
maintained constant by the operation of
the Automatic Power Control (APC).
Even if the APC circuit fails in operation
for some reason, the maximum output
power will only be 15 MILLI-WATT 0.1
MICRO-SEC. Giving and accessible
emission level of 42 MICRO-WATT
which is still-less than the limit of
CLASS-1 laser product.
The foregoing is applicable only to the 220V
model
,
230V model and 240V model.
VAROITUS! LAITTEEN KÄYTTÄMINEN MUULLA
KUIN TÄSSÄ KÄYTTÖOHJEESSA MAINITULLA
TAVALLA SAATTAA ALTISTAA KÄYTTÄJÄN
TURVALLISUUSLUOKAN 1 YLITTÄVÄLLE
NÄKYMÄTTÖMÄLLE LASERSÄTEILYLLE.
VARNING - OM APPARATEN ANVÄNDS PÅ ANNAT
SÄTT ÄN I DENNA BRUKSANVISNING
SPECIFICERATS, KAN ANVÄNDAREN UTSÄTTAS
FÖR OSYNLIG LASERSTRÅLNING, SOM
ÖVERSKRIDER GRÄNSEN FÖR LASERKLASS 1.
Caution
This product contains a low power laser
device. To ensure continued safety do not
remove any cover or attempt to gain access
to the inside of the product. Refer all
servicing to qualified personnel.
LUOKAN 1 LASERLAITE
KLASS 1 LASER APPARAT

CONTENTS
[1] GENERAL
1. Major functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1
[2] SPECIFICATIONS
1. Basic Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1
2. Operation specifications . . . . . . . . . . . . . . . . . . . . . . . . 2-1
3. Copy performance . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-2
4. GDI printer (AR-203E only). . . . . . . . . . . . . . . . . . . . . . 2-3
5. SPLC printer (AR-M200/M201). . . . . . . . . . . . . . . . . . . 2-3
6. Scan function (AR-203E/M200/M201) . . . . . . . . . . . . . 2-3
[3] CONSUMABLE PARTS
1. Supply system table . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1
A. Europe Subsidiary (AR-203E/5420/M200/M201),
SCA/SCNZ (AR-203E/M201) . . . . . . . . . . . . . . . . . . 3-1
B. Asia Subsidiary (AR-203E/M201). . . . . . . . . . . . . . . 3-1
C. SMEF/Distributor (AR-203E/M201) . . . . . . . . . . . . . 3-1
D. SRH (AR-203E/M201) . . . . . . . . . . . . . . . . . . . . . . . 3-1
2. Environmental. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-2
3. Production control number (lot No.) identification. . . . . 3-2
4. Toner cartridge replacement. . . . . . . . . . . . . . . . . . . . . 3-3
[4] EXTERNAL VIEWS AND INTERNAL STRUCTURES
1. Appearance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-1
2. Internal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-1
3. Operation panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-2
A. AR-203E/5420 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-2
B. AR-M200/M201 . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-3
4. Motors and solenoids . . . . . . . . . . . . . . . . . . . . . . . . . . 4-5
5. Sensors and switches. . . . . . . . . . . . . . . . . . . . . . . . . . 4-6
6. PWB unit. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-7
7. Cross sectional view . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-8
[5] UNPACKING AND INSTALLATION
1. Copier installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-1
2. Cautions on handling . . . . . . . . . . . . . . . . . . . . . . . . . . 5-1
3. Checking packed components and accessories. . . . . . 5-1
4. Unpacking. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-2
5. Removing protective packing materials . . . . . . . . . . . . 5-2
6. Developer unit installation. . . . . . . . . . . . . . . . . . . . . . . 5-2
7. Toner cartridge installation . . . . . . . . . . . . . . . . . . . . . . 5-3
8. Loading paper. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-4
9. Power to copier. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-4
10. Software (AR-203E/M200/M201) . . . . . . . . . . . . . . . . . 5-4
A. Before installation. . . . . . . . . . . . . . . . . . . . . . . . . . . 5-4
B. Installing the software. . . . . . . . . . . . . . . . . . . . . . . . 5-5
C. Setting up Button Manager. . . . . . . . . . . . . . . . . . . . 5-7
11. Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-9
A. USB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-9
12. Moving . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-9
13. Scanner moisture-proof kit . . . . . . . . . . . . . . . . . . . . . . 5-9
A. Components. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-9
B. Precautions at installation . . . . . . . . . . . . . . . . . . . . 5-9
C. Attachment method . . . . . . . . . . . . . . . . . . . . . . . . . 5-9
[6] COPY PROCESS
1. Functional diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-1
2. Outline of print process. . . . . . . . . . . . . . . . . . . . . . . . . 6-2
3. Actual print process . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-2
[7] OPERATIONAL DESCRIPTIONS
1. Outline of operation. . . . . . . . . . . . . . . . . . . . . . . . . . . .7-1
2. Scanner section . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7-2
A. Scanner unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7-2
B. Optical system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-2
C. Drive system. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7-2
3. Laser unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7-3
A. Basic structure . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7-3
B. Laser beam path. . . . . . . . . . . . . . . . . . . . . . . . . . . .7-3
C. Composition . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-3
4. Fuser section . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-3
A. General description . . . . . . . . . . . . . . . . . . . . . . . . . 7-4
5. Paper feed section and paper transport section . . . . . . 7-4
A. Paper transport path and general operations. . . . . . 7-4
6. D-D (Duplex to Duplex) mode paper/
document transport (Duplex model)
(AR-M201 only). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7-7
A. Initial state . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-7
B. Front copy. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-7
C. Back copy. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7-7
7. Shifter (AR-M200/M201) . . . . . . . . . . . . . . . . . . . . . . . .7-8
[8] DISASSEMBLY AND ASSEMBLY
1. High voltage section . . . . . . . . . . . . . . . . . . . . . . . . . . .8-1
A. List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8-1
B. Drum replacement . . . . . . . . . . . . . . . . . . . . . . . . . . 8-1
C. Disassembly procedure . . . . . . . . . . . . . . . . . . . . . .8-3
D. Assembly procedure. . . . . . . . . . . . . . . . . . . . . . . . .8-3
E. Charger wire cleaning. . . . . . . . . . . . . . . . . . . . . . . .8-4
F. Charger wire replacement . . . . . . . . . . . . . . . . . . . . 8-4
2. Operation panel section . . . . . . . . . . . . . . . . . . . . . . . .8-4
A. List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8-4
B. Disassembly procedure . . . . . . . . . . . . . . . . . . . . . .8-4
C. Assembly procedure. . . . . . . . . . . . . . . . . . . . . . . . .8-5
3. Optical section . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8-5
A. List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8-5
B. Disassembly procedure . . . . . . . . . . . . . . . . . . . . . .8-5
C. Assembly procedure. . . . . . . . . . . . . . . . . . . . . . . . .8-7
4. Fusing section. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-7
A. List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8-7
B. Disassembly procedure . . . . . . . . . . . . . . . . . . . . . .8-7
C. Assembly procedure. . . . . . . . . . . . . . . . . . . . . . . .8-10
5. Tray paper feed/transport section . . . . . . . . . . . . . . . .8-10
A. List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8-10
B. Disassembly procedure . . . . . . . . . . . . . . . . . . . . .8-10
C. Assembly procedure. . . . . . . . . . . . . . . . . . . . . . . .8-16
6. Manual paper feed section . . . . . . . . . . . . . . . . . . . . . 8-16
A. List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8-16
B. Disassembly procedure . . . . . . . . . . . . . . . . . . . . .8-16
C. Assembly procedure. . . . . . . . . . . . . . . . . . . . . . . .8-18
D. Pressure plate holder attachment. . . . . . . . . . . . . .8-18
7. Rear frame section . . . . . . . . . . . . . . . . . . . . . . . . . . .8-18
A. List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8-18
B. Disassembly procedure . . . . . . . . . . . . . . . . . . . . .8-18
C. Assembly procedure. . . . . . . . . . . . . . . . . . . . . . . .8-19

8 Power section . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-20
A. List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-20
B. Disassembly procedure . . . . . . . . . . . . . . . . . . . . . 8-20
C. Assembly procedure. . . . . . . . . . . . . . . . . . . . . . . . 8-20
9. DV unit section . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-20
A. Developer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-20
B. DV seal. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-20
C. DV blade. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-21
D. DV doctor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-21
E. DV sensor. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-21
10. Duplex motor section (AR-M201 only) . . . . . . . . . . . . 8-21
A. List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-21
B. Disassembly procedure . . . . . . . . . . . . . . . . . . . . . 8-21
C. Assembly procedure. . . . . . . . . . . . . . . . . . . . . . . . 8-21
11. Reverse roller section (AR-M201 only). . . . . . . . . . . . 8-22
A. List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-22
B. Disassembly procedure . . . . . . . . . . . . . . . . . . . . . 8-22
C. Assembly procedure. . . . . . . . . . . . . . . . . . . . . . . . 8-22
[9] ADJUSTMENTS
1. Optical section . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-1
A. Copy magnification ratio adjustment . . . . . . . . . . . . 9-1
B. Image position adjustment . . . . . . . . . . . . . . . . . . . . 9-2
2. Copy density adjustment . . . . . . . . . . . . . . . . . . . . . . . 9-4
A. Copy density adjustment timing . . . . . . . . . . . . . . . . 9-4
B. Note for copy density adjustment . . . . . . . . . . . . . . . 9-4
C. Necessary tool for copy density adjustment. . . . . . . 9-4
D. Features of copy density adjustment . . . . . . . . . . . . 9-4
E. Copy density adjustment procedure. . . . . . . . . . . . . 9-5
3. High voltage adjustment . . . . . . . . . . . . . . . . . . . . . . . . 9-5
A. Main charger (Grid bias). . . . . . . . . . . . . . . . . . . . . . 9-5
B. DV bias check . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-6
4. Duplex adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-6
A. Adjusting the paper reverse position in memory
for duplex copying (AR-M200/M201) . . . . . . . . . . . . 9-6
B. Adjusting trailing edge void in duplex copy mode
(AR-M201) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-6
5. Automatic black level correction . . . . . . . . . . . . . . . . . . 9-7
[10] SIMULATION, TROUBLE CODES
1. Entering the simulation mode . . . . . . . . . . . . . . . . . . . 10-1
2. Key rule. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-1
3. List of simulations . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-1
4. Descriptions of various simulations. . . . . . . . . . . . . . . 10-3
5. Trouble codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-40
A. Trouble codes list . . . . . . . . . . . . . . . . . . . . . . . . . 10-40
B. Details of trouble codes . . . . . . . . . . . . . . . . . . . . 10-41
[11] MAINTENANCE
1. Maintenance table . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-1
2. Maintenance display system. . . . . . . . . . . . . . . . . . . . 11-1
3. Remaining toner indication . . . . . . . . . . . . . . . . . . . . . 11-1
[12] USER PROGRAM
1. Functions that can be set with user programs . . . . . . 12-1
2. Toner save mode (AR-203E/5420). . . . . . . . . . . . . . . 12-1
3. User programs (AR-203E/5420) . . . . . . . . . . . . . . . . . 12-1
4. User programs (AR-M200/M201) . . . . . . . . . . . . . . . . 12-2
A. Copy mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12-3
B. Print mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12-4
[13] ELECTRICAL SECTION
1. Block diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13-1
A. Overall block diagram (AR-203E/5420) . . . . . . . . .13-1
B. Overall block diagram (AR-M200/M201) . . . . . . . . 13-2
2. Actual wiring diagram . . . . . . . . . . . . . . . . . . . . . . . . . 13-3
A. MCU PWB (AR-203E/5420) . . . . . . . . . . . . . . . . . .13-3
B. MCU PWB (AR-M200/M201) . . . . . . . . . . . . . . . . . 13-4
C. SPF unit (AR-203E optional only). . . . . . . . . . . . . .13-5
D. RSPF unit (AR-M200/M201 optional only) . . . . . . .13-5
E. 2nd cassette unit
(AR-203E/M200/M201 optional only) . . . . . . . . . . .13-5
F. Network box and FAX
(AR-M200/M201 optional only). . . . . . . . . . . . . . . . 13-6
3. Signal name list. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13-6
4. Circuit diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13-9
A. MCU PWB (AR-203E/5420) . . . . . . . . . . . . . . . . . .13-9
B. MCU PWB (AR-M200/M201) . . . . . . . . . . . . . . . . 13-21
C. OPE PWB (AR-203E/5420) . . . . . . . . . . . . . . . . . 13-37
D. OPERATION PWB (AR-M200/M201). . . . . . . . . . 13-38
[14] FIRMWARE DOWNLOAD PROCEDURES
1. Initial setting (Serial number setting procedures) . . . .14-1
2. Download procedures . . . . . . . . . . . . . . . . . . . . . . . . .14-1
3. Version acquisition procedures. . . . . . . . . . . . . . . . . .14-3
4. EEPROM data acquisition procedure . . . . . . . . . . . . .14-4
5. Installing procedures. . . . . . . . . . . . . . . . . . . . . . . . . .14-5

AR-203E/5420/M200/M201 GENERAL 1 - 1
[1] GENERAL
1. Major functions
Configurations
Descriptions of items
CPM: Copy speed (Copies Per Minute)
PPM: Print speed (Print Per Minute)
SB/MB: SB = Manual feed single bypass,
MB = Manual feed multi-bypass
2 Tray: Second cassette unit (AR-D33)
SPF: Original feed unit (AR-SP9)
R-SPF: Duplex original feed unit (AR-RP9)
Color Scanner: Color scanner function
GDI printer: GDI printer function with USB.
SPLC printer: SPLC printer function with USB.
E-SORT: Electronic sort function
Duplex: Auto duplex copy/print function
Shifter: Job separator function
USB: Interface port (USB)
RJ45: Interface port (Network)
FAX: FAX function (AR-FX13)
External NIC: AR-NB2A
Descriptions of table
: Standard provision
: No function or no option available
Opt: Option
Item
Model
CPM
(A4)
PPM
(A4)
SB/
MB 2 Tray SPF R-SPF Color Scanner
GDI
printer
SPLC
printer
E-
SORT Duplex Shifter USB RJ45 FAX External NIC
AR-203E 20CPM 15PPM MB Opt Opt ✕✕✕✕✕
(2.0 full)
✕✕ ✕
AR-5420 20CPM —MB ✕✕ ✕ ✕ ✕ ✕ ✕ ✕ ✕ ✕ ✕✕ ✕
AR-M200 20CPM 20PPM MB Opt ✕Opt ✕✕
(2.0 Hi)
✕Opt Opt
AR-M201 20CPM 20PPM MB Opt ✕Opt ✕
(2.0 Hi)
✕Opt Opt
AR-SP9
(Options)
AR-D33
AR-203E/AR-5420
AR-M200/AR-M201
AR-NB2A
AR-FX13
AR-RP9

AR-203E/5420/M200/M201 SPECIFICATIONS 2 - 1
[2] SPECIFICATIONS
1. Basic Specifications
2. Operation specifications
Item
Type Deskt op
Copy system Dry, electrostatic
Segment (class) Digital personal copier
Copier dimensions AR-203E/5420: 518mm (W) x 445mm (D) x 298mm (H) (20-1/2" (W) x 17-5/8" (D) x 11-3/4" (H))
AR-M200/M201: 518mm (W) x 452mm (D) x 298mm (H) (20-1/2" (W) x 17-7/8" (D) x 11-3/4" (H))
Weight (Approximately) AR-203E/5420: 16.6kg (36.5 lbs.)
AR-M200: 19.8kg (43.7 lbs.)
AR-M201: 20.5kg (45.2 lbs.)
Toner cartridge not included
Section, item Details
Paper feed
section
Paper feed system 1 tray (250 sheets) + multi-bypass (50 sheets)
AB system Tray paper feed section Paper size A4, B5, A5 (Landscape)
Paper weight 56 - 80g/m2
Paper feed capacity 250 sheets
Kinds Standard paper, specified paper, recycled paper
Remark User adjustment of paper guide available
Multi-bypass paper
feed section
Paper size A4, B5, A5, B6, A6 (Landscape)
Paper weight 56 - 128g/m2
Paper feed capacity 50 sheets
Kinds Standard paper, specified paper, recycled paper, OHP,
Label, Envelop (Single copy)
Remark User adjustment of paper guide available
Inch
system
Tray paper feed section Paper size 8-1/2" x 14", 8-1/2" x 11", 8-1/2" x 5-1/2" (Landscape)
Paper weight 15 - 21 lbs.
Paper feed capacity 250 sheets
Kinds Standard paper, specified paper, recycled paper
Remark User adjustment of paper guide available
Multi-bypass paper
feed section
Paper size 8-1/2" x 14", 8-1/2" x 11", 8-1/2" x 5-1/2", 3-1/2" x 5-1/2"
(Landscape)
Paper weight 15 - 34.5 lbs.
Paper feed capacity 50 sheets
Kinds Standard paper, specified paper, recycled paper, OHP,
Label, Envelop (Single copy)
Remark User adjustment of paper guide available
Paper exit section Exit way Face down
Capacity of output tray 200 sheets
Originals Original set Center Registration (left edge)
Max. original size A4 (8-1/2" x 14")
Original kinds sheet, book
Original size detection None
Optical
section
Scanning
section
Scanning system 3 CCDs (RGB) sensor scanning by lighting white lamp
CCD sensor Resolution 600 dpi
Lighting lamp Type CCFL
Voltage 560Vrms
Power consumption 2.8W
Output data Output: R, G, B 1 or 8 bits/pixel / Input: A/D 16 bits (12 bits
actual)
Writing
section
Writing system Writing to OPC drum by the semiconductor laser
Laser unit Resolution 600 dpi
Image forming Photoconductor Type OPC (30ø)
Life 25K
Charger Charging system Saw-tooth charging with a grid, / (-) scorotron discharge
Transfer system (+) DC corotron system
Separation system (-) DC corotron system
Developing Developing system Dry, 2-component magnetic brush development system
Cleaning Cleaning system Counter blade system (Counter to rotation)

AR-203E/5420/M200/M201 SPECIFICATIONS 2 - 2
3. Copy performance
*1: If a value greater than 200% or smaller than 50% is selected when the RSPF is used, the magnification ratio is automatically set to 200% or
50%.
*2: The first-copy time is measured after the power save indicator turns off following power on, using the document glass with the polygon rotat-
ing in the copy ready state and "Selection of copy start state" set to ON in the user programs (A4 (8-1/2" x 11"), paper fed from paper tray).
The first-copy time may vary depending on machine operating conditions and ambient conditions such as temperature.
Fusing section Fusing system Heat roller system
Upper heat roller Type Teflon roller
Lower heat roller Type Silicon rubber roller
Heater lamp Type Halogen lamp
Voltage 220 - 240V / 120V
Power consumption 800W
Electrical section Power source Voltage 220 - 240V / 120V
Frequency Common use for 50 and 60Hz
Power consumption Max. Less than 1000W
Average (during copying) AR-203E/5420: 350Wh/H or less
AR-M200/ M201: 380Wh/H or less
Average (stand-by) 80Wh/H
Pre-heat mode AR-203E/5420: 25Wh/H or less
AR-M200/ M201: 28Wh/H or less
Auto power shut-off mode AR-203E/5420: 8.8W or less
AR-M200/ M201: 12.5W or less
Section, item Details
Copy magnification Fixed
magnification
ratios
AR-203E/5420:
3 Reduction + 2 Enlargement
(AB system: 50, 70, 86, 100, 141, 200%)
(Inch system: 50, 64, 78, 100, 129, 200%)
AR-M200/M201: *1
4 Reduction + 3 Enlargement
(AB system: 25, 50, 70, 86, 100, 141, 200, 400%)
(Inch system: 25, 50, 64, 78, 100, 129, 200, 400%)
Zooming
magnification
ratios
25 - 400% (376 steps in 1% increments)
50 - 200% when using SPF (151 steps in 1% increments)
Manual steps (manual, photo) 5 steps
Copy speed First-copy time *2
(Approximately)
AR-203E/5420:
8.0 seconds (When user program 24 is set to OFF)
10.7 seconds (When user program 24 is set to ON)
AR-M200/M201:
8.0 seconds
(paper: A4 (8-1/2" x 11"), exposure mode: AUTO, copy ratio: 100%)
AB system
A4 (Landscape)
Copy speed
(CPM)
Same size 20
Enlargement 20
Reduction 20
AB system
B5 (Landscape)
Copy speed
(CPM)
Same size 20
Enlargement 20
Reduction 20
Inch system
8-1/2" x 11"
(Landscape)
Copy speed
(CPM)
Same size 20
Enlargement 20
Reduction 20
Max. continuous copy quantity 99
Void Void area Leading edge 1 - 4mm
Trailing edge 4mm or less
Side edge
void area
0.5mm or more (per side)
4.5mm or less (total of both sides)
Image loss Leading edge same size: 3.0mm or less (OC) / 4mm or less (SPF)
Enlarge: 1.5mm or less (OC) / 3mm or less (SPF)
Reduction (50%): 6.0mm or less (OC) / 8mm or less (SPF)
Warm-up time 0 sec. Immediately the ready lamp is lit.
Power save mode reset time 0 sec. Immediately the ready lamp is lit.
Paper jam recovery time 0 sec.
∗Jam recovery condition: Recovery time from 60 sec of door open.
Section, item Details

AR-203E/5420/M200/M201 SPECIFICATIONS 2 - 3
4. GDI printer (AR-203E only)
*1: Engine Resolution
*2: By running change
5. SPLC printer (AR-M200/M201)
*1: Engine Resolution
*2: Running change
6. Scan function (AR-203E/M200/M201)
*1: By running change
Print speed Max. 15ppm (excluding bypass tray, paper size A4, 8.5" x 11") (Variable depending on the PC performance)
Duplex No
Memory 8MB
Interface USB 2.0 (Full speed)
Emulation GDI
Resolution 600dpi *1
Supported OS Win 98 / Me / 2000 / XP / Vista
WHQL support Yes *2
Print speed Max. 20ppm (Paper size: A4, excluding manual paper feed)
∗Varies depending on the PC performance.
First print time 8 sec. (without data transfer time)
Duplex Yes (AR-M201 only)
ROPM Yes
Memory 64MB
Interface USB2.0 (Hi Speed)
Network Option: Network expansion kit the AR-NB2A
Emulation SPLC (JBIG GDI)
MIB support No
Resolution 600dpi *1
Supported OS Windows 98/Me, Windows 2000 Professional, Windows XP Home Edition/Professional, Windows Vista
WHQL support Yes *2
Application Status window
Type Flat Bed Color Scanner
Scanning system Original table/SPF/RSPF
Light source 3 CCDs (RGB) sensor scanning by lighting white lamp (2 pcs of CCFL)
Resolution Optical: 600 x 1200dpi
Setting range: 50 - 9600dpi (Preview resolution is fixed at 75dpi)
Originals Sheet type / Book type
Output data R, G, B 1 or 8 bits/pixel A/D 16 bits (12 bits actual)
Scan range OC/SPF/RSPF: 216mm (H) x 356mm (V) (8.5" (H) x 14.0" (V))
Original position: Left Center
SPF/RSPF position: Right Center
Scan speed OC/SPF: Max. 2.88ms/line
Protocol TWAIN / WIA (Only XP, Vista) / STI
Interface AR-203E: USB2.0 (Full speed support)
AR-M200/M201: USB2.0 (Hi speed support)
Scanner utility Button Manager / Sharpdesk / Composer
Scan key/lamp Yes
Duplex scan Yes only when the RSPF is installed (AR-M200/M201)
Supported OS Win 98 / Me / 2000 / XP / Vista
Void area No
WHQL supported Yes *1

AR-203E/5420/M200/M201 CONSUMABLE PARTS 3 - 1
[3] CONSUMABLE PARTS
1. Supply system table
A. Europe Subsidiary (AR-203E/5420/M200/M201), SCA/SCNZ (AR-203E/M201)
B. Asia Subsidiary (AR-203E/M201)
C. SMEF/Distributor (AR-203E/M201)
D. SRH (AR-203E/M201)
No. Name Content Life Product name Packing form
1 Toner cartridge
(Black)
Toner (Toner: Net Weight 243g) ×10 80K
(8K x 10Pcs)
AR-208LT
(A4 6% document)
One carton of the
AR-208LT includes
10 toner cartridges.
Polyethylene bag ×10
2 Developer Developer (Developer: Net Weight 170g) ×10 250K
(25K x 10Pcs)
AR-208LD One carton of the
AR-208LD includes
10 developers.
3 Drum kit Drum ×1 25K AR-152DM One carton of the
collective package
includes 10 units of the
AR-152DM.
Drum fixing plate ×1
No. Name Content Life Product name Packing form
1 Toner cartridge
(Black)
Toner (Toner: Net Weight 243g) ×10 80K
(8K x 10Pcs)
AR-208CT
(A4 6% document)
One carton of the
AR-208CT includes
10 toner cartridges.
Polyethylene bag ×10
2 Developer Developer (Developer: Net Weight 170g) ×10 250K
(25K x 10Pcs)
AR-208CD One carton of the
AR-208CD includes
10 developers.
3 Drum kit Drum ×1 25K AR-152DR One carton of the
collective package
includes 10 units of the
AR-152DR.
Drum fixing plate ×1
No. Name Content Life Product name Packing form
1 Toner cartridge
(Black)
Toner (Toner: Net Weight 243g) ×10 80K
(8K x 10Pcs)
AR-208ET
(A4 6% document)
One carton of the
AR-208ET includes
10 toner cartridges.
Polyethylene bag ×10
2 Developer Developer (Developer: Net Weight 170g) ×10 250K
(25K x 10Pcs)
AR-208CD One carton of the
AR-208CD includes
10 developers.
3 Drum kit Drum ×1 25K AR-152DR One carton of the
collective package
includes 10 units of the
AR-152DR.
Drum fixing plate ×1
No. Name Content Life Product name Packing form
1 Toner cartridge
(Black)
Toner (Toner: Net Weight 243g) ×10 80K
(8K x 10Pcs)
AR-208CT-C
(A4 6% document)
One carton of the
AR-208CT-C includes
10 toner cartridges.
Polyethylene bag ×10
2 Developer Developer (Developer: Net Weight 170g) ×10 250K
(25K x 10Pcs)
AR-208CD-C One carton of the
AR-208CD-C includes
10 developers.
3 Drum kit Drum ×1 25K AR-152DR-C One carton of the
collective package
includes 10 units of the
AR-152DR-C.
Drum fixing plate ×1

AR-203E/5420/M200/M201 CONSUMABLE PARTS 3 - 2
2. Environmental
The environmental conditions for assuring the copy quality and the
machine operations are as follows:
(1) Normal operating condition
Temperature: 20 - 25°C
Humidity: 65 ± 5%RH
(2) Acceptable operating condition
(3) Transport condition
(4) Supply storage condition
3. Production control number (lot No.)
identification
<Toner cartridge>
<Drum cartridge>
The label on the drum cartridge shows the date of production.
(SOCC production)
*1: The production control label is not attached to the cartridge of
a China product.
Humidity (RH)
85%
60%
20%
10˚C 30˚C 35˚C
Humidity (RH)
90%
60%
15%
–25˚C 30˚C 40˚C
Humidity (RH)
90%
20%
–5˚C 45˚C
Production month
Production day
Destination code
(Dealer, distributor, OEM, etc.)
Production place
(SOCC: Fixed to B.)
End digit of year
Version No.
Production month
Production day
Destination code
(Dealer, distributor, OEM, etc.)
Production place
(SOCC: Fixed to B.)
End digit of year
Version No.
Production control
label attachment position
Production control
label attachment position(*1)

AR-203E/5420/M200/M201 CONSUMABLE PARTS 3 - 3
<Developer>
4. Toner cartridge replacement
1) Open the front and side cabinets of the copier.
2) Keep holding Toner lever, and
3) Carefully pull out Toner unit from the copier.
4) Put Toner unit in a collection bag immediately after removing it
from the copier
Note: Never carry exposed Toner unit. Be sure to put it in the col-
lection bag.
Sub lot
Production day
Production month
End digit of year
Production place
1
3
2

AR-203E/5420/M200/M201 EXTERNAL VIEWS AND INTERNAL STRUCTURES 4 - 1
[4] EXTERNAL VIEWS AND INTERNAL STRUCTURES
1. Appearance
2. Internal
1 Original cover 2 Document glass 3 Operation panel
4 Front cover 5 Paper tray 6 Multi-bypass tray
7 Side cover 8 Side cover open button 9 Bypass tray paper guides
10 Paper output tray 11 Paper output tray extension 12 Power switch
13 Handle 14 Power cord
1 Front cover 2 Side cover 3 Fusing unit release lever
4 Transfer charger 5 Charger cleaner
Interface
USB connector
(AR-203E)
Interface
USB connector
(AR-M200/M201)
3
4
5
1
2
7
9
8
6
10
11
12
14
13
3
4
5
2
1
Toner cartridge Drum cartridge

AR-203E/5420/M200/M201 EXTERNAL VIEWS AND INTERNAL STRUCTURES 4 - 2
3. Operation panel
A. AR-203E/5420
*1: Toner cartridge replacement
When toner density is lower than a specified level, the toner
cartridge replacement indicator lights up to warn the user. If the
toner cartridge is not replaced in that time, the ready lamp
changes to blinking and then start to supply the toner after
around 10 copies. (Cartridge replacement lamp continues to
light.) If toner density is not back to specific level after two min-
utes, the ready indicator goes out and toner developer indicator
starts blinking, and the copier stops. Also when the toner quan-
tity is insufficient, the lamp is lighted.
*2: Indicators on the operation panel
The ONLINE indicator and the start ( ) indicator indicate the
state of the printer or scanner.
Start indicator
ONLINE indicator
The ONLINE key is pressed and on line and off line are
changed.
1Exposure mode selector key and indicators
Use to sequentially select the exposure modes: AUTO,
MANUAL or PHOTO.
Selected mode is shown by a lit indicator.
2Light and dark keys and indicators
Use to adjust the MANUAL or PHOTO exposure level. Selected
exposure level is shown by a lit indicator. Use to start and
terminate user program setting.
3Alarm indicators
Developer replacement required indicator
Misfeed indicator
Toner cartridge replacement required indicator *1
Maintenance indicator
4SPF indicator (AR-203E only)
5SPF misfeed indicator (AR-203E only) 6Copy ratio selector key and indicators
Use to sequentially select preset reduction/enlargement copy
ratios.
Selected copy ratio is shown by a lit indicator.
7Copy ratio display (%) key
• Use to verify a zoom setting without changing the zoom ratio.
• Use to check the number of originals that must be returned to
the document feeder tray if an original misfeed occurs while
using the SPF.
8Display
Displays the specified copy quantity, zoom copy ratio, user
program code, and error code.
9SCAN key and indicator (AR-203E only) *2, *3 10 ONLINE key and indicator (AR-203E only)
Lights up when the unit is used as a printer and scanner. *2
11 Start key and indicator
• Copying is possible when the indicator is on.
• Press to start copying
• Use to set a user program.
12 Power save indicator
Lights up when the unit is in a power save mode.
13 Tray select key
Use to select a paper feed station (paper tray or multi-bypass
tray).
14 Paper feed location indicators
Light up to show the selected paper feed station.
15 ZOOM keys and indicator
Use to select any reduction or enlargement copy ratio from 25%
to 400% in 1% increments. (When the SPF is being used, the
zoom copy ratio range is 50% to 200%.)
16 Copy quantity keys
• Use to select the desired copy quantity (1 to 99).
• Use to make user program entries.
17 Clear key
• Press to clear the display, or press during a copy run to
terminate copying.
• Press and hold down during standby to display the total
number of copies made to date.
12 78 910 11 12
13 15 16 17
543
14
6
Power save indicator
Start indicator
ONLINE indicator
SCAN indicator
On: Indicates the unit is ready for copying or scanning is
being performed.
Blinking: The indicator blinks in the following situations:
• When a print job is interrupted.
• When reserving a copy job.
• When toner is being replenished during a copy or
print job.
Off: The indicator is off in the following situations:
• During copying or scanning.
• The unit is in the auto power shut-off mode.
• When a misfeed or error has occurred.
On: Indicates the unit is ready for printing or scanning is
being performed. (On line)
Blinking: Printing or data is being received from a computer.
Off: Copying is being performed. (Off line)

AR-203E/5420/M200/M201 EXTERNAL VIEWS AND INTERNAL STRUCTURES 4 - 3
Power save indicator
SCAN indicator
*3: Using the SCAN key to begin scanning
Note:
• Scanning is not possible during a copy job.
• If the SCAN ( ) key is pressed during a print job, the scan
job will be stored.
• When scanning an original that has been placed in the SPF,
only one original can be placed unless you are using Sharp-
desk.
1) Press the SCAN ( ) key.
The unit enters scan mode.
2) Place the original you wish to scan on the document glass/
SPF.
3) Press the right copy quantity key to display the number of
the application that you wish to use for scanning.
The application numbers are initially as follows.
4) Press the start ( ) key.
Scanning will start and the scanned data will be transferred
to the application.
B. AR-M200/M201
For Europe
For SCA/SCNZ/Asia
On: Indicates the unit is in a power save mode.
Blinking: Indicates that the unit is initializing (when the side
cover is opened and closed or the power turned off
and on).
On: The SCAN ( ) key has been pressed and the unit
is in scanner mode.
Blinking: A scan job is being executed from the computer, or
scan data is stored in the unit’s memory.
Off: The unit is in the copy mode.
Application
number Application launched
SC2 E-mail (your standard e-mail program in
the Windows OS you are using)
SC3 Fax (if a fax program is installed)
SC4 OCR (if an OCR program is installed)
SC5 Microsoft Word (if installed)
SC6 Filing (if a Filing program is installed)
67 8 1011 12 14 15916 17
112
22
211
13
READY TO COPY.
100% A4 0
Display
18 1920 21
1234 5
12
67 8 1011 1312 14 159 16
34 5
17
READY TO COPY.
100% A4 0
Display
18 19 20 21

AR-203E/5420/M200/M201 EXTERNAL VIEWS AND INTERNAL STRUCTURES 4 - 4
1[MODE SELECT] key / Mode indicators
Press this key to select the mode. The indicator of the selected
mode lights (copy, printer, scanner, fax indicators).
2Display
This shows messages indicating the machine status and any
problems that occur, as well as user programs and function
setting menus.
3Numeric keys
Use these to enter the number of copies and other numerical
settings.
The keys can also be used to select items in function setting
menus.
4[CLEAR] key ( )
Use this to clear the set number of copies, as well as cancel a
job that is in progress. When a setting menu appears, use this
key to move back to the previous menu level.
5Power save indicator
This lights up when the power save function is activated.
6RSPF indicator
This lights up when an original is placed in the RSPF.
7Error indicator
This lights steadily or blinks when a paper misfeed or other error
occurs.
8[TRAY SELECT] key ( )
Use to select the paper tray that has the desired paper for
copying.
9Tray location indicator
Indicates the selected paper tray. The indicator blinks when the
tray is out of paper during operation or is not closed properly.
10 [MENU] key
Press this key to select the paper size for copying, to configure a
user program or to display the total count.
11 [2-SIDED SCAN] key ( )
[2-SIDED COPY] key ( )
Press to select the automatic two-sided copying mode.
12 [E-SORT/SP.FUNC] key ( )
Press to select the sort function, 2 IN 1 copy function, or margin
shift function.
13 [ ] key ( ), [ ] key ( ), [OK]/[ENTER] key
Press the [ ] key ( ) or [ ] key ( ) to select an item in
a function setting menu.
Press the [OK]/[ENTER] key to enter a selection.
14 [EXPOSURE] key ( )
Use to switch from auto exposure adjustment to text mode or
photo mode.
15 [ZOOM]/[COPY RATIO] key
Press to select an enlargement or reduction ratio.
To select a preset ratio setting, press the [ZOOM]/[COPY
RATIO] key and select the desired preset ratio. To select a ratio
that is not preset, press the [ZOOM]/[COPY RATIO] key, select
the preset ratio that is closest to the desired ratio, and then press
the [ ] key ( ) or [ ] key ( ) to increase or decrease
the ratio in increments of 1%.
16 [CLEAR ALL] key ( )
This returns all functions to the default settings. When pressed in
a setting menu, this returns the settings and display to the initial
state.
17 [START] key ( ) / Ready indicator
The ready indicator lights up when copying or scanning is
possible.
To begin copying, press the [START] key ( ).
The [START] key ( ) is also pressed to return to normal
operation from auto power shut-off mode.
18 Shows the current copy ratio.
19 Shows the selected paper size. 20 Shows the number of copies that has been entered with the
numeric keys.
21 A checkmark " " appears when the exposure has been
changed, or when two-sided copying, sort, 2 IN 1, or margin shift
is selected.
211
112
22
211

AR-203E/5420/M200/M201 EXTERNAL VIEWS AND INTERNAL STRUCTURES 4 - 5
4. Motors and solenoids
4
1
5
3
2
7
6
8
9
No. Part name Control signal Function / Operation
1 Main motor MM Drives the copier.
2 Scanner motor MRMT Drives the optical mirror base (scanner unit).
3 Toner motor TM Supplies toner.
4 Cooling fan motor VFM Cools the optical, fusing section.
5 Resist roller solenoid RRS Resist roller rotation control solenoid
6 Paper feed solenoid CPFS1 Cassette Paper feed solenoid 1
7 Multi paper feed solenoid MPFS Multi manual pages feed solenoid
8 Duplex motor DMT Devices the duplex paper transport section (AR-M201 only)
9 Shifter motor SFTM Drives the shifter. (AR-M200/M201)

AR-203E/5420/M200/M201 EXTERNAL VIEWS AND INTERNAL STRUCTURES 4 - 6
5. Sensors and switches
5
6
4
7
2
1
3
No. Name Signal Type Function Output
1 Scanner unit home position
sensor
MHPS Transmission sensor Scanner unit home position
detection
"H" at home position
2 POD sensor POD Transmission sensor Paper exit detection "H" at paper pass
3 PPD2 sensor PPD2 Transmission sensor Paper transport detection 2 "L" at paper pass
4 Cassette detection switch CED1 Micro-switch Cassette installation detection "H" at cassette insertion
5 PD1 sensor (AR-M200/M201) PD1 Micro-switch Paper width detect "H" at A4 size or less
"L" at A4 size or more
6 PPD1 sensor PPD1 Transmission sensor Paper transport detection 1 "L" at paper pass
7 Door switch DSW Micro-switch Door open/close detection
(safety switch for 24V)
1 or 0V of 24V at door open

AR-203E/5420/M200/M201 EXTERNAL VIEWS AND INTERNAL STRUCTURES 4 - 7
6. PWB unit
1
52
11
8
6
3
7
4
10
9
No. Name Function
1 Exposure lamp invertor PWB Exposure lamp (CCFL) control
2 Main PWB (MCU) Copier control
3 Operation PWB Operation input/display
4 High voltage PWB High voltage control
5 CCD sensor PWB For image scanning
6 LSU motor PWB For polygon motor drive
7 TCS PWB For toner sensor control
8 LSU PWB For laser control
9 FAX-operation PWB FAX operation input (AR-FX13 option)
10 Power PWB AC power input, DC voltage control
11 Modem PWB FAX control (AR-FX13 option)

AR-203E/5420/M200/M201 EXTERNAL VIEWS AND INTERNAL STRUCTURES 4 - 8
7. Cross sectional view
6
7
8
9
10
111214 13
4 16
15
1 2 53
No. Part name Function and operation
1 Scanner unit Illuminates the original with the copy lamp and passes the reflected light to the lens unit (CCD).
2 Exposure lamp Exposure lamp (CCFL) Illuminates original
3 LSU (Laser unit) Converts the original image signal into laser beams and writes onto the drum.
4 Paper exit roller
Shifter roller
Roller for paper exit (AR-203E/5420)
Transports and shifts paper in the back-forth direction of the machine. (AR-M200/M201)
5 Main charger Provides negative charges evenly to the drum surface.
6 Heat roller Fuses toner on the paper. (Teflon roller)
7 Pressure roller Fuses toner on the paper. (Silicon rubber roller)
8 Drum Forms images.
9 Transfer unit Transfers images onto the drum.
10 Pickup roller Picks up the manual feed paper. (In multi feed only)
11 Manual paper feed tray Tray for manual feed paper
12 Manual paper feed roller Transport the paper from the manual paper feed port.
13 PS roller unit Takes synchronization between the lead edge and the rear edge of the paper.
14 Paper feed roller Picks up a sheet of paper from the cassette.
15 Paper transport roller Transports of a paper.
16 Paper transport roller 2 Transports of a paper. (AR-M200/M201)
