SERVICE MANUAL
CODE : 00ZARM155/A1E
DIGITAL MULTIFUNCTIONAL
SYSTEM
AR-M150
AR-M155
MODEL AR-M155X
(AR-M155)
[ 1 ] GENERAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 - 1
[ 2 ] SPECIFICATIONS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 - 1
[ 3 ] CONSUMABLE PARTS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 - 1
[ 4 ] EXTERNAL VIEWS AND INTERNAL STRUCTURES . . . . . . . . . 4 - 1
[ 5 ] UNPACKING AND INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . 5 - 1
[ 6 ] COPY PROCESS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 - 1
[ 7 ] OPERATIONAL DESCRIPTIONS . . . . . . . . . . . . . . . . . . . . . . . . . 7 - 1
[ 8 ] DISASSEMBLY AND ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . 8 - 1
[ 9 ] ADJUSTMENTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 - 1
[10] TEST COMMAND, TROUBLE CODES. . . . . . . . . . . . . . . . . . . . 10 - 1
[11] MAINTENANCE. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 - 1
[12] USER PROGRAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 - 1
[13] ELECTRICAL SECTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 - 1
[14] CIRCUIT DIAGRAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 - 1
[15] FIRMWARE DOWNLOAD PROCEDURES. . . . . . . . . . . . . . . . . 15 - 1

CAUTION
This laser radiation is not a danger to the skin, but when an exact focusing of the laser beam is achieved
on the eye’s retina, there is the danger of spot damage to the retina.
The following cautions must be observed to avoid exposure of the laser beam to your eyes at the time of
servicing.
1) When a problem in the laser optical unit has occurred, the whole optical unit must be exchanged as a
unit, not as individual parts.
2) Do not look into the machine with the main switch turned on after removing the developer unit, toner
cartridge, and drum cartridge.
3) Do not look into the laser beam exposure slit of the laser optical unit with the connector connected
when removing and installing the optical system.
4) The middle frame contains the safety interlock switch.
Do not defeat the safety interlock by inserting wedges or other items into the switch slot.
LASER WAVE – LENGTH : 770 –795nm
Pulse times : 10.24µsec
Out put power : 0.15mW ± 0.01mW
CAUTION
INVISIBLE LASER RADIATION,
WHEN OPEN AND INTERLOCKS DEFEATED.
AVOID EXPOSURE TO BEAM.
VORSICHT
UNSICHTBARE LASERSTRAHLUNG,
WENN ABDECKUNG GEÖFFNET UND
SICHERHEITSVERRIEGELUNG ÜBERBRÜCKT.
NICHT DEM STRAHL AUSSETZEN.
VARO !
AVATTAESSA JA SUOJALUKITUS
OHITETTAESSA OLET ALTTIINA
NÄKYMÄTTÖMÄLLE LASERSÄTEILYLLE ÄLÄ
KATSO SÄTEESEEN.
ADVARSEL
USYNLIG LASERSTRÅLNING VED ÅBNING, NÅR
SIKKERHEDSBRYDERE ER UDE AF
FUNKTION. UNDGÅ UDSAETTELSE FOR
STRÅLNING.
VARNING !
OSYNLIG LASERSTRÅLNING NÄR DENNA DEL
ÄR ÖPPNAD OCH SPÄRREN ÄR URKOPPLAD.
BETRAKTA EJ STRÅLEN. – STRÅLEN ÄR
FARLIG.
This product is a class 1 laser product that complies with 21CFR 1040 of the CDRH standard and
IEC825. This means that this machine does not produce hazardous laser radiation. The use of controls,
adjustments or performance of procedures other than those specified herein may result in hazardous
radiation exposure.

At the production line, the output power
of the scanner unit is adjusted to 0.57
MILLI-WATT PLUS 20 PCTS and is
maintained constant by the operation of
the Automatic Power Control (APC).
Even if the APC circuit fails in operation
for some reason, the maximum output
power will only be 15 MILLI-WATT 0.1
MICRO-SEC. Giving and accessible
emission level of 42 MICRO-WATT
which is still-less than the limit of
CLASS-1 laser product.
The foregoing is applicable only to the 220V
model, 230V model and 240V model.
VAROITUS! LAITTEEN KÄYTTÄMINEN MUULLA
KUIN TÄSSÄKÄYTTÖOHJEESSA MAINITULLA
TAVALLA SAATTAA ALTISTAA KÄYTTÄJÄN
TURVALLISUUSLUOKAN 1 YLITTÄVÄLLE
NÄKYMÄTTÖMÄLLE LASERSÄTEILYLLE.
VARNING - OM APPARATEN ANVÄNDS PÅANNAT
SÄTT ÄN I DENNA BRUKSANVISNING
SPECIFICERATS, KAN ANVÄNDAREN UTSÄTTAS
FÖR OSYNLIG LASERSTRÅLNING, SOM
ÖVERSKRIDER GRÄNSEN FÖR LASERKLASS 1.
Caution
This product contains a low power laser
device. To ensure continued safety do not
remove any cover or attempt to gain access
to the inside of the product. Refer all
servicing to qualified personnel.
LUOKAN 1 LASERLAITE
KLASS 1 LASER APPARAT

CONTENTS
[1] GENERAL
1. Major functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1
2. Note for servicing and handling. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1
[2] SPECIFICATIONS
1. Basic Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1
2. Operation specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1
3. Copy performance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-2
4. SPLC printer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3
5. Scan function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3
[3] CONSUMABLE PARTS
1. Supply list . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1
2. Environmental . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1

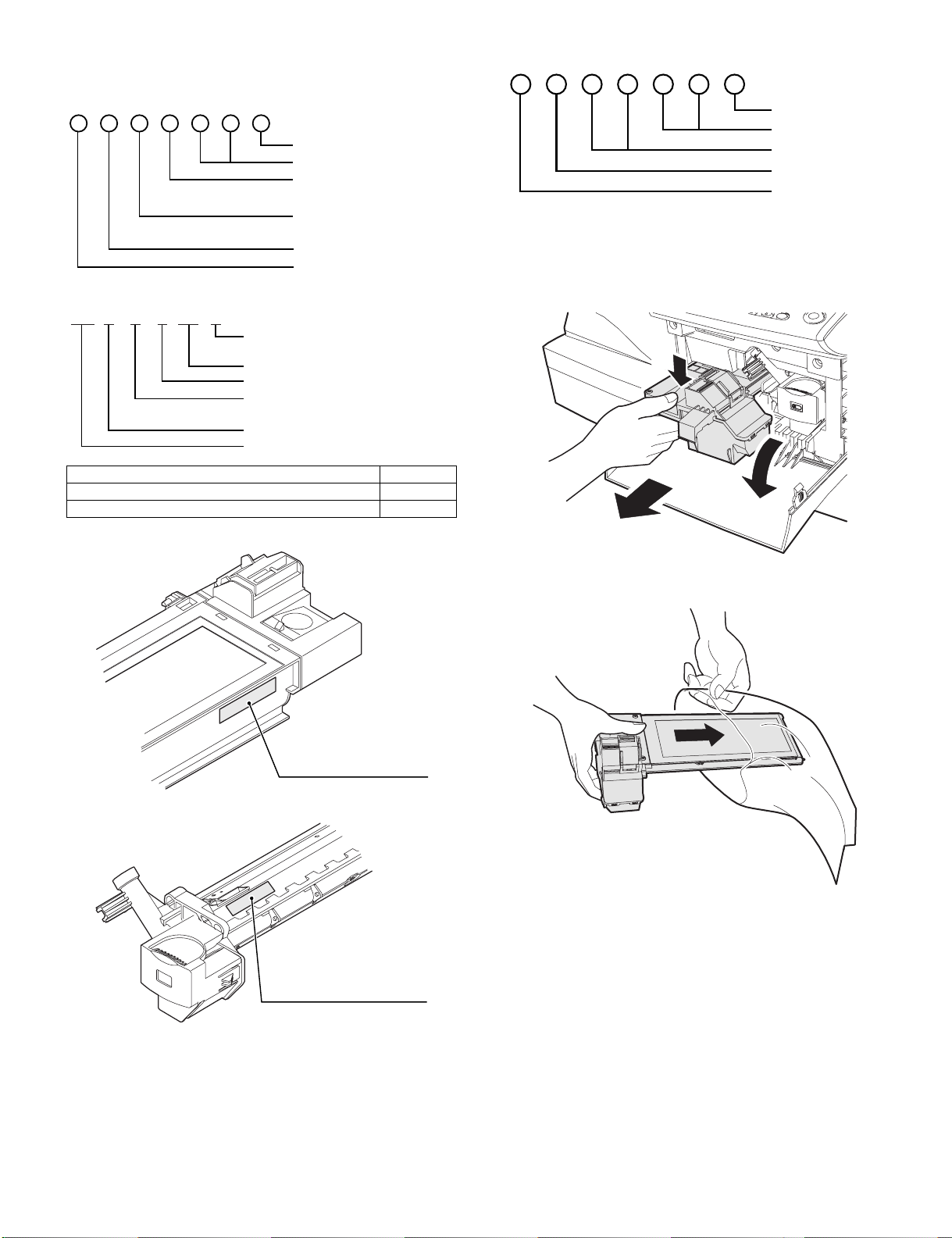

3. Production control number (lot No.) identification . . . . . . . . . . . . . . . . 3-1
4. Toner cartridge replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-2
[4] EXTERNAL VIEWS AND INTERNAL STRUCTURES

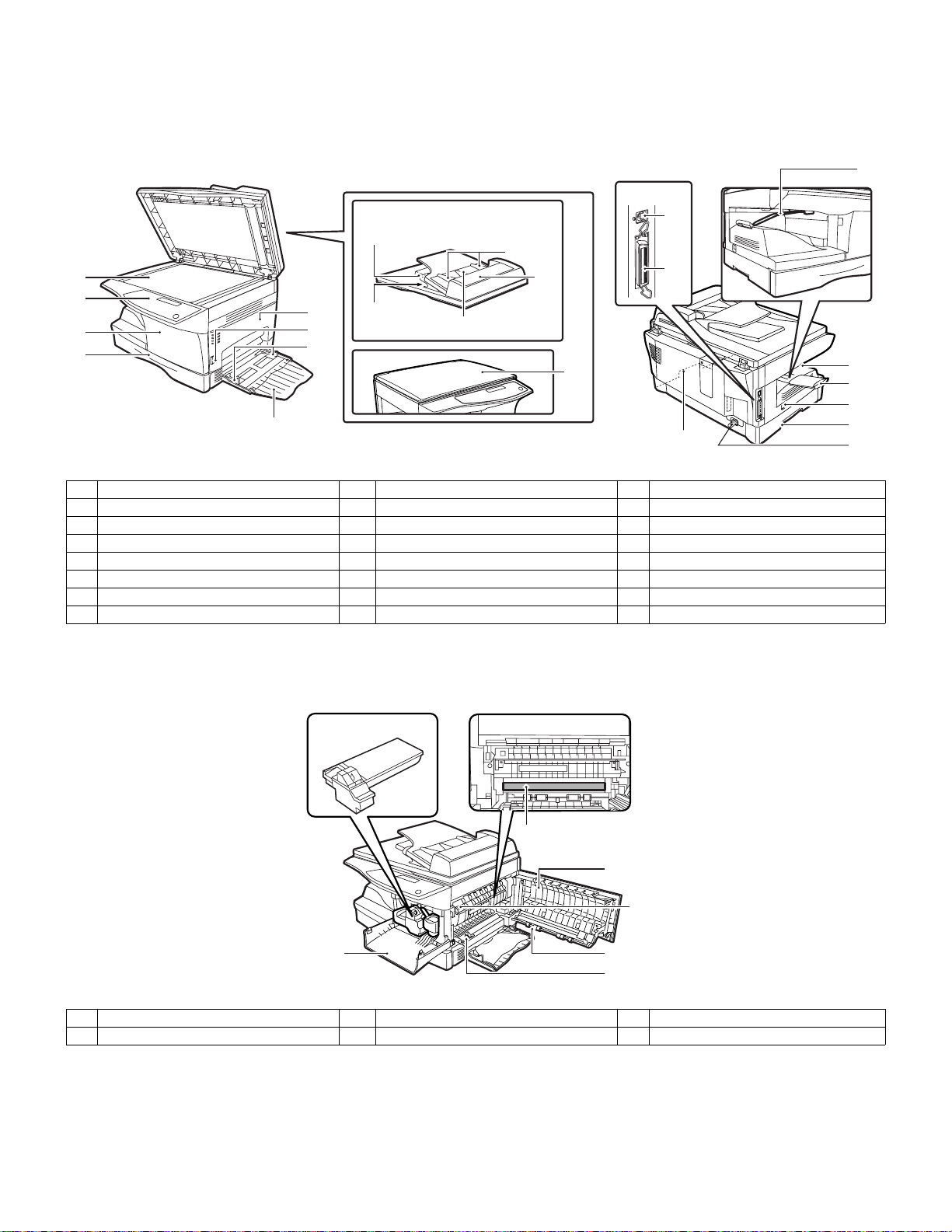

1. Appearance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-1
2. Internal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-1

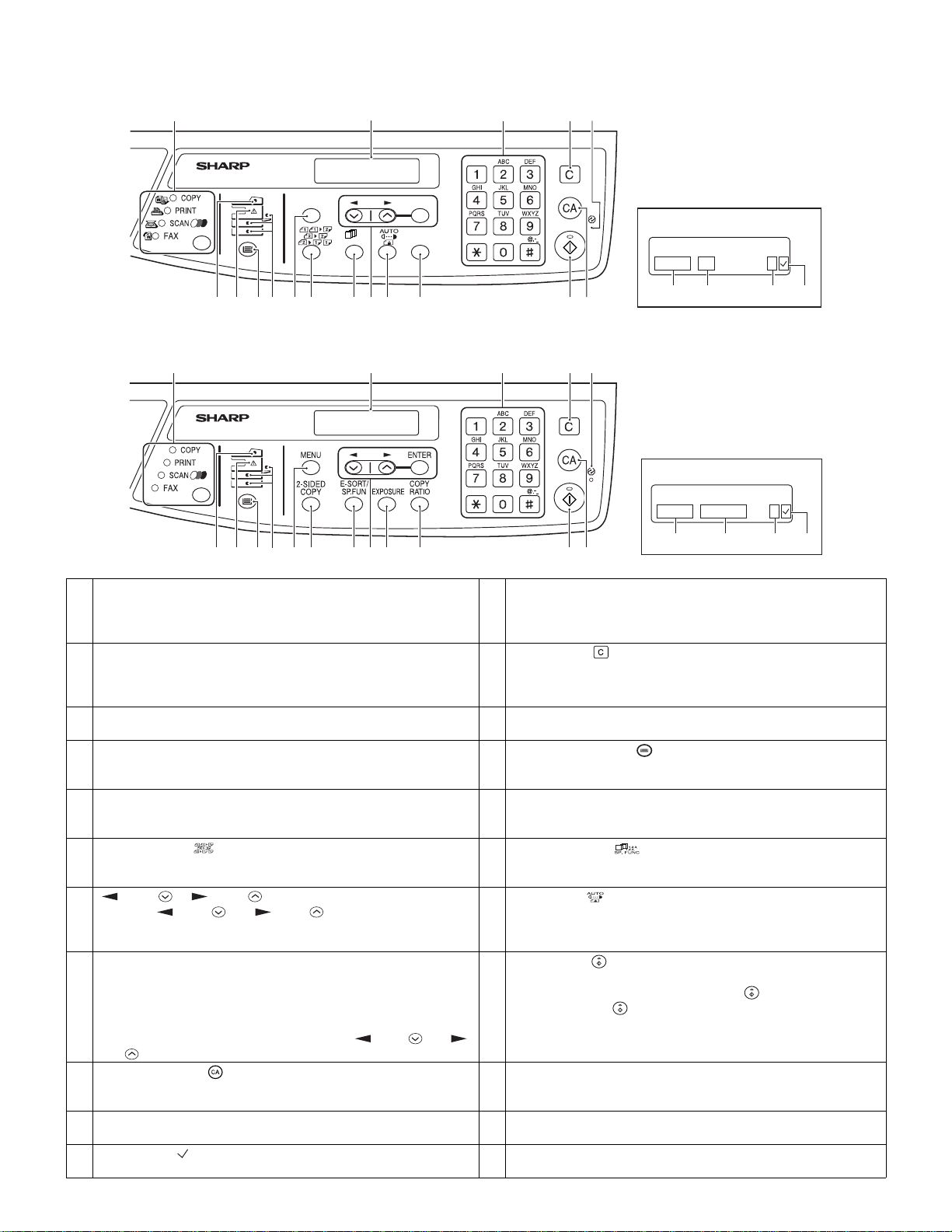

3. Operation panel. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-2

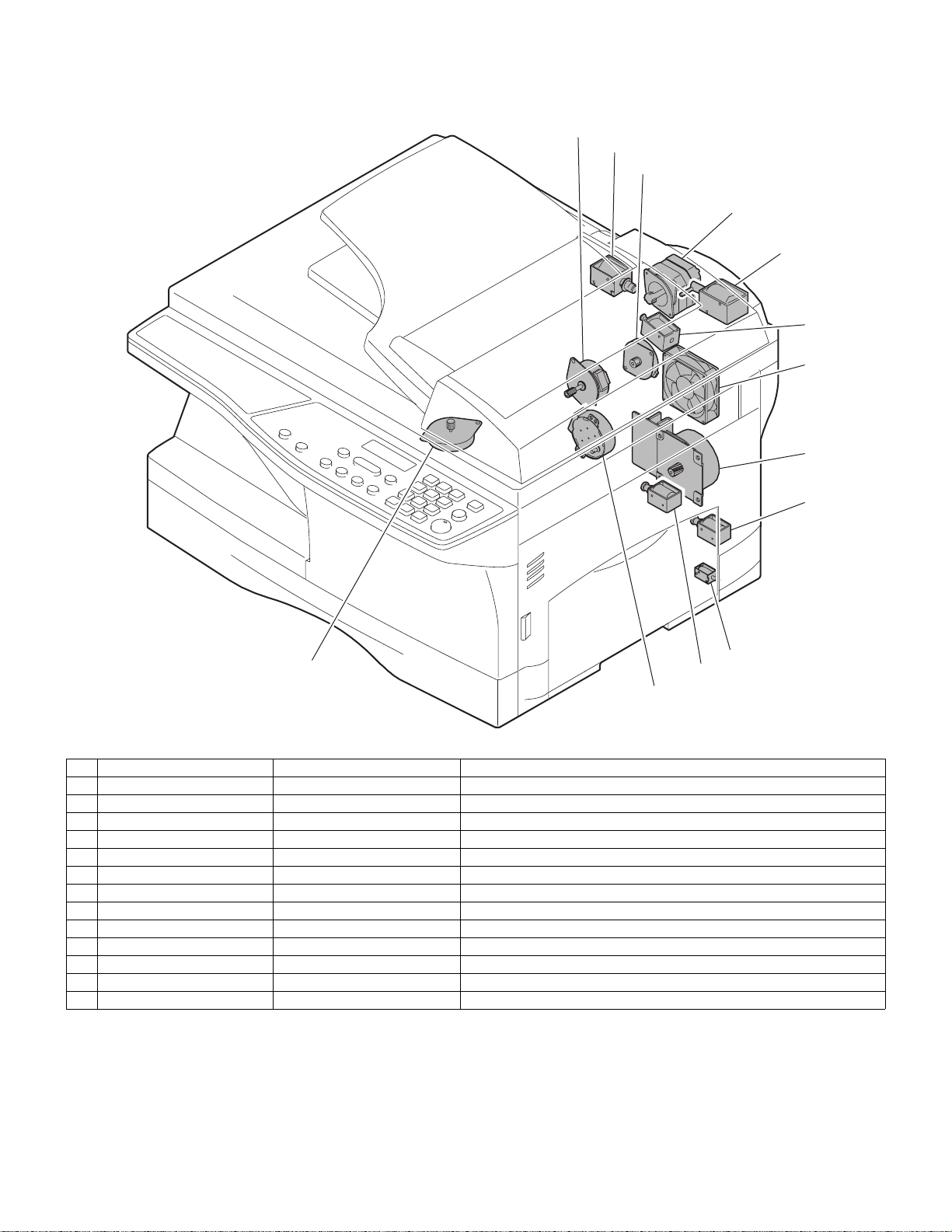

4. Motors and solenoids . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-3
5. Sensors and switches . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-4
6. PWB unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-5
7. Cross sectional view . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-6
[5] UNPACKING AND INSTALLATION

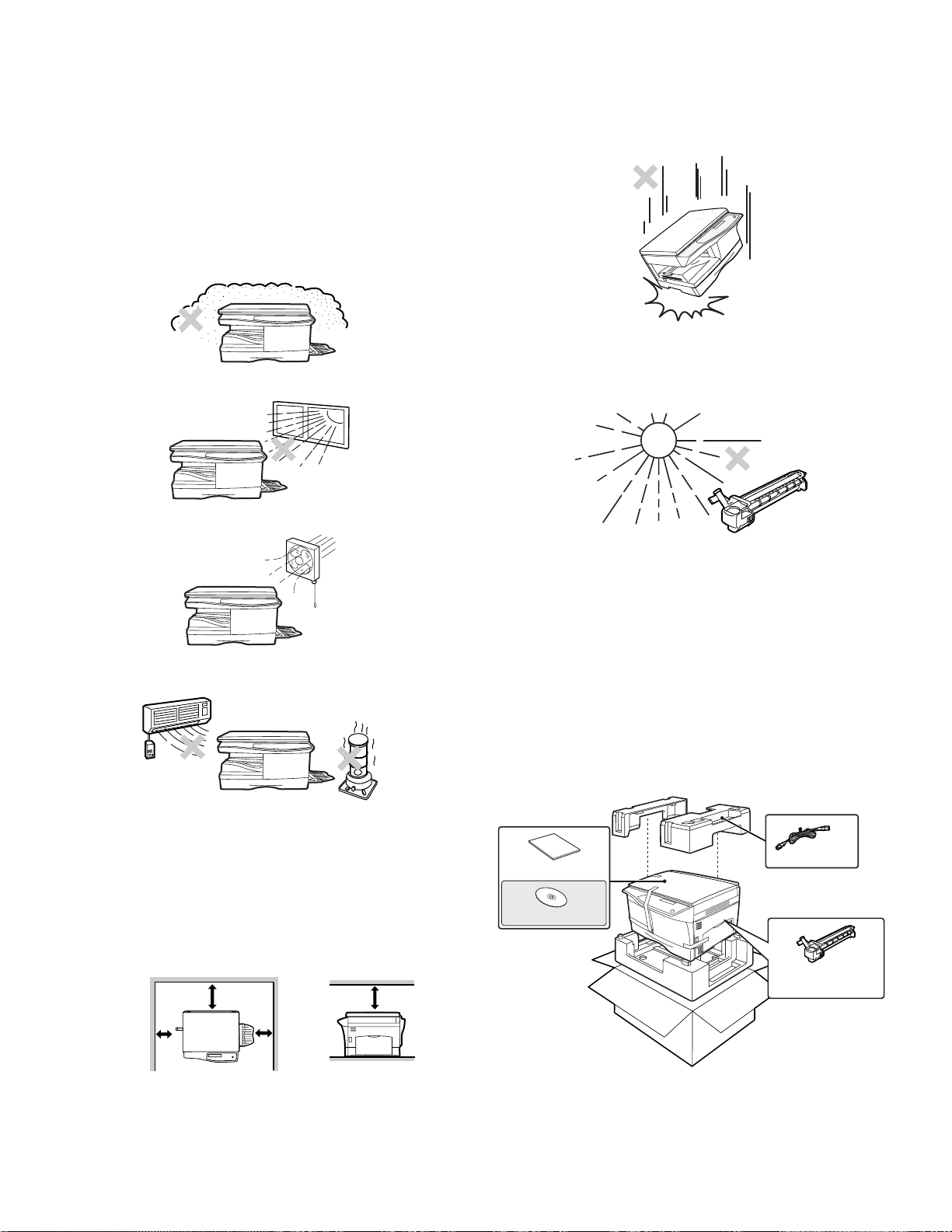

1. Copier installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-1
2. Cautions on handling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-1
3. Checking packed components and accessories . . . . . . . . . . . . . . . . . 5-1
4. Unpacking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-2
5. Removing protective packing materials . . . . . . . . . . . . . . . . . . . . . . . 5-2
6. Developer unit installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-2
7. Toner cartridge installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-3

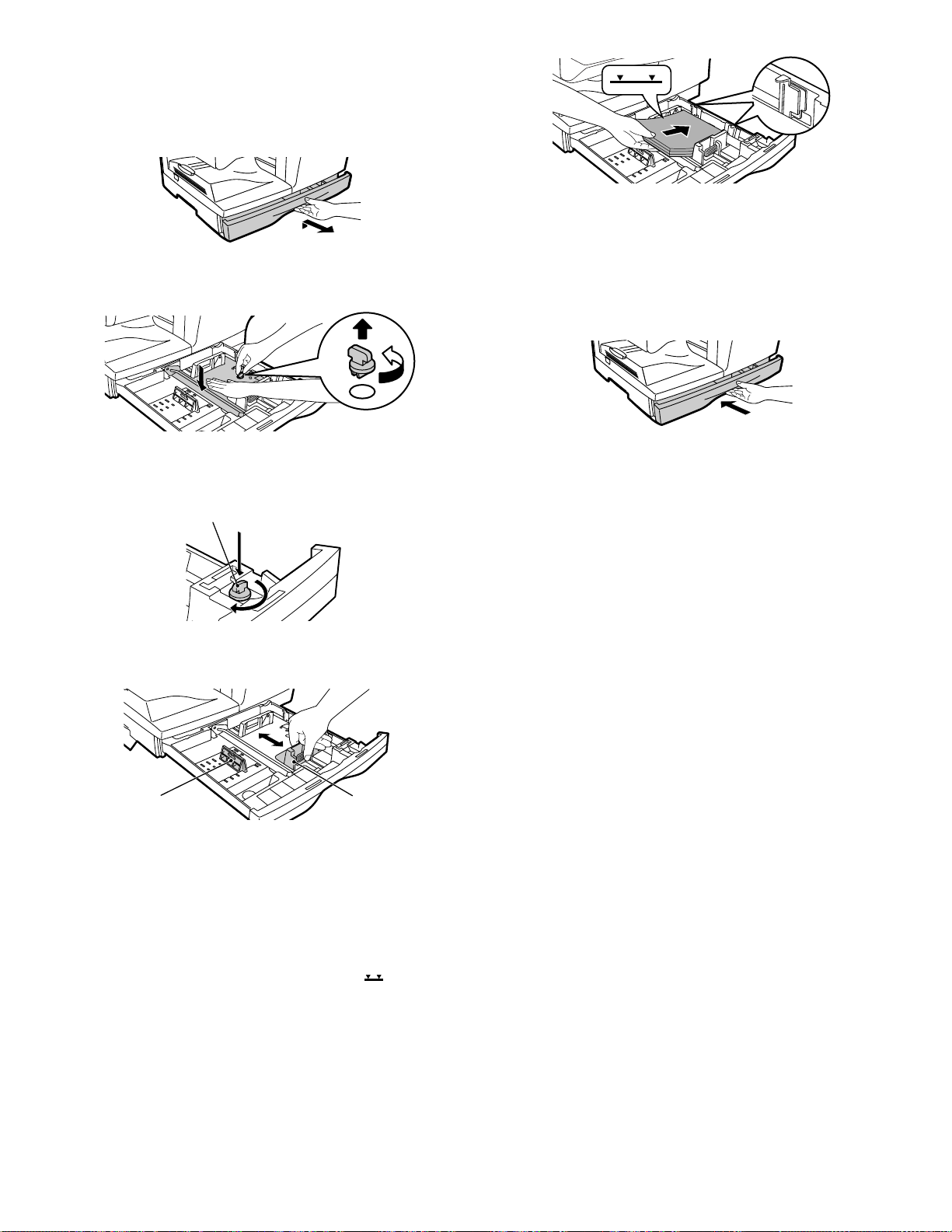

8. Loading the paper tray . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-4
9. Power to copier . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-4
10. Software for AR-M150/M155/M155X . . . . . . . . . . . . . . . . . . . . . . . . . 5-4
A. Before installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-5
B. Installing the software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-5
C. Setting up button manager . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-10
D. Connecting the machine to your computer . . . . . . . . . . . . . . . . . 5-11
11. Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-12
A. USB. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-12
B. Parallel interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-12
12. Moving . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-12
[6] COPY PROCESS
1. Functional diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-1
2. Outline of print process . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-2
3. Actual print process. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-2
[7] OPERATIONAL DESCRIPTIONS
1. Outline of operation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-1
2. Scanner section . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-2
A. Scanner unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-2
B. Optical system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-2
C. Drive system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-2
3. Laser unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-3
A. Basic structure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-3
B. Laser beam path . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-3
C. Composition . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-3
4. Fuser section. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-3
A. General description. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-4
5. Paper feed section and paper transport section . . . . . . . . . . . . . . . . . 7-4
A. Paper transport path and general operations . . . . . . . . . . . . . . . . 7-4
6. D-D (Duplex to Duplex) mode paper/document transport
(Duplex model) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-7
A. Initial state. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-7
B. Front copy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-7
C. Back copy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-7
7. Shifter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-8
[8] DISASSEMBLY AND ASSEMBLY
1. High voltage section . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-1
A. List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-1
B. Drum replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-1
C. Disassembly procedure (Transfer charger unit) . . . . . . . . . . . . . . 8-3
D. Assembly procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-3
E. Charger wire cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-3
F. Charger wire replacement. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-4
2. Operation panel section . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-4
A. List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-4
B. Disassembly procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-4
C. Assembly procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-5
3. Optical section. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-5
A. List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-5
B. Disassembly procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-5
C. Assembly procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-6
4. Fusing section . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-7
A. List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-7
B. Disassembly procedure. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-7
C. Assembly procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-9
5. Tray paper feed/transport section . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-9
A. List. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-9
B. Disassembly procedure. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-9
C. Assembly procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-14
6. Manual paper feed section . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-15
A. List. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-15
B. Disassembly procedure. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-15
C. Assembly procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-16
D. Pressure plate holder attachment . . . . . . . . . . . . . . . . . . . . . . . . 8-16
7. Rear frame section . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-17
A. List. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-17
B. Disassembly procedure. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-17
C. Assembly procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-17
8. Power section . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-18
A. List. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-18
B. Disassembly procedure. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-18
C. Assembly procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-18
9. Duplex motor section (Duplex model only) . . . . . . . . . . . . . . . . . . . . 8-18
A. List. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-18
B. Disassembly procedure. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-18
C. Assembly procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-18
10. Reverse roller section (Duplex model only). . . . . . . . . . . . . . . . . . . . 8-18
A. List. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-18
B. Disassembly procedure. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-18
C. Assembly procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-18
[9] ADJUSTMENTS
1. Optical section . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-1
A. Copy magnification ratio adjustment . . . . . . . . . . . . . . . . . . . . . . . 9-1
B. Image position adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-2
2. Copy density adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-3
A. Copy density adjustment timing . . . . . . . . . . . . . . . . . . . . . . . . . . 9-3
B. Note for copy density adjustment . . . . . . . . . . . . . . . . . . . . . . . . . 9-3
C. Necessary tool for copy density adjustment . . . . . . . . . . . . . . . . . 9-4
D. Features of copy density adjustment. . . . . . . . . . . . . . . . . . . . . . . 9-4
E. Copy density adjustment procedure . . . . . . . . . . . . . . . . . . . . . . . 9-4
3. High voltage adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-5
A. Main charger (Grid bias) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-5
B. DV bias check . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-5
4. Duplex adjustment (With optional RSPF installed) . . . . . . . . . . . . . . . 9-5
A. Adjusting the paper reverse position in memory for
duplex copying . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-5
B. Adjusting trailing edge void in duplex copy mode . . . . . . . . . . . . . 9-6
5. SPF (RSPF) scan position automatic adjustment
(With optional SPF/RSPF installed). . . . . . . . . . . . . . . . . . . . . . . . . . . 9-7
6. RSPF (SPF) mode sub scanning direction magnification
ratio adjustment (With optional SPF/RSPF installed) . . . . . . . . . . . . . 9-7
7. Automatic black level correction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-8
[10] TEST COMMAND, TROUBLE CODES
1. Entering the test command mode . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-1
2. Key rule . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-1
3. List of test commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-1
4. Descriptions of various test commands. . . . . . . . . . . . . . . . . . . . . . . 10-3
5. Trouble codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-39
A. Trouble codes list . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-39
B. Details of trouble codes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-39
[11] MAINTENANCE
1. Maintenance table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-1
2. Maintenance display system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-1
3. Remaining toner indication . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-1
[12] USER PROGRAM
1. User programs. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12-1
A. Copy mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12-1
B. Print mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12-2
2. Selecting a setting for a user program. . . . . . . . . . . . . . . . . . . . . . . . 12-3
[13] ELECTRICAL SECTION
1. Block diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13-1
A. Overall block diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13-1
2. Circuit descriptions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13-2
A. Main PWB (MCU) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13-2
B. DC power circuit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13-11
[14] CIRCUIT DIAGRAM
1. MCU PWB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14-1
2. OPERATION PWB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14-26
3. POWER SUPPLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14-29
4. ACTUAL WIRING DIAGRAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14-33
[15] FIRMWARE DOWNLOAD PROCEDURES
1. Initial setting (Serial number setting procedures) . . . . . . . . . . . . . . . 15-1
2. Download procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15-1
3. Version acquisition procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15-3
4. EEPROM data acquisition procedure . . . . . . . . . . . . . . . . . . . . . . . . 15-4
5. Installing procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15-5

AR-M150/M155/M155X GENERAL 1 - 1
[1] GENERAL

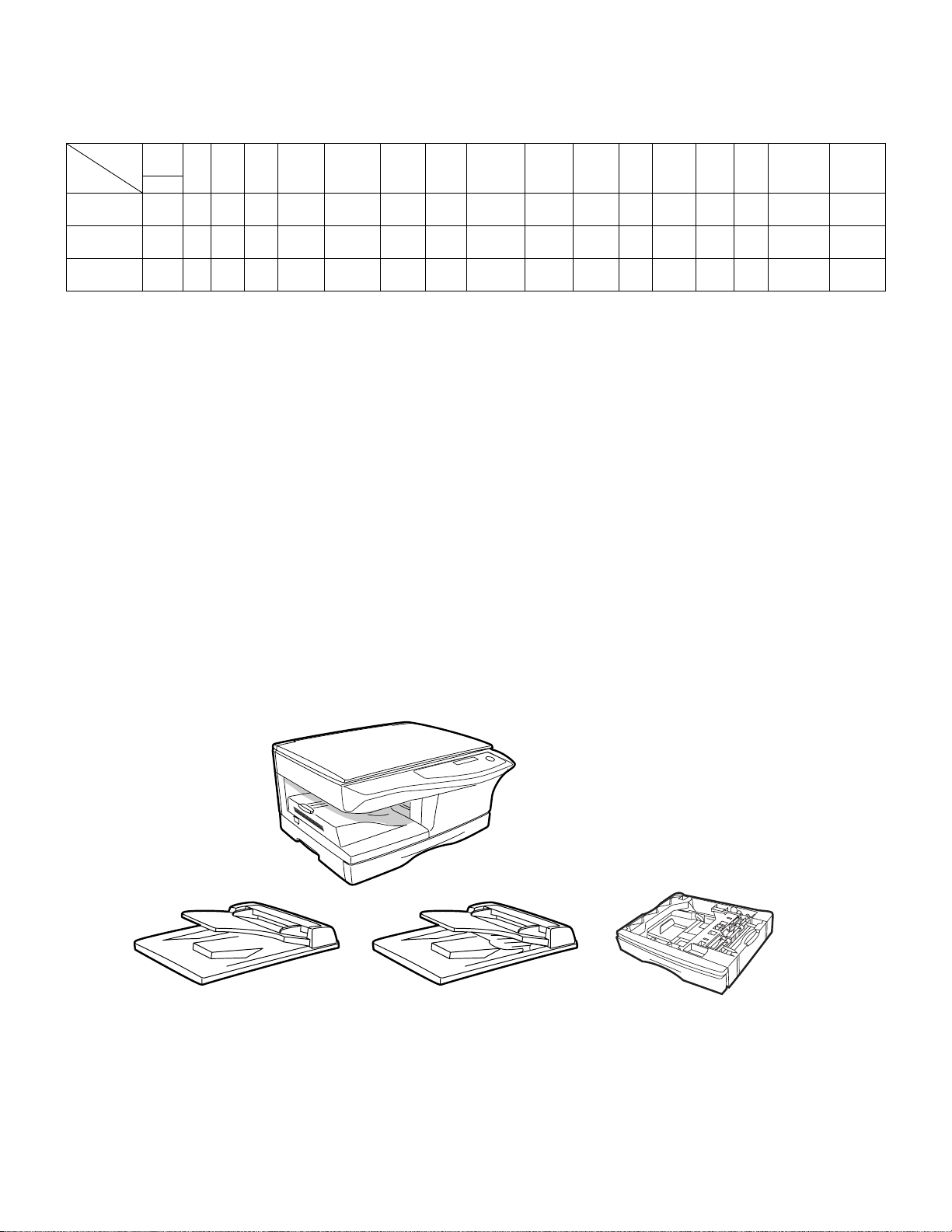

1. Major functions
Configurations
Descriptions of items
CPM: Copy speed (Copies Per Minute)
SB/MB: SB = Manual feed single bypass, MB = Manual feed multi bypass
2 tray: Second cassette unit (AR-D16)
SPF: Original feed unit (AR-SP8)
R-SPF: Duplex original feed unit (AR-RP8)
Color scanner: Color scanner function
GDI printer: GDI printer function with USB
SPLC:SPLC printer function
E-SORT:Electrical sort
Duplex: Auto duplex copy function
Shifter: Job separator function
FAX: FAX function (AR-FX9)
Sharpdesk: Scanner utilities
IEEE1284: Interface port (parallel)
USB: Interface port (USB)
RJ45: Interface port (Network)
External NIC: AR-NB2N
Descriptions of table
❍: Standard provision
✕: No function or no option available
Opt: Option
2. Note for servicing and handling
When the main unit power is repeatedly turned OFF/ON rapidly (for about 1sec), the IC (OA982) on the MCU PWB may malfunction to cause an error
(E1-00 Communication error), which does not boot the machine. In case of this error, the blank display is kept for several tens seconds and then "E1-
00" is displayed on the panel display.
<Countermeasure>
Turn off the power and keep it for more than 10sec. Then turn on the power.
When the machine is booted.: There is no problem in the MCU PWB.
When the machine is not booted.: The MCU PWB trouble
Item CPM/
PPM SB/
MB
2
Tray SPF R-SPF
Color
Scanner
(push)
GDI
printer SPLC E-SORT Duplex Shifter FAX Sharp desk
IEEE
1284 USB RJ45 External NIC
Model A4
AR-M150 15 MB Opt Opt ✕❍✕❍❍ ✕❍Opt ❍❍❍
(2.0)
✕Opt
AR-M155 15 MB Opt Opt Opt ❍✕❍❍ ❍❍Opt ❍❍❍
(2.0)
✕Opt
AR-M155X 15 MB Opt Opt Opt ❍✕❍❍ ❍❍✕✕❍❍
(2.0)
✕✕
(AR-D16)
(AR-SP8) (AR-RP8)
(AR-M150/M155/M155X)

AR-M150/M155/M155X SPECIFICATIONS 2 - 1
[2] SPECIFICATIONS
1. Basic Specifications
2. Operation specifications
Item
Type Desktop
Copy system Dry, electrostatic
Segment (class) Digital personal copier
Copier dimensions 20.4"(W) x 19.8"(D) x 11.7"(H) (518mm(W) x 503mm(D) x 296mm(H))
Weight (Approximately) AR-M150 Approx. 36.6lbs. (16.6kg) TD and drum cartridges included
AR-M155/M155X Approx. 37.1lbs. (16.8kg)
Section, item Details
Paperfeed
section
Paper feed system 1 tray (250 sheets) + multi bypass (50 sheets)
AB system Tray paper feed
section
Paper size A4, B5, A5
Paper weight 56 - 80g/m2(15 - 21 lbs.)
Paper feed capacity 250 sheets
Kinds Standard paper, specified paper, recycled paper
Remark User adjustment of front paper guide available
Multi bypass paper
feed section
Paper size A4, B5, A5, B6, A6 (Post card)
Paper weight 52 - 128g/m2(14 - 34.5 lbs.)
Paper feed capacity 50 sheets
Kinds Standard paper, specified paper, recycled paper, envelope,
OHP, Label (Single copy)
Remark User adjustment of side paper guide available
Inch system Tray paper feed
section
Paper size 8-1/2" x 14", 8-1/2 x 11", 8-1/2" x 5-1/2" (Landscape)
Paper weight 15 - 21 lbs.
Paper feed capacity 250 sheets
Kinds Standard paper, specified paper, recycled paper
Remark User adjustment of front paper guide available
Multi bypass paper
feed section
Paper size 8-1/2" x 14", 8-1/2 x 11", 8-1/2" x 5-1/2", 3-1/2" x 5-1/2"
(Landscape)
Paper weight 14 - 34.5 lbs.
Paper feed capacity 50 sheets
Kinds Standard paper, specified paper, recycled paper, OHP, Label,
Envelop (Single copy)
Remark User adjustment of side paper guide available
Paper exit section Exit way Face down
Capacity of output tray 200 sheets
Originals Original set Center Registration (left edge)
Max. original size A4 (8-1/2" x 14")
Original kinds sheet, book
Original size detection None
Optical
section
Scanning section Scanning system 3 CCDs (RGB) sensor scanning by lighting white lamp
CCD sensor Resolution 600 dpi
Lighting lamp Type CCFL
Voltage 560Vrms
Power consumption 2.8W
Output data R, G, B 1 or 8 bits/pixel / A/D 16bit
Writing section Writing system Writing to OPC drum by the semiconductor laser
Laser unit Resolution 600 dpi
Image forming Photoconductor type OPC (30ø)
Life 18k
Charger Charging system Saw -tooth charging with a grid, / (-) scorotron discharge
Transfer system (+) DC scorotron system
Separation system (-) DC scorotron system
Developing Developing system Dry, 2-component magnetic brush development system
Cleaning Cleaning system Counter blade system (Counter to rotation)

AR-M150/M155/M155X SPECIFICATIONS 2 - 2
*1) May fluctuate due to environmental conditions and the input voltage.
3. Copy performance
∗SPF/RSPF: Optional
Duplex: AR-M155/M155X
Fusing section Fusing system Heat roller system
Upper heat roller type Teflon roller
Lower heat roller type Silicon rubber roller
Heater lamp type Halogen lamp
Voltage 230V
Power consumption 800W
Electrical section Power source Voltage 220 –240V
Frequency 60Hz
Rated current 8A
Power consumption Max. Less than 1000W
Average (during copying) 350 Wh/H *1)
Average (stand-by) 86Wh/H *1)
Pre-heat mode 25Wh/H *1)
Auto power shut-off mode 8.8Wh/H *1)
Section, item Details
Copy magnification Fixed magnification
ratios
4 Reduction + 3 Enlargement
(AB system : 25, 50, 70, 86, 100, 141, 200, 400%)
(Inch system : 25, 50, 64, 78, 100, 129, 200, 400%)
Zooming
magnification ratios
OC: 25 - 400%, SPF/RSPF ∗: 50 - 200%
(376 steps in 1% increments)
Manual steps (text, photo) 5 steps
Copy speed First copy time Tray paper feed 9.6 sec. (Pre-heat mode: 25 sec. / Auto power-shut-off mode: 40 sec.)
A4 or Letter/100%/Auto Exposure
AB system
A4
(Landscape)
Copy speed (CPM) Same size 15
Enlargement 15
Reduction 15
AB system
B5
(Landscape)
Copy speed (CPM) Same size 15
Enlargement 15
Reduction 15
Inch system
8-1/2" x 14"
(Landscape)
Copy speed (CPM) Same size 12
Enlargement 12
Reduction 12
Inch system
8-1/2" x 11"
(Landscape)
Copy speed (CPM) Same size 16
Enlargement 16
Reduction 16
Max. continuous copy quantity 99
Void Void area leading edge 1 - 4mm
Trailing edge 4mm or less, 6mm or less (Duplex copying/both image)
Side void area 0.5mm or more (per side)
4.5mm or less (total of both sides)
Image loss leading edge Same size: 3.0mm or less (OC) / 4.0mm or less (SPF/R-SPF/Duplex) ∗
Enlarge: 1.5mm or less (OC) / 3.0mm or less (SPF/R-SPF/Duplex) ∗
Reduction (50%): 6.0mm or less (OC) / 8.0mm or less (SPF/R-SPF/Duplex) ∗
Warm-up time 0 sec.
Power save mode reset time 0 sec.
Paper jam recovery time 0 sec.
Section, item Details

AR-M150/M155/M155X SPECIFICATIONS 2 - 3
4. SPLC printer
*1: Engine Resolution
*2: Running change
5. Scan function
*1: Running change
∗SPF/RSPF: Optional
Duplex: AR-M155/M155X
Print speed Max. 15ppm (A4 / with ROPM) / 16ppm (Letter / with ROPM)
First print time 9.6 sec. (without data transfer time)
Duplex Yes (AR-M155/M155X)
ROPM Yes
CPU None
Memory Share the memory with E-SORT function
Interface IEEE1284 / USB 2.0
Network External NIC (Optional)
Emulation SPLC (JBIG GDI)
MIB support Yes (with AR-NB2N)
Resolution 600dpi *1
Supported OS Win 95 / 98 / Me / NT 4.0 / 2000 / XP
WHQL support Yes *2
Application Status window
Type Flat Bed Color Scanner
Scanning system Document glass / SPF / RSPF ∗
Light source 3 CCDs (RGB) sensor scanning by lighting white lamp (2 pcs of CCFL)
Resolution Optical: 600 x 1200dpi
Setting range: 50 - 9600dpi (Preview resolution is fixed at 75dpi)
Originals Sheet type / Book type
Output data R, G, B 1 or 8 bits/pixel / A/D 16bit
Scan range OC / RSPF ∗: 8.5" (297mm) (L) x 14" (431mm) (W)
Original position: Platen: Left center / SPF ∗: Right center
Scan speed OC / SPF ∗: Max. 2.88ms/line (Color/Gray scale), Max. 0.96 ms/line (B & W)
Protocol TWAIN / WIA (Only XP) / STI
Support file format RAW
Interface USB2.0
Scanner utility Button Manager / Sharpdesk (AR-M155X: No support)
Scan key/lamp Yes
Duplex scan Yes (with RSPF, TWAIN)
Supported OS Win 98 / Me / 2000 / XP
Void area No (User settable by PC)
WHQL supported Yes *1

AR-M150/M155/M155X CONSUMABLE PARTS 3 - 1
[3] CONSUMABLE PARTS
1. Supply list
A. Europe/SCA/SCNZ
Note: Printing of the master/individual cartons is made in 2 languages, English/French.
Packed together with the machine: DR 25K/Developer UN/Process UN
2. Environmental
The environmental conditions for assuring the copy quality and the
machine operations are as follows:
(1) Normal operating condition
Temperature: 20°C to 25
Humidity: 65 ±5%RH
(2) Acceptable operating condition
(3) Transportation condition
(4) Supply storage condition
3. Production control number (lot No.)
identification
<Toner cartridge>
∗: Destination code
No. Item Content Life Product name Package Remark
1 Toner CA (Black)
(with IC chip)
Toner
(Toner: Net Weight 243g)
×10 80K AR-152LT 1 ∗Life setup is based on A4
6%.
LT=T ∗10
Polyethylene bag ×10
2 Developer Developer
(Developer: Net Weight 170g)
×10 250K AR-152LD 1 LD=DV ∗10
3 Drum kit Drum ×1 25K AR-152DM 10
Drum fixing plate ×1
Humidity (RH)
85%
60%
20%
10˚C 30˚C 35˚C
Humidity (RH)
90%
60%
15%
–25˚C30˚C40˚C
Classification No.
EX Destination A packed with machine G
B packed with machine H
Option Destination AP
BQ
Humidity (RH)
90%
20%
–5˚C45˚C
Production month
Production day
Destination code ∗
(Dealer, distributor, OEM, etc.)
Production place
(SOCC: Fixed to B.)
End digit of year
Version No.

AR-M150/M155/M155X CONSUMABLE PARTS 3 - 2
<Drum cartridge>
The label on the drum cartridge shows the date of production.
(SOCC production)
(JAPAN production)
∗1 The production control label is not attached to the cartridge of a
China product.
<Developer>
4. Toner cartridge replacement
1) Open the front and side cabinets of the copier.
2) Keep holding Toner lever, and
3) Carefully pull out Toner unit from the copier.
4) Put Toner unit in a collection bag immediately after removing it
from the copier
Note: Never carry exposed Toner unit. Be sure to put it in the
collection bag.
Division No.
Option 2
Packed with machine 3
Production month
Production day
Destination code
(Dealer, distributor, OEM, etc.)
Production place
(SOCC: Fixed to B.)
End digit of year
Version No.
X000119Ver.A 1
Production month
(1 - 9 = Jan. - Sep. 0 = Oct. X = Nov. Y = Dec.)
Serial number of month
Fixed to 1.
Pack division
(See table below)
End digit of year
Version No.
Production control
label attachment position
Production control
label attachment position(*1)
Sub lot
Production day
Production month
End digit of year
Production place
1
3
2
