FACSIMILE
OPERATION MANUAL
MODEL
UX-B20
1. Installation
2. Sending Faxes
3. Receiving Faxes
4. Making Copies
5. Special Functions
6. Printing Lists
7. Maintenance
8. Troubleshooting

WARNING - FCC Regulations state that any unauthorized changes or modifications to this equipment not
expressly approved by the manufacturer could void the user’s authority to operate this equipment.
Note: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules.These limits are designed to provide reasonable
protection against harmful interference in a residential installation.This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and the receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
- Consult the dealer or an experienced radio/TV technician for help.
ABOUT THE TELEPHONE CONSUMER PROTECTION ACT OF 1991
"The Telephone Consumer Protection Act of 1991 makes it unlawful for any person to use a
computer or other electronic device to send any message via a telephone facsimile machine unless
such message clearly contains in a margin at the top or bottom of each transmitted page or on the
first page of the transmission the following information:
(1) The date and time of transmission.
(2) Identification of either the business, business entity or individual sending the message.
(3) Telephone number of either the sending machine, business, business entity or individual.
In order to program this information into your facsimile machine, please refer to the appropriate
instructions in the operation manual."
As an ENERGY STARpartner, SHARP has determined
that this product meets the ENERGY STARguidelines
for energy efficiency.

1
Introduction
*Quality mode is initially turned on. To turn off Quality mode, see page 21.
**Based on Sharp Standard Chart at standard resolution, excluding time for protocol signals
(i.e., ITU-T phase C time only).
Print cartridge yield*
(at 4% coverage**)
Initial cartridge
Quality mode OFF: Approx. 300 letter pages
Quality mode ON: Approx. 200 letter pages
Replacement cartridge: SHARP UX-C70B
Quality mode OFF: Approx. 600 letter pages
Quality mode ON: Approx. 400 letter pages
Paper tray capacity Letter: Approx. 100 sheets (20-lb. copier paper at
room temperature; maximum stack height should
not be higher than the line on the tray)
Legal: 10 sheets
Recommended paper weight: 20-lb. Copy Bond
Recording system Thermal inkjet
Print resolution 600 ×600 dpi
Effective printing width 8.0" (203 mm) max.
Memory size** 448 KB (approx. 24 average pages)
Modem speed 9600 bps with auto fallback to lower speeds.
Transmission time** Approx. 15 seconds
Compatibility ITU-T (CCITT) G3 mode
Compression scheme MR, MH, H2
Automatic dialing 30 numbers
Welcome, and thank you for
choosing a SHARP inkjet
fax machine! The features
and specifications of your
inkjet fax are shown below.

2
Telephone function Yes (cannot be used if power fails)
Applicable telephone line Public switched telephone network
Reception modes TEL/FAX
Automatic document
feeder
Letter/A4: 10 sheets max. (20-lb. paper)
Legal: 5 sheets max.
Input document size Automatic feeding:
Width: 5.8 to 8.5" (148 to 216 mm)
Length (10 sheets): 5.5 to 11" (140 to 279 mm)
Length (5 sheets): 5.5 to 14" (140 to 356 mm)
Manual feeding:
Width: 5.8 to 8.5" (148 to 216 mm)
Length: 5.5 to 23.6" (140 to 600 mm)
Effective scanning width 8.3" (210 mm) max.
Scanning Resolution Horizontal: 203 lines/inch (8 lines/mm)
Vertical:
Standard: 98 lines/inch (3.85 lines/mm)
Fine /Halftone: 196 lines/inch (7.7 lines/mm)
Super fine: 391 lines/inch (15.4 lines/mm)
Halftone (grayscale) 64 levels
Contrast control Automatic/Dark selectable
Copy function Single/Multi/Sort (99 copies/page)
Display 16-digit LCD display
Power requirements 120 V AC, 60 Hz
Power consumption Standby: 4.5 W
Maximum: 30 W
Operating temperature 60 - 90°F (15 - 32°C)
Humidity 25 - 80% RH
Dimensions (without
attachments)
Width: 13.9" (354 mm)
Depth: 9.7" (247 mm)
Height: 5.4" (138 mm)

3
As a part of our policy of continuous improvement, SHARP reserves the right to make design
and specification changes for product improvement without prior notice. The performance
specification figures indicated are nominal values of production units. There may be some
deviations from these values in individual units.
Important:
This fax machine is not designed for use on a line which has call waiting, call
forwarding, or certain other special services offered by your telephone company. If
you attempt to use the fax machine in conjunction with any of these services, you
may experience errors during transmission and reception of facsimile messages.
The fax machine is not compatible with digital telephone systems.
Important safety information
Do not disassemble this machine or attempt any procedures not described in this
manual. Refer all servicing to qualified service personnel.
Do not install or use the machine near water, or when you are wet. For example, do
not use the machine near a bath tub, wash bowl, kitchen sink or laundry tub, in a wet
basement, or near a swimming pool. Take care not to spill any liquids on the
machine.
Unplug the machine from the power outlet and telephone jack and consult a
qualified service representative if any of the following situations occur:
- Liquid has been spilled into the machine or the machine has been
exposed to rain or water.
- The machine produces odors, smoke, or unusual noises.
- The power cord is frayed or damaged.
- The machine has been dropped or the housing damaged.
Do not allow anything to rest on the power cord, and do not install the machine
where people may walk on the power cord.
This machine must only be connected to a 120 V, 60 Hz, grounded (3-prong) outlet.
Connecting it to any other kind of outlet will damage the machine and invalidate the
warranty.
Never insert objects of any kind into slots or openings on the machine. This could
create a risk of fire or electric shock. If an object falls into the machine that you
cannot remove, unplug the machine and consult a qualified service representative.
Weight (without
attachments)
Approx. 7.0 lbs. (3.2 kg)

4
Do not place this machine on an unstable cart, stand or table. The machine could be
seriously damaged if it falls.
Never install telephone wiring during a lightning storm.
Never install telephone jacks in wet locations unless the jack is specifically designed
for wet locations.
Never touch bare telephone wires or terminals unless the telephone line has been
disconnected at the network interface.
Use caution when installing or modifying telephone lines.
Avoid using a telephone (other than a cordless type) during an electrical storm.
There may be a remote risk of electric shock from lightning.
Do not use a telephone to report a gas leak in the vicinity of the leak.
The power outlet must be installed near the equipment and must be easily
accessible.

5
Table of Contents
A Look at the Operation Panel 7
1. Installation 9
Unpacking Checklist . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Attachments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Loading Printing Paper . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Connecting the Power Cord . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Installing the Print Cartridge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Connecting the Telephone Line Cord. . . . . . . . . . . . . . . . . . . . . . . . 23
Entering Your Name and Fax Number . . . . . . . . . . . . . . . . . . . . . . . 24
Setting the Date and Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Setting the Reception Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Volume Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
2. Sending Faxes 33
Transmittable Documents. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Loading the Document . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Adjusting the Resolution and Contrast . . . . . . . . . . . . . . . . . . . . . . . 36
Sending a Fax by Normal Dialing . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Sending a Fax by Automatic Dialing. . . . . . . . . . . . . . . . . . . . . . . . . 40
Batch Page Numbering . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Sending a Fax From Memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
3. Receiving Faxes 51
Using FAX Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
Using TEL Mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Optional Reception Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
Substitute Reception to Memory . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
4. Making Copies 58
5. Special Functions 61
Caller ID (Requires Subscription to Service) . . . . . . . . . . . . . . . . . . 61

Table of Contents
6
Distinctive Ring (Requires Subscription to Service) . . . . . . . . . . . . . 66
Blocking Reception of Unwanted Faxes . . . . . . . . . . . . . . . . . . . . . . 68
Polling (Requesting a Fax Transmission) . . . . . . . . . . . . . . . . . . . . . 69
6. Printing Lists 70
7. Maintenance 74
Cleaning the Machine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
Improving Print Quality . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77
8. Troubleshooting 82
Problems and Solutions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82
Messages and Signals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86
Clearing Paper Jams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89
Ordering Parts. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91
FCC Regulatory Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92
Quick Reference Guide 96
Guía de referencia rápida 97
Index 98

7
ZA
RESOLUTION/
RECEPTION
INK
1 2 3 4 5 5 6
7 8 9 10 11 12 13
Display
This displays messages and prompts to help you operate the machine.
FLASH key
This key is used for Call Waiting and other special services that require
subscription from your phone company. Your phone company will provide you
with details on how to use the key.
RESOLUTION / RECEPTION key
When a document is in the feeder, press this key to adjust the resolution for
faxing or copying (page 37). At any other time, press this key to select the
reception mode (an arrow in the display will point to the currently selected
reception mode; page 28).
INK key
Press this key before installing or replacing the print cartridge to move the
print cartridge holder to the replacement position (page 16).
Arrow keys
Use these keys to scroll through and select settings, and to search for auto-
dial numbers (page 44).
FUNCTION key
Press this key followed by the arrow keys to select special functions and
settings.

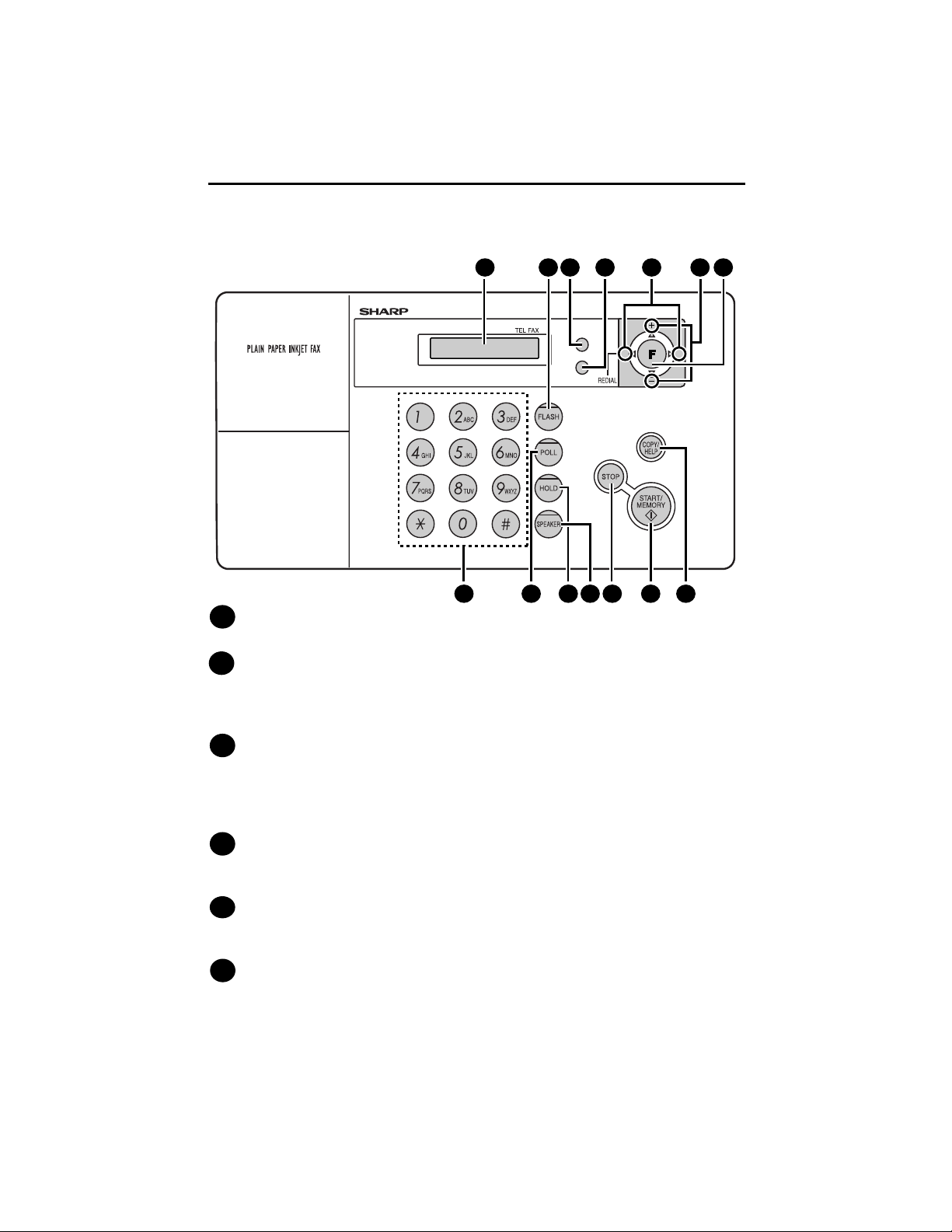

A Look at the Operation Panel
1
2
3
4
5
6

8
Number keys
Use these keys to dial numbers, and enter numbers and letters when storing
auto-dial numbers.
POLL key
Press this key after dialing another fax machine to receive a document
(previously loaded in the other machine’s feeder) without assistance from the
operator of the other machine (page 69).
HOLD key
Press this key to put the other party on hold during a phone conversation
(page 54).
SPEAKER key
Press this key to listen to the line and fax tones through the speaker when
faxing a document (page 39).
Note: This is not a speakerphone. You must pick up the handset to talk with
the other party.
STOP key
Press this key to cancel an operation before it is completed.
START/MEMORY key
Press this key after dialing to begin fax transmission (page 40). Press this key
before dialing to send a fax through memory (page 48). The key can also be
pressed in the date and time display to show the percentage of memory
currently used.
COPY/HELP key
When a document is in the feeder, press this key to make a copy of the
document (page 59). At any other time, press this key to print out the Help
List, a quick reference guide to the operation of your fax machine.
11
10
9
8
7
12
13

9
1. Installation
1. Installation
Unpacking Checklist
If any are missing,
contact your
dealer or retailer.
Before setting up,
make sure you
have all of the
following items.
Operation
manual
Handset
Handset
cord
Telephone
line cord
Print
cartridge
Paper tray
Paper tray
extension

Attachments
10
Attachments
Points to keep in mind when setting up
Do not place
the machine in
direct sunlight.
Do not place
the machine
near heaters or
air conditioners.
Keep dust away
from the machine.
About condensation
If the machine is moved from a cold to a warm place, it is possible that
condensation may form on the scanning glass, preventing proper scanning of
documents for transmission. To remove the condensation, turn on the power and
wait approximately two hours before using the machine.
Removing the packing tape
1 Open the operation panel.
2 Open the print compartment cover.
Keep the area
around the
machine clear.

Attachments
11
1. Installation
Connecting the handset
Connect the handset as shown and place it on the handset rest.
♦The ends of the handset cord are identical, so they will go into either jack.
Make sure the handset
cord goes into the jack
marked with a handset
symbol on the side of
the machine!
Use the handset to make ordinary phone calls,
or to transmit and receive faxes manually.
3 Remove the tape.
4 Close the print compartment cover and
then the operation panel.

Attachments
12

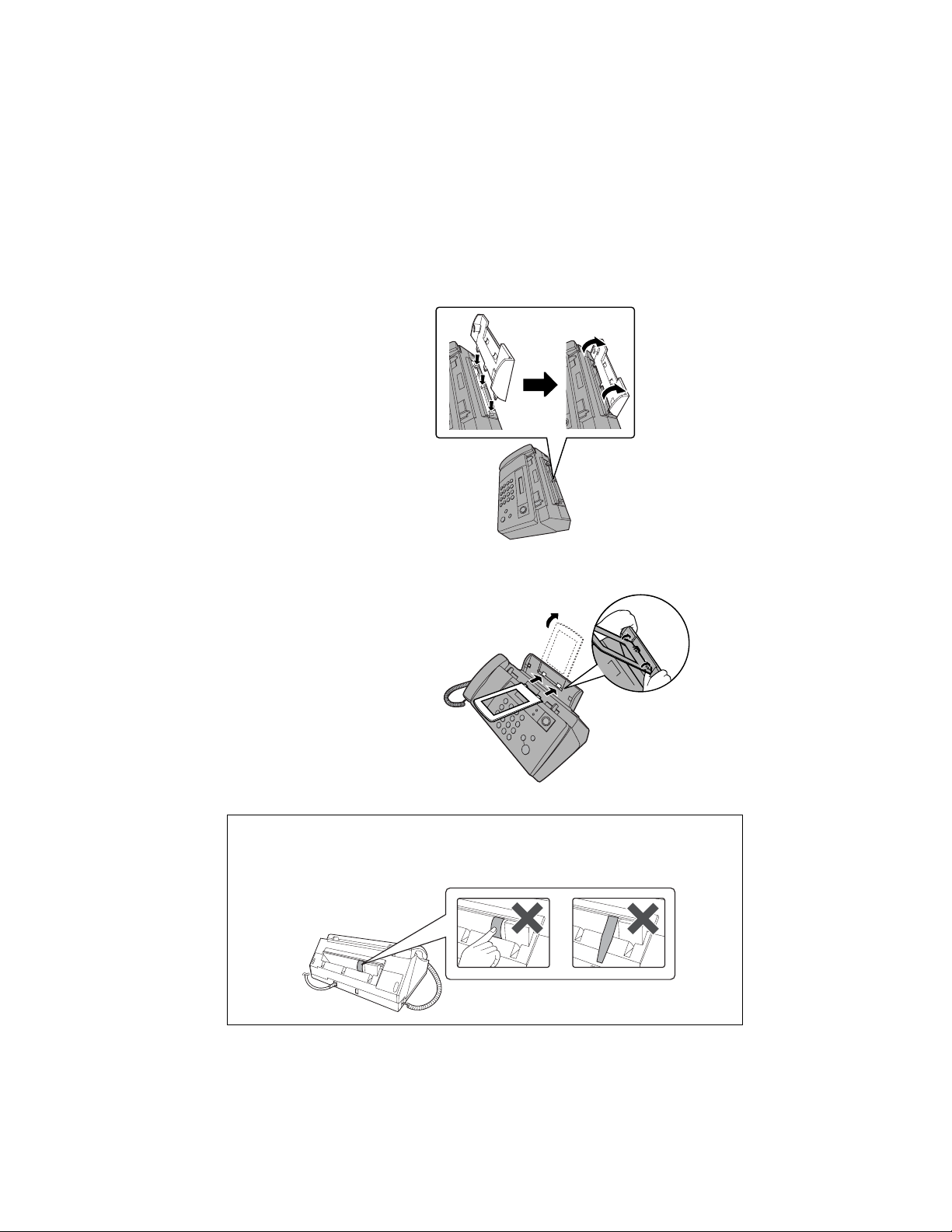

Attaching the paper tray
Attach the paper tray.
Attach the paper tray extension.
Click!
Note: The paper tray extension
has a top side and a bottom
side. If the tabs do not go into
the holes, turn the support over.
Insert
horizontally
and rotate up
Caution!
Do not touch or pull out the black plastic strip shown below. If the strip is
pulled out, paper will not feed correctly.

Loading Printing Paper
13
1. Installation
Loading Printing Paper
You can load letter or legal size paper in the paper tray. Recommended paper
weight is 20-lb. Copy Bond. The maximum number of sheets is as follows:
Letter size: Approx. 100 sheets (20-Ib. copier paper at room temperature;
maximum stack height should not be higher than the line on the
tray)
Legal size: 10 sheets (20-Ib. copier paper at room temperature)
1 Fan the paper, and then tap the edge
against a flat surface to even the stack.
Make sure the stack edges are even.
2 Insert the stack of paper into the tray, PRINT SIDE UP .
•If paper remains in the tray, take it out and combine it into a single stack
with the new paper.
•Be sure to load the paper so that printing takes place on the print side of
the paper. Printing on the reverse side may result in poor print quality.
• GENTLY LOAD PAPER INTO THE PAPER TRAY .
• DO NOT FORCE IT DOWN INTO THE FEED SLOT .
Note: Do not use paper that has already been printed on, or paper that is curled.
The stack
should not
be higher
than this line

Connecting the Power Cord
14
Connecting the Power Cord
Plug the power cord into a 120 V, 60 Hz, grounded AC (3-prong) outlet.
Caution!
♦Do not plug the power cord into any other kind of outlet. This will damage
the machine and is not covered under the warranty.
♦Make sure you have removed all of the packing tape before plugging
in the power cord (see page 10). Plugging in the power cord without
doing so may damage the machine.
Note: If your area experiences a high incidence of lightning or power surges,
we recommend that you install surge protectors for the power and telephone
lines. Surge protectors can be purchased at most telephone specialty stores.
“CHECK CARTRIDGE” normally
appears in the display the first
time you plug in the machine.
This message appears until you
install the print cartridge.
The machine does not have
a power on/off switch, so
the power is turned on and
off by simply plugging in or
unplugging the power cord.

Installing the Print Cartridge
15
1. Installation
If PRINTER ERROR or PRINTER ERROR/CHECK PAPER appears...
In the event that the display shows either of the above messages, you must clear the
error before installing the print cartridge. The error can usually be cleared by pressing
, or if a paper jam has occurred, by removing the paper jam (see page 90).
Installing the Print Cartridge
Follow these steps to install or replace the print cartridge.
♦When replacing the print cartridge, be sure to use a SHARP UX-C70B
cartridge.
Print cartridge yield (at 4% coverage)
Initial cartridge
Quality mode OFF: Approx. 300 letter pages
Quality mode ON: Approx. 200 letter pages
Replacement cartridge (SHARP UX-C70B)
Quality mode OFF: Approx. 600 letter pages
Quality mode ON: Approx. 400 letter pages
Quality mode is initially turned on. To turn off Quality mode, see page 21.
Caution!
Do not open the print compartment cover or insert your hand in the machine
while it is printing.
Note: Keep print cartridges sealed in their packages until you are ready to
install them. It is recommended that you do not use a cartridge that has been
left unused for a long time after opening, as the print quality may be
considerably degraded.
♦Make sure the machine’s power cord is plugged in and paper is loaded
before installing or replacing the print cartridge.
♦If a document is inserted in the feeder, remove the document before
installing or replacing the print cartridge (see page 35).

Installing the Print Cartridge
16

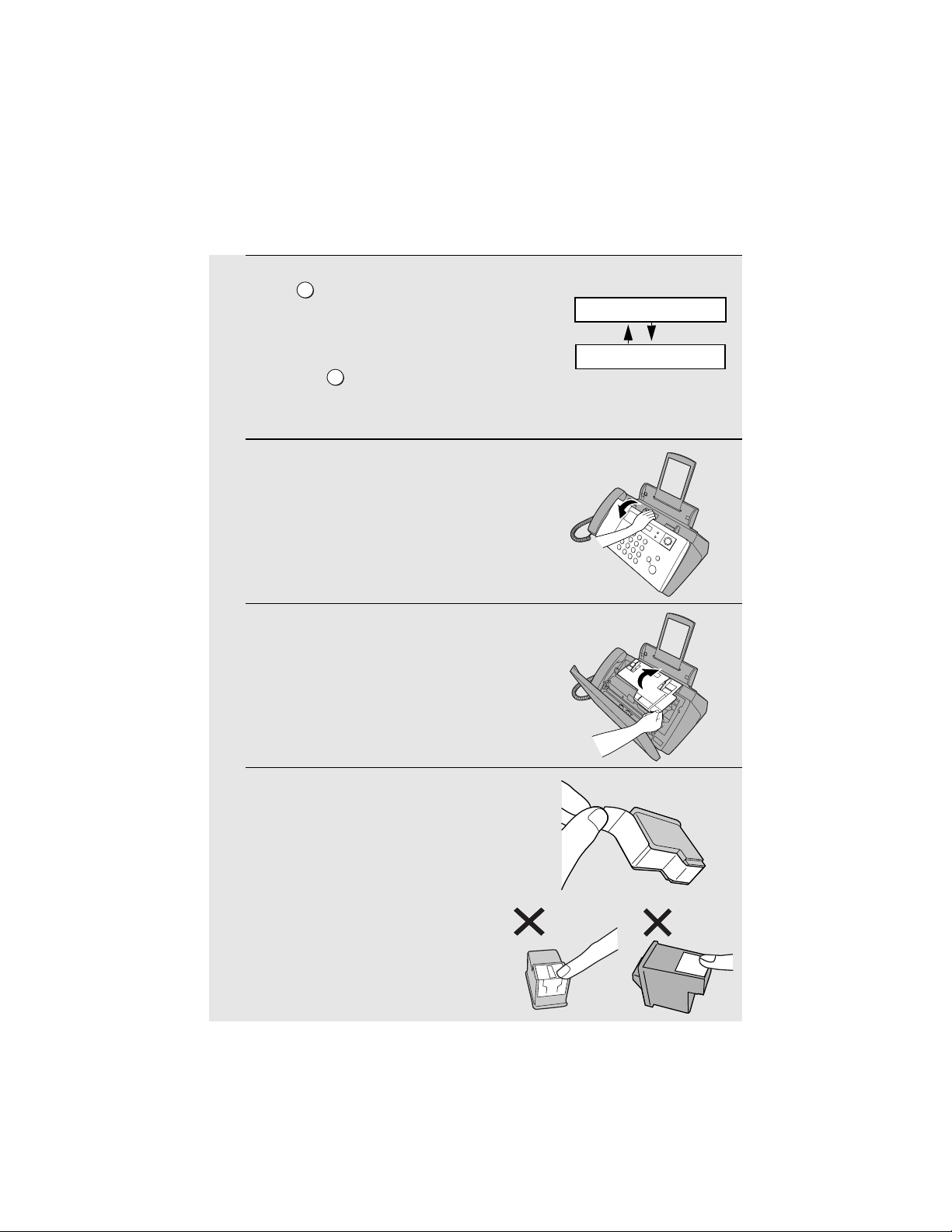

1 Press .
•Make sure the handset is on its cradle.
If the handset is not on the cradle,
pressing will have no effect.
•The print cartridge holder moves to the cartridge replacement position.
2 Open the operation panel.
3 Open the print compartment cover.
4 Remove only the tape from the new
cartridge.
•Important: Make sure you remove all
of the tape.
•CAUTION! DO NOT touch the gold
contact area on the cartridge.
INK
INK
Display:
PRESS INK KEY
REPLACE INK &

Installing the Print Cartridge
17
1. Installation
5 Make sure the cartridge holder has
moved slightly away from the right side
of the compartment, and then pull the
green lever and open the cartridge
holder cover.
•If you are replacing the cartridge,
remove the old cartridge. If you are
going to use the old cartridge again,
place it in an air-tight container.
•CAUTION! DO NOT touch the contact
area inside the cartridge holder, or pull
on the cable that is connected to the
cartridge holder.
6 Insert the new print cartridge into the
cartridge holder.
7 Place your index finger on the tab as
shown and close the cartridge holder
cover with your thumb. Make sure the
cover clicks into place.
Gold contact area
Note: If the print compartment cover is left open
for approximately 30 minutes with a cartridge
installed, the cartridge will automatically return
to its home position. To make the cartridge
return to the cartridge replacement position
when this has happened, press .
INK
Cable

Installing the Print Cartridge
18

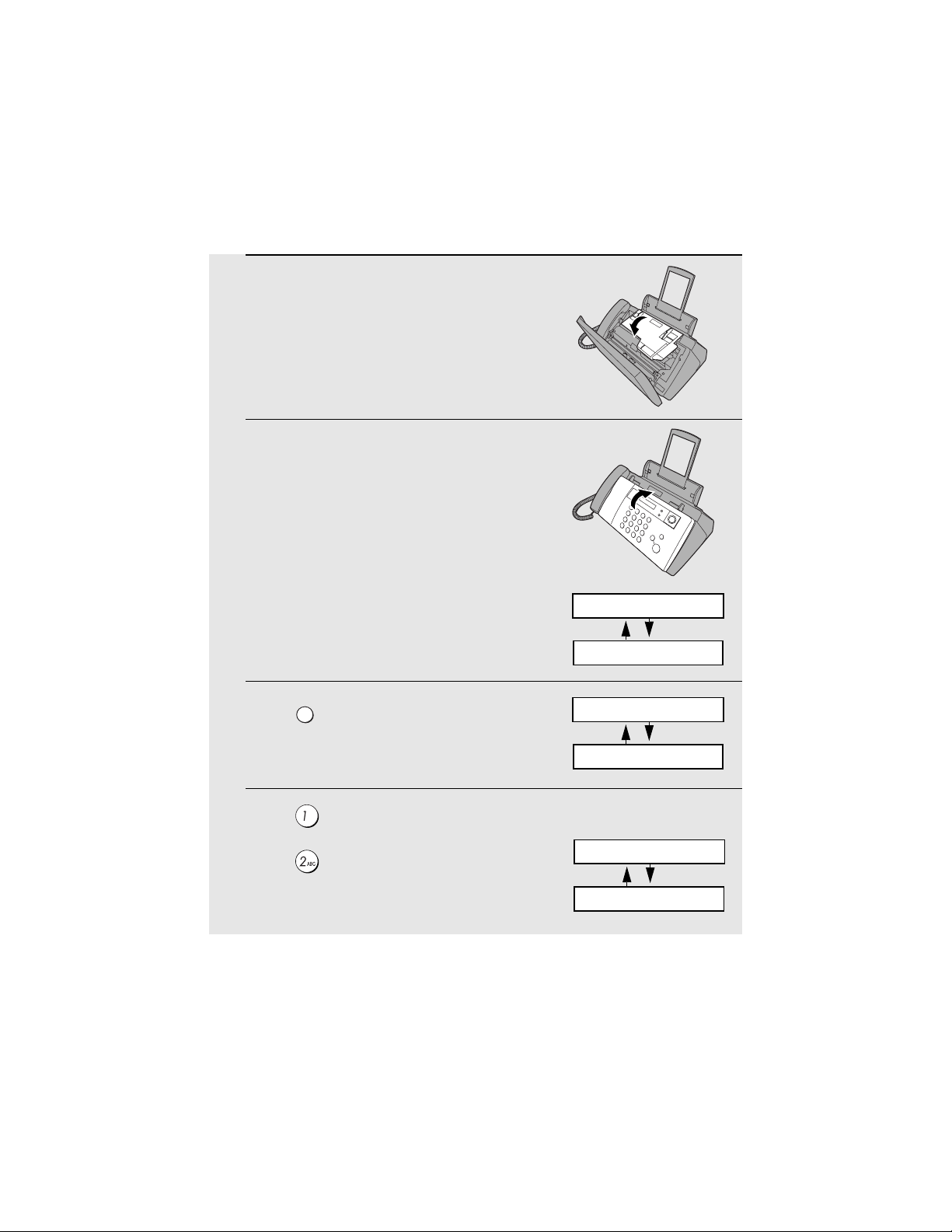

8 Close the print compartment cover.
9 Close the operation panel, pressing
down firmly to make sure it clicks into
place.
10 Press to make the print cartridge
holder return to its home position.
11 Press (NEW) if the cartridge you
installed is new.
Press (OLD) if the cartridge you
installed is old.
INK
1=NEW, 2=OLD
CHANGE CARTRIDGE
Display when “NEW” is
selected:
OK: PRESS START
NEW CART. OK?
Display:
PRESS INK KEY
REPLACE INK &
