FACSIMILE
OPERATION MANUAL
UX-BA50A_ENGLISH_E4454
MODEL
UX-BA50
UX-BA50 FACSIMILE
1. Installation
2. Using the Answering Machine
3. Sending Faxes
4. Receiving Faxes
5. Making Copies
6. Special Functions
7. Printing Lists
8. Maintenance
9. Troubleshooting

WARRANTY
Facsimile Products
Congratulations on Your Purchase!
FOR THE SERVICING OF PRODUCTS
PURCHASED IN
NEW ZEALAND
CONTACT YOUR SELLING DEALER/RETAILER
OR FOR REFERRAL TO A
SERVICE CENTRE,
CALL SHARP CUSTOMER SERVICES
TELEPHONE: [phone]
FACSIMILE: 09 573 0113
WEB: www.sharpnz.co.nz
SHARP CORPORATION OF NEW ZEALAND LIMITED
59 Hugo Johnston Drive Penrose, Auckland
This Sharp product is warranted against manufacturing defects for a period of twelve (12) months from
the date of original purchase.
In the event of any defect arising in the equipment during the warranty period, such repairs should only
be carried out by the Dealer from which the unit was originally purchased or a Service Centre approved
by Sharp to service this type of equipment. These repairs would be carried out at no charge to the
owner, subject to the conditions specified herein.
The owner is responsible for any transportation and insurance costs if the product has to be returned
for repair.
This warranty does not extend to accessories or defects or injuries caused by or resulting from causes
not attributable to faulty parts or the manufacture of the product, including but not limited to, defect or
injury caused by or resulting from misuse, abuse, neglect, accidental damage, improper voltage, liquid
spillage, vermin infestation, software, use of consumables other than those approved by Sharp, or any
alterations made to the product which are not authorised by Sharp.
Please retain your sales documentation, as this should be produced to validate a warranty claim.
This warranty is in addition to and in no way limits, varies or excludes any express and implied rights
and remedies under any relevant legislation in the country of sale. However, to the extent permitted by
such legislation, Sharp excludes any liability for any indirect or consequential damages arising from the
purchase or use of the product.
To the extent permitted by law, Sharp excludes all implied warranties and conditions and where the
product is one that is not normally required for personal, domestic or household use, Sharp limits its
liability to the repair or replacement (at Sharp's option) of materials or workmanship which are found by
Sharp to be defective.
For your reference, please enter the particulars of your purchase below and retain, with your purchase
documentation.
Model No.
Serial No.
Date of Purchase
Place of Purchase
SPform046 (Dec2001)
FOR LOCATION ENQUIRIES WITHIN
AUSTRALIA
REGARDING YOUR LOCAL
SHARP APPROVED SERVICE CENTRE
CALL SHARP
LOCAL CALL: 1 300 135 022
FACSIMILE: [phone]
WEB: www.sharp.net.au
SHARP CORPORATION OF AUSTRALIA PTY. LIMITED
A.C.N. 003 039 405
1 Huntingwood Drive, Huntingwood NSW 2148
Important Notice: This warranty applies only to products sold in Australia & New Zealand
all.book Page 1 Tuesday, August 3, 2004 11:08 AM

1
Introduction
*Quality mode is initially turned off. To turn on Quality mode, see page 22.
**Based on Sharp Standard Chart at standard resolution, excluding time for protocol signals
(i.e., ITU-T phase C time only).
Print cartridge yield*
(at 4% coverage**)
Initial cartridge
Quality mode OFF: Approx. 300 A4 pages
Quality mode ON: Approx. 200 A4 pages
Replacement cartridge: SHARP UX-C70B
Quality mode OFF: Approx. 600 A4 pages
Quality mode ON: Approx. 400 A4 pages
Paper tray capacity Approx. 100 A4-size sheets
(at room temperature; maximum stack height
should not be higher than the line on the tray)
Recording system Thermal inkjet
Print resolution 600 ×600 dpi
Effective printing width 203 mm max.
Memory size** 448 KB (approx. 24 average pages with ECM
turned off; 20 minutes of voice messages
(including OGMs))
Modem speed 14,400 bps with auto fallback to lower speeds.
Transmission time** Approx. 6 seconds (only when ECM is on)
Compatibility ITU-T (CCITT) G3 mode
Compression scheme MR, MH, MMR
Automatic dialling 30 numbers
Welcome, and thank you for
choosing a SHARP inkjet
fax machine! The features
and specifications of your
inkjet fax are shown below.
all.book Page 1 Tuesday, August 3, 2004 11:08 AM

2
Telephone function Yes (cannot be used if power fails)
Applicable telephone line Public switched telephone network
Reception modes TEL/FAX, TEL, FAX, A.M.
Automatic document
feeder 10 sheets max. (A4, 80 g/m2paper)
Input document size Automatic feeding:
Width: 148 to 216 mm
Length: 140 to 297 mm
Manual feeding:
Width: 148 to 216 mm
Length: 140 to 600 mm
Effective scanning width 210 mm max.
Scanning Resolution Horizontal: 8 lines/mm
Vertical:
Standard: 3.85 lines/mm
Fine /Halftone: 7.7 lines/mm
Super fine: 15.4 lines/mm
Halftone (grayscale) 64 levels
Contrast control Automatic/Dark selectable
Copy function Single/Multi/Sort (99 copies/page)
Display 16-digit LCD display
Power requirements 230-240 V AC, 50 Hz
Power consumption Standby: 5.3 W
Maximum: 35 W
Operating temperature 15 - 32°C
Humidity 25 - 80% RH
Dimensions (without
attachments)
Width: 354 mm
Depth: 247 mm
Height: 138 mm
Weight (without
attachments)
Approx. 3.2 kg
all.book Page 2 Tuesday, August 3, 2004 11:08 AM

3
As a part of our policy of continuous improvement, SHARP reserves the right to make design
and specification changes for product improvement without prior notice. The performance
specification figures indicated are nominal values of production units. There may be some
deviations from these values in individual units.
Important:
This fax machine is not designed for use on a line which has call waiting, call
forwarding, or certain other special services offered by your telephone company. If
you attempt to use the fax machine in conjunction with any of these services, you
may experience errors during transmission and reception of facsimile messages.
The fax machine is not compatible with digital telephone systems.
Important safety information
For your safety, if any of your equipment is not operating properly or should any
physical damage occur to the equipment where internal parts may become
exposed, the equipment should be immediately disconnected from the phone line
and then the power line and returned to a SHARP authorised Service Centre for
inspection, repair, or disposal.
In Australia, installing or modifying telephone lines should only be done by an ACA
licensed serviceman. In New Zealand, installing or modifying telephone lines should
be done in accordance with Telecom wiring practices.
This facsimile machine is designed for use in Australia and New Zealand only.
Do not disassemble this machine or attempt any procedures not described in this
manual. Refer all servicing to qualified service personnel.
Do not install or use the machine near water, or when you are wet. For example, do
not use the machine near a bath tub, wash bowl, kitchen sink or laundry tub, in a wet
basement, or near a swimming pool. Take care not to spill any liquids on the
machine.
Unplug the machine from the power outlet and telephone socket and consult a
qualified service representative if any of the following situations occur:
- Liquid has been spilled into the machine or the machine has been
exposed to rain or water.
- The machine produces odors, smoke, or unusual noises.
- The power cord is frayed or damaged.
- The machine has been dropped or the housing damaged.
Do not allow anything to rest on the power cord, and do not install the machine
where people may walk on the power cord.
all.book Page 3 Tuesday, August 3, 2004 11:08 AM

4
This machine must only be connected to a 230-240 V, 50 Hz, earthed (3-prong)
outlet. Connecting it to any other kind of outlet will damage the machine.
Never insert objects of any kind into slots or openings on the machine. This could
create a risk of fire or electric shock. If an object falls into the machine that you
cannot remove, unplug the machine and consult a qualified service representative.
Do not place this machine on an unstable cart, stand or table. The machine could be
seriously damaged if it falls.
Never install telephone wiring during a lightning storm.
Never install telephone sockets in wet locations unless the socket is specifically
designed for wet locations.
Never touch bare telephone wires or terminals unless the telephone line has been
disconnected at the network interface.
Use caution when installing or modifying telephone lines.
Avoid using a telephone (other than a cordless type) during an electrical storm.
There may be a remote risk of electric shock from lightning.
Do not use a telephone to report a gas leak in the vicinity of the leak.
The power outlet must be installed near the equipment and must be easily
accessible.
WARNING NOTICE:
NO calls can be made to or from this fax machine during a mains power failure.
WARNING: Australian Communications Authority (ACA) regulations state that no
unauthorised changes or modifications to this equipment are permitted.
Note: Complies with ACA and NZ TELECOM standard AS/NZS CISPR22 regarding
emission of electromagnetic interference.
These limits are designed to provide reasonable protection against interference in
an installation. This equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause
interference. However, there is no guarantee that interference will not occur in a
particular installation.
If this equipment does cause interference to radio or television reception, which can
be determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and the receiver.
all.book Page 4 Tuesday, August 3, 2004 11:08 AM

5
- Connect the equipment to an outlet on a different circuit to that which the receiver
is connected.
- Consult the dealer or an experienced radio/TV technician for help.
For Australia: The Ringer Equivalence Number (REN) for this equipment is written
on the back of the machine. The sum of all Ringer Equivalence Numbers (REN's) on
your telephone line should not exceed 3 to assure correct service from your
telephone company.
IMPORTANT NOTICE FOR NEW ZEALAND USERS
Please note:
The grant of a Telepermit for any item of terminal equipment indicates only that
Telecom has accepted that the item complies with the minimum conditions for
connection to its network. It indicates no endorsement of the product by Telecom,
nor does it provide any sort of warranty. Above all, it provides no assurance that any
item will work correctly in all respects with another item of Telepermitted equipment
of a different make or model, nor does it imply that any product is compatible with all
of Telecom's network services.
This equipment shall not be set up to make automatic calls to the Telecom `111'
Emergency Service.
To avoid telephone charges for local calls, be sure to store numbers without area
code in your auto-dial locations.
This equipment may not provide for the effective hand-over of a call to another
device connected to the same line.
All persons using this device for recording telephone conversations shall comply
with New Zealand law. This requires that at least one party to the conversation is to
be aware that it is being recorded. In addition , the Principles enumerated in the
Privacy Act 1993 shall be complied with in respect to the nature of the personal
information collected, the purpose for its collection, how it is used and what is
disclosed to any other party.
all.book Page 5 Tuesday, August 3, 2004 11:08 AM

6
Table of Contents

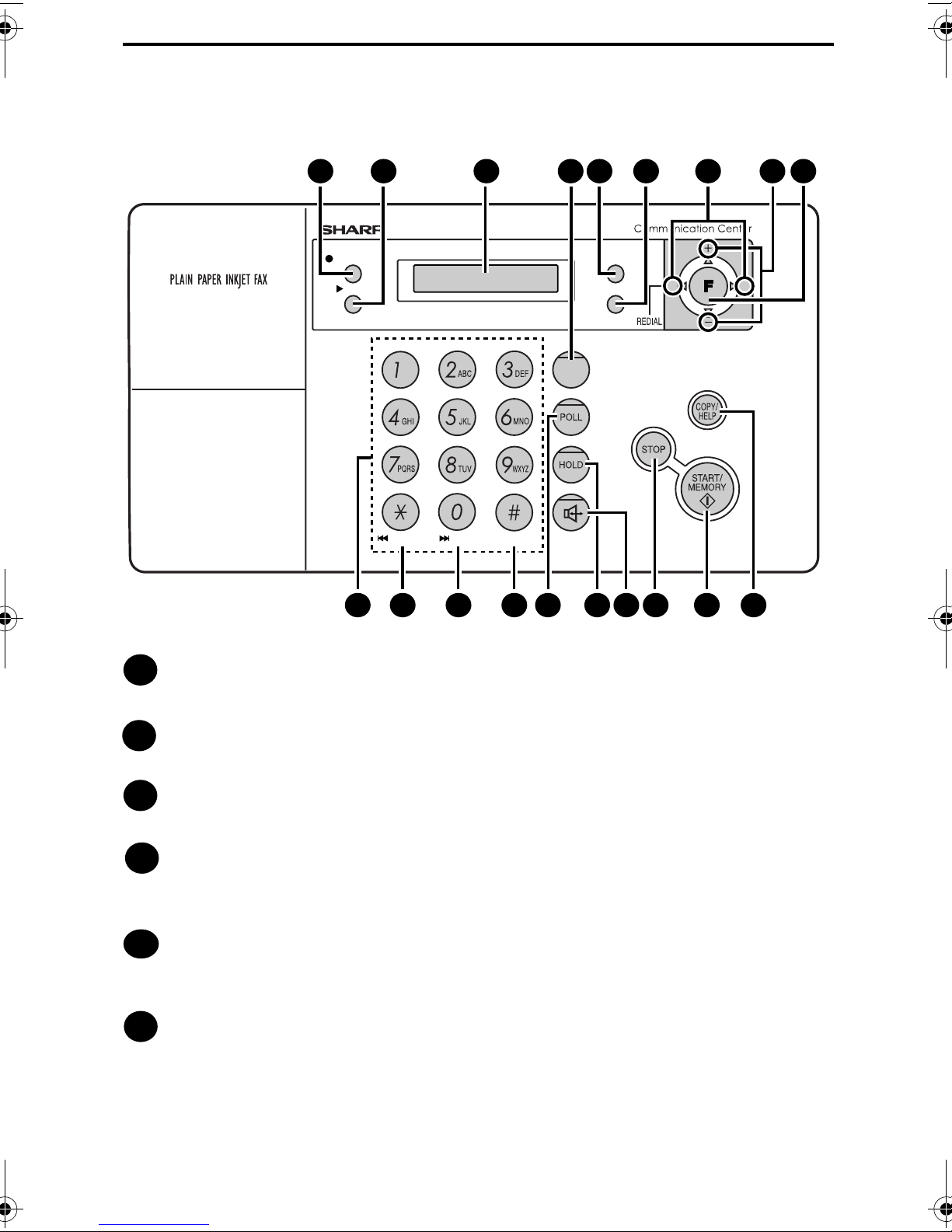

A Look at the Operation Panel 8
1. Installation 11

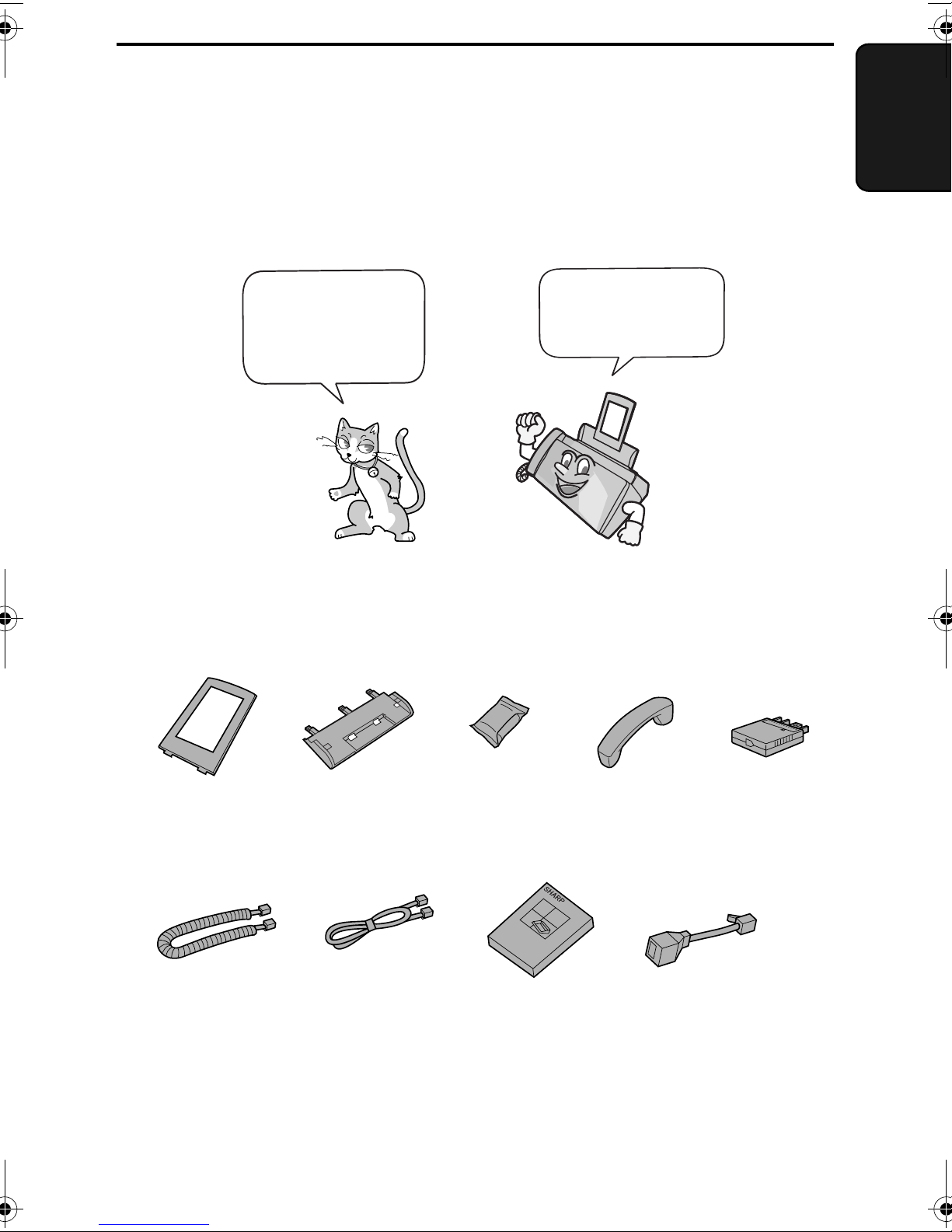

Unpacking Checklist . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Attachments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Loading Printing Paper . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Connecting the Power Cord . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Installing the Print Cartridge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Connecting the Telephone Line Cord. . . . . . . . . . . . . . . . . . . . . . . . 24
Entering Your Name and Fax Number . . . . . . . . . . . . . . . . . . . . . . . 26
Setting the Date and Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Setting the Reception Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Volume Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
2. Using the Answering Machine 35
Recording an Outgoing Message . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Operating the Answering Machine . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Optional Answering Machine Settings . . . . . . . . . . . . . . . . . . . . . . . 40
Transfer Function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Override Ringing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Remote Operations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
3. Sending Faxes 53
Transmittable Documents. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
Loading the Document . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
Adjusting the Resolution and Contrast . . . . . . . . . . . . . . . . . . . . . . . 56
Sending a Fax by Normal Dialling . . . . . . . . . . . . . . . . . . . . . . . . . . 59
Sending a Fax by Automatic Dialling . . . . . . . . . . . . . . . . . . . . . . . . 60
Using the Speakerphone to Make a Phone Call. . . . . . . . . . . . . . . . 68
Batch Page Numbering . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69
Sending a Fax From Memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
4. Receiving Faxes 73
Using TEL/FAX Mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
Using A.M. Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
all.book Page 6 Tuesday, August 3, 2004 11:08 AM

Table of Contents
7
Using FAX Mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75
Using TEL Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76
Optional Reception Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79
Substitute Reception to Memory. . . . . . . . . . . . . . . . . . . . . . . . . . . . 81
5. Making Copies 82
6. Special Functions 85
Caller ID (Requires Subscription to Service) . . . . . . . . . . . . . . . . . . 85
Distinctive Ring (Requires Subscription to Service) . . . . . . . . . . . . . 90
Blocking Reception of Unwanted Faxes . . . . . . . . . . . . . . . . . . . . . . 91
Polling (Requesting a Fax Transmission) . . . . . . . . . . . . . . . . . . . . . 92
7. Printing Lists 93
8. Maintenance 97
Cleaning the Machine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97
Improving Print Quality . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100
9. Troubleshooting 105
Problems and Solutions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 105
Messages and Signals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 109
Clearing Paper Jams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 112
Quick Reference Guide 114
Index 115
all.book Page 7 Tuesday, August 3, 2004 11:08 AM

8
ZA
DIGITAL
SPEAKERPHONE
RECEPTION
TEL/FAX A.M.
INK
REC/MEMO
PLAY
TEL FAX
RESO.
3 4 5 6
11 13 14 15 16 17 18
1 2
10 129
7 7 8
DELETEREPEAT SKIP
Digital Answering System
REC/MEMO key
Press this key to record an outgoing message or memo (pages 35 and 39).
PLAY key
Press this key to play recorded messages (page 38).
Display
This displays messages and prompts to help you operate the machine.
RESOLUTION key
When a document is in the feeder, press this key to adjust the resolution for
faxing or copying (page 57).
RECEPTION key
Press this key to select the reception mode (an arrow in the display will point
to the currently selected reception mode; page 30).
INK key
Press this key before installing or replacing the print cartridge to move the
print cartridge holder to the cartridge replacement position (page 18).
A Look at the Operation Panel
1
2
3
4
5
6
all.book Page 8 Tuesday, August 3, 2004 11:08 AM

9
Arrow keys
Use these keys to scroll through and select settings, and to search for auto-
dial numbers (page 64).
FUNCTION key
Press this key followed by the arrow keys to select special functions and
settings.
Number keys
Use these keys to dial numbers, and enter numbers and letters when storing
auto-dial numbers.
REPEAT key
Press this key while listening to a message to play it again.
SKIP key
Press this key while listening to a message to skip to the next message.
DELETE key
Press this key to erase recorded messages.
POLL key
Press this key after dialling another fax machine to receive a document
(previously loaded in the other machine’s feeder) without assistance from the
operator of the other machine (page 92).
HOLD key
Press this key to put the other party on hold during a phone conversation
(page 78).
DIGITAL SPEAKERPHONE key
Press this key to talk with the other party through the speakerphone during a
call (speak facing the operation panel at a distance of about 50 cm to 1m;
page 68). This key can also be used to listen to the line and fax tones through
the speaker when faxing a document (page 59).
STOP key
Press this key to cancel an operation before it is completed.
START/MEMORY key
Press this key after dialling to begin fax transmission (page 60). Press this key
before dialling to send a fax through memory (page 70). The key can also be
pressed in the date and time display to show the percentage of memory
currently used.
11
10
9
8
7
12
13
14
15
16
17
all.book Page 9 Tuesday, August 3, 2004 11:08 AM

10
COPY/HELP key
When a document is in the feeder, press this key to make a copy of the
document (page 83). At any other time, press this key to print out the Help
List, a quick reference guide to the operation of your fax machine.
18

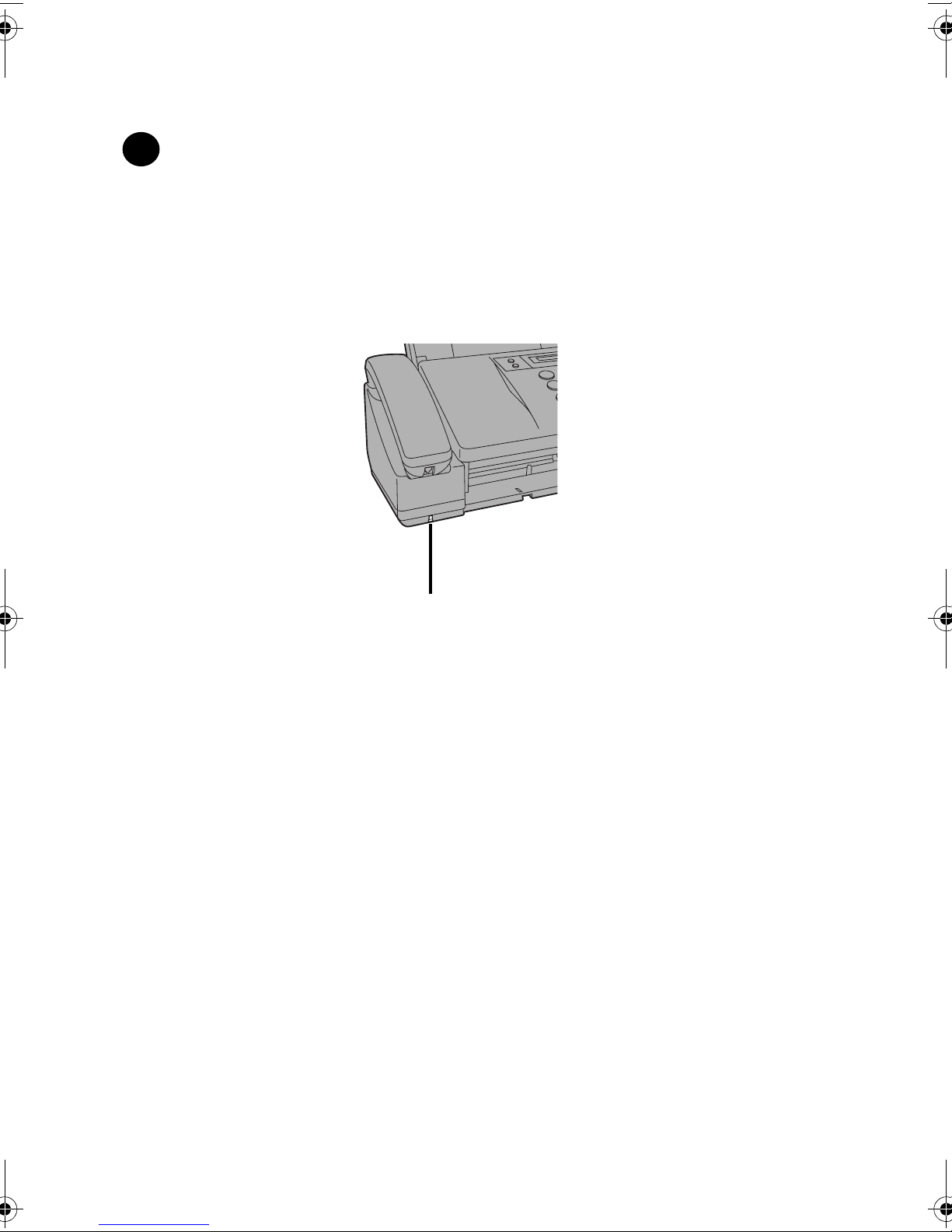

The microphone is located here. Speak facing this
location when using the speakerphone.
Microphone location
all.book Page 10 Tuesday, August 3, 2004 11:08 AM

11
1. Installation
1. Installation
Unpacking Checklist
If any are missing,
contact your
dealer or retailer.
Before setting up,
make sure you
have all of the
following items.
Operation
manual
Handset
Handset
cord
Telephone
line cord
Print
cartridge
Paper tray
Paper tray
extension
Adapter
(for Australia)
Adapter
(for New Zealand)
all.book Page 11 Tuesday, August 3, 2004 11:08 AM

Attachments
12
Attachments
Points to keep in mind when setting up
Do not place
the machine in
direct sunlight.
Do not place
the machine
near heaters or
air conditioners.
Keep dust away
from the machine.
About condensation
If the machine is moved from a cold to a warm place, it is possible that
condensation may form on the scanning glass, preventing proper scanning of
documents for transmission. To remove the condensation, turn on the power and
wait approximately two hours before using the machine.

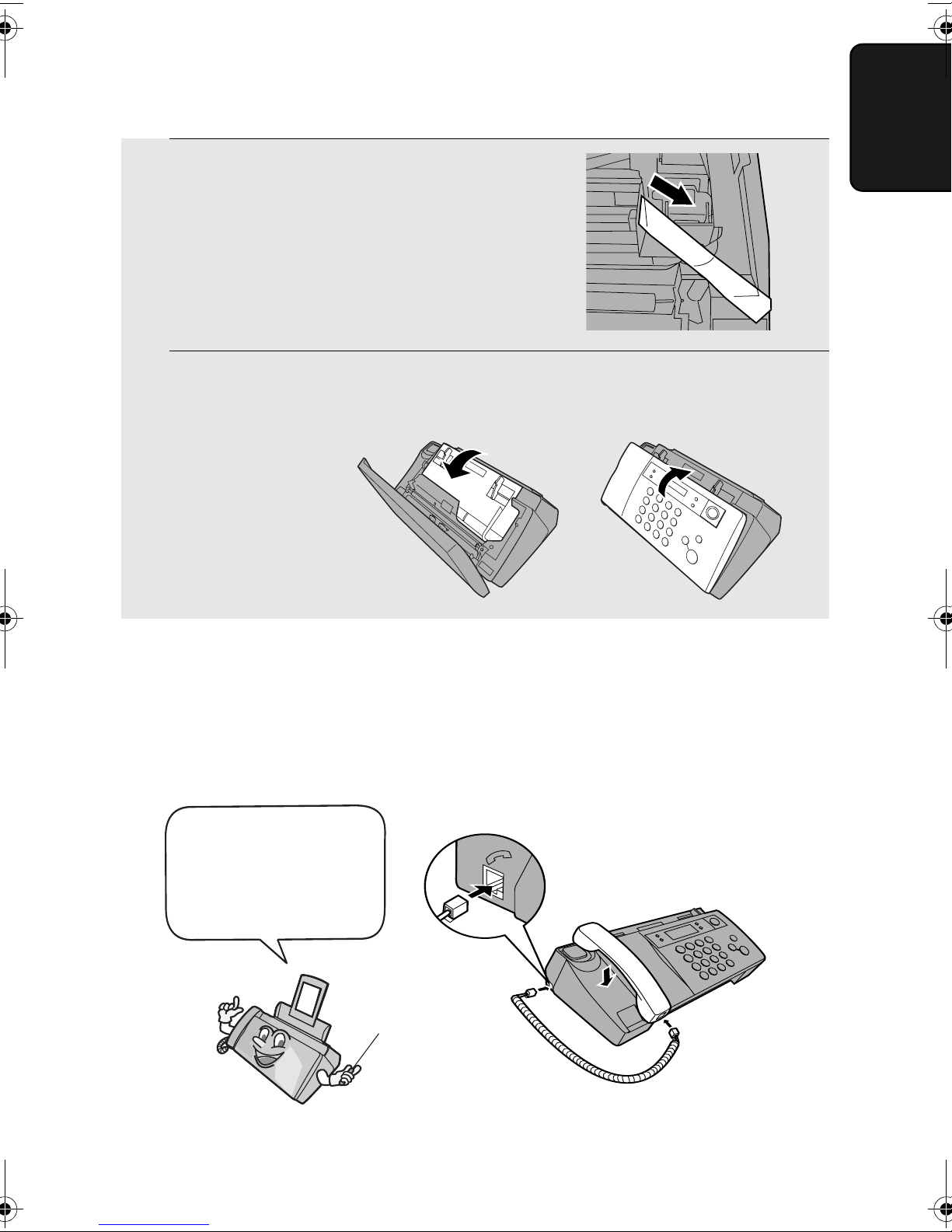

Removing the packing tape
1Open the operation panel.
2Open the print compartment cover.
Keep the area
around the
machine clear.
all.book Page 12 Tuesday, August 3, 2004 11:08 AM

Attachments
13
1. Installation
Connecting the handset
Connect the handset as shown and place it on the handset rest.
♦The ends of the handset cord are identical, so they will go into either
socket.
Make sure the handset
cord goes into the
socket marked with a
handset symbol on the
side of the machine!
Use the handset to make ordinary phone calls,
or to transmit and receive faxes manually.
3Remove the tape.
4Close the print compartment cover and
then the operation panel.
all.book Page 13 Tuesday, August 3, 2004 11:08 AM

Attachments
14

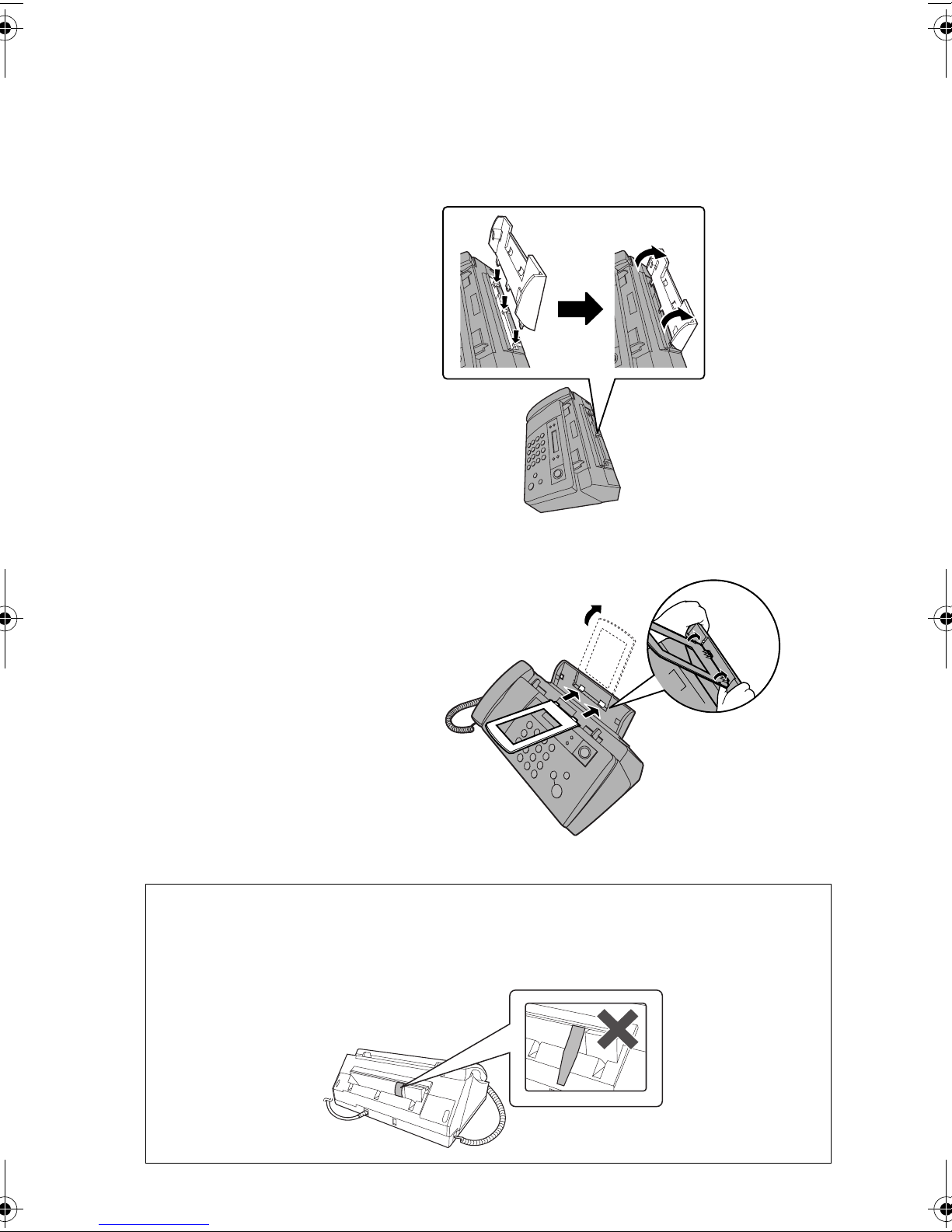

Attaching the paper tray
Attach the paper tray.
Attach the paper tray extension.
Click!
Note: The paper tray extension
has a top side and a bottom
side. If the tabs do not go into
the holes, turn the support over.
Insert
horizontally
and rotate up
Caution!
Do not pull out the black plastic strip shown below. If the strip is pulled out,
paper will not feed correctly.
all.book Page 14 Tuesday, August 3, 2004 11:08 AM

Loading Printing Paper
15
1. Installation
Loading Printing Paper
You can load up to 100 sheets of A4-size paper (60 - 80 g/m2) in the paper
tray (at room temperature; maximum stack height should not be higher than
the line on the tray).
1Fan the paper, and then tap the edge
against a flat surface to even the stack.
Make sure the stack edges are even.
2Insert the stack of paper into the tray, PRINT SIDE UP.
•If paper remains in the tray, take it out and combine it into a single stack
with the new paper.
•Be sure to load the paper so that printing takes place on the print side of
the paper. Printing on the reverse side may result in poor print quality.
•GENTLY LOAD PAPER INTO THE PAPER TRAY.
•DO NOT FORCE IT DOWN INTO THE FEED SLOT.
Note: Do not use paper that has already been printed on, or paper that is curled.
The stack
should not
be higher
than this line
all.book Page 15 Tuesday, August 3, 2004 11:08 AM

Connecting the Power Cord
16
Connecting the Power Cord
Plug the power cord into a 230-240 V, 50 Hz, earthed AC (3-prong) outlet.
Caution!
♦Make sure you have removed all of the packing tape before plugging
in the power cord (see page 12). Plugging in the power cord without
doing so may damage the machine.
♦When disconnecting the machine, unplug the telephone line cord before
unplugging the power cord.
♦The power outlet must be installed near the equipment and must be easily
accessible.
Note: If your area experiences a high incidence of lightning or power surges,
we recommend that you install surge protectors for the power and telephone
lines. Surge protectors can be purchased at most telephone specialty stores.
“CHECK CARTRIDGE” normally
appears in the display the first
time you plug in the machine.
This message appears until you
install the print cartridge.
The machine does not have
a power on/off switch, so
the power is turned on and
off by simply plugging in or
unplugging the power cord.
all.book Page 16 Tuesday, August 3, 2004 11:08 AM

Installing the Print Cartridge
17
1. Installation
If PRINTER ERROR or PRINTER ERROR/CHECK PAPER appears...
In the event that the display shows either of the above messages, you must clear the
error before installing the print cartridge. The error can usually be cleared by pressing
, or if a paper jam has occurred, by removing the paper jam (see page 113).
Installing the Print Cartridge
Follow these steps to install or replace the print cartridge.
♦When replacing the print cartridge, be sure to use a SHARP UX-C70B
cartridge.
Print cartridge yield (at 4% coverage)
Initial cartridge
Quality mode OFF: Approx. 300 A4 pages
Quality mode ON: Approx. 200 A4 pages
Replacement cartridge (SHARP UX-C70B)
Quality mode OFF: Approx. 600 A4 pages
Quality mode ON: Approx. 400 A4 pages
Quality mode is initially turned off. To turn on Quality mode, see page 22.
Caution!
Do not open the print compartment cover or insert your hand in the machine
while it is printing.
Note: Keep print cartridges sealed in their packages until you are ready to
install them. It is recommended that you do not use a cartridge that has been
left unused for a long time after opening, as the print quality may be
considerably degraded.
♦Make sure the machine’s power cord is plugged in and paper is loaded
before installing or replacing the print cartridge.
♦If a document is inserted in the feeder, remove the document before
installing or replacing the print cartridge (see page 55).
all.book Page 17 Tuesday, August 3, 2004 11:08 AM

Installing the Print Cartridge
18
1Press .
•Make sure the handset is on its cradle.
If the handset is not on the cradle,
pressing will have no effect.
•The print cartridge holder moves to the cartridge replacement position.
2Open the operation panel.
3Open the print compartment cover.
4Remove only the tape from the new
cartridge.
•Important: Make sure you remove all
of the tape.
•CAUTION! DO NOT touch the gold
contact area on the cartridge.
INK
INK
Display:
PRESS INK KEY
REPLACE INK &
all.book Page 18 Tuesday, August 3, 2004 11:08 AM
