OPERATION MANUAL
FACSIMILE
MODEL
UX-460
1. Installation
2. Using the Answering Machine
3. Sending Documents
4. Receiving Documents
5. Making Copies
6. Making Telephone Calls
7. Special Functions
8. Option Settings
9. Printing Reports and Lists
10. Maintenance
11. Troubleshooting
UX-460 FACSIMILE

WARNING FCC Regulationsstatethat any unauthorized changesor modificationsto this equipment
not expressly approved by the manufacturer could void the user’s authority to operate this
equipment.
FOR YOUR RECORDS
Please record the model number and serial number below, for easy reference, in case of loss
or theft. These numbers are located on the rear side of the unit.
Space is also provided for other relevant information.
Model Number_____________________________________________________________
Serial Number _____________________________________________________________
Date of Purchase___________________________________________________________
Place of Purchase __________________________________________________________
Note: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference in a residential
installation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications. However, there
isno guarantee that interference willnotoccurina particular installation.Ifthisequipment does causeharmful
interference to radio or television reception, which can be determined by turning the equipment off and on,
the user is encouraged to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and the receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
ABOUT THE TELEPHONE CONSUMER PROTECTION ACT OF 1991
"The Telephone Consumer Protection Act of 1991 makes it unlawful for any person to use a computer or
other electronicdevice to send anymessage via a telephone facsimile machineunlesssuchmessage clearly
contains in a margin at the top or bottom of each transmitted page or on the first page of the transmission
the following information:
(1) The date and time of transmission.
(2) Identification of either the business, business entity or individual sending the message.
(3) Telephone number of either the sending machine, business, business entity or individual.
In order to program this information into your facsimile machine, please refer to the appropriate instructions
in the operation manual."
As an ENERGY STAR®partner, SHARP has deter-
mined that this product meets the ENERGY STAR®
guidelines for energy efficiency.

Introduction
Welcome, and thank you for
choosing a Sharp facsimile!
The features and
specifications of your new
Sharp fax are shown below.
Automatic dialing Rapid Key Dialing: 5 numbers
Speed Dialing: 40 numbers
Imaging film Initial starter roll (included with fax machine):
32 ft. (10 m) roll (approx. 30 letter-size pages)
Replacement roll:
UX-3CR 98 ft. (30 m) roll (two rolls in
package, one roll yields approx. 100 letter-
size pages)
Automatic document
feeder 10 sheets max.
Memory size*: 512 KB (approx. 30 average pages with no voice
messages recorded, or 24 minutes of voice mes-
sages (including OGMs) with no documents in
memory)
Modem speed 9600 bps with automatic fallback to 7200, 4800,
or 2400 bps
Transmission time* Approx. 15 seconds (Sharp special mode)
Reception modes TEL/FAX/TAD
Resolution Horizontal:
203 pels/inch (8 pels/mm)
Vertical:
Standard: 98 lines/inch (3.85 lines/mm)
Fine /Halftone:
196 lines/inch (7.7 lines/mm)
Super fine :
391 lines/inch (15.4 lines/mm)
Note: The facsimile machine is Year 2000 compliant.
* Based on ITU-T Test Chart #1 at standard resolution in Sharp special mode,
excluding time for protocol signals (i.e., ITU-T phase C time only).
1

Display 16-digit LCD display
Recording system Thermal transfer recording
Paper tray capacity
(16- to 20-lb. paper) Letter: 60 sheets
Legal: 30 sheets
Halftone (grayscale) 64 levels
Applicable telephone line Public switched telephone network
Compatibility ITU-T (CCITT) G3 mode
Compression scheme MH, MR, Sharp
Scanning method Sheet-feeder CIS (Contact Image Sensor)
Effective printing width 8.3" (208 mm) max.
Input document size Automatic feeding:
Width: 5.8 to 8.5" (148 to 216 mm)
Length: 5.5 to 11" (140 to 279 mm)
Manual feeding:
Width: 5.8 to 8.5" (148 to 216 mm)
Length: 5.5 to 23.6" (140 to 600 mm)
Effective scanning width 8.3" (210 mm) max.
Contrast control Automatic/Dark selectable
Copy function Standard
Telephone function Standard (cannot be used if power fails)
Power requirements 120 V AC, 60 Hz
Operating temperature 41 to 95°F (5 to 35°C)
Humidity Maximum: 85 %
Power consumption Stand-by: 4.2 W
Maximum: 100 W
Dimensions Width: 13.5" (343 mm)
Depth: 10.1" (256 mm)
Height: 7.2" (182 mm)
Weight Approx. 7.3 lbs. (3.3 kg)
As a part of our policy of continuous improvement, SHARP reserves the right to make
design and specification changes for product improvement without prior notice. The
performance specification figures indicated are nominal values of production units.
There may be some deviations from these values in individual units.
2

Important safety information
•Donotdisassemblethis machineorattemptanyproceduresnotdescribed
in this manual. Refer all servicing to qualified service personnel.
•This machine must only be connected to a 120 V, 60 Hz, grounded
(3-prong) outlet. Connecting it to any other kind of outlet will damage
the machine and invalidate the warranty.
•Do not install or use the machine near water, or when you are wet. Take
care not to spill any liquids on the machine.
•Unplugthemachinefromthepoweroutletandtelephonejackandconsult
a qualifiedservice representative if any of the following situationsoccur:
- Liquid has been spilled into the machine or the machine has been
exposed to rain or water.
- The machine produces odors, smoke, or unusual noises.
- The power cord is frayed or damaged.
- The machine has been dropped or the housing damaged.
•Do not allow anything to rest on the power cord, and do not install the
machine where people may walk on the power cord.
•Never insert objects of any kind into slots or openings on the machine.
This could create a risk of fire or electric shock. If an objectfallsinto the
machine that you cannot remove, unplug the machine and consult a
qualified service representative.
•Donotplacethis machineonanunstablecart,standortable.Themachine
could be seriously damaged if it falls.
•Never install telephone wiring during a lightning storm.
•Never install telephone jacks in wet locations unless the jack is specifi-
cally designed for wet locations.
•Never touch bare telephone wires or terminals unless the telephone line
has been disconnected at the network interface.
3

•Use caution when installing or modifying telephone lines.
•Avoid using a telephone (other than a cordless type) during an electrical
storm. There may be a remote risk of electric shock from lightning.
•Do not use a telephone to report a gas leak in the vicinity of the leak.
•The power outletmustbe installednear the equipmentand must beeasily
accessible.
Important:
•• This facsimile machine is not designed for use on a line which has call
waiting, call forwarding, or certain other special services offered by your
telephone company. If you attempt to use the fax machine in conjunction
with any of these services, you may experience errors during transmission
and reception of facsimile messages.
•• This facsimile machine is not compatible with digital telephone systems.
4

Table of Contents
1 Installation 7
Unpacking Checklist. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
A Look at the Operation Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Connections. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Loading the Imaging Film. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Loading Printing Paper . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Entering Your Name and Fax Number. . . . . . . . . . . . . . . . . . . . . . . . . 25
Setting the Date and Time. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Selecting the Reception Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Volume Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
2 Using the Answering Machine 34
Recording an Outgoing Message . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Operating the Answering Machine. . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Optional Answering Machine Settings. . . . . . . . . . . . . . . . . . . . . . . . . 41
Transfer Function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Override Ringing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Remote Operations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
3 Sending Documents 59
Transmittable Documents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
Loading the Document . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
Resolution and Contrast . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
Sending a Fax by Normal Dialing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
Sending a Fax by Automatic Dialing . . . . . . . . . . . . . . . . . . . . . . . . . . 67
4 Receiving Documents 76
Using FAX Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76
Using TEL Mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77
Substitute Reception to Memory. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81
5 Making Copies 82
6 Making Telephone Calls 85
5

7 Special Functions 88
Caller ID (Requires Subscription from Telephone Company). . . . . . . 88
Distinctive Ring (Requires Subscription from Telephone Company). 93
Broadcasting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95
Cover Sheet. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97
Batch Page Numbering . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100
Blocking Reception of Unwanted Faxes . . . . . . . . . . . . . . . . . . . . . . 102
Sending Documents From Memory . . . . . . . . . . . . . . . . . . . . . . . . . . 104
Polling (Requesting a Fax Transmission). . . . . . . . . . . . . . . . . . . . . . 106
Timer Operations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 109
8 Option Settings 111
9 Printing Reports and Lists 118
10 Maintenance 125
11 Troubleshooting 129
Problems and Solutions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 129
Messages and Signals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 134
Clearing Paper Jams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 137
Ordering Parts 140
FCC Regulatory Information 141
Index 144
6

Chapter
1
Installation
Unpacking Checklist
1. Installation
Before setting up,
make sure you have
all of the following
items.
If any are missing,
contact your dealer
or retailer.
Handset
Handset
cord
Telephone
line cord
Imaging film
(initial starter
roll)
Rapid key
labels
Operation
manual
Imaging
film
cartridge
Paper tray
extension
Original
document
support
Gears (4)
7

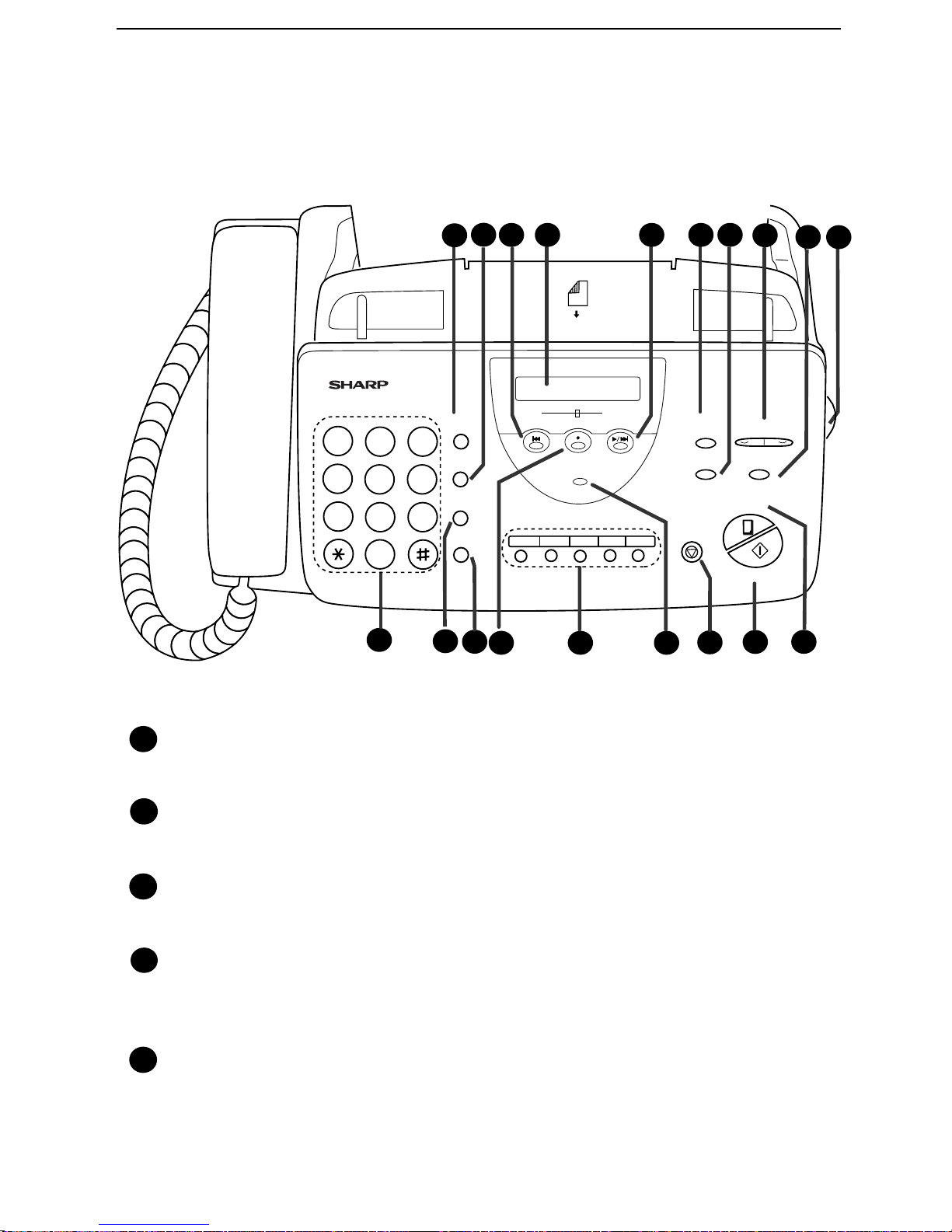

A Look at the Operation Panel
JKL
SPEED
DIAL
REDIAL
SPEAKER
HOLD/
SEARCH
REPEAT REC/MEMO PLAY/SKIP
DELETE
STOP
COPY/HELP
START/MEMORY
VOLUME
DOWN UP
RECEPTION
MODE
RESOLUTION FUNCTION
TEL FAX
TAD
ABC
2
1
DEF
3
WXYZ
9
GHI
45
MNO
6
PQRS
7
TUV
8
0
05/POLL04030201
1243 789
11 12 13 15 17 18 19
10
DIGITAL
ANSWERING
SYSTEM
5 6
14 16
SPEED DIAL key
Press this key to dial a 2-digit Speed Dial number.
REDIAL key
Press this key to automatically redial the last number dialed.
REPEAT key
Press this key to repeat playback of a message.
Display
This displays messages and prompts during operation and
programming.
PLAY/SKIP key
Press this key to play recorded messages. During playback, press it to
skip forward to the next message.
1
2
3
4
5
A Look at the Operation Panel
8

RECEPTION MODE key
Press this key to select the reception mode. An arrow in the display
will point to the currently selected reception mode.
RESOLUTION key
Press this key to adjust the resolution and contrast before sending or
copying a document.
VOLUME keys
Press these keys to adjust the volume of the handset when the handset
is lifted, the volume of the speaker when the SPEAKER key has been
pressed, or the volume of the ringer at all other times.
FUNCTION key
Press this key to select various special functions.
Panel release
Grasp this finger hold and pull toward you to open the operation panel.
Number keys
Use these keys to dial numbers, and enter numbers and letters during
number/name storing procedures.
HOLD/SEARCH key
Press this key to search for an automatic dialing number, or, during a
phone conversation, press this key to put the other party on hold.
SPEAKER key
Press this key to hear the line and fax tones through the speaker when
sending a document.
Note: This is not a speakerphone. You must pick up the handset to
talk with the other party.
REC/MEMO key
Press this key to record a phone conversation or a message.
Rapid Dial keys
Press one of these keys to dial a fax or voice number automatically.
(Note that you must attach the Rapid Key labels.)
12
13
14
11
6
7
8
9
10
15
1. Installation
A Look at the Operation Panel
9

DELETE key
Press this key to erase recorded messages.
STOP key
Press this key to cancel operations before they are completed.
START/MEMORY key
Press this key to send or receive a document, or to scan a document
into memory before sending it.
COPY/HELP key
When a document is in the feeder, press this key to make a copy. At
any other time, press this key to print out the Help List, a quick
reference guide to the operation of your fax.
16
17
18
19
A Look at the Operation Panel
10

Connections

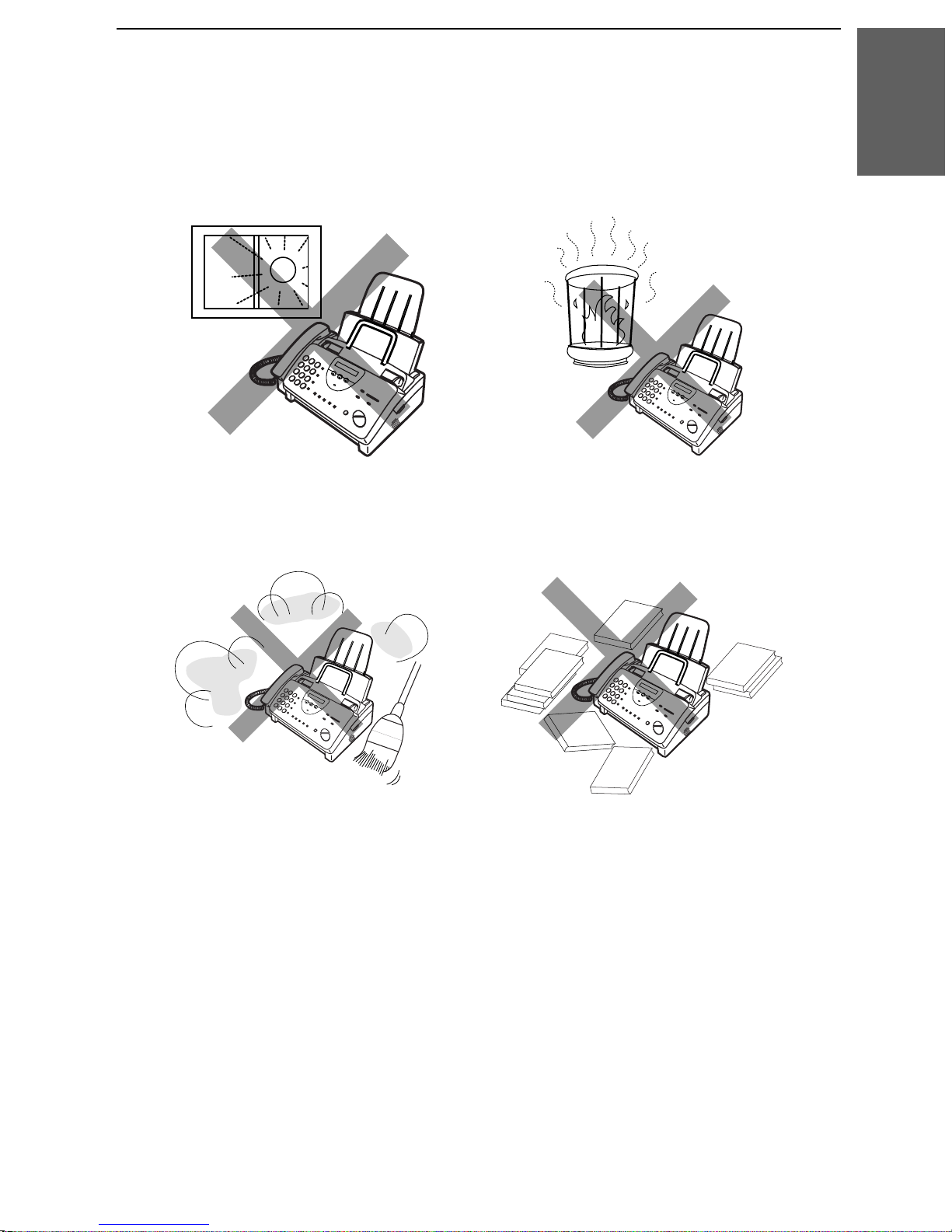

Points to keep in mind when setting up
Do not place the machine in
direct sunlight. Do not place the machine near
heaters or air conditioners.
Keep dust away from the
machine. Keep the area around the
machine clear.
About condensation
If the machine is moved from a cold to a warm place, it is possible that
condensation may form on the scanning glass, preventing proper
scanning of documents for transmission. To remove the condensation,
turn on the power and wait approximately two hours before using the
machine.
1. Installation
Connections
11

Handset
Connect the handset as shown and place it on the handset rest.
♦The ends of the handset cord are identical, so they will go into
either jack.
Make sure the
handset cord goes
into the jack marked
with a handset
symbol on the side
of the machine!
Use the handset to
make ordinary phone
calls, or to transmit
and receive
documents manually.
Connections
12

Power cord
Plug the power cord into a 120 V, 60 Hz, grounded (3-prong) AC
outlet.
Caution!
Do not plug the power cord into any other kind of outlet. This will
damage the machine and is not covered under the warranty.
The machine does not
have a power on/off switch,
so the power is turned on
and off by simply plugging
in or unplugging the power
cord.
Note: If your area experiences a high incidence of lightning or power
surges, we recommend that you install surge protectors for the power and
telephone lines. Surge protectors can be purchased at most telephone
specialty stores.
1. Installation
Connections
13

Telephone line cord
Insert one end of the line cord into the jack on the back of the machine
marked TEL. LINE. Insert the other end into a standard (RJ11C)
single-line wall telephone jack.
Be sure to insert the
telephone line cord into
the TEL. LINE jack.
Do not insert it into the
TEL. SET jack!
Comments:
•• Your fax is set for touch-tone dialing. If you are on a pulse dial (rotary) line,
you must set the fax for pulse dialing by changing Option Setting 8. This
procedure is described in Chapter 8, Option Settings.
•• If you intend to use a computer fax modem on the same phone line, you must
reset Option Setting 10 (Fax Signal Receive) to NO in order to prevent
transmission and reception errors. This procedure is described in Chapter 8,
Option Settings.
TEL.
SET TEL.
LINE
Connections
14

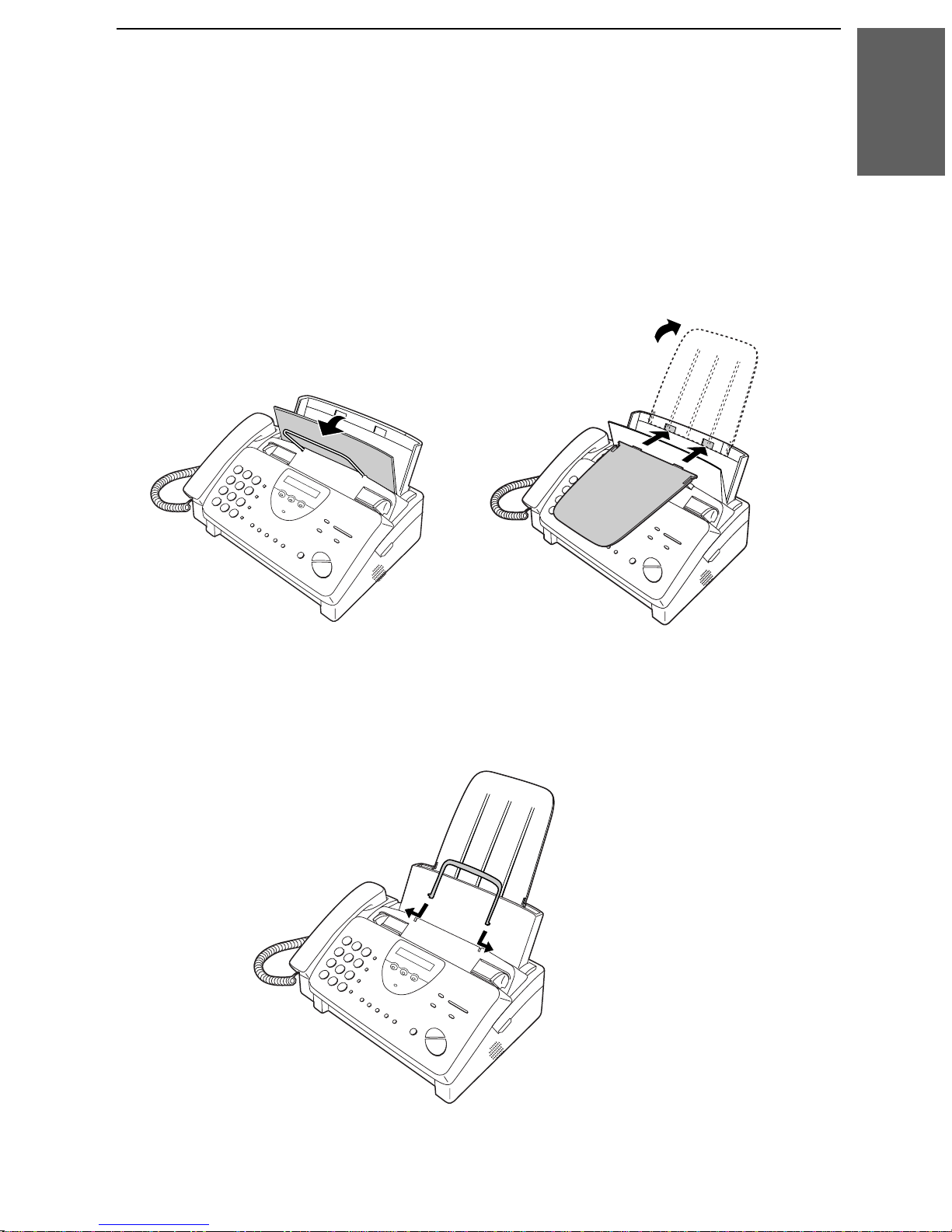

Trays
Attach the paper tray extension.
♦Pull the paper release plate forward. Insert the paper tray
extension horizontally into the notches in the paper tray. Rotate
the paper tray extension up until it snaps into place.
Attach the original document support.
Note: The original
document support
has a top side and a
bottom side. If you
cannot insert the tabs
on the support into
the holes, turn the
support over.
1. Installation
Connections
15

Extension phone (optional)
If desired, you can connect an extension phone to the TEL. SET jack
on the fax.
1
Remove the seal covering the TEL.
SET jack.
2
Connect the extension phone line to
the TEL. SET jack.
TEL.
SET TEL.
LINE
Connections
16

Loading the Imaging Film
Your fax uses a roll of imaging film to create printed text and images.
The print head in the fax applies heat to the imaging film to transfer
ink to the paper. Follow the steps below to load or replace the film.
The initial starter roll
of imaging film
included with your fax
can print about 30
letter-size pages.
When replacing the
film, use a roll of Sharp
UX-3CR imaging film.
One roll can print about
100 letter-size pages.
Note: If there is paper in the paper tray, pull the paper release plate forward
and remove the paper before loading the imaging film.
1
Open the operation panel by grasping the finger hold and pulling up.
2
Pull the green release on the right side of the machine forward, and
open the print compartment cover.
1. Installation
Loading the Imaging Film
17

If you are installing the imaging film for the first
time, go to Step 6.
3
Remove the imaging film cartridge from the print compartment
(grasp the handle at the front of the cartridge) and turn it over.
4
Remove the used film from the cartridge.
5
Remove the four green gears from the used film.
DO NOT DISCARD THE FOUR GREEN GEARS!
Loading the Imaging Film
18
Other manuals for UX-460
1
This manual suits for next models
1
Table of contents
Other Sharp Fax Machine manuals

Sharp
Sharp FO IS125N - B/W Laser - All-in-One User manual

Sharp
Sharp UX-P410 User manual

Sharp
Sharp FO-A760 User manual

Sharp
Sharp UX-B700 Operating manual

Sharp
Sharp FO-51 User manual

Sharp
Sharp UX-P200 User manual

Sharp
Sharp FO-3150 User manual

Sharp
Sharp UX-B700 User manual

Sharp
Sharp FO-D60 User manual

Sharp
Sharp FO-2150CM User manual
