Sharp SD-AT1000W User manual

SD-AT1000W(LAG) TINSEA121AWZZ
1
1-BIT DIGITAL HOME THEATER
SISTEMA 1-BIT PARA HOME THEATER
SD-AT1000W
MODEL
MODELO
SD-AT1000W_LAG_FRONT TINSZA121AWZZ
OPERATION MANUAL
MANUAL DE MANEJO
Please refer to
pages E-1 to E-32.
ENGLISH
Consulte las
páginas S-1 a S-32.
ESPAÑOL

E-1
04/7/21 SD-AT1000W_LAG_E1.fm
SD-AT1000W
ENGLISH
TINSZA121AWZZ
ENGLISH
Important Instruction
- Introduction / Special notes / Contents -
Introduction
Thank you for purchasing this SHARP product. To obtain the best performance from
this product, please read this manual carefully. It will guide you in operating your
SHARP product.
!SD-AT1000W 1-Bit Digital Home Theater consisting of SD-AT1000W (main unit),
CP-AT1000WF (front speakers), CP-AT1000WC (centre speaker), CP-AT1000WR
(surround speakers) and CP-AT1000WSW (subwoofer).
Special notes
WARNING
!When the ON/STAND-BY button is set at STAND-BY position, mains voltage is still
present inside the unit. When the ON/STAND-BY button is set at STAND-BY posi-
tion, the unit may be brought into operation by the timer mode or remote control.
!This unit contains no user serviceable parts. Never remove covers unless qualified
to do so. This unit contains dangerous voltages, always remove mains plug from
the socket before any service operation and when not in use for a long period.
!To prevent fire or shock hazard, do not expose this appliance to dripping or splash-
ing. No objects filled with liquids, such as vases, should be placed on the appara-
tus.
Contents
Page
"General Information
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Controls and indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 - 8
"System connections
Speaker connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9, 10
Aerial connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

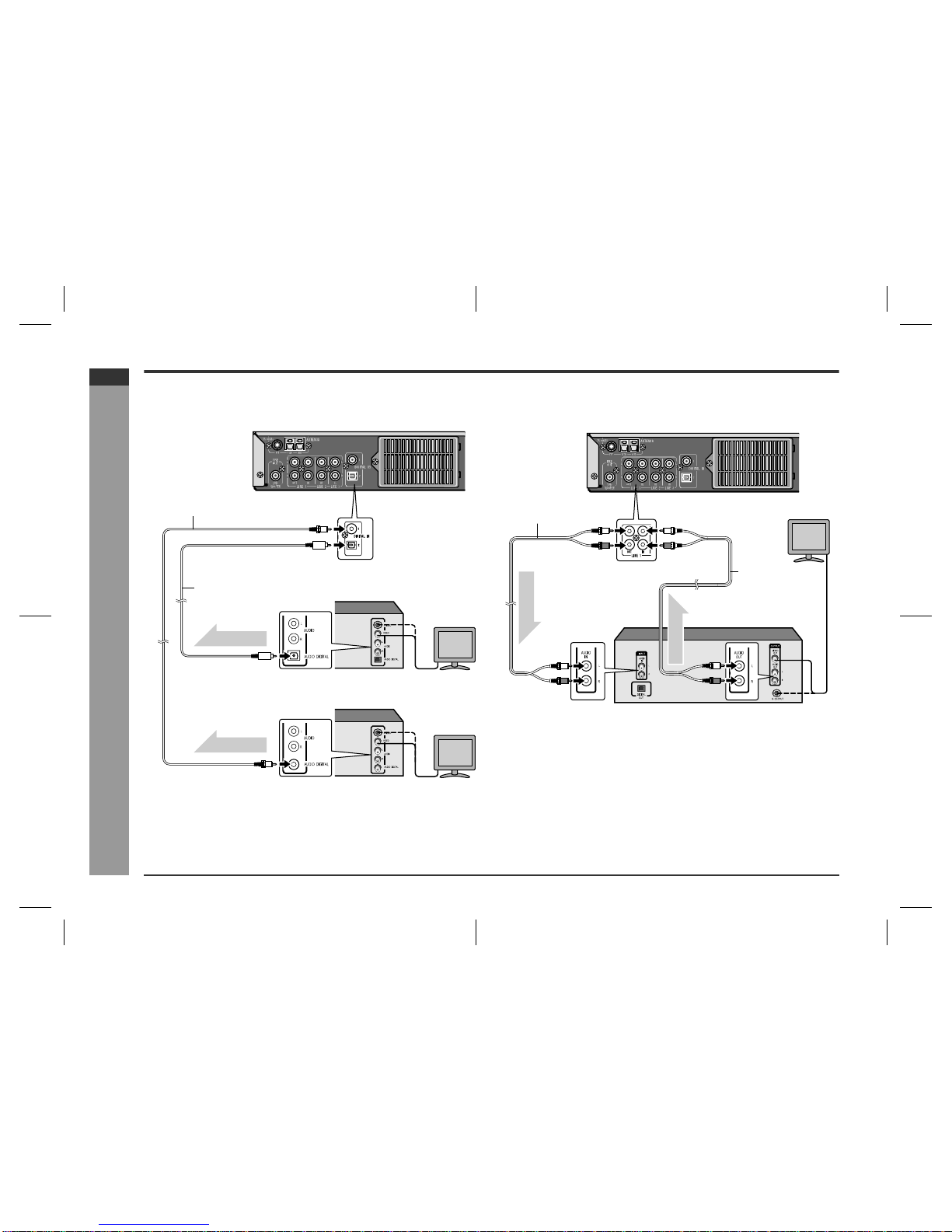

Audio connections to DVD players, VCRs, TVs, etc. . . . . . . . . . . . . . . . . . . 11, 12
Connecting the AC power lead . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
"Preparation for Use
Setting the AM/FM interval . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
System installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Remote control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
General control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Setting the clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
"Basic Operation
Listening to the radio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19, 20
Listening to the playback sound from DVD players, VCRs, etc. . . . . . . . . . . . . 21
Enjoying various sounds . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22 - 24
"Advanced Features
Adjusting speaker delay/speaker level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25, 26
Timer and sleep operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27 - 29
"References
Troubleshooting chart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30, 31
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Error indicators and warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Optional accessory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Manufactured under license from Digital Theater Systems, Inc. US Pat. No.
5,451,942, 5,956,674, 5,974,380, 5,978,762 and other world-wide patents
issued and pending. “DTS” and “DTS Digital Surround” are registered trade-
marks of Digital Theater Systems, Inc. Copyright 1996, 2000 Digital The-
ater Systems, Inc. All Rights Reserved.
Manufactured under license from Dolby Laboratories. “Dolby”, “Pro Logic”
and the double-D symbol are trademarks of Dolby Laboratories.

E-2
SD-AT1000W_LAG_E1.fm04/7/21
SD-AT1000W
ENGLISH
TINSZA121AWZZ
2
3
4
5
6
7
8
1
General Information
- Accessories / Precautions -
Accessories
Please confirm that the following accessories are included.
Note:
Only the above accessories are included.
Precautions
"General
!Please ensure that the equipment is positioned in a well ventilated area and that
there is at least 10 cm (4") of free space along the sides and back. There must
also be a minimum of 15 cm (6") of free space on the top of the unit.
!Use the unit on a firm, level surface free from vibration.
!Keep the unit away from direct sunlight, strong magnetic fields, excessive dust,
humidity and electronic/electrical equipment (home computers, facsimiles, etc.)
which generates electrical noise.
!Do not place anything on top of the unit.
!Do not expose the unit to moisture, to temperatures higher than 60°C (140°F) or to
extremely low temperatures.
!If the unit does not work properly, unplug and plug it in again. Then turn on the
unit.
!In case of an electrical storm, unplug the unit for safety.
!Hold the AC power plug by the head when removing it from the wall socket, as
pulling the lead can damage internal wires.
!Do not remove the outer cover, as this may result in electric shock. Refer
internal service to your local SHARP service facility.
!The ventilation should not be impeded by covering the ventilation openings with
items, such as newspapers, tablecloths, curtains, etc.
!No naked flame sources, such as lighted candles, should be placed on the appa-
ratus.
!Attention should be drawn to the environmental aspects of battery disposal.
!This unit should only be used within the range of 5°C - 35°C (41°F - 95°F).
Warning:
The voltage used must be the same as that specified by this unit. Using this product
with a higher voltage other than that specified is dangerous and may result in a fire or
other types of accident, causing damage. SHARP will not be held responsible for any
damage resulting from the use of this unit with a voltage other than that specified.
"Volume control
The sound level at a given volume setting depends on speaker efficiency, location,
and various other factors. It is advisable to avoid exposure to high volume levels. Do
not turn the volume on to full at switch on and listen to music at moderate levels.
Remote control 1 AM loop aerial 1 FM aerial 1
Antislipspeakercushionsheet
(20 pcs.) 1 "AA" size battery (UM/SUM-3, R6, HP-7 or similar) 2
Speaker connection lead 6
Green
(for centre speaker)
approx. 5m (15 feet)
White
(for left front speaker)
approx. 5m (15 feet)
Red
(for right front speaker)
approx. 5m (15 feet)
Purple
(for subwoofer)
approx. 5m (15 feet)
Blue
(for left surround speaker)
approx. 15m (45 feet)
Grey
(for right surround speaker)
approx. 15m (45 feet)
10 cm (4") 10 cm (4")
10 cm (4")
15 cm (6")
SD-AT1000W(LAG) TINSZA121AWZZ 2

E-3
SD-AT1000W_LAG_E1.fm04/7/21
SD-AT1000W
ENGLISH
TINSZA121AWZZ
General Information
- Controls and indicators -
Controls and indicators
"Main unit (front panel)
Reference page
1.Sleep Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
2.FM Stereo Receiving Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
3.Timer Play Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
4.FM Stereo Mode Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
5.Audio Signal Indicators/Speaker Indicators . . . . . . . . . . . . . . . . . 22
Reference page
6.On/Stand-by Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
7.Timer Set Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28
8.Volume Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
9.Tuning Up and Down Buttons . . . . . . . . . . . . . . . . . . . . . . . . . . .14, 19
10.Tuner (Band) Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14, 19
11.Line Input Select Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
12.Digital Input Select Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
13.Remote Sensor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
14.Headphone Socket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
15.Sound Mode Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22, 23, 24
(1) (2) (5)(3) (4) (6) (7)
(9) (
10 )( 11 )( 12 )( 13 )
(8)
10 11 13
14
12
1
(1) (2) (3)
(4) (5) (6)
15
2
3
4
5
7
689
(1) Subwoofer Indicator
(2) Left Front Speaker Indicator
(3) Front Left Signal Indicator
(4) Centre Signal Indicator
(5) Centre Speaker Indicator
(6) Front Right Signal Indicator
(7) Right Front Speaker Indicator
(8) Low Frequency Effect Signal Indicator
(9) Left Surround Speaker Indicator
(10) Surround Left Signal Indicator
(11) Surround Monaural Signal Indicator
(12) Surround Right Signal Indicator
(13) Right Surround Speaker Indicator
(1) DTS Signal Indicator
(2) Dolby Digital Signal Indicator
(3) Dolby Pro Logic Indicator
(4) Surround Indicator
(5) Standard Indicator
(6) Stereo Indicator

E-4
SD-AT1000W_LAG_E1.fm04/7/21
SD-AT1000W
ENGLISH
TINSZA121AWZZ
2
3
4
5
6
7
8
1
General Information
- Controls and indicators -
"Main unit (rear panel)
Reference page
1.FM 75 Ohms Aerial Socket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
2.Aerial Earth Terminal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
3.AM Loop Aerial Terminal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
4.Coaxial Digital Audio Input Socket . . . . . . . . . . . . . . . . . . . . . . . . .11
5.Cooling Fan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
6.Speaker Terminals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
7.AC Power Lead . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
8.Subwoofer Pre Output Socket . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
9.Audio Line Output Sockets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
10.Audio Line Input Sockets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11, 12
11.Optical Digital Audio Input Socket . . . . . . . . . . . . . . . . . . . . . . . . . .11
23
14567
98
10 11
The rating label is located on the bottom of the unit.
Cooling fan
This unit is fitted with acooling fan at the rear for improved cooling. Do not cover the
opening in this section with any obstacles.
Cooling fan
Caution:
!The unit will get warm whilst being used. Do not touch the warm areas of the unit
for prolonged periods to avoid damage to you.
!This unit is equipped with a special function which protects the amplifier circuit
from damages. When it is activated, the sound switch is turned off. In this case,
set the unit to the stand-by mode and turn on again.

E-5
SD-AT1000W_LAG_E1.fm04/7/21
SD-AT1000W
ENGLISH
TINSZA121AWZZ
General Information
- Controls and indicators -
Controls and indicators (continued)
"Remote control Reference page
1.Remote Control Transmitter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
2.TV Operation Buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
3.VCR Operation Buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
4.Input Select Buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19, 21
5.Clear Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
6.Cursor Buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18, 25
7.Amplifier Return Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
8.Amplifier Initial Setting Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
9.2-channel Stereo Sounds Select Button . . . . . . . . . . . . . . . . . . . . .24
10.DVD Operation Buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
11.Muting Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
12.On/Stand-by Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
13.Dimmer Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
14.Clock Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
15.Timer Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27
16.Tuning Up and Down Buttons . . . . . . . . . . . . . . . . . . . . . . . . . . .14, 19
17.Tuner Preset Up and Down Buttons . . . . . . . . . . . . . . . . . . . . . . . . .20
18.Enter Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
19.Sound Mode Select Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
20.Multi Channel Select Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
21.Volume Up and Down Buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
4
5
6
7
8
9
11
12
13
14
15
16
17
1
18
19
20
21
10
3
2

E-6
SD-AT1000W_LAG_E1.fm04/7/21
SD-AT1000W
ENGLISH
TINSZA121AWZZ
2
3
4
5
6
7
8
1
General Information
- Controls and indicators -
It is possible to operate some functions of Sharp TVs, VCRs and DVD players with your new SD-AT1000W remote control. However some models may not respond.
TV Operation Buttons
1 TV ON/STAND-BY 4 TV CHANNEL
Sets the TV power to "ON" or
"STAND-BY". Switches down the TV channels.
2 TV VOLUME - 5 TV CHANNEL
Turns down the TV volume. Switches up the TV channels.
3 TV TV/VCR 6 TV VOLUME +
Switches the input to TV or VCR. Turns up the TV volume.
VCR Operation Buttons
1 VCR ON/STAND-BY 4 VCR
Sets the VCR power to "ON" or
"STAND-BY". Stops the cassette.
2 VCR 5 VCR
Rewinds the cassette quickly. Plays the cassette.
3 VCR TV/VCR 6 VCR
Switches the input to TV or VCR. Advances the cassette quickly.
1
2
3
4
5
6
1
2
3
4
5
6
DVD Operation Buttons
1 DVD 7 DVD MENU
Selects the DVD menu. Displays the DVD menu.
2 DVD RETURN 8 DVD
Goes back to the previous screen. Plays back the DVD.
3 DVD ENTER 9 DVD
Validates the menu. Stops the DVD player.
4 DVD 10 DVD
Selects the DVD menu. Selects the DVD menu.
5 DVD ON/STAND-BY 11 DVD SKIP
Sets the DVD power to "ON" or
"STAND-BY". Skip up the DVD chapters.
6 DVD 12 DVD SKIP
Selects the DVD menu. Skip down the DVD chapters.
4
6
2
1
5
3
10
12
8
7
11
9

E-7
SD-AT1000W_LAG_E1.fm04/7/21
SD-AT1000W
ENGLISH
TINSZA121AWZZ
General Information
- Controls and indicators -
Controls and indicators (continued)
"Front speaker 2
1.Bass Reflex Duct
2.Speakers
3.Speaker Terminals
4.Mounting Holes for Stand or Bracket
"Centre speaker 1
1.Bass Reflex Duct
2.Speakers
3.Mounting Holes for Bracket
4.Speaker Terminals
"Surround speaker 2
1.Bass Reflex Duct
2.Speaker
3.Speaker Terminals
4.Mounting Holes for Stand or Bracket
"Subwoofer 1
1.Bass Reflex Duct
2.Woofer
3.Speaker Terminals
1
3
4
2
14 3
2
1
3
24
1
2
3

E-8
SD-AT1000W_LAG_E1.fm04/7/21
SD-AT1000W
ENGLISH
TINSZA121AWZZ
2
3
4
5
6
7
8
1
General Information
- Controls and indicators -
"Speaker functions
Notes:
!Do not allow any objects to fall into or to be placed in the bass reflex ducts.
!The speakers grilles are not removable.
!Front, centre and subwoofer speakers are magnetically shielded.
"Using antislip speaker cushions
You can install the front, centre or surround speakers either vertically or horizontally.
Affix the cushions (supplied) to the bottom of the speakers to prevent them from slid-
ing or falling due to vibration.
A sheet of speaker cushions (20 pcs.) is supplied with this product. Use 4 cushions
per speaker.
"Carrying the subwoofer
When carrying the subwoofer, be careful not to touch the subwoofer located near bot-
tom. It may be damaged. Be sure to hold the unit by its base.
Front speaker:
Reproduces left and right sound (for the stereo mode) or front surround sound.
Centre speaker:
Reproduces centre surround sound.
Surround speaker:
Reproduces rear surround sound.
Subwoofer:
Reproduces bass sound.
(For speaker installation, refer to page 15.)
(Vertical position) (Horizontal position)
Subwoofer

E-9
SD-AT1000W_LAG_E2.fm04/7/21
SD-AT1000W
ENGLISH
TINSZA121AWZZ
System connections
- Speaker connection -
Speaker connection
The speaker terminals on the main unit, the tube and plugs of the speaker lead, and speaker labels are distinguished by colours.
Connect the speaker and the unit by matching the colours.
(For speaker installation, refer to page 15.)
Subwoofer
Front speaker
(left)
Centre speaker
Front speaker
(right)
Surround speaker
(right)
Surround speaker
(left)
Blue White
Red
Green
Green
Purple
Blue
Black
Red
Black Red
Black Red
Red
Black
Red
White
Black
Red
Grey
Black
Red
Instead of the supplied sub-
woofer, you can connect sepa-
rately available woofer to en-
joy more of the bass sound
(see page 12).
Purple
Grey

E-10
SD-AT1000W_LAG_E2.fm04/7/21
SD-AT1000W
ENGLISH
TINSZA121AWZZ
2
3
4
5
6
7
8
1
System connections
- Speaker connection / Aerial connection -
"Connecting speaker wires
To prevent accidental short circuit between and terminals, connect the
speaker wires to the speakers first then to the unit.
Caution:
!The supplied speakers are exclusively for SD-AT1000W. Do not connect
them to other equipment, and do not connect other speakers to SD-
AT1000W. It may cause malfunction.
!Do not mistake the and , and right and left terminals of the speaker leads. (The
right speaker is placed on the right when you face the unit.)
Aerial connection
Notes:
!Placing the aerial on the unit or near the AC power lead may cause noise pickup.
Place the aerial away from the unit for better reception.
!When static is still heard even after adjusting the position of the AM loop aerial, try
reversing the wire connections.
Installing the AM loop aerial:
External FM or AM aerial:
Use an external FM or AM aerial if you require better reception. Consult your dealer.
When using an external AM aerial, be sure to keep the wire of the AM loop aerial
connected.
Make sure to leave the AC power lead disconnected when connecting the
speakers.
!Do not let the bare speaker wires touch each other.
!Do not stand or sit on the speakers. You may be injured.
!Insert the speaker plug fully with the rising side facing up.
!Hold the speaker plug when removing itfrom the main unit.
Pulling the lead may cause malfunction to the unit.
Incorrect
1Connect the wires to the speakers.
2Connect the other end to the main unit.
Speaker terminals
Speaker plug Plug in with the rising
side facing up.
Label
Label
Tube
Red
Black
Supplied FM aerial:
Connect the FM aerial wire to the FM 75 OHMS
socket and position the FM aerial wire in the di-
rection where the strongest signal can be re-
ceived.
Supplied AM loop aerial:
Connect the AM loop aerial wire to the AM and
GND terminals. Position the AM loop aerial for
optimum reception. Place the AM loop aerial on
a shelf, etc., or attach it to a stand or a wall with
screws (not supplied).
< Assembling > < Attaching to the wall >
Wall Screws (not supplied)
White
Black
FM aerial AM loop
aerial
External FM aerial External AM aerial
15 m (49 feet)
7.5 m (25 feet)
AM loop
aerial
Earth wire
Earth rod
SD-AT1000W(LAG) TINSZA121AWZZ 3

E-11
SD-AT1000W_LAG_E2.fm04/7/21
SD-AT1000W
ENGLISH
TINSZA121AWZZ
System connections
- Audio connections to DVD players, VCRs, TVs, etc. -
Audio connections to DVD players, VCRs, TVs, etc.
"Connecting a DVD player (CD player), digi-
tal tuner, etc.
Notes:
!This unit has DIGITAL IN 1 (coaxial) and DIGITAL IN 2 (optical) sockets for digital
input. Select either according to the output socket of your equipment.
!When connecting with an optical digital cable, set the digital output of the digital
tuner to PCM. Refer to the operation manual of the digital tuner.
"Connecting a VCR, etc.
Notes:
!The LINE 1 OUT sockets emit signals from the LINE 2 IN, LINE 3 IN and the built-
in tuner. Signals from the DIGITAL IN and LINE 1 IN are not emitted.
!Connect TV directly to the DVD player, VCR or digital tuner to watch programmes
(refer to the operation manual of each equipment).
Digital audio cable
(commercially
available)
Optical digital cable
(commercially available)
TV
TV
Digital tuner, etc.
DVD player
(CD player), etc.
To optical digital
audio input socket
To optical digital
audio output socket
To coaxial digital
audio input socket
To coaxial digital
audio output socket
Audio signal
Audio signal
VCR, etc.
To audio
output sockets
To audio
output sockets To audio
input sockets
To audio
input sockets
Audio cable
(commercially
available)
Audio cable
(commercially
available)
TV
Audio signal
Audio signal

E-12
SD-AT1000W_LAG_E2.fm04/7/21
SD-AT1000W
ENGLISH
TINSZA121AWZZ
2
3
4
5
6
7
8
1
System connections
- Audio connections to DVD players, VCRs, TVs, etc. -
"Audio connection to TVs or other equip-
ment
You can enjoy surround sound from TVs or other equipment by connecting
them to the unit as shown.
"Using other subwoofer
For a greater emphasis of bass, a commercially available subwoofer, with a
built in amplifier, can be connected to the unit using the SUBWOOFER PRE
OUT socket.
Notes:
!No sound is heard from the speaker in which an amplifier is not built in.
!When not using the supplied subwoofer, disconnect the speaker wire from the
main unit.
!The speaker delay and level settings are applied to the subwoofer connected to
the SUBWOOFER PRE OUT socket (see pages 25 and 26).
Caution:
Turn off all other equipment before making this connection.
Notes:
!Refer to the operation manual of the equipment to be connected.
!Insert the plugs fully to avoid fuzzy pictures or noise.
TV
To audio
output sockets
To audio
input sockets Audio cable
(commercially available)
Other
equipment
To audio
output sockets
To audio
input sockets
Audio cable
(commercially
available)
Audio signal
Audio signal
To subwoofer
input socket
Audio cable
(commercially available)
Commercially
available subwoofer
(amplifier built in)
To subwoofer
output socket
Subwoofer signal

E-13
SD-AT1000W_LAG_E2.fm04/7/21
SD-AT1000W
ENGLISH
TINSZA121AWZZ
System connections
- Connecting the AC power lead -
Connecting the AC power lead
After checking all the connections have been made correctly, plug the AC power lead
of this unit into the wall socket.
Note:
Unplug the AC power lead from the wall socket if the unit will not be in use for a pro-
longed period of time.
"To turn the power on
Press the ON/STAND-BY button.
If the power does not turn on, check the AC power lead is plugged in properly.
To set the unit to stand-by mode:
Press the ON/STAND-BY button again.
Wall socket
(AC 220 - 240 V, 50/60 Hz)

E-14
SD-AT1000W_LAG_E2.fm04/7/21
SD-AT1000W
ENGLISH
TINSZA121AWZZ
2
3
4
5
6
7
8
1
Preparation for Use
- Setting the AM/FM interval -
Setting the AM/FM interval
The International Telecommunication Union(ITU) has established that member coun-
tries should maintain either a 10 kHz or 9 kHz interval between broadcasting frequen-
cies of AM stations and 100 kHz or 50 kHz for FM stations. The illustration shows the
50/9 kHz zones (regions 1 and 3), and the 100/10 kHz zone (region 2).
This product is not equipped with a span selector. However, it will be adjusted to a 10
kHz AM (100 kHz FM) interval when shipped from the factory.
Before using the unit, be sure to set it to the AM/FM tuning interval (span) used in
your area.
To change the AM/FM tuning interval:
Note:
The AM/FM tuning interval will not change unless you press the ENTER button within
6 seconds.
Caution:
!When the unit is left for a few hours after the span has been switched and the AC
power lead disconnected, the AM span will be automatically returned to 10 kHz
(FM span to 100 kHz). If this happens, set the span again.
!When the span is switched, all the memorised stations will be cancelled.
1 Press the ON/STAND-BY button to enter the stand-by mode.
2 Whilst holding down the TUNER (BAND) button, press the ON/STAND-BY button.
3 Within 6 seconds, press the TUNING ( or ) button to select the interval (span)
in your area.
The display switches each time you press the button.
4 Within 6 seconds, press the ENTER button on the remote control.
!The unit will enter the power stand-by mode automatically.

E-15
SD-AT1000W_LAG_E2.fm04/7/21
SD-AT1000W
ENGLISH
TINSZA121AWZZ
Preparation for Use
- System installation -
System installation
"Placing the speaker system
The best surround effect will be achieved by placing each speaker at the same
distance from the listening position.
It is recommended to arrange the speakers as shown below.
Notes:
!Place the TV halfway between the front speakers.
!It is recommended that the centre speaker be placed near the television.
!Place the surround speakers at a position just above the height of your ears.
!The subwoofer vibrates whilst reproducing bass. Place it on a stable, sturdy sur-
face.
!The subwoofer reproduces bass. Place it anywhere you like.
"Magnetically shielded speakers
The front, centre and subwoofer speakers may be placed beside or near the TV as
they are magnetically shielded. However, discolouration may occur depending on the
TV type.
If colour variation occurs...
Turn off the TV (from the power switch).
After 15 - 30 minutes, turn the TV on again.
If the colour variation is still present...
Move the speakers further away from the TV.
Refer to the user's manual of the TV for details.
Note:
The surround speakers are not magnetically shielded.
Note:
The default distance is set to 2 m. If speakers cannot be placed at equal distances,
refer to "Speaker delay setting" (see page 25).
Installation image:
The speaker stands are optionally available (see page 31). Refer to their instructions
for assembly.
Front
speaker (left)
Subwoofer
Front
speaker (right)
Surround
speaker (left) Surround
speaker (right)
Default setting:
2 m
Centre
speaker
Front speaker (left)
Same distance
Front speaker (right)
Centre speaker
Same distance

E-16
SD-AT1000W_LAG_E2.fm04/7/21
SD-AT1000W
ENGLISH
TINSZA121AWZZ
2
3
4
5
6
7
8
1
Preparation for Use
- Remote control -
Remote control
"Battery installation
Precautions for battery use:
!Replace all old batteries with new ones at the same time.
!Do not mix old and new batteries.
!Remove the batteries if the unit is not to be used for long periods of time. This will
prevent potential damage due to battery leakage.
Caution:
!Do not use rechargeable batteries (nickel-cadmium battery, etc.).
!Installing the batteries incorrectly may cause the unit to malfunction.
Notes concerning use:
!Replace the batteries if the operating distance is reduced or if the operation
becomes erratic. Purchase 2 "AA" size batteries (UM/SUM-3, R6, HP-7 or similar).
!Periodically clean the transmitter on the remote control and the sensor on the unit
with a soft cloth.
!Exposing the sensor on the unit to strong light may interfere with operation.
Change the lighting or the direction of the unit.
!Keep the remote control away from moisture, heat, shock, and vibrations.
"Test of the remote control
Check the remote control after checking all the connections (see pages 9 - 13).
Point the remote control directly at the remote sensor on the unit.
The remote control can be used within the range shown below:
Press the ON/STAND-BY button. Does the power turn on? Now, you can enjoy your
system.
1 Open the battery cover.
2 Insert the batteries according to the direction indicated in the bat-
tery compartment.
When inserting or removing the batteries, push them towards the battery termi-
nals.
3 Close the cover.
0.2 m - 6 m
(8" - 20')
Remote sensor

E-17
SD-AT1000W_LAG_E2.fm04/7/21
SD-AT1000W
ENGLISH
TINSZA121AWZZ
Preparation for Use
- General control -
General control
"To change the display brightness (2 levels)
"Volume control
"Muting
"Headphones
!Before plugging in or unplugging the headphones, reduce the volume.
!Be sure your headphones have a 6.3 mm (1/4") diameter plug and are between 16
ohms and 50 ohms impedance. The recommended impedance is 32 ohms.
!Plugging in the headphones disconnects the speakers automatically. Adjust the
volume using the VOLUME control.
!You cannot use the surround feature with headphones.
!Do not plug in or unplug headphones whilst recording. The sound may skip.
Display
You can switch the display brightness by press-
ing the DIMMER button.
Dimmed
Main unit operation:
When the VOLUME control is turned clockwise,
the volume will increase. When it is turned anti-
clockwise, the volume will decrease.
Remote control operation:
Press the VOLUME + button to increase the vol-
ume and the VOLUME - button for decreasing.
The volume is muted temporarily when pressing
the MUTING button on the remote control.
Press again to restore the volume.
012 39 40
.....

E-18
SD-AT1000W_LAG_E3.fm04/7/9
SD-AT1000W
ENGLISH
TINSZA121AWZZ
2
3
4
5
6
7
8
1
Preparation for Use
- Setting the clock -
Setting the clock
By setting the unit to the correct time, you can use it not only as a clock but also for
timer playback.
You can set the clock even when the unit is in the stand-by mode.
In this example, the clock is set for the 24-hour (0:00) display.
To confirm the time display:
Press the CLOCK button.
The time display will appear for about 5 seconds.
Note:
The "ADJUST" or time will flash at the push of the CLOCK button when the AC power
supply is restored after a power failure or unplugging the unit.
Readjust the clock as follows.
To readjust the clock:
Perform "Setting the clock" from step 1. If the "ADJUST" is not flashing in step 1, step
2 (for selecting the 24-hour or 12-hour display) will be skipped.
To change the 24-hour or 12-hour display:
1Press the CLOCK button and within 5 seconds, press the ENTER
button.
2Press the or button to select the 24-hour or 12-hour display and
then press the ENTER button.
Note that this can only be set when the unit is first installed or it has been reset
(see page 31).
"12:00 AM" The 12-hour display will appear. (AM 12:00 - PM 11:59)
"AM 0:00" The 12-hour display will appear. (AM 0:00 - PM 11:59)
"0:00" The 24-hour display will appear. (0:00 - 23:59)
3Press the or button to adjust the
hour and then press the ENTER but-
ton.
!Press the or button once to advance the time by 1 hour. Hold it down to
advance continuously.
!When the 12-hour display is selected,"AM" will change automatically to "PM".
4Press the or button to adjust the
minutes and then press the ENTER
button.
!Press the or button once to advance the time by 1 minute. Hold it down
to advance continuously.
!The hour will not advance even if minutes advance from "59" to "00".
!The clock starts from "0" second (seconds are not displayed).
!The time disappears after approx. 5 seconds.
1 Clear all the programmed contents. [Refer to "Clearing all the memory (reset)" on
page 31 for details.]
2 Perform "Setting the clock" from the beginning.
SD-AT1000W(LAG) TINSZA121AWZZ 4

E-19
SD-AT1000W_LAG_E3.fm04/7/9
SD-AT1000W
ENGLISH
TINSZA121AWZZ
Basic Operation
- Listening to the radio -
Listening to the radio
"Manual or Auto tuning
To receive an FM stereo transmission:
Press the TUNER (BAND) button to display the "STEREO" indicator.
!" " will appear when an FM broadcast is in stereo.
!If the FM reception is weak, press the TUNER (BAND) button to extinguish the
"STEREO" indicator. The reception changes to monaural, and the sound becomes
clearer.
After use:
Press the ON/STAND-BY button to enter the power stand-by mode.
1Press the ON/STAND-BY button to turn the power on.
2Press the TUNER (BAND) button repeatedly to select the desired
frequency band.
3Press the TUNING ( or ) button to tune in to the desired station.
Manual tuning:
Press the TUNING button as many times as required to tune in to the desired
station.
Auto tuning:
When the TUNING button is pressed for 0.5 seconds or more, scanning will start
automatically and the tuner will stop at the first receivable broadcast station.
!When radio interference occurs, auto scan tuning may stop automatically at
that point.
!Auto scan tuning will skip weak signal stations.
!To stop the auto tuning, press the TUNING button again.
FM stereo receiving indicator
FM stereo mode indicator
FM stereo FM monaural AM
