Sharp HT-CN300H User manual

Thank you for purchasing this SHARP product. To obtain the best
performance from this product, please read this manual carefully.
It will guide you in operating your SHARP product.
HT-CN300H Home Cinema Command consisting of HT-CN300H (main
unit), CP-CN300HF (front speakers), CP-CN300HC (center speaker)
and CP-CN300HR (surround speakers).
HOME CINEMA COMMAND
MODEL
HT-CN300H
OPERATION MANUAL
If you require any advice or assistance regarding
your Sharp product, please visit our web-site
www.sharp.co.uk/support.
Customers without Internet access may telephone
08705 274277 during office hours (or [phone]
if telephoning from Ireland).
0101

2
HT-CN300H_(E)1.fm02/6/17
HT-CN300H
Important Instruction
- Special Notes -
Special Notes
WARNINGS
zWhen the ON/STAND-BY button is set at STAND-BY position, mains voltage is still
present inside the unit. When the ON/STAND-BY button is set at STAND-BY posi-
tion, the unit may be brought into operation by the timer mode or remote control.
zThis unit contains no user serviceable parts. Never remove covers unless qualified
to do so. This unit contains dangerous voltages, always remove mains plug from
the socket before any service operation and when not in use for a long period.
zThe supplied AC adaptor contains no user serviceable parts. Never remove covers
unless qualified to do so. It contains dangerous voltages, always remove mains
plug from the main outlet socket before any service operation or when not in use
for a long period.
zTo prevent fire or shock hazard, do not expose this appliance to dripping or splash-
ing. No objects filled with liquids, such as vases, should be placed on the appara-
tus.
NOTES
zThis equipment complies with the requirements of Directives 89/336/EEC and 73/
23/EEC as amended by 93/68/EEC.
zThe letters in brackets contained in the model number indicate the colour of the
product only. Operation and specifications are unaffected.
NOTES FOR USERS IN THE U.K. AND IRELAND
The mains lead of this product is fitted with a non-rewireable (moulded) plug incorpo-
rating a 3A fuse. Should the fuse need to be replaced, a BSI or ASTA approved BS
1362 fuse marked or and of the same rating as above, which is also indicated on
the pin face of the plug must be used.
Always refit the fuse cover after replacing the fuse. Never use the plug without the
fuse cover fitted.
In the unlikely event of the socket outlet in your home not being compatible with the
plug supplied, cut-off the mains plug and fit an appropriate type.
DANGER:
The fuse from the cut-off plug should be removed and the cut-off plug destroyed
immediately and disposed of in a safe manner.
Under no circumstances should the cut-off plug be inserted elsewhere into a 13A
socket outlet as a serious electric shock may occur.
To fit an appropriate plug to the mains lead, follow the instructions below:
IMPORTANT:
The wires in the mains lead are coloured in accordance with the following code:
Blue : Neutral
Brown : Live
As the colours of the wires in the mains lead of this product may not correspond with
the coloured markings identifying the terminals in your plug, proceed as follows:
●The wire which is coloured blue must be connected to the plug terminal which is
marked N or coloured black.
●The wire which is coloured brown must be connected to the plug terminal which is
marked L or coloured red.
Ensure that neither the brown nor the blue wire is connected to the earth terminal in
your three pin plug.
Before replacing the plug cover, make sure that:
●If the new fitted plug contains a fuse, its value is the same as that removed from
the cut-off plug.
●The cord grip is clamped over the sheath of the mains lead and not simply over the
lead wires.
IF YOU HAVE ANY DOUBT, CONSULT A QUALIFIED ELECTRICIAN.
SERVICE INFORMATION
In the unlikely event of your equipment requiring repair, please contact the dealer or
supplier from whom it was purchased. Where this is not possible, please visit our
web-site www.sharp.co.uk/support.
Customers without internet access may telephone [phone] during office hours
(or [phone] if telephoning from Ireland).
Please note; all calls will be charged at local rate.
Certain replacement parts and accessories may be obtained from our main parts
distributor.
WILLOW VALE ELECTRONICS LTD.
0121 766 5414
In the unlikely event of this equipment requiring repair during the guarantee period,
you will need to provide proof of the date of purchase to the repairing company.
Please keep your invoice or receipt, which is supplied at the time of purchase.

3
HT-CN300H_(E)1.fm02/6/17
HT-CN300H
General Information
- Accessories / Contents -
Accessories
Please confirm that the following accessories are included.
Note:
Only the above accessories are included.
Contents
Page
General Information
Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Controls and indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 - 7
Connections
Speaker connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8, 9
Remote control sensor connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Aerial connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

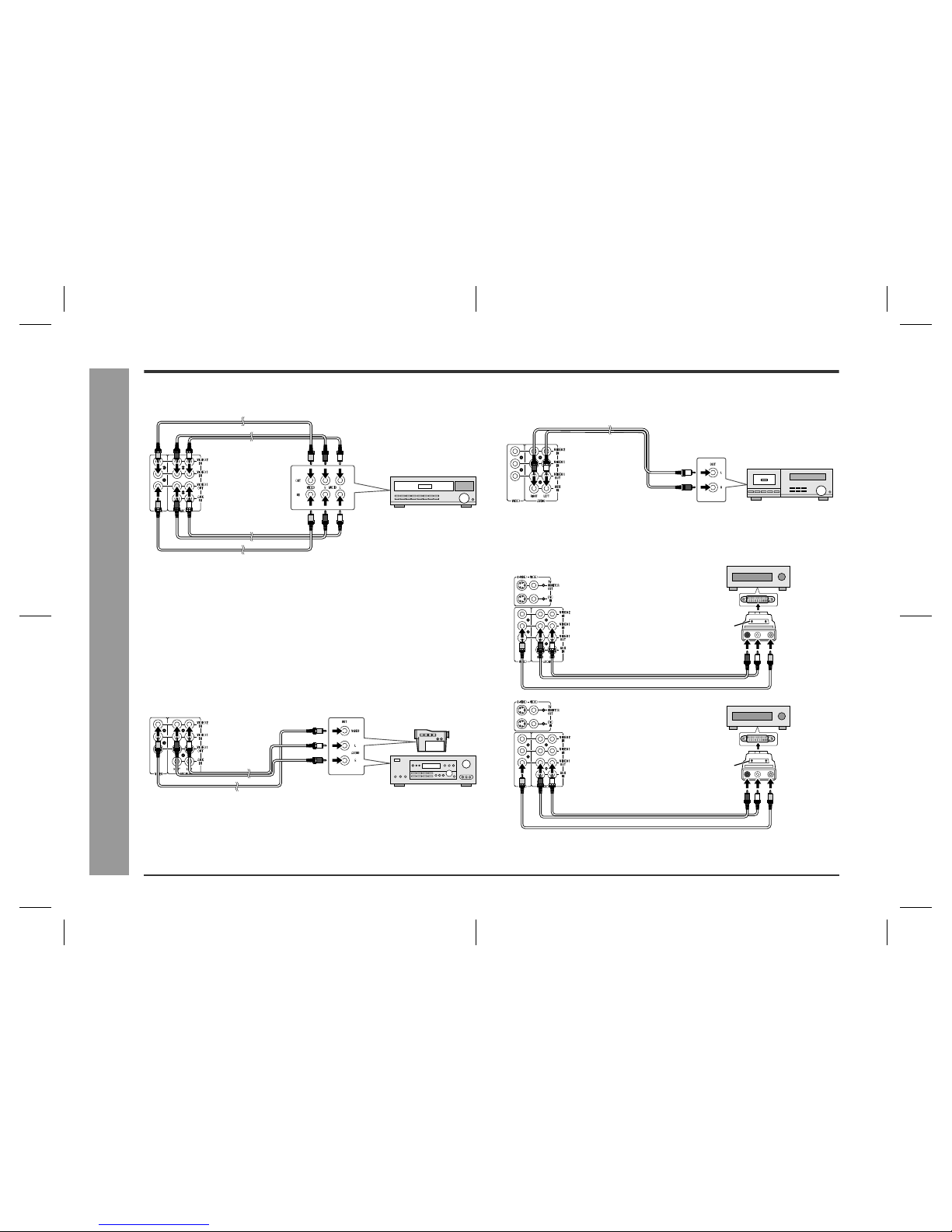

Connecting other equipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 - 12

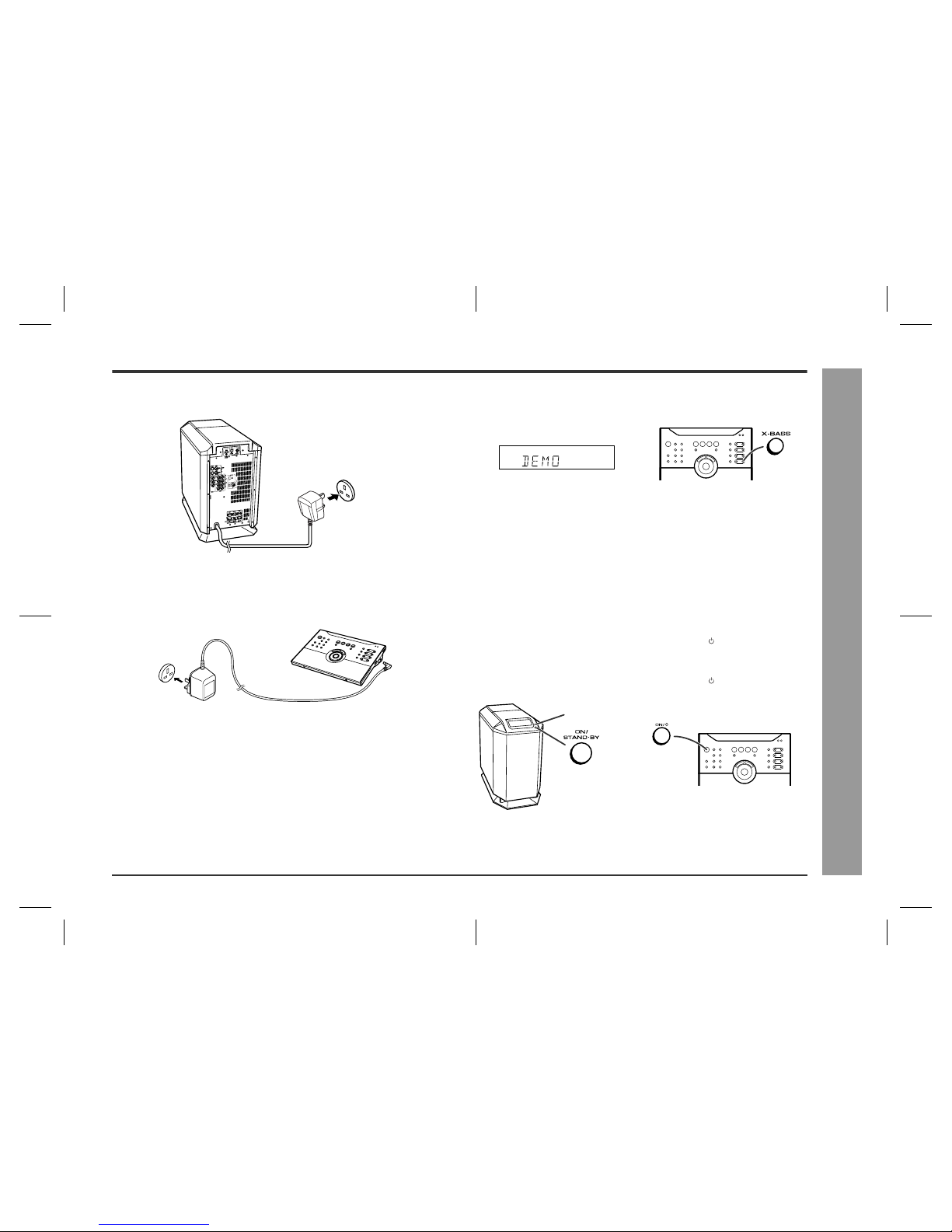

Connecting to the AC socket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
Speaker Installation

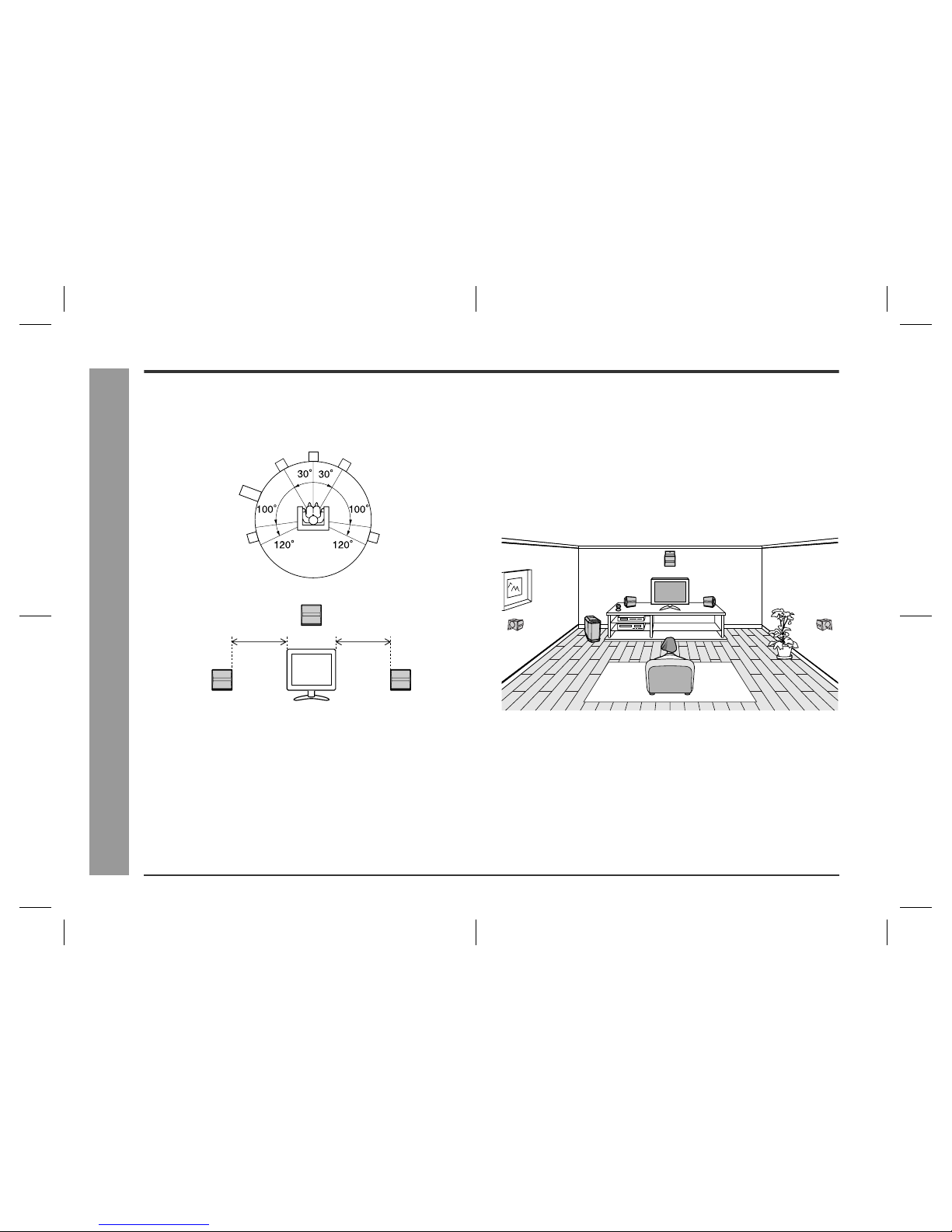

Placing the speaker system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
Installing the speakers on the wall . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
Remote Control

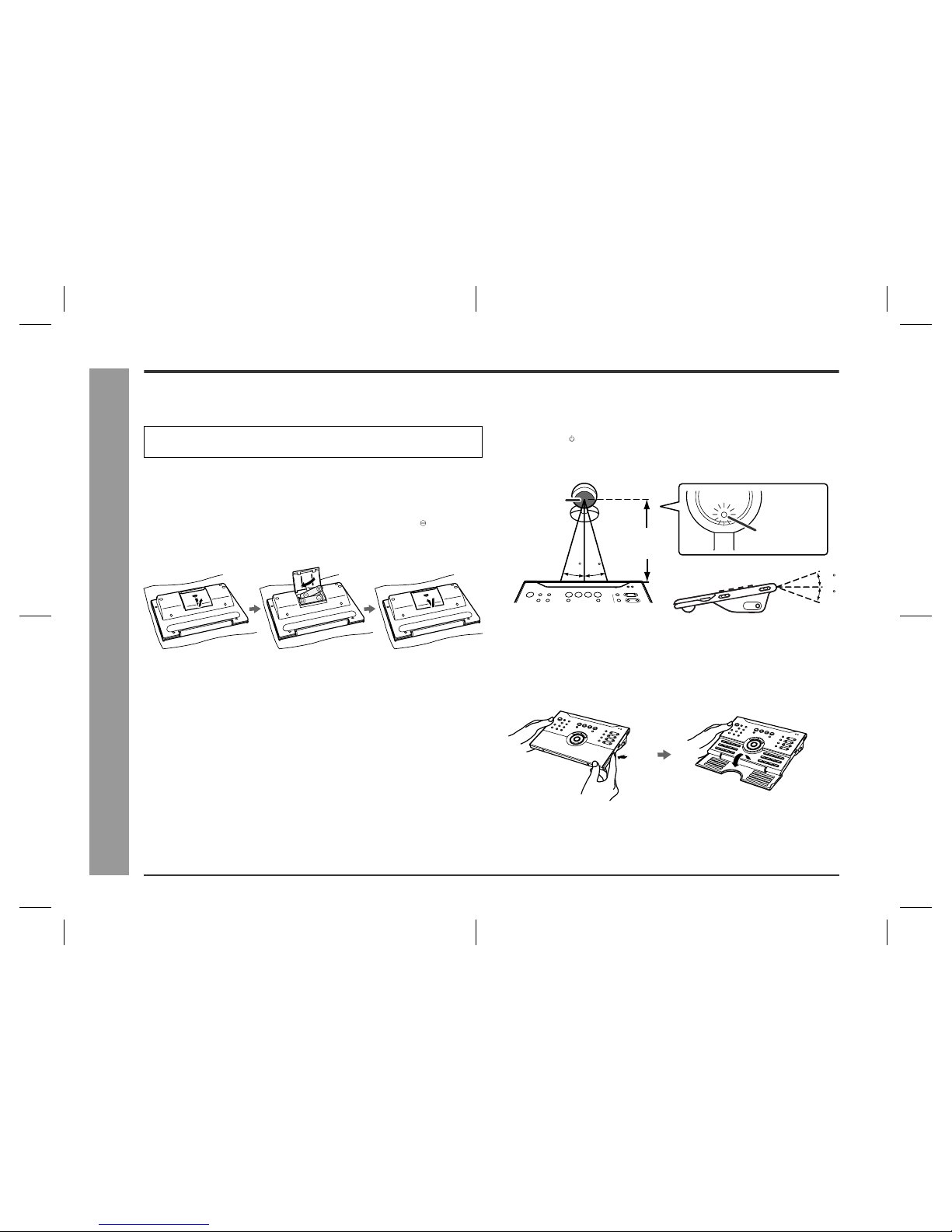

Preparing the remote control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
Operation buttons on the remote control . . . . . . . . . . . . . . . . . . . . . . . . . . 17 - 19
Memorising the remote control buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . .20, 21
Basic Operation
Setting the clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
Display control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
Sound control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
Enjoy Surround Sound (sound mode) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24 - 26
Listening to the radio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Listening to a memorised station . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28
Advanced Features
Using the Radio Data System (RDS) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29 - 34
Speaker settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35 - 37
Timer and sleep operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .38, 39
References
Troubleshooting chart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40, 41
Error indicators and warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .42, 43
TERMS OF GUARANTEE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back cover
Remote control 1 AC adaptor for
remote control 1 Labels for remote control 1 FM aerial 1
(RADPA8005BGZZ)
AM loop aerial 1 Remote control
sensor 1 Double-sidedtape for remote control
sensor 1
SCART adaptor 2
(IN/OUT)
Video cable 1
Speaker cushion
20 Speaker connection lead 5
IN
OUT
Green
Surround (left):
15 m (45')
Front (left):
5 m (15')
RedWhite
Blue Grey
Centre:
5 m (15') Front (right): 5 m (15')
Surround (right):
15 m (45')

4
HT-CN300H_(E)1.fm02/6/17
HT-CN300H
General Information
- Precautions -
Precautions
General
zPlease ensure that the equipment is positioned in a well ventilated area and that
there is at least 10 cm (4") of free space along the sides and back. There must
also be a minimum of 15 cm (6") of free space on the top of the unit.
zDo not place anything on top of the unit.
zDo not expose the unit to moisture, to temperatures higher than 60°C (140°F) or to
extremely low temperatures.
zIf your system does not work properly, disconnect the AC power lead from the wall
socket. Plug the AC power lead back in, and then turn on your system.
zNo naked flame sources, such as lighted candles, should be placed on the appa-
ratus.
zAttention should be drawn to the environmental aspects of battery disposal.
zThe apparatus is designed for use in moderate climate.
zThis unit should only be used within the range of 5°C - 35°C (41°F - 95°F).
zWhen carrying the unit by hand, do not hold the subwoofer located on the lower
part. The subwoofer may be damaged.
Warning:
The voltage used must be the same as that specified on this unit. Using this product
with a higher voltage other than that which is specified is dangerous and may result in
a fire or other type of accident causing damage. SHARP will not be held responsible
for any damage resulting from use of this unit with a voltage other than that which is
specified.
Volume control
The sound level at a given volume setting depends on speaker efficiency, location,
and various other factors. It is advisable to avoid exposure to high volume levels, to
avoid this do not turn the volume on to full at switch on and listen to music at moder-
ate levels.
zUse the unit on a firm, level surface free from vibra-
tion.
zKeep the unit away from direct sunlight, strong mag-
netic fields, excessive dust, humidity and electronic/
electrical equipment (home computers, facsimiles,
etc.) which generates electrical noise.
zIn case of an electrical storm, unplug the unit for
safety.
10 cm (4") 10 cm (4") 15 cm (6")
10 cm (4")
zHold the AC power plug by the head when removing
it from the wall socket, as pulling the lead can dam-
age internal wires.
zDo not remove the outer cover, as this may result
in electric shock. Refer internal service to your
local SHARP service facility.
zThe ventilation should not be impeded by covering
the ventilation openings with items, such as newspa-
pers, tablecloths, curtains, etc.
Correct

5
HT-CN300H_(E)1.fm02/6/17
HT-CN300H
General Information
- Controls and indicators -

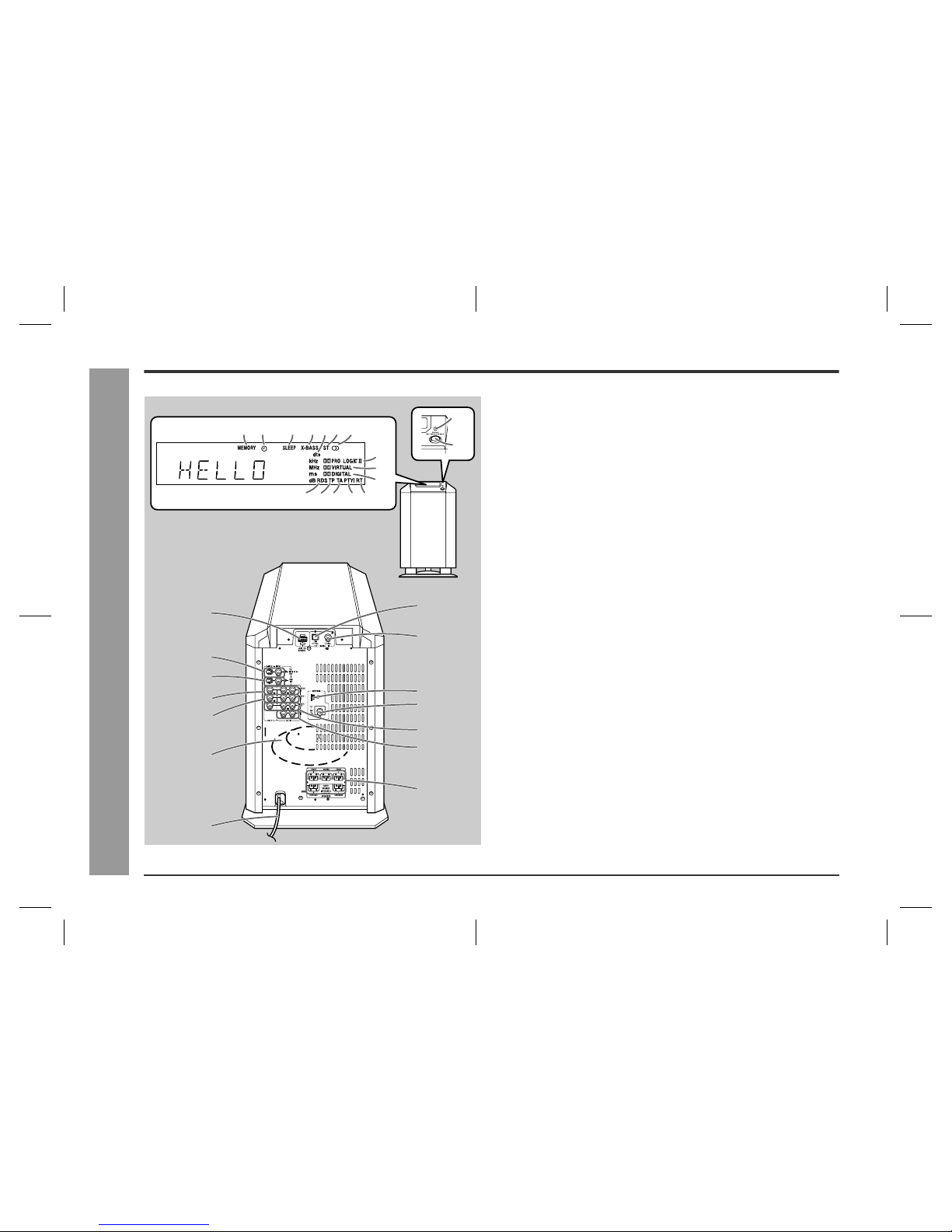

Controls and indicators
Remote control
Reference page
1. On/Stand-by Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
2. Operation Buttons for Other Equipment . . . . . . . . . . . . . . . . . . . . . 18
3. Remote Control Transmitter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
4. Sound Mode Select Buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
5. Dynamic Sound Select Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
6. Remote Control Sensor for Learn Function . . . . . . . . . . . . . . . . . . 20
7. Speaker Set Up Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
8. Clear Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21, 28
9. Learn Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
10.Volume Up and Down Buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
11.RDS Programme Type/Traffic Information Search Button . . . . . . . 32
12.DVD Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
13.Video-1 Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
14.RDS ASPM (Auto Station Programme Memory) Button . . . . . . . . 31
15.Tuner/Band Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
16.Video-2/Auxiliary Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
17.Memory 1/2 Buttons for Other Equipment . . . . . . . . . . . . . . . . . . . 19
18.Label Sealing Area . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
19.Clock Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22, 34
20.Memory Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
21.Timer/Sleep Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
22.TV Screen Display/RDS Display Mode Selector Button . . 23, 29, 34
23.Dimmer Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
24.Extra Bass/Demo Mode Button . . . . . . . . . . . . . . . . . . . . . . . . . 13, 23
25.Equaliser Mode Selector Button . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
26.Cursor Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22, 27, 35, 38
27.Enter Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22, 35, 38
28.Learn/Transmit Selector Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
29.3.6 V DC Input Socket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
30.Memory 1/2 Selector Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19, 20
2456
378 9
19
20
21
22
23
24
25
17
18
17
18
16
15
13
14
11
12
10
27
28
29
30
1
26

6
HT-CN300H_(E)1.fm02/6/17
HT-CN300H
General Information
- Controls and indicators -
Controls and indicators (continued)
Main unit (with subwoofer)
1. Memory Indicator
2. Timer Play Indicator
3. Sleep Indicator
4. Extra Bass Indicator
5. Digital Theatre System Indicator
6. FM Stereo Mode Indicator
7. FM Stereo Receiving Indicator
8. Dolby Pro Logic II Indicator
9. Dolby Virtual Indicator
10.Dolby Digital Indicator
11.RDS Indicator
12.Traffic Programme Indicator
13.Traffic Announcement Indicator
14.Dynamic PTY Indicator
15.Radio Text Indicator
Reference page
16.Power Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
17.On/Stand-by Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
18.Remote Control Sensor Socket . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
19.TV Monitor Output Sockets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
20.DVD Video Input Sockets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
21.Video and Audio Input Sockets (VIDEO 2) . . . . . . . . . . . . . . . . . . .12
22.Video and Audio Input Sockets (VIDEO 1) . . . . . . . . . . . . . . . . . . .12
23.Subwoofer
24.AC Power Lead . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
25.DVD Optical Digital Audio Input Socket . . . . . . . . . . . . . . . . . . . . . .11
26.DVD Coaxial Digital Audio Input Socket . . . . . . . . . . . . . . . . . . . . .11
27.AM Loop Aerial Socket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
28.FM 75 Ohms Aerial Socket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
29.Video and Audio Output Sockets (VIDEO 1) . . . . . . . . . . . . . . . . . .12
30.Auxiliary Audio Input Sockets . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
31.Speaker Terminals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
19
26
27
28
29
30
31
20
21
22
23
24
25
17
18
12 345
8
67
9
10
16
Front
Back
11 12 13 14 15

7
HT-CN300H_(E)1.fm02/6/17
HT-CN300H
General Information
- Controls and indicators -

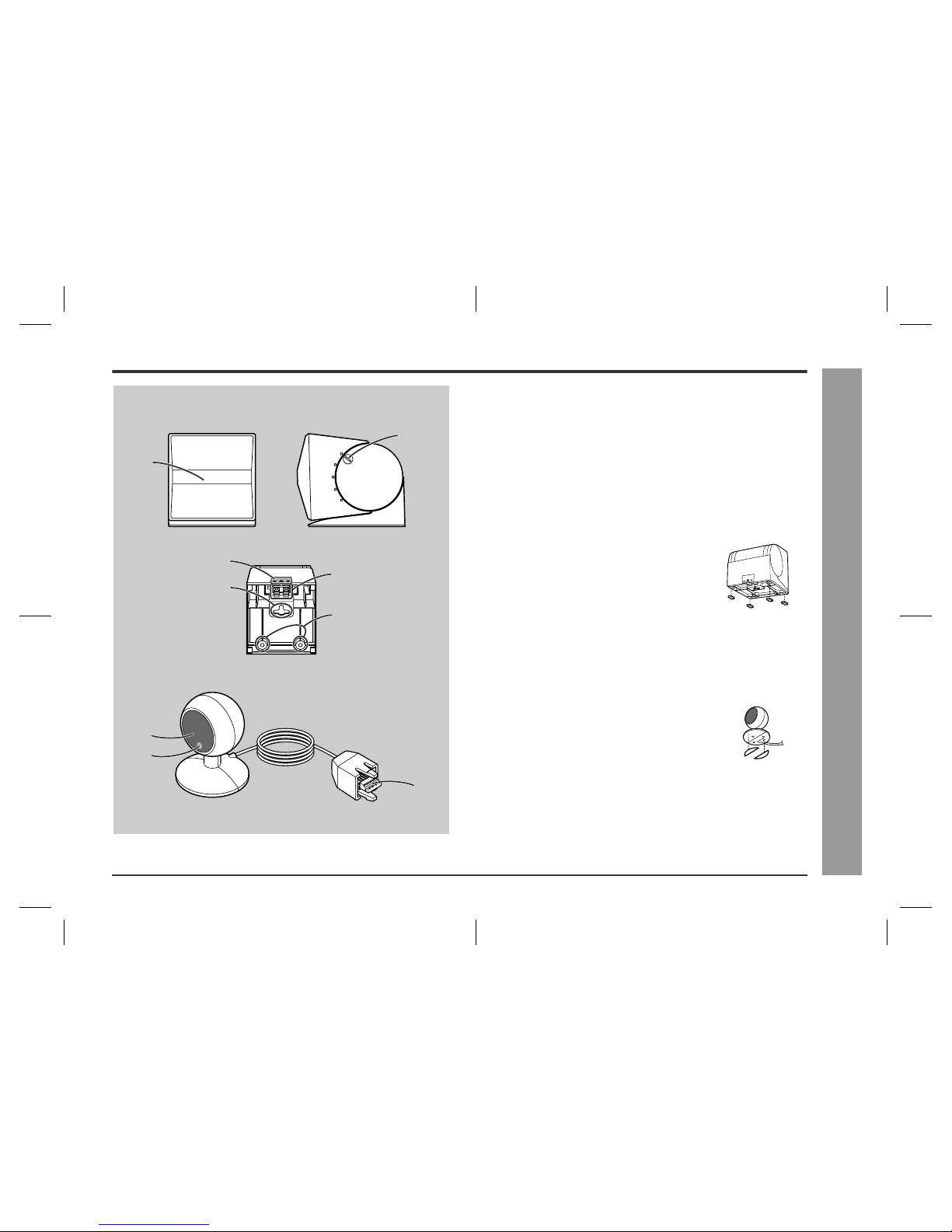

Front/Centre/Surround speakers Reference page
1. Full-Range Speaker
2. Angle Adjusting Lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
3. Label indication
4. Mounting Slot . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
5. Speaker Terminals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
6. Mounting Screw Holes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Remote control sensor Reference page
1. Remote Sensor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
2. Remote Control Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
3. Remote Sensor Connection Plug . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Caution:
zCarefully choose where you place the remote control sensor as the adhesive tape
may damage or peel the surface coating when the tape is removed.
zNever locate the remote control sensor in an unstable place. Otherwise it may fall.
Note:
Fix the remote control sensor on a flat surface.
1
1
3
2
2
5
Bottom
Front Side
6
4
3
Front Speaker (right): Red
Front Speaker (left): White
Centre Speaker: Green
Surround Speaker (right): Grey
Surround Speaker (left): Blue
Speaker cushion:
Attach the cushions to the bottom of the speakers to prevent
them from sliding.
Double-sided tape for remote control sensor:
You can fix the remote control sensor with the supplied tape.

8
HT-CN300H_(E)2.fm02/6/17
HT-CN300H
Connections
- Speaker connections -
Speaker connections
Front speaker
(right) Front speaker (left)
Surround speaker
(right)
Main unit
(with subwoofer)
Surround speaker
(left)
Centre
speaker
Grey
Black
Red
Red Black
White
Red
Black
Grey
Red Black
Blue
Red
Black Red
Blue
Green
Green
White
Red
The speaker terminals on the main unit, the tube and plugs of the speaker lead, and speaker labels are distinguished by colour.
Connect the speaker and the unit by matching the colours.
Connect the speaker wires to the speakers first, then to the unit.
Speaker Main unit
Label
Tube
Black Red
Recess
Label Speaker plug Plug in with the rising side facing up.

9
HT-CN300H_(E)2.fm02/6/17
HT-CN300H
Connections
- Speaker / Remote control sensor / Aerial connections -
Remote control sensor connection
Caution:
zHold the connection plug of the remote control sensor when removing it from the
unit. Pulling the lead may cause breakage.
zMake sure of the top and bottom of the plug when plugging in the remote control
sensor.
Aerial connection
Note:
Placing the aerial on the unit, or near the AC power lead or the remote sensor may
cause noise pickup. Place the aerial away from the unit for better reception.
Installing the AM loop aerial:
External FM aerial:
Use an external FM aerial if you require better reception. Consult your dealer.
Caution:
zOnly the supplied speakers should be used with this unit.
zMake sure to connect the speakers after unplugging the unit.
zDo not mistake and , and right and left terminals of the speaker leads.
zDo not let the bare speaker wires touch each other.
zDo not stand or sit on the speakers. You may be injured.
zInsert the speaker plug fully with the rising side facing up.
zHold the speaker plug when removing it from the unit. Pulling
the lead may cause breakage.
Connect the plug of the remote
control sensor and push the plug
cover until it clicks.
Removing the remote control sensor:
Push the upper and lower sides of the plug cover and take the
plug off the unit to disconnect the remote control sensor.
Plug cover
Plug
Push
Push
Supplied FM aerial:
Connect the FM aerial wire to the FM 75 OHMS
socket and position the FM aerial wire in the direc-
tion where the strongest signal can be received.
Supplied AM loop aerial:
Connect the AM loop aerial to the AM LOOP sock-
et. Position the AM loop aerial for optimum recep-
tion. Place the AM loop aerial on a shelf, etc., or
attach it to a stand or a wall with screws (not sup-
plied).
< Assembling > < Attaching to the wall >
Screws
(not supplied)
Wall
External FM aerial

10
HT-CN300H_(E)2.fm02/6/17
HT-CN300H
Connections
- Connecting other equipment -
Connecting other equipment
To enjoy images or music, connect other equipment to the main unit with the supplied video cable for TV or you can purchase commercially available cables.
TV
Camcorder,
Satellite receiver, etc.
VCR
S-video cable
(See page 11.)
(See page 12.)
(See page 12.)
Video cable
Audio cable
Video cable (supplied) DVD player
Optical digital audio cable
or
Coaxial digital audio cable
S-video cable
Video cable
Tape deck, etc. Audio cable
(See page 11.)
(See page 12.)
One video cable and two SCART adaptors are supplied.
Video cable
Audio cable
Video cable
Audio cable
Video cable: Audio cable:
White (Left)
Red (Right)
White (Left)
Yellow Yellow Red (Right)

11
HT-CN300H_(E)2.fm02/6/17
HT-CN300H
Connections
- Connecting other equipment -
Connecting the TV
Connect the TV to the main unit with the supplied video cable. If your TV has S-video
input socket, connect the commercially available S-video cable to enjoy clearer
images on DVDs.
Notes:
zChange the TV input in accordance with the connected socket.
zDo not connect other equipment between the TV and this unit. If they are con-
nected via a VCR, pictures may be distorted.
zWhen the video and S-video cables are both connected, the images from the S-
video input socket appears on your TV.
Caution:
The settings appear only when the TV is connected with a video cable. They
will not appear when the TV is connected with an S-video cable.
During the tuner or auxiliary mode, the TV screen display will not be shown.
(See page 23 for the TV screen display.)
Connecting the TV with SCART socket:
Use a supplied SCART adaptor (IN).
Connecting the DVD player
Use the video cable or the S-video cable for receiving images. The S-video cable can
realise clearer images. For audio, connect with the optical digital cable or the coaxial
digital cable.
To connect to the video socket with the video cable:
Note:
When connecting a DVD player with a video cable, be sure to use another video
cable for the TV.
To connect to the S-video socket with the S-video cable:
Note:
When connecting a DVD player with an S-video cable, be sure to use another S-video
cable for the TV. This unit cannot convert the S-video signal into the video or other
signals.
Switching the DVD audio input:
Switch the DVD's audio signal with the remote control according to the connected
socket, "DIG1" (optical) or "DIG2" (coaxial) (see page 18).
Caution:
Turn off all other equipment before making this connection.
Notes:
zRefer to the operation manual of the equipment to be connected.
zInsert the plugs fully to avoid fuzzy pictures or noise.
TV
Video cable (supplied) To video input socket
To S-video input socket
S-video cable
LAUDIO VIDEOR
To video input socket
To SCART
socket
Video cable (supplied)
IN
TV
SCART adaptor (IN)
Optical digital socket cap:
When using the optical digital socket, remove the cap
first. After using the socket, replace the cap.
Video cable To video output socket
Optical digital audio cable
Coaxial digital
audio cable
DVD player
To S-video output socket
Optical digital audio cable
Coaxial digital
audio cable
DVD player
S-video cable

12
HT-CN300H_(E)2.fm02/6/17
HT-CN300H
Connections
- Connecting other equipment -
Connecting other equipment (continued)
Connecting the VCR (VIDEO 1)
Notes:
zConnect the unit and the TV with a video cable. The image of the equipment con-
nected to the VIDEO 1 IN sockets does not appear on the TV even if it is con-
nected with an S-video cable.
Connecting the camcorder, satellite
receiver, etc. (VIDEO 2)
Note:
Connect the unit and the TV with a video cable. The image of the equipment con-
nected to the VIDEO 2 IN sockets does not appear on the TV even if it is connected
with an S-video cable.
Connecting the tape deck, etc. (AUX)
Connection example using a SCART adap-
tor
zThe image and sound are not emitted from the VIDEO 1 OUT sockets when the
equipment is connected to the DVD or VIDEO 1 IN sockets.
If connected to the VIDEO 2 IN sockets, they are emitted from the VIDEO 1 OUT
sockets. If connected to the AUX IN sockets or whilst in the tuner mode, only the
sound is emitted.
Video cable
Video cable
Audio cable
Audio cable To audio
output sockets
To video
output socket
VCR
To audio
input sockets
To video
input socket
To audio
output sockets
To video
output socket Camcorder,
Satellite receiver, etc.
Video cable
Audio cable
To audio output sockets
Tape deck, etc.
Audio cable
LAUDIO VIDEOR
OUT
Video cable
Audio cable
To SCART
socket
To video
output socket
To audio
output sockets
LAUDIO VIDEOR
IN
Video cable
Audio cable
To SCART
socket
To video
input socket
To audio
input sockets
SCART adaptor (OUT)
SCART adaptor (IN)

13
HT-CN300H_(E)3.fm02/6/17
HT-CN300H
Connections
- Connecting to the AC socket -
Connecting to the AC socket
Plugging in the main unit
After all connections are made, plug in the unit.
Note:
Unplug the AC power lead from the wall socket if the unit will not be in use for a pro-
longed period of time.
Plugging in the remote control
Notes:
zYou can operate the remote control with batteries (not supplied) in areas where
the AC adaptor lead cannot reach (see page 16).
zRemove the AC adaptor from the AC socket if the unit will not be in use for a pro-
longed period of time.
zUse only the supplied AC adaptor. Another adaptor may cause an electric shock or
fire.
zIf it is necessary to replace the AC adaptor, replace it with the same type
(RADPA8005BGZZ) which is shown on page 3.
Demonstration mode
The first time the unit is plugged in, the unit will enter the demonstration mode. You
will see words scroll.
To cancel the demonstration mode:
When the unit is in the power stand-by mode (demonstration mode), press the X-
BASS button. The demonstration mode will be cancelled and the display will disap-
pear.
To return to the demonstration mode:
When the unit is in the power stand-by mode, press the X-BASS button again.
Note:
When the power is on, the X-BASS button can be used to select the extra bass mode
(see page 23).
To turn the power on
Press the ON/STAND-BY button on the main unit or the ON/ (STAND-BY) button on
the remote control.
To set the unit to stand-by mode:
Press the ON/STAND-BY button on the main unit or the ON/ (STAND-BY) button on
the remote control again.
Notes:
zFor the operation range and direction of the remote control, see page 16.
zWhen turning on the power right after it is set to the stand-by mode, wait a few
seconds.
Wall socket
(AC 230 V, 50 Hz)
To 3.6 V DC
input socket
Wall socket
(AC 230 V, 50 Hz)
Power indicator

14
HT-CN300H_(E)3.fm02/6/17
HT-CN300H
Speaker Installation
- Placing the speaker system -
Placing the speaker system
The best surround effect will be achieved by placing each speaker at the same dis-
tance from the listening position.
It is recommended to arrange the speakers as shown below.
Notes:
zPlace the TV halfway between the front speakers.
zIt is recommended that the centre speaker be placed near the television.
zPlace the surround speakers at a position just above the height of your ears.
The supplied speakers may be placed beside or near the TV as they are magnetically
shielded. However, colour variation may occur, depending on the type of the TV.
If colour variation occurs...
Turn off the TV (from the power switch).
After 15 - 30 minutes, turn the TV on again.
If the colour variation is still present...
Move the speakers further away from the TV.
Refer to the user's manual of the TV for details.
Example of speaker locations:
Main unit
(subwoofer)
Front
speaker (left) Front
speaker (right)
Surround
speaker (left) Surround
speaker (right)
Centre
speaker
Front speaker (left)
Same distance
Front speaker (right)
Centre speaker
Same distance

15
HT-CN300H_(E)3.fm02/6/17
HT-CN300H
Speaker Installation
- Installing the speakers on the wall -
Installing the speakers on the wall
Front, centre and surround speakers can be mounted on the wall and their angle can
be adjusted. Each speaker needs 3 screws to be mounted (not supplied).
Changing the speaker angle:
Whilst holding down the angle adjusting lever, move the speaker to the marking and
then release the lever.
The speaker angle can be adjusted in 5 levels.
The design of the speakers allows them to
be hung on the wall.
Be sure to use the type and size of the
screw that are shown.
1Make a hole in the wall using a
drill.
2Drive a wall mount plug into the
hole using a hammer. Drive the
wall mount plug in until it is
flush with the wall surface.
3Drive one screw into the wall
mount plug for each speaker.
zMake sure that both the screw and the wall can support a load of 20 kg (45 lbs.).
zDrive the screw, so the screw head extends about 3.5 mm (9/64") out from the
wall.
4Install the speaker on the wall by inserting the screw head into the
slot on the back of the speaker.
Set the speaker lead in the recess, preventing it from being caught between the
wall and the speaker.
9 mm (3/8")
5 mm
(3/16")
3.2 mm (1/8")
Min. 22 mm (7/8")
8 - 9 mm (3/8")
32 mm (1-1/4")
Wall surface Wall mounting screw
Recess
Wall surface
5Raise the speaker the most upward. (Refer to "Changing the speak-
er angle" for details.)
6Drive two screws into the wall.
Use the round labels for hiding mounting screws.
7Perform steps 1 - 6 to mount other speakers.
Label Label
Mark
Caution:
Check the stability of the ceiling or wall fully. Sharp is not liable for accidents
caused by insufficient stability of the ceiling or wall, or improper mounting.
The speaker may fall due to unstable mounting.
If you need any assistance, contact the dealer you purchased the system from.
The following may cause personal injury or speaker damage.
Applying any other load to the fittings than the speaker.
Modification or change of the fittings.
Stepping on or hanging from the speakers. Especially pay attention to small children.

16
HT-CN300H_(E)3.fm02/6/17
HT-CN300H
Remote Control
- Preparing the remote control -
Preparing the remote control
Battery installation
You can operate the remote control with batteries in areas where the AC power lead
cannot reach.
Precautions for battery use:
zReplace all old batteries with new ones at the same time.
zDo not mix old and new batteries.
zRemove the batteries if the unit is not to be used for long periods of time. This will
prevent potential damage due to battery leakage.
Caution:
zDo not use rechargeable batteries (nickel-cadmium battery, etc.).
zInstalling the batteries incorrectly may cause the unit to malfunction.
Notes concerning use:
zReplace the batteries if the operating distance is reduced or if the operation
becomes erratic.
zPeriodically clean the transmitter on the remote control and the remote control
sensor with a soft cloth.
zKeep the remote control away from moisture, heat, shock, and vibrations.
Test of the remote control
Point the remote control directly at the remote sensor.
The remote control can be used within the range shown below:
zPress the ON/ (STAND-BY) button. Does the power turn on? Now, you can enjoy
your system.
zWhen the signal is received, the remote control indicator will flash. Whilst in the
dimmer mode (page 23), it will not flash or light.
Note:
Exposing the remote sensor to strong light may interfere with operation. Change the
lighting or the direction of the remote control sensor.
How to open the remote control cover
To access the Memory 1/2 buttons, open the remote control cover.
Note:
You can control the DVD, VCR, etc. with this remote control (see page 19).
Use 2 "AA" size batteries (UM/SUM-3, R6, HP-7 or similar).
Batteries are not included.
1Turn the remote control over and place it on a soft cloth.
2Open the battery cover.
3Insert the batteries according to the direction indicated in the bat-
tery compartment.
When inserting or removing the batteries, push them towards the battery termi-
nals.
4Close the cover. 0.2 m - 6 m
(8" - 20')
Remote sensor
Remote control
indicator
15 15
20
20

17
HT-CN300H_(E)3.fm02/6/17
HT-CN300H
Remote Control
- Operation buttons on the remote control -
Operation buttons on the remote control
This remote control allows you to operate the main unit and other Sharp equipment.
By memorising remote control operations (learn function), you can operate various
equipment.
Operation buttons for the main unit
Operation buttons for other equipment
(See page 18.)
Operation buttons for the main unit
Memory 1/2 buttons for other equipment
(See page 19.)
132 456 789
10
11
12
13
1614 15 17 2221201918
1 ON/ (STAND-BY)
Sets the power to "ON" or "STAND-BY".
2Changes the settings of time, tuner, timer/sleep operations, and speakers.
3VOLUME
Decreases the volume.
4VOLUME
Increases the volume.
5 STANDARD
Sets the sound mode to "STANDARD".
6 DYNAMIC SOUND
Switches the dynamic sound.
7SETUP
Changes the speaker setting.
8CLEAR
Deletes the tuner pre-selections.
9CLOCK
Sets or displays the clock time.
10 MEMORY
Presets the tuner.
11 TIMER/SLEEP
Sets the power to "ON" or "STAND-BY" at the desired time.
12 DIMMER
Adjusts the brightness of the main unit display.
13 DISPLAY
Switches the TV display or selects the RDS display mode.
14 ASPM
Searches the new RDS stations.
15 RDS PTY.TI
Searches the specifying programme RDS stations.
16 Changes the settings of tuner and speakers.
17 Changes the settings of time, tuner, timer/sleep operations, and speakers.
18 ENTER
Validates the settings of time, timer/sleep operations, and speakers.
19 Changes the settings of tuner and speakers.
20 2CH
Switches the sound mode to "VIRTUAL" or "STEREO".
21 EQ
Changes the tone setting.
22 X-BASS
Adjusts the bass or activates/deactivates the demonstration mode.

18
HT-CN300H_(E)3.fm02/6/17
HT-CN300H
Remote Control
- Operation buttons on the remote control -
Operation buttons on the remote control (continued)
Switching the operation buttons for the
main unit
Operation buttons for other equipment
The remote control is set at the factory to operate the Sharp's DVD, TV and VCR.
To operate Sharp products or other companies' equipment that cannot be controlled
by the default remote control, you can memorise their remote control operations
(learn function) (see page 20).
1DVD
Used when the unit is set to DVD. Switch the setting according to the connected
sound source by pressing it repeatedly.
2 TUNER/BAND
Selects the tuner function or switches the frequency band.
3 VIDEO-2/AUX
Selects the "VIDEO-2" or "AUX" mode.
4VIDEO-1
Selects the "VIDEO-1" mode.
1234
(Optical) (Coaxial)
1 DVD ON/ (STAND-BY)
Sets the DVD power to "ON" or "STAND-BY".
2 TV ON/ (STAND-BY)
Sets the TV power to "ON" or "STAND-BY".
3Skips DVD chapters.
4Skips DVD chapters.
5Stops the DVD player.
6Plays back the DVD.
7 VCR ON/ (STAND-BY)
Sets the VCR power to "ON" or "STAND-BY".
8TVINPUT
Switches the TV input.
9MENU
Displays the DVD menu.
10 RETURN
Goes back to the previous screen.
12 34 56
78910

19
HT-CN300H_(E)3.fm02/6/17
HT-CN300H
Remote Control
- Operation buttons on the remote control -
Memory 1/2 buttons for other equipment
Memory 1 buttons:
The remote control is set at the factory to operate the Sharp's DVD, TV and VCR.
To operate Sharp products or other companies' equipment that cannot be controlled
by the default remote control, you can memorise their remote control operations
(learn function) (see page 20).
Set the MEMORY 1/2 selector switch to MEMORY 1 to use the Memory 1 buttons.
Memory 2 buttons:
No functions are stored at the factory setting. Memorise the remote control signals
(learn function) of your equipment before use (see page 20).
Set the MEMORY 1/2 selector switch to MEMORY 2 to use the Memory 2 buttons.
Initial setting for Memory 1 buttons:
For details, refer to the operation manual attached to the other equipment.
OPEN
1
2
3
4
13
14
15
16
5
6
7
8
9
19
20
2110 11 12 22 23 24
18
17
1 TV/VCR
Switches the input to TV or VCR.
2 VCR CH
Switches up the VCR channels.
3 TV VOL
Turns up the TV volume.
4TVCH
Switches up the TV channels.
5 TV VOL
Turns down the TV volume.
6TVCH
Switches down the TV channels.
7 VCR CH
Switches down the VCR channels.
8 VCR
Pauses VCR.
9 VCR
Rewinds the VCR rapidly.
10 VCR
Advances the VCR rapidly.
11 VCR
Stops the VCR.
12 VCR
Plays the VCR.
13 AUDIO
Switches the DVD sound.
14 SET UP
Changes the DVD settings.
15 Selects the DVD menu.
16 DISPLAY
Switches the DVD display.
17 Selects the DVD menu.
18 SUB
Switches the subtitle of a DVD.
19 ENTER
Validates the menu.
20 Selects the DVD menu.
21 ANGLE
Switches the angle of the DVD images.
22 ZOOM
Zooms the DVD images.
23 Selects the DVD menu.
24 TOP
Displays the top menu of the DVD.

20
HT-CN300H_(E)3.fm02/6/17
HT-CN300H
Remote Control
- Memorising the remote control buttons -
Memorising the remote control buttons
You can assign only one function to each button. If you assign two functions to the
button, the newer one will be memorised (learn function).
Memorising operations in the Memory 2
buttons for other equipment
The same buttons are used for both Memory 1 and 2 operations. To store signals in
Memory 1 buttons, set the MEMORY 1/2 selector switch to MEMORY 1, and for
Memory 2 buttons, set the switch to MEMORY 2.
Notes:
zYou cannot store all the button operations by pressing only one button on the
remote control of other equipment. Memorise them one by one.
zAfter storing operation is completed, check that other equipment works correctly
with the remote control.
zSome functions cannot be memorised depending on other equipment.
1Set the MEMORY 1/2 selector switch to MEMORY 2.
2Move the LEARN/TRANSMIT selector switch to LEARN.
The red learn indicator will light up. Though the red and green learn indicators
light up alternately after approx. 15 seconds, you can go on to the next step.
3Press down the desired button on the remote control for 2 seconds
or more.
The green learn indicator will flash (the red indicator remains lit).
Lights up Alternately light up
Lit Flashes
4Within 10 seconds, press down for more than 2 seconds the de-
sired button on the remote control supplied with other equipment
to send the signal to the marking.
When the signal is sent to the remote control of the unit, the green indicator will
go off. When memorisation is completed, it will light up.
If the signal is not memorised correctly, the
red learn indicator will flash. Perform the op-
erations from step 3 again.
5Repeat steps 3 and 4 to memorise other buttons.
6After memorisation is completed, move the LEARN/TRANSMIT se-
lector switch to TRANSMIT.
You can use the remote control.
10˚
Angle and distance
5 cm - 10 cm (2" - 4")
mark
Goes offLit Lit Lights up
Flashes
