Sharp CD-BA200 User manual

– 1 –
CD-BA200
No. SY967CDBA200/
CONTENTS Page
IMPORTANT SERVICE NOTES (FOR U.S.A. ONLY)....................................................................................................... 2
SPECIFICATIONS ............................................................................................................................................................. 2
NAMES OF PARTS ........................................................................................................................................................... 3
OPERATION MANUAL ...................................................................................................................................................... 5
QUICK GUIDE ................................................................................................................................................................... 6

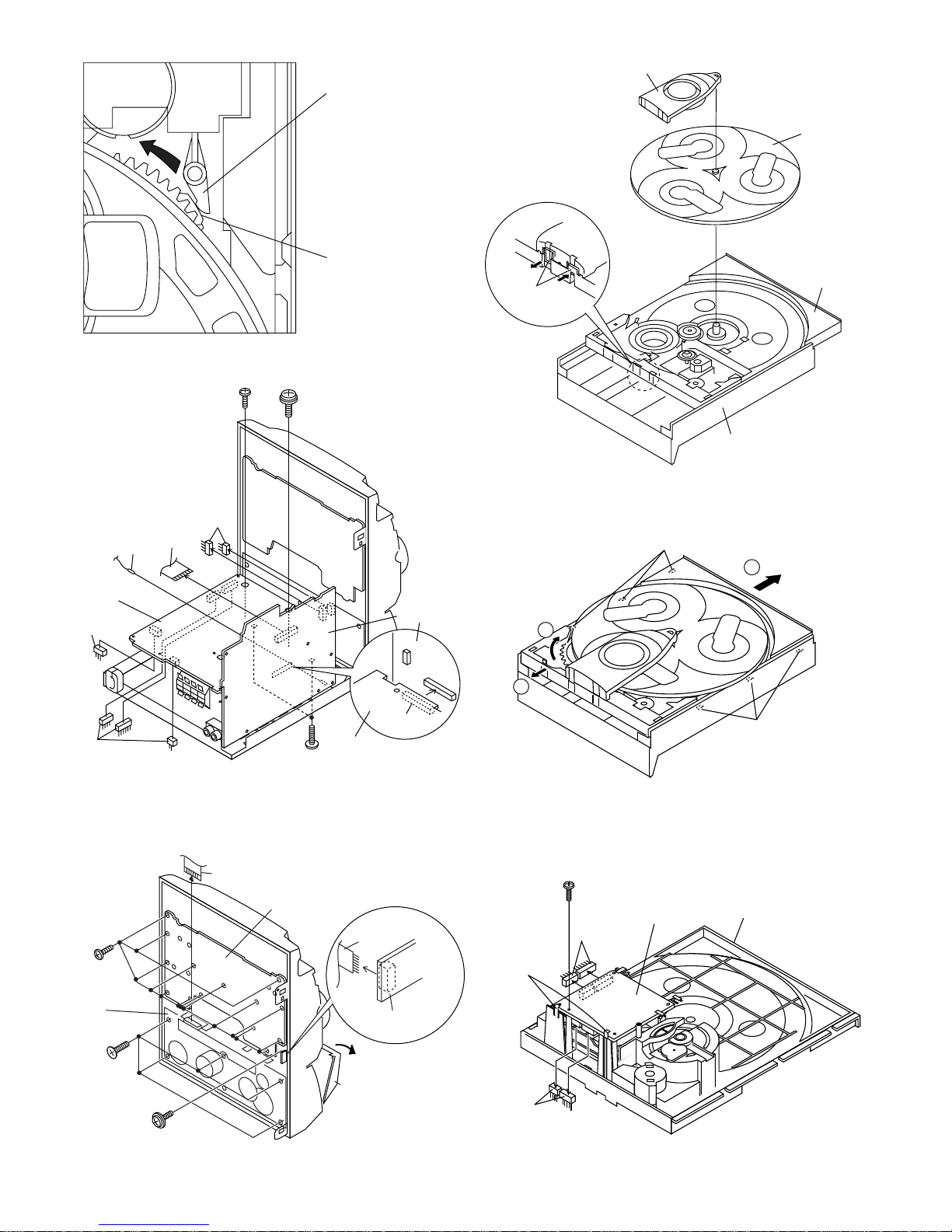

DISASSEMBLY.................................................................................................................................................................. 7
REMOVING AND REINSTALLING THE MAIN PARTS................................................................................................... 10
ADJUSTMENT ................................................................................................................................................................. 11
NOTES ON SCHEMATIC DIAGRAM .............................................................................................................................. 13
WAVEFORMS OF CD CIRCUIT...................................................................................................................................... 14
BLOCK DIAGRAM ........................................................................................................................................................... 15

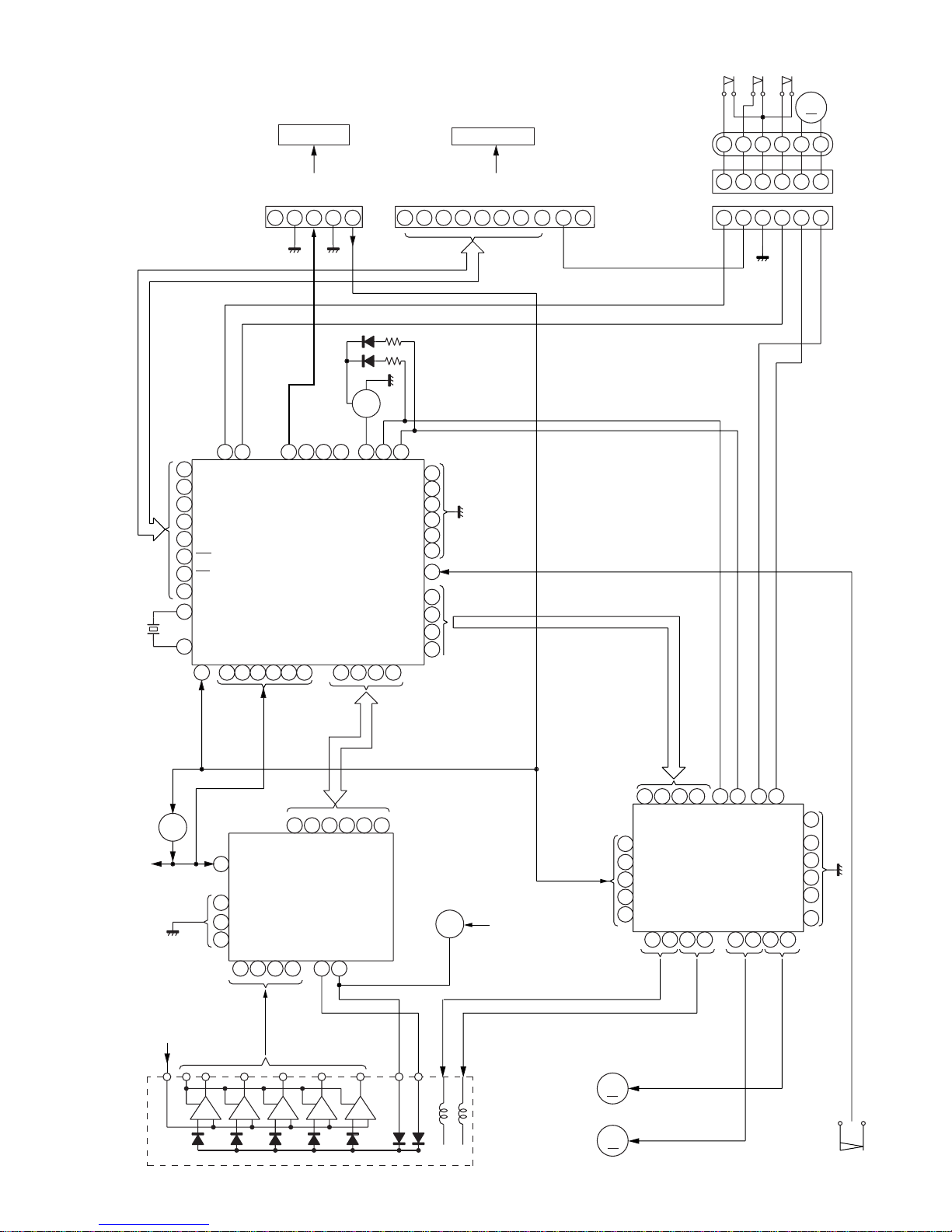

SCHEMATIC DIAGRAM / WIRING SIDE OF P.W.BOARD..............................................................................................18
VOLTAGE ........................................................................................................................................................................ 36
TROUBLESHOOTING (CD SECTION) ........................................................................................................................... 37
FUNCTION TABLE OF IC................................................................................................................................................ 41

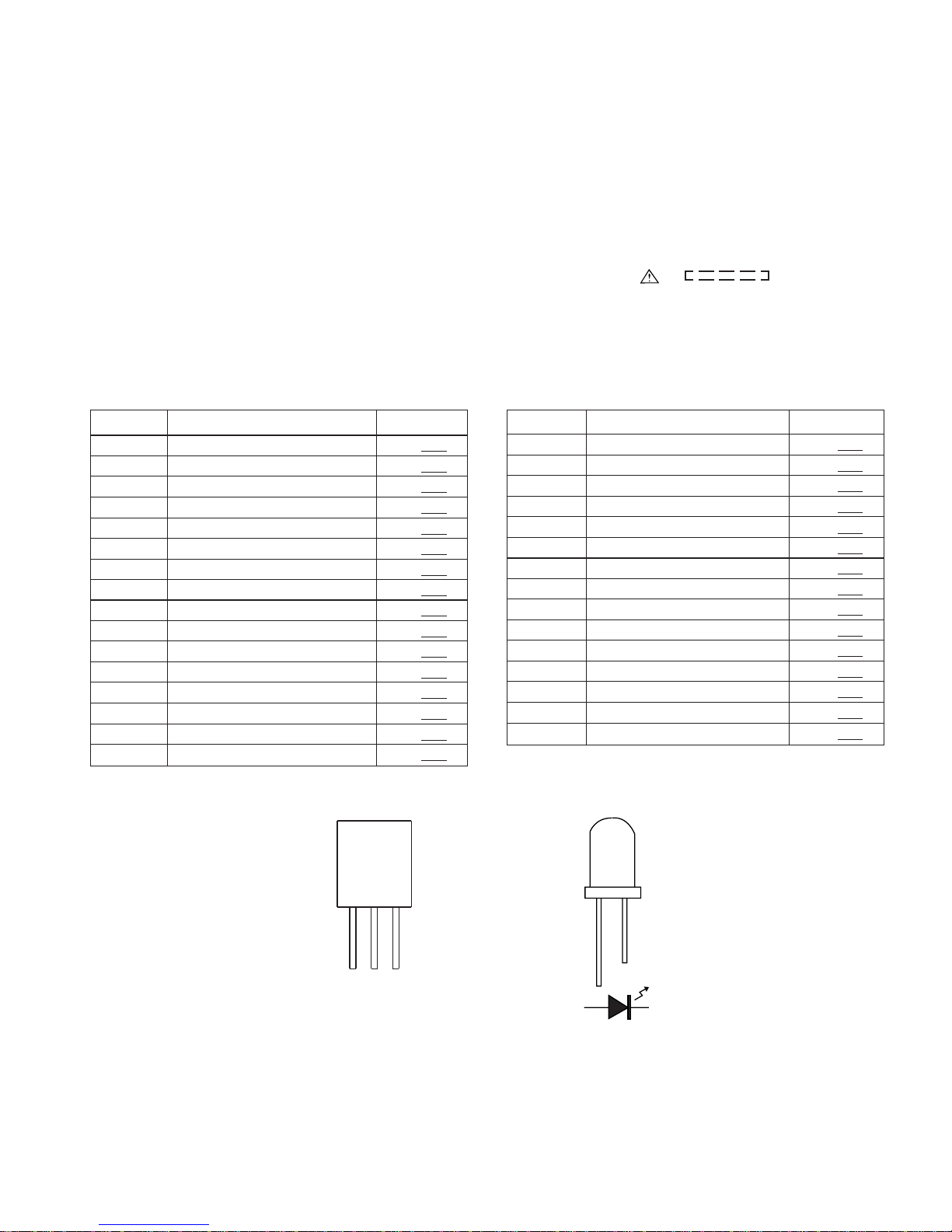

FL DISPLAY......................................................................................................................................................................47
REPLACEMENT PARTS LIST/EXPLODED VIEW
PACKING OF THE SET (FOR U.S.A. ONLY)
CD-BA200
• In the interests of user-safety the set should be restored to its
original condition and only parts identical to those specified be
used.
SERVICE MANUAL
This document has been published to be used
for after sales service only.
The contents are subject to change without notice.
SHARP CORPORATION
CD-BA200Mini ComponentSystem consistingof CD-BA200
(mini unit) and CP-BA200 (speaker system).

CD-BA200
– 2 –
FOR A COMPLETE DESCRIPTION OF THE OPERATION OF THIS UNIT, PLEASE REFER
TO THE OPERATION MANUAL.

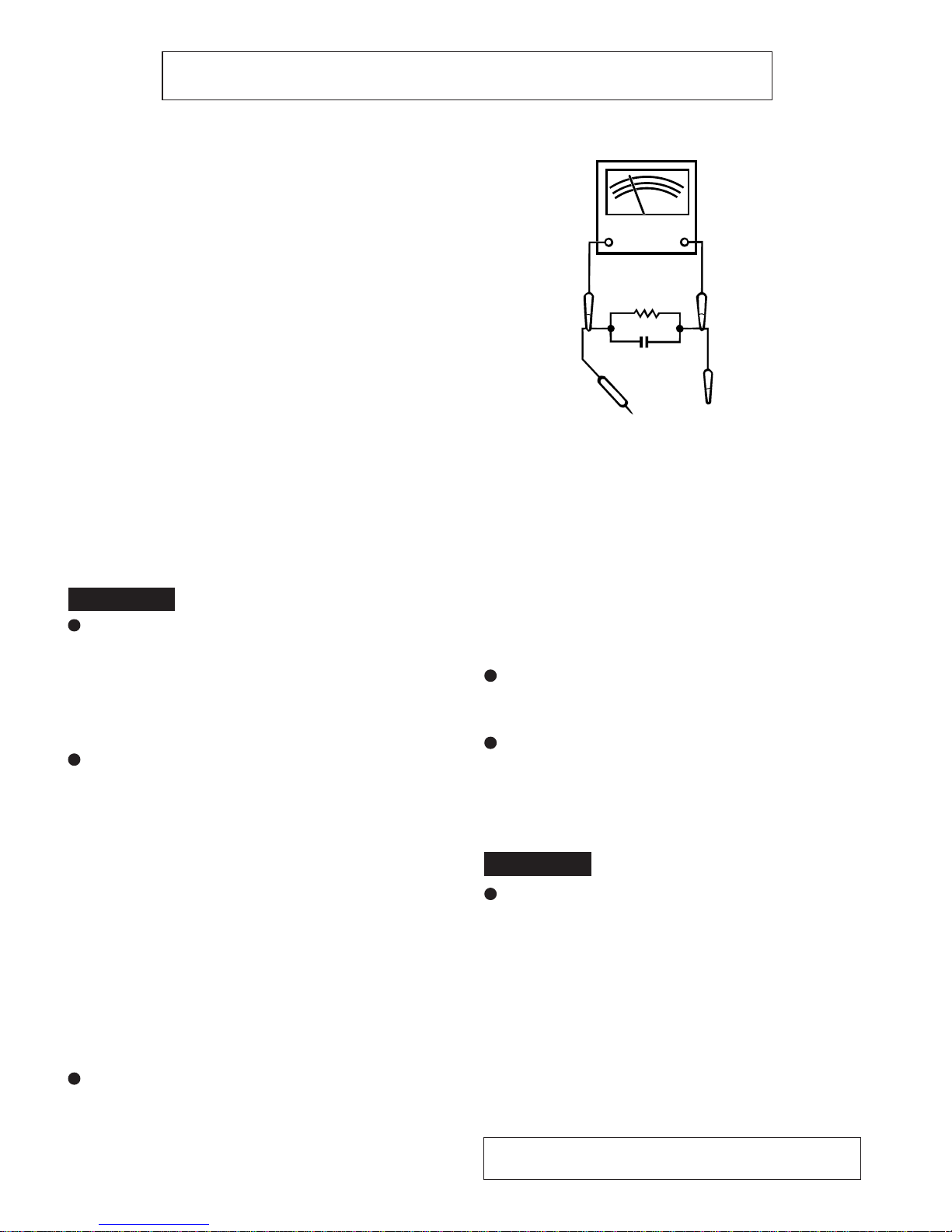

IMPORTANT SERVICE NOTES (FOR U.S.A. ONLY)
BEFORE RETURNING THE AUDIO PRODUCT
(Fire & Shock Hazard)
Before returning the audio product to the user, perform the
following safety checks.
1. Inspect all lead dress to make certain that leads are not
pinchedorthathardwareisnotlodgedbetweenthechassis
and other metal parts in the audio product.
2. Inspect all protective devices such as insulating materials,
cabinet,terminalboard,adjustmentandcompartmentcovers
or shields, mechanical insulators etc.
3. To be sure that no shock hazard exists, check for leakage
current in the following manner.
* Plug the AC line cord directly into a 120 volt AC outlet.
* Using two clip leads, connect a 1.5k ohm, 10 watt resistor
paralleled by a 0.15µF capacitor in series with all exposed
metal cabinet parts and a known earth ground, such as
conduit or electrical ground connected to earth ground.
* Use a VTVM or VOM with 1000 ohm per volt, or higher,
sensitivity to measure the AC voltage drop across the
resistor (See diagram).
* Connect the resistor connection to all exposed metal parts
havingareturnpathtothechassis(antenna,metalcabinet,
screw heads, knobs and control shafts, escutcheon, etc.)
and measure the AC voltage drop across the resistor.
AllcheckmustberepeatedwiththeAClinecordplugconnection
reversed.
Anyreading of0.3 voltRMS(thiscorrespondsto0.2milliamp.
AC.) or more is excessive and indicates a potential shock
hazard which must be corrected before returning the audio
product to the owner.
TO EXPOSED
METAL PARTS
CONNECT TO
KNOWN EARTH
GROUND
TEST PROBE
0.15 µ F
1.5k ohms
10W
VTVM
AC SCALE
General
Power source: AC 120 V, 60 Hz
Power consumption: 185 W
Dimensions: Width; 10-5/8" (270 mm)
Height; 13" (330 mm)
Depth; 14" (355 mm)
Weight: 19.2 lbs. (8.7 kg)
Amplifier section
Output power: 100 watts minimum RMS per
(Except for Canada) channel into 6 ohms from 60 Hz
to 20 kHz, 10 % total harmonic
distortion
Output power: RMS; 200 W (100 W + 100 W)
(For Canada) (10% T.H.D)
[Main speaker (woofer,
tweeter and super
tweeter);
80 W (40 W + 40 W),
Subwoofer;
120 W (60 W + 60W)]
Output terminals: Speakers; 6 ohms
Headphones; 16-50 ohms
(recommended; 32 ohms)
Input terminals: Video/Auxiliary (audio signal);
500 mV/47 kohms
Compact disc player section
Type: 3-disc multi-play compact disc
player
Signal readout: Non-contact, 3-beam semi-
conductor laser pickup
D/A Converter: 1-bit D/A converter Specifications for this model are subject to change without
prior notice.
SPECIFICATIONS
CD-BA200
Frequency response: 20 - 20,000 Hz
Dynamic range: 90 dB (1 kHz)
Tuner section
Frequency range: FM; 87.5 - 108 MHz
AM; 530 - 1,720 kHz
Cassette deck section
Frequency response: 50 - 14,000 Hz (Normal tape)
Signal/noise ratio: 55 dB (TAPE 1, playback)
50 dB (TAPE 2, recording/
playback)
Wow and flutter: 0.3 % (WRMS)
Speaker section
Type: 4-way type [5-1/4" (13 cm) sub
woofer, 5-1/4" (13 cm) woofer,
2" (5cm) tweeter and super
tweeter]
Maximum input power
(Total): 200 W
Rated input power
(Total): 100W
Impedance: 6 ohms
Dimensions: Width; 10-5/8" (270 mm)
Height; 13" (330 mm)
Depth; 10-3/8" (264.6 mm)
Weight: 10.3 lbs. (4.7 kg)/each
CP-BA200

– 3 –
CD-BA200
NAMES OF PARTS
Front panel
1. (CD) Disc Tray
2. Extra Bass Indicator
3. Spectrum Analyzer/Volume Level Indicator
4. (CD) Disc Number Indicators
5. (CD/TUNER) Memory Indicator
6. (TAPE 2) Record Indicator
7. (CD) Play Indicator
8. (CD) Music Schedule Indicators
9. (CD) More Tracks Indicator
10. Sleep Indicator
11. FM Stereo Mode Indicator
12. (CD) Random Play Indicator
13. (CD) Pause Indicator
14. (TAPE) Play Indicator
15. (CD) Repeat Indicator
16. FM Stereo Indicator
17. Timer Record Indicator
18. Timer Play Indicator
19. Memory/Set Button
20. (CD) Track Down/Review Button
(TUNER) Preset Down Button
(TAPE 2) Rewind Button
21. (CD) Track Up/Cue Button
(TUNER) Preset Up Button
(TAPE 2) Fast Forward Button
22. Equalizer Mode Selector Button
23. Timer Set Indicator
24. On/Stand-by Button
25. Clock Button
26. Timer/Sleep Button
27. Function Selector Buttons
28. Dimmer Button
29. Volume Control
30. (CD) Disc Number Select Buttons
31. Headphones Socket
32. Tuning and Time Up/Down Buttons
33. (TAPE 2) Record Pause Button
34. (CD/TAPE) Stop Button
35. (CD) Play/Repeat Button
(TAPE) Play Button
36. Extra Bass/Demo Mode Button
37. (CD) Disc Skip Button
38. (CD) Open/Close Button
39. (TAPE 1) Cassette Compartment
40. (TAPE 2) Cassette Compartment
CD-BA200
1
67810
2
4
511
12 1415 16 1718
33
9
13
40
39
29
21
23
24
25
26
27
28
30
31 34 35 36 37 38
3233
19 20 22
3
1
2
4
Rear panel
1. AC Power Lead
2. FM/AM Loop Aerial Socket
3. Speaker Terminals
4. Video/Auxiliary (Audio Signal) Input Sockets

CD-BA200
– 4 –
Front speaker
1. Super Tweeter
2. Tweeter
3. Bass Reflex Duct
4. Woofer
5. Subwoofer
6. Main Speaker (Woofer, Tweeter and Super Tweeter)
Wire
7. Subwoofer Wire
Remote Control
1. Remote Control Transmitter LED
CD Control section
2. Disc Number Select Buttons
3. Memory Button
4. Pause Button
5. Clear Button
6. Track Down/Review Button
7. Track Up/Cue Button
8. Disc Skip Button
9. Play/Repeat Button
10. Stop Button
11. Random Button
Tuner control section
12. Preset Up/Down Buttons
Tape control section
13. (TAPE 1) Play Button
14. (TAPE 2) Record Pause Button
15. (TAPE 1/2) Stop Button
16. (TAPE 2) Play Button
17. (TAPE 2) Rewind Button
18. (TAPE 2) Fast Forward Button
Common section
19. Equalizer Mode Selector Button
20. Function Selector Buttons
21. On/Stand-by Button
22. Extra Bass Button
23. Volume Up/Down Buttons
CP-BA200
1
2
36
4
7
5
1
2
3
4
8
9
10
11
12
7
6
5
1413 15
19
22
20
18
17
16
21 23

– 5 –
CD-BA200
OPERATION MANUAL
RESETTING THE MICROCOMPUTER
Reset the microcomputer under the following conditions:
To erase all of the stored memory contents (clock and timer settings, and tuner and CD presets). If the display is not correct. If the operation is not correct.
1
Press the ON/STAND-BY button to enter the stand-by mode.
2
While pressing down the button and the X-BASS/DEMO button, hold down the ON/STAND-BY button for at least 1 second. "CLEAR AL" will appear.
Caution:
The operation explained above will erase all data stored in memory including clock and timer settings, and tuner and CD presets.
X-BASS/ DEMO
POWER
ON/
STAND-BY
/
SETTING THE CLOCK
POWER
ON/
STAND-BY
CLOCK
MEMORY/SET
TUNING/ TIME ( )
AM 12:00 AM 0:00 0:00
2
3
4
7
6
5
8 9
In this example, the clock is set for the 12-hour (AM 12:00) sys- tem.
1
Press the ON/STAND-BY button to enter the stand-by mode.
2
Press the CLOCK button.
3
Within 5 seconds, press the MEMORY/SET button.
4
Press the TUNING/TIME ( or ) button to select the time display mode.
"AM 12:00" →The 12-hour display will appear.
(AM 12:00 - PM 11:59) "AM 0:00" →The 12-hour display will appear. (AM 0:00 - PM 11:59) "0:00" → The 24-hour display will appear. (0:00 - 23:59)
Note that this can only be set when the unit is first installed or it has been reset.
5
Press the MEMORY/SET button.
6
Press the TUNING/TIME ( or ) button to adjust the hour.
Press the TUNING/TIME ( or ) button once to advance the time by 1 hour. Hold it down to advance continuously. When the 12-hour display is selected, "AM" will change auto- matically to "PM".
7
Press the MEMORY/SET button.
8
Press the TUNING/TIME ( or ) button to adjust the minutes.
Press the TUNING/TIME ( or ) button once to advance the time by 1 minute. Hold it down to change the time in 5 minute intervals. The hour setting will not advance even if minutes advance from "59" to "00".
9
Press the MEMORY/SET button.
The clock starts operating from "0" second. (Seconds are not displayed.) And then the clock display will disappear after a few seconds.
To see the time display:
Press the CLOCK button.
The time display will appear for about 5 seconds.
Note:
The clock display will flash on and off at the push of the CLOCK button when the AC power supply is restored after a power failure occurs or after the AC power cord is disconnected. If this happens, follow the procedure below to change the clock time.
To change the clock time:
Press the CLOCK button. Within 5 seconds, press the MEMORY/SET button. Perform steps 6 - 9 above.
To change the time display mode:
Perform steps 1 - 2 in the section "RESETTING THE MICROCOMPUTER", on page 15. Perform steps 1 - 9 above.
(Main unit operation)
1 1 2 2 3

CD-BA200
– 6 –
MINI COMPONENT SYSTEM Quick Guide/Guía rápida
CD-BA200
Remote control x 1 Controlador remoto x 1
2 “AA” batteries
Dos pilas “AA”
Remote Sensor Sensor remoto
2
Preparation for use /
Preparación para su uso
1
Check the supplied accessories /
Compruebe los accesorios suministrados
FM/AM loop antenna x 1 Antena de cuadro de
FM/AM x 1
Batteries are not included.
Las pilas no están incluidas.
8” - 20’ (0.2m - 6m) 0,2m - 6m
Speaker connection Conexión de los altavoces
Antenna connection Conexión de las antenas
Front speaker (Right) Altavoz delantero
(Derecho)
Front speaker (Left) Altavoz delantero
(Izquierdo)
AM Loop Antenna Antena de cuadro
de AM
FM Antenna Antena de FM
AC 120 V, 60 Hz
120 V de CA, 60 Hz
Blue Azul
Red Rojo
Switching between power-on and stand-by mode
Cambio entre la conexión de la alimentación y el
modo de reserva
Remote control
Controlador remoto
15
15
Black Negro
Never mistake the connection to the MAIN and the SUB WOOFER terminals. Wrong connection may damge the main unit or the speakers. No equivoque nunca las conexiones a los terminales MAIN y
SUB WOOFER. La conexión incorrecta podría dañar el aparato
principal o los altavoces.
3
Listening to a CD /
Audición de discos CD
4
Listening to a tape /
Audición de una cinta
5
Listening to the radio /
Audición de la radio
6
Recording from CDs /
Grabaciones de discos CD
7
Sound control /
Control del sonido
Label facing up Etiqueta hacia arriba
To stop the playback Para detener la reproducción
To stop recording Para detener la grabación
Load the disc to be
recorded.
Introduzca el disco
que va a grabar.
CD recording
starts.
La grabación de
CD empieza.
Volume Volumen
Extra bass (X-BASS) Graves extra (X-BASS)
Pre-programmed equalizer
Ecualizador preprogramado
FLAT ROCK POPS
JAZZCLASSIC
VOCAL
To stop the playback Para detener la reproducción
TAPE 1 TAPE 2
TAPE 2
TAPE 2TAPE 1

– 7 –
CD-BA200
DISASSEMBLY
Caution on Disassembly
Follow the below-mentioned notes when disassembling
the unit and reassembling it, to keep it safe and ensure
excellent performance:
1. Take cassette tape and compact disc out of the unit.
2. Be sure to remove the power supply plug from the wall
outlet before starting to disassemble the unit.
3.Takeoffnylonbandsorwireholderswheretheyneedbe
removed when disassembling the unit. After servicing
theunit,besure to rearrangetheleads where theywere
before disassembling.
4. Take suffcient care on static electricity of integrated
circuits and other circuits when servicing.
Figure 7-2
Figure 7-3
CD-BA200
1 Top Cabinet 1. Screw ..................... (A1) x4 7-1
2 Side Panel 1. Screw ..................... (B1) x8 7-1
(Left/right)
3 CD Player Unit/ 1. Turn on the power supply, 7-2
CD Tray Cover open the disc tray, take out
the CD cover, and close.
(Note 1)
2. Screw ..................... (C1) x1
3. Hook....................... (C2) x3
4. Hook....................... (C3) x2
5. Socket .................... (C4) x2
4 Rear Panel 1. Screw ..................... (D1) x9 7-2
5 Main PWB 1. Screw ..................... (E1) x3 7-2
2. Socket .................... (E2) x3 8-2
3. Flat Cable .............. (E3) x1
4. Tip Wire.................. (E4) x1
6 Power Supply PWB 1. Screw ..................... (F1) x2 8-2
2. Socket .................... (F2) x4
3. Flat Wire................. (F3) x1 8-3
7 Front Panel 1. Screw ..................... (G1) x2 8-2
8 Display PWB 1. Screw ..................... (H1) x14 8-3
2. Socket .................... (H2) x1
9 Tape Mechanism 1. Open the cassette holder. 8-3
2. Screw...................... (J1) x5
10 Headphones PWB 1. Screw ..................... (K1) x1 8-3
11 Turntable 1. Hook....................... (L1) x2 8-4
2. Cover ..................... (L2) x1
12 Disc Tray 1. Turn fully the lock lever in the 7-3
arrow direction.
2. While holding the lock lever,rotate 8-1
the cam gear until the cam gear
rib engages with the clamp lever.
3. Push the slide holder backward to 8-5
engage the claw with the groove
and remove it in the direction
of the arrow. .............. (M1) x6
13 CD Servo PWB 1. Screw ..................... (N1) x1 8-6
(Note 2) 2. Hook....................... (N2) x2
3. Socket .................... (N3) x4
14 CD Mechanism 1. Hook....................... (P1) x2 9-1
2. Hook....................... (P2) x3
15 Loading Motor PWB 1. Hook....................... (Q1) x5 9-1
STEP REMOVAL PROCEDURE FIGURE
Figure 7-1
CD-BA200
(B1)x4
ø3x10mm (B1)x2
ø3x10mm
Rear
Panel
(B1)x2
ø3x10mm
Side Panel
(Right)
Side Panel
(Left)
(A1)x2
ø3x12mm
(A1)x2
ø3x12mm Top Cabinet
(E1)x2
ø3x10mm
(E1)x1
ø3x6mm
(C3)x1
(D1)x2
ø3x10mm
(C1)x1
ø3x10mm
(D1)x7
ø3x10mm
CD Player
Unit
DC Tray Cover
Rear
Panel
Pull
(C3) x1
(C4)x2 (C2) x3
1
1
2
Main PWB
CD Servo
PWB
Note 1:
How to open the changer manually. (Fig. 7-3)
1. In this state, turn fully the lock lever in the arrow direction
through the hole on the loading chassis bottom.
2. While holding the lock lever, rotate the cam gear anticlockwise
until the cam gear rib engages with the clamp lever. (Fig. 8-1)
3. After that, push forward the CD slide holder.
Note 2:
1.Afterremoving theconnectorfor theopticalpickupfrom the
connector, wrap the conductive aluminium foil around the
frontendoftheconnectorsoastoprotecttheopticalpickup
from electrostatic damage.
Note 3:
1. Be careful not to break the claw of the CD mechanism.
2.Whenfining backthecam gearassembly,letit lockbyfront
movement.
LOCK LEVER

CD-BA200
– 8 –
Figure 8-1
Figure 8-2
Figure 8-3
Figure 8-4
Figure 8-5
Figure 8-6
CLAMP LEVER
CAM GEAR RIB
(F1)x1
ø3x6mm
(G1)x2
ø3x10mm
(F1)x1
ø3x10mm
(F2)x3
(F2)x1
(E3)x1
(E4)x1
(E2)x2
Main PWB
(E2)x1
Power
Supply
PWB
Power
Supply
PWB
(H1)x14
ø3x10mm
(H2)x1
(J1)x5
ø3x10mm
(K1)x1
ø3x10mm
(F3)x1
Display PWB
Headphones
PWB
Open
Cassette
Holder
Tape
Mechanism
Turntable
Disc Tray
(L2) x1
CD Player Unit
(L1) x2
1
3
2
(M1) x3
(M1) x3
(N3) x2
(N2) x2
(N3) x2
CD Servo
PWB CD Player
Base
(N1)x1
ø3x8mm

– 9 –
CD-BA200
CP-BA200
1 Front Panel 1. Net.......................... (A1) x1 9-2
2. Rubber ................... (A2) x4
3. Screw ..................... (A3) x4
4. Tip .......................... (A4) x2 9-3
2 Woofer 1. Screw ..................... (B1) x4 9-3
3 Subwoofer 1. Screw .................... (C1) x4 9-3
4 Tweeter 1. Screw .................... (D1) x2 9-3
5 Super Tweeter 1. Screw .................... (E1) x2 9-3
STEP REMOVAL PROCEDURE FIGURE
CP-BA200
Figure 9-2
(A1)x1
(A2)x4
(A3)x4
ø4x20mm
Screw
Driver
Driver should
be pried away
from Speaker
Box.
Front
Panel
(D1)x2
ø3x10mm
(C1)x4
ø4x16mm
(E1)x2
ø3x10mm
(B1)x4
ø4x16mm
(A4)x2
Super
Tweeter
Tweeter
Woofer
Subwoofer
Figure 9-3
Figure 9-1
(P2) x3
(P1) x1
(Q1) x5
(P1) x1
Loading
Motor
PWB
CD
Mechanism

CD-BA200
– 10 –
REMOVING AND REINSTALLING THE MAIN PARTS
TAPE MECHANISM SECTION
Perform steps 1 to 7 and 9 of the disassembly method to
remove the tape mechanism.
How to remove the record/playback and erase
heads (TAPE 2) (See Fig. 10-1)
1. When you remove the screw (A1) x 2 pcs., the recording/
playback head and three-dimensional head of the erasing
head can be removesd.
How to remove the playback head (TAPE 1)
(See Fig. 10-2)
1. When you remove the screw (B1) x 2 pcs., the playback
head.
How to remove the pinch roller (TAPE 1/2)
(See Fig. 10-3)
1.Carefullypushthe insideclawtoremove it. Thepinchroller
pawlinthedirectionofthearrow<A>,andremovethepinch
roller (C1) upwards.
Note:
When installing the pinch roller, pay attention to the spring
mounting position.
How to remove the belt (TAPE 1) (See Fig. 10-4)
1. Remove the main belt (D1) x 1 pc., from the motor side.
2. Remove the FF/REW belt (D2) x 1 pc.
How to remove the belt (TAPE 2) (See Fig. 10-4)
1. Remove the main belt (E1) x 1 pc., from the motor side.
2. Remove the FF/REW belt (E2) x 1 pc.
How to remove the motor (See Fig. 10-5)
1. Remove the screws (F1) x 2 pcs., to remove the motor.
Figure 10-1
Figure 10-2
Figure 10-3
Figure 10-4Figure 10-5
TAPE2 TAPE1
Main Belt
(D1)x1
TAPE2
Main Belt
(E1)x1
TAPE1
Main Belt
FF/REW
Belt
(E2)x1
FF/REW
Belt
(D2)x1
Motor
Motor
(A1)x2
Ø2x9mm
TAPE2
Record/Playback
Head
Erase Head
(B1)x2
Ø2x9mm
TAPE1
Playback
Head
Pinch Roller
(C1)x1 <A>
STEP1
STEP2
(F1) x2
Ø2.6x5mm
Motor

– 11 –
CD-BA200
How to remove the pickup (See Fig. 11-2)
1. Remove the stop washer (B1) x 1 pc., to remove the gear
(B2).
2.Removethescrews(B3) x 2 pcs.,toremovethe shaft (B4).
3. Remove the pickup.
Figure 11-2
CD MECHANISM SECTION
Perform steps 1, 2, 3, 11 and 14 of the disassembly method
to remove the CD mechanism.
How to remove the loading motor
(See Fig. 11-1)
1. Bend the hooks (A1) x 5 pcs., to remove the loading motor.
Figure 11-1
Note
After removing the connector for the optical pickup from the
connectorwraptheconductivealuminiumfoilaroundthefront
end of connector so as to protect the optical pickup from
electrostatic damage.
(A1)x2
(A1)x1
Loading Moter
CD Base
(A1)x2
(B3) x2
ø2.6 x6mm
Shaft
(B4) x1
Stop Washer
(B1) x1
Gear
(B2) x1
CD Mechanism
Pickup
ADJUSTMENT
MECHANISM SECTION
•Driving Force Check
Torque Meter Specified Value
Play: TW-2111 Tape 1: Over 80 g
Tape 2: Over 80 g
•Torque Check
Torque Meter
Tape 2
Play: TW-2111 30 to 80 g. cm 30 to 80 g.cm
Fast forward: TW-2231 — 70 to 180 g.cm
Rewind: TW-2231 — 70 to 180 g.cm
Specified Value
Tape 1
Specified
Value
Adjusting
Point Instrument Connection
Test Tape
Normal MTT-111 Variable 3,000 ±Speaker
speed Resistor in 30 Hz terminal
motor. (Load
(MM1) resistance:
6 ohms)
•Tape Speed
Figure 11-3
TAPE MECHANISM
MM1
Motor
Variable Resistor in motor

CD-BA200
– 12 –
CD SECTION
• AM IF/RF
Signal generator: 400 Hz, 30%, AM modulated
*1. Input: Antenna, Output: TP302
*2. Input: Antenna, Output: TP301
TUNER SECTION
fL: Low-range frequency
fH: High-renge frequency
AM IF 450 kHz 1,720 kHz T351 *1
AM Band — 530 kHz (fL): T306 *2
Coverage 1.1 ±0.1 V
AM Tracking 990 kHz 990 kHz (fL): T303 *1
*1. Input: Antenna, Output: TP301
*2. Input: Antenna, Output: Speaker terminal
•FM RF
Signal generator: 1 kHz, 75 kHz dev., FM modulated
FM Band — 87.50 MHz T301(fL): *1
Coverage 1.3 V ±50 mV
FM RF 98.00 MHz 98.00 MHz L312 *2
(10-30 dB)
Test Stage Instrument
Connection
Frequency Frequency
Display Serring/ Adjusting
Point
Figure 12-1 ADJUSTMENT POINT
Test Stage Frequency Frequency
Display Setting/
Adjusting
Parts
Instrument
Connection
IC301
R381
TP302
TP301
R357
AM IF
FM IF FM RF
T303
T306
T302 L312
AM
TRACKING fL
AM BAND
COVERAGE fL
T301
T351
FM BAND
COVERAGE fL
TUNER PWB
CNP301
AM LOOP
ANTENNA
1
Figure 12-2
CD ERROR CODE DESCRIPTION
Error State Code
[Servo System Error]
0001 Cannot detect Pickup-in SW
0002 DSP access error
[Error during close operation]
0101 Open/Close SW not functioning (Low →High)
0103 Open/Close SW not functioning (High →Low)
[Error during open operation]
0201 Open/Close SW not functioning (Low →High)
0203 Open/Close SW not functioning (High →Low)
[Error during skip operation]
0302 Pickup-in SW is not detected
0306 During Disc 1 search, Open/Close SW or Clamp SW
or Disc SW do not change to low.
0307 Clamp SW not function (Low →High)
0308 Clamp SW not function (High →Low)
Since this CD system incorporates the following automatic
adjustment functions, readjustment is not needed when
replacingthepickup.Therefore,differentPWBsandpickups
can be combined freely.
Each time a disc is changed, these adjustments are
performed automatically. Therefore, playback of each disc
can be performed under optimum conditions.
Items adjusted automatically
(1)Offsetadjustment(Theoffsetvoltage between the head
amplifier output and the VREF reference voltage is
compensated inside the IC.)
* Focus offset adjustment
* Tracking offset adjustment
(2) Tracking balance adjustment (waveform drawing 12-2
EFBL)
(3)Gain adjustment(ThegainiscompensatedinsidetheIC
sothattheloop gain atthegaincrossover frequency will
be 0dB.)
* Focus gain adjustment
* Tracking gain adjustment
•Adjustment
T
T
EFBL
FDO
TE
Stopped
CH1=500mV
DC 10:1 CH2=200mV DC 10:1 CH3=1V DC 10:1 500ms/div
(500ms/div)
NORM:20kS/s
1
2
3
=Record Length=
Smoothing : ON CH1 : 0.000V
CH2 : 0.000V Main : 100K Zoom : 2k Mode : SINGLE Type : EDGE CH1
Delay : 0.0ns
Hold off : 0.2us
CH3 : 0.00V
CH4 : 0.00V
BW : FULL
=Trigger==Filter= =Offset=
CH2
v/DIV
200mV
1999/04/05 20:26:47

– 13 –
CD-BA200
•The indicated voltage in each section is the one measured
by Digital Multimeter between such a section and the chas-
sis with no signal given.
1. In the tuner section,
( ) indicates AM
< > indicates FM stereo
2. In the main section, a tape is being played back.
3. In the deck section, a tape is being played back.
( ) indicates the record state.
4. In the power section, a tape is being played back.
5. In the CD section, the CD is stopped.
•Parts marked with “ ” ( ) are important for
maintaining the safety of the set. Be sure to replace these
parts with specified ones for maintaining the safety and
performance of the set.
NOTES ON SCHEMATIC DIAGRAM
•Resistor:
To differentiate the units of resistors, such symbol as K and
M are used: the symbol K means 1000 ohm and the symbol
M means 1000 kohm and the resistor without any symbol is
ohm-type resistor. Besides, the one with “Fusible” is a fuse
type.
•Capacitor:
To indicate the unit of capacitor, a symbol P is used: this
symbol P means micro-micro-farad and the unit of the
capacitor without such a symbol is microfarad. As to
electrolyticcapacitor,theexpression“capacitance/withstand
voltage” is used.
(CH), (TH), (RH), (UJ): Temperature compensation
(ML): Mylar type
(P.P.): Polypropylene type
•Schematic diagram and Wiring Side of P.W.Board for this
model are subject to change for improvement without prior
notice.
REF. NO DESCRIPTION POSITION POSITION
SW723 TAPE ON—OFF
SW724 TUNING/TIME DOWN ON—OFF
SW725 MEMORY/SET ON—OFF
SW726 PRESET DOWN ON—OFF
SW727 PRESET UP ON—OFF
SW728 PLAY/REPEAT ON—OFF
SW729 STOP ON—OFF
SW731 REC/PAUSE ON—OFF
SW732 TUNING/TIME UP ON—OFF
SW733 VIDEO/AUX ON—OFF
SW734 TUNER (BAND) ON—OFF
SWM1 T1 PLAY ON—OFF
SWM2 T2 PLAY ON—OFF
SWM3 F.PLAY ON—OFF
SWM4 R.PLAY ON—OFF
REF. NO DESCRIPTION
SW1 OPEN/CLOSE ON—OFF
SW2 CLAMP ON—OFF
SW3 DISC NUMBER ON—OFF
SW4 PICKUP IN ON—OFF
SW701 POWER ON—OFF
SW702 CLOCK ON—OFF
SW703 TIMER/SLEEP ON—OFF
SW709 DISC 1 ON—OFF
SW710 DISC 2 ON—OFF
SW711 DISC 3 ON—OFF
SW712 DISC SKIP ON—OFF
SW713 OPEN/CLOSE ON—OFF
SW714 DIMMER ON—OFF
SW715 X-BASS/MEMO ON—OFF
SW716 EQALIZER ON—OFF
SW722 CD ON—OFF
Figure 13 TYPES OF TRANSISTOR AND LED
(1) (2) (3)
(S) (G) (D)
E C B
FRONT
VIEW
2SA1015 GR
2SC1845 F
2SC3203 Y
KTA1266 GR
KRC102 M
KRC104 M
KTA1271 Y
KTA1273 Y
KTA1274 GR
KTC2026
KTC3203 Y
KTC3194 Y
KTC3199 GR
4204UYT7
4204SRT7
FRONT
VIEW

CD-BA200
– 14 –
WAVEFORMS OF CD CIRCUIT
T
FDO
TDO
Stopped
CH1=500mV
DC 10:1 CH3=500mV DC 10:1 500ms/div
(500ms/div)
NORM:20kS/s
1
3
=Record Length=
Smoothing : ON CH1 : 0.000V
CH2 : 0.0V Main : 100K Zoom : 2K Mode : AUTO Type : EDGE CH1
Delay : 0.0ns
Hold off : 0.2us
CH3 : 0.000V
CH4 : 0.00V
BW : FULL
=Trigger==Filter= =Offset=
CH1
v/DIV
500mV
1IC2 24
2IC2 23
T
FDO
DRF
TE
Stopped
CH1=500mV
DC 10:1 CH2=10V DC 10:1 CH3=1V DC 10:1 500ms/div
(500ms/div)
NORM:20kS/s
1
2
3
=Record Length=
Smoothing : ON CH1 : 0.000V
CH2 : 0.0V Main : 100K Zoom : 2K Mode : AUTO Type : EDGE CH1
Delay : 0.0ns
Hold off : 0.2us
CH3 : 0.00V
CH4 : 0.00V
BW : FULL
=Trigger==Filter= =Offset=
-3div -1div 0div +1div +3div
CH Position To
CH2
Position
0.20div
1
IC2 24
3
IC2 72
4
IC1 18 ,
IC2 16
Vp-p=1.0V~1.3V
0.5mV/div,0.5µsec/div
5
IC1 27
T
T
TE
DRF
Stopped
CH1=10V
DC 10:1 CH2=1V DC 10:1 100ms/div
(100ms/div)
NORM:100kS/s
2
1
=Record Length=
Smoothing : ON CH1 : 0.0V
CH2 : 0.00V Main : 100K Zoom : 2K Mode : NORMAL Type : EDGE CH1
Delay : 2.924ms
Hold off : 0.2us
CH3 : 0.00V
CH4 : 0.00V
BW : FULL
=Trigger=
=Filter= =Offset=
3
IC2 72
4
IC1 18 ,
IC2 16
T
T
FDO
SPDO
Stopped
CH1=200mV
DC 10:1 CH2=500mV DC 10:1 500ms/div
1999/04/07 09:51:15
(500ms/div)
NORM:20kS/s
2
1
=Record Length=
Smoothing : ON CH1 : 0.000V
CH2 : 0.000V Main : 100K Zoom : 2K Mode : NORMAL Type : EDGE CH2
Delay : 2.924ms
Hold off : 0.2us
CH3 : 0.00V
CH4 : 0.00V
BW : FULL
=Trigger==Filter= =Offset=
1
IC2 24
6
IC2 25
T
FDO
PDO2
PDO1
Stopped
CH1=500mV
DC 10:1 CH3=1V DC 10:1 CH4=1V DC 10:1 500ms/div
(500ms/div)
NORM:20kS/s
1
4
3
=Record Length=
Smoothing : ON CH1 : 0.000V
CH2 : 0.0V Main : 100K Zoom : 2K Mode : AUTO Type : EDGE CH2
Delay : 0.0ns
Hold off : 0.2us
CH3 : 0.00V
CH4 : 0.00V
BW : FULL
=Trigger==Filter= =Offset=
CH1
v/DIV
500mV
1999/04/05 17:33:17
1
IC2 24
7
IC2 1
8
IC2 2
T
T
DOUT
Stopped
CH1=2V
DC 10:1 500ns/div
1999/04/07 09:25:28
(500ns/div)
NORM:200MS/s
1
=Record Length=
Smoothing : ON CH1 : 0.00V
CH2 : 0.00V Main : 1K Zoom : 100 Mode : NORMAL Type : EDGE CH1
Delay : 2.887ms
Hold off : 0.2us
CH3 : 0.00V
CH4 : 0.00V
BW : FULL
=Trigger=
=Filter= =Offset=
9IC2 37
T
T
DATA
DATACK
LRSY
Stopped
CH1=2V
DC 10:1 CH2=2V DC 10:1 CH3=2V DC 10:1 5us/div
(5us/div)
NORM:100kS/s
1
2
3
=Record Length=
Smoothing : ON CH1 : 0.00V
CH2 : 0.00V Main : 5K Zoom : 100 Mode : AUTO Type : EDGE CH3
Delay : 0.0ns
Hold off : 0.2us
CH3 : 0.00V
CH4 : 0.00V
BW : FULL
=Trigger==Filter= =Offset=
CH3
v/DIV
2 V
1999/04/05 20:50:17
10
IC2 57
IC2 58
IC2 59
11
12
T
T
EFBL
FDO
TE
Stopped
CH1=500mV
DC 10:1 CH2=200mV DC 10:1 CH3=1V DC 10:1 500ms/div
(500ms/div)
NORM:20kS/s
1
2
3
=Record Length=
Smoothing : ON CH1 : 0.000V
CH2 : 0.000V Main : 100K Zoom : 2k Mode : SINGLE Type : EDGE CH1
Delay : 0.0ns
Hold off : 0.2us
CH3 : 0.00V
CH4 : 0.00V
BW : FULL
=Trigger==Filter= =Offset=
CH2
v/DIV
200mV
1999/04/05 20:26:47
1
IC2 24
4
IC1 18 ,
IC2 16
IC1 13 ,
IC2 22
13

– 15 –
CD-BA200
Figure 15 BLOCK DIAGRAM (1/3)
CNP12
CNP11
Q2
+3.3V
+5V
CONT5
CONT2 CONT3 CONT4 CONT7 CONT6
SLD0
SPD0
FD0
TD0
+5V
TO DISPLAY SECTION
CLAMP SW CDINT
WRQ
CE DO
CLK
DI CD RES GND DRF
CNS4 BI4
CNP4
M2
SLED
MOTOR
M1
SPINDLE
MOTOR M
M
TRACKING COIL
FOCUS COIL
PICKUP UNIT
TE FE RFEV HFL VVDD ADAVDD VDD LVDD RVDD XVDD
VDD5V
RFEV
FE-
FE
TE-
TE
HFL
+3.3V
Q1
LDD PD
TIN2 TIN1 FIN2 FIN1
IC3
M63001FP
FOCUS/TRACKING/
SPIN/SLIDE DRIVER
IC1
LA9235M
SERVO AMP.
TO MAIN SECTION
(TO IC601)
R-CH
L-CH AGND DGND +5V(+B5)
RCHO
RVSS
LVSS
LCHO
IC2
LC78641E
SERVO/SIGNAL
CONTROL
-
+
M
SW1
OPEN/
CLOSE
XL1
16.9344MHz
6
5
43
3
25
4
1
1234 78
217
89
10
12 4
35
SW2
CLAMP SW3 DISC
NUMBER
M3
T/T
UP/DOWN
MOTOR
6
12 4
356
12 4
356
75 76 45 46 47 48 32 31 30
65
66
67
68
69
70
71
72
CE
CL
DI
DO
INT
WRQ
RES
DEF
52
51
XOUT
XIN
73 518 36 44 49 50 7 14 15 16
23
24
25
26
33
3
13
19
40
64
74
17 18 19 20 21 22
30
23
11
9
1
4567 15 16 26 27
2 1725 4142 3839
35
29
22
21
14
8
40
24
23
28
SW4
PICKUP IN
Q3
LASER
DRIVER
CONSTANT
VOLTAGE
+3.3V
+5V
VCC4
18 VCC1
VCC2
VCC3

CD-BA200
– 16 –
Figure 16 BLOCK DIAGRAM (2/3)
-B2
+B4
-20dB
ATT SYSTEM
MUTE
Q605
Q606
Q603
Q604
DO CL DI CE
MO/ST
+B4
SWITCHING +B4
FM/AM
IC302
LC72131
PLL(TUNER)
FM/AM
OUT
+B4
L
R
BIAS
T1/T2
REC
MUTING
Q121
Q122
AC BIAS
R
L
JK601
VIDEO IN
L
L
R
R
R
L
R
L
AUX
TAPE
TUNER
CD
P.B
CNS601
FROM CD SECTION
CNP11
ERASE
HEAD
SWITCHING
SWITCHING
SWITCHING
BIAS
Q110
Q111
Q109
Q126
SWITCHING
Q124
L103
BIAS
OSC
Q128
L104
Q107
Q108
REC PB HEAD
TAPE 2
PB HEAD
TAPE 1
L-CH
R-CH
L-CH
R-CH
IC601
LC75341
AUDIO PROCESSOR
H/N
P.B
+B4
R
R
L
L
REC
R
L
L NF
R NF
ALC
REC
T1/T2
T1/T2
NOR/
HIGH
REF
R REC
L REC
POP REDUCE
R NF
L NF
SWITCHING
Q103-
Q106
L(T2)
R(T2)
R(T1)
L(T1)
IC101
AN7345K
PLAYBACK AND RECORD
/PLAYBACK AMP.
R
L
FM/AMMPXIN
STEREO
AM RF IN
AM OSC IN
AM IN FM IN
AM OSC OUT
FM +B FM
VT
FM OSC
OSC
X352
4.5MHZ
AM BAND
COVERAGE
AM
TRACKING
T303 T306
Q302
X351
456kHz
MO/ST
VCO
FM
DET
VCC
GNDAM IF
CF351
IC303
LA1832S
FM IF DET./FM MPX./AM IF
AM MIX
CF352
T351
FM RF
OSC
FM
L312 T301
T302
IC301
TA7358AP
FM FRONT END
BF301
B.P.F
FM
ANTENNA
AM LOOP
ANTENNA
910
18
11
16
3
8
4
15
10
9
7
7
1
81718
4
21
12
13
1
2
3
20
19
7
18
10
8
17
13
21
4
5
2
3
4
6
9
16
12
15
1
5
13
8
4
3
2
1
21
7
98
517
6
21
2
1
20 22 11
17
16
15
9
6
57
13
14
12
15
16
4
7
FM OSC
CF303
FM IF
Q360
OSC BUFF
4
24 23
14
14
23
24
P.B
REC
23
+B4
AM IF
1
2
3
CNP301
VDD
+5V
OPE
AMP.
KIA4558P
IC561
IC562
IC563
VCC
Q708 +3B
+3B
M
Q704
Q705
IC701
54PIN
IC701
53PIN
IC701
56PIN
IC701
55PIN
MM1
TAPE
MOTOR
SOLM1,SOLM2
SOLENOID
SWM2
T2 PLAY
SWM1
T1 PLAY
SWM4
R. PLAY
SWM3
F. PLAY
MOTOR
DRIVER

– 17 –
CD-BA200
Figure 17 BLOCK DIAGRAM (3/3)
D801
RY801
VLOAD
+B7
SYS. STOP
RESET
IC703
KIA7042P
RESET
Q709 Q910
+B5
M901
FAN MOTOR
M
SUB
WOOFER
MAIN
SO901
SPEAKER
TERMINAL
RY902
RY901
Q909
+B7 +B7
+B7
+B7
+B3
+B7
VDD
VDD
VDD
+B6
LCK
CL
DI
Q801
+B4
-B2
B4
R
R
L
L
Q901
Q902
Q903
Q904
L-OUT
R-OUT
R-OUT
L-OUT
SP. DET. Q905
Q906
Q907
Q908
UNSWITCH 5V
CD+B
+5V
A10V
M10V
+B7
+B5
+B6
+B4
+B3
Q821
IC801
KIA7805P
VOLTAGE
REGULATOR
IC802
KIA7810AP
VOLTAGE
REGULATOR
Q823
0dB
A
TT SYSTEM
MUTE
Q605
Q606
3
4
CE DI CL DO
+B4
XL701
4.19MHz
IC903
KIA4558P
OPE AMP.
Q802
D812-D815 T802
POWER
TRANSFORMER
D804-D807
D803
D802
IC702
BU2902
INPUT/OUTPUT
EXPANDER
F805
2.0A/250V
+Vcc
STK402-071
F801
4.0A/125V
F800
4.0A/125V
F803
5.0A/125V
F802
5.0A/125V
-Vcc
-Vcc
+Vcc
IC901
POWER AMP.
IC902
STK402-040
POWER AMP.
BIAS
T1/T2
REC
AVDD
KEY
SW701-SW703
SW709-SW716
SW722-SW729
SW731-SW734
TO CD
SECTION
Q701-Q703
Q710-Q712
AC POWER
SUPPLY CORD
IC701
IX0332AW
SYSTEM CONTROL
MICROCOMPUTER
FL701
DISPLAY
1
32
7
4
6
1
8
2
3
5
18
85
80
33
31
1
2
3
45
1235713
910
15 16
17
20 21
24 23 24 25
86
91
92
79
78
60
59
39
38
36
34
1
15 10
7
13
9
8
10
1
15
8913
7
12
13 4
2
1
3
8
7
127
28
36
2151
20
53 56 57 58
T.F
CONSTANT
VOLTAGE
REGULATOR
~~
~~~
~
11 12
100
58 57 56 55 54 53 52 51 50 49 48 47 46 44 43 42 41 40
37
35
JK601
HEADPHONES
14
~~~
29
14
8
5
~
+B4
RESET
T801
POWER TRANSFORMER
AC 120V
60Hz
R
L
+B1
VF2
VF1
-VF
CONSTANT
VOLTAGE
-B2
+B2
-B1
R
L
DRIVER
JOG701
JOG
RX701
REMOCON
SENSOR
10Hz
IC701
IX0332AW
SYSTEM
MICROCOMPUTER
63Hz
P
E
M
P.
5
58P
5
61
5
62
5
63

CD-BA200
– 18 –
Figure 18 SCHEMATIC DIAGRAM (1/10)
A
B
C
D
E
F
G
H
123456
• NOTES ON SCHEMATIC DIAGRAM can be found on page 13.
CD SIGNAL
Vcc
C
Vref
F
B
E
A
2
5
3
1
7
6
44
3
2
1
7
6
5
R54 68K
R53 68K
R52 68K
R51 68K
CNP1
R56
68K R55
68K
FIN2
FIN1
TIN2
TIN1
C6
100/10
LDON
EFBL
FIN1
FIN2
REF1
TIN2
TIN1
AGON
LDD
TEST0
GND
VREF
TES1
C54
47/10 C55
0.01
C51
47/10
C53
0.001
R25
10K
C7
10/16
C8
0.1
R47
3.3
Q3
KTA1266GR
LASER
DRIVER
R50
47
C14
0.33
C13
0.01
R42
120K
R3
100K
R4
10K
NC
TEST
HFL
TE
TE-
FE
FE-
RFEV
BH
PH
RF
RF-
RFSW
VCC
30
29
28
27
26
25
24
23
22
21
20
19
18
17
16
C11
0.47/6.3
R6
27K
R7
6.8K
R5
39K
C12
0.1
C18
3P
(CH)
C19
100/10
R8
330
R10
27K
C26
0.047
C22
100P
R80
1M
R79
1.5M
C24
2.2/50
C21
0.1
C23
0.047 R12
680
R
1
R11
12K
R
6
0
C27
0.1
C17
0.0047
R15
10K
C20
0.1
C42
68P
C25
0.1
C41
100/10
C28
47/10
C82
0.022
R
4
1
K
C
0
D93
DS1SS133 R43
220K
EFBL
PH
TDO
FDO
C47
100/16
42
41
40
39
38
37
36
LOADING M-
VCC4
LD_M+
LD_M-
LOADING M+
35
34
33
32
31
30
29
28
27
26
25
24
23
22
SPDO
VCC3
VCC2(SPN)
SP-
SP+
SPO
GND
C49
100/16
C50
100/16
C46
0.022
IC3
M63001FP
FOCUS/TRACKING/
SPIN/SLED DRIVER
21
20
19
18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
R48
6.8K
SLDO
FDO
TDO
MUTE
Vref
STANDBY
VCC1
SL-
SL+
GND
TR+
TR-
FO-
FO+
FO
FD
TO
C52
0.01
CNP2
LD
VR
PD
GND
FO-
FO+
TR+
TR-
5
2
1
2
3
4
5
6
7
88
3
6
7
1
4
TR-
TR+
FO+
FO-
GND
PD
VR
LD
ACTUATOR
FO+
FO-
TR-
TR+
CNP3
CNS3A CNS3B
+
-
GND(D)
PUIN
SP+
SP-
SL+
SL-
-
+
3
2
5
1
4
6
2
3
5
1
4
6
M
M
M1
SPINDLE
MOTOR
M2
SLED
MOTOR
SW4
PICKUP IN
REF
ODRV
AGCON
ODRV
REF
REF
REF
REF
REF
REF
REF
REF
REF
REF
REF
REF
REF
REF
AGCON
ODRV
APC
LPF
DH
PH
LPF
LPF
PH/BH
IC1
LA9235M
SERVO AMP.
CD SERVO PWB-C
5
1
3
7
6
4
2
4
3
2
1
7
6
5
CNS1A CNS1B
1
2
3
4
5
6
7
88
3
6
7
1
4
5
2
CNS2A CNS2B
PICKUP UNIT
3
6
1
4
5
22
3
5
1
4
6
CNP3A
CD MOTOR PWB-D
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
+B
+B
+B+B
+B
+B
+B
+B
+B
-
+
-
+ +
-
+
-
-
+
-
+
+
-
+
-
-
+ +
-
-
+
+
-
+
-
-
-
+ +
13
2
5
8
4

– 19 –
CD-BA200
Figure 19 SCHEMATIC DIAGRAM (2/10)
78 9 10 11 12
• The numbers 1 to 13 are waveform numbers shown in page 14.
C19
100/10
R8
330
R10
27K
C26
0.047
C22
100P
R80
1M
R79
1.5M
C24
2.2/50
C21
0.1
C23
0.047 R12
680
R14
1.2K
R11
12K
R13
680
C81
0.022
C27
0.1
C17
0.0047
11
10
9
8
7
6
5
4
3
2
1
R15
10K
C20
0.1
C42
68P
C25
0.1
PCKIST
JITTC
JITTV
EFMIN
SLCO
SLCIST
HFL
FR
VVDD
VVSS
PD02
PD01
C41
100/10
C28
47/10
C82
0.022
R44
1K
24
23
22
21
20
19
18
17
16
15
14
13
C29
0.1
D93
DS1SS133 R43
220K
EFBL
FDO
TDO
TBLO
BHREF
PHREF
ADAVSS
ADAVDD
VREF
TE
FE
PH(RFENV)
BH
12
R35
1K
R38
270
TDO
SLDO SPDO
FDO
SPDO
R39
470
FG(D_Vref)
SLDO
R16
10K
R17 1K
R46 1K R45 1.2K R40 1.2K
C31
100/10
C30
0.1
TEST
DOUT
VDD C2F PCK
40
39
38
37
36
35
34
33
32
31
30
29
28
27
26
25
L61
0.82µH
C64
0.47/6.3
ZD61
DZ3.9BSB
R19
47
C39
10/16
R58
220
Q1
2SC3203Y
EFLG
EMPH
MUTEL
MUTER
LVDD
LCHO
XVDD
LVSS
RVSS
RCHO
RVDD
XIN
51
50
49
48
47
46
45
44
43
42
41
C56
330/6.3
C83
0.022
R84
10K
C40
0.0015
C43
0.0015
R83
10K
C34
0.022
R82
2.2K
R81
2.2K
C38
10/16
R20
220
XL1
16.9344MHz
63
62
61
60
59
58
57
56
55
54
53
52
XOUT
XVSS
ASLRCK
ASDACK
ASDFIN
LRSY
DATACK
DATA
16M
SFSY
SBSY
PW
C45
100/10
C44
0.1
64
SBCK
C80
0.1
R73 1K
R71 1K
C72 0.01 R72 1K
C71 100P
C73 100P
C75 100P
C76 100P
C77 100P
C78 100P
R75 1K
R76 1K
R77 1K
R78 1K
C74 100P R74 1K
L62
2.2µH
CE CL DI DO INT
WRQ
RES
DEF
VDD5V
73 72 71 70 69 68 67 66 65
RES
WRQ
CE
DO
CL
DI
DRF
INT
R94
10K
R95
10K
R67 1K R68 1K O/C
DISC_NO
CONT7 CONT6 VSS V/vP FSEQ
DEFECT
EFMO
80 79 78 77 76 75 74
IC2
LC78641E
SERVO/SIGNAL
CONTROL
FSX
CONT5 CONT4 CONT3 CONT2 CONT1 LASER
SERIAL
OUT
EXTERNAL AUDIO IN
DIGITAL FILTER
1BIT DAC
LPF
INTERPOLATION MUTE ATTENUATION DEEMPHASIS
AUDIO
OUT
ERROR
CORRECT
FRAME SYNC
DEFECT,PROTECT
EFM DECODE
CLV
CONTROL
CLOCK
GENERATOR
GENERAL
SUBCODE
DECODE
CRC
COMMAND
INTERFACE
GENERAL
SW
SERVO
PROCESSEROR
AUTO
ADJUST
-
+
S/H
JITER
DEFECT
CONTROL
A/DSW
SLICE
LEVEL
CONTROL
PLL
VCEC
+5V
DGND
AGND
L-CH
R-CH
1
2
3
4
5
CNP11
INT
DRF
WRQ
CE
DO
DI
CL
RES
DRF
GND
CD RES
DI
CLK
DO
CE
WRQ
CDINT
CLAMP SW
10
9
7
1
2
3
4
5
6
8
CNP12
CNP4
DISC_NO
O/C
SW3
DISC
NUMBER
SW2
CLAMP
GND(D)
M-
M+
SW1
OPEN/
CLOSE
+
-
1
2
3
4
5
66
5
4
3
2
1
5
4
3
2
1
M
M3
T/T
UP/DOWN
LOADING
D21
DS1SS133
R21
470 R22
470
Q2
KRC102M
D22
DS1SS133
C47
100/16
L
OADING M-
V
CC4
L
D_M+
L
D_M-
L
OADING M+
SPDO
V
CC3
V
CC2(SPN)
S
P-
S
P+
S
PO
G
ND
D/A
6
+B
+B
+B
+B
+B
+B
+B
+B
+B
+B+B
+B
+B
+B
+B
+B
+B+B
+B
1
32
CNS601
P20 1 - A
P23 10 - A
CNS703
TO DISPLAY PWB
TO MAIN PWB
CD LOADING
MOTOR PWB-F
BI4
CNS4
CONSTANT
VOLTAGE
1
69
13
2
10
11
12
3
7
8

CD-BA200
– 20 –
A
B
C
D
E
F
G
H
123456
• NOTES ON SCHEMATIC DIAGRAM can be found on page 13.
Figure 20 SCHEMATIC DIAGRAM (3/10)
FM SIGNAL
PLAYBACK SIGNAL
RECORD SIGNAL
CD SIGNAL
VIDEO SIGNAL
CD_+B
CD_GND
L-CH
A_GND
R-CH
4
3
1
2
5
3
4
2
1
5
BI601
CNS601
AC_RLY CON
VF1
VF2
-VF
UN_SW 5V
M_+10V
+5V
SP_RLY
SP_DET
D_GND
-15V
A_+10V
CD_+B
CD_GND
M_GND
A_GND
A_GND
R_CH
L_CH
19
18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
C616
0.001
R613
390
Q603
KTC3199GR
R615
2.2K
C615
0.001
R614
390
Q604
KTC3199GR
R616
2.2K
R612
5.6K
R611
5.6K
R622
2.2K
R621
2.2K
C635
0.001
C636
0.001
Q606
KTC3199GR Q605
KTC3199GR
R607
10K C613
10/50
R610
330
R609
330
C629
1/50
C627
1/50
C625
1/50
C623
1/50
C621
1/50
C604
0.022
C606
100/16
R617
3.3K
C611
0.0027(ML)
R605
3.9K
C607
0.1 C609
0.1
C619
1/50
12
11
10
9
8
7
6
5
4
3
2
1
IC601
LC75341
AUDIO PROCESSOR
24
23
22
21
20
19
18
17
16
15
14
13
CD
TUNER
DECK
AUX
DI
CE
VSS
LOUT
LBASS
LTRE
LIN
L4
L3
L2
L1
CLK
VDD
VREF
ROUT
RBASS
RTRE
RIN
RSEL0
R4
R3
R2
R1
LSEL0
CCB
INTERFACE
C628
1/50
C626
1/50
C624
1/50
C614
10/50
C608
0.1
C610
0.1 C
6
0.002
7
C602
22/50
C620
1/50
C622
1/50
C630
1/50
Q121
KTC3199GR
R153
10K
Q122
KTC3199GR
R154
10K
SWITCHING
C146 220/10
C145 22/25
C142
47/25
R146
10K
R156
220K REC_R
0V
0V 0.7V 0.7V 0V
R141
100
C127
0.022
C123
0.001
R131
33K
R135
3.9K
C115
100/25
R119
56
C121
1/50
C119
560P
C117
0.033
R125
5.6K
R121
100K
R123
3.9K
C128
3.3/50
R137
6.8K
C139
0.0033
C135
0.022
C133
22/25
C111
330P
R117
1K
C131
270P
C141
47/25
R139
1.5K
R145
10K
C113
330P
L12
11
10
9
8
7
6
5
4
321
R103
2.2K
R105
3.3K
Q105
2SC1845F
Q103
2SC1845F
C105
180P
R111
15K
R107
47K
C107
560P
R109
4.7K
Q107
KTC3199GR
0.7V
0V
0V
0V
0.7V
0V
0V
0V
CNP102
A_GND
M_GND
ERASE
T2_R2
T2_R1
T2_L1
T2_L2
CNS102B CNS102A
7
6
5
4
3
2
1
7
6
5
4
3
2
1
7
6
5
4
3
2
1
Q106
2SC1845F
R106
3.3K
R104
2.2K
Q104
2SC1845F
CNP101
C101
560P
C106
180P
C102
560P
0V
T1_R
T1_L
A_GND
0V
0V
0.7V
0.7V
R101
1K
Q108
KTC3199GR
C108
560P
R110
4.7K
R108
47K
R102
1K
0V 0V
0V
R134
68K
R136
3.9K
C124
0.001
R132
33K
C116
100/25 C120
560P
C122
1/50
R126
5.6K
C118
0.033
R122
100K R124
3.9K
C132
270P
C136
0.022
R140
1.5K
C134
22/25
R142
100
C140
0.0033
R138
6.8K
R120
56
C112
330P
C114
330P
R118
1K
R
24 23 22 21 20 19
18 17 16 15 14 13
IC101
AN7345K
Vcc
ALC GND ALC RIPPLE
Nor/CrO2
-
+
-
+
Hich=T1
+ +
-
-
Hich=CHROME
56K
112K
56K
112K
C109
0.047
SWITCHING
Q110
KRC104M
R114
10K
Q109
KTA1266GR
SWITCHING
Q111
KRC104M
C153
100/16
R113
10K R115
4.7K
9.3V 8.6V
9.3V
0V 3.4V
3.4V
0V
0V
R112
15K
LUG1
CHASIS
MECHA BASE
3
1
2
3
1
23
1
2
7
6
5
4
3
2
1
3
1
2
CNP901
R155
150
R620
22K
C618
22/25 C617
1/50
R619
22K
LR
MAIN PWB-A1 (1/2)
CNP11
TO CD SERVO
PWB
CNS901
TO POWER SUPPLY
PWB
CNS101B CNS101A
R-CH
L-CH
PLAYBACK
HEAD
TAPE1
RECORD/
PLAYBACK HEAD
TAPE2
R-CH
L-CH
ERASE
HEAD
1
1
3
3
2
2
+B
+B
+B
+B
-B
-B
+B
+B
+B
+B
Q103~Q106:SWITCHING
IC101:PLAYBACK AND RECORD AMP.
Q121,Q122:MUTING
SWITCHING
+
-
+
-
+
-
+
-
+
-
+
-
+
-
+
-
P19 12 - D
P24 1 - D
