CONTENTS Page
SAFETY PRECAUTION FOR SERVICE MANUAL ........................................................................................................... 2
IMPORTANT SERVICE NOTES (FOR UK ONLY) ............................................................................................................ 3
SPECIFICATIONS ............................................................................................................................................................. 3
NAMES OF PARTS ........................................................................................................................................................... 4
OPERATION MANUAL ...................................................................................................................................................... 6
DISASSEMBLY.................................................................................................................................................................. 7
REMOVING AND REINSTALLING THE MAIN PARTS..................................................................................................... 9
ADJUSTMENT ..................................................................................................................................................................10
NOTES ON SCHEMATIC DIAGRAM ...............................................................................................................................12
BLOCK DIAGRAM ............................................................................................................................................................13
SCHEMATIC DIAGRAM / WIRING SIDE OF P.W.BOARD..............................................................................................16
VOLTAGE ........................................................................................................................................................................ 29
WAVEFORMS OF CD CIRCUIT.......................................................................................................................................30
TROUBLESHOOTING (CD CHANGER CONTROL / CD SECTION)...............................................................................31
FUNCTION TABLE OF IC................................................................................................................................................ 35
FL DISPLAY......................................................................................................................................................................41
WIRING OF PRIMARILY SUPPLY LEADS (FOR UK ONLY) ......................................................................................... 41
REPLACEMENT PARTS LIST/EXPLODED VIEW
PACKING METHOD (FOR UK ONLY)
SHARP CORPORATION
No. S6739CDC430H/
• In the interests of user-safety the set should be restored to its
original condition and only parts identical to those specified be
used.
CD-C430H and CP-C430H constitute CD-C430H.
• Note for users in UK
Recording and playback of any material may require consent
which SHARP is unable to give. Please refer particularly to the
provisions of Copyright Act 1956, the Dramatic and Musical
Performers Protection Act 1956, the Performers Protection Acts
1963 and 1972 and to any subsequent statutory enactments and
orders.
CD-C430H
CP-C430H
SERVICE MANUAL
• SRS technology Licensed from SRS Labe. SRS technology holds
the follwing patents: U.S. Patent No. 4,748,669, U.S. Patent No.
4,841,572 and U.S. Patent No. 4,866,774.
• SRS the SRS Logo ( ) and the SOUND RETRIEVAL SYSTEM
are registered trademarks of SRS Labs, Inc.
All manuals and user guides at all-guides.com
all-guides.com

CD-C430H,CP-C430H
– 2 –
SAFETY PRECAUTION FOR
SERVICE MANUAL
Precaution to be taken when replacing and servicing the
Laser Pickup.
The AEL (Accessible Emission Level) of Laser Power Output
forthismodelisspecifiedtobelowerthanClassIRequirements.
However, the following precautions must be observed during
servicing to protect your eyes against exposure to the Laser
beam.
(1) When the cabinet has been removed, the power is turned
on without a compact disc, and the Pickup is on a position
outerthanthelead-inposition,theLaserwilllightforseveral
seconds to detect a disc. Do not look into the Pickup Lens.
(2) The Laser Power Output of the Pickup inside the unit and
replacementservicepartshavealreadybeenadjustedprior
to shipping.
(3) No adjustment to the Laser Power should be attempted
when replacing or servicing the Pickup.
(4) Under no circumstances look directly into the Pickup Lens
at any time.
(5)CAUTION -Useofcontrols or adjustments,orperformance
of procedures other than those specified herein may result
in hazardous radiation exposure.
(Except for UK)
Laser Diode Properties
Material: GaAIAs
Wavelength: 780 nm
Emission Duration: continuous
Laser Output: max. 0.6 mW
VARNING-OSYNLIG LASERSTRÅNING NÄR DENNA DEL ÄR
ÖPPNAD.STIRRAEJINISTRÅLENOCHBETRAKTAEJSTRÅLEN
MED OPTISKA INSTRUMENT.
VARO! AVATTAESSA OLET ALTTIINA NÄKYMÄTÖN
LASERSÄTEILYLLE.
ÄLÄ TUIJOTA SÄTEESEEN ÄLÄKÄ KATSO SITÄ OPTISEN
LAITTEEN LÄPI.
VARNING-OSYNLIG LASERSTRÅLNING NÄR DENNA DEL ÄR
ÖPPNAD.STIRRAEJINISTRÅLENOCHBETRAKTAEJSTRÅLEN
GENOM OPTISKT INSTRUMENT.
(For UK)
LASER KLASSE 1
LUOKAN 1 LASERLAITE
KLASS 1 LASERAPPARAT
CAUTION-INVISIBLE LASER RADIATION WHEN OPEN. DO NOT STARE INTO
BEAM OR VIEW DIRECTLY WITH OPTICAL INSTRUMENTS.
VARNING-OSYNLIG LASERSTRALNING NAR DENNA DEL AR OPPNAD. STIRRA
EJ IN I STRALEN OCH BETRAKTA EJ STRALEN MED OPTISKA INSTRUMENT.
ADVERSEL-USYNLIG LASERSTRALING VED ABNING. SE IKKE IND I
STRALEN-HELLER IKKE MED OPTISKE INSTRUMENTER.
VARO! AVATTAESSA OLET ALTTIINA NAKYMATON LASERSATEILYLLE.
ALA TUIJOTA SATEESEEN ALAKA KATSO SITA OPTISEN LAITTEEN LAPI.
VARNING-OSYNLIG LASERSTRALNING NAR DENNA DEL AR OPPNAD.
STIRRA EJ IN I STRALEN OCH BETRAKTA EJ STRALEN GENOM OPTISKT
INSTRUMENT.
ADVERSEL-USYNLIG LASERSTRALING NAR DEKSEL APNES. STIRR IKKE
INN I STRALEN ELLER SE DIREKTE MED OPTISKE INSTRUMENTER.
All manuals and user guides at all-guides.com

CD-C430H,CP-C430H
– 3 –
FOR A COMPLETE DESCRIPTION OF THE OPERATION OF THIS UNIT, PLEASE REFER
TO THE OPERATION MANUAL.
Beforereturning the unitto the customerafter completion ofa
repairor adjustment it is necessary for the following withstand
voltage test to be applied to ensure the unit is safe for the
customer to use.
Setting of Withstanding Voltage Tester and set.
Set name set value
Withstanding Voltage Tester
Test voltage 4,240 VPEAK
3,000 VRMS
Set time 6 secs
Set current(Cutoff current) 4 mA
Unit
Judgment
OK: The “GOOD” lamp lights.
NG: The “NG” lamp lights and the buzzor sounds.
SHORT-CIRCUIT
AC POWER
SUPPLY CORD
CONNECT THE PROBE
TO GND TERMINAL
OF PHONO TERMINAL
PROBE
AC
UNIT
WITHSTANDING
VOLTAGE TESTER
+
-
OUT
OF CHASSIS
SCREW
CHASSIS
SCREW
IMPORTANT SERVICE NOTES (FOR UK ONLY)
General
Power source: AC 230 V, 50 Hz
Power consumption: 90 W
Dimensions: Width; 270 mm (10-5/8")
Height; 300mm (11-13/16")
Depth; 359.5mm (14-3/16")
Weight: 5.3 kg (11.7 lbs.)
Amplifier section
Output power: PMPO; 320 W (total)
(Except for UK) MPO; 60 W (30 W + 30 W)
(10 % T.H.D.)
RMS; 40 W (20 W + 20 W)
(10 % T.H.D.)
Output power: MPO; 60 W (30 W + 30 W) (10 % T.H.D.)
(For UK) RMS; 40 W (40 W + 40 W) (10 % T.H.D.)
Output terminals: Speakers; 4 ohms
Headphones; 16-50 ohms
(recommended; 32 ohms)
Input terminals: Video/Auxiliary (audio signal);
245 mV/47 kohms
Tuner section
Frequency range: FM; 87.5 - 108 MHz
AM; 522 - 1,620 kHz
Compact disc player section
Type: 3-disc multi-play compact disc player
Signal readout: Non-contact, 3-beam semi-conductor
laser pickup
D/A Converter: 1-bit D/A converter
Frequency response: 20 - 20,000 Hz
Dynamic range: 90 dB (1 kHz)
Cassette deck section
Frequency response: 50 - 14,000 Hz (Normal tape)
Signal/noise ratio: 55 dB (TAPE 1, playback)
50 dB (TAPE 2, recording/playback)
Wow and flutter: 0.15 % (WRMS)
Speaker section
Type: 2-way 130 mm (5-1/8") woofer and 50
mm (2") tweeter type
Rated input power: 20 W
Maximum input power: 40 W
Impedance: 4 ohms
Dimensions: Width; 220 mm (8-11/16")
Height; 300 mm (11-13/16")
Depth; 225 mm (8-13/16")
Weight: 3.0 kg (6.6 lbs.)/each
SPECIFICATIONS
CD-C430H
CP-C430H
Specifications for this model are subject to change without prior
notice.
All manuals and user guides at all-guides.com

CD-C430H,CP-C430H
– 4 –
NAMES OF PARTS
Front Panel
1. Disc Tray
2. Disc Number Indicator
3. Timer Indicator
4. Record Indicator
5. Sleep Indicator
6. Extra Bass Indicator: X-BASS
7. Function/CD Track/CD Counter/Frequency/Preset
Channel/Volume/Timer/Sleep Time Indicator
8. Memory Indicator
9. FM Stereo Mode Indicator: ST
10. FM Stereo Indicator:
11. CD Play Indicator:
12. CD Repeat Indicator:
13. SRS Indicator: ( )
14. CD Pause Indicator:
15. On/Stand-by Switch
16. Extra Bass/Equalizer Mode Button
17. Volume Up/Down Buttons:
18. 3D Surround Mode Button
19. Clock Button
20. Timer/Sleep Button
21. Function Selector Buttons
22. Memory/Set Button
23. Tuning and Time Up/Down Buttons:
24. Track Down/Review/Preset Down Button:
25. Play/Repeat Button:
26. Stop Button:
27. Track Up/Cue/Preset Up Button:
28. Disc Skip Button
29. Open/Close Button:
30. Record Pause Button:
31. Headphone Socket
32. (TAPE 1) Cassette Compartment
33. (TAPE 2) Cassette Compartment
CD-C430H
/
1
MEMORY ST
kHz
SRS ( )
MHz
1 2 3
REC SLEEP X-BASS
23456
7
8910
11
12
13 14
16 18
19
20
21
22
23 24 25 26 2728 29 30 31
15 17
32 33
All manuals and user guides at all-guides.com

CD-C430H,CP-C430H
– 5 –
CD-C430H
Rear Panel
1. Video/Auxiliary (Audio Signal) Input Sockets
2. Speaker Terminals
3. AC Power Lead
4. FM 75 Ohms Aerial Socket
5. AM Loop Aerial Input Socket
CP-C430H
Speaker Section
6. Tweeter
7. Bass Reflex Duct
8. Woofer
9. Speaker Wire
Remote Control
1. Remote Control Transmitter LED
CD Control section
2. Disc Number Select Buttons
3. Track Down/Review Button:
4. Track Up/Cue Button:
5. Disc Skip Button
6. Play/Repeat Button:
7. Stop Button:
8. Memory Button
9. Clear Button
10. Random Button
11. Pause Button:
Tuner control section
12. Preset Up/Down Buttons:
Tape control section
13. (TAPE 1/2) Stop Button:
14. (TAPE 1) Play Button:
15. (TAPE 2) Record Pause Button:
16. (TAPE 2) Play Button:
17. (TAPE 2) Rewind Button:
18. (TAPE 2) Fast Forward Button:
19. Function Selector Buttons
20. Extra Bass/Equalizer Mode Button
21. 3D Surround Mode Button
22. Power Button
23. Volume Up/Down Buttons:
1
2
3
4
5
6
77
8
9
1
2
3
4
5
6
7
11
12
10
98
14
13
15
19
23
20
18
17
16
22
21
All manuals and user guides at all-guides.com

CD-C430H,CP-C430H
– 6 –
OPERATION MANUAL
ON/ STAND-BY
CLOCK
MEMORY/ SET
TUNING/TIME ( )
AM 12:00AM 0:00
0:00
2 3
4
7
6 5
8 9
SETTING THE CLOCK
1
Press the ON/STAND-BY switch to enter the stand-by mode.
2
Press the CLOCK button.
3
Within 3 seconds, press the MEMORY/SET button.
4
Press the TUNING/TIME ( or ) button to select the time display mode.
"0:00" →The 24-hour display will appear. (0:00 - 23:59) "AM 0:00" →The 12-hour display will appear. (AM 0:00 - PM 11:59) "AM 12:00" →The 12-hour display will appear. (AM 12:00 - PM 11:59)
5
Press the MEMORY/SET button.
6
Press the TUNING/TIME ( or ) button to adjust the hour. Press the TUNING/TIME button once to advance the time by 1 hour. Press for more than 0.5 seconds to advance continu- ously. When the 12-hour display is selected, "AM" will change auto- matically to "PM".
7
Press the MEMORY/SET button.
8
Press the TUNING/TIME ( or ) button to adjust the minutes. Press the button for at least 0.5 seconds to change the time in 5-minute intervals. The hour setting will not advance even if minutes advance from "59" to "00".
9
Press the MEMORY/SET button. The clock starts operating from "0" seconds. (Seconds are not displayed.)
Note:
In the event of a power failure or when the AC power lead is disconnected, the clock display will go out. When the AC power supply is restored, the clock display will flash on and off to indicate the time when the power failure occurred or when the AC power lead was disconnected.
If this happens, follow the procedure below to change the clock time.
To change the clock time:
When the ON/STAND-BY switch is set to STAND-BY.
1
Press the MEMORY/SET button.
2
Perform steps 6 - 9 above.
When the ON/STAND-BY switch is set to ON.
1
Press the CLOCK button.
2
Within 3 seconds, press the MEMORY/SET button.
3
Perform steps 6 - 9 above.
To see the time display: (When the power is ON) Press the CLOCK button.
The time display will appear for about 3 seconds.
To switch the time display mode:
1
Press the ON/STAND-BY switch to enter the stand-by mode.
2
Press and hold down the VOLUME button, the button and the ON/STAND-BY switch all at the same time. Hold them for at least 2 seconds. (Refer to RESETTING THE MICROCOMPUTER on page 17.)
3
Perform steps 1 - 9 above.
Note:
The operation explained above will erase all data stored in memory, such as clock and timer settings, tuner and CD pres- ets.
In this example, the clock is set for the 24-hour (0:00) system.
PREPARATION FOR USE
15
15
Notes concerning use:
Replace the batteries if control distance decreases or oper- ation becomes erratic. Periodically clean the transmitter LED on the remote control and the sensor on the main unit with a soft cloth. Exposing the sensor on the main unit to strong light may in- terfere with operation. Change the lighting or the direction of the unit. Keep the remote control away from moisture, excessive heat, shock, and vibrations.
0.2 m - 6 m (8" - 20')
RESETTING THE MICROCOMPUTER
Reset the microcomputer under the following conditions:
To erase all of the stored memory contents (clock and timer settings, tuner and CD presets). If the display is not correct. If the operation is not correct.
1
Press the ON/STAND-BY (POWER) switch to enter the stand- by mode.
2
Press and hold down the VOLUME button, the button and the ON/STAND-BY (POWER) switch all at the same time. Hold them for at least 1 second.
1,2 2
All manuals and user guides at all-guides.com
all-guides.com

CD-C430H,CP-C430H
– 7 –
DISASSEMBLY
Caution on Disassembly
Follow the below-mentioned notes when disassembling
the unit and reassembling it, to keep it safe and ensure
excellent performance:
1. Take cassette tape and compact disc out of the unit.
2. Be sure to remove the power supply plug from the wall
outlet before starting to disassemble the unit.
3.Takeoffnylonbandsorwireholderswheretheyneedbe
removed when disassembling the unit. After servicing
theunit, be sureto rearrange theleadswhere they were
before disassembling.
4. Take sufficient care on static electricity of integrated
circuits and other circuits when servicing.
Figure 7-1
Figure 7-2
< A >
LOCK
LEVER
Figure 7-3
CP-C430H
CD-C430H
1 Top Cabinet 1. Screw ..................... (A1) x4 7-1
2 Side Panel 1. Screw ..................... (B1) x6 7-1
(Left/right)
3 CD Player Unit/ 1. Turn on the power supply, 7-2
CD Tray Cover open the disc tray, take out
the CD cover, and close.
(Note 1)
2. Hook....................... (C1) x3
3. Hook....................... (C2) x2
4. Socket .................... (C3) x4
4 Back Board 1. Screw ..................... (D1) x5 7-2
5 Main PWB/ 1. Screw ..................... (E1) x12 8-1
Display PWB/ 2. Socket .................... (E2) x4
Headphone PWB
6 Front Panel 1. Screw ..................... (F1) x2 8-1
2. Hook....................... (F2) x2
7 Tape Mechanism 1. Open the cassette holder. 8-2
2. Screw...................... (G1) x6
8 Turntable 1. Screw ..................... (H1) x1 8-3
2. Cover ..................... (H2) x1
9 Disc Tray 1. Screw ..................... (J1) x2 8-3
2. Guide ..................... (J2) x2
10 CD Changer 1. Screw ..................... (K1) x4 8-4
Mechanism
11 CD Mechanism 1. Screw ..................... (L1) x1 8-4
STEP REMOVAL PROCEDURE FIGURE
Note 1:
How to open the changer manually. (Fig. 7-3)
1. Insert the tip of fine screwdriver into the hole of CD player
base, and press down the worm wheel < A > .
2. Then, turn fully the lock lever in the arrow direction through
the hole on the loading chassis bottom in this state.
After that, push forward the CD player base.
CP-C430H
STEP REMOVAL PROCEDURE FIGURE
1 Speaker 1. Net Frame Ass'y ..... (A1) x1 7-5
2. Duct Front Panel ....(A2) x1
3. Screw......................(A3) x4 7-6
4. Screw......................(A4) x4
( B1 ) x1
ø3 x10mm
( B1 ) x2
ø3 x12mm ( B1 ) x2
ø3 x12mm ( B1 ) x1 ø3 x10mm
Top Cabinet
Side Panel
(Right)
Side Panel
(Left)
( A1 ) x2
ø3 x12mm
( A1 ) x2
ø3 x12mm
Back Board
CD Tray Cover
CD Player Unit
Hook
( C2 ) x1
Push
Hook
( C2 ) x1
Driver
Driver
Push
( D1 ) x6
ø3 x12mm
Hook
( C1) x3
( C3 ) x3
( C3 ) x1
All manuals and user guides at all-guides.com

CD-C430H,CP-C430H
– 8 –
Figure 8-3
Care when installing the CD changer mechanism.
InstalltheCDchangermechanismontheCDplayerbaseafter
the shift lever has been set in the highest position.
( J1 ) x1
ø3 x10mm
( J1 ) x1
ø3 x10mm
( H1 ) x1
ø3 x10mm
Turntable
Disc Tray
( H2 ) x1
( J2 ) x1
( J2 ) x1
CD Player Unit
Figure 8-4
Figure 8-6
CP-C430H
Figure 8-2
( K1 ) x4
ø3 x12mm
( L1 ) x1
ø2.6 x10mm
CD Changer
Mechanism
CD Mechanism
Shift Lever
CD Player Base
Tape
Mechanism
Open
Cassette
Holder
Power Supply
PWB
Front Panel
( G1 ) x6
ø3 x10mm
( F1 ) x2
ø3 x10mm
Figure 8-1
( E1 ) x1
ø3 x10mm
( E1 ) x1
ø3 x12mm
( E1 ) x9
ø3 x10mm
( E2 ) x1
( E2 ) x2
( E1 ) x1
ø3 x10mm
Front Panel
Tape
Mechanism
( E2 ) x1
Display PWB
Main PWB
Speaker Box
(A2) x4
4 x32mm
(A2) x2
4 x10mm
Woofer
Figure 8-5
SHARP
Front Panel
(A1) x1
Speaker Box
Screw
driver Driver should be pried
away from speaker Box.
Direction of handle
All manuals and user guides at all-guides.com

CD-C430H,CP-C430H
– 9 –
REMOVING AND REINSTALLING THE MAIN PARTS
CD MECHANISM SECTION
Perform steps 1, 2, 3, 10 and 11 of the disassembly method
to remove the CD mechanism.
How to remove the loading motor
(See Fig. 9-1)
1. Remove the screws (A1) x 2 pcs., to remove the loading
motor.
Figure 9-1
( A1 ) x2
ø2 x5mm
Loading Motor
Figure 9-2
How to remove the pickup (See Fig. 9-2)
1.Removethe screws (C1) x2 pcs., toremove theshaft (C2).
2. Remove the stop washer (C3) x 1 pc., to remove the gear
(C4).
3. Remove the pickup.
( C1 ) x2
2.6 x6mm
( C2 ) x1 ( C3 ) x1 ( C4 ) x1
CD Mechanism
Pickup
All manuals and user guides at all-guides.com

CD-C430H,CP-C430H
– 10 –
MECHANISM SECTION
•Driving Force Check
Torque Meter Specified Value
Play: TW-2412 Tape 1: Over 80 g
Tape 2: Over 80 g
•Torque Check
Torque Meter
Tape 2
Play: TW-2111 30 to 60 g. cm 30 to 60 g.cm
Fast forward: TW-2231 — 60 to 120 g.cm
Rewind: TW-2231 — 60 to 120 g.cm
Specified
Value
Adjusting
Point Instrument
Connection
Test Tape
Normal MTT-111 Volume in 3,000 ±Speaker
speed motor. 30 Hz terminal
(Load
resistance:
8 ohms)
Specified Value
Tape 1
•Tape Speed
Figure 10-1 ADJUSTMENT POINTS
ADJUSTMENT
• AM IF/RF
Signal generator: 400 Hz, 30%, AM modulated
*1. Input: Antenna, Output: Speaker Terminal
*2. Input: Input is not connected, Output: TP301
TUNER SECTION
fL: Low-range frequency
fH: High-renge frequency
IF 990 kHz 990 kHz T351 *1
Band — 522 kHz (fL): T302 *2
Coverage 1.1 ±0.1 V
Tracking 990 kHz 990 kHz T302 *1
Test Stage Frequency Frequency
Display Setting/
Adjusting
Parts
Instrument
Connection
•Setting the Test Mode
Keeping the TUNING (DOWN) button and MEMORY button
pressed, turn on POWER. Then, the frequency is initially set
in the memory as shown in Table. Call it with the PRESET
button to use it for adjustment and check of tuner circuit.
1 87.50 MHz 6 522 kHz
2 108.00 MHz 7 1,620 kHz
3 90.00 MHz 8 603 kHz
4 106.00 MHz 9 1,404 kHz
5 98.00 MHz 10 990 kHz
11 ~ 40
Preset No. FM Preset No. AM
Adjusting
Parts Instrument Connection
Frequency
Display
Frequency
98.00 MHz 98.00 MHz VR351 *1 Input: So301
(25 dBµV) Output: Speaker
Terminal
•FM Mute Level
Signal generator: 1 kHz, 40 kHz dev. FM modulated.
*1. Adjust so that an output signal appears
TAPE MECHANISM
MM 1
Motor
Volume in motor
TUNER PWB
AM BAND
COVERAGE fL
ANTENNA
TERMINAL
T351
R331
L311 CNP301
T302
FE301
VR351
FM MUTE
LEVEL
AM IF
TP302
TP301
IC303
13
1
21
AM TRACKING
fL
SO301
All manuals and user guides at all-guides.com

CD-C430H,CP-C430H
– 11 –
TEST MODE
2
1
TO
TE
200 ms
1V/diV
IC 1 15
200 ms
1V/diV
IC 1 7
TRACKING/
ERROR
BARANCE
ADJUST
Figure 11-2 Figure 11-3
2
1
10ms
0.50 V
IC1 20 FE
10ms
0.50 V
IC1 7 TE
Enlarged
View
TRACKING
OFF-SET
ADJUST
Since this CD system incorporates the following automatic adjustment function, when the pickup is replaced, it is not necessary
to readjust it.
Since this CD unit does not need adjustment, the combination of PWB and laser pickup unit is not restricted.
• Automatic adjustment item
1. Focus offset (Fig. 11-2)
2. Tracking offset (Fig. 11-3)
3. E/F balance (tracking error balance) (Fig. 11-4)
4. RF level AGC function (HF level: constant)
5. RF level automatic follow-up of the tracking gain
This automatic adjustment is performed each time a disc is changed. Therefore,
each disc is played back using the optimal settings.
CD SECTION Figure 11-1
Note:
Only in STOP state it is possible to slide the pickup with the ( ) or ( ) key.
VOL. --- Last memory
BAL. --- CENTER
R.GEQ. --- FLAT
X-BAS --- OFF
Canceling method - POWER OFF
• Setting the test mode
Any one of test mode can be set by pressing several keys as follows.
<REC. PAUSE> + <DISC. SKIP> + <POWER> TEST: CD operation test
• TEST mode
Function — CD test mode
Setting of TEST mode
Indication of CD TST mode (Fig. 11-1)
OPEN/CLOSE operation is manual operation.
The pickup can be moved by using the ( ) or ( ) key.
<MEMORY>
LASER ON
<PLAY> key input Press <STOP> key. Stop
TOC. IL is performed, and the ordinary PLAY is performed.
If the following key is pressed during PLAY, it is possible
to specify directly any Track No.
<Disc Number 1> key: Track 4
<Disc Number 2> key: Track 9
<Disc Number 3> key: Track 15
<MEMORY>
Tracking on the spot.
SERVO OFF PLAY
<MEMORY>
Tracking on the spot.
SERVO ON PLAY STOP
2
0.1s
0.50 V
IC1 20 FE
0.1s
0.50 V
IC1 7 TE
1
FOCUS
OFF-SET
ADJUST
TRACKING
OFF-SET
ADJUST
Figure 11-4
IL is not performed.
<STOP>
123
All manuals and user guides at all-guides.com
all-guides.com

CD-C430H,CP-C430H
– 12 –
•The indicated voltage in each section is the one measured
by Digital Multimeter between such a section and the chas-
sis with no signal given.
1. In the tuner section,
( ) indicates AM
< > indicates FM stereo
2. In the main section, a tape is being played back.
3. In the deck section, a tape is being played back.
( ) indicates the record state.
4. In the power section, a tape is being played back.
5. In the CD section, the CD is stopped.
•Parts marked with “ ” ( ) are important for
maintaining the safety of the set. Be sure to replace these
parts with specified ones for maintaining the safety and
performance of the set.
NOTES ON SCHEMATIC DIAGRAM
•Resistor:
To differentiate the units of resistors, such symbol as K and
M are used: the symbol K means 1000 ohm and the symbol
M means 1000 kohm and the resistor without any symbol is
ohm-type resistor. Besides, the one with “Fusible” is a fuse
type.
•Capacitor:
To indicate the unit of capacitor, a symbol P is used: this
symbol P means micro-micro-farad and the unit of the
capacitor without such a symbol is microfarad. As to
electrolyticcapacitor,theexpression“capacitance/withstand
voltage” is used.
(CH), (TH), (RH), (UJ): Temperature compensation
(ML): Mylar type
(P.P.): Polypropylene type
•Schematic diagram and Wiring Side of P.W.Board for this
model are subject to change for improvement without prior
notice.
REF. NO DESCRIPTION POSITION
SW1 OPEN/CLOSE ON—OFF
SW2 MECHA UP ON—OFF
SW3 DISC NUMBER ON—OFF
SW4 PICKUP IN ON—OFF
SW701 RANDOM/DEMO ON—OFF
SW702 VOLUME DOWN ON—OFF
SW703 X-BASS ON—OFF
SW704 VOLUME UP ON—OFF
SW705 OPEN/CLOSE ON—OFF
SW706 DISC SKIP ON—OFF
SW709 REC./PAUSE ON—OFF
SW710 UP ON—OFF
SW711 STOP ON—OFF
SW712 PLAY ON—OFF
POSITION
SW713 DOWN ON—OFF
SW714 TUNING UP ON—OFF
SW715 TUNING DOWN ON—OFF
SW717 POWER ON—OFF
SW718 CLOCK ON—OFF
SW719 TIMER/SLEEP ON—OFF
SW721 MEMORY/SET ON—OFF
SW722 CD ON—OFF
SW723 TUNER ON—OFF
SW724 TAPE ON—OFF
SW725 AUX ON—OFF
SWM 3 FOOL PROOF ON—OFF
SWM 4 F.A.S. ON—OFF
SWM 5 CAM ON—OFF
REF. NO DESCRIPTION
Figure 12 TYPES OF TRANSISTOR
ECB
(S)(G)(D)
(1) (2) (3)
FRONT
VIEW
BCE
(D)(G)(S)
(3) (2) (1)
FRONT
VIEW
2SD2012 Y KDV147BKRC104 M
KRC107 M
KTA1266 GR
KTA1273 Y
KTC3199 GR
KTC3203 Y
2SA1015 GR
2SB561 C
2SC2389 SS
2SC535 C
KRA102 M
KRA109 M
KRC102 M
All manuals and user guides at all-guides.com

CD-C430H,CP-C430H
– 13 –
Figure 13 BLOCK DIAGRAM (1/3)
1
2
3
4
5
98
6
7
20
12
13
24 25 30
31
3222
34
35 36
10 11
27 26
28 29
PU-IN SW
XL1
XIN
LD0
FIN2 JP–
CV+
SLC
SL1
FIN1 E F
TO
FD
SPO
SP
SLD
SL–
SL+
DRF
CL
DAT
CE
VCC1 VCC2
6
+5V
PICKUP IN
SW4
FOCUS COIL
TRACKING COIL
M1
SPINDLE
MOTOR
M
M
M2
SLED
MOTOR
PICKUP UNIT
9
IC2
LC78623D
SERVO/SIGNAL
CONTROL
+B5
IC5
M56748FP
DRIVER
IC1
LA9241M
SERVO AMP.
6
1
95
+B5
+12V(+B3)
( TO IC401 )
RES. CQCK. COIN SQOUT. RWC. WRQ
~
~
~
CL, DAT, SELIAL CONTROL/CE Q93
Q91
SL+. SL–. DRF
7
3
9
8
7
6
5
4
3
2
1
GND (D) MECHA UP GND (D) DISK NO. OPEN/CLOSE GND (D) M– M+ GND (M)
9
8
7
6
5
4
3
2
1
CNP10
M
+5V
62 64 56 45 3623 43
37
38 39
40 24 25
10 10
265853
10 12 20
32 40 43 44
5352515431302923271615
4144
Q1
+5V Q81 +5V (+B5)
VOLTAGE
REGULATOR
VOLTAGE REGULATOR
VOLTAGE
REGULATOR
SWITCHING
FROM POWER AMP. SECTION
TO MAIN SECTION
IC91
TA7291
MOTOR
CONTROL
XOUT
EFMO EFMIN CLV+ JP–
CONT2 CONT1
RCHO
RVSS
LVSS
LCHO
VVDD
VDD
LVDD
RVDD
XVDD
SW1 OPEN/CLOSE
SW2 MECHA UP SW3 DISC NUMBER
M3 LOADING
SOLM1
TO DISPLAY SECTION
CNS10
+B5
FROM POWER AMP. SECTION
All manuals and user guides at all-guides.com

CD-C430H,CP-C430H
– 14 –

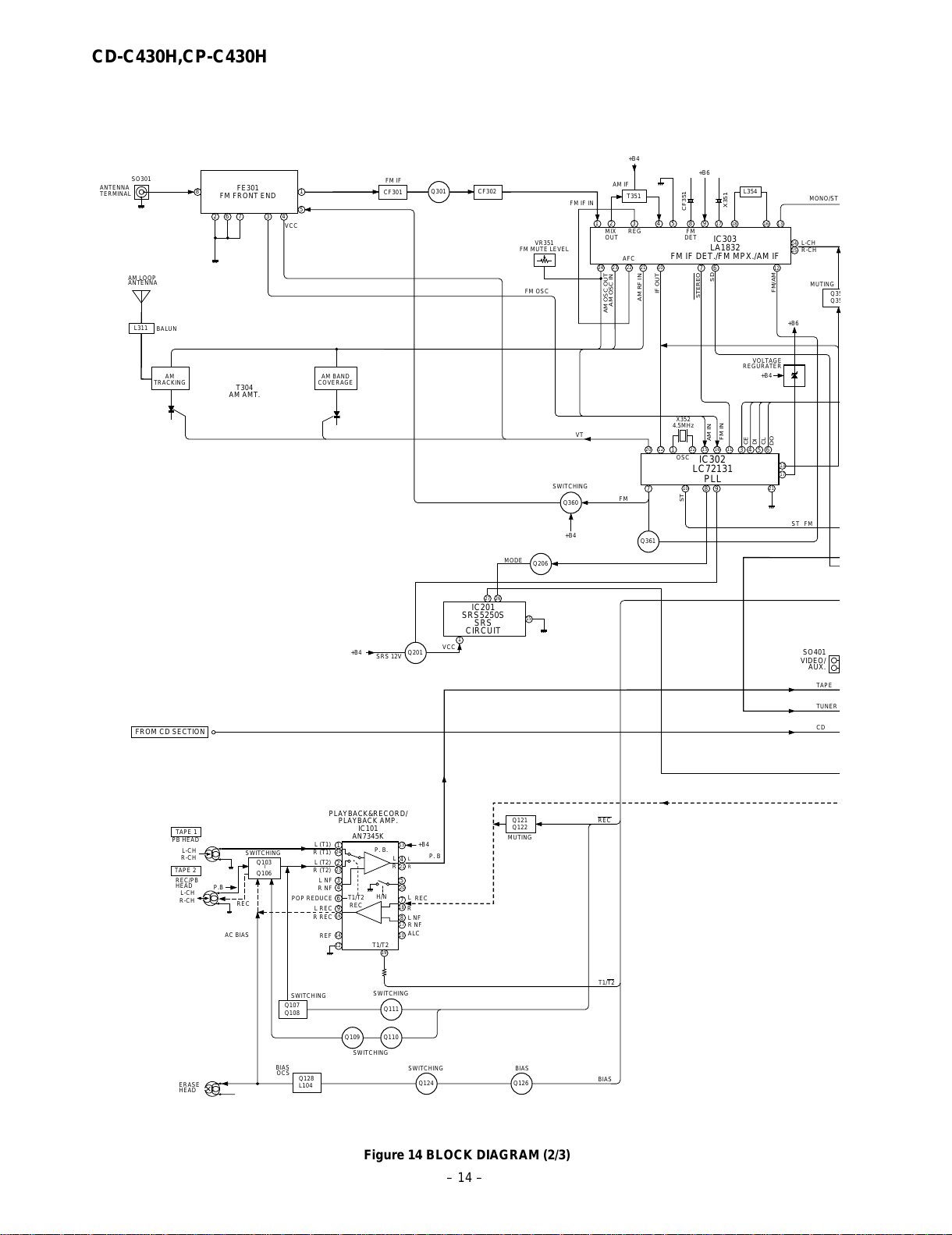

Figure 14 BLOCK DIAGRAM (2/3)
TAPE
TUNER
CD
1
3
45
17
18
13
67
16
14
12 19
10
23
24
8
9
1
26
15
27
24
20
21
R-CH
L-CH
PB HEAD
L NF
L (T1)
R (T1)
L (T2)
R (T2)
R NF H/N
T1/T2
POP REDUCE
L REC
R REC R NF
REC
L NF
P. B.
REC
L-CH
R-CH
REC/PB
HEAD
ERASE
HEAD
OCS
BIAS
REF ALC
T1/T2
PLAYBACK&RECORD/
PLAYBACK AMP.
IC101
AN7345K
L
RP. B
Q128
L104 BIAS
Q106
Q103
~
P.B
REC
AC BIAS
Q107
Q108 Q111
Q109 Q110
T1/T2
MUTING
Q121
Q122 REC
+B4
L
R
TAPE 1
TAPE 2
R
L
SWITCHING
SWITCHING
SWITCHING
SWITCHING
Q206
Q201
SRS 12V
+B4 VCC
MODE
Q124 Q126
SWITCHING BIAS
FROM CD SECTION
SO401
VIDEO/
AUX.
IC201
SRS5250S
SRS
CIRCUIT
1
345 1
7
78 9
6
20 12 22 15 16 11
21
17
13
10
1
5
42 73
8
6
89
17
14
15
12
1021222324
13
18 16
5
4
3
2
6
X352
4.5MHz
OSC
STEREO
ST
ST
AM IF
FM IF IN
VT
FM IN
AM IN
FM
+B4
AM
TRACKING AM BAND
COVERAGE
FE301
FM FRONT END
CE
DI
CL
DO
T351
IC302
LC72131
PLL
FM
SWITCHING
FM IF
CF302
CF301 Q301
VCC
SO301
ANTENNA
TERMINAL
AM LOOP
ANTENNA
L311 BALUN
Q360
+B4 Q361
VR351
FM MUTE LEVEL
FM OSC
IF OUT
AM RF IN
AM OSC IN
AM OSC OUT
AFC
Q3
5
SD
FM/AM
MUTING
+B6
+B4
REGURATER
VOLTAGE
L-CH
R-CH
L354
+B6
MONO/ST
MIX
OUT REG FM
DET
Q3
5
X351
CF351
IC303
LA1832
FM IF DET./FM MPX./AM IF
T304
AM AMT.
All manuals and user guides at all-guides.com

CD-C430H,CP-C430H
– 15 –
Figure 15 BLOCK DIAGRAM (3/3)
13
14
4
311
MUTE
L
R
R
L-OUT
R-OUT
92
5
12
L-IN
R-IN
NF
7
8
VCC
+12V (ANALOG)
+B4
+12V (MOTOR)
+B3
OUT
IC801
LA4550
POWER AMP.
+B4 PRESET GRAPHIC EQUALIZER
VDD
X-BASS
LVREF
RVREF VSS
AVSS
GRAPHIC EQUALIZER
VOLUME 58
55 L
R
R
R
L
L
L
TAPE
TUNER
CD
Q942
VOLTAGE
REGULATOR
VOLTAGE
REGULATOR
VOLTAGE
REGULATOR
TO CD SECTION
UN-SWITCHED
+B6
+
–
SO801
SPEAKER
TERMINAL
JK801
HEADPHONES
VREF
OUT_L
TO CD SECTION
+5V
+5V
+B5
Q941 Q943
Q952
Q953
IC401
LC75394E
AUDIO PROCESSOR
23
16
33
17
32
19
30
21
28
14
13 35 56 50 26 27 12 37 11 38 10 3963
24 25 57
CL
DI
CE
25
27
29
30
33
34
35
36
37
38
39
40
42 414344454647485051525556
31
65
70
57
2423222120191817
77
79
80
72
71
161514131211
10
9
~
6
1
~
~
78
3RX701
1
2
SYSTEM STOP
DO
DRF
DI
DE
CL
RESET
XL701
4.19MHz
AVDD
AVREF +B7
+B8
KEY
SW701~706
SW709~715
SW717~725
+B3
PHM1
RESET
Q708
Q709
ZD701
MEMORY
BACK UP
+B7
+B8
+B7
+B8
3
2
1~ 3314 2117 18 ~30 31 32
Q701
+B7
+B7
VSS
+B6
UN-SWITCHED
FL701
DISPLAY
~
61
64
~
POWER
VOLTAGE
REGULATOR
Q971 D971
D973
~
D961 ~ D964
+B2
+B1
ZD972
VF2
–VP
VF1
Q707
Q706
IC701
IX0191AW
SYSTEM CONTROL
MICROCOMPUTER
+B3
TO CD SECTION
+B9
+B8
D965 ~ D968
9
43
640 49
64
8
44
541
7
45
442
CD PUIN
CD SL+
CD SL–
VDD
TAPE SOL
TAPE MOTOR
TAPE MECHASTOP
TAPE FP
T1 RUN PLSE
SOLM2
SOLENOID
+B9
SWM5
CAM
SWM4
F. A. S
SWM3
FOOL PROOF
L-CH INPUT
R-CH INPUT
T2 RRUN PLSE CD UP DOWN/DISC NO
CD DSP RES
CD T/T OPEN/CLOSE
RESET CD DSP SQOUT CD DSP COIN CD DSP RWC
CD DSP CQCK
CD DSP WRQ T1/T2 TAPE REC TAPE BIAS
SO401
VIDEO/
AUX.
ZD951
ZD941
TO DISPLAY PWB
Q705
MM1
TAPE
MOTOR
CONSTANT
VOLTAGE
+B3
M
TO CD SECTION
TO CD SECTION
TO POWER AMP.
SECTION
6
21
17
13
14
15
12
136
ST FM
DO
Q354
FM/AM
MUTING
+B6
B4
ATER
TAGE
L-CH
R-CH
MONO/ST
Q353
M IF
T.F
AC POWER
SUPPLY CORD
AC 230 V,50 Hz
F962
T2.5A L
250V
T961
POWER
TRANSFORMER
F963
T1.6A L
250V
All manuals and user guides at all-guides.com

CD-C430H,CP-C430H
– 16 –
A
B
C
D
E
F
G
H
123456
Figure 16 WIRING SIDE OF P.W.BOARD (1/4)
• The numbers 1 to 12 are waveform numbers shown in page 30.
C96
TO TAPE MECHANISM
PWB
CNPM1
CNSM1
RD
1
2
3
4
5
6
7
8
9
10
11
12
WH
GY
WH
GY
WH
GY
WH
T
O
P19 7 - H
TO MOTOR PWB
CNS10
P18 2 - H
TO TAPE MECHANISM
CNS101
HEADPHONS PWB-A3DISPLAY PWB-A2
P18 2 - A
BR
COLOR TABLE
RD(R)
OR
YL
GR
BL
VL
GY
WH(W)
BK
PK
BROWN
RED
ORANGE
YELLOW
GREEN
BLUE
VIOLET
GRAY
WHITE
BLACK
PINK
F1
T500mA L 25
0
123
123
BCE
BCE
CNP101
XL701
BIM1
R773
R771
R759
C717
R99
R765
R769
R775
R98
R760
R799
R711
R603
C718
R726 R727
R700
R703
R705 R706 R709 R731
R743
R735
R702
R724
R708
R714
R748 R746
R707
R712
R704
R729
R747 R745
C704
C703
C701
R761
C705
R722 R772
R717 R719 R721 R713 R715 R716 R718 R720
R723 R725
R762
R766 C708
R779
R734 R741
R781
R780 R776
R786
R785
R798
R795
R767
R782
R737
R728
R730
R754
R732
R733
R757 R756
R751 R750
R738
R774
R70
R755
R739
R752
R740
R744
R797
R742
R96
R788
R31
C95
R39
R54 R30 R25 R24
R23
R22
R21
C16
C2
0
R26 R2
7
R81
R38
R56
R57
C51
C22
R47
R46
C46
C54
C56
C55
C57
R77 R78
R154
R134
R150
R141
C58
R152
R137
R135
C129
R71 R72 R79
R153
C139
R139
R145 C131
R131
C119
R125 C127
R123
R121 R102
C117
C123
C113
C111 R107
C10
7
R101
C102
R108 C10
8
C101 R110
C1
C1
R60
R58
R
3
C
3
R
3
R2
C1
R1
R701
Q701
C710
C711
FL701
RX701
Q706
D702
R758
C706
Q705
D709
D708
CNP10
C91
R97
IC91
D91
Q91
R95
Q93
C715
R789
R770
R792
R793
R749
C702
R794
L701
D701
Q707
D703
C707
Q708
Q709
ZD701
C709 D704
D706
D705
R763
R777
R836
R835
C855
R764
R133
R172
R768
R736 D5
D7
R49
R82
R61
C43
R778
R88
R87
R783
C44
C11
C17
C18
C19
C81
C52
Q81
R86
L1
L700
C53
C59 R3
5
XL1 R45
C135
Q121
C
C148
C141
C133
IC101
C128
C115
R119
Q107
R109
Q10
8
Q111
Q110
C453 C809
C454
R811
C812
C843 C844
C811
R809 C813
8
1
SW717
POWER
TIMER/SLEEP
SW719
SW718
CLOCK
1
2
3
10 987654321
9
8
7
6
5
4
3
2
1
B
C
E
B
C
E
SW714
TUN-UP
SW715
TUN-DOWN
SW721
MEMORY/SET
123
BCE
STOP
SW711
PLAY
SW712
SW724
TAPE
SW713
DOWN
TUN
SW723
CD
SW722
IC701
510 15 20 24
25
30
35
4041
45
50
55
60
64
65 70
75
80
IC701
510 15 20 24
25
30
35
4041
45
50
55
60
64
65 70
75
80 1
SW725
VIDEO/AUX
SW710
UP
SW705
OP/CL
SW706
D-SKIP
SW709
REC/PAUSE
SW703
X-BASS
SW701
RANDOM/DEMO
123 BCE
BCE
123
SW704
VOL-UP
SW702
VOL-DOWN
HEADPHONES
JK801
BCE
3
2
1
BCE
1
5
10
12
15
20
1
5
10
15
1617
20
25
30
32
33 35 4045
48 49
50 55 60 64
IC2
ECB
IC5
1
51015
18
36
35 30 25 2019
C121
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
1
2
65411 7
L107
R117
R753
R753R753
R753
C96
C147
All manuals and user guides at all-guides.com
all-guides.com

CD-C430H,CP-C430H
– 17 –
Figure 17 WIRING SIDE OF P.W.BOARD (2/4)
78 9 10 11 12
L-CH
SO401
VIDEO/AUX
R-CH
L-CH SO801
SPEAKERS
R-CH
P18 6 - H
TO CD MOTOR
PWB
CNS3A
P18 5 - C
TO PICKUP
UNIT
CNS2A
P18 5 - C
TO PICKUP
UNIT
CNS1A
P19 9 - C
TO TUNER
PWB
CNP201
P19 9 - C
TO TUNER
PWB
CNP303
MAIN PWB-A1
P19 10 - B
TO POWER PWB
CNS901
A
NISM P18 3 - H
TO TAPE MECHANISM
CNS102
CNP901
F1
T500mA L 250V
ECB
123
123
BCE
BCE
CNP101
R825
CNP102
R31
R39
R24
R23
R22
R21
C16
C20
R26 R27
R81
R38
R56
R57
C22
R47
R46
R134
R150
R141
R152
R137
C139
C131
C127
1
R102
C113
C111 R107
C107
R101
C102
R108 C108
C101 R110
R114
R115
C106
R106
C105
R104
R118
C112 R103
C114 R105
R113
C120 R122
R124 C118 R166
R126 C124
C132 R132 R168
R138 R164
R140 C130R162
C140 R146 R167
R142
R136
R74 C70 R76
C92
R73 C69 R75
R60
R58
R36
R37 C33
C31
R32
C32 R34
R33
C30 R41
C38
R1
C1
R20
C15 R2
C14
R19 C10 R3
R16 R8
R17
R15 R4
R11
C12 R14 R9 R5
R12 C4
R7
R13
R6
R42
C25
R43
C456
C446
R413
R411
C413
C433
R414
R412 C437
C414
R479
C438
C445
C434
R480
R945
R808 R807
R804
C945
R948
C941
R803
C804 C803
R806 R805
R949
C957
C871
C872
C408
R407
C407
R406
R408
R405
C455
CNP3
C44 CNP2
C94
R10
C21 C7
R29
C13
R28
C11
C17
C18
C19
C81
C52
Q81
C45
C53
C50
R35
C34
C42
C41
R18
C67
R45
C68
Q122
C146
R158
C136
C135
C145
C148
C142
C141
C133
C134
IC101
C128
C122
C115 C116
R119 R120
Q107
R112
R111
R109
Q108
Q111
Q110
4
53 C809 C810
C
454
R
811
C812
C811
C820
C814
R812
R810
809 C813
LG902 C831
C802
C801
C830
C829
C808
C806
C823
C824 C828
Q106
R815
C825
Q104
Q103
Q105
C150
C109
R478 R477
Q109
L104
Q126
C151
C153 Q128
R174
Q124
C152
C218
R160
R476
C422
C452 C420
C418
C406
C405 C412
C402 R420
R419 R418
C401 R416
R415
R403
D2
C37
C35
R475
C39
C40
C2
C404
C3
C403
C5
C8
C6
C9
CNP401 CNP402
D403
CNP1 D404
Q1
C24
R422
C451
C217
R421
C411
C975
R417
R402 R401
C417 R974
C421
C419
C976
ZD972
C423
C425
R976
C427
C435
C439 C961
C440
C443
C444
C436
D402
C424
D962 D964
D961
C426 C442
C428
C441
D401
C944
D967
C956
D968 C955
D966
R946
ZD941
D965
R947
C943
C942
Q943
C827 C805
R943
C948
D942 D941
C947
R951
Q953
D951
R944
Q942 Q941 Q952
LG901
R952
C952
ZD951 C953
R953
C954
D963
C962
R977
R978
R975
R844
R843
R845
C971 C972
Q971
R973
D971
D973
D972
C974
C973
R972
ZD971
C410 C409
C845 C849
C847 C851
C848 C852
C846 C850
7
6
5
4
3
2
1
ECB
ECB
ECB
BCE
3
2
1
BCE
BCE
123
BCE
1
5
10
12 13
15
20
24
BCE
1
5
10
15
1617
20
5
45
48 49
50 55 60 64
IC2
ECB
1
5
10
15
20
25
30
32
33 35 4045
48
50 55 60 64
IC1
1
1
65432
6587432
165432
10 15
18
25 2019
1
10987654321
5432 B
C
E
123456
ECB
IC401
1
5
10
15
1617
20
25
30
32
33 35 4045
48 49
50 55 60 64
E
C
B
E
BCEBCEBCE
C
B
123456789
10 11 12 13 14
IC801
123456789 10 11 12 13 14
C121
2
3
981126 10
7
L107 L108
L105
L831
L832
R117
C147
All manuals and user guides at all-guides.com

CD-C430H,CP-C430H
– 18 –
Figure 18 WIRING SIDE OF P.W.BOARD (3/4)
A
B
C
D
E
F
G
H
123456
R
CNPM1
CNPM2
12
1
2
1
2
FWM1
SWM3
SWM4 F. A. S
F. P.
123456789101112
34
2
1
PHM1
+
-
+
-
PICKUP IN
654321
SLED MOTOR
SPINDLE MOTOR
M2
CNP3A
SW4
M1
CNSM1
P16 1 - A
TO DISPLAY PWB
WH
RD BK
TAPE 1
PLAYBACK HEAD(55)
TAPE 2
ERASE HEAD(56) RECORD/PLAYBACK HEAD(55)
YL
BLWH RD
BK
WH BK
GYBRGY
BL
CNS102
CNS101
YL
WH
BK
RD
WH
BK
7654321213
WH
BK
RD
CNP102
P17 8 - H
TO MAIN PWB
P16 6 - H
TO MAIN PWB
CNP101
TAPE MOTOR
WH
BK
MM1
SWM5
SOLM1
SOLENOID CAM
BK
WH
CNP1
CNS1B
CNS1A
CNS2B
CNS2A
CNS3B
CNS3A
BL YL
RD
WH
BK
RD
WH
GY
WH
GY
WH
GY
WH
RD
WH
GY
WH
GY
WH
BL
PK
RD
YL
BK
CNP2
CNP3
12345678
123456
12345
12345678
123456
12345
P17 8 - A
TO MAIN PWB P17 8 - A TO MAIN PWB
P17 7 - A
TO MAIN PWB
PICKUP UNIT
CD MOTOR PWB-E
TAPE MECHANISM PWB-D
BR
COLOR TABLE
RD(R)
OR
YL
GR
BL
VL
GY
WH(W)
BK
PK
BROWN
RED
ORANGE
YELLOW
GREEN
BLUE
VIOLET
GRAY
WHITE
BLACK
PINK
All manuals and user guides at all-guides.com

CD-C430H,CP-C430H
– 19 –
Figure 19 WIRING SIDE OF P.W.BOARD (4/4)
78 9 10 11 12
+
-
C374
C372
C355
C398
C354
C390
R359
R354
C375
D352
R368
R377
R363
R364
C371
R361
R362 R365
R366
C373 C368
R356
R331
C361
C364
C363
C367
R330
C366
C365
C362
C341
C332
C331
D361
D362
C327
D311
D312
C334
R323
R320
X351
IC303
C353
R351
C350 C325
L353
VR351
FM MUTE
LEVEL
C342
C352
C351
R352
C399 R353 R355
C357
C358
C356
L352
C370
R395
C383
C391
R387
D363
R371
10
9
8
7
6
5
4
3
2
1
1
2
3
4
5
6
R372
C388
L351
R379
C385
11
10
9
8
7
6
5
4
3
2
1
R398
C387
C386 R360
D364
R367
C395
ZD351
C396 C397
R391
R392
R385
R386
R382
R383 R375
R384
R376
R374
R373
ZD352
X352
C382 C381
R380
C392
C394
R381
C393
Q301
C320
FE301
R315
C323
R308
L312
C322
C321
Q361
D368
D367
C384
R318
CF301
1
B
C
E
3
2
1
B
C
E
ECB
ECB
3
2
1
R310
L354
R358
R304 R307
R305
Q354
Q353
CF351
1
123 5
10
12 13
15
20
24
BF351
T351
CF302
T302
IC302
CNP303
Q360
R370
234 5678
12
13
14
15
16
17
18
19
20
21
22
L311
C210
C200
R206 C219
R210
R212
C202
R202
R233
R209
R218
R234
G
D
S
1
BCE
2
3
D201
R208
R207
R215
R216
C223
R217
C224
C240
C220
R200
R203
C203
R204
R205
R228
CNP201
IC201
R201 1
5
10
1415
20
25
28
R213
Q205
C201
Q201
Q206
R399
TP301
BI901
F962
T2.5A L 250V
F963
T1.6A L 250V
POWER TRANSFOMER
K952
K951
T.F
T961
12
CNP301
CNS5
2
12 1
CNS10
WH
RD
GY
WH
BR
WH
GY
OR
WH
GY
10
1
BIM5
6
9
8
7
6
5
4
3
2
1
CNP10
P16 4 - B
TO MAIN PWB
SW2
MECHA UP SW1
OPEN/CLOSE
M3
SELECT MOTOR
SW3
DISC NUMBER
POWER PWB-C3 TUNER PWB-B
SOLM2
SOLENOID
CNP402
P17 9 - A
TO MAIN PWB
CNP401
P17 9 - A
TO MAIN PWB
POWER PWB-C
CNP901
TO MAIN PWB
P17 11 - G
RD
WH
GY
WH
GY
WH
CNS901
AC POWER
SUPPRY CORD
AC 230V,50Hz
CORE
(265)
MOTOR PWB-E
SO301
FM 75 OHMS AM LOOP
ANTENNA
123
When Servicing, pay attention as the area
enclosed by this line ( ) is directly
connected with AC main voltage.
1
1
2
3
4
5
6
6
All manuals and user guides at all-guides.com

CD-C430H,CP-C430H
– 20 –
Figure 20 SCHEMATIC DIAGRAM (1/9)
A
B
C
D
E
F
G
H
123456
• NOTES ON SCHEMATIC DIAGRAM can be found on page 12.
654321
+B
+B
+B
+B
+B
+B
+B
+B
48
47
46
45
44
43
42
41
40
39
38
37
36
35
34
33
32313029282726252423222120191817
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
64 63 62 61 60 59 58 57 56 55 54 53 52 51 50 49
5
4
3
2
1
6
5
4
3
2
1
6
5
4
3
2
1
6
5
4
3
2
1
8
7
6
5
4
3
2
1
36
35
34
33
32
31
30
29
28
27
26
25
24
23
22
21
20
19
18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
3.3V
4V
1.5V
REF
RFSM
RFS–
SLC
REF
FSC
SLI
DGND
TBC
CLK
DEF
CL
DAT
CE
DRF
FSS
REF1
VCC2
VR
LF2
FIN1
REF
VCC1
LDS
LDO
VCR
VCR
VCR
VCR
REF
REF
REF
JP
REF
TD– GEN
REF
REF GEN
FOSTA
AGND
FE–
REF
GEN
FE1
REF
JP
REF
JPCLO
SLOF
REF SLOF
REF
SLD
SL–
SL+
JP–
CV+
CV–
SLOF
HFL
TES
TOFF
TGL
JP+
+
–
+
–
+
–
+
–
–
+
–
+
+
–
+
–
+
+
+
–
–
+
+
–
–
–
–
RF
OR
REF
REF
SLEO
SPO
SP–
SPG SPI
SP
FE
FA
FA–
FD–
FD
TO
JP
TD
TH
REF
REF
TO
REF
+
+
+
+
+
++
–
–
––
–
–
–
–
+
REF
REF
REF
SCI
TESI
TE
TE–
TB
F
E
FIN2
BHI
PHI
RF
REF
+
–
–
–
–
+
+
+
+
–
FE1
TGL1
THDL GL
THD
VCC
DEF
HFL
DRF CE
CL
SLOF
FSTA
LATOH
TOSTA
FOSTA
S.Q.R
FSTA
8/12CM
LASER
2FREQ
JP+
JP–
CV+
CV–
REF
–
–
++
++
––
EFBAL
FSC
SLOF
+
CD MOTOR
PWB-E
TR_
TR+
FO+
FO_
GND
PD
VR
LD
VREF
SP+
SP_
SL+
SL_
PU-IN
SW4
PICKUP IN
M1
SPINDLE
MOTOR
M2
SLED
MOTOR
+
–
+
–PUIN
+5V
DRF
SL+
SL–
SQOUT COIN
CQCK
55
44
33
22
CNS1B
1CNS1A 1
PD
GND
LD
VR
FO_
TR+
TR_
FO+
8
7
6
5
4
3
2
8
7
6
5
4
3
2
CNS2B
1
CNS2A
1
PICKUP UNIT
KMON
TR+
FO+
FO–
TR–
LD GND
E
LD
ACTUATOR
B
C
F
A
LT0H30P1
8
7
6
4
5
3
2
1
4
5
3
2
1
LD
VR
PD
GND
F–
F+
E
F
K
A
B
T–
T+
A
B
F
K
E
A
B
F
K
E
R61
15K
6
5
4
3
2
1
CNP3A
R30
15K
R26
220K
CNS3B CNS3A
CNP3
CNP2
+B
+B
C4
0.001
R6
100
IC1
LA9241M
SERVO
AMP.
CNP1
R39
22K
R28
1K
C16
0.001
R20
10K
R21
56K
R22
6.8K
R19
39K
R23
1.2K
C19
47/10
C17
0.47/50
R10
82K
R27
220K
C32
27P
R34
1K
C31
0.0027
R37
47K
M
M
R54
1K
R71 1K
R72 1K
R70 1K
C3
0.1/50
C21
1/50
C25
0.01
R43
12
C2
47/10
R1
1K
Q1
KTA1266 GR
C1
0.01
C12
330P
R17
82K
D2
1SS119
C40
0.33/50
C39
0.47/50
C38
0.01
C37
220/6.3
C35
0.1/50
C33 0.001
C30
2.2P
R33
5.6K
C34
0.033
R36
47K
R32
56K
R38
33K
R11
3.3K
R9
27K R8
12K
C10
180P
R7
1K C9
0.047 C8
0.068
C7
0.1/50
R5
6.8K
C6
0.033
R4
2.2K
C5
0.033
R3
10K
R2
100K
C15
0.0047
R16
1.5K
R14 10K
R15
47K
R13
33K
C45 4.7/25
C50
0.1
C11
0.1
C14
0.01
C20
0.0033
C18
1/50
R25
1.2K
R24
10K
R42
560
R35
470
R41
4.7K
C53
220P
R45
1K
R46
1K
R47
1K
R49
100K
C46
0.022
R29
1K
C24
1/50
R31
10K
C44
100/10
C13
0.1 R12
15K
C94
0.001
IC5
M56748FP
FOCUS/TRACKING
SPIN/SLIDE DRIVER
All manuals and user guides at all-guides.com
