Sharp WF-2000W User manual

WF-2000W
CONTENTS Page
SPECIFICATIONS .............................................................................................................................................................. 2
VOLTAGE SELECTION...................................................................................................................................................... 2
AC POWER SUPPLY CORD AND AC PLUG ADAPTOR .................................................................................................. 2
NAMES OF PARTS ............................................................................................................................................................ 3
DISASSEMBLY................................................................................................................................................................... 4
REMOVING AND REINSTALLING THE MAIN PARTS...................................................................................................... 5
ADJUSTMENT .................................................................................................................................................................... 6
FITTING OF DIAL POINTER .............................................................................................................................................. 8
NOTES ON SCHEMATIC DIAGRAM ................................................................................................................................. 8
TYPES OF TRANSISTOR AND LED.................................................................................................................................. 9
VOLTAGE ........................................................................................................................................................................... 9

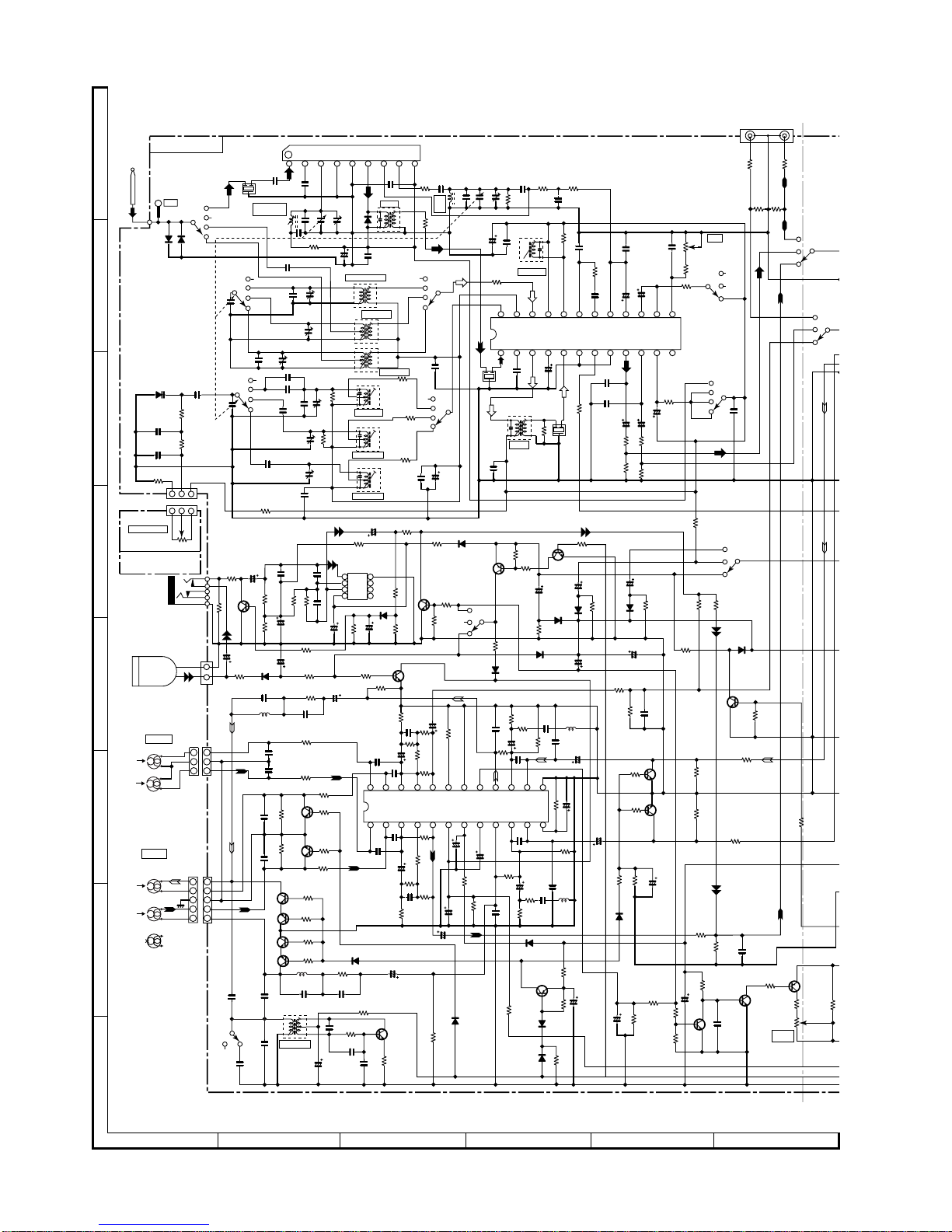

SCHEMATIC DIAGRAM / WIRING SIDE OF P.W.BOARD.............................................................................................. 10
PARTS GUIDE / EXPLODED VIEW
SERVICE MANUAL
SHARP CORPORATION
No. S4223WF2000WS
This document has been published to be used
for after sales service only.
The contents are subject to change without notice.
• In the interests of user-safety the set should be restored to its
original condition and only parts identical to those specified be
used.
PORTABLE STEREO COMPONENT SYSTEM
MODEL WF-2000W(BK)
PORTABLE STEREO COMPONENT SYSTEM
MODEL WF-2000W(S)

WF-2000W
– 2 –
FOR A COMPLETE DESCRIPTION OF THE OPERATION OF THIS UNIT, PLEASE REFER
TO THE OPERATION MANUAL.
VOLTAGESELECTION
SPECIFICATIONS
General
Power source: AC 110-127 V/220-240 V,
50/60 Hz
DC 15 V [“D” size
(UM/SUM-1, R20 or HP-2)
battery ×10]
Power consumption: 31 W
Output power: MPO (Max.); 50 W (25 W +
25 W)
(AC operation)
RMS; 25 W (12.5 W + 12.5 W)
(DC operation, 10 % T.H.D.)
Input terminal: Mixingmicrophone;1mV/600 ohms
CD/LINE; 350 mV/47 kohms
Output terminal: Headphones; 16-50 ohms
(recommended; 32 ohms)
Dimensions: Width; 282 mm (11-1/8")
Height; 217 mm (8-9/16")
Depth; 207 mm (8-1/8")
Weight: 3.5 kg (7.7 lbs.) without batter-
ies
Radio section
Frequency range: FM; 88 - 108 MHz
SW1; 2.3 - 7.3 MHz
SW2; 7.3 - 22 MHz
MW; 526.5 - 1,606.5 kHz
Tape recorder section
Frequency response: 60 - 12,000 Hz (Normal tape)
Signal/noise ratio: 40 dB (TAPE 1, recording/playback)
50 dB (TAPE 2, playback)
Wow and flutter: 0.3 % (WRMS)
Motor: DC 9 V electric governor
Bias system: AC bias
Erase system: Magnet erase
Speaker section
Speakers: 9 cm (3-9/16") woofer ×1
7.5 cm (3") woofer ×1
5 cm (2") tweeter ×1
Super tweeter ×1
Maximum input power: 25 W
Rated input power: 12.5 W
Impedance: 8 ohms
Dimensions: Width; 235 mm (9-1/4")
Height; 235 mm (9-1/4")
Depth; 192 mm (7-9/16")
Weight: 2.0 kg (4.4 lbs.)/each
Before operating the unit on mains, check the preset voltage. If the voltage is different from your local voltage, adjust the voltage
as follows. Slide the selector with a screwdriver to the appropriate voltage number. (AC 110 - 127 V or AC 220 - 240 V).
Specificationsforthismodelare subjecttochangewithout
prior notice.

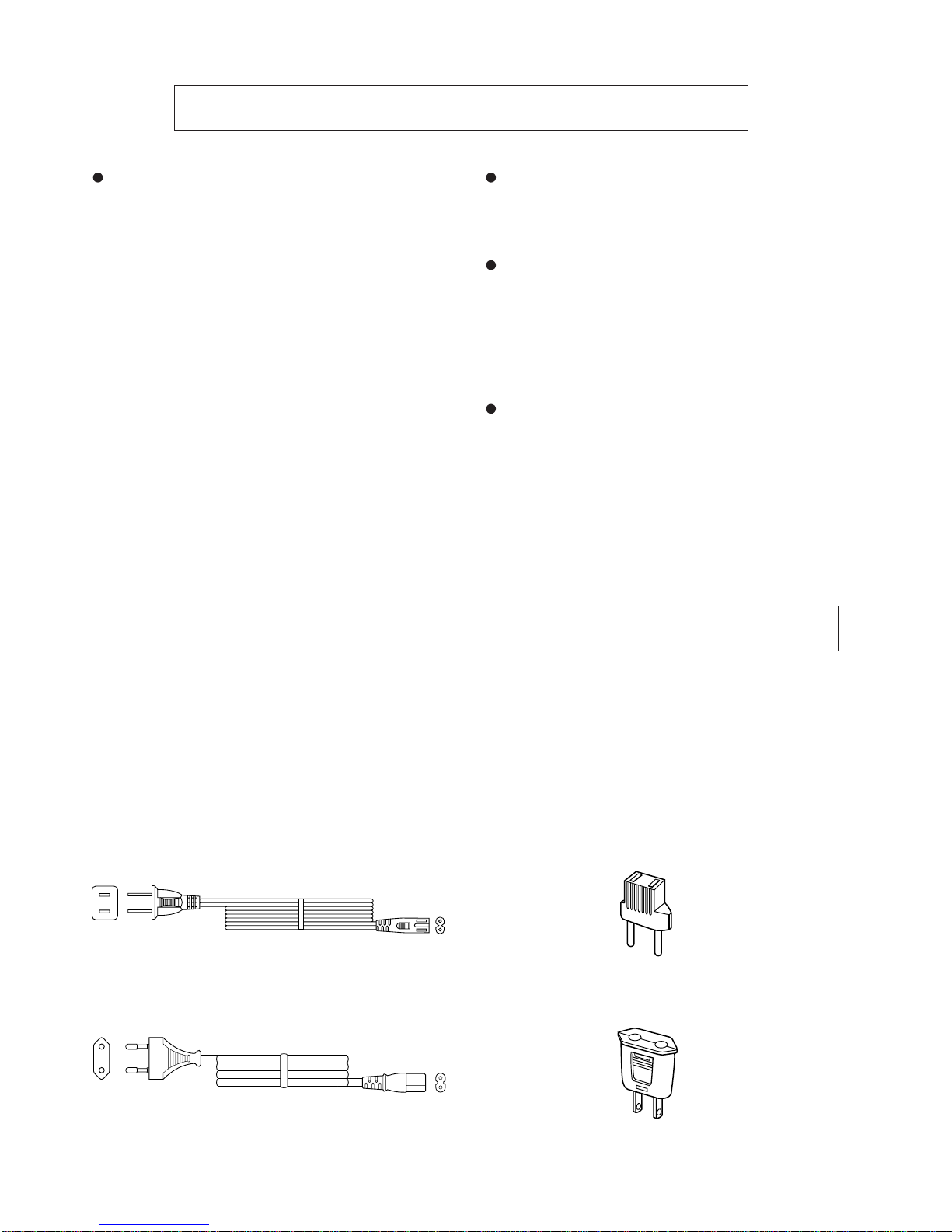

AC POWER SUPPLY CORD AND AC PLUG ADAPTOR
QACCA0004AW00 QPLGA0003AWZZ
QPLGA0004AWZZ
QACCE0007AW00

WF-2000W
– 3 –
NAMES OF PARTS
1
9
10
11
12
13
14
15
16 17 18 19 20 21
22 23 24 25
245678
26 27 28
29
30
31
32
33 34
35
36
37
38
1. Function Selector Switch
2. Power Indicator
3. Dubbing Speed/Built-in Microphone/FM Mode Switch
4. Graphic Equalizer Controls
5. Volume Control
6. Extra Bass Switch (With Indicator)
7. Fine Tuning Control
8. Tuning Control
9. Built-in Microphone
10. Headphone Socket
11. (TAPE 1) Cassette Compartment
12. FM Stereo Indicator
13. Band Selector Switch
14. Mixing Microphone Socket
15. (TAPE 2) Cassette Compartment
16. (TAPE 1) Record Button
17. (TAPE 1) Play Button
18. (TAPE 1) Rewind Button
19. (TAPE 1) Fast Forward Button
20. (TAPE 1) Stop/Eject Button
21. (TAPE 1) Pause Button
22. (TAPE 2) Play Button
23. (TAPE 2) Rewind Button
24. (TAPE 2) Fast Forward Button
25. (TAPE 2) Stop/Eject Button
26. FM/SW Telescopic Rod Aerial
27. CD/Line Input Sockets
28. Beat Cancel Switch
29. Speaker Terminals
30. AC Voltage Selector
31. AC Power Input Socket
32. Battery Compartment
33. Woofer
34. Super Tweeter
35. Tweeter
36. Bass Reflex Duct
37. Speaker Release Lever
38. Speaker Wire
3

WF-2000W
– 4 –
DISASSEMBLY
Caution on Disassembly
Follow the below-mentioned notes when disassembling
the unit and reassembling it, to keep it safe and ensure
excellent performance:
1. Take cassette tape out of the unit.
2. Be sure to remove the power supply plug from the wall
outletbeforestartingtodisassembletheunitandremove
the batteries from the unit.
3. Take off nylon bands or wire holders where they need
to be removed when disassembling the unit. After
servicingtheunit,besure torearrange theleadswhere
they were before disassembling.
4. Take sufficient care on static electricity of integrated
circuits and other circuits when servicing.
STEP REMOVAL PROCEDURE FIGURE
1 Front Cabinet/ 1. Screw .................. (A1) x9 4-1
Rear Cabinet 2. Socket ................. (A2) x1 4-3
3. Screw .................. (A3) x1
2 Main PWB/ 1. Knob.................... (B1) x1 4-2
Graphic Equalizer 2. Screw .................. (B2) x7
PWB/Fine Tuning 3. Socket ................. (B3) x4
PWB 4. Mic ...................... (B4) x1
3 Tape Mechanism 1. Open the cassette holder. 4-2
2. Screw .................. (C1) x5
4 Power PWB 1. Screw .................. (D1) x1 4-3
Figure 4-4
Figure 4-2
Figure 4-1
Figure 4-3
STEP REMOVAL PROCEDURE FIGURE
1 Woofer 1. Screw .................. (A1) x5 4-4
2. Front Panel ......... (A2) x1
3. Screw .................. (A3) x8
2 Tweeter 1. Screw .................. (B1) x2 4-4
MAIN UNIT
SPEAKER UNIT
Front
Cabinet
(A1)x1
ø3x6mm
Rear
Cabinet
(A1)x2
ø3x8mm
(A1)x1
ø3x6mm
(A1)x3
ø3x14mm
(A1)x1
ø3x30mm
(A1)x1
ø3x8mm
Rear
Cabinet
Power
Transformer
Power PWB
(D1)x1
ø3x8mm
(A3)x1
ø3x6mm
(A2)x1
FM Antenna
Spring
Speaker
Release
Lever
Speaker Cord
Holder
Speaker
Cord
Driver
(A2)x1
Woofer
Woofer
Tweeter
(A3)x4
ø3x8mm
(A3)x4
ø3x8mm
(B1)x2
ø3x8mm (A1)x5
ø4x16mm
Main Unit
Speaker Box
MAIN UNIT SPEAKER UNIT
Front Cabinet
Washer
Nut (B1)x1
(B2)x5
ø3x8mm
(B2)x2
ø2.6x8mm
(C1)x5
ø3x10mm
Tape
Mechanism
(B3)x4
Cassette
Holder
Open
Graphic
Equalizer PWB
Fine Tuning PWB
(B4)x1
Main PWB

WF-2000W
– 5 –
REMOVINGAND REINSTALLING THE MAIN PARTS
Figure 5-5 Figure 5-4
Record/Playback
Head
Erase
Head
(A1)x1
ø2x3mm
(A1)x1
ø2x7mm
Hook
(A2)x2
TAPE 1
TAPE 2
(B1)x1
ø2x6mm
(B1)x1
ø2x6mm Playback
Head
Pinch Roller
(C2)x1
TAPE 2
Pinch Roller
Pawl
Pinch Roller
(C1)x1
Pinch Roller
Pawl
TAPE 1
<A>
<B>
<A>
<B>
Figure 5-1
Figure 5-2
Figure 5-3
Motor
(D2)x3
Special Screw
Motor
Bracket
(D1)x2
ø2x4mm
(D1)x2
ø2x4mm
Motor
Motor
Bracket
TAPE 2
TAPE 1
TAPE 2
Main Belt
(E1)x1 TAPE 1
Main Belt
(F1)x1
Motor
Motor
REW/FF
Clutch Ass'y
REW/FF
Clutch Ass'y
Main
Belt
(F1)x1
Main
Belt
(E1)x1
REW/FF
Belt
(E2)x1
REW/FF
Belt
(F2)x1
TAPE MECHANISM SECTION
Perform steps 1, 2 and 3 of the disassembly method to
remove the tape mechanism. (See page 4.)
How to remove the record/playback and erase
heads (TAPE 1) (See Fig. 5-1)
1. When you remove the screws (A1) x 2 pcs., the recording/
playback head can be removed.
2.Move thehooks (A2)x 2pcs., towardthecenterpositionas
shown in Fig. 5-1 and then lift the erase head.
How to remove the playback head (TAPE 2)
(See Fig. 5-2)
1. When you remove the screws (B1) x 2 pcs., the playback
head can be removed.
How to remove the pinch roller (TAPE 1/2)
(See Fig. 5-3)
1. Carefully bend the pinch roller pawl in the direction of the
arrow <A>, and remove the pinch roller (C1) x 1 pc. and
(C2) x 1 pc., in the direction of the arrow <B>.
Note:
When installing the pinch roller, pay attention to the spring
mounting position.
How to remove the motor (See Fig. 5-4)
1. Remove the belt.
2. Remove the screws (D1) x 4 pcs., to remove the motor
bracket.
3. Remove the screws (D2) x 3 pcs., to remove the motor.
How to remove the belt (TAPE 1)
(See Fig. 5-5)
1. Remove the main belt (F1) x 1 pc., from the motor side.
2. Remove the FF/REW belt (F2) x 1 pc.
How to remove the belt (TAPE 2)
(See Fig. 5-5)
1. Remove the main belt (E1) x 1 pc., from the motor side.
2. Remove the FF/REW belt (E2) x 1 pc.

WF-2000W
– 6 –

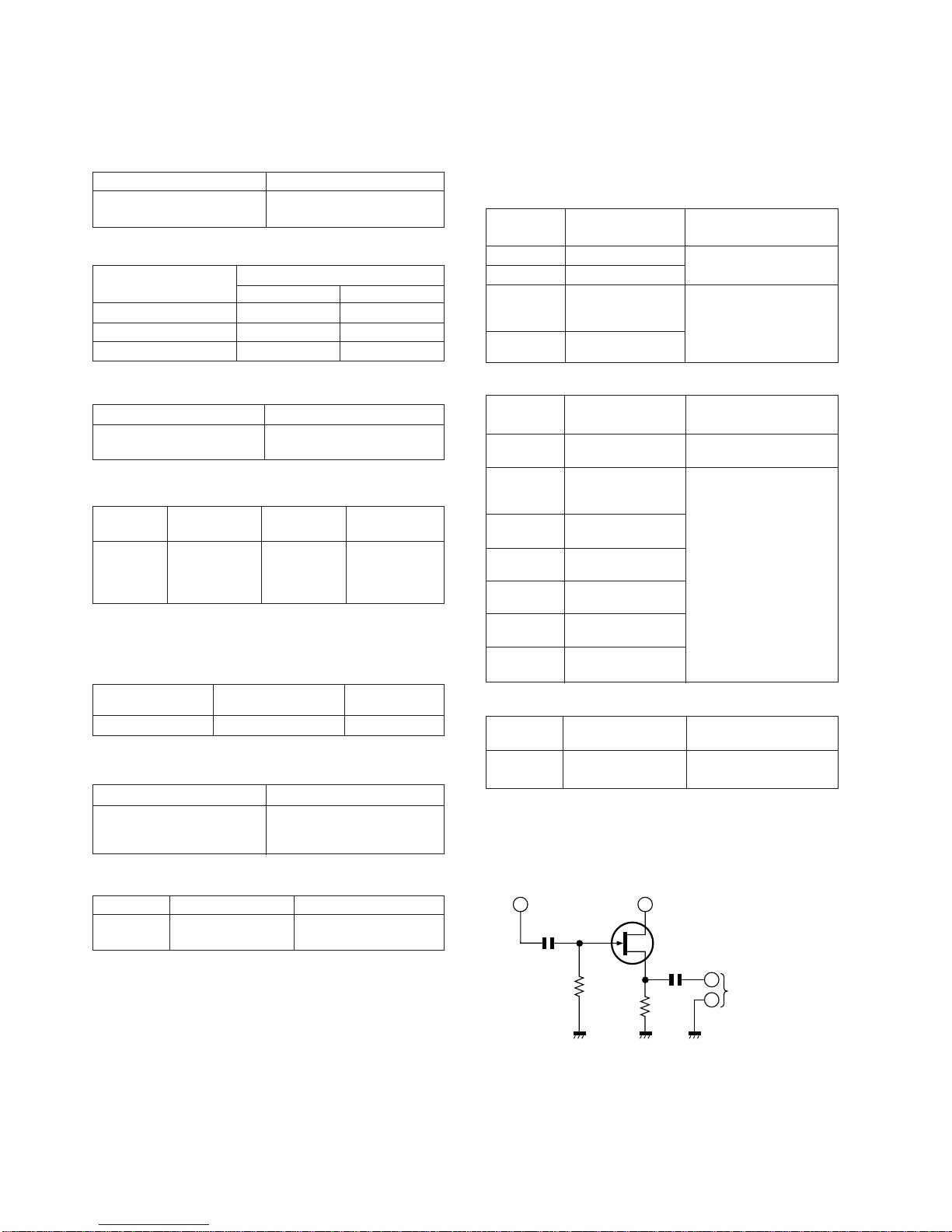

ADJUSTMENT
Specified Value
MECHANISM SECTION
• Driving Force Check
Specified Value
• Torque Check
• Head Azimuth
MTT-114 Headphones Socket
(Load resistance: 32 ohms)
Instrument Connection
• Tape Speed (Normal only)
Instrument
Connection
MTT-111 Tape 1, Tape 2: 3,000 ±60 Hz Headphones
VR501 Socket
(Load resistance:
32 ohms)
Torque Meter
Torque Meter
Test Tape
Test Tape
• Playback Amplifier Sensitivity Check
Play: TW-2412 Tape 1: Over 60 g
Tape 2: Over 50 g
Tape 1 Tape 2
Adjustment
Point Specified Value
Specified value Instrument Connection
MTT-118 2.5 V ±3 dB Speaker Terminal
(Load resistance: 8 ohms)
Test tape
Figure 6 VCO FREQUENCY TEST CIRCUIT
TUNER SECTION
fL: Low-range frequency
fH: High-range frequency
Specified value Instrument Connection
VR102 76 kHz ±200 Hz Pin 13, Pin 21 and ground
of IC102
Adjustment
Point
• VCO Frequency
Note:
AfterpreparingthetestcircuitshowninFig.6,connectthePin
13, Pin 21 and ground of the IC102 with the test circuit, and
measure the value.
Specified Value/
Adjusting Point
Test Stage Instrument
Connection
Test Stage Specified Value/
Adjusting Point Instrument Connection
AM IF T107 Input: Antenna
Output: Pin 9 of IC102
MW Band fL: T103 Input: Antenna
Coverage fH: TC3 Output: Headphones
Socket
MW Tracking fL (600 kHz): L103 (Load resistance 32 ohms)
fH (1,400 kHz): TC4
SW1 Band fL (2.3 MHz): T104
Coverage fH (7.3 MHz): CT102
SW1 fL (2.6 MHz): T101
Tracking fH (6 MHz): CT104
SW2 Band fL (7.3 MHz): T105
Coverage fH (22 MHz): CT101
SW2 fL (8.5 MHz): T102
Tracking fH (19 MHz): CT103
10 pF
1 Mohm 10 kohm TO FREQUENCY
COUNTER
Pin 13 of IC102 Pin 21 of IC102
FET: 2SK212
(or Other 2SK Type FET.)
GD
S
0.1 µF
Specified Value
Beat Cancel A: 100 ±4 kHz
B: 94 ±4 kHz
C: 104 ±4 kHz
T201 100 kHz + 4 kHz Pin 5 of CON202
Adjustment Point Specified value Instrument
Connection
DECK SECTION
• Bias Oscillation
FM IF T108 Input: FM Antenna
FM Detection T106 Output: Pin 9 of IC102
FM Band fL: L101 Input: Antenna
Coverage fH: TC1 Output: Headphones
Socket
FM Tracking fL (88.0 MHz): L102 (Load resistance: 32 ohms)
fH (108 MHz): TC2
• FM IF/RF
Play: TW-2111 30 to 70 g.cm 27 to 60 g.cm
Fast Forward: TW-2231 Over 55 g.cm 55 to 120 g.cm
Rewind: TW-2231 Over 55 g.cm 55 to 120 g.cm
• AM IF/RF
• Beat Cancel Switch: A

WF-2000W
– 7 –
Figure 7 ADJUSTMENT POINTS
FM DET.
VCO
CT101
CT102
CT103
CT104
fH fL
SW2 BAND
COVERAGE
fH
fH
fL
fL FM
TRACKING
SW2
TRACKING
MW
TRACKING fL
MW
TRACKING fH
fL
fH
fH
fL SW1
TRACKING
MAIN PWB
fHfL
FM BAND
COVERAGE
MW BAND
COVERAGE fL
MW BAND
COVERAGE fH
SW1 BAND
COVERAGE
VR102
IC102
T106
T105
T103
T102
T101
T104
TC2
TC1
TC3
TC4
L102
L101
L103
T107
T108
AM IF
FM IF
13
21
9
MAIN PWB
SW202
T201
VR501
BIAS
OSC.
TAPE
SPEED

WF-2000W
– 8 –
NOTES ON SCHEMATIC DIAGRAM
• Resistor:
Todifferentiatethe units ofresistors,The symbol asKand
Mareused:thesymbolKmeans1000ohmandthesymbol
M means 1000 kohm and the resistor without any symbol
is an ohm resistor. The resistor designated “Fusible” is a
fuse type resistor.
• Capacitor:
To indicate the unit of capacitor, a symbol P is used: this
symbol P means pico-farad and the unit of the capacitor
without such a symbol is microfarad. As to electrolytic
capacitor,theexpression “capacitance/withstandvoltage”
is used.
(CH),(RH),(UJ): Temperature compensation
(ML): Mylar type
(S): Styrol type
• Theindicatedvoltage in eachsectionis theonemeasured
by Digital Multimeter between such a section and the
chassis with no signal given.
• Schematic diagram and Wiring Side of P.W. Board for this
modelare subjecttochangeforimprovementwithoutprior
notice.
SW2 TAPE 1 PLAY ON—OFF
SW3 TAPE 1 FF/REW ON—OFF
SW4 TAPE 1 REC ON—OFF
SW5 TAPE 2 PLAY ON—OFF
SW6 TAPE 2 FF/REW ON—OFF
SW101 BAND SELECTOR SW2—SW1—MW—FM
SW202 BEAT CANCEL A—B
SW203 DUBBING SPEED/MIC/ HIGH—NORMAL—MIC/
FM MODE FM STEREO—FM MONO
SW401 X-BASS ON—OFF
SW501 FUNCTION SELECTOR CD/LINE—RADIO—
TAPE/STAND-BY—ON
SW601 VOLTAGE SELECTOR 110-127 V—220-240 V
REF. NO. DESCRIPTION POSITION
FITTING OF DIAL POINTER
A
B
C
Figure 8-1
1. Remove the Main PWB, the Graphic Equalizer PWB and
the Fine Tuning PWB. (See Figure 4-2 in the "Disassem-
bly" on page 4.)
2. Remove the dial pointer guide and PWB.
3. Insert the dial pointer from , lead it under , hang it on
the tuner gear and then pass it through .
4. Replace the Main PWB, the Graphic Equalizer PWB and
the Fine Tuning PWB.
5. Rotate the tuning knob in the arrow direction until it stops.
(Set the tuner variable capacitor to "0" point (F-LOW
state).)
6. Adjust the dial pointer so that its stopper becomes the
Figure 8-2 position. (Adjust the engagement of the pointer
gearandthetunergeartogettheminimumspacebetween
the PWB and the stopper.) This position is the "0" point.
7. Screw up the PWB and the dial pointer guide.
Figure 8-2
Tuning Knob
Front Cabinet
C
A
Dial Pointer(207)
Tuner
Gear
PWB
Dial Pointer Guide
(256)
Main PWB
Graphic Equalizer
PWB
Fine Tuning
PWB
Screw(605)
ø3x8mm
B
Dial Pointer(207)
"0" Point
Tuner Gear
Stopper
Main PWB
Variable Capacitor
Dial Pointer
PWB
Make the minimum space.
Front Cabinet
Pointer Gear
• Parts marked with “ ” ( ) are important for
maintaining the safety of the set. Be sure to replace these
parts with specified ones for maintaining the safety and
performance of the set.

WF-2000W
– 9 –
VOLATGE
TYPES OF TRANSISTOR AND LED
ECB
FRONT
VIEW
BE
C
TOP
VIEW
L01-224HD
L-474CGDK
2SC2412 KR
KTC3875 GR 2SC945 AP 3DA8050
SS8550
SS8050
FRONT
VIEW
PIN
NO. VOLTAGE
1 0.98 V
1.7 V
6.12 V
0 V
0 V
6.15 V
1.6 V
5.46 V
6.1 V
IC101
9
8
7
6
5
4
3
2
PIN
NO. VOLTAGE
1 1.59 V
1.6 V
6.15 V
0.19 V
1.6 V
0 V
6.4 V
0 V
2.3 V
10 2.3 V
11 5.4 V
12 0.9 V
13 1.1 V
14 2.1 V
15 1 V
16 1.7 V
17 1.56 V
18 1.58 V
19 0.43 V
20 6.1 V
21 6.1 V
22 0.53 V
23 1.6 V
24 1.41 V
IC102
9
8
7
6
5
4
3
2
PIN
NO. VOLTAGE
1 6.3 V
1.6 V
1.6 V
0 V
3.4 V
3.45 V
3.5 V
6.8 V
IC202
8
7
6
5
4
3
2
PIN
NO. VOLTAGE
1 5.5 V
5.5 V
6.1 V
6.1 V
5.5 V
5.5 V
6.1 V
6.1 V
5.5 V
10 5.5 V
11 6.1 V
12 6.1 V
13 5.5 V
14 5.5 V
15 6.1 V
16 6.1 V
17 4.1 V
18 2.4 V
19 2.4 V
20 4.1 V
21 3 V
22 3 V
23 6.5 V
24 0 V
IC301
9
8
7
6
5
4
3
2
PIN
NO. VOLTAGE
10V
0 V
1.28 V
1.28 V
1.37 V
1.32 V
0 V
0 V
1.83 V
10 1.28 V
11 0 V
12 0 V
13 0.85 V
14 0 V
15 1.28 V
16 1.83 V
17 1.45 V
18 6.6 V
19 4.6 V
20 1.37 V
21 1.28 V
22 1.28 V
23 0 V
24 0 V
IC201
9
8
7
6
5
4
3
2
PIN
NO. VOLTAGE
1 14.4 V
0 V
0 V
0 V
4.53 V
0 V
15 V
15 V
6.86 V
10 0 V
11 6.86 V
12 6.85 V
13 0 V
14 6.85 V
IC402
9
8
7
6
5
4
3
2
PIN
NO. VOLTAGE
1 15 V
0 V
7.99 V
IC403
3
2
PIN
NO. VOLTAGE
1 15 V
0 V
8.99 V
IC404
3
2
PIN
NO. VOLTAGE
B 0.7 V
0 V
0 V
Q201
E
C
PIN
NO. VOLTAGE
B 0.7 V
0 V
0 V
Q202
E
C
PIN
NO. VOLTAGE
B 0.7 V
0 V
0 V
Q203
E
C
PIN
NO. VOLTAGE
B 0.7 V
0 V
0 V
Q204
E
C
PIN
NO. VOLTAGE
B 0.6 V
4.3 V
0.2 V
Q205
E
C
PIN
NO. VOLTAGE
B 0.7 V
0 V
0 V
Q206
E
C
PIN
NO. VOLTAGE
B0V
0 V
0 V
Q208
E
C
PIN
NO. VOLTAGE
B 0.93 V
2.25 V
0.31 V
Q209
E
C
PIN
NO. VOLTAGE
B 0.93 V
2.25 V
0.31 V
Q210
E
C
PIN
NO. VOLTAGE
B 0.7 V
0 V
0 V
Q212
E
C
PIN
NO. VOLTAGE
B 0.7 V
0 V
0 V
Q218
E
C
PIN
NO. VOLTAGE
B 0.7 V
0 V
0 V
Q219
E
C
PIN
NO. VOLTAGE
B5V
4.3 V
5 V
Q213
E
C
PIN
NO. VOLTAGE
B 0.7 V
0 V
0 V
Q220
E
C
PIN
NO. VOLTAGE
B 0.7 V
0 V
0 V
Q221
E
C
PIN
NO. VOLTAGE
B0V
7.42 V
0 V
Q505
E
C
PIN
NO. VOLTAGE
B 0.69 V
0 V
0 V
Q506
E
C
PIN
NO. VOLTAGE
B8V
7.5 V
5.85 V
Q504
E
C

WF-2000W
– 10 –
A
B
C
D
E
F
G
H
1234 5 6
• NOTES ON SCHEMATIC DIAGRAM can be found on page 8.
Figure 10 SCHEMATIC DIAGRAM (1/2)
1
2
C101
0.001
C106
15P(CH)
C102
0.001
C142
330P(CH)
C143
15P
(CH)
C144
10P(CH)
C105
8P
(CH)
C118
0.022
C119
0.022 C120
10/16
C280
4.7/50
C115
5P(CH)
C116
0.022
C117
0.022
C113
0.0027
(ML)
C114
0.0047(ML)
C112 30P(CH) C125
0.0082
C126
0.0082
C111 330P
(CH)
R102
330
R101
100
R131
10K
R103
220K
R119
15K
R117
10
C129
10/50
C128
10/50
C127
10/50
C124
22/16
R264
47K
R266
4.7K
R263
47K
R265
4.7K
R104
820K
C107
15P(CH)
L101
C108
20P
(CH) C109
5P(CH)
C110
0.022
C134
470P
C132
3.3/50
C133
3.3/50
C136
0.0022
(ML)
C135
0.0082
(ML)
C131
0.0015
(ML)
C140 0.1
C104
0.001
C137
0.022
C130
0.022
R121
3.9K
R113
15K
R114
4.7K R116
4.7K
R115
15K
R123
1K R120
2.7K
BP101
B.P.F.
D101
1N4148
D103
1N4148
D102
1N4148
R129
3.3K
R105
100
R128
3.3K
R109
22K
R230
10K
R232
10K
Q214
SS8550
Q203
2SC945 AP
R273
2.2K
R241
2.2K
Q208
SS8050
C243
2.2/50
C263
10/16
C242
10/50 R200
4.7K R242
560 R243
10K
C244
10/16
D501
1N4148
C281
10/16
D212
1N4148
C260
150P
(CH)
C245
220/16
C248 100P (CH)
C247
150P
(CH)
R274
10K
R249
33K
R275
4.7K
R252
3.3K
R248
220
R272
1M
R281
10K
R271 1K
R259
220 R291
33K
R285
2.2K
R299
10K
R290
10K
C249
10/16 C250
10/16
R254
10K
R255
10K
D201
1N4148
D205
1N4148
D211
1N4148
D207
1N4148
R298
10K
R106
100K
R107
100K
R108
10K
SW101-C
BAND
SELECTOR
SW101-F
BAND
SELECTOR
SW101-D
BAND
SELECTOR
C103
10/16
C138
220/16
C139
0.022
C121
0.022
C123
0.022
C122
0.022
R110
47
R111
47
R112
47
R122
10
T108
T106
VR102
10K(B)
T101
L103
CF101
T103
T104
T105
IC101
LA1186N
FM FRONT END
IC102
LA1805
FM/AM IF
MPX.
SW101-E
BAND
SELECTOR
L102
VC3
VC4
VC2
VC1
TC1
TC2
SW101-A
BAND
SELECTOR
SW203-B
DUBBING
SPEED/MIC/
FM MODE
SW101-B
BAND SELECTOR
IC202
BA15218F
MIC AMP.
SW203-A
DUBBING
SPEED
R235
15K
C261
82P
C228
0.0015
C216
2.2/50
R284
47K
Q204
2SC2412 KR
C202
0.001
C201
0.001
R296
1K
R297
1K
C232
820P
C231 820P
R237
47K
R236
47K
Q220
KTC3875 GR
Q221
KTC3875 GR
R276
1K
R288
10K
R278
1K
R289
150
R295 10K
R294 10K
Q217
KTC3875 GR
Q218
KTC3875 GR
R293 10K
R292 10K
Q219
KTC3875 GR
Q216 KTC3875 GR
L201
47 mH
C227 82P
C226
0.0015
R234
15K
D219 1N4148
C233
150P
(CH)
C234
150P
(CH)
C215
2.2/50
R287
180
AB
SW202
BEAT
CANCEL C235
180P
(CH)
C237
0.0022
(ML)
C241
100/16
C239
0.001
(ML)C240
0.0022
(ML)
C238
0.022(ML)
R238
33K
R239
10
Q205
3DA8050
R286
47K
D217
1N4148
R277
33K D215
1N4148
D216
1N4148
R282
10K
C288
330/16
R280
47K
Q213
SS8550
R279
150
R227
10K
R226
10K
C262 100/16
R512
10K
R511
10K C508
0.022
R514
10K
C509 100/16
Q506 2SC2412 KR
Q505
2SC2412 KR
Q504
SS8550
R510
100K
R509
330
R
3
VR501
500(B)
R232
2.2K
R217
100K
R215
1.2K
R216
1.2K R218
100K
C292
0.0027
R224
47K
R222
8.2K
C225
10/16
R215
1.2K
R253
22K
D214 1N4148 R228
2.2K
L204
2.7 mH
C219
0.001
C221 2.2/50
R213
470K
D218 1N4148
R211
1K
C217
10/16
R244
390 C271
0.015
R209
180K
C268
330P
(CH)
R257
150
C223 2.2/50
C246
0.0022(ML)
R219
6.8K
C252
47/16
C224
330/16
C213
2.2/50
R207
5.6K
R205
180K
R203
4.7K
R201
56
C209
0.033
(ML)
C207
22/16 R321
56K
C205
220P
C203
220P
C204
220P
C206
220P
R206
180K
R202
56 C210
0.033
(ML)
R204
4.7K
R322
56K
C208
22/16 R208
5.6K
R220
10K
C214 2.2/50
R212
1K
R247
390
C218
10/16 C220
0.001
C253
0.0022
(ML)
C267
330P
(CH)
R210
180K
R214
470K
C270
0.015 L203
2.7 mH
C222
2.2/50
R221 1M C230 47/16
R251
3.3K
R250
3.3K
Q202
2SC2412 KR
Q201
2SC2412 KR
Q206
KTC3875 GR
R245
10K
R223
8.2K
R225
47K
C291
0.0027
(ML)
R265
10/16
C257
33/16
C251
10/16
R260
10K
D209
1N4148
R262
22K
R261
22K
D213
1N4148
R229
2.2K
SW501-B
FUNCTION
SELECTOR
R118
100K
2
IC201
IC201
TA8189N
PRE AMP.
CON202 CON201
JK201
MIC JACK
MIC1
BUILT-IN
MICROPHONE
SW501-C
FUNCTION
SELECTOR
SW501-D
FUNCTION
SELECTOR
CT102
10P
CT101
10P
CON101
CN101
CT103
10P
CT104
10P
TC4
TC13
IC101 LA1186N
IC102
CF102
T107
R125
100K
JK202
LINE INPUT JACK
T201
L202
47 mH
VD101
1S2658
T102
VR101
100K(B)
R126
100
(1/4)
Q212
KTC3875 GR R283
10
D202
1N4148
CN201
CN206
CN202
FM
MW
SW1
SW2
LINE
TAPE
TUNER +B
FM ST
FM ST
FM
MONO
CH1/A
CH1/B MATAL OUT PRE OUT
NF A/B VCC M/N REC
OUT REC NF REC
IN ALC
CH2/A
CH2/B
NF MATAL
OUT PRE OUT MIX OUT GND1 REC
OUT REC
NF REC
IN GND
TAPE1
RECORD/
PLAYBACKHEAD
R-CH
L-CH
L-CH
R-CH
ERASEHEAD
3
4
5
2
1
3
4
5
2
1
3
2
1
3
2
1
TAPE2
PLAYBACKHEAD
123
123
FINE TUNING
PWB-A3
MAIN PWB-A1
LINE
TAPE
RADIO
LINE
TAPE
RADIO
TP1
FM/SW ROD
ANTENNA
FM
TRACKING FM IF
SW1 ANT.
SW2 ANT.
MW BAR ANT.
FM OSC.
SW2
SW1
MW
FM FM DET.
MW OSC.
SW2 OSC.
MW IF
SW1 OSC.
13
2
AM
OSC
STB
+VCC
AM
RF
FM
DET
AM IF AGC AM MIX FM IF IN N.C. AM/FM R-CH L-CH
GNDGND
DET
OUT
AM IN
IF AD
MPX IN
MO/ST
VCO
123456789 10 11 12
24 23 22 21 20 19 18 17 16 15 14 13
FM
MW
SW1
SW2
123456789
13
2
MW
SW1
SW2
FM
1
2
3
L-CH
R-CH
BIAS OSC.
HIGH
NORMAL
MIC
VCO
123456789 10 11 12
24 23 22 21 20 19 18 17 16 15 14 13
1
2
3
4
8
7
6
5
FINE TUNING
TAPE
SPEED
SW2
SW1
MW
FM
SW2
SW1
MW
FM
R IN
L IN
L IN
R IN
R PLAY OUT
L PLAY OUT

WF-2000W
– 11 –
Figure 11 SCHEMATIC DIAGRAM (2/2)
78 9101112
M
MW BAND
CONVERAGE
FH
FL
C3
T103
MW
TRACKING
FH
FL
C4
ANT COIL
MW BAND
CONVERAGE
FH
FL
C1
L101
FM
TRACKING
FH
FL
C2
L102
R264
47K
R266
4.7K
KR
Q504
SS8550
R509
330 R508
3.9K R507
47K
V
R501
5
00(B)
CON502
CN502
C511
47/16
L501
47 mH
IC404
L7809CV
VOLTAGE
REGULATOR
IC404
IC403
IC403
L7808CV
VOLTAGE
REGULATOR
C515
10/50
C514
10/50
C512
47/16
C516
0.1 C501
3300/25
CON501
CN501
R433 15K
C422
0.022
D601
IN5402
D603
IN5402
D604
IN5402
D602
IN5402
C604
0.022
C602
0.022
C601
0.022
C603
0.022
F601
T4A L 250V
T601
POWER
TRANSFORMER
SW601
VOLTAGE
SELECTOR
SO601
AC INLET
SOCKET
CON401
SPEAKER
TERMINAL
C426
0.1(ML)
C428
0.1(ML)
R426
2.2(1/4)
R428
2.2(1/4)
C427
0.1(ML) R427
2.2(1/4)
C425
0.1(ML)
R425
2.2(1/4)
R422
1K
R421
1K
C418
0.001
C417
0.001
C420
2.2/50
C419
2.2/50
R432
15K
R431
15K
C424
47/25
C423
10/16
JK401
HEADPHONES
JACK
R430
220(1/4)
R429
220(1/4)
C430
10/16
C429
10/16
IC402
IC402
LA4663
POWER AMP.
C416
0.15(ML)
R419
3.3K
C415
0.15(ML)
C414
0.001
R420
3.3K
R416
4.7K
D401 1N4148
C413
0.001
R415
4.7K
R417
22K
R418
22K
R424
2.2K
R423
2.2K
C421
220/16
C437
2.2/50
C438
2.2/50
R440
330K
Q401
2SC2412 KR
Q402
2SC2412 KR
C435
220P
(CH)
C436
220P
(CH)
R442
330
R443
330
R441
330K
R437
6.8K
R438
6.8K
R435
6.8K
R434
6.8K
R436
6.8K
R439
6.8K
C431
0.027
C432
0.027
R232
2.2K
C254
2.2/50
C258
220P(CH)
R267
330K
R269
3.9K
C256
2.2/50
C236
220/16
Q209
2SC945 AP
C259
220P
(CH) R270
3.9K
R268
330K
Q210
2SC945 AP
R231
270
R411
330(1/4)
SW401
X-BASS
LD311
L01-224HD R333
1K
LD314
L01-224HD
VR401-B
50K(B)
VR401-A
50K(B)
M1
TAPE MOTOR
SW4
TAPE 1
REC
SW2
TAPE 1
PLAY
SW5
TAPE 2
PLAY
SW6
TAPE 2
FF/REW
SW3
TAPE 1
FF/REW
R304
2.2K
R306
2.2K
C304
0.022 R310
1K
C306
1/50
C302
1/50
R308
1K
C324
4.7/50
R318
1K
C310
820P
C309
0.018
C314
0.0033
C313
0.1(ML) C317
0.33/50 C321 0.47/50
C318
0.0056
C322
0.01
VR305-B
100K(B)
(10 kHz)
VR304-B
50K(B)
(300 Hz)
VR303-B
100K(B)
(500 Hz)
VR302-B
100K(B)
(1 kHz)
VR301-B
50K(B)
(5 kHz)
VR305-A
100K(B)
(10 kHz)
VR304-A
50K(B)
(300 Hz)
VR303-A
100K(B)
(500 Hz)
VR302-A
100K(B)
(1 kHz)
VR301-A
50K(B)
(5 kHz)
C319
0.018
C315
0.1
C311
0.33/50
C307
0.47/50
C320
820P
C308
0.01
C312
0.0056
C316
0.0033
C323
4.7/50
R317
1K
R305
2.2K C305
1/50
R309
1K
C303
0.022
R303
2.2K
C301
1/50
R301
1K
R307
220
(1/4)
C334
220/16
IC301
BA3822LS
GRAPHIC EQUALIZER
SW501-C
FUNCTION
SELECTOR
SW501-D
FUNCTION
SELECTOR
2
JACK
C229
2.2/50
R258
560
C255
2.2/50 CN203
CN204 LD313
L-474CGDK
R319
330
CN205A
CN205B
C434
2.2/50
D503
1N4148
SW501-B
FUNCTION
SELECTOR
C433
2.2/50
R233
270
+B
OUT IN
GND
OUT IN
GND 13
2
1
2
3
LINE(ON) AC 110-127 V
AC 220-240 V
AC 110-127 V/
220-240 V,
50/60 Hz
AC POWER
SUPPLY CORD
BATTERYES DC15V
["D" SIZE(UM/SUM-1.
R20 or HP2)
BATTERY x 10]
BATTERY A
PWB-A4
BATTERY B
PWB-A5
POWER PWB-B
R_OUT
+
–
+
–
L_OUT
1
578
9
10
11
12
13
14
2
3
4
6
0 V
0
V
14.2
V
0
V
0
V
6.9
V
6.9
V
0
V
6.9
V
6.9
V
+OUT1
–OUT1
+OUT2
–OUT2
R_OUT
ON OFF
VOLUME
R_OUT GND TONE L_IN TONE R_IN L_OUT
HL +–
12345678910
12345678910
GRAPHIC EQUALIZER PWB-A2
1
2
1
2
+B
1234567
1234567
LINE
TAPE
RADIO
LINE
TAPE
RADIO
L-CH
135791113151719 2123
24681012141618 202224
FM IF
AM IF
T108/T106
T107
SW1
TRACKING
FH
FL
CT104
T101
SW1
TRACKING
FH
FL
CT102
T104
SW2
TRACKING
FH
FL
CT103
T102
SW2
TRACKING
FH
FL
CT101
T105
MW/SW SIGNAL
CD/LINE SIGNAL
MIC SIGNAL
PLAYBACK/MIC SIGNAL
RECORD SIGNAL
FM SIGNAL
MIC MUTE
GND
L_OUT
L_IN
R_IN
GND
B+
R_OUT
X-BASS
X-BASS
1
6
1
4
6
1
4
1
VOLUME
T
APE
PEED
GRAPHIC
EQUALIZER
GRAPHIC
EQUALIZER X-BASS
GRAPHIC
EQUALIZER X-BASS
B+
GND
TAPE
(STANBY)
RADIO(ON)

WF-2000W
– 12 –
A
B
C
D
E
F
G
H
1234 5 6
Figure 12 WIRING SIDE OF P.W.BOARD (1/3)
CN101
VR101 1
2
3
10
9
8
7
6
5
4
3
2
1
R309
R333
R318
C324
C313
LD313
R317
R301
IC301
VR401
C311 C307
R303 R305
R306
R304
LD311
C305
C321
C317
VR304
VR303
VR302
VR301
VR305
C306
C323
R310
10kHz
5kHz
1kHz
500Hz
300Hz
SW401
X-BASS
C302
C334
R307
R308
C301
CN205B
CN203
2
1
1
1
4
6
5
10
15
20
24
23
R319
CN204
LD314
BL
YL
BR
BK
RD
BK
WH
1
7
FM/SW ROD ANTENNA (257)
(261)
BK
RD
GR
YL
GY
BL
YL
RD
VL
GR
OR
OR
YL
YL
M1
TAPE
MOTOR
SW5
TAPE 2
PLAY
SW2
TAPE 1
PLAY
SW3
TAPE 1
FF/REW
SW4
TAPE 1
REC
SW6
TAPE 2
FF/REW
AB+-
5
4
3
2
1
BK
RD GR WH
BK
ERASE
HERAD RECORD/PLAYBACK
HEAD
TAPE 1
GR
BK
BK
WH
RD
(258)
BR
COLOR TABLE
RD(R)
OR
YL
GR
BL
VL
GY
WH(W)
BK
PK
BROWN
RED
ORANGE
YELLOW
GREEN
BLUE
VIOLET
GRAY
WHITE
BLACK
PINK
CN202
CN502 GRAPHIC EQUALIZER PWB-A2
FINE TUNING
PWB-A3
FINE
TUNING
A
B
VOLUME
A
B
B
A
B
A
B
A
B
A
B
A
X-BASS
VR301
5kHz
GRAPHIC
EQUALIZER
VR305
10kHz
GRAPHIC
EQUALIZER
VR302
1kHz
GRAPHIC
EQUALIZER
VR303
500Hz
GRAPHIC
EQUALIZER
VR304
100Hz
OFF ON
C304
C309
C318
C308
C312
C320
C316
C322
C303
C315
C319
C310 C314
CN201
RD
WH
2
3
1
TAPE 2
RD
WH BK
BK
BK
PLAYBACK HEAD

WF-2000W
– 13 –
Figure 13 WIRING SIDE OF P.W.BOARD (2/3)
78 9101112
BK WH
VC2
TC2
VC1
TC1
VC4
TC4
VC3
TC3
CF101
T108
T106
T107
R121
C138
R104
R103
R101
R120
R113
R114
R116
R112
C140
C109
C108
BP101
R115
R264
R265
R266
R263
R238
R232
R290
R287
C239
C238
C240 C241
C237
Q504
L501
R251
R283
R511
C225
C511
C515
C419
C424
C417
C418
C420
C428
C512
C516
CN205A
C415
C250
C249
C216
C210
C208
Q220
C421
C437 C438
C434
C433
IC201
R212
R214
R206
R276
R295
R417
R418
R294
R288
R411
R430
R205
R278
R289
R279
R293
R243
R106
VD101
CON101
C130
C112
C143
C243
Q208 EBC
C144
C142
CT103
T101
C111
R292
D215
D202 R257
L201
R219
R286 L204
C209
C215
C246
R514
L203
R416
R284
D209
D211
D201 Q214
Q212
L202
C
BE
E
BC
E
BC
E
B
C
EBC
15
10
12
13
15
20
24
D401
R126
R262
R323
R261
Q209
R233
R270
R269
R231
R254
C429
C425
C291
C422
1
2
R428
R425
R433
R260
C426
EBC
C119
C110
C120
C131
C129 VR102
C123
C139
CF102
C137
C135
C134
C132
R118
R123 R117
R119
JK202
LINE INPUT
E
B
C
R239
D503
SW202
BEAT CANCEL
VR501
Q206
C221
C235
T201
C230
C219
C253
C222
R211
R221
R227
C262
CON201 C223 C268
C224
C207
D217
D216
R282
R437
R434
C115
R109
R111
R242
R110
D101
D102 CT102
C113
C114
C509
C288
C121
T105
L102
T104
T103
C105
CT101
D218
Q213
CON202
C214
D214
D219
R218
C218
C213
C265
CON401
SPEAKER
TERMINAL
R426
C501
C427
R427
IC402
IC404
IC403
1
7
1
7
C423
D213
D205 D207
R298
C514
C416
SW501
FUNCTION
SELECTOR
C430
R429
JK401
HEADPHONES
C254
C255
Q203
SW203
DUBBING SPEED/
MIC/FM MODE
R299
C257
C251
R222 R224
R226
R225
R223 R415
R285
R258
R255
Q210
C229
C256
C236
C217
C252 CON502
Q205
10
9
8
7
6
5
4
3
2
1
R105
C136
C127
C124
C103
C128
C133
D103
C101
C104
C102
R102
T102
CN206 C242 D501
D212
C263
R442
C436
C244
C280
C245
CN204
1
4132
JK201
MIC
SW101
BAND SELECTOR
C107
CT104
L101
C106
R122
R131
IC101
IC102
1
1
2
3
4
5
6
7
8
9
123
3
2
CN203
CN501
CON501
P14 2 - G
TO POWER PWB
14
12
10
8
6
4
2
13
11
9
7
5
3
1
123
1
2
3
BK
WH
BL
YL
BR
BK
RD
BK
WH
6
1
1
2
3
5
4
3
2
1
MAIN PWB-A1
MIC1
BUILT-IN
MICROPHONE
L103
MW BAR ANTENNA
DB
AC
CD/LINE
ON
RADIO
TAPE
STAND-BY
HIGH
FM STEREO
NORMAL
MIC
FM MONO
AB
AB
DE
CF
SW2
SW1
MW
FM
1
2
3
1
5
10
12 13
15
20
24
VCO
L-CH
R-CH
TAPE
SPEED A
B
–
–
+
+
L-CH
R-CH
C259
R267
R271
R281
C281
R108
R107
C116
C117
IC202
C414
C413
R420
R431
R432
R419
R291
R235
R204
R202
R237
C202
R236
R297
Q221 C203
C205
R207
R201
R203
R244
R277
C271
R213 R245
R509
Q201
Q505
Q506
Q204
R321
R296
C206
R208
R220
R210
R216
R510
C118
C267
C508
R268
C228
R325
C261
C234
C204
C232
C231
C201
C227
R209
R247
C270
R421
R422
R512
R229
C292
R508
R507
Q202
C226
R234
R215
R250
R253 R228
R217
C220
C122
C125
C126
R125
R280
C233
Q217
Q218
Q219
Q216
C258
R273 R274
R200
R275
R259
R129
R128
R241
R248
R230
C247 C248
R249
C260
R252
R272
C431
R435
Q401 Q402
R439
R438
C432
C435
R443 R441
R424
R423
R436 R440
1
2
4
58

WF-2000W
– 14 –
A
B
C
D
E
F
G
H
1234 5 6
Figure 14 WIRING SIDE OF P.W.BOARD (3/3)
1
2
C601
CN501 D601
C604
C603
C602
D602
D603
F601
T4A L 250V
D604
BK
RD
RD
BR
BL
RD
BK
RD
RD
SW601
VOLTAGE SELECTOR
AC 220-240 V AC 110-127 V SO601
AC INLET
SOCKET
(241)
(241)
(241)
(241)
(241)
CON501
FROM MAIN PWB
P13 12 - A
BR
COLOR TABLE
RD(R)
OR
YL
GR
BL
VL
GY
WH(W)
BK
PK
BROWN
RED
ORANGE
YELLOW
GREEN
BLUE
VIOLET
GRAY
WHITE
BLACK
PINK
POWER PWB-B
BATTERY B PWB-A5
BATTERY A PWB-A4
T601
POWER TRANSFORMER
AC POWER
SUPPLY CORD
AC 110-127 V/220-240 V, 50/60 Hz

WF-2000W
PARTS GUIDE
NOTE:
Parts marked with “ ” are important for maintaining the safety of the set.
Be sure to replace parts with specified ones for maintaining the safety and performance of the set.
“HOW TO ORDER REPLACEMENT PARTS”
To have your order filled promptly and correctly, please furnish the
following information.
1. MODEL NUMBER 2. REF. No.
3. PART NO. 4. DESCRIPTION
MARK: SPARE PARTS-DELIVERY SECTION
For U.S.A. only
Contact your nearest SHARP Parts Distributor to order.
For location of SHARP Parts Distributor,
Please call Toll-Free;
1-800-BE-SHARP
Explanation of capacitors/resistors parts codes
Capacitors
VCC ....................... Ceramic type
VCK........................ Ceramic type
VCT........................ Semiconductor type
VC • • MF ............... Cylindrical type (without lead wire)
VC • • MN............... Cylindrical type (without lead wire)
VC • • TV................ Square type (without lead wire)
VC • • TQ ............... Square type (without lead wire)
VC • • CY ............... Square type (without lead wire)
VC • • CZ ............... Square type (without lead wire)
VC • • • • • • • • • J .. The 13th character represents capacity difference.
("J" ±5%, "K" ±10%, "M" ±20%, "N" ±30%,
"C" ±0.25 pF, "D" ±0.5 pF, "Z" +80-20%.)
If there are no indications for the electrolytic capacitors, error is ±20%.
Resistors
VRD ....................... Carbon-film type
VRS........................ Carbon-film type
VRN ....................... Metal-film type
VR • • MF ............... Cylindrical type (without lead wire)
VR • • MN............... Cylindrical type (without lead wire)
VR • • TV................ Square type (without lead wire)
VR • • TQ ............... Square type (without lead wire)
VR • • CY ............... Square type (without lead wire)
VR • • CZ ............... Square type (without lead wire)
VR • • • • • • • • • J .. The 13th character represents error.
("J" ±5%, "F" ±1%, "D" ±0.5%.)
If there are no indications for other parts, the resistors are ±5%
carbon-film type.
PORTABLE STEREO COMPONENT SYSTEM
MODEL WF-2000W(S)
PORTABLE STEREO COMPONENT SYSTEM
MODEL WF-2000W(BK)

PRICE
RANK
DESCRIPTIONNO. PART CODE NO. PARTS CODE
PRICE
RANK
DESCRIPTION
WF-2000W
– 1 –
INTEGRATED CIRCUITS
IC101 VHILA1186N/-1 J AE FM Front End,LA1186N
IC102 VHILA1805//-1 J AM FM/AM IF MPX.,LA1805
IC201 VHITA8189N/-1 J AM Pre Amp.,TA8189N
IC202 92L2351-177001 J AK Mic Amp.,BA15218F
IC301 VHIBA3822LS-1 J AL Graphic Equalizer,BA3822LS
IC402 VHILA4663//-1 J AQ Power Amp.,LA4663
IC403 92L2301-240001 J AH Voltage Regulator,L7808CV
IC404 92L2301-237003 J AH Voltage Regulator,L7809CV
TRANSISTORS
Q201,202 92L2123-009001 J AD Silicon,NPN,2SC2412 KR
Q203 VS2SC945AP/-1 J AB Silicon,NPN,2SC945 AP
Q204 92L2123-009001 J AD Silicon,NPN,2SC2412 KR
Q205 92L2103-109001 J AC Silicon,NPN,3DA8050
Q206 VSKTC3875GR-1 J AB Silicon,NPN,KTC3875 GR
Q208 92L2103-054003 J AD Silicon,PNP,SS8050
Q209,210 VS2SC945AP/-1 J AB Silicon,NPN,2SC945 AP
Q212 VSKTC3875GR-1 J AB Silicon,NPN,KTC3875 GR
Q213,214 92L2101-025001 J AC Silicon,PNP,SS8550
Q216~221 VSKTC3875GR-1 J AB Silicon,NPN,KTC3875 GR
Q401,402 92L2123-009001 J AD Silicon,NPN,2SC2412 KR
Q504 92L2101-025001 J AC Silicon,PNP,SS8550
Q505,506 92L2123-009001 J AD Silicon,NPN,2SC2412 KR
DIODES
D101~103 VHD1N4148//-1 J AA Silicon,1N4148
D201,202 VHD1N4148//-1 J AA Silicon,1N4148
D205 VHD1N4148//-1 J AA Silicon,1N4148
D207 VHD1N4148//-1 J AA Silicon,1N4148
D209 VHD1N4148//-1 J AA Silicon,1N4148
D211~219 VHD1N4148//-1 J AA Silicon,1N4148
D401 VHD1N4148//-1 J AA Silicon,1N4148
D501 VHD1N4148//-1 J AA Silicon,1N4148
D503 VHD1N4148//-1 J AA Silicon,1N4148
D601~604 92L2501-089001 J AE Silicon,IN5402
LD311 92L2509-067001 J AC LED,Red,L01-224HD
LD313 92L2509-080001 J AF LED,Green,L-474CGDK
LD314 92L2509-067001 J AC LED,Red,L01-224HD
FILTERS
BP101 92L4401-008001 J AG Band Pass Filter
CF101 92L4403-060001 J AD FM IF
CF102 92L4403-061002 J AG AM IF
TRANSFORMERS
T101 92L1111-025001 J AE SW1 Antenna
T102 92L1104-092001 J AD SW2 Antenna
T103 92L1104-099001 J AE MW OSC.
T104 92L1104-090001 J AD SW1 OSC.
T105 92L1104-089001 J AD SW2 OSC.
T106 92L1104-100001 J AE FM Detection
T107 92L1104-097001 J AD MW IF
T108 92L1104-038001 J AE FM IF
T201 92L1104-105008 J AE Bias OSC.
1T601 92L5102-126001 J BM Power
COILS
L101 92L1104-098001 J AE FM OSC.
L102 92L1107-009001 J AB FM Tracking
L103 92L7602-006001 J AE MW Bar Antenna
L201,202 92L1101-161001 J AE 47 mH
L203,204 92L1101-150038 J AC 2.7 mH
L501 92L1101-003017 J AC 47 mH
VARIABLE RESISTORS
VR101 92L1701-060001 J AH 100 kohm (B),Semi-VR
[Fine Tuning]
VR102 92L1601-001001 J AD 10 kohm (B),Semi-VR [VCO]
VR301 92L1702-008004 J AG 50 kohms (B)×2,Semi-VR
[X-Bass]
VR302 92L1702-008003 J AG 100 kohm (B)×2,Semi-VR
[Graphic Equalizer]
VR303 92L1702-008002 J AG 100 kohm (B)×2,Semi-VR
[Graphic Equalizer]
VR304 92L1702-008006 J AG 50 kohms (B)×2,Semi-VR
[Graphic Equalizer]
VR305 92L1702-008005 J AG 100 kohm (B)×2,Semi-VR
[Graphic Equalizer]
VR401 92L1701-059002 J AL 50 kohms (B)×2,Semi-VR
[Volume]
VR501 92L1601-001007 J AD 500 ohms (B),Semi-VR
[Tape Speed]
VARIABLE CAPACITORS
CT101~104 92L1341-007001 J AE Trimmer,10 pF
VC1~4 92L1340-003001 J AQ Variable Capacitor with Trimmer
(TC1~4)
VD101 92L2507-001001 J AD Silicon,1S2658
CAPACITORS
C101,102 VCKYPA1HB102K J AA 0.001 µF,50V
C103 VCEAZA1CW106M J AC 10 µF,16V,Electrolytic
C104 VCKYPA1HB102K J AA 0.001 µF,50V
C105 VCCCPU1HH8R0C J AA 8 pF (CH),50V
C106,107 VCCCPU1HH150J J AA 15 pF (CH),50V
C108 VCCCPU1HH200J J AA 20 pF (CH),50V
C109 VCCCPU1HH5R0C J AA 5 pF (CH),50V
C110 VCKZPA1HF223Z J AA 0.022 µF,50V
C111 92L1321-001095 J AC 330 pF (CH),50V
C112 VCCCPU1HH300J J AA 30 pF (CH),50V
C113 VCQYKA1HM272K J AA 0.0027 µF,50V,Mylar
C114 VCQYKA1HM472K J AB 0.0047 µF,50V,Mylar
C115 VCCCPU1HH5R0C J AA 5 pF (CH),50V
C116~118 VCKYTV1HF223Z J AA 0.022 µF,50V
C119 VCKZPA1HF223Z J AA 0.022 µF,50V
C120 VCEAZA1CW106M J AC 10 µF,16V,Electrolytic
C121 VCKZPA1HF223Z J AA 0.022 µF,50V
C122 VCKYTV1HF223Z J AA 0.022 µF,50V
C123 VCKZPA1HF223Z J AA 0.022 µF,50V
C124 VCEAZA1CW226M J AC 22 µF,16V,Electrolytic
C125,126 VCKYTV1HB822K J AA 0.0082 µF,50V
C127~129 VCEAZA1HW106M J AB 10 µF,50V,Electrolytic
C130 VCKZPA1HF223Z J AA 0.022 µF,50V
C131 VCQYKA1HM152K J AB 0.0015 µF,50V,Mylar
C132,133 VCEAZA1HW335M J AB 3.3 µF,50V,Electrolytic
C134 VCCSPU1HL471J J AB 470 pF,50V
C135 VCQYKA1HM822K J AA 0.0082 µF,50V,Mylar
C136 VCKYKA1HM222K J 0.0022 µF,50V,Mylar
C137 VCKZPA1HF223Z J AA 0.022 µF,50V
C138 VCEAZA1CW227M J AC 220 µF,16V,Electrolytic
C139 VCKZPA1HF223Z J AA 0.022 µF,50V
C140 VCKZPA1HF104Z J AA 0.1 µF,50V
C142 92L1321-001095 J AC 330 pF (CH),50V
C143 VCCCPU1HH150J J AA 15 pF (CH),50V
C144 VCCCPU1HH100J J AA 10 pF (CH),50V
C201,202 VCKYTV1HB102K J AA 0.001 µF,50V
C203~206 VCCCCTV1HH221J J 220 pF,50V
C207,208 VCEAZA1CW226M J AC 22 µF,16V,Electrolytic
C209,210 VCQYKA1HM333J J AB 0.033 µF,50V,Mylar
C213~216 RC-EZD225AF1H J AB 2.2 µF,50V,Electrolytic
C217,218 VCEAZA1CW106M J AC 10 µF,16V,Electrolytic
C219,220 VCKYTV1HB102K J AA 0.001 µF,50V
C221~223 RC-EZD225AF1H J AB 2.2 µF,50V,Electrolytic
C224 VCEAZA1CW337M J AC 330 µF,16V,Electrolytic
C225 VCEAZA1CW106M J AC 10 µF,16V,Electrolytic
C226 VCKYTV1HB152K J AA 0.0015 µF,50V
C227 92L1323-014021 J AB 82 pF,50V
C228 VCKYTV1HB152K J AA 0.0015 µF,50V
C229 RC-EZD225AF1H J AB 2.2 µF,50V,Electrolytic
C230 VCEAZA1CW476M J AB 47 µF,16V,Electrolytic
C231,232 VCKYTV1HB821K J AA 820 pF,50V
C233,234 VCCCTV1HH151J J AA 150 pF (CH),50V
C235 VCCCPU1HH181J J AA 180 pF (CH),50V
C236 VCEAZA1CW227M J AC 220 µF,16V,Electrolytic
C237 VCKYKA1HM222K J 0.0022 µF,50V,Mylar
C238 VCQYKA1HM223K J AB 0.022 µF,50V,Mylar
C239 VCQYKA1HM102K J AA 0.001 µF,50V,Mylar
C240 VCKYKA1HM222K J 0.0022 µF,50V,Mylar
C241 VCEAZA1CW107M J AC 100 µF,16V,Electrolytic
C242 VCEAZA1HW106M J AB 10 µF,50V,Electrolytic
C243 RC-EZD225AF1H J AB 2.2 µF,50V,Electrolytic
– 1 –

NO.
PRICE
RANK
DESCRIPTION
PARTS CODENO. PART CODE
PRICE
RANK
DESCRIPTION
WF-2000W
C244 VCEAZA1CW106M J AC 10 µF,16V,Electrolytic
C245 VCEAZA1CW227W J 220 µF,16V,Electrolytic
C246 VCKYKA1HM222K J 0.0022 µF,50V,Mylar
C247 VCCCTV1HH151J J AA 150 pF (CH),50V
C248 VCCCTV1HH101J J AA 100 pF (CH),50V
C249~251 VCEAZA1CW106M J AC 10 µF,16V,Electrolytic
C252 VCEAZA1CW476M J AB 47 µF,16V,Electrolytic
C253 VCKYKA1HM222K J 0.0022 µF,50V,Mylar
C254~256 RC-EZD225AF1H J AB 2.2 µF,50V,Electrolytic
C257 VCEAZA1CW336M J AB 33 µF,16V,Electrolytic
C258,259 VCCCTV1HH221J J AA 220 pF (CH),50V
C260 VCCCTV1HH151J J AA 150 pF (CH),50V
C261 92L1323-014021 J AB 82 pF,50V
C262 VCEAZA1CW107M J AC 100 µF,16V,Electrolytic
C263 VCEAZA1CW106M J AC 10 µF,16V,Electrolytic
C265 VCEAZA1CW106M J AC 10 µF,16V,Electrolytic
C267,268 VCCCTV1HH331J J AA 330 pF (CH),50V
C270,271 VCKYTV1HB153K J AA 0.015 µF,50V
C280 VCEAZA1HW475M J AB 4.7 µF,50V,Electrolytic
C281 RC-EZD106AF1C J AB 10 µF,16V,Electrolytic
C281 VCEAZA1CW106M J AC 10 µF,16V,Electrolytic
C288 VCEAZA1CW337M J AC 330 µF,16V,Electrolytic
C291 VCQYKA1HM272K J AA 0.0027 µF,50V,Mylar
C292 VCKYTV1HB272K J AA 0.0027 µF,50V
C301,302 RC-EZD105AF1H J AB 1 µF,50V,Electrolytic
C303,304 VCKYTV1HF223Z J AA 0.022 µF,50V
C305,306 RC-EZD105AF1H J AB 1 µF,50V,Electrolytic
C307 RC-EZD474AF1H J AB 0.47 µF,50V,Electrolytic
C308 VCKYTV1HB103K J AA 0.01 µF,50V
C309 VCKYTV1HB183K J AA 0.018 µF,50V
C310 VCKYTV1HB821K J AA 820 pF,50V
C311 RC-GZA334AF1H J AA 0.33 µF,50V,Electrolytic
C312 VCKYTV1HB562K J AA 0.0056 µF,50V
C313 VCQYKA1HM104K J AB 0.1 µF,50V,Mylar
C314 VCKYTV1HB332K J AA 0.0033 µF,50V
C315 VCKYTV1HF104Z J AA 0.1 µF,50V
C316 VCKYTV1HB332K J AA 0.0033 µF,50V
C317 RC-EZY334AF1H J AB 0.33 µF,50V,Electrolytic
C318 VCKYTV1HB562K J AA 0.0056 µF,50V
C319 VCKYTV1HB183K J AA 0.018 µF,50V
C320 VCKYTV1HB821K J AA 820 pF,50V
C321 RC-EZD474AF1H J AB 0.47 µF,50V,Electrolytic
C322 VCKYTV1HB103K J AA 0.01 µF,50V
C323,324 RC-EZD475AF1H J AB 4.7 µF,50V,Electrolytic
C334 VCEAZA1CW227M J AC 220 µF,16V,Electrolytic
C413,414 VCKYTV1HB102K J AA 0.001 µF,50V
C415,416 VCQYKA1HM154K J AB 0.15 µF,50V,Mylar
C417,418 VCKYTV1HB102K J AA 0.001 µF,50V
C419,420 RC-EZD225AF1H J AB 2.2 µF,50V,Electrolytic
C421 VCEAZA1CW227M J AC 220 µF,16V,Electrolytic
C422 VCKZPA1HF223Z J AA 0.022 µF,50V
C423 VCEAZA1CW106M J AC 10 µF,16V,Electrolytic
C424 VCEAZA1EW476M J AB 47 µF,25V,Electrolytic
C425~428 VCQYKA1HM104K J AB 0.1 µF,50V,Mylar
C429,430 VCEAZA1CW106M J AC 10 µF,16V,Electrolytic
C431,432 VCKYTV1EB273K J AB 0.027 µF,25V
C433,434 RC-EZD225AF1H J AB 2.2 µF,50V,Electrolytic
C435,436 VCCCTV1HH221J J AA 220 pF (CH),50V
C437,438 RC-EZD225AF1H J AB 2.2 µF,50V,Electrolytic
C501 VCEAZW1EW338M J AG 3300 µF,25V,Electrolytic
C508 VCKYTV1HF223Z J AA 0.022 µF,50V
C509 VCEAZA1CW107M J AC 100 µF,16V,Electrolytic
C511,512 VCEAZA1CW476M J AB 47 µF,16V,Electrolytic
C514,515 VCEAZA1HW106M J AB 10 µF,50V,Electrolytic
C516 VCKZPA1HF104Z J AA 0.1 µF,50V
C601~604 VCKZPA1HF223Z J AA 0.022 µF,50V
RESISTORS
R101 VRD-ST2CD101J J AA 100 ohm,1/6W
R102 VRD-ST2CD331J J AA 330 ohms,1/6W
R103 VRD-ST2CD224J J AA 220 kohms,1/6W
R104 VRD-ST2CD824J J AA 820 kohms,1/6W
R105 VRD-ST2CD101J J AA 100 ohm,1/6W
R106 VRD-ST2CD104J J AA 100 kohm,1/6W
R107 VRS-TV2AB104J J AA 100 kohm,1/10W
R108 VRS-TV2AB103J J AA 10 kohm,1/10W
R109 VRD-ST2CD223J J AA 22 kohms,1/6W
R110~112 VRD-ST2CD470J J AA 47 ohms,1/6W
R113 VRD-ST2CD153J J AA 15 kohms,1/6W
R114 VRD-ST2CD472J J AA 4.7 kohms,1/6W
R115 VRD-ST2CD153J J AA 15 kohms,1/6W
R116 VRD-ST2CD472J J AA 4.7 kohms,1/6W
R117 VRD-ST2CD100J J AA 10 ohm,1/6W
R118 VRD-ST2CD104J J AA 100 kohm,1/6W
R119 VRD-ST2CD153J J AA 15 kohms,1/6W
R120 VRD-ST2CD272J J AA 2.7 kohms,1/6W
R121 VRD-ST2CD392J J AA 3.9 kohms,1/6W
R122 VRD-ST2CD100J J AA 10 ohm,1/6W
R123 VRD-ST2CD102J J AA 1 kohm,1/6W
R125 VRS-TV2AB104J J AA 100 kohm,1/10W
R126 VRD-ST2EE101J J AA 100 ohm,1/4W
R128,129 VRD-ST2CD332J J AA 3.3 kohms,1/6W
R131 VRD-ST2CD103J J AA 10 kohm,1/6W
R200 VRS-TV2AB472J J AA 4.7 kohms,1/10W
R201,202 VRS-TV2AB560J J AA 56 ohms,1/10W
R203,204 VRS-TV2AB472J J AA 4.7 kohms,1/10W
R205,206 VRD-ST2CD184J J AA 180 kohms,1/6W
R207,208 VRS-TV2AB562J J AA 5.6 kohms,1/10W
R209,210 VRS-TV2AB184J J AA 180 kohms,1/10W
R211,212 VRD-ST2CD102J J AA 1 kohm,1/6W
R213 VRS-TV2AB474J J AA 470 kohms,1/10W
R214 VRD-ST2CD474J J AA 470 kohms,1/6W
R215,216 VRS-TV2AB122J J AA 1.2 kohms,1/10W
R217 VRS-TV2AB104J J AA 100 kohm,1/10W
R218 VRD-ST2CD104J J AA 100 kohm,1/6W
R219 VRD-ST2CD682J J AA 6.8 kohms,1/6W
R220 VRS-TV2AB103J J AA 10 kohm,1/10W
R221 VRD-ST2CD105J J AA 1 Mohm,1/6W
R222,223 VRD-ST2CD822J J AA 8.2 kohms,1/6W
R224,225 VRD-ST2CD473J J AA 47 kohms,1/6W
R226,227 VRD-ST2CD103J J AA 10 kohm,1/6W
R228,229 VRS-TV2AB222J J AA 2.2 kohms,1/10W
R230 VRS-TV2AB103J J AA 10 kohm,1/10W
R231 VRD-ST2CD271J J AA 270 ohms,1/6W
R232 VRD-ST2CD222J J AA 2.2 kohms,1/6W
R233 VRD-ST2CD271J J AA 270 ohms,1/6W
R234,235 VRS-TV2AB153J J AA 15 kohms,1/10W
R236,237 VRS-TV2AB473J J AA 47 kohms,1/10W
R238 VRD-ST2CD333J J AA 33 kohms,1/6W
R239 VRD-ST2CD100J J AA 10 ohm,1/6W
R241 VRS-TV2AB222J J AA 2.2 kohms,1/10W
R242 VRD-ST2CD561J J AA 560 ohms,1/6W
R243 VRD-ST2CD103J J AA 10 kohm,1/6W
R244 VRS-TV2AB391J J AA 390 ohms,1/10W
R245 VRS-TV2AB103J J AA 10 kohm,1/10W
R247 VRS-TV2AB391J J AA 390 ohms,1/10W
R248 VRS-TV2AB221J J AA 220 ohms,1/10W
R249 VRS-TV2AB333J J AA 33 kohms,1/10W
R250 VRS-TV2AB332J J AA 3.3 kohms,1/10W
R251 VRD-ST2CD332J J AA 3.3 kohms,1/6W
R252 VRS-TV2AB332J J AA 3.3 kohms,1/10W
R253 VRS-TV2AB223J J AA 22 kohms,1/10W
R254,255 VRD-ST2CD103J J AA 10 kohm,1/6W
R257 VRD-ST2CD151J J AA 150 ohms,1/6W
R258 VRD-ST2CD561J J AA 560 ohms,1/6W
R259 VRS-TV2AB221J J AA 220 ohms,1/10W
R260 VRD-ST2CD103J J AA 10 kohm,1/6W
R261,262 VRD-ST2CD223J J AA 22 kohms,1/6W
R263,264 VRD-ST2CD473J J AA 47 kohms,1/6W
R265,266 VRD-ST2CD472J J AA 4.7 kohms,1/6W
R267,268 VRS-TV2AB334J J AA 330 kohms,1/10W
R269,270 VRD-ST2CD392J J AA 3.9 kohms,1/6W
R271 VRS-TV2AB102J J AA 1 kohm,1/10W
R272 VRS-TV2AB105J J AA 1 Mohm,1/10W
R273 VRS-TV2AB222J J AA 2.2 kohms,1/10W
R274 VRS-TV2AB103J J AA 10 kohm,1/10W
R275 VRS-TV2AB472J J AA 4.7 kohms,1/10W
R276 VRD-ST2CD102J J AA 1 kohm,1/6W
R277 VRD-ST2CD333J J AA 33 kohms,1/6W
R278 VRD-ST2CD102J J AA 1 kohm,1/6W
R279 VRD-ST2CD151J J AA 150 ohms,1/6W
R280 VRS-TV2AB473J J AA 47 kohms,1/10W
R281 VRS-TV2AB103J J AA 10 kohm,1/10W
R282,283 VRD-ST2CD103J J AA 10 kohm,1/6W
R284 VRD-ST2CD473J J AA 47 kohms,1/6W
R285 VRS-TV2AB222J J AA 2.2 kohms,1/10W
R286 VRD-ST2CD473J J AA 47 kohms,1/6W
R287 VRD-ST2CD181J J AA 180 ohms,1/6W
R288~290 VRD-ST2CD103J J AA 10 kohm,1/6W
R291 VRS-TV2AB333J J AA 33 kohms,1/10W
R292~295 VRD-ST2CD103J J AA 10 kohm,1/6W
R296,297 VRS-TV2AB102J J AA 1 kohm,1/10W
– 2 –

PRICE
RANK
DESCRIPTIONNO. PART CODE NO. PARTS CODE
PRICE
RANK
DESCRIPTION
WF-2000W
R298,299 VRD-ST2CD103J J AA 10 kohm,1/6W
R301 VRD-ST2CD102J J AA 1 kohm,1/6W
R303~306 VRD-ST2CD222J J AA 2.2 kohms,1/6W
R307 VRD-ST2EE221J J AA 220 ohms,1/4W
R308~310 VRD-ST2CD102J J AA 1 kohm,1/6W
R317,318 VRD-ST2CD102J J AA 1 kohm,1/6W
R319 VRD-ST2CD331J J AA 330 ohms,1/6W
R321,322 VRS-TV2AB563J J AA 56 kohms,1/10W
R323 VRD-ST2CD103J J AA 10 kohm,1/6W
R333 VRD-ST2CD102J J AA 1 kohm,1/6W
R411 VRD-ST2EE331J J AA 330 ohms,1/4W
R415,416 VRD-ST2CD472J J AA 4.7 kohms,1/6W
R417,418 VRD-ST2CD223J J AA 22 kohms,1/6W
R419,420 VRS-TV2AB332J J AA 3.3 kohms,1/10W
R421,422 VRS-TV2AB102J J AA 1 kohm,1/10W
R423,424 VRS-TV2AB222J J AA 2.2 kohms,1/10W
R425~428 VRD-ST2EE2R2J J AA 2.2 ohms,1/4W
R429,430 VRD-ST2EE221J J AA 220 ohms,1/4W
R431,432 VRS-TV2AB153J J AA 15 kohms,1/10W
R433 VRD-ST2CD153J J AA 15 kohms,1/6W
R434 VRD-ST2CD682J J AA 6.8 kohms,1/6W
R435,436 VRS-TV2AB682J J AA 6.8 kohms,1/10W
R437 VRD-ST2CD682J J AA 6.8 kohms,1/6W
R438,439 VRS-TV2AB682J J AA 6.8 kohms,1/10W
R440,441 VRS-TV2AB334J J AA 330 kohms,1/10W
R442,443 VRS-TV2AB331J J AA 330 ohms,1/10W
R507 VRS-TV2AB473J J AA 47 kohms,1/10W
R508 VRS-TV2AB392J J AA 3.9 kohms,1/10W
R509 VRS-TV2AB331J J AA 330 ohms,1/10W
R510 VRS-TV2AB104J J AA 100 kohm,1/10W
R511 VRD-ST2CD103J J AA 10 kohm,1/6W
R512 VRS-TV2AB103J J AA 10 kohm,1/10W
R514 VRD-ST2CD103J J AA 10 kohm,1/6W
OTHER CIRCUITRY PARTS
CN101 92L3421-180003 J AD Connector Ass’y,3Pin
CN201 92L3421-882002 J AE Plug,3Pin
CN202 92L3421-879002 J AG Plug,5Pin
CN203 92L3461-000076 J AD Flat Wire,6Pin
CN204 92L3461-000077 J AD Flat Wire,4Pin
CN205A/B 92L3421-887002 J AM Connector Ass’y7Pin
CN206 92L3471-000021 J AF Connector Ass’y,2Pin
CN501 92L3421-417002 J AD Plug,2Pin
CN502 92L3421-152002 J AG Connector Ass’y,10Pin
CON101 92L3101-171010 J AB Plug,3Pin
CON201 92L3101-171010 J AB Plug,3Pin
CON202 92L3101-171008 J AB Plug,5Pin
CON401 92L3301-008001 J AK Terminal,Speaker
CON501 92L3101-094001 J AB Connector Ass’y,2Pin
CON502 92L3101-171003 J AC Plug,10Pin
1F601 92L5301-025002 J AE Fuse,T4A L 250V
JK201 92L3202-036002 J AE Jack,Mic
JK202 92L3201-080001 J AG Jack,LINE Input
JK401 92L3202-036001 J AE Jack,Headphones
M1(246-10) 92L195912301 J Motor with Pulley [Tape]
MIC1 92L7201-002001 J AG Built-in Microphone
1SO601 92L3204-017001 J Socket,AC Inlet
SW2(245-12) 92L4110-011002 J Switch,Leaf Type
[Tape 1 Play]
SW3(245-13) 92L4110-011001 J Switch,Leaf Type
[Tape 1 FF/REW]
SW4(245-14) 92L4110-011003 J Switch,Leaf Type
[Tape 1 REC]
SW5(245-15) 92L4110-011003 J Switch,Leaf Type
[Tape 2 Play]
SW6(245-16) 92L4110-011003 J Switch,Leaf Type
[Tape 2 FF/REW]
SW101 92L4103-022001 J AF Switch,Slide Type
[Band Selector]
SW202 92L4103-025001 J AD Switch,Slide Type [Beat Cancel]
SW203 92L4103-025002 J AE Switch,Slide Type [Dubbing
Speed/Mic/FM Mode]
SW401 92L4104-002001 J AF Switch,Push Type [X-Bass]
SW501 92L4103-025003 J AF Switch,Slide Type
[Function Selector]
1SW601 92L4106-011001 J AH Switch,Slide Type
[Voltage Selector]
CABINET PARTS
201 92L20021000102 J AY Front Cabinet [WF-2000W (S)]
201 92L20021000104 J AY Front Cabinet [WF-2000W (BK)]
202 92L20221000101 J BA Rear Cabinet [WF-2000W (S)]
202 92L20221000102 J AZ Rear Cabinet [WF-2000W (BK)]
203 92L21021000101 J AG Battery Compartment Lid
[WF-2000W (S)]
203 92L21021000102 J AG Battery Compartment Lid
[WF-2000W (BK)]
204 92L21121000101 J AN Cassette Holder [Tape 1]
[WF-2000W (S)]
204 92L21121000102 J AN Cassette Holder [Tape 1]
[WF-2000W (BK)]
205 92L21121000201 J AN Cassette Holder [Tape 2]
[WF-2000W (S)]
205 92L21121000202 J Cassette Holder [Tape 2]
[WF-2000W (BK)]
206 92L23021000102 J AL Panel,Display
207 92L24021000101 J AB Dial Pointer
208 92L24821000101 J Handle [WF-2000W (S)]
208 92L24821000102 J AG Handle [WF-2000W (BK)]
209 92L26021000101 J AB Window,Dial
210 92L26121000102 J AF Panel,Cassette Holder [Tape 1]
211 92L26721000101 J AE Lens,Volume Knob
212 92L27021000101 J AB Knob,Tuning
213 92L27021000201 J AB Knob,Fine Tuning
214 92L27220000301 J AE Button,F FWD [Tape 2]
[WF-2000W (S)]
214 92L27220000302 J AE Button,F FWD [Tape 2]
[WF-2000W (BK)]
215 92L27220000401 J AE Button,Stop/Eject [Tape 2]
[WF-2000W (S)]
215 92L27220000402 J AE Button,Stop/Eject [Tape 2]
[WF-2000W (BK)]
217 92L27221000101 J AE Button,Record [Tape 1]
[WF-2000W (S)]
217 92L27221000102 J AE Button,Record [Tape 1]
[WF-2000W (BK)]
218 92L27221000201 J AE Button,Play [Tape 1]
[WF-2000W (S)]
218 92L27221000202 J AE Button,Play [Tape 1]
[WF-2000W (BK)]
219 92L27221000301 J AE Button,Rewind [Tape 1]
[WF-2000W (S)]
219 92L27221000302 J AE Button,Rewind [Tape 1]
[WF-2000W (BK)]
220 92L27221000401 J AE Button,F FWD [Tape 1]
[WF-2000W (S)]
220 92L27221000402 J AE Button,F FWD [Tape 1]
[WF-2000W (BK)]
221 92L27221000501 J AE Button,Stop/Eject [Tape 1]
[WF-2000W (S)]
221 92L27221000502 J AE Button,Stop/Eject [Tape 1]
[WF-2000W (BK)]
222 92L27221000601 J AE Button,Pause [Tape 1]
[WF-2000W (S)]
222 92L27221000602 J AE Button,Pause [Tape 1]
[WF-2000W (BK)]
224 92L27220000101 J AE Button,Play [Tape 2]
[WF-2000W (S)]
224 92L27220000102 J AE Button,Play [Tape 2]
[WF-2000W (BK)]
225 92L27220000201 J AE Button,Rewind [Tape 2]
[WF-2000W (S)]
225 92L27220000202 J AE Button,Rewind [Tape 2]
[WF-2000W (BK)]
226 92L37921000101 J AC Cushion,Leg [WF-2000W (BK)]
226 92L37921000102 J Cushion,Leg [WF-2000W (S)]
228 92L43021000101 J AK Heat Sink
229 92L57920000107 J AE Label,Specifications
[WF-2000W (S) Except for
Russian/Philippines]
229 92L57920000108 J AE Label,Specifications
[WF-2000W (BK) for Russian/
Philippines]
229 92L57920000109 J AE Label,Specifications
[WF-2000W (S) for Russian]
229 92L57920000110 J AE Label,Specifications
[WF-2000W (BK) for Russian]
229 92L57920000111 J AE Label,Specifications
[WF-2000W (S) for Philippines]
– 3 –

NO.
PRICE
RANK
DESCRIPTION
PARTS CODENO. PART CODE
PRICE
RANK
DESCRIPTION
WF-2000W
229 92L57920000112 J AM Label,Specifications
[WF-2000W (BK) for Philip-
pines]
230 92L27321000101 J AD Knob,Volume
231 92L27321000201 J AC Knob,X-BASS
232 92L27721000101 J AB Knob,Function
233 92L27821000101 J AC Knob,Band Selector
234 92L27821000201 J AC Knob,Dubing Speed
235 92L28921000101 J AG Ring,Volume Knob
236 92L28921000201 J AF Ring,X-BASS Knob
1238 QFSHD0001AWZZ J AB Holder,Fuse
239 92L25021000101 J AB Holder,LED,Left
240 92L25021000201 J AB Holder,LED,Right
241 92L47421001101 J AE Spring,Battery,-
242 92L370101G030D J AC Cover,PWB Pointer
243 92L370101G020D J AE Cover,PWB A
244 92L370101G020E J AE Cover,PWB B
245 92L7702-018001 J Tape Mechanism Ass’y
245- 1 92L195904301 J AH Pinch Roller Arm Ass’y,Fast
Forward
245- 2 92L195904302 J AH Pinch Roller Arm Ass’y,Rewind
245- 3 92L192104009 J Pinch Roller Arm Ass’y
245- 4 92L62160701 J Head,Playback [Tape 2]
245- 5 92L620101111 J Head,Record/Playback [Tape 1]
245- 6 92L62091010 J Head,Erase [Tape 1]
245- 7 92L182112173 J AE Belt,Main [Tape 1]
245- 8 92L18511417 J Belt,Main [Tape 2]
245- 9 92L19210703 J AD Belt,FF/REW
245-10(M1) 92L195912301 J Motor with Pulley [Tape]
245-12(SW2) 92L4110-011002 J Switch,Slide Type
[Tape 1 Play]
245-13(SW3) 92L4110-011001 J Switch,Leaf Type
[Tape 1 FF/REW]
245-14(SW4) 92L4110-011003 J Switch,Leaf Type
[Tape 1 REC]
245-15(SW5) 92L4110-011003 J Switch,Leaf Type
[Tape 2 Play]
245-16(SW6) 92L4110-011003 J Switch,Leaf Type
[Tape 2 FF/REW]
247 92L22621000101 J AC Bracket,Gear
248 92L25821000101 J AC Holder,Function Knob
249 92L29021000101 J AD Dial Whell
250 92L29021000201 J AC Gear,A
251 92L29021000301 J AB Gear,B
252 92L29021000401 J AC Gear,C
253 92L30021000102 J AV Nylon Band
254 92L375QT800101 J AC Holder,Mic
255 92L42921000101 J AD Bracket,Front Cabinet
256 92L42921000201 J AC Bracket,Dial Pointer
257 92L25133010101 J AC Rod Antenna
259 92L47121000101 J AC Spring,Cassette Holder Up
260 92L48121000101 J Shield Plate
262 92L70321000101 J AG Dampar
263 92L79721000101 J Badge,SHARP
264 92L26121000202 J AF Panel,Cassette Holder [Tape 2]
1265 92L21521000101 J AC AC Inlet
266 92L47721000201 J AD Spring,FM Antenna
267 92L25021000301 J AA Holder,LED
601 92L60030500830 J AA Screw,ø3×8mm
602 92L60130500830 J AA Screw,ø3×8mm
603 92L60426450610 J AA Screw,ø2.6×6mm
604 92L61030013010 J AB Screw,ø3×30mm
605 92L61030010810 J AA Screw,ø3×8mm
606 92L61030011010 J AA Screw,ø3×10mm
607 92L61030041410 J AB Screw,ø3×14mm
608 92L61230010610 J AA Screw,ø3×6mm
610 92L61226010810 J AA Screw,ø2.6×8mm
611 92L61530041410 J AB Screw,ø3×14mm
612 92L61530041010 J AB Screw,ø3×10mm
613 92L62030011010 J AA Screw,ø3×10mm
614 92L63305503207 J AA Washer,ø3.2×ø5.5×0.7mm
616 92L62030061070 J AB Screw,ø3×10mm
SPEAKER BOX PARTS
901 92L79921000701 J Front Cabinet Ass’y,Left
[WF-2000W (S)]
901 92L79921000901 J Front Cabinet Ass’y,Left
[WF-2000W (BK)]
902 92L79921000801 J Front Cabinet Ass’y,Right
[WF-2000W (S)]
902 92L79921000A01 J Front Cabinet Ass’y,Right
[WF-2000W (BK)]
903 92L20621000101 J AU Rear Cabinet,Left
[WF-2000W (S)]
903 92L20621000102 J AU Rear Cabinet,Left
[WF-2000W (BK)]
904 92L20621000201 J AU Rear Cabinet,Right
[WF-2000W (S)]
904 92L20621000202 J AU Rear Cabinet,Right
[WF-2000W (BK)]
905 92L21221000101 J AB Holder,Speaker Cord
[WF-2000W (S)]
905 92L21221000102 J AB Holder,Speaker Cord
[WF-2000W (BK)]
906 92L23421000101 J AR Decoration Panel,Left
907 92L23421000201 J AR Decoration Panel,Right
909 92L37921000201 J AD Cushion,Leg
910 92L61440041610 J AB Screw,ø4×16mm
911 92L61430040810 J AA Screw,ø3×8mm
912 92L3461000062 J Speaker Cord
913 92L3461000064 J Speaker Cord
914 92L3461000065 J Speaker Cord
(With Capacitor C1,2)
915 92L3461000079 J Speaker Cord
SP1,2 92L4801-097001 J AS Tweeter
SP3,4 92L4801-096001 J AU Woofer
SP5,6 92L3461-000079 J AB Woofer
SP7,8 92L4802-005001 J AM Super Tweeter
ACCESSORIES/PACKING PARTS
1QACCA0004AW00 J AK AC Power Supply Cord
1QACCE0007AW00 J AH AC Power Supply Cord
1QPLGA0003AWZZ J AF AC Plug Adaptor
1QPLGA0004AWZZ J AF AC Plug Adaptor
92L31020300401 J AC Polyethylene Bag,Accessories
92L31048600401 J AE Polyethylene Bag,Unit
92L489QT800201 J AD Mic Panel,for Set
92L51020000101 J AV Packing Case [WF-2000W (S)]
92L51020000102 J AV Packing Case [WF-2000W (BK)]
92L579QT800111 J AB Label,Japan,for Set
92L579QT800126 J AB Label,Japan,for Packing Case
92L579QT800128 J AB Label,Hong Kong
[For Hong Kong Only]
92L57920000101 J AC Label,Bar Code [WF-2000W (S)]
92L57920000102 J AC Label,Bar Code
[WF-2000W (BK)]
92L57920000103 J AC Label,Safety
[For Hong Kong Only]
92L57920000201 J AG Label,Feature
92L57921000202 J AH Label,Feature
92L58020000102 J AP Operation Manual
[Except for Russian]
92L58020000103 J AP Operation Manual [For Russian]
92L59021000101 J AF Warrarty Card
[For Philippines Only]
P.W.B. ASSEMBLY (Not Replacement Item)
PWB-A1 92L370101G040A J –– Main (PWB Only)
PWB-A2 92L370101G040B J –– Equalizer (PWB Only)
PWB-A3 92L370101G040C J –– Fine Tuning (PWB Only)
PWB-A4 92L370101G040E J –– Battery A (BWB Only)
PWB-A5 92L370101G040F J –– Battery B (PWB Only)
1PWB-B 92L370101G050 J –– Power (PWB Only)
– 4 –

WF-2000W
A
B
C
D
E
F
G
H
123456
Figure 5 CABINET EXPLODED VIEW
– 5 –
Note: Only the unit and consumable parts are supplied as parts supply for the Tape mechanism.
253
613x2
228
Silicon
Grease
IC402
IC403
613
Silicon
Grease
265
606x3
607x3
607x2
202
257
601
614
607
229 208
203
250
249
226x2
603
614
238x2
241x2
PWB-A5
PWB-A4
T601
260 602
PWB-B
616
605x4
612x4
605x2
266
606
255
201
263
236
254
243
244
MIC1
207
604
602
611
242 605
256
606
613x2
605x2
PWB-A1
262x2
606x5
PWB-A2
606x2
L103
251
247
233
248
232
234
TAPE
MECHANISM
255
606
217
218
219
220221
222
225
224
215
214
245
205
204
213
610x2
206
252
209
259 264
210 259
212
PWB-A3
VR401
239
240
267
231
241x3
IC404
613
245-7,
245-1,245-2,245-3,245-4, 245-5,
245-8, 245-9,
245-12(SW2), 245-13(SW3), 245-14(SW4),
245-15(SW5), 245-16(SW6)
245-10(M1),
245-6,
235
With VR401
230
211
608
