Sharp XL-UH25H User manual

Thank you for purchasing this SHARP product. To obtain the best
performance from this product, please read this manual carefully. It
will guide you in operating your SHARP product.
XL-UH25H Micro Component System consisting of XL-UH25H (main
unit) and CP-UH25H (speaker system).
2008/May/28 XL-UH25H_UK&AUS
MICRO COMPONENT SYSTEM
MODEL
XL-UH25H
OPERATION MANUAL
Note:
This product is not compatible with MTP and AAC file systems.
AUDIO
IN

2
XL-UH25H
2008/June/26 XL-UH25H_UK&AUS
Important Instruction
Special Notes
WARNINGS
 When the ON/STAND-BY button is set at STAND-BY position,
mains voltage is still present inside the unit. When the
ON/STAND-BY button is set at STAND-BY position, the unit may
be brought into operation by the timer mode or remote control.
 This unit contains no user serviceable parts. Never remove covers
unless qualified to do so. This unit contains dangerous voltages,
always remove mains plug from the socket before any service
operation and when not in use for a long period.
 To prevent fire or shock hazard, do not expose this appliance to
dripping or splashing. No objects filled with liquids, such as vases,
shall be placed on the apparatus.
 Do not turn the volume on to full at switch on. Listen to music at
moderate levels. Excessive sound pressure from earphones and
headphones can cause hearing loss.
Note for users in United Kingdom:
Recording and playback of any material may require consent, which
SHARP is unable to give. Please refer particularly to the provisions
of the Copyright Act 1956, the Dramatic and Musical Performers
Protection Acts 1958, the Performers Protection Acts 1963 and 1972
and to any subsequent statutory enactments and orders.
Note for users in Australia:
Copyright may exist in material you wish to record. Copying or
broadcasting such material without permission of the relevant
licenses or owners of the copyright is prohibited by law. SHARP is
not in a position to authorise the copying or broadcasting of copyright
materials and nothing in this OPERATION MANUAL should be
implied as giving that authority.
For other countries:
Audio-visual material may consist of copyrighted works which must
not be recorded without the authority of the owner of the copyright.
Please refer to the relevant laws in your country.
CAUTIONS
 This product is classified as a CLASS 1 LASER PRODUCT.
 This unit contains a low power laser device. To ensure continued
safety do not remove any cover or attempt to gain access to the
inside of the product. Refer all servicing to qualified personnel.

3
XL-UH25H
2008/June/10 XL-UH25H_UK&AUS
General Information
Special Note
Supply of this product does not convey a license nor imply any right to
distribute content created with this product in revenue-generating
broadcast systems (terrestrial, satellite, cable and/or other distribution
channels), revenue-generating streaming applications (via Internet,
intranets and/or other networks), other revenue-generating content
distribution systems (pay-audio or audio-on-demand applications and
the like) or on revenue-generating physical media (compact discs,
digital versatile discs, semiconductor chips, hard drives, memory
cards and the like). An independent license for such use is required.
For details, please visit http://mp3licensing.com.
MPEG Layer-3 audio coding technology licensed from Fraunhofer IIS
and Thomson.
Accessories
Please confirm that only the following accessories are included.
Contents
Page
 General Information
Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Controls and indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5 - 7
 Preparation for Use
System connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8 - 10
Remote control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
 Basic Operation
General control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Setting the clock (Remote Control only) . . . . . . . . . . . . . . . . . 13
 CD or MP3/WMA disc Playback
Listening to a CD or MP3/WMA disc . . . . . . . . . . . . . . . . .14 - 16
Advanced CD or MP3/WMA disc playback . . . . . . . . . . . .17 - 18
MP3/WMA folder mode (only for MP3/WMA files) . . . . . . .19 - 20
 USB Memory Playback
Listening to USB memory device/MP3 player . . . . . . . . . .21 - 22
To remove USB memory device . . . . . . . . . . . . . . . . . . . . . . . . 22
Advanced USB memory playback . . . . . . . . . . . . . . . . . . . . . . 23
 Radio
Listening to the radio . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24 - 25
 Advanced Features
Timer and sleep operation (Remote Control only) . . . . . .26 - 29
Enhancing your system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
 References
Troubleshooting chart . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31 - 32
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33 - 34

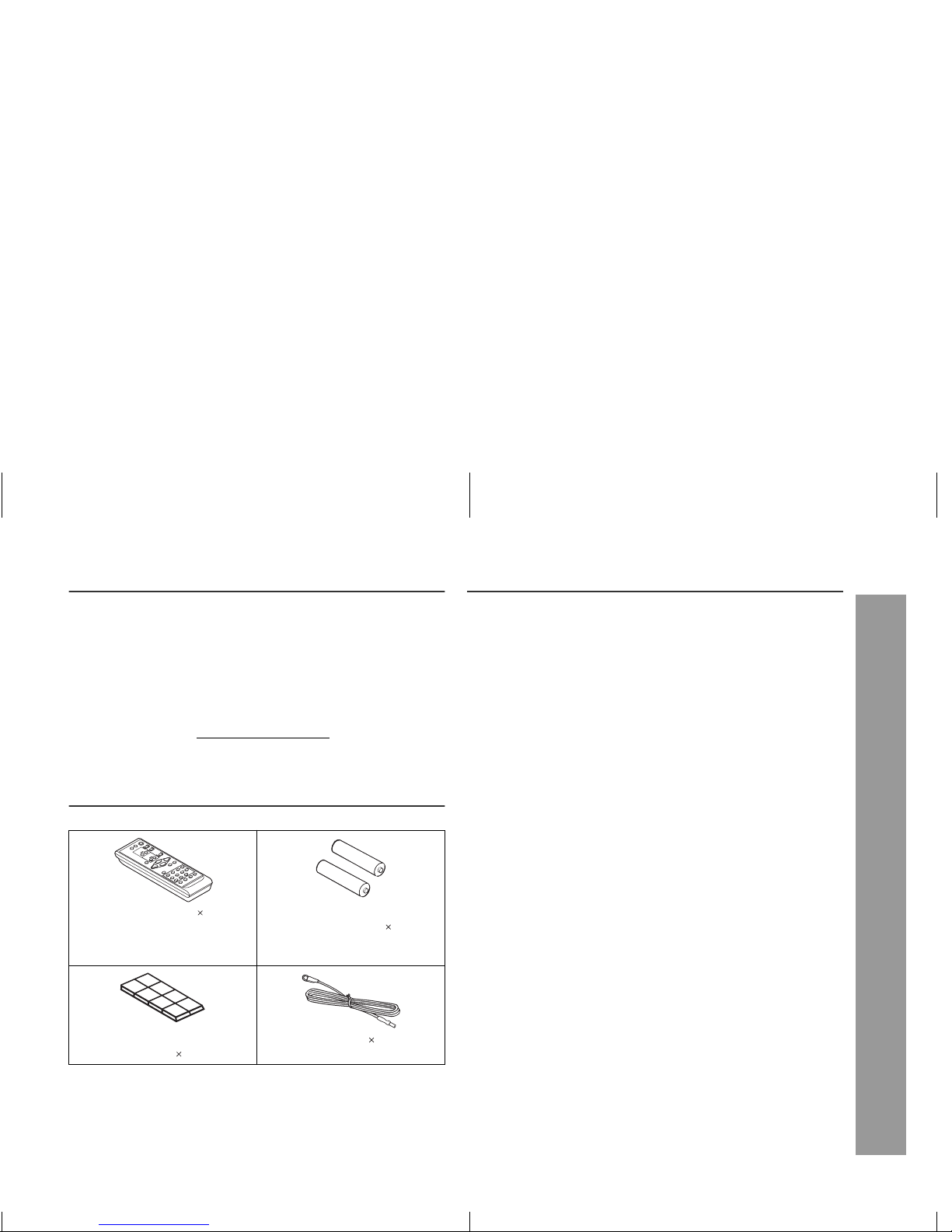

Remote control 1 “AA” size battery (UM/SUM-3, R6,
HP-7 or similar) 2
(not included for
United Kingdom)
Antislip speaker cushion sheet
(8 pcs.) 1
FM aerial 1

4
XL-UH25H
2008/June/10 XL-UH25H_UK&AUS
General Information
Precautions
 General

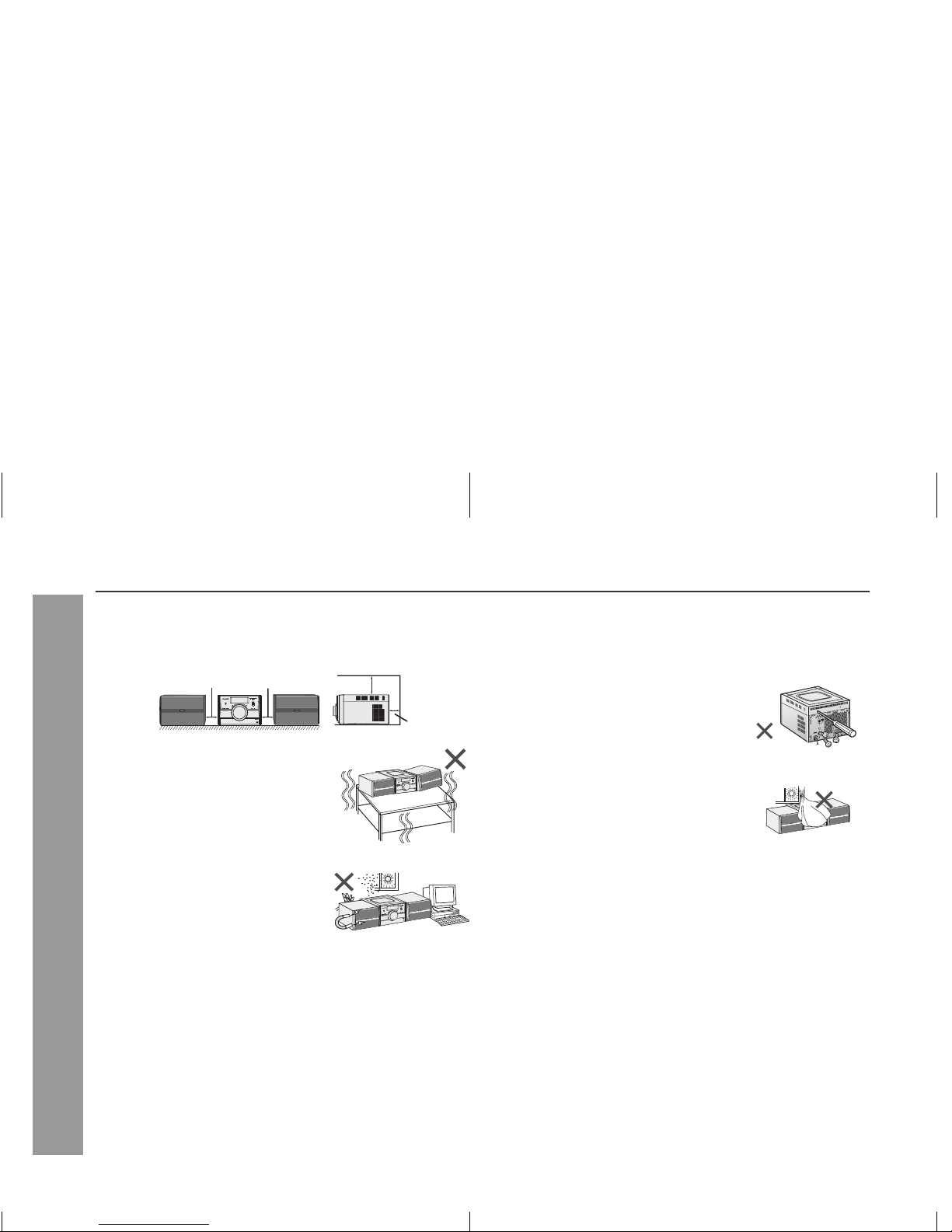

 Please ensure that the equipment is positioned in a well-ventilated
area and ensure that there is at least 10 cm (4") of free space
along the sides, top and back of the equipment.
 Do not place anything on top of the unit.
 Do not expose the unit to moisture, to temperatures higher than
60 ˚
C (140
˚
F) or to extremely low temperatures.
 If your system does not work properly, disconnect the AC power
lead from the wall socket. Plug the AC power lead back in, and
then turn on your system.
 No naked flame sources, such as lighted candles, should be
placed on the apparatus.
 Attention should be drawn to the environmental aspects of battery
disposal.
 This unit should only be used within the range of 5˚C - 35˚C
(41˚F - 95˚F).
 The apparatus is designed for use in moderate climates.
Warning:
The voltage used must be the same as that specified on this unit.
Using this product with a higher voltage other than that which is
specified is dangerous and may result in a fire or other type of
accident causing damage. SHARP will not be held responsible for
any damage resulting from use of this unit with a voltage other than
that which is specified.
 Volume control
The sound level at a given volume setting depends on speaker
efficiency, location, and various other factors. It is advisable to avoid
exposure to high volume levels. Do not turn the volume on to full at
switch on and listen to music at moderate levels. Excessive sound
pressure from earphones and headphones can cause hearing loss.
 Use the unit on a firm, level surface free
from vibration.
 Keep the unit away from direct sunlight,
strong magnetic fields, excessive dust,
humidity and electronic/electrical
equipment (home computers,
facsimiles, etc.) which generate
electrical noise.
 In case of an electrical storm, unplug the unit for safety.
10 cm (4") 10 cm (4")
10 cm (4")
10 cm (4")
 Hold the AC power plug by the head when removing it from the
wall socket, as pulling the lead can damage internal wires.
 The AC power plug is used as a disconnect device and shall
always remain readily operable.
 Do not remove the outer cover, as this
may result in electric shock. Refer
internal service to your local SHARP
service facility.
 The ventilation should not be impeded by
covering the ventilation openings with
items, such as newspapers, tablecloths,
curtains, etc.

5
XL-UH25H
2008/June/10 XL-UH25H_UK&AUS
General Information
Controls and indicators
 Front panel
Reference page
1. Disc Compartment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
2. Timer Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
3. ON/STAND-BY Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
4. Function Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
5. Volume Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
6. Remote Sensor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
7. Stop Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15, 16, 21
8. Play/Pause Button . . . . . . . . . . . . . . . . . . . . . . . . . . 15, 16, 21
9. Headphone Socket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
10. Audio In Socket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
11. USB Terminal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
2
3
4
5
6
7
8
910 11
1

6
XL-UH25H
2008/June/10 XL-UH25H_UK&AUS
General Information
Controls and indicators (continued)

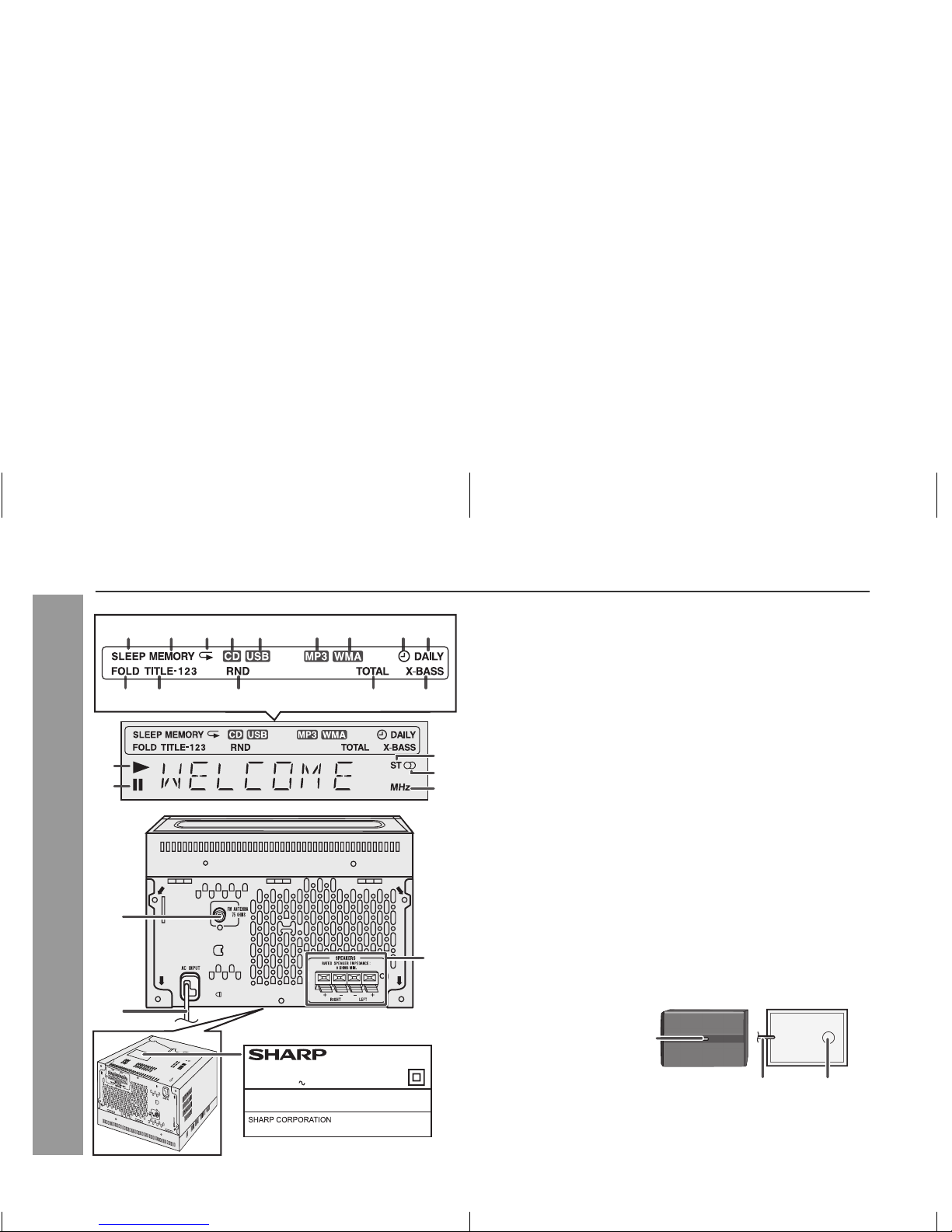

 Display
Reference page
1. Sleep Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
2. Memory Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18, 25
3. Disc or USB Repeat Play Indicator . . . . . . . . . . . . . . . . . . . 17
4. CD Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15, 17
5. USB Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21, 22
6. MP3 Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15, 21
7. WMA Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15, 21
8. Timer Play Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
9. Daily Timer Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
10. MP3/WMA Folder Indicator. . . . . . . . . . . . . . . . . . . . . . . 20, 22
11. MP3/WMA Title Indicator . . . . . . . . . . . . . . . . . . . . . . . . 20, 21
12. Disc or USB Random Indicator . . . . . . . . . . . . . . . . . . . . . . 17
13. Disc or USB Total Indicator . . . . . . . . . . . . . . . . . . . . . . 15, 21
14. Extra Bass Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
15. Disc or USB Play Indicator . . . . . . . . . . . . . . . . . . . . . . 15, 21
16. Disc or USB Pause Indicator . . . . . . . . . . . . . . . . . . . . . . . . 16
17. FM Stereo Mode Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . 24
18. FM Stereo Receiving Indicator . . . . . . . . . . . . . . . . . . . . . . 24
19. Tuner Receiving Frequency Indicator . . . . . . . . . . . . . . . . 24
 Rear panel
Reference page
1. FM 75 Ohms Aerial Socket . . . . . . . . . . . . . . . . . . . . . . . . . . 9
2. AC Power Lead . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
3. Speaker Terminals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
 Speaker system
15 17
18
12
3
45
10 11 12 13 14
6 7 8 9
16 19
1
2
3
XL-UH 25 H
MODEL NO.
SERIAL NO.
MICRO COMPONENT SYSTEM
AC 220 - 240V 50Hz 35 W
MADE IN MALAYSIA
The spec label is located at the
bottom of the unit.
The spec label illustration may be
different from the actual label used.
1. Full Range
2. Speaker Wire
Bass Reflex Duct3.
23
1

7
XL-UH25H
2008/June/24 XL-UH25H_UK&AUS
General Information

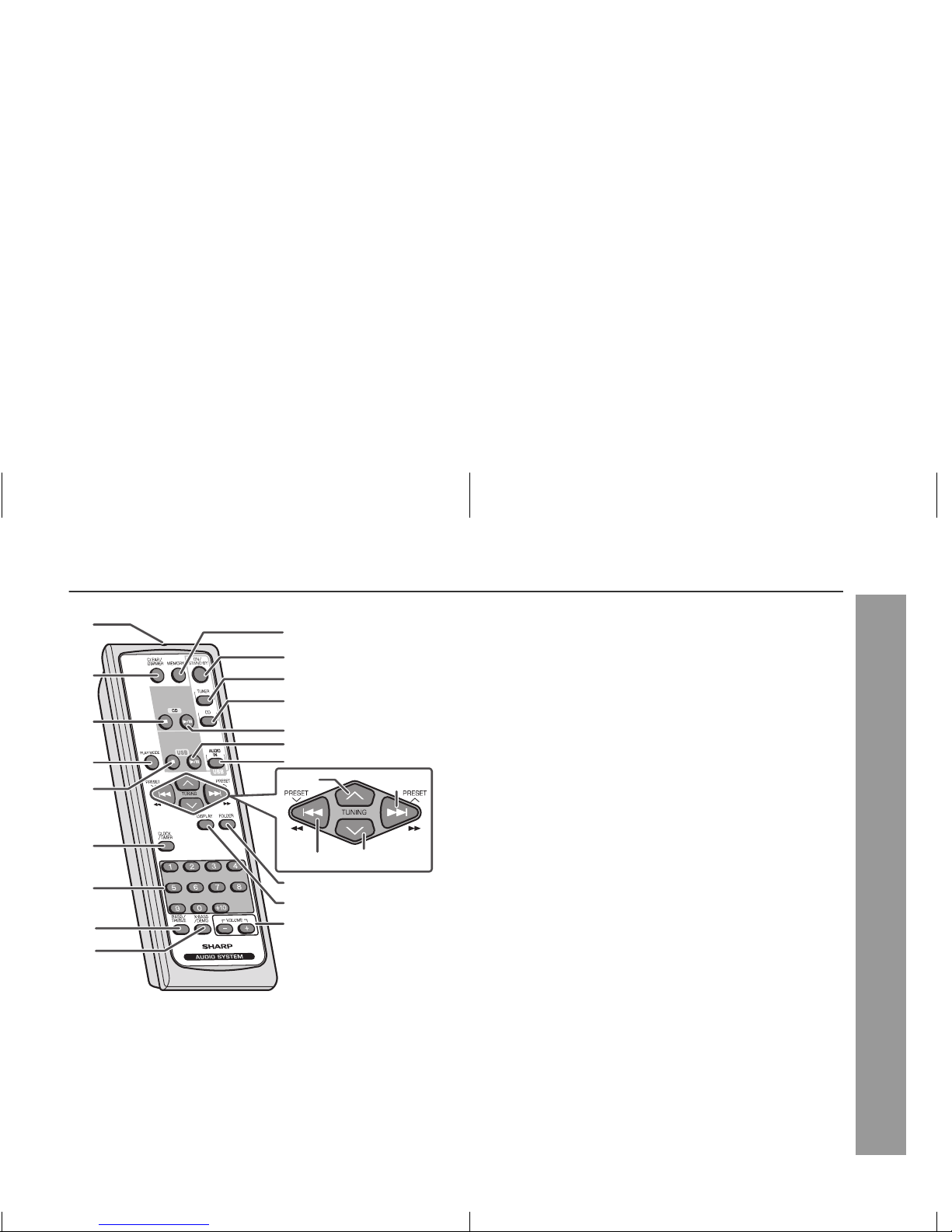

 Remote control
Reference page
1. Remote Control Transmitter . . . . . . . . . . . . . . . . . . . . . . . . 11
2. Clear/Dimmer Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
3. Disc Stop Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
4. Play Mode Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
5. USB Stop Button. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
6. Clock/Timer Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13, 26
7. Direct Search Buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
8. Bass/Treble Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
9. Extra Bass/Demo Button . . . . . . . . . . . . . . . . . . . . . . . . 10, 12
10. Memory Button . . . . . . . . . . . . . . . . . . . . . . . 13, 18, 24, 25, 26
11. On/Stand-by Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
12. Tuner Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
13. CD Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
14. Disc Play and Pause Button . . . . . . . . . . . . . . . . . . . . . 15, 16
15. USB Play and Pause Button . . . . . . . . . . . . . . . . . . . . . . . . 21
16. Audio In/USB Button . . . . . . . . . . . . . . . . . . . . . . . . . . . 21, 30
17. Tuning Up, Folder Up Button . . . . . . . . . . . . . . . . . . . . 20, 24
18. Track Up or Fast Forward,Tuner Preset Up,
Time Up Button . . . . . . . . . . . . . . . . . . . . . . 13, 16, 21, 25, 26
19. Track Down or Fast Reverse, Tuner Preset Down,
Time Down Button . . . . . . . . . . . . . . . . . . . . 13, 16, 21, 25, 26
20. Tuning Down, Folder Down Button . . . . . . . . . . . . . . . 20, 24
21. MP3/WMA Folder Button . . . . . . . . . . . . . . . . . . . . . . . . 19, 22
22. MP3/WMA Display Button . . . . . . . . . . . . . . . . . . . . . . . . . . 21
23. Volume Up and Down Buttons . . . . . . . . . . . . . . . . . . . . . . 12
1
2
3
4
5
6
7
8
9
12
13
14
15
11
10
16
22
23
21
17 18
2019

8
XL-UH25H
2008/June/10 XL-UH25H_UK&AUS
Preparation for Use

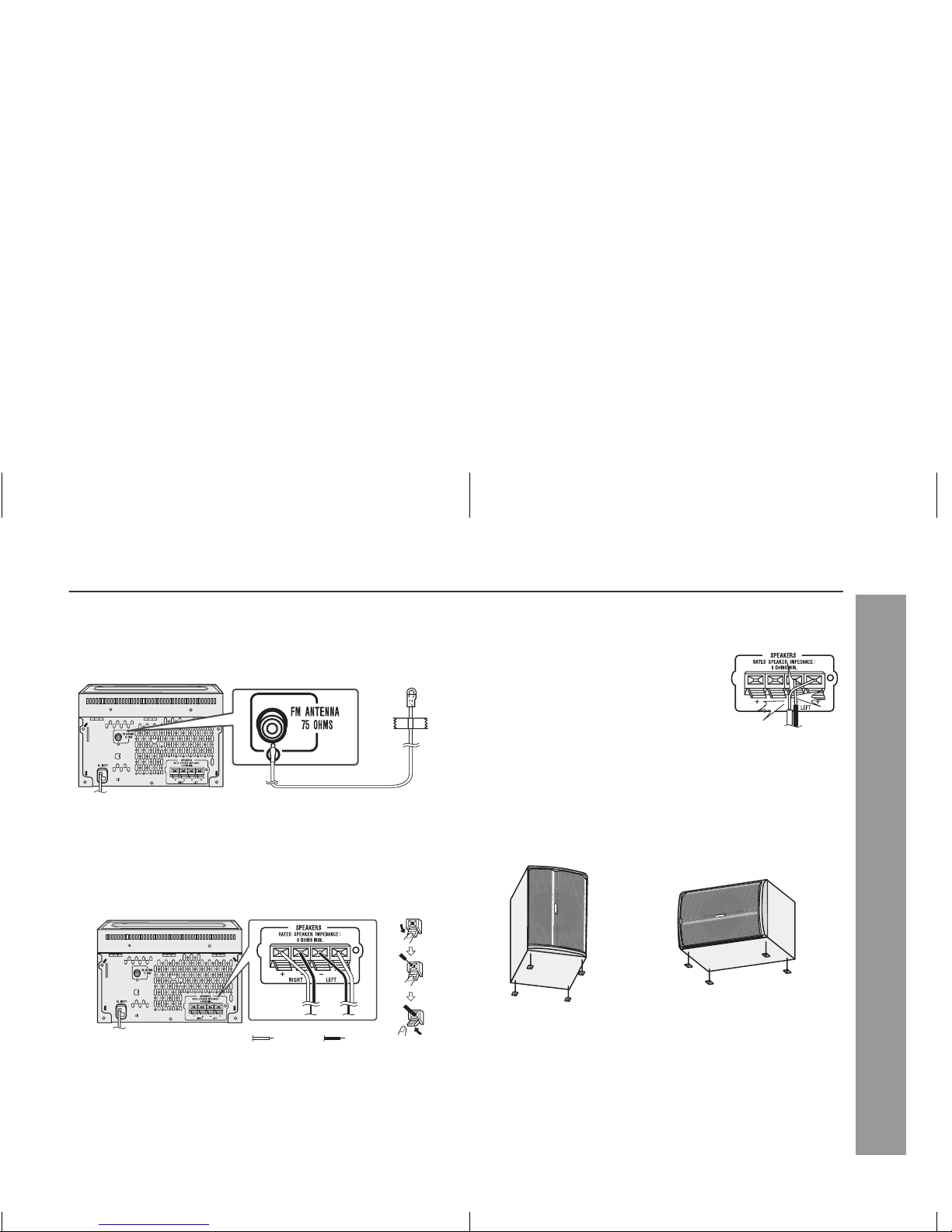

System connections
Right speaker
FM aerial
To a wall socket
Left speaker
AC power connection
(see page 10)
Aerial connection (see page 9)
Speaker connection (see page 9)
Make sure to unplug the AC power lead before making any connections

9
XL-UH25H
2008/June/10 XL-UH25H_UK&AUS
Preparation for Use
 Aerial connection
Supplied FM aerial:
Connect the FM aerial wire to the FM 75 OHMS socket and position
the FM aerial wire in the direction where the strongest signal can be
received.
Note:
Placing the aerial on the unit or near the AC power lead may cause
noise pickup. Place the aerial away from the unit for better reception.
 Speaker connection
Connect the black wire to the minus (–) terminal, and the red wire to
the plus (+) terminal.
Caution:
 Using antislip speaker cushions
You can install the speakers either vertically or horizontally. Affix the
cushions (supplied) to the bottom of the speakers to prevent them
from sliding or falling due to vibration.
A sheet of speaker cushions (8 pcs) is supplied with this product. Use
4 cushions per speaker.
Red Black
 Use speakers with an impedance of 8 ohms or more, as lower
impedance speakers can damage the unit.
 Do not mistake the right and the left
channels. The right speaker is the one on the
right side when you face the unit.
 Do not let the bare speaker wires touch
each other.
 Do not allow any objects to fall into or to be
placed in the bass reflex ducts.
 Do not stand or sit on the speakers. You may be injured.
Incorrect
(Vertical position) (Horizontal position)

10
XL-UH25H
2008/June/10 XL-UH25H_UK&AUS
Preparation for Use
System connections (continued)
AC power connection
After checking all the connections have been made correctly, plug
the AC power lead of this unit into the wall socket. If you plug in the
unit first, the unit will enter the demonstration mode.
Note:
Unplug the AC power lead from the wall socket if the unit will not be
in use for a prolonged period of time.

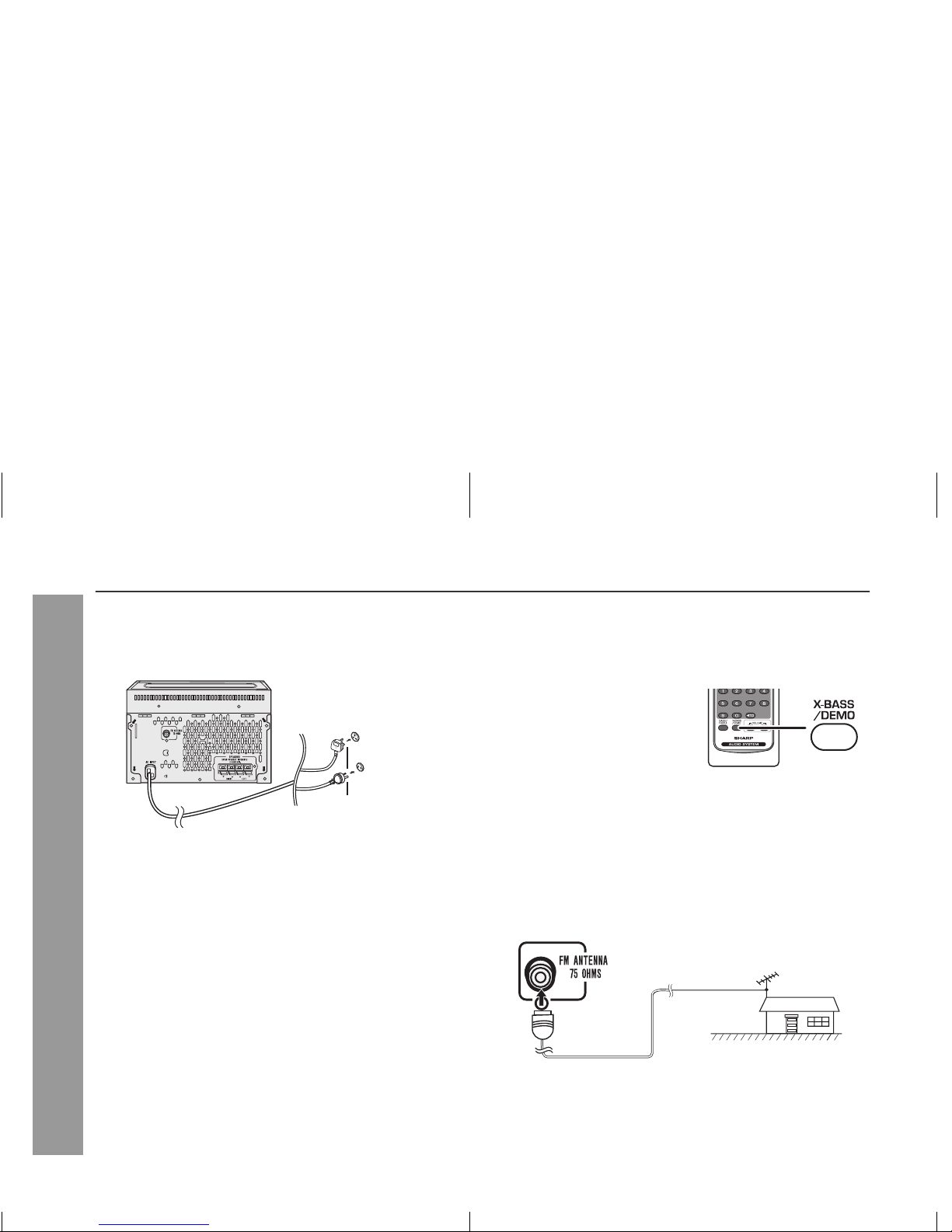

Demonstration mode
External FM aerial
Use an external FM aerial if you require better reception.
Consult your dealer.
Note:
When an external FM aerial is used, disconnect the supplied FM
aerial wire.
Wall socket
(AC 220 - 240 V ~ 50 Hz)
The first time the unit is plugged in, the unit will enter the
demonstration mode. You will see words scroll.
To cancel the demonstration mode:
When the unit is in the power stand-
by mode (demonstration mode),
press the X-BASS/DEMO button on
the remote control. The unit will
enter the low power consumption
mode.
To return to the demonstration mode:
When the unit is in the power stand-by mode, press the
X-BASS/DEMO button on the remote control again.
Note:
When the power is on, the X-BASS/DEMO button can be used to
select the extra bass mode.
External
FM aerial
75 ohms
coaxial cable

11
XL-UH25H
2008/June/10 XL-UH25H_UK&AUS
Preparation for Use
Remote control
Battery installation
Precautions for battery use:
Replace all old batteries with new ones at the same time.
Do not mix old and new batteries.
Remove the batteries if the unit will not be used for long periods
of time. This will prevent potential damage due to battery leakage.
Caution:
Do not use rechargeable batteries (nickel-cadmium battery, etc.).
Installing the batteries incorrectly may cause the unit to
malfunction.
Batteries (battery pack or batteries installed) shall not be exposed
to excessive heat such as sunshine, fire or the like.
Battery removal:
Open the battery cover and pull up the battery to take out.
Notes concerning use:
Replace the batteries if the operating distance is reduced or if the
operation becomes erratic. Purchase 2 “AA” size batteries
(UM/SUM-3, R6, HP-7 or similar).
Periodically clean the transmitter on the remote control and the
sensor on the unit with a soft cloth.
Exposing the sensor on the unit to strong light may interfere with
operation. Change the lighting or the direction of the unit if this
occurs.
Keep the remote control away from moisture, heat, shock, and
vibrations.
Test of the remote control
Check the remote control after checking all the connections (see
pages 8 - 10).
Point the remote control directly at the remote sensor on the unit.
The remote control can be used within the range shown below:
Press the ON/STAND-BY button. Does the power turn on? Now, you
can enjoy music.
1 Open the battery cover.
2 Insert the batteries according to the direction indicated in
the battery compartment.
When inserting or removing the batteries, push them towards the
battery terminals.
3 Close the cover.
0.2 m - 6 m
(8" - 20')
Remote sensor

12
XL-UH25H
2008/June/10 XL-UH25H_UK&AUS
Basic Operation

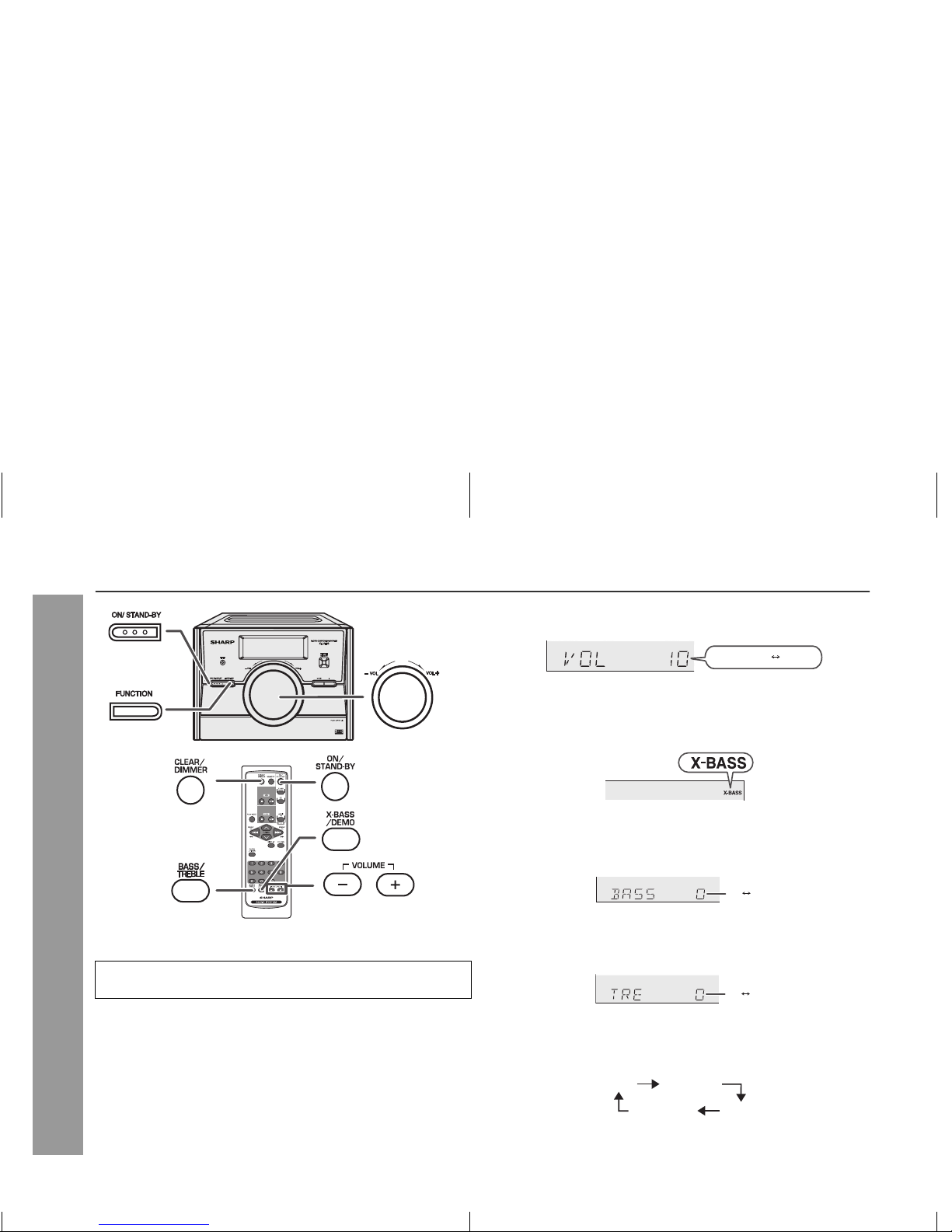

General control
To turn the power on
Press the ON/STAND-BY button to turn the power on.
Display brightness control
To dim the display brightness, hold down the CLEAR/DIMMER
button on the remote control for 2 seconds or more during power on.
Volume auto fade-in
If you turn off and on the main unit with the volume set to 27 or
higher, the volume starts at 16 and fades in to the last set level.
Volume control
Main unit operation:
When the VOLUME control is turned clockwise, the volume will
increase. When it is turned anti-clockwise, the volume will decrease.
Remote control operation:
Press the VOLUME (+ or –) button to increase or decrease the volume.
Extra bass control (X-BASS)
When the power is first turned on, the unit will enter the extra bass
mode which emphasises the bass frequencies, and “X-BASS” will
appear. To cancel the extra bass mode, press the X-BASS/DEMO
button on the remote control .
Bass control
1. Press the BASS/TREBLE button to select “BASS”.
2. Within 5 seconds, press the VOLUME (+ or –) button to adjust the
bass.
Treble control
1. Press the BASS/TREBLE button to select “TREBLE”.
2. Within 5 seconds, press the VOLUME (+ or –) button to adjust the
treble.
Function
When the FUNCTION button on main unit is pressed, the current
function will change to different mode. Press the FUNCTION button
repeatedly to select desired function.
Note:
The backup function will protect the memorised function mode for a
few hours should there be a power failure or the AC power lead
becomes disconnected.
After use:
Press the ON/STAND-BY button to enter the power stand-by mode.
30 MAXMIN .....
-3+3
-3+3
CD TUNER
USBAUDIO IN

13
XL-UH25H
2008/June/10 XL-UH25H_UK&AUS
Basic Operation

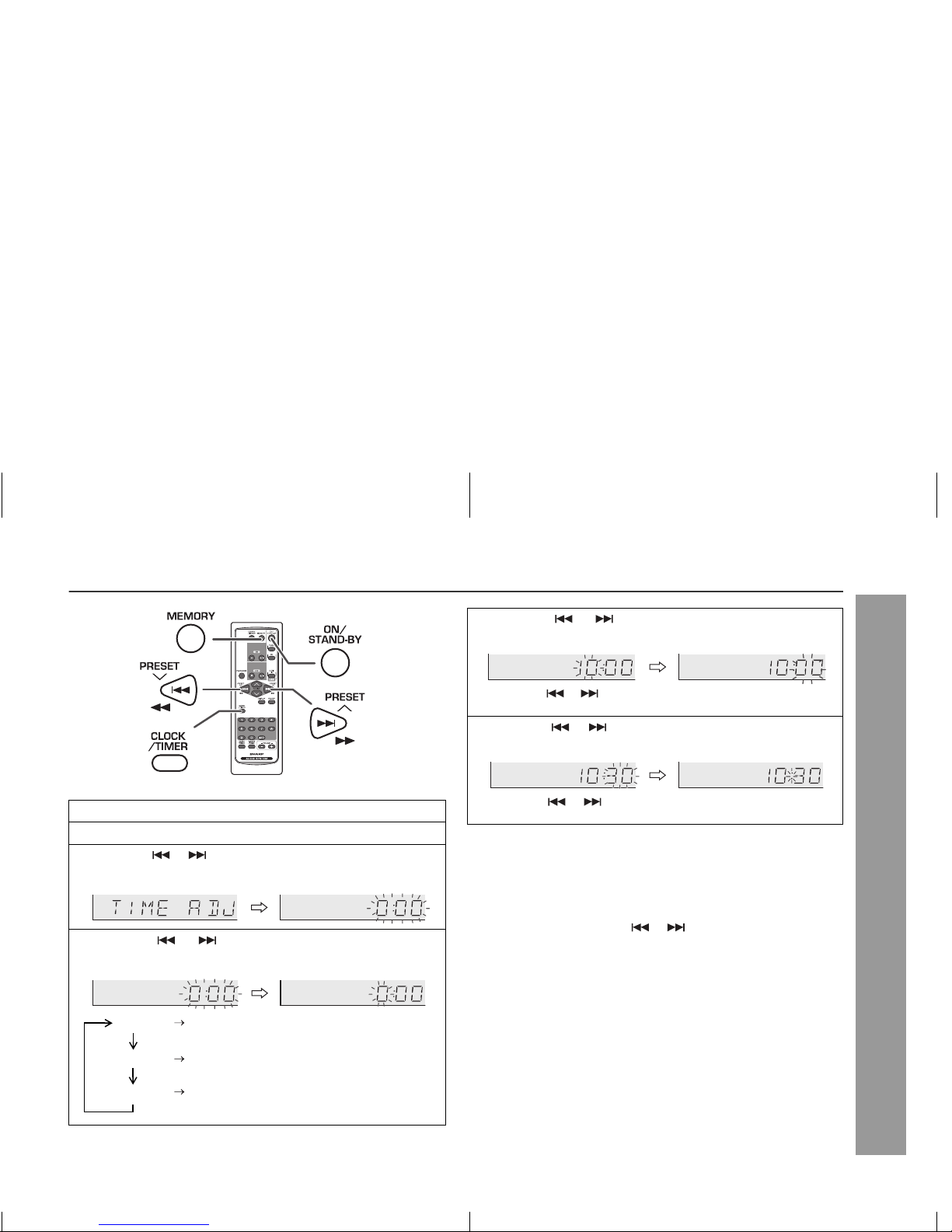

Setting the clock (Remote Control Only)
In this example, the clock is set for the 24-hour (0:00) display.
To confirm the time display:
[When the unit is in the stand-by mode]
Press the CLOCK/TIMER button.
The time display will appear for about 10 seconds.
[When the power is on]
Press the CLOCK/TIMER button.
Within 10 seconds, press the or button to display the time.
The time display will appear for about 10 seconds.
Note:
The “TIME ADJ” will appear or time will flash to confirm the time
display when the AC power supply is restored after a power failure
or unplugging the unit. If incorrect, readjust the clock as follows.
To readjust the clock:
Perform “Setting the clock” from step 1. If the “TIME ADJ” does not
appear in step 3, step 4 (for selecting the 24-hour or 12-hour
display) will be skipped.
To change the 24-hour or 12-hour display:
1Press the ON/STAND-BY button to turn the power on.
2Press the CLOCK/TIMER button.
3Press the or button to select “TIME ADJ”, and press
the MEMORY button.
4Press the or button to select 24-hour or 12-hour
display and then press the MEMORY button.
“0:00” The 24-hour display will appear.
(0:00 - 23:59)
“AM 12:00” The 12-hour display will appear.
(AM 12:00 - PM 11:59)
“AM 0:00” The 12-hour display will appear.
(AM 0:00 - PM 11:59)
5Press the or button to adjust the hour and then
press the MEMORY button.
Press the or button once to advance the time by 1 hour.
Hold it down to advance continuously.
6Press the or button to adjust the minutes and then
press the MEMORY button.
Press the or button once to advance the time by 1
minute. Hold it down to change the time in 5-minute intervals.
1 Clear all the programmed contents. [Refer to “Factory reset,
clearing all memory” on page 32 for details.]
2 Perform “Setting the clock” from step 1 onwards.

14
XL-UH25H
2008/June/10 XL-UH25H_UK&AUS
CD or MP3/WMA disc Playback
Listening to a CD or MP3/WMA disc
This system can play back a standard CD, CD-R/RW in the CD format
and CD-R/RW with MP3 or WMA files, but cannot record on them.
Some audio CD-R and CD-RW discs may not be playable due to the
state of the disc or the device that was used for recording.
MP3:
MP3 is a form of compression. It is an acronym which stands
for MPEG Audio Layer 3.
MP3 is a type of audio code which is processed by significant
compression from the original audio source with very little loss
in sound quality.
This system supports MPEG 1 Layer 3, MPEG 2 Layer 3, and
VBR files.
During VBR file playback, time counter in the display may differ
from its actual playback time.
Bitrate which is supported by MP3 is 32 ~ 320 kbps.
WMA:
WMA files are Advanced System Format files that include audio
files which are compressed with Windows Media Audio codec.
WMA is developed by Microsoft as an audio format file for
Windows Media Player.
“MP3” and “WMA” indicator will light up after the unit reads
information on an MP3 or WMA disc.
Bitrate which is supported by WMA is 64 ~ 160 kbps.
Auto power on function:
When you press any of the following buttons, the unit turns on.
CD button on the remote control: The unit turns on and the “CD”
function is activated.
CD / button on the remote control: The unit turns on and CD
playback starts (regardless of the last function).
FUNCTION button on the main unit: The unit turns on and the last
function is activated (CD, TUNER, USB, AUDIO IN).
/ button on the main unit: The unit turns on and playback of
the last function starts (CD, TUNER, USB, AUDIO IN).
Auto power off function:
In the stop mode of CD, MP3 or WMA operation, the main unit enters
the stand-by mode after 15 minutes of inactivity.

15
XL-UH25H
2008/June/26 XL-UH25H_UK&AUS
CD or MP3/WMA disc Playback
To remove the discs:
In the stop mode, open the disc compartment.
To pause playback:
Press the / (CD / ) button.
To stop playback:
Press the (CD ) button.
Caution:
 Do not play discs of special shapes (heart, octagon, etc.). It may
cause malfunctions.
 If a disc is damaged, dirty, or loaded upside down, “NO DISC” or
“CAN’T RD” will appear on the display.
 Keep foreign objects out of the disc compartment.
 Subjecting the unit to shock or vibration may cause mistracking.
 When the unit is not being used, be sure to close the disc
compartment. If it is left open, the lens may be covered with dust
and the unit may not operate properly.
 If TV or radio interference occurs during CD operation, move the
unit away from the TV or radio.

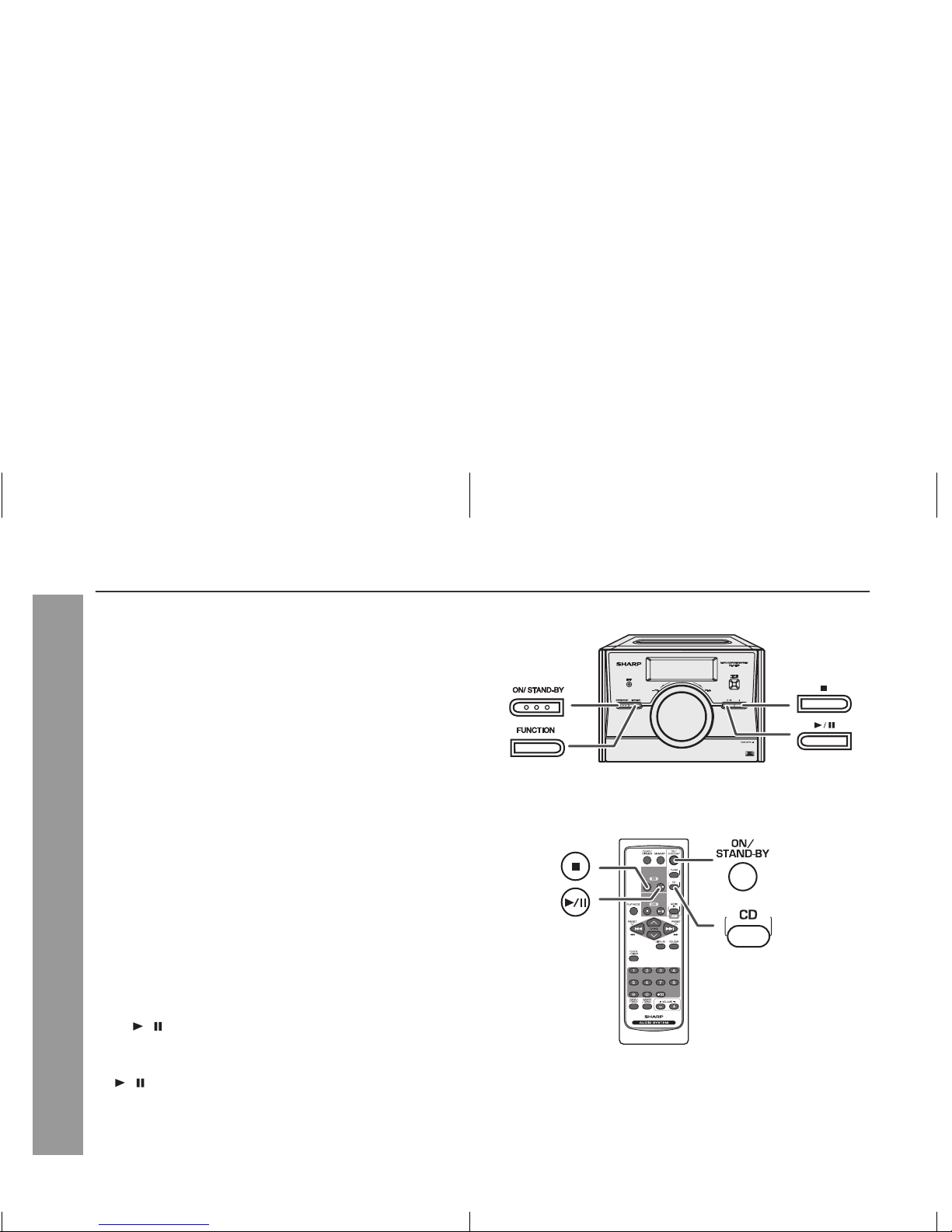

1
Press the ON/STAND-BY button to turn the power on.
2
Open the disc compartment.
3
Place the disc on the spindle, label side up.
Be sure to place 8 cm (3") disc in the middle of the spindle.
4
Close the disc compartment.
Press the CD button on the remote control or FUNCTION
button repeatedly on the main unit to select CD function.
 Due to the structure of the disc information, it takes longer to
read an MP3/WMA disc than a normal CD (approximately 20
to 90 seconds).
5
Press the / (CD / ) button to start playback.
 Playback will begin from track 1.
 After the last track on the disc is played, the unit will stop
automatically.

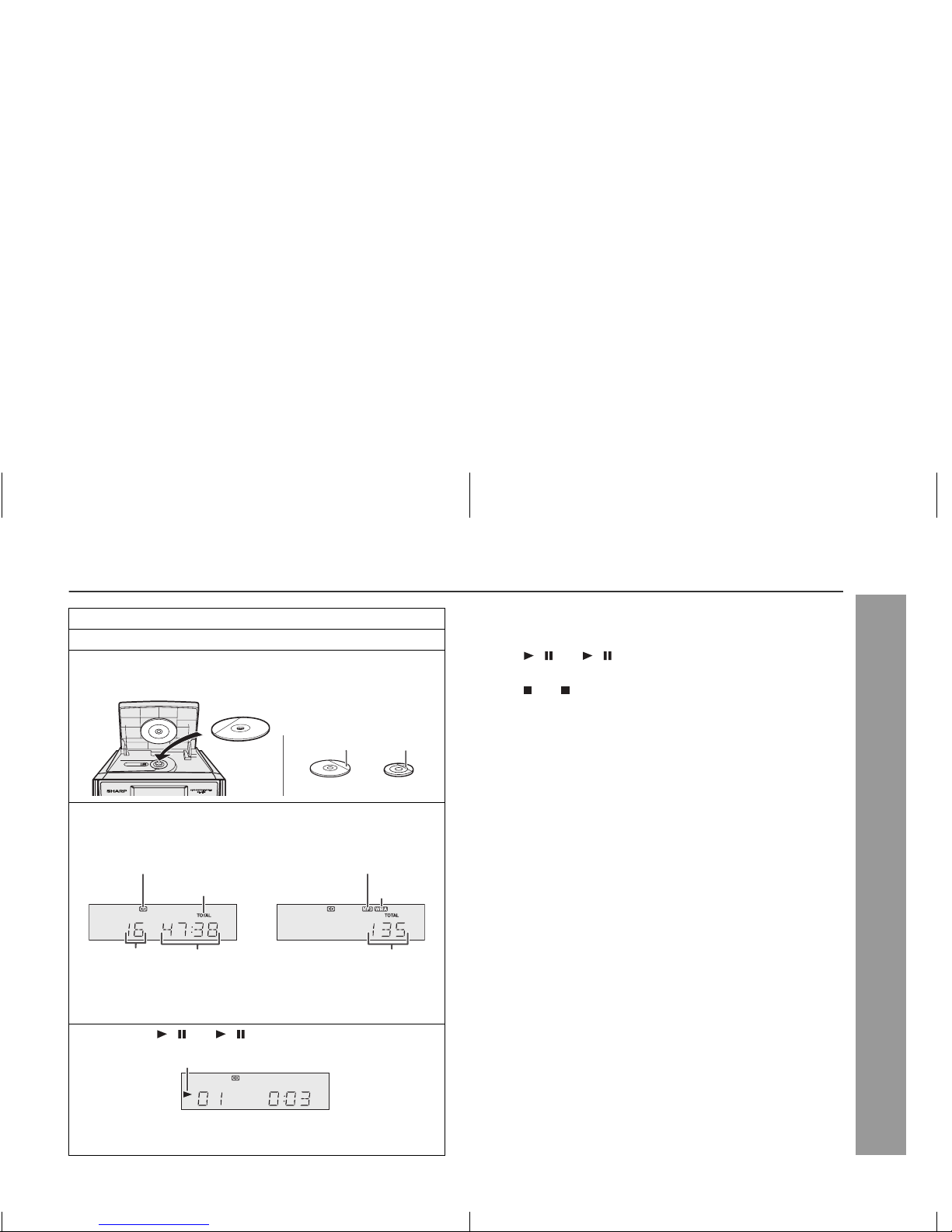

12 cm (5") 8 cm (3")
[CD] [MP3/WMA]
Total number of
tracks on the disc Total playing time
of the disc
Total number
of files
Total Indicator
MP3 indicator
WMA
indicator
CD Indicator
Disc play indicator

16
XL-UH25H
2008/June/10 XL-UH25H_UK&AUS
CD or MP3/WMA disc Playback
Listening to a CD or MP3/WMA disc (continued)
Various disc functions Notes for CD or MP3/WMA disc:
When the end of the last track is reached during fast forward,
“END” will appear on the display and CD operation will be paused.
When the beginning of the first track is reached during fast
reverse, the unit will enter the playback mode.
Rewritable multi-session discs with unfinished writing, can still be
played.
When a disc (CD, WMA or MP3) is input, “TOC READING” will be
displayed for several seconds depending on the number of files in
the disc. If this indication is displayed for an indefinite period of
time due to unspecified file being played or external noise etc.,
switch off the main AC power supply and then switch it on again.
Function Main unit Remote
control
Operation
Play Press in the stop
mode.
Stop Press in the playback
mode.
Pause Press in the playback
mode. Press the /
button to resume
playback from the
paused point.
Track up/
Track down
Press in the playback
or stop mode.
If you press the button
in the stop mode,
press the / button
to start the desired
track.
Fast
forward/
Fast
reverse
Press and hold down
in the playback mode.
Release the button to
resume playback.

17
XL-UH25H
2008/June/10 XL-UH25H_UK&AUS
CD or MP3/WMA disc Playback
Advanced CD or MP3/WMA disc playback
 Direct track search
By using the direct search buttons, the desired tracks on the current disc can be
played.
Notes:
 A track number higher than the number of tracks on the disc cannot be selected.
 During random play, direct search is not possible.
 Repeat play
Repeat play can play one track, all tracks or a programmed sequence continuously.
To cancel repeat play:
Press the PLAY MODE button again until “ ” disappears.
 Random play
The tracks on the disc can be played in random order automatically.
To cancel random play:
Press the PLAY MODE button. “RND” indicator will disappear.
Notes:
 If you press the button during random play, you can move to the track selected
next by the random operation. On the other hand, the button does not allow
you to move to the previous track. The beginning of the track being played will be
located.
 In random play, the unit will select and play tracks automatically. (You cannot
select the order of the tracks.)
 After all track on the disc is played, the unit will stop automatically.
Caution:
After performing repeat play, be sure to press the (CD ) button. Otherwise, the
disc will play continuously.

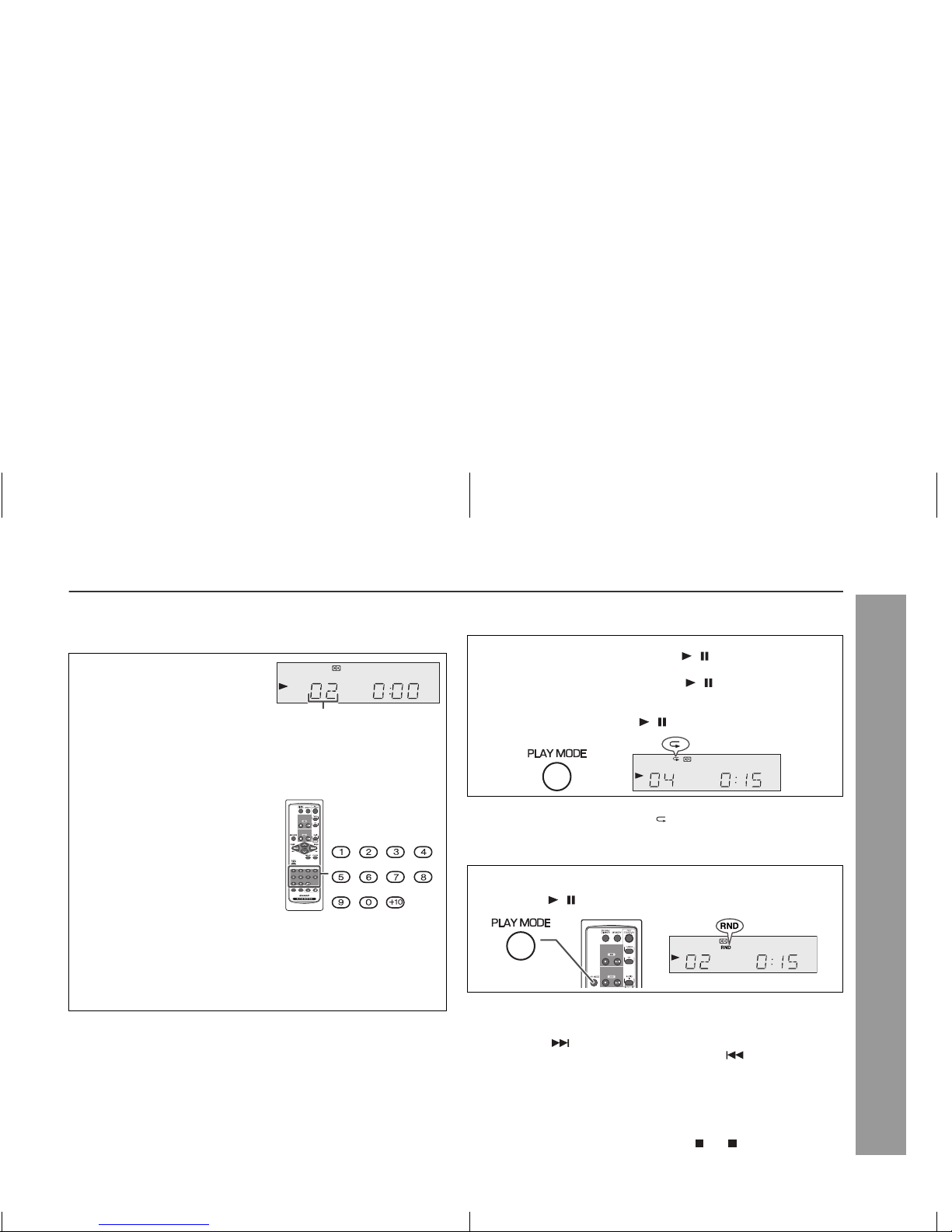

Use the direct search buttons on the
remote control to select the desired
track whilst playing the selected disc.
Selected track number
 The direct search buttons allow you to select up to number 9.
 When selecting number 10 or higher, use the “+10” button.
A. For example, to choose 13
1 Press the “+10” button once.
2 Press the “1” button.
3 Press the “3” button.
B. For example, to choose 130
1 Press the “+10” button twice.
2 Press the “1” button.
3 Press the “3” button.
4 Press the “0” button.
To repeat one track:
Press the PLAY MODE button once. Press the / button.
To repeat all tracks:
Press the PLAY MODE button twice. Press the / button.
To repeat desired tracks:
Perform steps 1 - 6 in “Programmed play” section on page 18 and then press the
PLAY MODE button once. Press the / button.
To random play all tracks:
Press and hold down PLAY MODE button on the remote control for 3 seconds or
more. Press the / button.

18
XL-UH25H
2008/June/10 XL-UH25H_UK&AUS
CD or MP3/WMA disc Playback
Advanced CD or MP3/WMA disc playback (continued)
Programmed play
You can choose up to 32 selections for playback in the order you like.
To cancel the programmed play mode:
Whilst in the stop mode and the “MEMORY” indicator is lit, press the
CLEAR/DIMMER button on the remote control. The “MEMORY”
indicator will disappear and all the programmed contents will be
cleared.
Adding tracks to the programme:
If a programme has been previously stored, the “MEMORY” indicator
will be displayed. Then follow steps 1 - 5 to add tracks. The new
tracks will be stored after the last track of the previous programme.
To check which tracks are programmed:
Whilst the unit is stopped in the programmed play mode, press the
or button.
MP3/WMA folder programmed:
Only tracks in the same folder can be select. Select which folder to
be progammed before entering programme mode. (refer page 20 to
select folder)
Notes:
If the disc lid is opened, the programmed sequence will be
cancelled.
If you press the ON/STAND-BY button to enter the stand-by mode
or change the function from CD to another, the programmed
selections will be cleared.
During the programme operation, random play is not possible.
1Whilst in the stop mode, press
the MEMORY button on the
remote control to enter the
programming save mode.
2Press the direct search buttons
on the remote control to select
the desired track.
Selected track number
You can also select a track by pressing the or button.
3Press the MEMORY button to
save the track number.
4Repeat steps 2 - 3 for other tracks. Up to 32 tracks can be
programmed.
You can also check the programmed tracks by pressing the
TUNING ( or ) button.
If you make a mistake, the programmed tracks can be cleared
by pressing the CLEAR/DIMMER button.
5Press the (CD ) button.
The total number in memory will
appear.
6Press the / (CD / ) button to start playback.
To clear the programmed selections:
Press the CLEAR/DIMMER button on the
remote control whilst the “MEMORY”
indicator is flashing.
Each time the button is pressed, one track will
be cleared, beginning with the last track
programmed.

19
XL-UH25H
2008/June/10 XL-UH25H_UK&AUS
CD or MP3/WMA disc Playback
MP3/WMA folder mode (only for MP3/WMA files)
To play back MP3/WMA (Windows Media Audio) file
There are many music sites on the internet that you can download
MP3/WMA (Windows Media Audio) music files. Follow the
instructions from the website on how to download from the music
files.
You can then play back these downloaded music files by burning
them to a CD-R/RW disc.
Your downloaded song/files are for personal use only. Any other
usage of the song without owner’s permission, is against the law.
About folder playback order
If MP3/WMA files are recorded in several folders, a folder number will
be set to each folder automatically.
These folders can be selected by the FOLDER button on the remote
control. If there is no supported file formats inside the selected folder,
the folder is skipped and the next folder will be selected.
Example: How to set folder number if MP3/WMA format files are
recorded as below figure.
The folder and file order information which is recorded on the disc
depends on the writing software. There may be possibilities that
this unit will play back the files not according to our expected
playback order.
For CD MP3/WMA, 512 numbers of folders and files inclusives of
the folders with non playable files can be read.
Folder mode on/off can be operated by the FOLDER button on the
remote control. Files that are played when folder mode is set to the
on position, may differ from those played back when folder mode is
turned off.
Folder Mode Off case:
All the files starting from the selected file will be played back. If file 3
inside Folder C is selected, all the files starting from file 3 will be
played back until file 10 of Folder E.
Folder Mode On case:
All the files inside the selected folder will be played back.
In case Folder D is selected, file 6, 7 and 8 will be played back. File
9 and 10 in Folder E will not be played back.
1. ROOT folder is set as folder 1.
2. As for folders inside ROOT folder (Folder A and Folder B), the
folder which is recorded earlier on the disc will be set as folder 2
and folder 3.
3. As for folder inside Folder A (Folder C and Folder D), the folder
which is recorded earlier on the disc will be set as folder 4 and
folder 5.
4. Folder E that is inside Folder D will be set as folder 6.
ROOT
(FOLDER 1)
FOLDER A
(FOLDER 2)
FOLDER B
(FOLDER 3)
FILE 9
FILE 10
FILE 3
FILE 4
FILE 5
FILE 6
FILE 7
FILE 8
FOLDER E
(FOLDER 6)
FOLDER C
(FOLDER 4)
FOLDER D
(FOLDER 5)
FILE 1
FILE 2

20
XL-UH25H
2008/June/10 XL-UH25H_UK&AUS
CD or MP3/WMA disc Playback
MP3/WMA folder mode (only for MP3/WMA files) (continued)
Procedure to play back MP3/WMA disc with
folder mode on
To play back CD-R/RW.
Note:
If “NO SPPRT” is displayed, it means “Copyright protected WMA
file” or “Not supported playback file” is selected.
1Press the CD button on the remote control or FUNCTION
button repeatedly on the main unit to select CD function,
and place an MP3/WMA disc.
 After disc is loaded, disc info will be displayed.

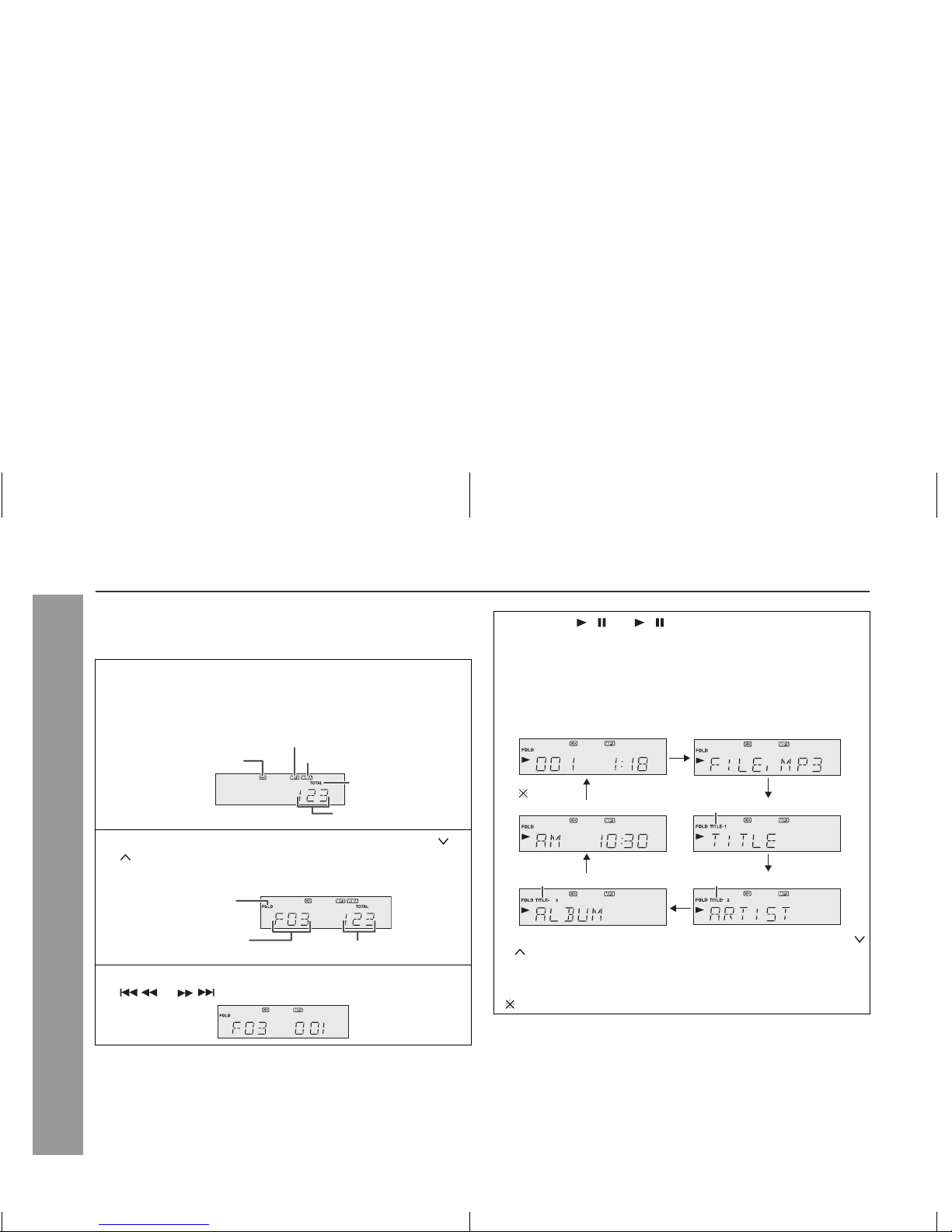

2Press the FOLDER button, and press the TUNING ( or
) button to select desired playback folder. (Folder mode
on)
3Select desired file to be played back by pressing the
or button.
TOTAL Indicator
WMA Indicator
MP3 Indicator
CD indicator
Total number of files
FOLDER Indicator
Total files in Folder 3
FOLDER Number
4 Press the / (CD / ) button.
Playback will start and file number selected will be
displayed.
 Title, Artist & Album name are displayed if they are recorded on
the disc.
 Display content can be changed by pressing the DISPLAY
button.
In case of playback with the folder mode on, press the
TUNING (
or ) button, and the folder can be selected even though it is in
playback/pause mode.
It will continue playback/pause mode in the 1st track of the
selected folder.
() Only appears when clock is already set.
( )
File Name Display
Clock Display
File Number Display
Title Display
Artist Display
Album Display
TITLE-1 Indicator
TITLE-2 Indicator
TITLE-3 Indicator
