Sharp 21V-FR95S User manual

In the interests of user-safety (Required by safety regulations in some countries) the set should be restored to its
original condition and only parts identical to those specified should be used.
COLOR TELEVISION
Chassis No. GA-4M
MODEL
Page
ELECTRICAL SPECIFICATIONS .................................................................................................. 1
IMPORTANT SERVICE SAFETY PRECAUTION ......................................................................... 2
LOCATION OF USER'S CONTROL .............................................................................................. 4
INSTALLATION AND SERVICE INSTRUCTIONS ........................................................................ 5
SERVICE MODE ........................................................................................................................... 6
ADJUSTMENT METHOD ..............................................................................................................
CHASSIS LAYOUT ....................................................................................................................... 26
BLOCK DIAGRAM ........................................................................................................................ 27
SCHEMATIC DIAGRAMS ...........................................................................................................
PRINTED WIRING BOARD ASSEMBLIES ................................................................................... 36
REPLACEMENT PARTS LIST ...................................................................................................... 40
PACKING OF THE SET ................................................................................................................ 47
CONTENTS
POWER INPUT .......................... 110-230 V AC,60 Hz
POWER RATING .............................................. 85W
PICTURE SIZE ...................... 1,239 cm 2 (192sq inch)
CONVERGENCE ......................................... Magnetic
SWEEP DEFLECTION ............................... Magnetic
FOCUS ............................ Hi-Bi-Potential Electrostatic
INTERMEDIATE FREQUENCIES
Picture IF Carrier Frequency ................... 45.75 MHz
Sound IF Carrier Frequency .................... 41.25 MHz
Color Sub-Carrier Frequency .................. 42.17 MHz
(Nominal)
AUDIO POWER OUTPUT RATING ............... 3 W + 3 W
SPEAKER
SIZE ....................................................... 9 cm x 5 cm
VOICE COIL IMPEDANCE ............... 16 ohm at 400 Hz
ANTENNA INPUT IMPEDANCE
VHF/UHF ..................................75 ohm Unbalanced
TUNING RANGES
VHF-Channels .......................................... 2 thru 13
UHF-Channels ........................................ 14 thru 69
CATV Channels ...................................... 1 thru 125
ELECTRICAL SPECIFICATIONS
TVSM056-21V-FR95S(SL)
Specifications are subject to change without
prior notice.
SERVICE MANUAL
SHARP (PHILS.) CORPORATION
Km. 23 West Service Road, South Super Highway Alabang, City of Muntinlupa
12
32
21V-FR95S (SL)
21V-FR95S (SL)

2
IMPORTANT SERVICE SAFETY PRECAUTION
Service work should be performed only by qualified service technicians who are
thoroughly familiar will all safety checks and the servicing guidelines which follow:
X-RADIATION AND HIGH VOLTAGE LIMITS
1. Be sure all service personnel are aware of the
procedures and instructions covering X-radiation.
The only potential source of X-ray in current solid
state TV receivers is the picture tube. However, the
picture tube does not emit measurable X-Ray
radiation, if the high voltage is as specified in the
"High Voltage Check" instructions.
It is only when high voltage is excessive that X-
radiation is capable of penetrating the shell of the
picture tube including the lead in the glass material.
The important precaution is to keep the high voltage
below the maximum level specified.
2. It is essential that servicemen have available at all
times an accurate high voltage meter.
The calibration of this meter should be checked
periodically.
3. High voltage should always be kept at the rated value
-no higher. Operation at higher voltages may cause
a failure of the picture tube or high voltage circuitry
and;also, under certain conditions, may produce
radiation in exceeding of desirable levels.
4. When the high voltage regulator is operating properly
there is no possibility of an X-radiation problem.
Every time a color chassis is serviced, the brightness
should be tested while monitoring the high voltage
with a meter to be certain that the high voltage does
not exceed the specified value and that it is regulating
correctly.
5. Do not use a picture tube other than that specified
or make unrecommended circuit modifications to the
high voltage circuitry.
6. When trouble shooting and taking test
measurements on a receiver with excessive high
voltage, avoid being unnecessarily close to the
receiver.
Do not operate the receiver longer than is necessary
to locate the cause of excessive voltage.
WARNING
1. For continued safety, no modification of any circuit
should be attempted.
2. Disconnect AC power before servicing.
3. Semiconductor heat sinks are potential shock
hazards when the chassis is operating.
4. The chassis in this receiver has two ground systems
which are separated by insulating material. The non-
isolated (hot) ground system is for the B+ voltage
regulator circuit and the horizontal output circuit. The
isolated ground system is for the low B+ DC voltages
and the secondary circuit of the high voltage
transformer.
To prevent electrical shock use an isolation
transformer between the line cord and power
receptacle, when servicing this chassis.
SERVICING OF HIGH VOLTAGE SYSTEM
AND PICTURE TUBE
When servicing the high voltage system,
remove the static charge by connecting a
10k ohm resistor in series with an insulated
wire (suc h as a test pr obe) between the pic-
ture tube gr ound and the anode lead. (AC
line cord should be connected from AC
outlet.)
1. Picture tube in this receiver employs integral
implosion protection.
2. Replace with tube of the same type number for
continued safety.
3. Do not lift picture tube by the neck.
4. Handle the picture tube only when wearing
shatterproof goggles and after discharging the high
voltage anode completely.
21V-FR95S

3
SAFETY NOTICE
Many electrical and mechanical parts in television
receivers have special safety-related characteristics.
These characteristics are often not evident from visual
inspection, nor can protection afforded by them be
necessarily increased by using replacement components
rated for higher voltage, wattage, etc.
Replacement parts which have these special safety
characteristics are identified in this manual; electrical
components having such features are identified by " "
and shaded areas in the Replacement Parts Lists and
Schematic Diagrams.
IMPORTANT SERVICE SAFETY PRECAUTION
(Continued)
1. Inspect all lead dress to make certain that leads are
not pinched or that hardware is not lodged between
the chassis and other metal parts in the receiver.
2. Inspect all protective devices such as non-metallic
control knobs, insulating materials, cabinet backs,
adjustment and compartment covers or shields,
isolation resistor-capacity networks, mechanical
insulators, etc.
3. To be sure that no shock hazard exists, check for
leakage current in the following manner.
Plug the AC cord directly into a 110~230 volt AC
outlet, (Do not use an isolation transformer for this
test).
Using two clip leads, connect a 1.5k ohm, 10 watt
resistor paralleled by a 0.15uF capacitor in series
with all exposed metal cabinet parts and a known
earth ground, such as electrical conduit or electrical
ground connected to earth ground.
Use an AC voltmeter having with 5000 ohm per volt,
or higher, sensitivity to measure the AC voltage drop
across the resistor.
BEFORE RETURNING THE RECEIVER
(Fire & Shock Hazard)
Before returning the receiver to the user, perform
the f ollowing safety checks.
Connect the resistor connection to all exposed metal
parts having a return to the chassis (antenna, metal
cabinet, screw heads, knobs and control shafts,
escutcheon, etc.) and measure the AC voltage drop
across the resistor.
AII checks must be repeated with the AC line cord
plug connection reversed. (If necessary, a non-
polarized adapter plug must be used only for the
purpose of completing these check.)
Any current measured must not exceed 0.5 milliamp.
Any measurements not within the limits outlined
above indicate of a potential shock hazard and
corrective action must be taken before returning the
instrument to the customer.
For continued protection, replacement parts must be
identical to those used in the original circuit. The use of
substitute replacement parts which do not have the same
safety characteristics as the factory recommended
replacement parts shown in this service manual, may
create shock, fire, X-radiation or other hazards.
1.5k ohm
10W
0.15 F
TEST PROBE
TO EXPOSED
METAL PARTS CONNECT TO
KNOWN EARTH
GROUND
!
21V-FR95S

4

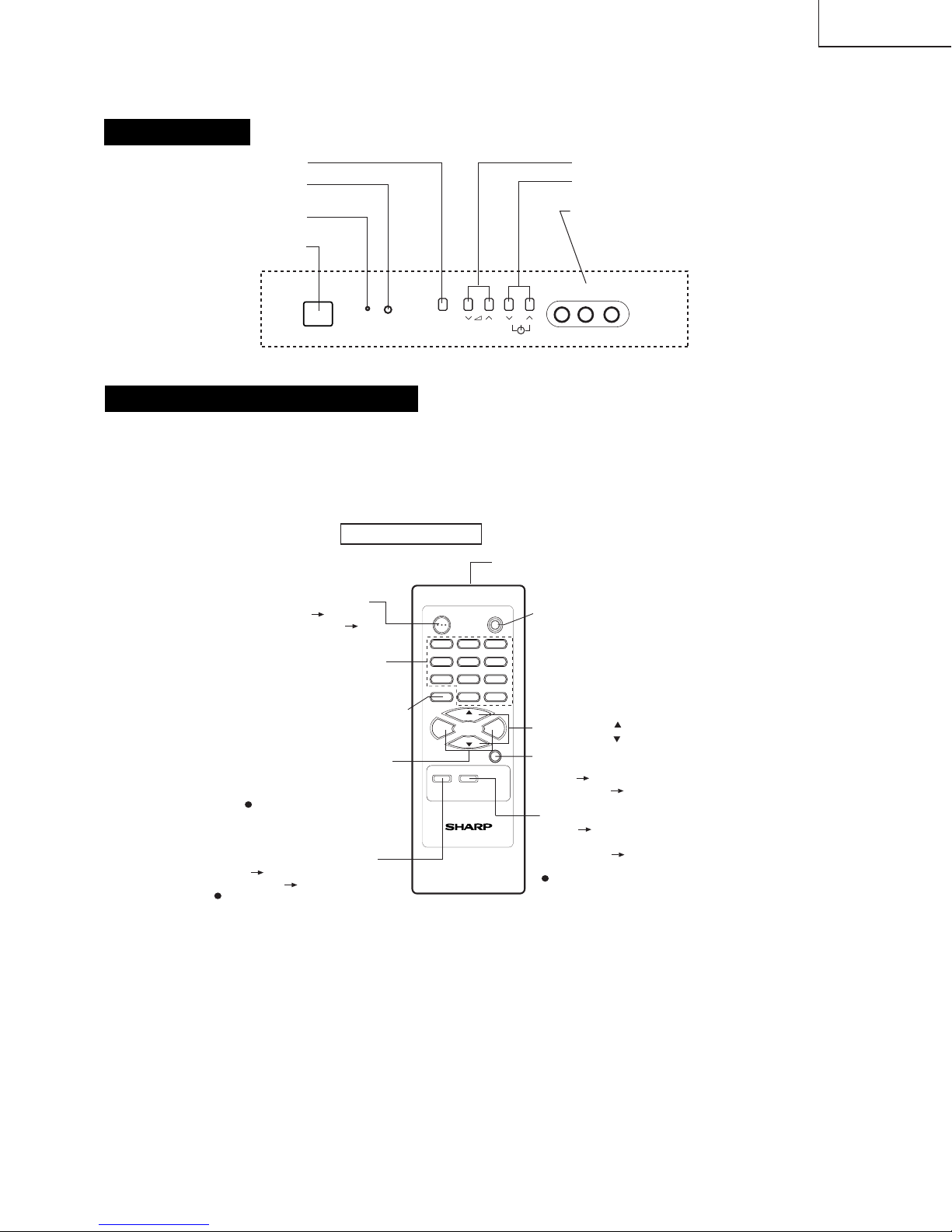

LOCATION OF USER'S CONTROL
Front Panel
Basic Remote Control Functions
CHANNEL Up / Down
(Power On)
VOLUME Up / Down
Menu/Preset
POWER indicator
MAIN Power
CH
REMOTE
CONTROL Sensor
FRONT AV Input
Terminal
MENU/P
RESET
VIDEO (MONO) L - AUDIO - R
IN-2
ON
MAIN
POWER
REMOTE
SENSOR
Note: Appearance design may vary depending on models ;
E
REMOTE CONTROL
FLASHBACK
Infrared
Transmitter
Window
MENU
CHANNEL
UP / DOWN
POWER INPUT
1 2 3
4 5 6
7 8 9
0 100
CH
MENU
MUTE
FLASHBACK
DISPLAY
CH
+
VOL
-
VOL
TV
INPUT
Press Switch to external video
INPUT 1 mode.
Press 2 times Switch to external
video INPUT 2 mode.
Press 3 times Switch back to the
original TV mode.
( ) Selects next higher channel.
( ) Selects next lower channel
presetting.
Press Accesses MAIN MENU.
Press again Exits MAIN MENU.
DISPLAY
Press Displays receiving
channel for four seconds.
Press again Removes
display.
Temporarily displays receiving
channel when in Closed Caption
mode.
(+ ) Increases sound.
( - ) Decreases sound.
In menu mode, changes or
selects the TV adjustments.
VOLUME UP / DOWN
Returns to previous channel.
POWER
Press ON.
Press again OFF.
REMOTE KEYPAD
Accesses any channel
from keypad.
MUTE
Press Mute sound.
Press again Restores sound.
CLOSED CAPTION appears when
sound is muted.
21V-FR95S

5
CIRCUIT PROTECTION
The receiver is protected by a 3.15A fuse (F701),
mounted on PWB-A, wired into one side of the A C
line input.
X-RADIATION PROTECTOR CIRCUIT TEST
After ser vice has been perf ormed on the horizontal
deflection system, high v olta ge system, B+ system,
test the X-Radiation pr otection cir cuit to ascer tain
proper operation as f ollo ws:
1.Apply 110~230V AC using a variac transformer for
accurate input voltage.
2. Allow for warm up and adjust all customer controls
for normal picture and sound.
3. Receive a good local channel.
4. Connect a digital voltmeter to TP653 and make sure
that the voltmeter reads 26 ±1.1V.
5. Apply external 27V DC at TP653 by using an
external DC supply, TV must be shut off.
6. To reset the protector, unplug the AC cord and make
a short circuit between TP651 and TP652. Now make
sure that normal picture appears on the screen.
7. If the operation of the horizontal oscillator does not
stop in step 5, the circuit must be repaired before the
set is returned to the customer.
HIGH VOLTAGE CHECK
High v oltage is not adjustab le but m ust be c hecked
to verify that the receiver is operating within safe
and efficient design limitations as specified checks
should be as follows:
1. Connect an accurate high voltage meter between
ground and anode of picture tube.
2.Operate receiver for at least 15 minutes at 110~230V
AC line voltage, with a strong air signal or a properly
tuned in test signal.
3. Enter the service mode and set Y-mute ON by using
Service R/C.
4. The voltage should be approximately 30 kV (at zero
beam).
If a correct reading cannot be obtained, check circuitry
for malfunctioning components. After the voltage test,
make Y-mute off to the normal mode.
INSTALLATION AND SERVICE INSTRUCTIONS
Note: (1) When performing any adjustments to resistor controls and transformers, use non-mettalic
screw drivers or TV alignment tools.
(2) Before performing adjustments, the TV set must be on at least 15 minutes.
21V-FR95S

6
Service Mode Overview
1. Service mode is entered by SERVICE key input or CH-UP +VOL-DOWN input during reset.
2. Service mode is cleared by entering SERVICE key command during service mode.
3. If key input port (SERVICE) input is LOW, then it is in service mode.
4. During key input port (SERVICE) input is LOW, clearing service mode by key input SERVICE is disabled.
5. Service mode can be switched to 4 modes as follows by key input MENU;
SERVICE MODE
6. AFT processing is disabled during service mode. PLL setting data is set to fo data.
7. All user data are set to default during service mode. FAO and SPEAKER user settings are off and on respectively
in service mode. Energy Save is off.
8. Sleep timer, View timer, on timer and off timer are inactivated in Service mode.
9. Sound is muting in service mode except at Adjustment Items V20, M01, M03, M04, M05, and M06.
Adjustment mode
Setting mode First mode of service mode when SERVICE key is
pressed.
First mode of service mode when local key
CH-UP + VOL-DOWN is pressed after MCU reset.
Option mode
Check mode
21V-FR95S

7
Adjustment Mode Items
No. Item Name IC Register Range Default
V01 SUB-PICTURE 1 Chip CONTRAST 0~127 127
V02 SUB-TINT 1 Chip TINT 0~127 64
V03 SUB-COLOR 1 Chip COLOR 0~127 64
V04 SUB-BRIGHT 1 Chip BRIGHT 0~255 128
V05 SUB-SHARP 1 Chip VIDEO-TONE 0~63 43
V06 V-SHIFT 1 Chip V-SHIFT 0~7 4
V07 H-SHIFT 1 Chip H-PHASE 0~31 16
V08 RF-AGC 1 Chip RF-DELAY 0~127 127
V09 V-SIZE 1 Chip V-SIZE 0~63 32
V10 PIF-VCO 1 Chip VIF-VCO 0~63 32
V11 R-CUTOFF 1 Chip R-CUTOFF 0~255 127
V12 G-CUTOFF 1 Chip G-CUTOFF 0~255 127
V13 B-CUTOFF 1 Chip B-CUTOFF 0~255 127
V14 R-DRIVE 1 Chip R-DRIVE 0~127 64
V15 B-DRIVE 1 Chip B-DRIVE 0~127 64
V16 SUB-COLOR(YUV) 1 Chip COLOR 0~127 64
V17 SUB-TINT(YUV) 1 Chip BASEBAND-TINT 0~127 64
V18 CC-POS MICON CC-POS 0~255 32
V19 SCREEN CUT OFF 1 Chip CUT OFF 0~2 0
V20 SUB-VOL 1 Chip A-ATT 0~127 127
V21 H-VCO 1 Chip H-VCO 0~7 4
M01 MTS-ATT MTS ATT (MTS) 0~15 10
M02 MTS-VCO MTS VCO (MTS) 0~63 32
M03 MTS-FILTER MTS FILTER (MTS) 0~63 28
M04 MTS-WIDEBAND MTS WIDEBAND (MTS) 0~63 27
M05 MTS-SPECTRAL MTS SPECTRAL (MTS) 0~63 32
M06 SUB-VOL MTS VOL (MTS) 0~63 63
21V-FR95S

8
SELF ADJUSTMENT
H-VCO
1. When there is H-VCO self-adjustment key input for adjustment item H-VCO, self-adjustment is performed.
2. H-FREE(1chip) is set to 1.
3. H-OUT is set by intelligent monitor output.
4. IM input is set as TIM input.
5. H-VCO(1chip) data is changed so that the number of input pulse is 125 inside 8ms interval.
6. When adjustment completed, OSD display and H-VCO self-adjustment status data of EEPROM are updated.
7. H-FREE(1chip), intelligent monitor output and IM input mode are recovered.
RF-AGC
1. When there is RF-AGC self-adjustment key input for adjustment item RF-AGC, self-adjustment is performed.
2. AGC-OUT is set by intelligent monitor output.
3. IM input is set as AD input.
4. By decreasing RF-AGC (1chip) data from current RF-AGC adjustment value to 0, AFT input voltage becomes the
maximum setting value.
5. Increase RF-AGC(1chip) data, when AFT input voltage is at (max. 0.3V) point, adjustment is completed.
6. When adjustment completed, OSD display and RF-AGC self-adjustment status data of EEPROM are updated.
7. Intelligent monitor output and IM input mode are recovered.
PIF-VCO
1. When there is PIF-VCO self-adjustment key input for adjustment item PIF-VCO, self-adjustment is performed.
2. VIF-DEF(1chip) is set to 1.
3. AFC is set by intelligent monitor output.
4. IM input is set as AD input.
5. VIF-VCO(1chip) data is changed so that input voltage becomes 2.5V.
6. When adjustment completed, OSD display and PIF-VCO self-adjustment status data of EEPROM are updated.
7. VIF-DEF(1chip), intelligent monitor output and IM input mode are recovered.
21V-FR95S

9
Setting Mode Items
No. Item Name IC Register Range Default
F01 VIDEO TONE -GAIN (TV) 1 Chips V-TONE 0/1 0
F02 VIDEO TONE -GAIN (AV) 1 Chips V-TONE 0/1 0
F03 VIDEO TONE -GAIN (S-AV) 1 Chips V-TONE 0/1 0
F04 VIDEO TONE -GAIN(YUV) 1 Chips V-TONE 0/1 0
F05 ABCL 1 Chips ABCL 0/1 0
F06 BS 1 Chips BS-OFF 0/1 0
F07 ABCL-G 1 Chips ABCL-G 0/1 0
F08 SHP-AV OFFSET VIDEO-TONE(OFFSET) -16~+16 0
F09 SHP-SAV OFFSET VIDEO-TONE(OFFSET) -16~+16 0
F10 SHP-YUV OFFSET VIDEO-TONE(OFFSET) -16~+16 0
F11 RGB-CLIP 1 Chips EXTRGB-CLIP 0/1 0
F12 E-SAVE OFFSET CONTRAST(OFFSET) 0~63 30
F13 FAO-VOL 1 Chips A-ATT 0~127 120
F14 PIF-G 1 Chips VIF-GAIN 0~7 4
F15 Y-DELAY(TV) 1 Chips Y-DELAY 0~7 0
F16 Y-DELAY(AV) 1 Chips Y-DELAY 0~7 0
F17 Y-DELAY(SAV) 1 Chips Y-DELAY 0~7 0
F18 Y-DELAY(YUV) 1 Chips Y-DELAY 0~7 0
F19 TINT-AV OFFSET TINT(OFFSET) -32~+32 0
F20 TINT-SAV OFFSET TINT(OFFSET) -32~+32 0
F21 COL-AV OFFSET COLOR(OFFSET) -32~+32 0
F22 COL-SAV OFFSET COLOR(OFFSET) -32~+32 0
F23 R-DRI(R2) OFFSET R-DRI(OFFSET) -32~+32 0
F24 R-DRI( R) OFFSET R-DRI(OFFSET) -32~+32 0
F25 R-DRI(B) OFFSET R-DRI(OFFSET) -32~+32 0
F26 B-DRI(R2) OFFSET B-DRI(OFFSET) -32~+32 0
F27 B-DRI( R) OFFSET B-DRI(OFFSET) -32~+32 0
F28 B-DRI(B) OFFSET B-DRI(OFFSET) -32~+32 0
F29 V-FREE 1 Chips V-FREE 0/1 0
F30 GAMMA 1 Chips GAMMA 0~3 0
F31 TRAP(TV) 1 Chips TRAP-FINE 0~3 2
F32 TRAP(AV) 1 Chips TRAP-FINE 0~3 2
F33 H-FREE 1 Chips H-FREE 0/1 0
F34 1W(TV) 1 Chips V.WINDOW 0/1 0
F35 1W(AV) 1 Chips V.WINDOW 0/1 0
F36 YLPF 1 Chips YSW-LPF 0/1 1
F37 BS-D 1 Chips BS-DISCHARGE 0~3 0
F38 BS-C 1 Chips BS-CHARGE 0~3 0
F39 SL(TV) 1 Chips S-SLICE DOWN 0~3 0
F40 SL(AV) 1 Chips S-SLICE DOWN 0~3 0
F41 SL(SAV) 1 Chips S-SLICE DOWN 0~3 0
F42 SL(YUV) 1 Chips S-SLICE DOWN 0~3 0
F43 AFC2 1 Chips AFC2-G 0/1 0
F44 VD(TV) 1 Chips VSYNC-DET 0/1 0
F45 VD(AV) 1 Chips VSYNC-DET 0/1 0
F46 AS(TV) 1 Chips AUTO-SLICE 0/1 0
F47 AS(AV) 1 Chips AUTO-SLICE 0/1 0
F48 AS(SAV) 1 Chips AUTO-SLICE 0/1 0
F49 AS(YUV) 1 Chips AUTO-SLICE 0/1 0
F50 FBP(TV) 1 Chips FBP VTH 0/1 0
F51 FBP(AV) 1 Chips FBP VTH 0/1 0
F52 FBP(SAV) 1 Chips FBP VTH 0/1 0
F53 FBP(YUV) 1 Chips FBP VTH 0/1 0
F54 C.CLIP LEVEL 1 Chips C.CLIP LEVEL 0/1 0
21V-FR95S

10
Setting Mode Items (Continued)
No. Item Name IC Register Range Default
F55 PSW MTS PSW 0/1 0
F56 FAO-VOL MTS VOL 0~63 60
F57 CP PLL CHARGE PUMP 0/1 0
F58 CC LEVEL MICON CC LEVEL 0/1 0
F59 OSD POS MICON OSD POS 0/1 0
F60 OFFSET-ADJ-COL 1 Chips COLOR -32~+32 0
F61 OFFSET-ADJ-TINT 1 Chips TINT -32~+32 0
F62 OFFSET-ADJ-TINT-YUV 1 Chips BASEBAND-TINT -32~+32 0
F63 TIMER4-LOW SPEED 1 Chips TIMER4 VALUE 0~225 50
F64 TIMER4-HIGH SPEED 1 Chips TIMER4 VALUE 0~225 125
F65 R-CUT-YUV 1 Chips R-CUT(OFFSET) -63~+63 0
F66 G-CUT-YUV 1 Chips G-CUT(OFFSET) -63~+63 0
F67 B-CUT-YUV 1 Chips B-CUT(OFFSET) -63~+63 0
F68 R-DRI-YUV 1 Chips R-DRI(OFFSET) -63~+63 0
F69 B-DRI-YUV 1 Chips B-DRI(OFFSET) -63~+63 0
F70 CLOCK-ADJ 1 Chips 0~25 25
21V-FR95S

11
Option Mode Items
No OPTION FUNCTION 01
Default Data
001 DEMO Without DEMO With DEMO 1
002 DOWNLOAD Without V-CHIP OP With V-CHIP OP 0
003 V-CHIP Without V-CHIP With V-CHIP 0
004 SPEAKER Without SPEAKER With SPEAKER 1
005 FAO Without FAO With FAO 1
006 P.PREF Without P.REF With P.REF 1
007 UNIV+ Without UNIV+ With UNIV+ 1
008 VIEW TIMER Without VIEW TIMER With VIEW TIMER 1
009 EZ-SETUP EZ-SETUP AUTO PRESET 0
010 PON-CH Without POWER-ON With POWER-ON 0
011 FAV-COL FAV-COL COL-TEMP 1
012 COMPONENT Without COMPONENT With COMPONENT 1
013 AV Without AV With AV 1
014 AV2 AV1 system AV2 system 1
015 MTS Without MTS With MTS 1
016 TONE-CTRL Without S-ADJ With S-ADJ 1
017 AUTO-OFF Without AUTO-OFF With AUTO-OFF 1
018 INIT-LANG ENGLISH SPANISH 1
019 SETUP-FLAG NO SET UP AUTO SET UP 1
020 AV-FR "0"=NO AV "1"=REAR "2"=FRONT "3"=REAR & FRONT 3
021 AV3/S-IN Without AV3/S-IN With AV3/S-IN 0
022 COMB Without COMB With COMB 0
023 AUTO-INPUT Without AUTO-INPUT With AUTO-INPUT 1
024 CLOCK Without CLOCK With CLOCK 1
025 LED SEMEX MODEL SPC MODEL 0
026 FLAT Not FLAT MODEL FLAT MODEL 1
027 BASS BOOST Without BASS BOOST With BASS BOOST 0
028 DSE Without DSE With DSE 0
029 SRS Without SRS With SRS 0
030 WHITE-OUT Without WHITE-OUT With WHITE-OUT 1
Check Mode
Micron mask version, software version and ROM correction function status are displayed in check mode.
21V-FR95S

12
ADJUSTMENT METHOD
Caution: to get into the service mode, one of the ways is press direct key for service items.
There is three stage of Service Mode data
First stage data from V01 ~ M06
to go into second stage of service mode data, press MENU key
Second stage data from F01 ~ F70
to go into third stage of service mode data, press MENU key
Third stage data from 001 ~ 030
Below is the contents of these data
First Stage
Auto Adjustment Item
1. H-VCO
2. RF-AGC
3. PIF-VCO
Data Service Mode Function Range Default Data
V01 SUB-PICTURE CONTRAST 0~127 127
V02 SUB-TINT TINT 0~127 64
V03 SUB-COLOR COLOR 0~127 64
V04 SUB-BRIGHT BRIGHT 0~255 128
V05 SUB-SHARP VIDEO-TONE 0~63 43
V06 V-SHIFT V-SHIFT 0~7 4
V07 H-SHIFT H-PHASE 0~31 16
V08 RF-AGC RF-DELAY 0~127 127
V09 V-SIZE V-SIZE 0~63 32
V10 PIF-VCO VIF-VCO 0~63 32
V11 R-CUTOFF R-CUTOFF 0~255 127
V12 G-CUTOFF G-CUTOFF 0~255 127
V13 B-CUTOFF B-CUTOFF 0~255 127
V14 R-DRIVE R-DRIVE 0~127 64
V15 B-DRIVE B-DRIVE 0~127 64
V16 SUB-COLOR(YUV) COLOR 0~127 64
V17 SUB-TINT(YUV) BASEBAND-TINT 0~127 64
V18 CC-POS CC-POS 0~255 32
V19 SCREEN CUT OFF CUT OFF 0~2 0
V20 SUB-VOL A-ATT 0~127 127
V21 H-VCO H-VCO 0~7 4
M01 MTS-ATT ATT (MTS) 0~15 10
M02 MTS-VCO VCO (MTS) 0~63 32
M03 MTS-FILTER FILTER (MTS) 0~63 28
M04 MTS-WIDEBAND WIDEBAND (MTS) 0~63 27
M05 MTS-SPECTRAL SPECTRAL (MTS) 0~63 32
M06 SUB-VOL VOL (MTS) 0~63 63
21V-FR95S

13
21V-FR95S
Data Service Mode Function Range Default Data
F01 VIDEO TONE -GAIN (TV) V-TONE 0/1 0
F02 VIDEO TONE -GAIN (AV) V-TONE 0/1 0
F03 VIDEO TONE -GAIN (S-AV) V-TONE 0/1 0
F04 VIDEO TONE -GAIN(YUV) V-TONE 0/1 0
F05 ABCL ABCL 0/1 0
F06 BS BS-OFF 0/1 0
F07 ABCL-G ABCL-G 0/1 0
F08 SHP-AV VIDEO-TONE(OFFSET) -16~+16 0
F09 SHP-SAV VIDEO-TONE(OFFSET) -16~+16 0
F10 SHP-YUV VIDEO-TONE(OFFSET) -16~+16 0
F11 RGB-CLIP EXTRGB-CLIP 0/1 0
F12 E-SAVE CONTRAST(OFFSET) 0~63 30
F13 FAO-VOL A-ATT 0~127 120
F14 PIF-G VIF-GAIN 0~7 4
F15 Y-DELAY(TV) Y-DELAY 0~7 0
F16 Y-DELAY(AV) Y-DELAY 0~7 0
F17 Y-DELAY(SAV) Y-DELAY 0~7 0
F18 Y-DELAY(YUV) Y-DELAY 0~7 0
F19 TINT-AV TINT(OFFSET) -32~+32 0
F20 TINT-SAV TINT(OFFSET) -32~+32 0
F21 COL-AV COLOR(OFFSET) -32~+32 0
F22 COL-SAV COLOR(OFFSET) -32~+32 0
F23 R-DRI(R2) R-DRI(OFFSET) -32~+32 0
F24 R-DRI( R) R-DRI(OFFSET) -32~+32 0
F25 R-DRI(B) R-DRI(OFFSET) -32~+32 0
F26 B-DRI(R2) B-DRI(OFFSET) -32~+32 0
F27 B-DRI( R) B-DRI(OFFSET) -32~+32 0
F28 B-DRI(B) B-DRI(OFFSET) -32~+32 0
F29 V-FREE V-FREE 0/1 0
F30 GAMMA GAMMA 0~3 0
F31 TRAP(TV) TRAP-FINE 0~3 2
F32 TRAP(AV) TRAP-FINE 0~3 2
F33 H-FREE H-FREE 0/1 0
F34 1W(TV) V.WINDOW 0/1 0
F35 1W(AV) V.WINDOW 0/1 0
F36 YLPF YSW-LPF 0/1 1
F37 BS-D BS-DISCHARGE 0~3 0
F38 BS-C BS-CHARGE 0~3 0
F39 SL(TV) S-SLICE DOWN 0~3 0
F40 SL(AV) S-SLICE DOWN 0~3 0
F41 SL(SAV) S-SLICE DOWN 0~3 0
F42 SL(YUV) S-SLICE DOWN 0~3 0
F43 AFC2 AFC2-G 0/1 0
F44 VD(TV) VSYNC-DET 0/1 0
F45 VD(AV) VSYNC-DET 0/1 0
F46 AS(TV) AUTO-SLICE 0/1 0
F47 AS(AV) AUTO-SLICE 0/1 0
F48 AS(SAV) AUTO-SLICE 0/1 0
F49 AS(YUV) AUTO-SLICE 0/1 0
F50 FBP(TV) FBP VTH 0/1 0
F51 FBP(AV) FBP VTH 0/1 0
F52 FBP(SAV) FBP VTH 0/1 0
F53 FBP(YUV) FBP VTH 0/1 0
F54 C.CLIP LEVEL C.CLIP LEVEL 0/1 0
F55 PSW PSW 0/1 0
F56 FAO-VOL VOL 0~63 60
Second Stage

14
Data Service Mode Function Range Default Data
F57 CP CHARGE PUMP 0/1 0
F58 CC LEVEL CC LEVEL 0/1 0
F59 OSD POS OSD POS 0/1 0
F60 OFFSET-ADJ-COL COLOR -32~+32 0
F61 OFFSET-ADJ-TINT TINT -32~+32 0
F62 OFFSET-ADJ-TINT-YUV BASEBAND-TINT -32~+32 0
F63 TIMER4-LOW SPEED TIMER4 VALUE 0~225 50
F64 TIMER4-HIGH SPEED TIMER4 VALUE 0~225 125
F65 R-CUT-YUV R-CUT(OFFSET) -63~+63 0
F66 G-CUT-YUV G-CUT(OFFSET) -63~+63 0
F67 B-CUT-YUV B-CUT(OFFSET) -63~+63 0
F68 R-DRI-YUV R-DRI(OFFSET) -63~+63 0
F69 B-DRI-YUV B-DRI(OFFSET) -63~+63 0
F70 CLOCK-ADJ 0~25 25
Second Stage (Continued)
Third Stage
**POWER ON BY CH-UP/CH-DOWN KEY
Data OPTION FUNCTION DATA = "0" DATA ="1" Default Data
001 DEMO DEMO DISABLE ENABLE 1
002 DOWNLOAD V-CHIP OP DISABLE ENABLE 0
003 V-CHIP V-CHIP DISABLE ENABLE 0
004 SPEAKER SPEAKER DISABLE ENABLE 1
005 FAO FAO DISABLE ENABLE 1
006 P.PREF P.REF DISABLE ENABLE 1
007 UNIV+ UNIV+ DISABLE ENABLE 1
008 VIEW TIMER VIEW TIMER DISABLE ENABLE 1
009 EZ-SETUP EZ-SETUP AUTO PRESET 0
010 * PON-CH POWER-ON DISABLE ENABLE 0
011 FAV-COL FAV-COL COL-TEMP 1
012 COMPONENT COMPONENT DISABLE ENABLE 1
013 AV AV DISABLE ENABLE 1
014 AV2 AV1 AV2 1
015 MTS MTS DISABLE ENABLE 1
016 TONE-CTRL S-ADJ DISABLE ENABLE 1
017 AUTO-OFF AUTO-OFF DISABLE ENABLE 1
018 INIT-LANG ENGLISH SPANISH 1
019 SETUP-FLAG NO SET UP AUTO SET UP 1
020 AV-FR "0"=NO AV "1"=REAR "2"=FRONT "3"=REAR & FRONT 3
021 AV3/S-IN AV3/S-IN DISABLE ENABLE 0
022 COMB COMB DISABLE ENABLE 0
023 AUTO-INPUT AUTO-INPUT DISABLE ENABLE 1
024 CLOCK CLOCK DISABLE ENABLE 1
025 LED SEMEX MODEL SPC MODEL 0
026 FLAT FLAT DISABLE ENABLE 1
027 BASS BOOST BASS BOOST DISABLE ENABLE 0
028 DSE DSE DISABLE ENABLE 0
029 SRS SRS DISABLE ENABLE 0
030 WHITE-OUT WHITE-OUT DISABLE ENABLE 1
21V-FR95S

15-1 15-2
CONTROL
PRE-ADJUST
REQUIREMENT
CONTENT
INPUT
CONDITION
OUTPUT
ADJUSTMENT
PROCEDURE
HISTORY
OF REVISION

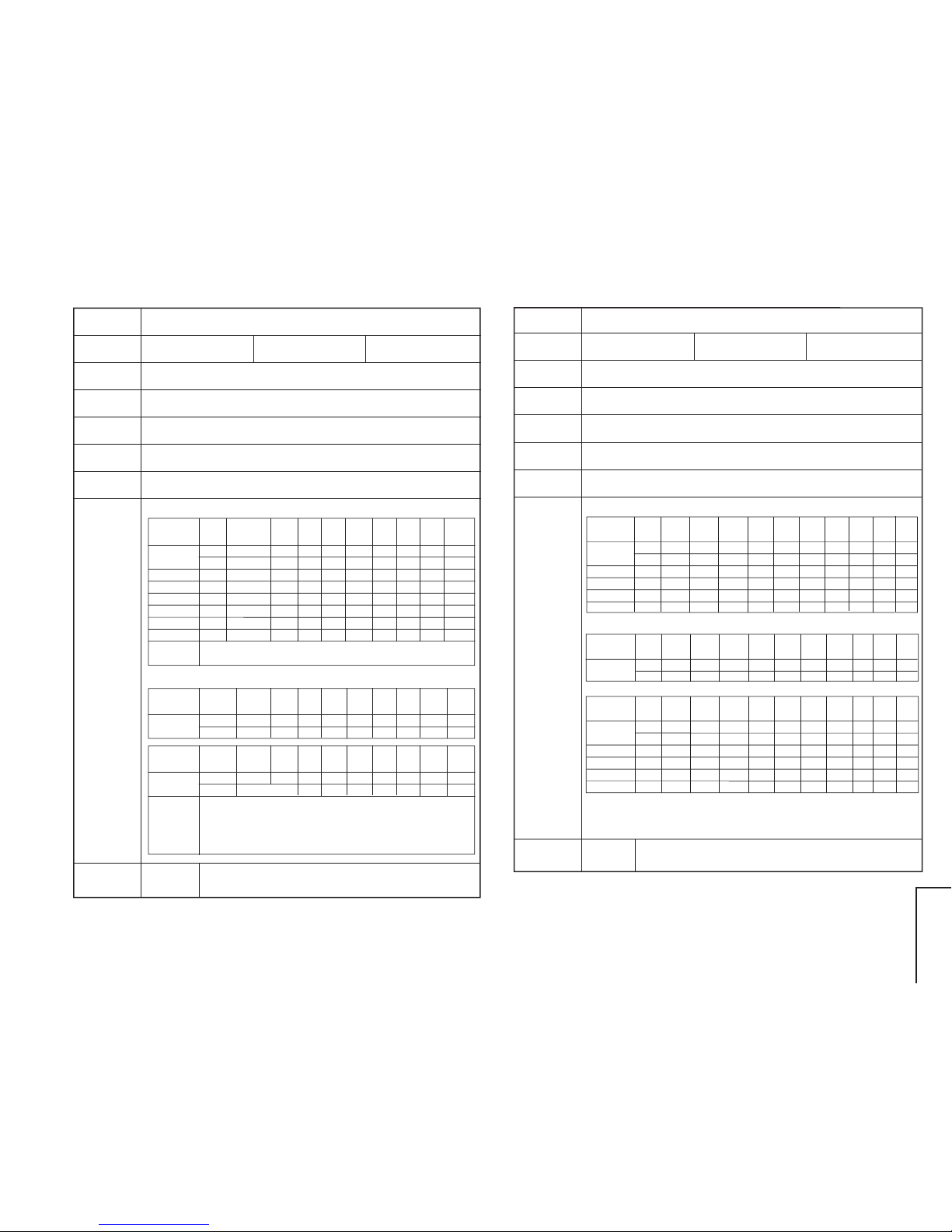

BUS OPTION FOR THIRD STAGE SERVICE DATA
FUNCTION
001 002 003 004 005 006 007 008 009 010
DEMO DOWNLOAD V-CHIP SP FAO P.PREF UNIV+ VIEW EZ PON-CH
1 0 0 1 1 0 0 1 0 1
DEF "0" =DISABLE "1" = ENABLE
009 -> "0" = EZ-SETUP "1" = AUTO PRESET
BUS OPTION FOR THIRD STAGE SERVICE DATA
FUNCTION
011 012 013 014 015 016 017 018 019 020
FAV-COL COMP AV AV2 MTS TONE AUTO LAN SETUP AV-FR
1011111013
OPTION SET UP
REFER AS BELOW STEP RANGE REFER AS BELOW
-
-
-
21V-FR85S/21V-FR95S/21V-FR350S
OSD CHECKING
FUNCTION
021 022 023 024 025 026 027 028 029 030
AV3 COMB A-IN
CLOCK LED FLAT BASS DSE SRS WHITE
0000110000
DEF 011 -> "0" = FAV-COL "1" = COL-TEMP
018 -> "0" = ENGLISH "1" = SPANISH
019 -> "0" = NO SET UP "1" = AUTO SETIP
025 -> "0" = SEMEX SPEC "1" = SPC SPEC
SYMBOL REVISED CONTENT,
DATA SETUP FOR FIRST AND SECOND STAGE SERVICE DATA
DATA SETUP FOR FIRST AND SECOND STAGE SERVICE DATA
BUS SET UP
REFER AS BELOW STEP RANGE REFER AS BELOW
-
-
-
OSD CHECKING
ADJUSTMENT
ITEM
ADJUSTMENT
POSITION
CONTROL
PRE-ADJUST
REQUIREMENT
CONTENT
INPUT
CONDITION
OUTPUT
ADJUSTMENT
PROCEDURE
HISTORY
OF REVISION
FUNCTION
V05 F15 F16 F19 F21 F23 F24 F25 F26 F27 F28
SHARP Y-DL(TV) Y-DL(AV) TINT-AV COL-AV R-D(R2) R-D(R) R-D(B)
B-D(R2) B-D(R) B-D(B)
43 5 2 -2 +2 +8 +3 -2 -18 -8 +6
DEF
FUNCTION F30 F35 F39 F40 F44 F46 F47 F56 F57 F60 F61
GAMMA 1W(AV) SL(TV) SL(AV) VD(TV) AS(TV)
AS(AV) FAO-VOL CP
C-OF
TINT-OF
1 1 1 1 1 1 1
58 1 +10 +8
ADJUSTMENT
POSITION
ADJUSTMENT
ITEM
FUNCTION
F62 F66 F67 F36
TI-YUV
G-C-YUV
B-C-YUV
-12 +36 +2
DEF
SYMBOL REVISED CONTENT,
21V-FR85S
/21V-FR95S
/21V-FR350S
21V-FR85S
/21V-FR95S
/21V-FR350S
21V-FR85S
/21V-FR95S
/21V-FR350S
21V-FR85S
/21V-FR95S
/21V-FR350S
21V-FR85S
/21V-FR95S
/21V-FR350S
YLPF
0
21V-FR85S/21V-FR95S/21V-FR350S
21V-FR95S

16
16-1 16-2
ADJUSTMENT
ITEM
ADJUSTMENT
POSITION
CONTROL
PRE-ADJUST
REQUIREMENT
CONTENT
INPUT
CONDITION
OUTPUT
ADJUSTMENT
PROCEDURE
HISTORY
OF REVISION
H-POSITION
V07 STEP RANGE 0-31
I2C BUS CONTROL
OPTION SET UP, BUS SET UP, CRT-PURITY
US 6 CH LION HEAD (MONOSCOPE)
AC 230V, US MAGNETIC FIELD
CONFIRMATION BY CRT SCREEN
1. ADJUST THE V07 BUS DATA TO HAVE A BALANCE POSITION TO SPEC
OF A=B.
2. IF CANNOT MAKE IT TO A=B, ADJ FROM THE BEST POINT SO THAT
B SLIDELY SMALLER THAN A
[CHECKING SPEC]
LEFT AND RIGHT SYMMETRICAL
SYMBOL REVISED CONTENT,
AB
ADJUSTMENT
ITEM
ADJUSTMENT
POSITION
CONTROL
PRE-ADJUST
REQUIREMENT
CONTENT
INPUT
CONDITION
OUTPUT
ADJUSTMENT
PROCEDURE
HISTORY
OF REVISION
ADJUST THE V09 BUS DATA UNTILL THE OVERSCAN BECOME AS
SPECIFIED BELOW.
CAUTION: - PLEASE AGING TV MORE THAN 10 MINUTES BEFORE
ADJUSTMENT.
V-SIZE
V09 STEP RANGE 0~63
I2C CONTROL
OPTION SET UP, BUS SET UP, CRT PURITY, V-PHASE, +B ADJUST
US 6 CH LION HEAD
AC 230V
CONFIRMATION BY CRT SCREEN
[CHECKING SPEC]
OVERSCAN 10 ± 2.5%
SYMBOL REVISED CONTENT,
21V-FR95S

17-1 17-2
ADJUSTMENT
ITEM
ADJUSTMENT
POSITION
CONTROL
PRE-ADJUST
REQUIREMENT
CONTENT
INPUT
CONDITION
OUTPUT
ADJUSTMENT
PROCEDURE
HISTORY
OF REVISION
V-PHASE
V06 STEP RANGE 0-7
I2C CONTROL
OPTION SET UP, BUS SET UP, CRT-PURITY
US 6 CH LION HEAD (MONOSCOPE PATTERN)
230V, RF INPUT, ZERO MAGNETIC FIELD
CONFIRMATION ON CRT SCREEN
ADJUST V06 BUS DATA TO HAVE MOST ACCEPTABLE VERTICAL PO-
SITION.
THE MONOSCOPE PATTERN SHOULD BE BALANCE IN VERTICAL
POSITION
NOTE: THE DATA FOR V06 LIMIT AT <= 04, EVEN POSITION GOOD
ENOUGH
[CHECKING CONFIRMATION]
SYMBOL REVISED CONTENT,
ADJUSTMENT
ITEM
ADJUSTMENT
POSITION
CONTROL
PRE-ADJUST
REQUIREMENT
CONTENT
INPUT
CONDITION
OUTPUT
ADJUSTMENT
PROCEDURE
HISTORY
OF REVISION
1) BY SELECTING THE V18, BOX BLK TEXT WILL BE APPEARED.
2) ADJUST THE V18 BUS DATA TO HAVE A BALANCE POSITION TO
SPEC OF A=B.

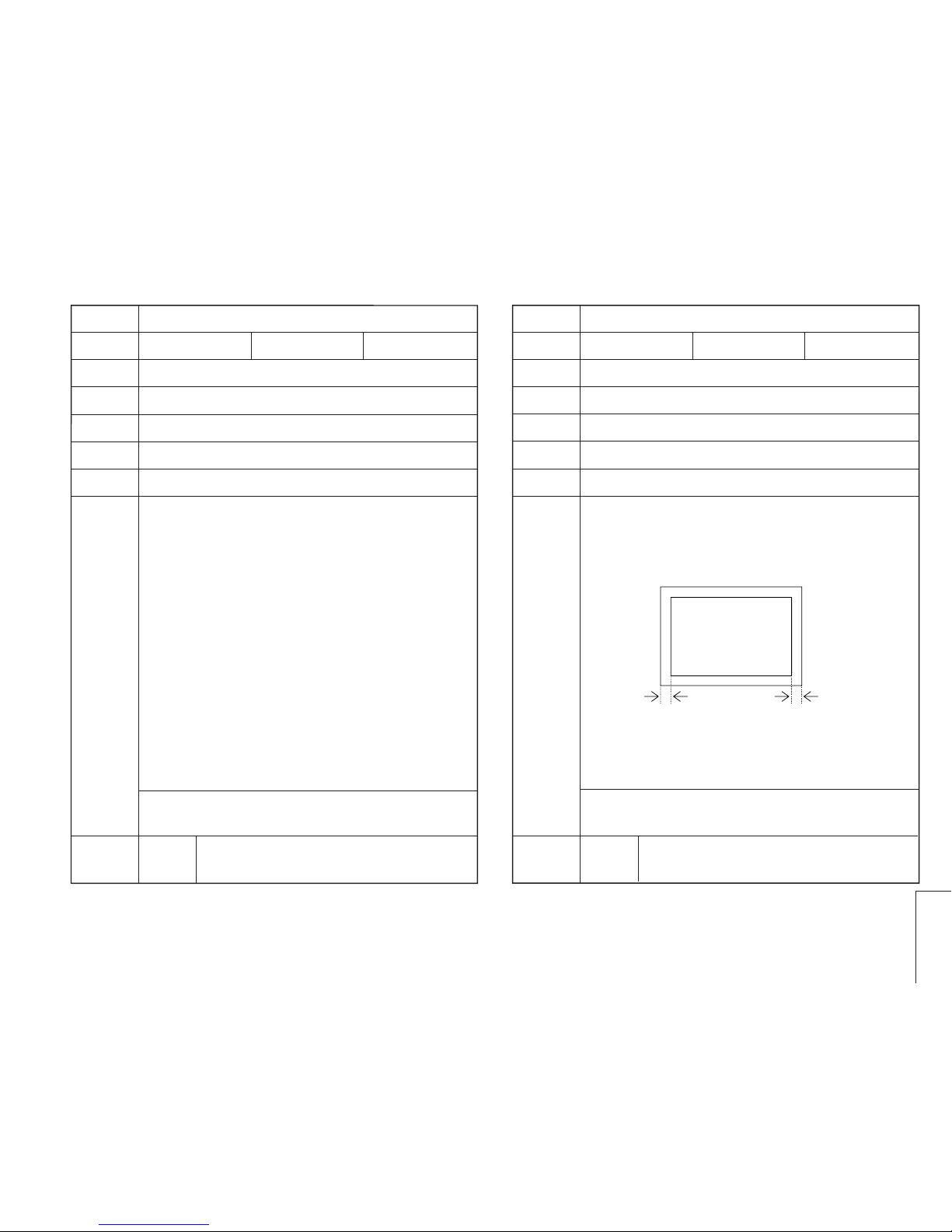

CLOSED CAPTION SET UP
V18 STEP RANGE 0~255
I2C CONTROL
OPTION SET UP, BUS SET UP
US 6 CH LION HEAD
AC 230V
CONFIRMATION ON CRT DISPLAY.
[CHECKING SPEC]
LEFT AND RIGHT SYMMETRICAL
SYMBOL REVISED CONTENT,
AB
TEXT BOX BLK
21V-FR95S

18-1 18-2
H-VCO
V21 STEP RANGE 0-7
I2C CONTROL
OPTION SET UP, BUS SET UP
NO SIGNAL (RASTER) CONDITION
AC 230V
IC 801 PIN 11
(MANUAL ADJ)
1) GO TO SERVICE MODE,
2) GO TO SERVICE DATA V21, ADJ UNTIL FREQ AS BELOW
(SELF ADJ)
1) GO TO SERVICE MODE,BY SELECTING THE SERVICE DATA V21
2) PRESS THE R/C TO OPERATE AUTO H-VCO,OSD APPEAR "OK" AT
SCREEN
3) IF APPEAR "NG" PLS REPEAT STEP2
[CHECKING SPEC]
FREQ = 15.735 ± 0.2 KHz
SYMBOL REVISED CONTENT,
ADJUSTMENT
ITEM
ADJUSTMENT
POSITION
CONTROL
PRE-ADJUST
REQUIREMENT
CONTENT
INPUT
CONDITION
OUTPUT
ADJUSTMENT
PROCEDURE
HISTORY
OF REVISION
ADJUSTMENT
ITEM
ADJUSTMENT
POSITION
CONTROL
PRE-ADJUST
REQUIREMENT
CONTENT
INPUT
CONDITION
OUTPUT
ADJUSTMENT
PROCEDURE
HISTORY
OF REVISION
(AT SELF ADJUSTMENT MODE)
1) GO INTO SERVICE MODE, BY SELECTING THE SERVICE DATA V10
2) PRESS THE R/C FOR AUTO PIF-VCO KEY, OSD APPEAR "OK" AT
SCREEN
3) IF APPEAR "NG" PLS REPEAT STEP 2
(AT MANUAL ADJUSTMENT MODE)
1) GO INTO SERVICE MODE, BY SELECTING THE SERVICE DATA V10
2) ADJUST THE DATA UP/DOWN UNTIL IC801 PIN 2 VOLTAGE BECOME
AS SPECIFIED BELOW
PIF-VCO
V10 STEP RANGE 0~63
I2C CONTROL
OPTION SET UP, BUS SET UP
NO SIGNAL (RASTER) CONDITION
AC 230V
CONFIRMATION ON CRT DISPLAY (AUTO), IC801 PIN 2 VOLTAGE (MANUAL).
[CHECKING SPEC]
2.5 ± 0.5 V DC (CHECKING SPEC : 2.50 ± 1.5V)
SYMBOL REVISED CONTENT,
21V-FR95S

19-1 19-2
ADJUSTMENT
ITEM
ADJUSTMENT
POSITION
CONTROL
PRE-ADJUST
REQUIREMENT
CONTENT
INPUT
CONDITION
OUTPUT
ADJUSTMENT
PROCEDURE
HISTORY
OF REVISION
RF-AGC
V08 STEP RANGE 0-127
I2C CONTROL
OPTION SET UP, BUS SET UP
US10CH HALF COLOR BAR
RF INPUT
FIELD STRENGTH 53dB uV (FIX)
TUNER AGC TERMINAL (TP 201) OR CRT DISPLAY CONFIRMATION
(AT SELF ADJUSTMENT MODE)
1. GO TO SERVICE MODE
2. GO TO SERVICE DATA V08, PRESS R/C TO OPERATE AUTO-AGC
KEY AND CONFIRM THE OK DISPLAY ON THE SCREEN.
3. IF APPEAR NG PLS REPEAT STEP 2 AGAIN.
(AT MANUAL ADJUSTMENT MODE)
1. ADJUST THE V08 BUS DATA UNTIL AGC TERMINAL VOLTAGE BE-
COME MAXIMUM, THEN DROP 0.1V BELOW MAXIMUM VOLTAGE.
2. CHANGE THE ANTENNA INPUT SIGNAL TO 63-67 dBmV, AND MAKE
SURE THERE IS NO NOISE
3. CHANGE THE ANTENNA INPUT SIGNAL TO 90-95 dBmV TO BE SURE
THAT THERE IS NO CROSS MODULATION BEAT.
[VOLTAGE CONFIRMATION]
MAX - 0.1V dc
SYMBOL REVISED CONTENT,
ADJUSTMENT
ITEM
ADJUSTMENT
POSITION
CONTROL
PRE-ADJUST
REQUIREMENT
CONTENT
INPUT
CONDITION
OUTPUT
ADJUSTMENT
PROCEDURE
HISTORY
OF REVISION
1) IN SERVICE MODE, SET V04&V11&V12&V13 TO 127; V14&V15 TO
64, GET IN Y-MUTE BY R/C AND SET V19 TO "1", PICTURE APPEAR
IN CUT-OFF CONDITION
2) ADJUST THE SCREEN SO THAT CUT-OFF LINE APPEAR IN LOW
BRIGHT, THEN JUDGE THAT WHETHER THE CUT-OFF LINE APPEAR
IN RED OR GREEN OR BLUE COLOR, IN THIS CONDITION V11=R-
CUTOFF, V12=G-CUTOFF, V13=B-CUT-OFF, FIX THE DATA OF THE
COLOR APPEAR IN CUTOFF LINE AND USE R/C TO ADJUST THE
OTHER TWO CUT-OFF DATA SO THAT CUT-OFF LINE COLOR BE-
COME WHITE.
3) TURN THE SCREEN VR OF FBT SO THAT CUT-OFF LINE JUST DIS-
APPEAR AND USE R/C TO SET V19 TO "0", NEXT DIASBLE THE Y-
MUTE SO THAT PICTURE APPEAR IN NORMAL MODE.
SCREEN
V11,V12,V13 STEP RANGE 0-255
I2C CONTROL
OPTION SET UP, BUS SET UP
WINDOW PATTERN OR US6 CH LION HEAD
230V
CONFIRMATION ON CRT DISPLAY
[VOLTAGE CONFIRMATION]
SYMBOL REVISED CONTENT,
21V-FR95S

20-1 20-2
ADJUSTMENT
ITEM
ADJUSTMENT
POSITION
CONTROL
PRE-ADJUST
REQUIREMENT
CONTENT
INPUT
CONDITION
OUTPUT
ADJUSTMENT
PROCEDURE
HISTORY
OF REVISION
WHITE BALANCE
V14,V15,V11,V12,V13 STEP RANGE 0-127, 0~255
I2C BUS CONTROL
OPTION SET UP, BUS SET UP, SCREEN
23CH 501RE WINDOW PATTERN
230V
CRT SCREEN DISPLAY.
1) WHITE (HIGH BEAM)
FIRST LET THE GUN POINT AT BLA CK POSITION (AS DRAWING
ATTACH), ADJ V04 UNTIL BRIGHTNESS Y BECOME 5 cd/m2 , THEN
LET THE GUN POINT AT WHITE POSITION (AS DRAWING ATTACH),
ADJUST V01 UNTIL BRIGHTNESS Y BECOME 150 cd/m2 , ADJUST
THE BUS DATA OF V14 (R DRIVE), V15(B DRIVE) UNTIL THE AXIS
OF COLOR TEMPERATURE BECOME X=0.273, Y=0.280
2) BLACK (LOW BEAM)
LET THE GUN POINT AT BLACK POSITION, IF THE VALUE SHIFTED
AWAY FROM THE DATA ADJUSTED IN STEP 1), ADJUST AGAIN THE
TWO SERVICE DATA WHICH HAVE CHOSEN AT SCREEN ADJUST
SO THAT TO OBTAIN THE SIMILAR AXIS AS ABOVE.
*WARNING: DO NOT DISTURB THE MINI STEP GUN DATA DURING
THIS ADJUSTMENT.
**REPEAT STEP 1), 2) TO GET A REGULATED POSITION.
[CHECKING CONFIRMATION]
X=0.273, Y=0.280 (11,600°K + 1 MPCD)
SYMBOL REVISED CONTENT,
BLACK
US14
WHITE
ADJUSTMENT
ITEM
ADJUSTMENT
POSITION
CONTROL
PRE-ADJUST
REQUIREMENT
CONTENT
INPUT
CONDITION
OUTPUT
ADJUSTMENT
PROCEDURE
HISTORY
OF REVISION
1) LET THE GUN POINT AT BLACK POSITION (AS ATTACH DRAWING),
ADJUST V04 BUS DATA UNTIL BRIGHTNESS Y=0.5 cd/m2, THEN
STEP DOWN MORE 4 STEP
SUB-BRIGHT
V04 STEP RANGE 0-255
I2C CONTROL
OPTION SET UP, BUS SET UP, SCREEN, WHITE BALANCE
WINDOW PATTERN
230V
CRT SCREEN DISPLAY.
[VOLTAGE CONFIRMATION]
BRIGHTNESS Y=0.5 cd/m2, THEN STEP DOWN MORE 4 STEP
SYMBOL REVISED CONTENT,
BLACK
US14
21V-FR95S
