Shimano FlightDeck SC-6500 Operating instructions

One Holland Irvine CA 92618 U.S.A. Phone [phone]
®
Industrieweg 24 NL-8071 CT Nunspeet Holland Phone [phone]
77 Oimatsu-cho 3 -cho Sakai Osaka 590 - 8577 Japan Phone 0722 - 23 - 3243

SI-7AB0D
SERVICE INSTRUCTIONS
MONTAGE-INSTRUCTIES
EINBAUANLEITUNG
I NSTRUCTIONS DE MONTAGE
INSTRUCCIONES DE SERVICIO
取扱い説明書
ISTRUZIONI per l'ASSISTENZA
MANUAL DE INSTRUÇÕES
Cycle Computer
SC-6500/SC-6500-M
SC-6500-MX/SC-6500-T
®

English 3–24
Dutch 25 – 46
German 47 – 68
French 69 – 90
Spanish 91 –
112
Japanese 113
– 13 4
Italian
13 5 – 15 6
Portuguese 15 7 – 17 8

3
English
Cycle Computer
SC - 6500 / SC - 6500 - M
SC - 6500 - MX / SC - 6500 -T
INDEX
1. External appearance • • • • • • • • • • • 5
2. Display Contents • • • • • • • • • • • • • • • 6
3. Display Modes • • • • • • • • • • • • • • • • • 8
• Current speed (VEL) • • • • • • • • • • • • • • • • 9
• Gear indicator (bar) • Time display (CLK)
• Trip distance group (TIM, DST, MAX, AVE) • • • 10
• ODO meter (ODO) • • • • • • • • • • • • • • • • • 11
• Stopwatch (STW)group
• Cadence (rpm) • • • • • • • • • • • • • • • • • • • 12
• Main display cadence (VEL) • Lap counter (CNT)
• Digital gear number F- R • • • • • • • • • • • • • 13
• Gear ratio • Pace Arrow
• Low battery display (LO BAT)
• Power saver function • • • • • • • • • • • • • • • 14
4. Resetting • • • • • • • • • • • • • • • • • • • • • 14
5. Viewing data after removing the • • • • • • • 15
computer from the bracket mount
6. Setting tolerances
7. Installation to the bicycle • • • • • • • •
16
8. Data input • • • • • • • • • • • • • • • • • • • • 17
Trouble Shooting • • • • • • • • • • • • • • • • • 24

4
Warning
Be careful not to pay excessive attention to
the computer data while riding, otherwise you
might have an accident.
NOTE;
* The all clear (AC) button is used to clear the main unit memory.
* Never disassemble the main unit, as it cannot be reassembled.
* The main unit is fully waterproofed to withstand wet weather
conditions; however, do not deliberately place it into water.
* Avoid leaving the main unit exposed to extremely hot weather
conditions.
* Handle the main unit carefully, and avoid subjecting it to any
shocks.
* Do not use thinner or other solvents to clean parts such as the
main unit and sensor, as they may dissolve the part casings.
* To clean these parts, wipe them with a cloth soaked in a weak
mixture of neutral detergent and water.
Model No. SC-6500 SC-6500- MX
STI lever
ST-6501
ST-5500-C
ST-M951
ST-M950
SL-M951
SC-6500-T
ST-T400
ST-T300
SC-6500-M
ST-M952
ST-M750
SL-M570
SL-M952
SL-M750
SL-M570
Specifications

5
1. External appearance
Front
Main Display
Start stop button
1. Current speed
(VEL)
10. Cadence
15. Gear number
(digital) Sub Display
2 - 14, 16
17. Gear indicator
(bar)
Rear
Switch B
AC All clear
Switch
Battery cap
Switch A
Mode button
<SC-6500 >
Rear STI Brake Bracket
Start stop button
<SC-6500-M /SC-6500-MX /SC-6500-T >
Mode button

6
2. Display Contents
mode 1
1. Current
speed
(VEL)
2. Clock
(CLK)
3. Trip time
(TIM)
4. Trip distance
(DST)
5. ODO meter
(ODO)
7. Stop watch–
trip distance
(DST STW)
8. Stop watch–
average speed
(AVE STW)
9. Stop watch–
maximum speed
(MAX STW)
6. Stop watch

7

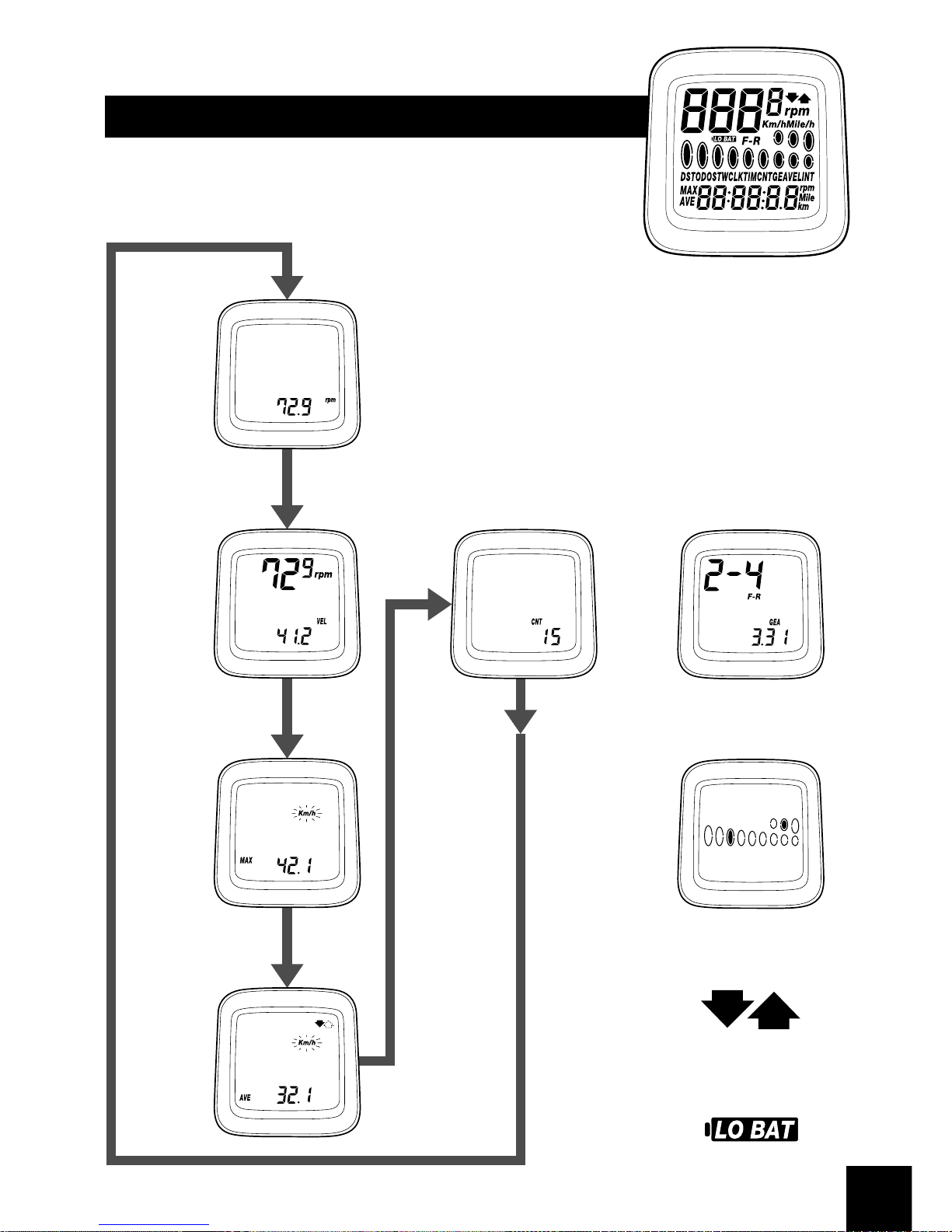

mode 2
10. Cadence
(rpm)
11.
Main display
cadence
12. Maximum
speed
13. Average
speed
15. Gear number
(digital)
16. Gear ratio
17. Gear indicator
(bar)
18. Pace Arrow
19. Low battery
display
14. Lap counter

8
3. Display Modes
“Current speed” and “Gear indicator (bar)” are always displayed
mode 1 mode 2
TIM Trip time
DST Trip distance
ODO ODO meter
STW Stop watch
CLK Clock rpmCadence
VEL Main display cadence
MAX Maximum speed
AVEAverage speed
CNTLap counter
ST/SP Button
Mode Button
Press mode button
once
Press mode button
continuously for 2
seconds or more
SC-6500
SC-6500-M
SC-6500-MX
SC-6500-T
ST/SP Button
Mode Button

9
(1)Current speed (VEL)km/h, mph
When main
display cadence
appears on top
Current speed
will appear in
the sub - display
0.0 (2.0) - 130.0km/h
0.0 (1.2) - 80.0mph (Range)
The current speed will appear at
the top of the main display.
(2)Gear indicator (bar)
Front display
Rear display
Displays; Low position for double
front chainwheel Mid
position for triple front
chainwheel
Displays; Top for smallest sprocket
Low for largest sprocket
(3)Time display (CLK)24-hours clock
Gear indicator bar will not appear
if the sensor wire is not connected
or it has been turned off.
Clock will appear when changing
mode 2 to mode 1 and during
power saver function.

10

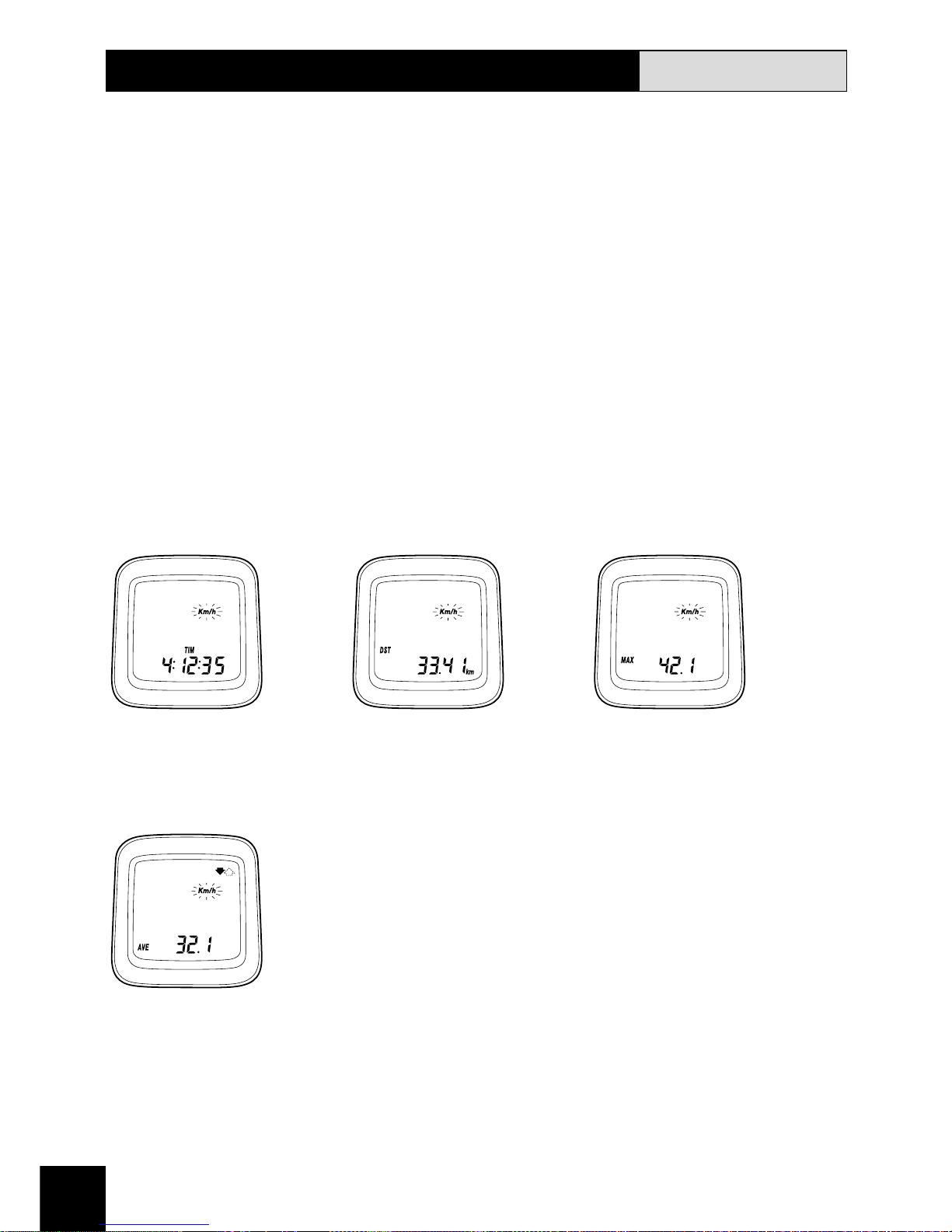

(4)
Trip distance group (TIM, DST, MAX, AVE)
The trip distance group includes trip time (TIM) , trip distance (DST)
maximum speed during trip (MAX) average speed during trip (AVE) .
To activate the trip distance group, press Mode button to (TIM) and press
ST/SP button to activate.
The km/mile symbol will blink. The computer will automatically record
data whenever the wheel sensor is activated by wheel rotation. The
computer will automatically stop recording data when the wheel stops
rotating.
To manually stop functions, press the ST/SP button once.
To reset trip distance group, press the Mode button and ST/SP button
simultaneously.
Whole group will reset to zero.
Additionally, while this group is operating the km/mph, rpm and F - R
displays will flash.
Average speed (AVE)
0.0 (2.0) - 130.0km/h
0.0 (1.2) - 80mph.
Trip time (TIM)
0 -99:59:59 (h ; min; sec)
Trip distance (DST)
0 -999.99 (km, mile)
Maximum speed (MAX)
0.0 (2.0) - 130.0km/h
Note;
To calculate the average speed,
You must travel for more than 10
seconds or more.
An arrow- up displayed indicates
that your current speed is faster
than your average speed and an
arrow- down if the speed is lower.
If the trip time exceeds 100hours or the trip distance exceeds
1,000kilometers (620miles), “ER” will be displayed and the pace arrow
comparison will disappear. However, TIM and DST measurements will start
again from zero and the MAX speed will be retained.

11

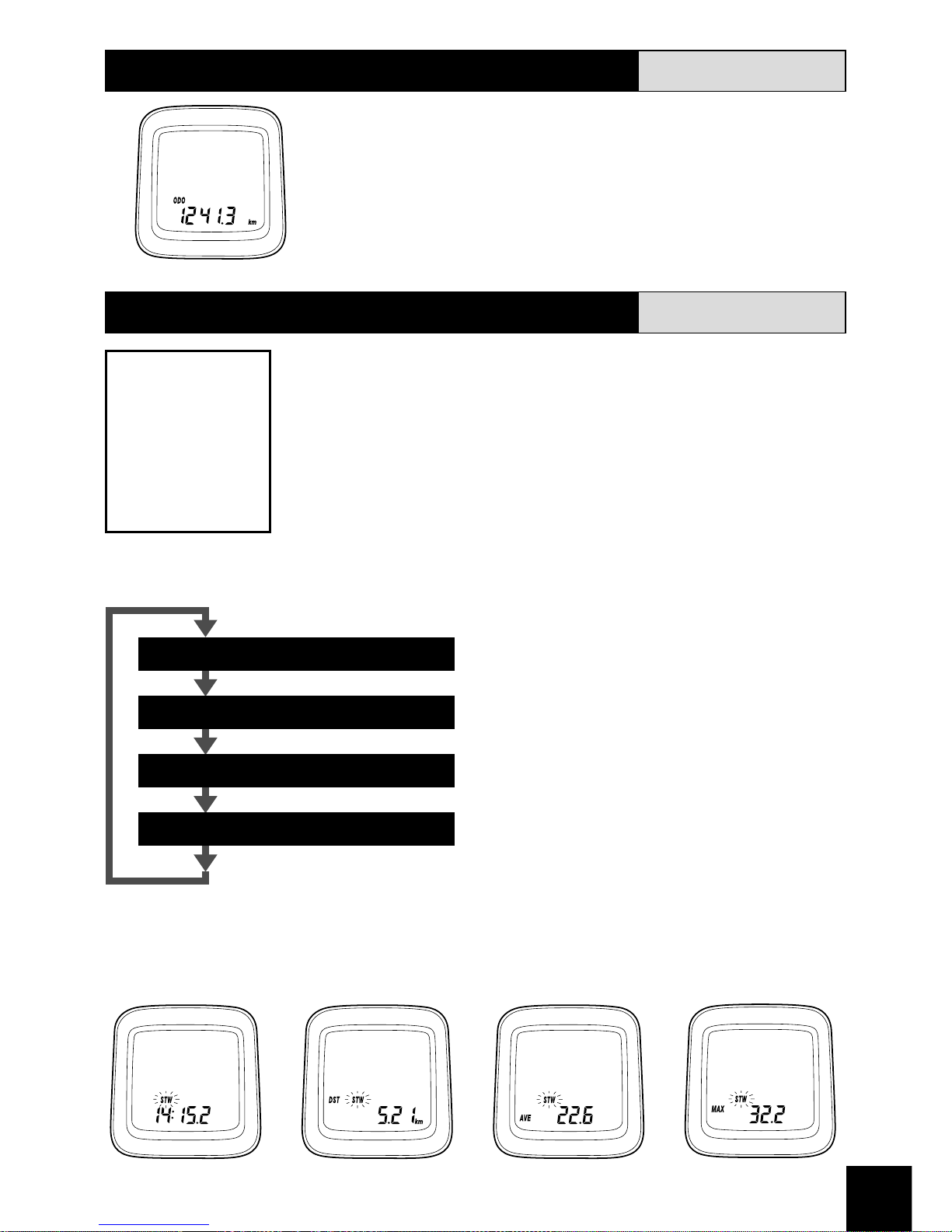

(5)ODO meter (ODO)0-9999.9 km, mile
(6)Stopwatch (STW)group
Stopwatch
(STW)
0.0 - 90:00 (min,sec)
Stopwatch trip
distance (DST,STW)
km mile
Stopwatch average
speed (AVE,STW)
km/h mile/h
Stopwatch maximum
speed (MAX, STW)
km/h mile/h
This group includes stopwatch trip distance average
speed and maximum speed.
The stopwatch is activated by pressing ST/SP button.
While the stopwatch group is operating the stopwatch
(STW) display will flash.
Stopwatch trip distance (DST,STW) records total during
STW function.
Stopwatch average speed (AVE,STW) records the
average speed during STW function.
Maximum speed (MAX,STW) records the Maximum
speed during the stopwatch function.
STW
DST, STW
AVE, STW
MAX, STW
Stopwatch-Trip distance (DST, STW)
Stopwatch - Average speed (AVE, STW)
Stopwatch - Maximum speed (MAX, STW)
Stopwatch (STW)
Press switch B to change mode
Note;
The functions of this group are
only available when stopwatch is
activated.
If the trip distance mode is also
activated simultaneously, it is not
possible to view at the distance.
However the trip distance,
average speed and maximum
speed will still be recorded during
this time.

12

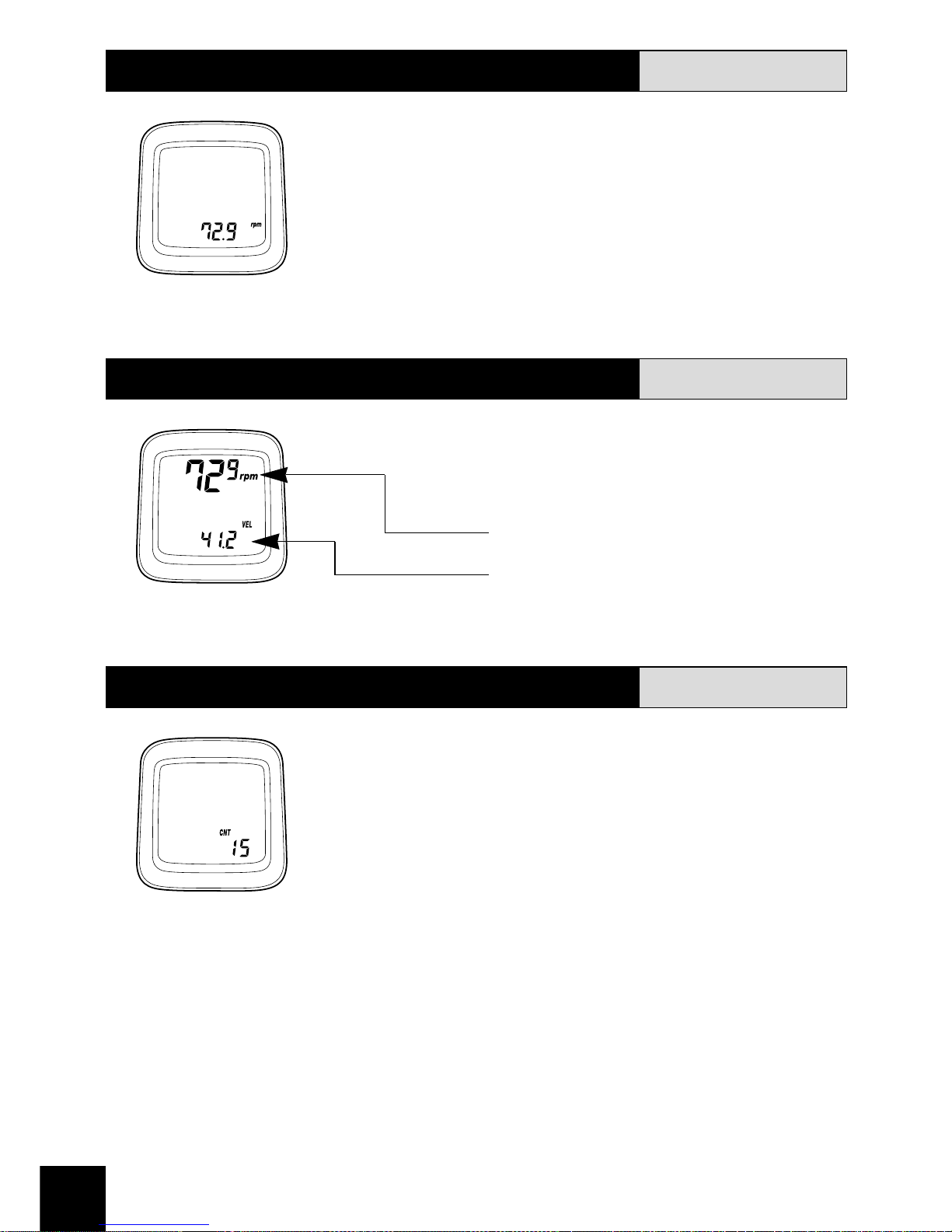

(7)Cadence (rpm)
Cadence is calculated from the F- R
gear tooth numbers and current
speed.
Note;
Cadence always appears during
bicycle movement regardless if the
crankarms are rotating.
(9)Lap counter (CNT)
This function is used to count laps,
etc. (range 0 - 99)
Lap counter is activated by
pressing the ST/SP button.
To reset the counter to zero, press
mode and ST/SP button
simultaneously.
To reset all of the TIM group, STW
group and lap counter values to
zero, press the Mode button and
ST/SP button simultaneously for 2
seconds or more.
This is possible regardless of what
is currently appearing on the
display.
(8)Main display cadence (VEL)
Cadence (rpm) can also be shown
in main display. Current speed
will move to sub- display.
Cadence on main display
Current speed on sub- display

13
(

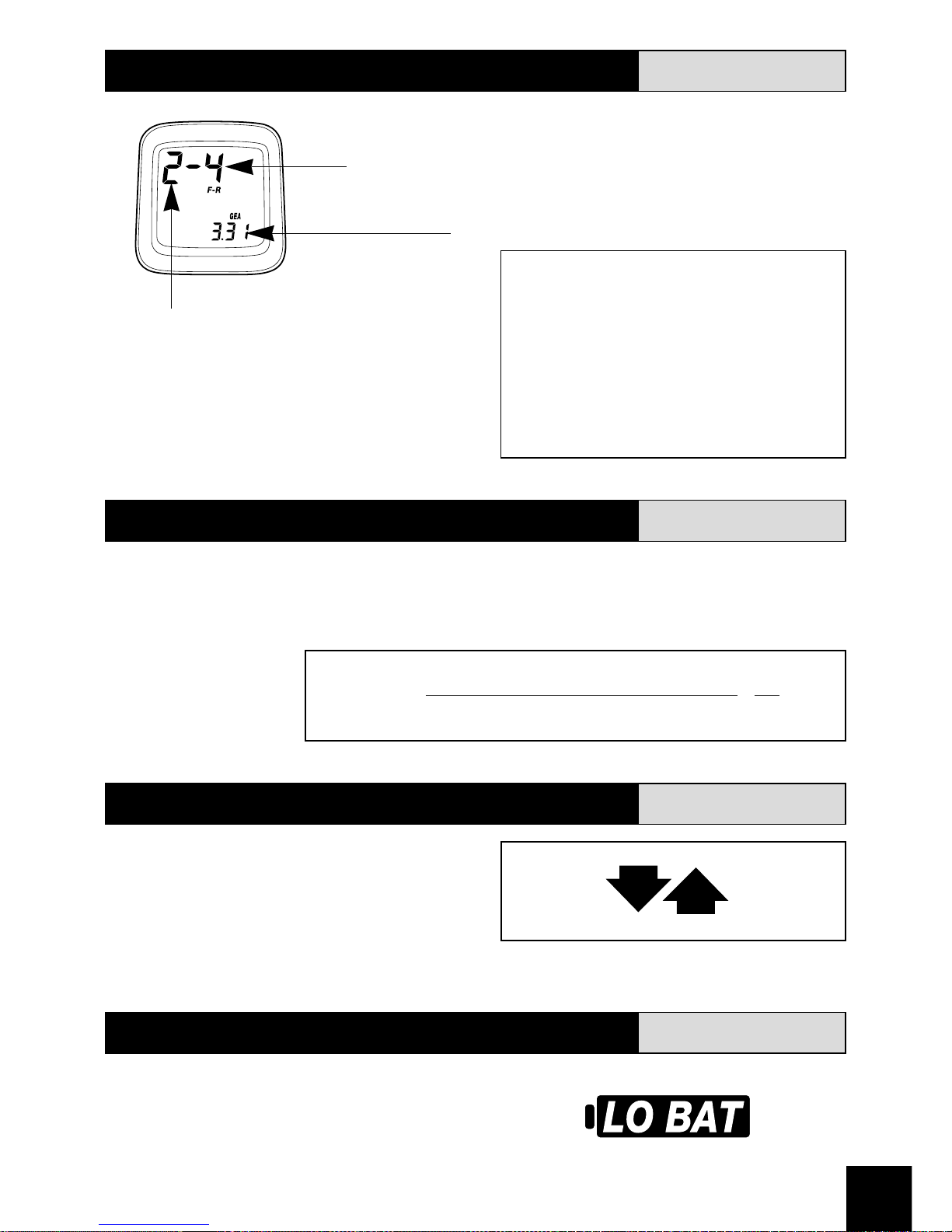

10
)Digital gear number F - R
Gear combinations are displayed
when a shift has been made. This
will show for approx 4 seconds
then original screen will return.
The gear combinations are;
(
11
)Gear ratio
(
12
)Pace Arrow
Gear ratio is also displayed only when a
shift has been made.
This will show for approx 4 seconds.
Moves when distance time is
operating
(
13
)Low battery display (LO BAT)
This flashes when the remaining
battery power is low. The battery
should be replaced with a new
one as soon as possible.
• Front double • Front triple
inner • • • • 1 inner • • • • 1
outer • • • 2mid• • • • • 2
outer • • • • 3
Rear Numbers are displayed in
order starting from low end.
Low1 • • • • • • High • • • • • • 9.etc.
Gear ratio formula;
Gear ratio = number of teeth front chain wheel
number of teeth rear sprocket
48
15 =3.2
F
R
Gear ratio

14
(
14
)Power saver function
When the computer is left without
receiving any signal or any button
activation the unit will be in a
“sleep” state and only the clock will
appear on the display.
The normal display will return as
soon as a signal is received or a
button has been pressed.
Note;
During the stopwatch function the
stopwatch will continue to operate
even when the power saver
function has been activated. The
stopwatch will stop automatically
after 90minutes have passed.
4. Resetting
This function allows you to reset km/h- mph, tire circumference, gear
combination, type of rear derailleur, and time without losing any data (i.e.
total distance, trip distance etc)
To re- set go to any display other than CLK on the sub display. Press switch
“B” for 5 seconds or more. Then follow instruction section 8 data input.
Switch B 5sec.
Normal display
Tire circumference
F - R no.of chainring teeth, no.of sprocket teeth
Type of rear derailleur
Time
km/h mile/h
Switch B 5sec.
Sub - display (CLK)

15
6. Setting tolerances
5. Viewing data after removing the
computer from the bracket mount
The data can still be viewed even when the computer has been removed
from the handlebar bracket.
CLK rpm
VEL
MAX
AVE
STW
DST, STW
AVE, STW
MAX, STW
CNT
TIM
DST
ODO
STW
changes in order
when switch B is
pressed
changes in order when switch A is pressed
mode1 mode2
VEL • • • • • • • • • • • • • • • • • • • • • • • 1%
DST, ODO • • • • • • • • • • • • 0.05%
CLK • • • • • • • • • • • • • • • • • • • 30ppm
STW, TIM • • • • • • • • • • • • • 50ppm
(5minutes or less per month)

16

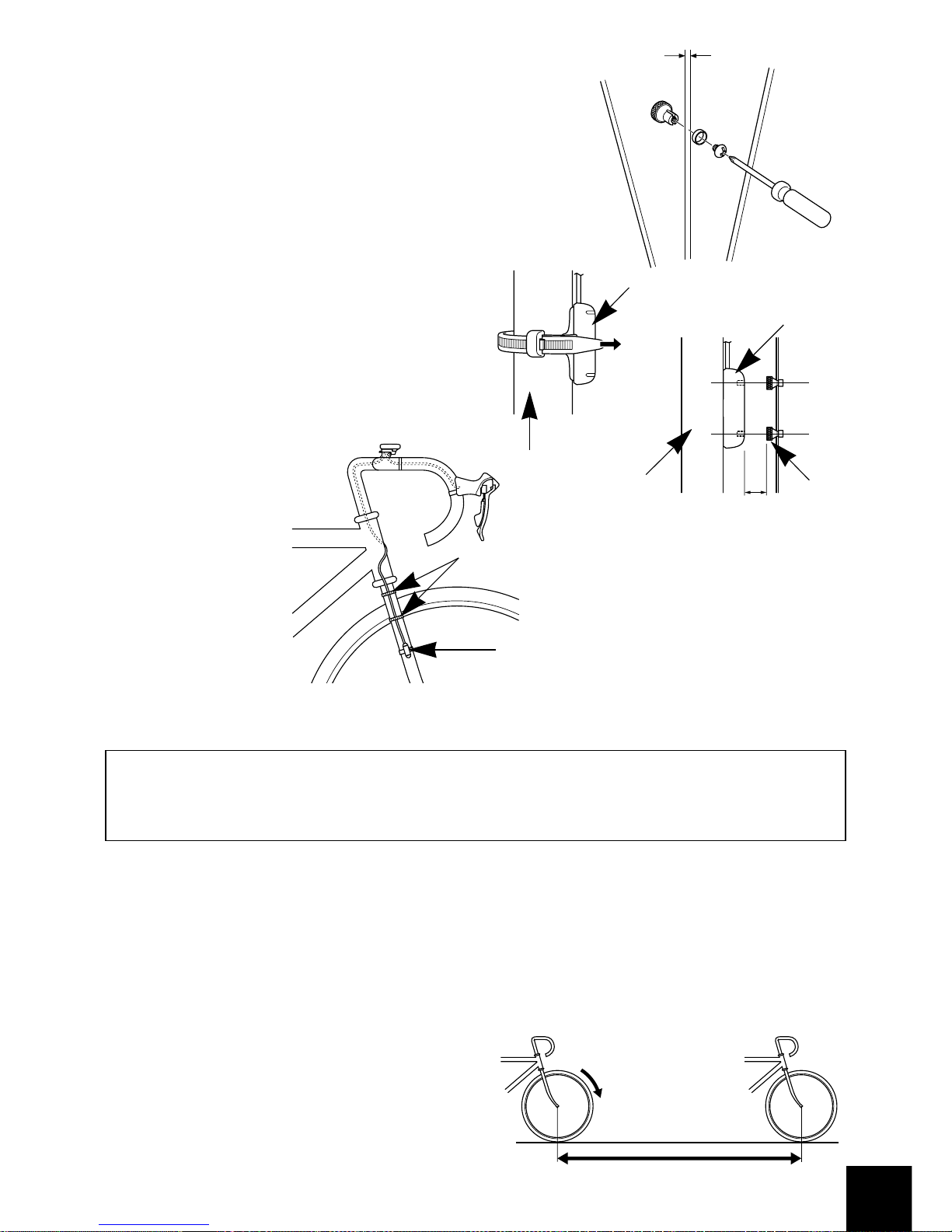

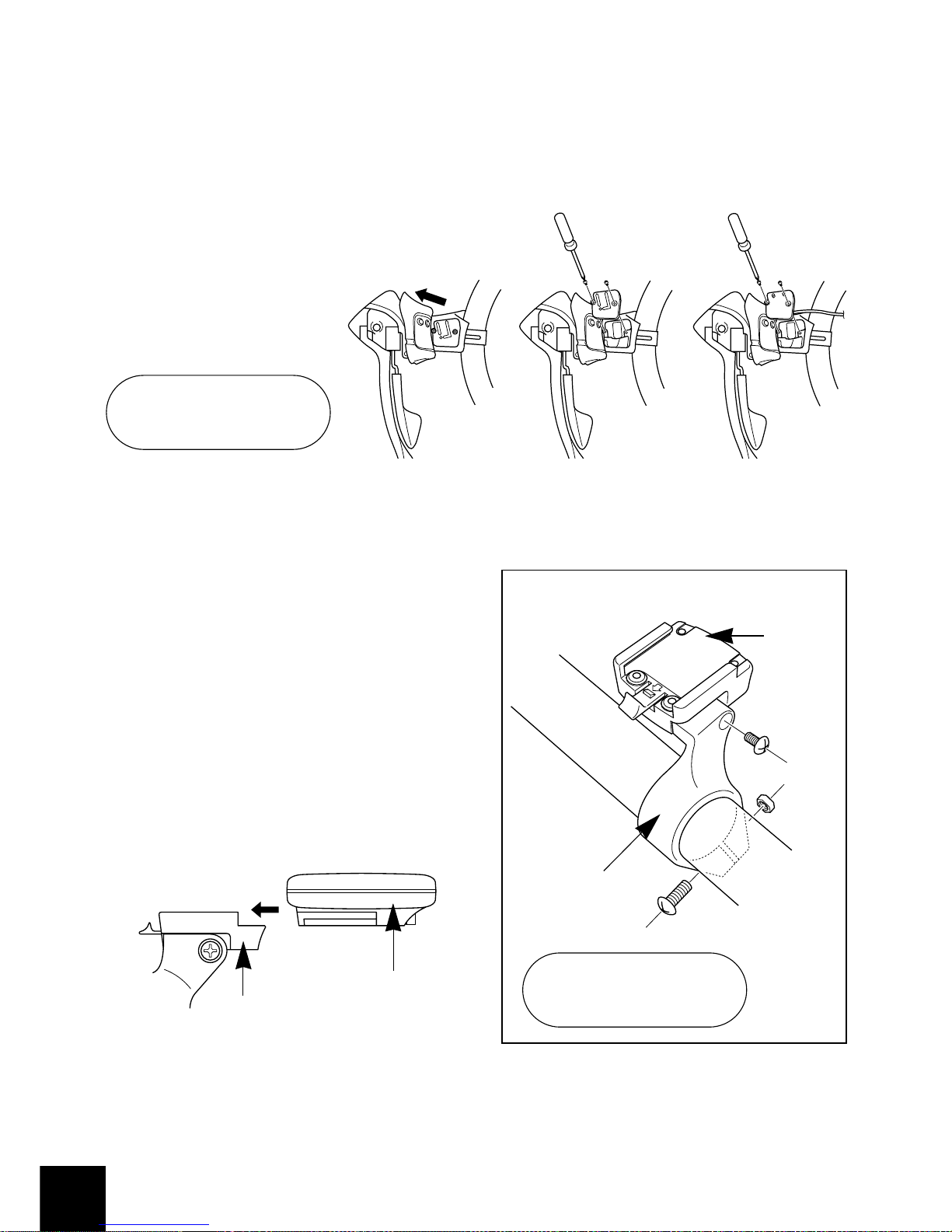

7. Installation to the bicycle
Install the levers to the handlebars. Then connect and adjust the brake and
shifting cables. Refer to the STI Lever Service Instructions for details on
these procedures.
* For the SC-6500-M, SC-6500-MX and SC-6500-T,
refer to the Service Instructions included.
(1)Installing the signal cable (SC-6500)
Install the signal cable as shown
in Figure No1.
(2)Installing the computer
Install the band and the bracket as
shown in Figure No2.
Tape the signal cable to the
handlebars.
(3)Slide the computer onto the
bracket until it clicks into its
place.
as shown in Figure No3.
After this, wrap handlebar with
finishing tape around the
handlebars to secure both the
signal cable and the brake cable
Fig.1
Tightening torque:
0.3 - 0.5 Nm
{2 - 4 in. lbs.}
Fig.3
ComputerBracket
Fig.2
Bracket
Band
Tightening torque:
1 Nm
{8 in. lbs.}

17
8. Data input
(4)Installing the magnet and
sensors
Use a screwdriver to temporarily
secure the magnet to a spoke on the
right hand side of the front wheel as
shown in fig4.
Put a rubber shim between the fork
and the sensor as shown in fig5.
(Fork diameter range is 11- 35mm)
Place the magnet on one of the two
sensor lines.
Adjust the position of the magnet so
that the distance between the
magnet and the sensors is 1- 5mm.
Secure the magnet and the sensors
firmly in these positions.
(1)Measuring the tire circumference
To measure the tire circumference,first ensure that the tire is inflated to the
standard tire pressure. Make a mark on the tire and the ground at the point where
the tire touches the ground, and move the bicycle forward one full revolution of
the front wheel while seated on the bicycle, Mark the point where the marking on
the tire touches the ground again. Measure the distance between the two points
in millimeters. Round the distance to the nearest multiple of 5mm.
Fig.4
Fig.5
Sensors
Magnet
1- 5 mm
Ø2.1mm or less
Front Fork
Pull
Sensors
Front Fork
1. Km or Miles
2. Tire circumference
3. No.of chainring teeth
4. No.of sprocket teeth
5. Type of rear derailleur
6. Current time
[]
Example
2028 - 2032mm • • • • • 2030mm
2033 - 2037mm • • • • • 2035mm
2038 - 2042mm • • • • • 2040mm
Roll forward
Wheel circumference
Speed sensor
Plastic tie

18

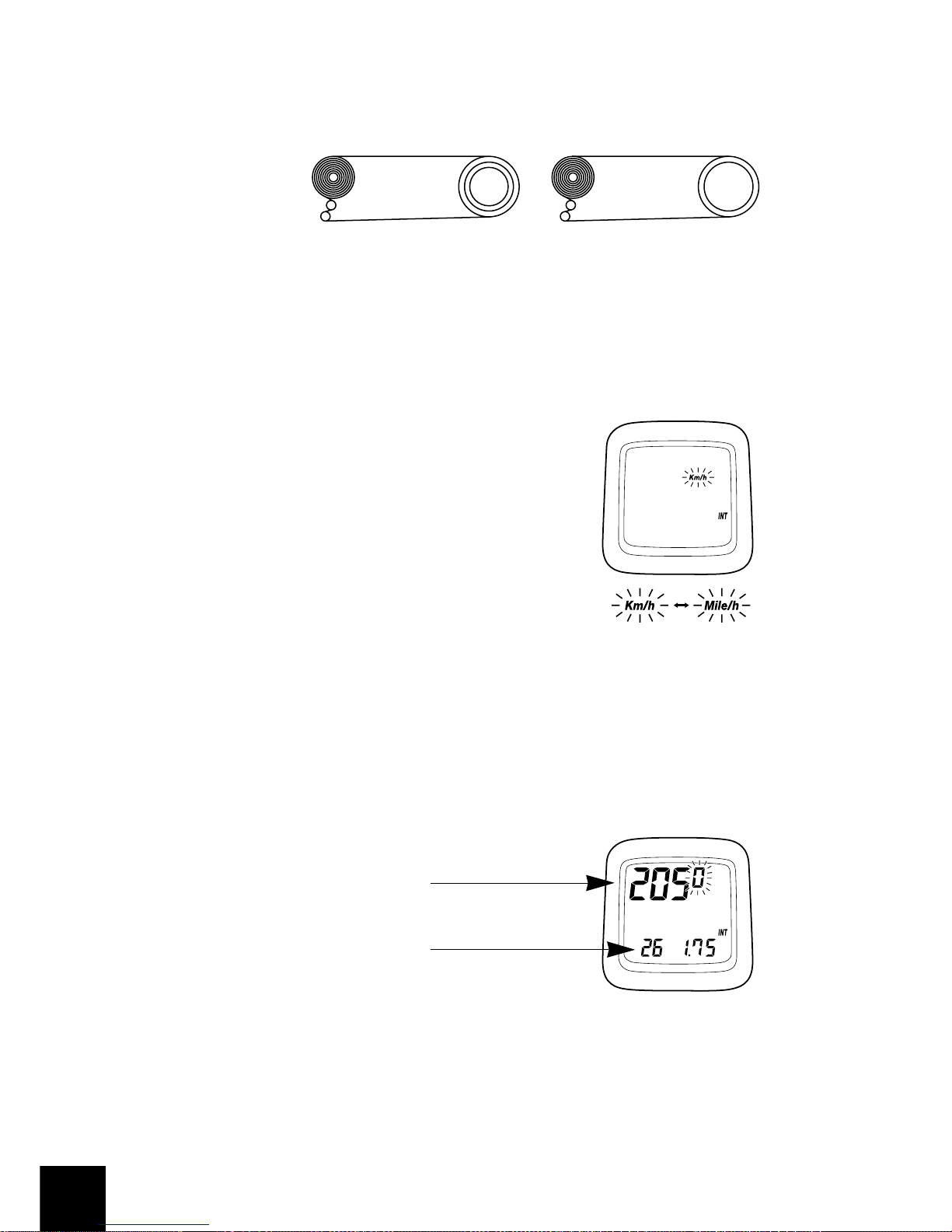

(2)Checking the number of chainring and sprocket teeth
Check whether the front chainwheel is a double or a triple chainwheel.
(3)Selecting Km or Miles
When switch “AC”(All Clear) is
pressed, the display as shown in
fig6 appears and the k/h setting
starts flashing. Select your choice
for Km/h or Mile/h by pressing
switch “A”.
Once your choice is displayed,
press switch “B”continuously for 2
seconds or more to set.
Check whether the
cassette has 7,8, or 9
sprockets.
[]
Example
12,13,14,15,16,17,19,21,23 • • • • • • 9 sprocket
12,13,14,15,16,17,19,21• • • • • • • • • 8 sprocket
Example 48x38x28 • • • • triple 53x39 • • • • • Double
Fig.6
(4)Entering the tire circumference
The display will appear as shown in fig7, Enter the value which was
measured previously.
Fig.7
2050 • • • Tire circumference (mm)
26 1.75 • • • Indicates the tire size
for 26inch x 1.75
