Shimano FC-T8000 User manual

(English)
DM-TRFC001-04
Dealer's Manual
ROAD MTB Trekking
City Touring/
Comfort Bike URBAN SPORT E-BIKE
Crankset
DEORE XT
FC-T8000
DEORE
FC-T6010
Bottom bracket
BB-MT800
BB-MT801
BB-MT800-PA
DEORE
SM-BB52
BB-MT501
BB-MT500-PA

2
CONTENTS
IMPORTANT NOTICE.............................................................................................. 3
TO ENSURE SAFETY............................................................................................... 4
LIST OF TOOLS TO BE USED.................................................................................. 8
INSTALLATION ..................................................................................................... 10
Threaded bottom bracket ........................................................................................................................10
PRESS-FIT BB ...............................................................................................................................................13
Installing the crank arms ...........................................................................................................................16
MAINTENANCE.................................................................................................... 19
Replacing chainrings..................................................................................................................................19

3
IMPORTANT NOTICE
IMPORTANT NOTICE
• This dealer’s manual is intended primarily for use by professional bicycle mechanics.
Users who are not professionally trained for bicycle assembly should not attempt to install the components themselves using the dealer’s manuals.
If any part of the information on the manual is unclear to you, do not proceed with the installation. Instead, contact your place of purchase or a local
bicycle dealer for their assistance.
• Make sure to read all instruction manuals included with the product.
• Do not disassemble or modify the product other than as stated in the information contained in this dealer’s manual.
• All manuals and technical documents are accessible online at https://si.shimano.com.
• For consumers who do not have easy access to the internet, please contact a SHIMANO distributor or any of the SHIMANO offices to obtain a hardcopy
of the User's Manual.
• Please observe the appropriate rules and regulations of the country, state or region in which you conduct your business as a dealer.
For safety, be sure to read this dealer’s manual thoroughly before use, and follow it for correct use.
The following instructions must be observed at all times in order to prevent personal injury and physical damage to equipment and surroundings.
The instructions are classified according to the degree of danger or damage which may occur if the product is used incorrectly.
DANGER
Failure to follow the instructions will result in death or serious injury.
WARNING
Failure to follow the instructions could result in death or serious injury.
CAUTION
Failure to follow the instructions could cause personal injury or physical damage to equipment and surroundings.

4
TO ENSURE SAFETY
TO ENSURE SAFETY
WARNING
• Be sure to follow the instructions provided in the manuals when installing the product.
Only use SHIMANO genuine parts. If a component or replacement part is incorrectly assembled or adjusted, it can lead to component failure and cause
the rider to lose control and crash.
• Wear approved eye protection while performing maintenance tasks such as replacing components.
Be sure to also inform users of the following:
• Never use alkali- or acid-based solvents such as rust cleaners. If those solvents are used the chain might break and cause serious injury.
• Clean the chain with an appropriate chain cleaner regularly. Intervals between maintenance depend on the use and riding circumstances.
• Check that there are no cracks in the crank arms before riding the bicycle. If there are any cracks, the crank arm may break and you may fall off the
bicycle.
• Be careful not to let the hemming of your clothes get caught in the chain while riding. Otherwise you may fall off the bicycle.
• Check the chain for any damage (deformation or crack), skipping, or other abnormalities such as unintended gear shifting. If any problems are found,
consult a dealer or an agency. The chain may break, and you may fall.
For Installation to the Bicycle, and Maintenance:
• Install the inner cover correctly. If it is not installed correctly, the axle may rust and become damaged, and the bicycle may fall over and serious injury
may occur as a result.
• The two left crank arm screws should be tightened alternately in stages rather than each fully tightened at once. Use a torque wrench to check that
the tightening torques are within the range of 12 - 14 N·m. Furthermore, after riding approximately 100 km (60 miles), use a torque wrench to
re-check the tightening torques. It is also important to periodically check the tightening torques. If the tightening torques are too weak or if the
mounting screws are not tightened alternately in stages, the left crank arm may come off and the bicycle may fall over, and serious injury may occur as
a result.

5
TO ENSURE SAFETY
CAUTION
Be sure to also inform users of the following:
• Be careful not to touch the teeth of chainrings. There is a danger of injury.
NOTICE
Be sure to also inform users of the following:
• Check that there is no excess play or looseness in any fastening sections before riding the bicycle. Also, be sure to retighten the crank arm and pedals
at periodic intervals.
• Be sure to keep turning the crank arm during the shift lever operation.
• When the chain is in any of the positions shown in the figures, the chain may come into contact with the chainring or front derailleur and generate
noise. If noise is a problem, shift the chain onto the next largest sprocket or the one after if it is in the position shown in Figure 1. Shift the chain onto
the next smallest sprocket or the one after if it is in the position shown in Figure 2.
Figure 1 Figure 2
Triple
Chainring
Sprocket
• Use a neutral detergent to clean the crank arm and the bottom bracket. Using alkaline or acidic detergents may cause discoloration.
• If pedaling performance does not feel normal, contact your place of purchase.
• Do not wash the bottom bracket with high-pressure jets of water. Water may enter the bearing section and cause noise or adhesion.
• The chainrings should be periodically washed with a neutral detergent. In addition, cleaning the chain with neutral detergent and lubricating it can be
an effective way of extending the life of the chainrings and the chain.
• The cuffs of your clothing may get dirty from the chain while riding.
• This product is not warrantied against damage caused by improper use, abuse, or issues resulting from a crash, unless the circumstance was caused by
a manufacturing fault.
• Products are not guaranteed against natural wear and deterioration from normal use and aging.
• For maximum performance we highly recommend SHIMANO lubricants and maintenance products.

6
TO ENSURE SAFETY
For Installation to the Bicycle, and Maintenance:
• When installing the pedals, apply a small amount of grease to the threads to prevent the pedals from seizing. Use a torque wrench to securely tighten
the pedals. Tightening torque is 35 - 55 N·m. The right crank arm has a right-hand thread, and the left crank arm has a left-hand thread.
• If the bottom bracket shell is not parallel, gear shifting performance will drop.
• If the chain keeps coming off the gears during use, replace the chainrings and the chain.
• When installing the left- and right-hand cups, apply grease and be sure to install the inner cover. Otherwise, the waterproofing performance will
worsen.
• To ensure the best performance, be sure to use only the recommended type of chain.
• If a squeaking noise is heard coming from the bottom bracket axle and the left crank arm connector, apply grease to the fastening section, then
tighten it to the specified torque.
• If you feel any looseness in the bearings, the bottom bracket should be replaced.
• Use the specified chainring combination. If other chainring combinations are used, it can create poor shifting and cause the chain to jam, resulting in
damage to the bicycle.
The actual product may differ from the illustration because this manual is intended mainly to explain the procedures for using
the product.

LIST OF TOOLS TO BE USED

8
LIST OF TOOLS TO BE USED
LIST OF TOOLS TO BE USED
The following tools are needed for installation, adjustment, and maintenance purposes.
Tool Tool Tool
5 mm hexagon wrench TL-FC16 TL-FC36
8 mm hexagon wrench TL-FC18 TL-FC37
17 mm spanner TL-FC25 TL-BB12
Screwdriver [#2] TL-FC32 TL-BB13
Soft face mallet TL-FC33 Hexalobular [#30]

INSTALLATION

10
INSTALLATION
Threaded bottom bracket
INSTALLATION

Threaded bottom bracket

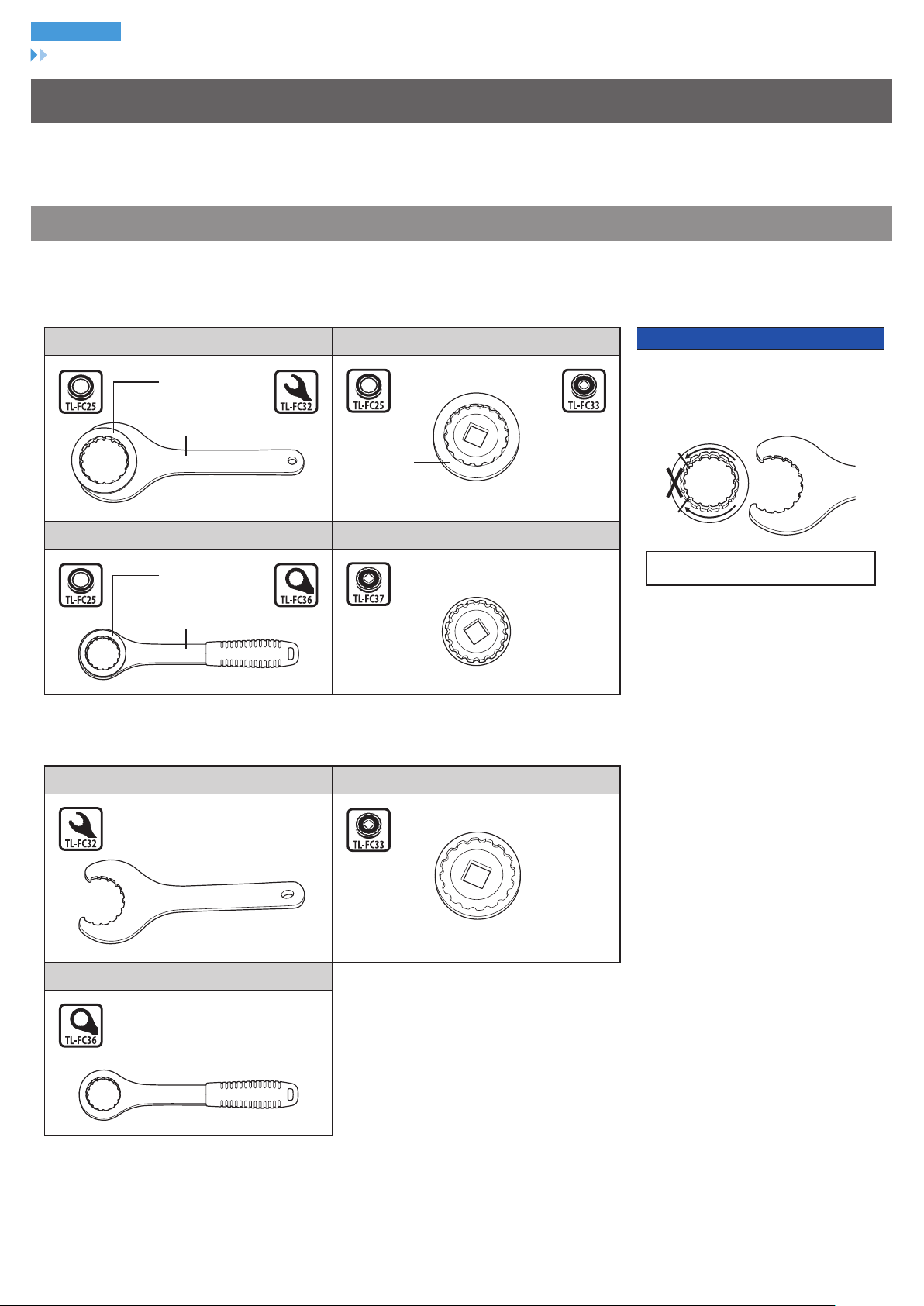

List of tool combinations
Use the tools in the correct combination.
BB-MT800 / BB-MT801
TL-FC25 & TL-FC32 TL-FC25 & TL-FC33
TL-FC25
TL-FC32
TL-FC25
TL-FC33
TL-FC25 & TL-FC36 TL-FC37
TL-FC25
TL-FC36
NOTICE
• For an impact wrench, use TL-FC37. Using
other tools may damage the tool.
• When setting TL-FC25 in TL-FC32, check the
possible setting position.
When setting in TL-FC32, check the possible
setting position.
• Any position is possible when setting to
TL-FC33/FC36.
SM-BB52 / BB-MT501
TL-FC32 TL-FC33
TL-FC36

11
INSTALLATION
Threaded bottom bracket
Spacer installation method
1
(z)

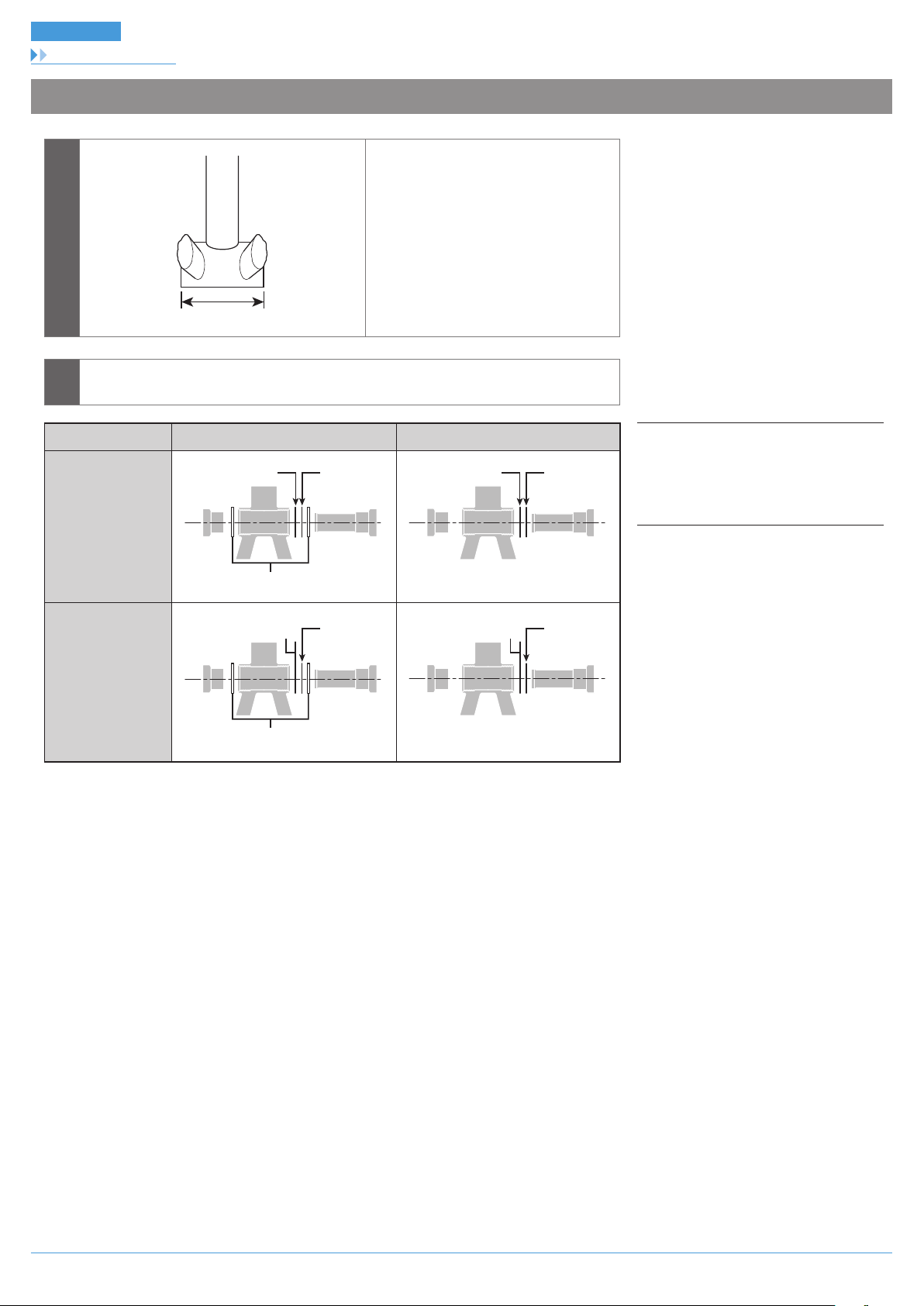

Check whether the width of the bottom
bracket shell is 68 mm or 73 mm.
(z) Bottom bracket shell width
2Install the cups.
68 mm 73 mm
Band type
(A)
(B) (C)
(B) (C)
Chain case
stay type
(A)
(D) (C) (D) (C)
(A) 2.5 mm spacer
(B) 1.8 mm spacer
(C) 0.7 mm spacer
(D) Chain case stay

12
INSTALLATION
Threaded bottom bracket
Installation to the bottom bracket shell
(C)
(D)
(A) (B)

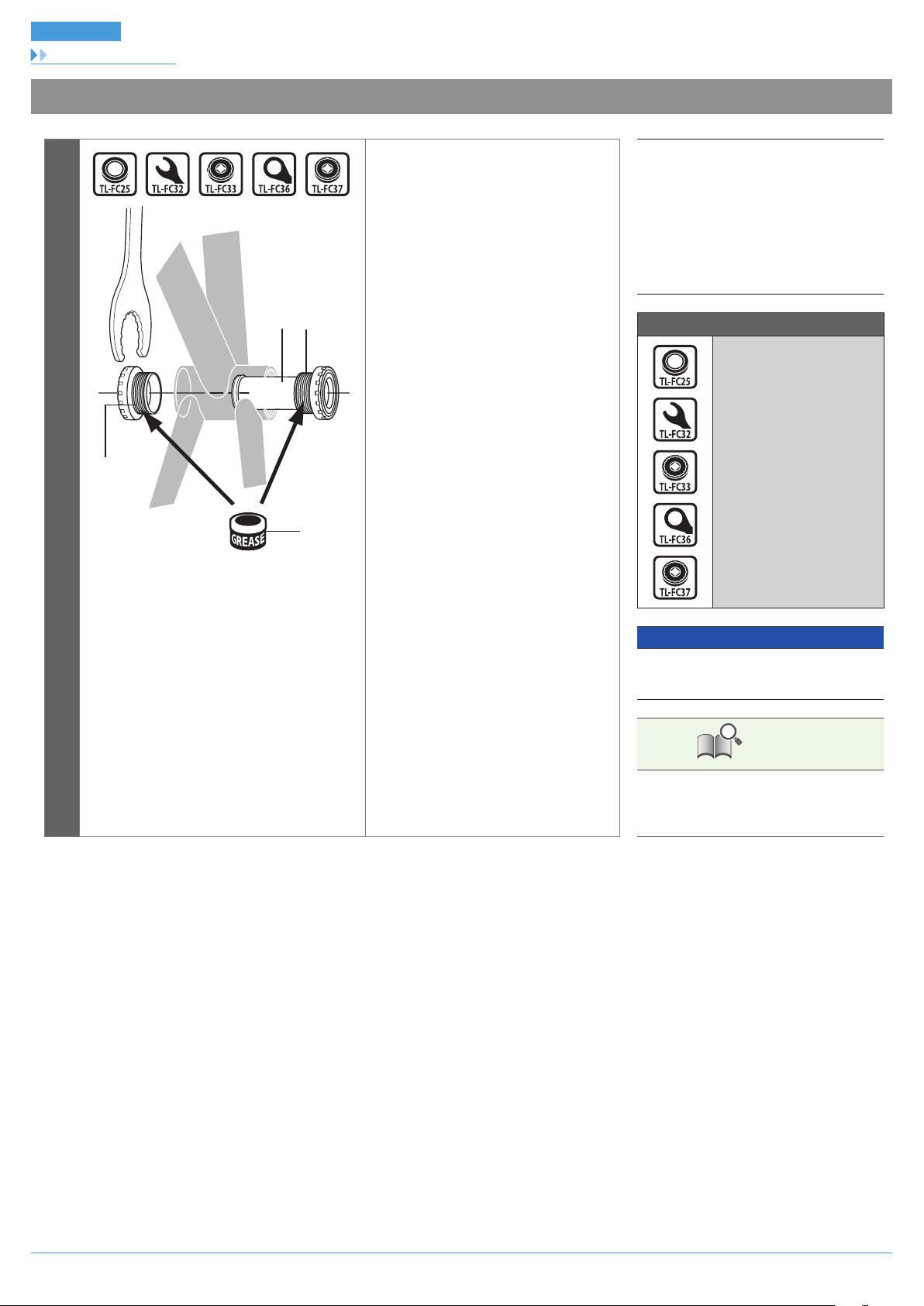

Grease the left- and right-hand cups and
use the SHIMANO original tool to install
the right-hand cup of the bottom
bracket, the inner cover and the
left-hand cup of the bottom bracket.
(A) Inner cover
(B) Right-hand cup (left-hand thread)
(C) Left-hand cup
(right-hand thread)
(D) Apply grease:
Premium Grease
(Y04110000)
Tightening torque
35 - 50 N·m
NOTICE
TL-FC25 are tightened by combining with
TL-FC32/FC36.
TECH TIPS
For tool combinations used when installing/
uninstalling the bottom bracket, refer to "List
of tool combinations".

13
INSTALLATION
PRESS-FIT BB

PRESS-FIT BB
BB-MT800-PA / BB-MT500-PA
Bottom bracket cups
(A) (C)(B)
(E)(D)
(A) Left-hand cup
(B) Inner cover
(C) Right-hand cup
(D) Bottom bracket shell width
(E) 2.5 mm spacer
NOTICE
Some models do not need spacers.
Assembly example
Bottom bracket shell with 92 mm width Bottom bracket shell with 89.5 mm width
(A)
• The 2.5 mm spacer is not needed for a bottom
bracket shell width of 92 mm.
• Use the inner cover.
• For a bottom bracket shell width of 89.5 mm,
insert the 2.5 mm spacer into the right hand
side (between the frame and the right-hand
cup).
• Use the inner cover.
(A) 2.5 mm spacer
NOTICE
• If the frame has openings for the bottom
bracket shell, attach an inner cover sleeve
to prevent foreign objects from getting
inside.
• If the frame has no openings inside the
bottom bracket shell, it can be installed
without the inner cover sleeve.

14
INSTALLATION
PRESS-FIT BB
Installation to the bottom bracket shell

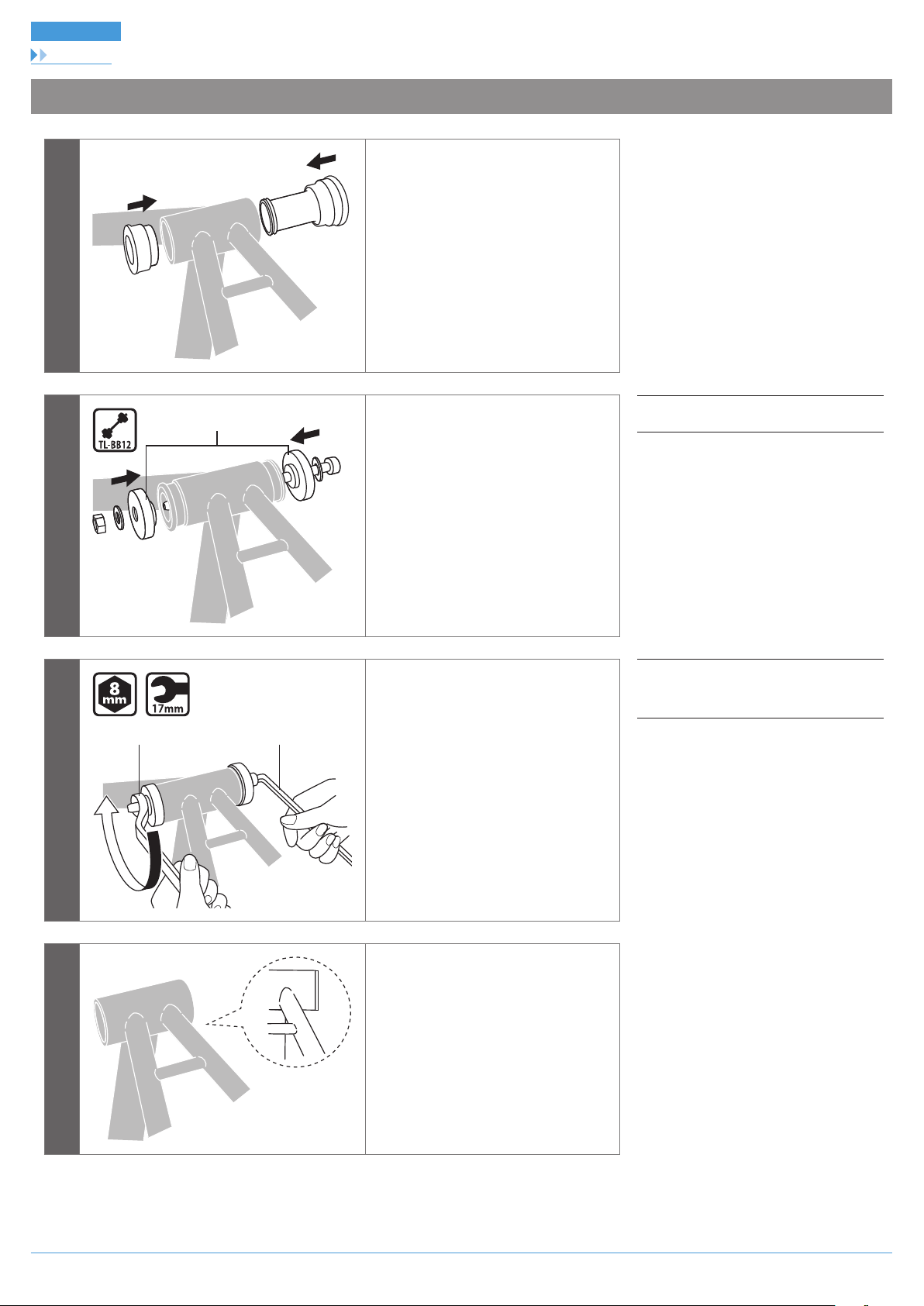

1
Insert the bottom bracket into the
bottom bracket shell.
2
(A)
Insert the SHIMANO original tool into
the bottom bracket.
(A) TL-BB12
3
(A)(B)
Press fit the bottom bracket by
tightening with a spanner while making
sure that the contact surface of the
bottom bracket stays parallel to the
contact surface of the bottom bracket
shell.
(A) 8 mm hexagon wrench
(B) 17 mm spanner
4
Check to confirm that there is no gap
between the bottom bracket and the
bottom bracket shell.

15
INSTALLATION
PRESS-FIT BB
Removal from the bottom bracket shell
1
(A)
Insert the SHIMANO original tool into
the bottom bracket.
(A) TL-BB13
NOTICE
Do not reuse the cups as they can be
damaged during removal.
2
As shown in the illustration, hold down
the flap with your fingers and push it in
from the opposite side.
(When pushed in, the flap opens.)
TECH TIPS
While holding down the end of the removal
tool, push the tool in from the other side until
it locks in place.
3
(A)
Tap the SHIMANO original tool with a
soft face mallet until the end of the
bottom bracket is ejected.
(A) Soft face mallet
4
(A)
Tap the opposite end of the bottom
bracket in the same way and remove it.
(A) Soft face mallet

16
To be continued on next page
INSTALLATION
Installing the crank arms

Installing the crank arms
1

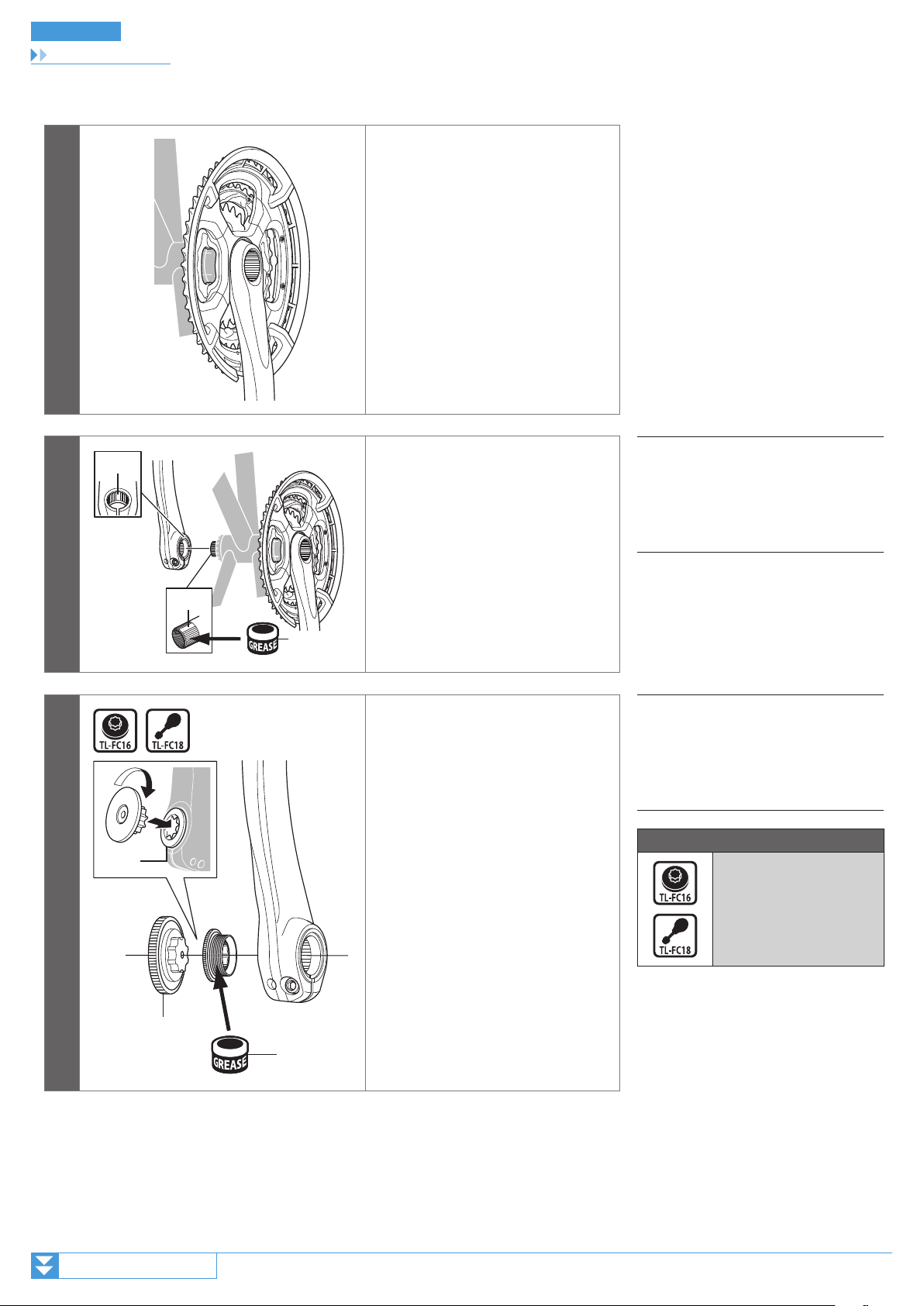

Fully insert the right crank arm unit until
it touches the bottom bracket.
2
(C)
(B)
(A)
Set the wide groove area of the left
crank arm into the axle of the right
crank arm unit where the groove is wide.
(A) Wide groove area (left crank arm)
(B) Wide groove area (axle)
(C) Apply grease:
Premium Grease
(Y04110000)
3
(A)
(B)
(C)
Use the SHIMANO original tool to
tighten the cap.
(A) TL-FC16
(B) Cap
(C) Apply grease:
Premium Grease
(Y04110000)
Tightening torque
0.7 - 1.5 N·m

17
INSTALLATION
Installing the crank arms
4
(A)
(B)
(z)
(C)
Push in the stopper plate and check that
the plate pin is securely in place, and
then tighten the screws of the left crank
arm.
Tighten both screws equally to the
specified tightening torque (12 - 14 N·m).
(z) The illustration is of the left crank
arm (cross-section)
(A) Plate pin
(B) Stopper plate
(C) Left crank arm
Tightening torque
12 - 14 N·m
NOTICE
• The two screws should be tightened
alternately in stages rather than each screw
being fully tightened at once.
• Spacers used vary according to the width of
the bottom bracket shell. For details, refer
to "Spacer installation method".

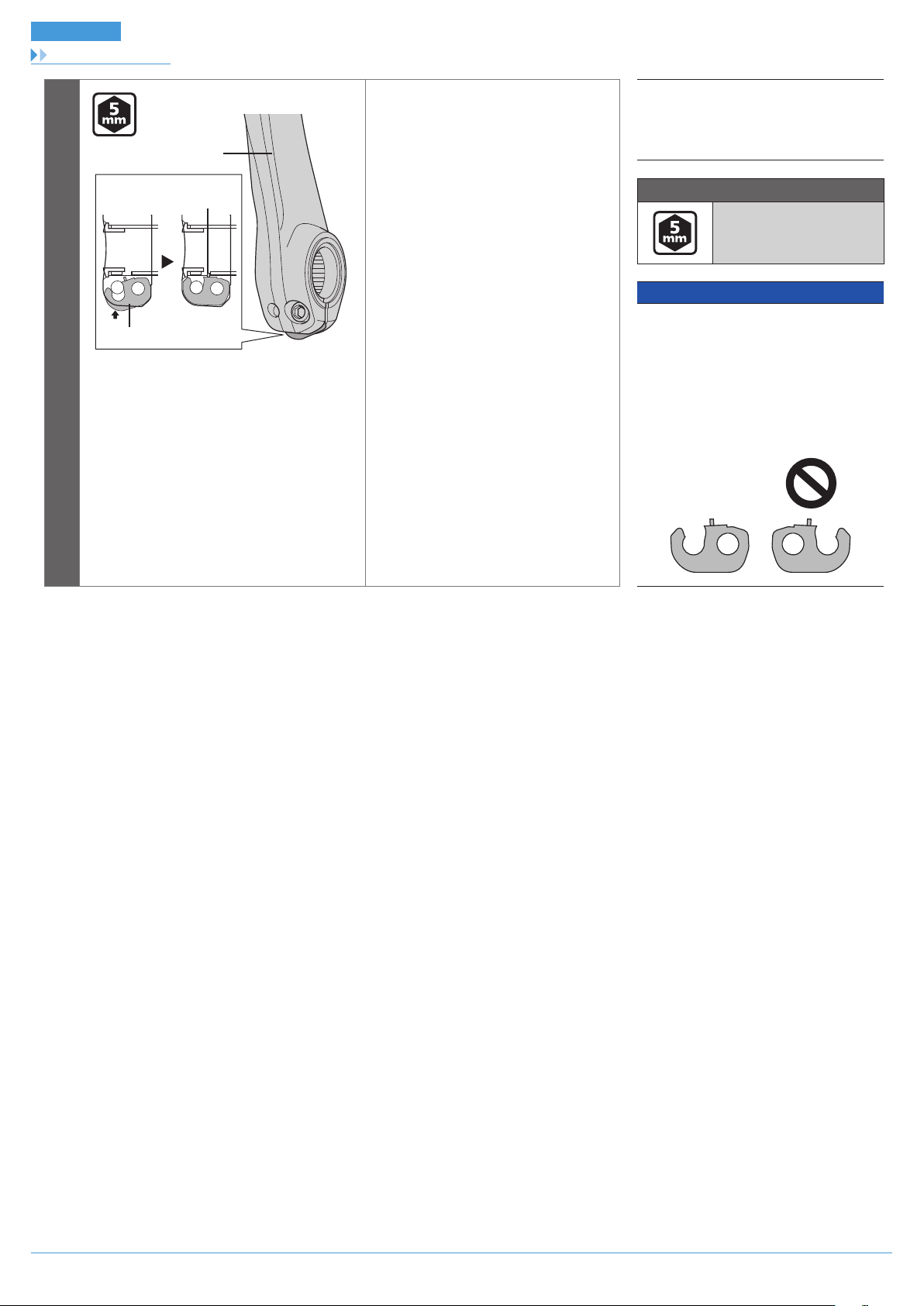

• Set the stopper plate in the correct
direction as shown in illustration.

MAINTENANCE

19
MAINTENANCE
Replacing chainrings
MAINTENANCE

Replacing chainrings

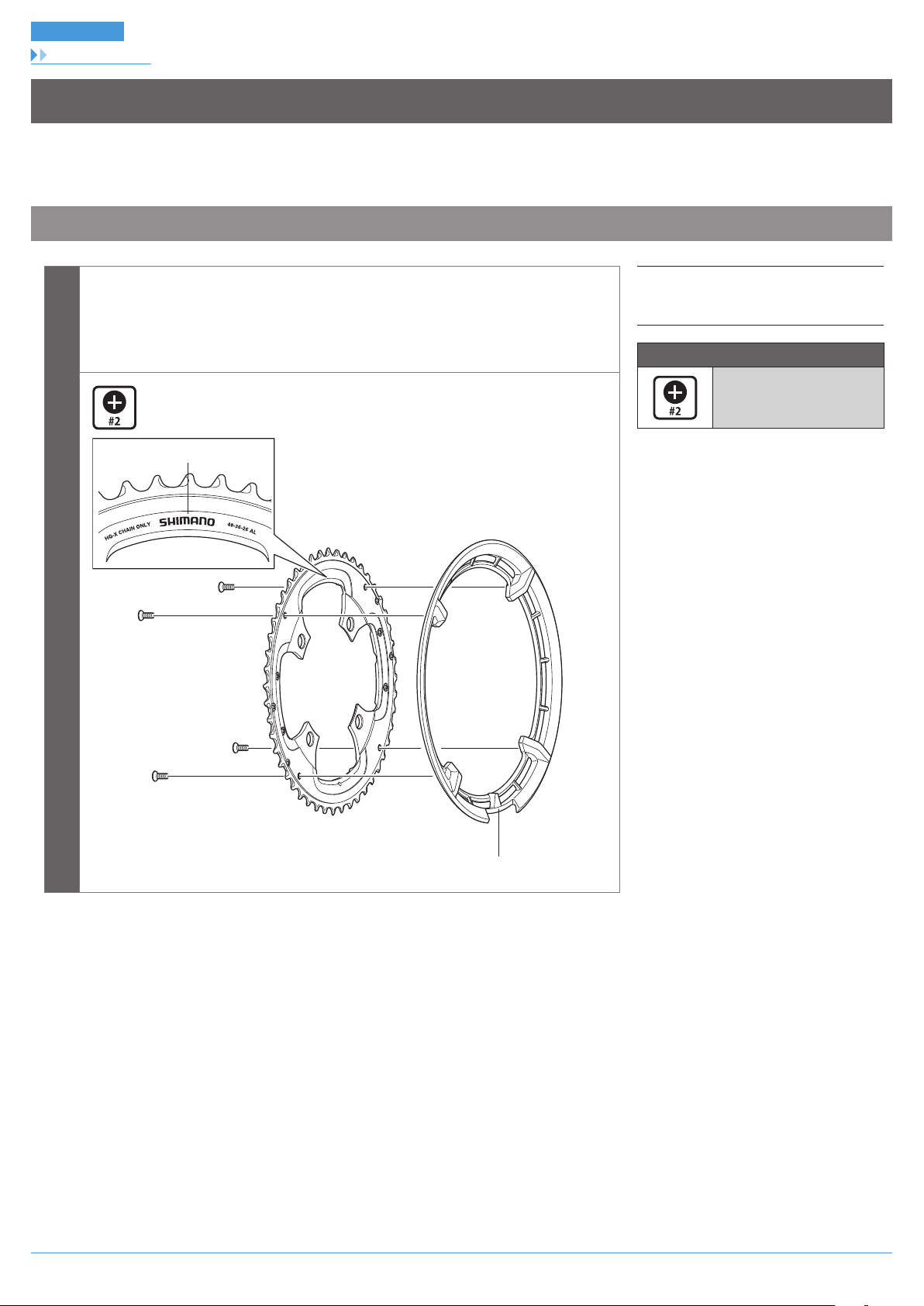

Installation of the chain guard
Attach the chain guard to the largest chainring as shown in the illustration.
The marked side of the largest chainring should face outward.
Position the chain guard so that the flat areas align with the holes in the largest chainring.
(A) Marking
(B) Flat areas
Tightening torque
1.5 - 2 N·m
(B)
(A)

20
To be continued on next page
MAINTENANCE
Replacing chainrings

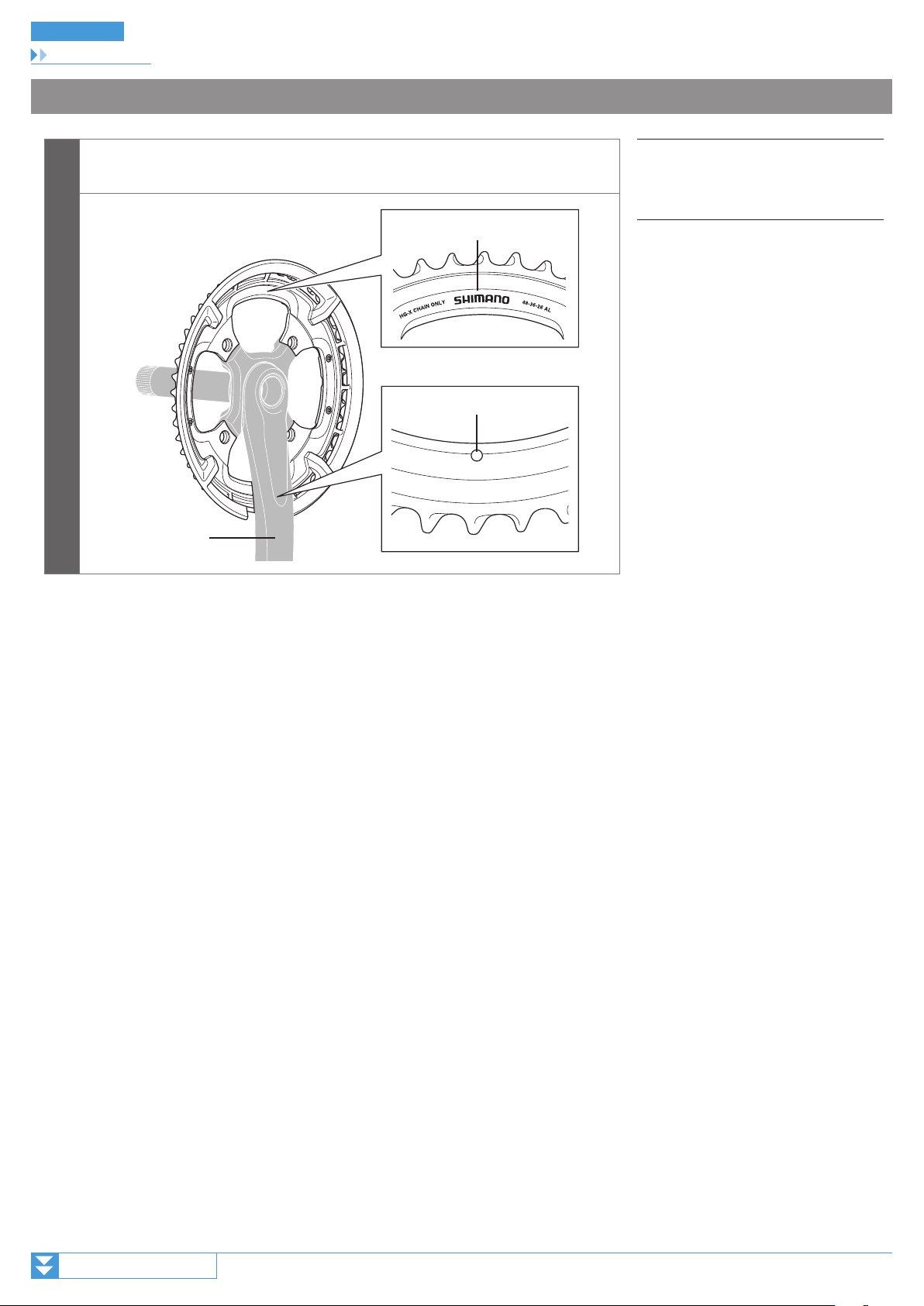

Installing the chainrings (FC-T8000)
1
With the marked side of the largest chainring facing outward, set the chainring so that the
hole is positioned under the crank arm.
(A) Marking
(B) Hole
(C) Crank arm
(C)
(B)
(A)
