Shimano REVOSHIFT SL-RV100 User manual

(English) DM-SL0002-05
Dealer's Manual
ROAD MTB Trekking
City Touring/
Comfort Bike URBAN SPORT E-BIKE
REVOSHIFT Shifter
Non Series
SL-RV100
SL-RV300
SL-RV400
SHIMANO
SL-RV200
TOURNEY
SL-RS47
SL-RS45
SL-RS36
SL-RS35
SL-RS34
SL-RS25

Contents
IMPORTANT NOTICE........................................................................................ 3
TO ENSURE SAFETY......................................................................................... 4
List of tools to be used................................................................................... 5
Installation / removal ..................................................................................... 6
Installing the shift lever.......................................................................................6
Adjustment...................................................................................................... 7
Introduction .........................................................................................................7
Left-hand lever adjustment.................................................................................7
Right-hand lever adjustment ............................................................................13
SIS adjustment....................................................................................................16
Maintenance.................................................................................................. 19
Replacing the inner cable..................................................................................19
2

IMPORTANT NOTICE
For safety, be sure to read this dealer's manual thoroughly before use, and
follow it for correct use.
The following instructions must be observed at all times in order to prevent personal injury and physical damage to
equipment and surroundings.
The instructions are classified according to the degree of danger or damage which may occur if the product is used
incorrectly.
DANGER Failure to follow the instructions will result in death or serious injury.
WARNING Failure to follow the instructions could result in death or serious injury.
CAUTION Failure to follow the instructions could cause personal injury or physical damage to equipment and
surroundings.
This dealer's manual is intended primarily for use by professional bicycle mechanics.
Users who are not professionally trained for bicycle assembly should not attempt to install the components
themselves using the dealer's manuals.
If any part of the information on the manual is unclear to you, do not proceed with the installation. Instead,
contact your place of purchase or a distributor for assistance.
Make sure to read all manuals included with each product.
Do not disassemble or modify the product other than as stated in the information contained in this dealer's
manual.
All manuals and technical documents are accessible online at https://si.shimano.com .
For consumers who do not have easy access to the internet, please contact a SHIMANO distributor or any of
the SHIMANO offices to obtain a hardcopy of the user's manual.
Please observe the appropriate rules and regulations of the country, state or region in which you conduct your
business as a dealer.
IMPORTANT NOTICE
3

TO ENSURE SAFETY
Be sure to also inform users of the following:
For installation to the bicycle and maintenance
The actual product may differ from the illustration because this manual is
intended mainly to explain the procedures for using the product.
Be sure to follow the instructions provided in the manuals when installing the product.
Only use SHIMANO genuine parts. If a component or replacement part is incorrectly assembled or adjusted, it
can lead to component failure and cause the rider to lose control and crash.
Wear approved eye protection while performing maintenance tasks such as replacing components.
Be sure to keep turning the crank during the lever operation.
The gears should be periodically washed with a neutral detergent. In addition, cleaning the chain with neutral
detergent and lubricating it can be an effective way of extending the life of the gears and the chain.
Products are not guaranteed against natural wear and deterioration from normal use and aging.
For maximum performance we highly recommend SHIMANO lubricants and maintenance products.
When using a friction-supported front derailleur, use it with one of the following shift levers.
Shift lever
SL-RV100-LN / SL-RV200-LN / SL-RV300-LN
/ SL-RV400-LN / SL-RS36-LN / SL-RS35-LN /
SL-RS34-LN / SL-RS25-LN
SL-RV200-L / SL-RV300-L / SL-RV400-L / SL-
RS47-L / SL-RS45-L / SL-RS36-L / SL-RS35-L
Front derailleur
FD-TZ31 / FD-TZ30 / FD-TZ21 / FD-TZ20
OK Not OK
TO ENSURE SAFETY
4

List of tools to be used
The following tools are needed for installation/removal, adjustment, and maintenance purposes.
Tool
2.5 mm hexagon wrench
3 mm hexagon wrench
5 mm hexagon wrench
9 mm spanner
Cross head screwdriver
Cross head screwdriver [#1]
TL-CT12
List of tools to be used
5

Installation / removal
Installing the shift lever
Install the shift lever in a position where it will not obstruct brake operation.
Right-hand leverLeft-hand lever
2.5 - 3 N·m (SL-RS25 / SL-RS35)
2 - 2.5 N·m (SL-RS34 / SL-RS36 / SL-RS45 / SL-RS47)
1.5 - 2 N·m (SL-RV100 / SL-RV200 / SL-RV300 / SL-RV400)
Half grip
Handlebar
Half grip
Handlebar
Do not use in a combination which causes brake operation to be obstructed.
Leave a gap of 0.5 mm between the REVOSHIFT lever and the half grip. There is no need to leave a gap for
the SL-RV100 / SL-RV200 / SL-RV300 / SL-RV400.
1.
Installation / removal
Installing the shift lever
6

Adjustment
Introduction

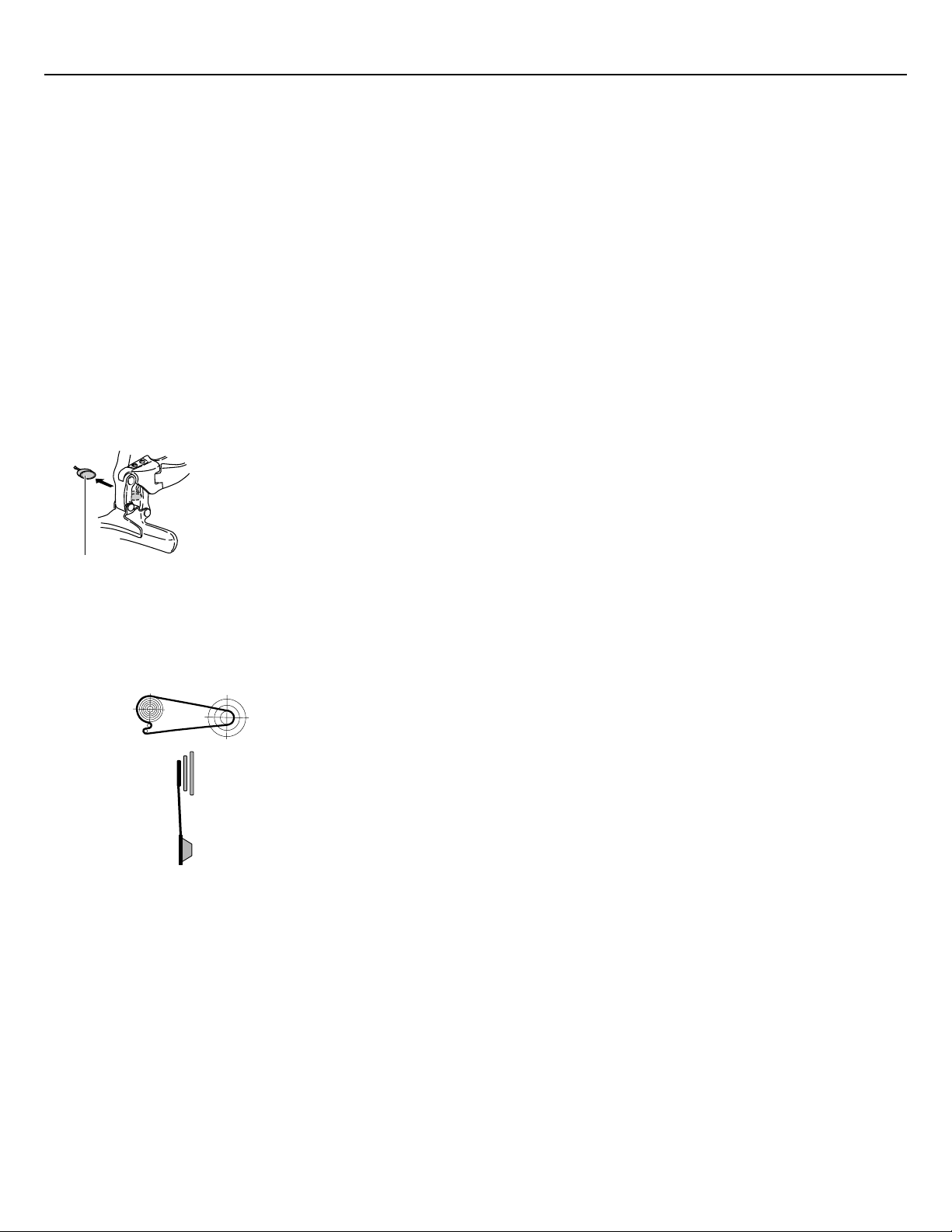

Make sure to perform adjustment of the left-hand lever/right-hand lever in each indicated order.
Left-hand lever adjustment
Adjusting the position of the low side
For models equipped with the Pro-Set alignment block, remove it.
Pro-Set alignment block
1.
Shift the chain to the smallest chainring and the largest sprocket.
Largest sprocket Smallest chainring
2.
Adjustment
Introduction
7

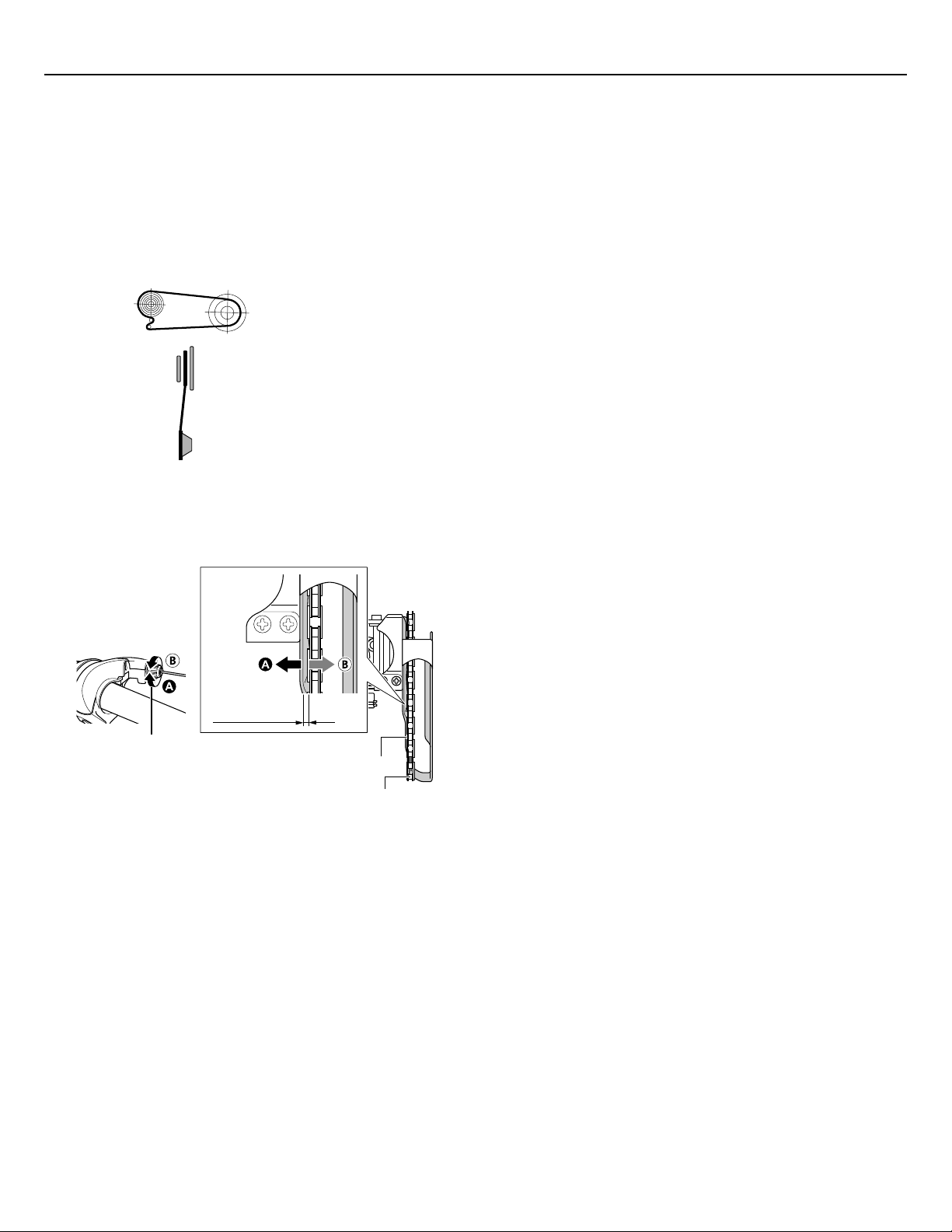

Adjust the low position of the front derailleur.
Adjust the gap between the inner plate and chain to 0 - 0.5 mm.
Top swing type
Inner plate Chain
Down swing type
3.
Adjustment
Left-hand lever adjustment
8

Connection and securing of the inner cable
Insert the inner cable into the outer casing from the end with the marking on it.
In order to maintain cable operating efficiency, the end with the marking is greased.
Marking
When cutting the outer casing, cut the opposite end to the end with the marking.
After cutting, make the end round using a TL-CT12 needle or similar so that the inside of the hole has a
uniform diameter.
Coil not tipping over inward Coil tipping over inward
TL-CT12 needle
Attach the same outer cap to the cut end of the outer casing.
Outer cap
Adjustment
Left-hand lever adjustment
9

While firmly pulling the inner cable, tighten the wire mounting screw to secure the cable in place.
Top swing type: FD-M310 / FD-M315 / FD-TX800 / FD-TY700 / FD-TY710 / FD-TY500 / FD-TY510
5 - 7 N·m
Down swing type: FD-M313 / FD-TY300 / FD-TZ500 / FD-TZ510
Normal type
5 - 7 N·m
Top route type
5 - 7 N·m
Route the inner cable as shown in the figure.
1.
Adjustment
Left-hand lever adjustment
10

Adjusting the cable tension
Adjusting the high limit
After taking up the initial slack in the inner cable, re-secure to the front derailleur.
Normal type
Pull
Top route type
Pull
1.
Cut off the excess length of inner cable, then install the inner end cap.2.
Adjust the chain to the largest chainring and the smallest sprocket.
Smallest sprocket Largest chainring
1.
Adjust the top position of the front derailleur.
Adjust the gap between the outer plate and chain to 0 - 0.5 mm.
Top swing type
Down swing type
Chain Outer plate
2.
Adjustment
Left-hand lever adjustment
11

Middle chainring adjustment
This adjustment is not necessary for LN (friction type) as it does not have a cable adjustment barrel.
Checking gear shifting and fine adjustment
After completing all adjustment, move the shift lever to check the gear shifting performance. (This also applies if
gear shifting becomes difficult during use.)
Set the chain on to the largest sprocket, and at the front, move the chain from the largest chainring to the
middle chainring to adjust.
Largest sprocket Middle chainring
1.
Adjust the middle chainring position of the chain guide.
Use the cable adjustment barrel to adjust the gap between the inner plate and the chain to 0 - 0.5 mm.
Cable adjustment barrel
0 - 0.5 mm
Inner plate
Chain
2.
Adjustment
Left-hand lever adjustment
12

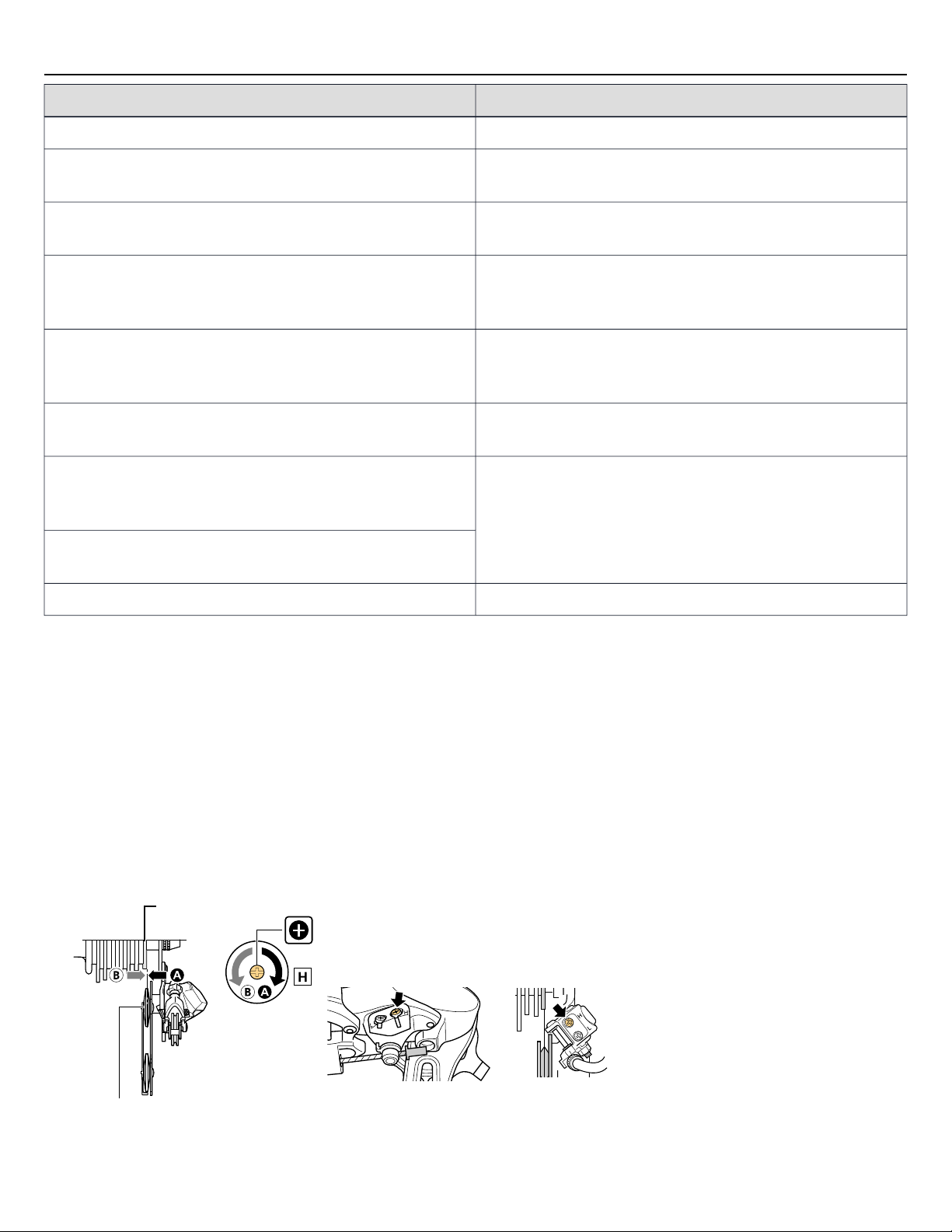

Situation Adjustment method
If the chain falls to the crank side Turn the high limit screw clockwise.
If shifting is difficult from the middle chainring to the largest
chainring
Tighten the cable. If this does not improve the situation, turn
the high limit screw counterclockwise.
If shifting is difficult from the middle chainring to the smallest
chainring
Turn the low limit screw counterclockwise.
If there is interference between the chain and the front
derailleur inner plate when the chain is on the largest chainring
of the crankset
Turn the high limit screw clockwise.
If there is interference between the chain and the front
derailleur outer plate when the chain is on the largest chainring
of the crankset
Tighten the cable. If this does not improve the situation, turn
the high limit screw counterclockwise.
If the middle chainring is skipped when shifting from the
largest chainring
Tighten the cable.
If there is interference between the chain and front derailleur
inner plate when the chain is on the largest sprocket at the rear
and the middle chainring
Loosen the cable.
If shifting is difficult from the largest chainring to the middle
chainring
If the chain falls to the bottom bracket side Turn the low limit screw clockwise.
Right-hand lever adjustment
Adjusting the high limit
Adjust by turning the high limit screw.
Adjust so that the center of the guide pulley is aligned with the outer face of the smallest sprocket when
viewed from the rear side.
* The position of the high limit screw differs depending on the model.
High limit screw
Example
Outer face of the smallest sprocket
Guide pulley
1.
Adjustment
Right-hand lever adjustment
13

Connection and securing of the inner cable
Install the chain.2.
Insert the inner cable into the outer casing from the end with the marking on it.
In order to maintain cable operating efficiency, the end with the marking is greased.
Marking
When cutting the outer casing, cut the opposite end to the end with the marking.
After cutting, make the end round using a TL-CT12 needle or similar so that the inside of the hole has a
uniform diameter.
Coil not tipping over inward Coil tipping over inward
TL-CT12 needle
Attach the same outer cap to the cut end of the outer casing.
Outer cap
Secure the inner cable to the rear derailleur.
Be sure that the inner cable is securely in the cable fixing groove.
5 - 7 N·m
Cable fixing groove
1.
Adjustment
Right-hand lever adjustment
14

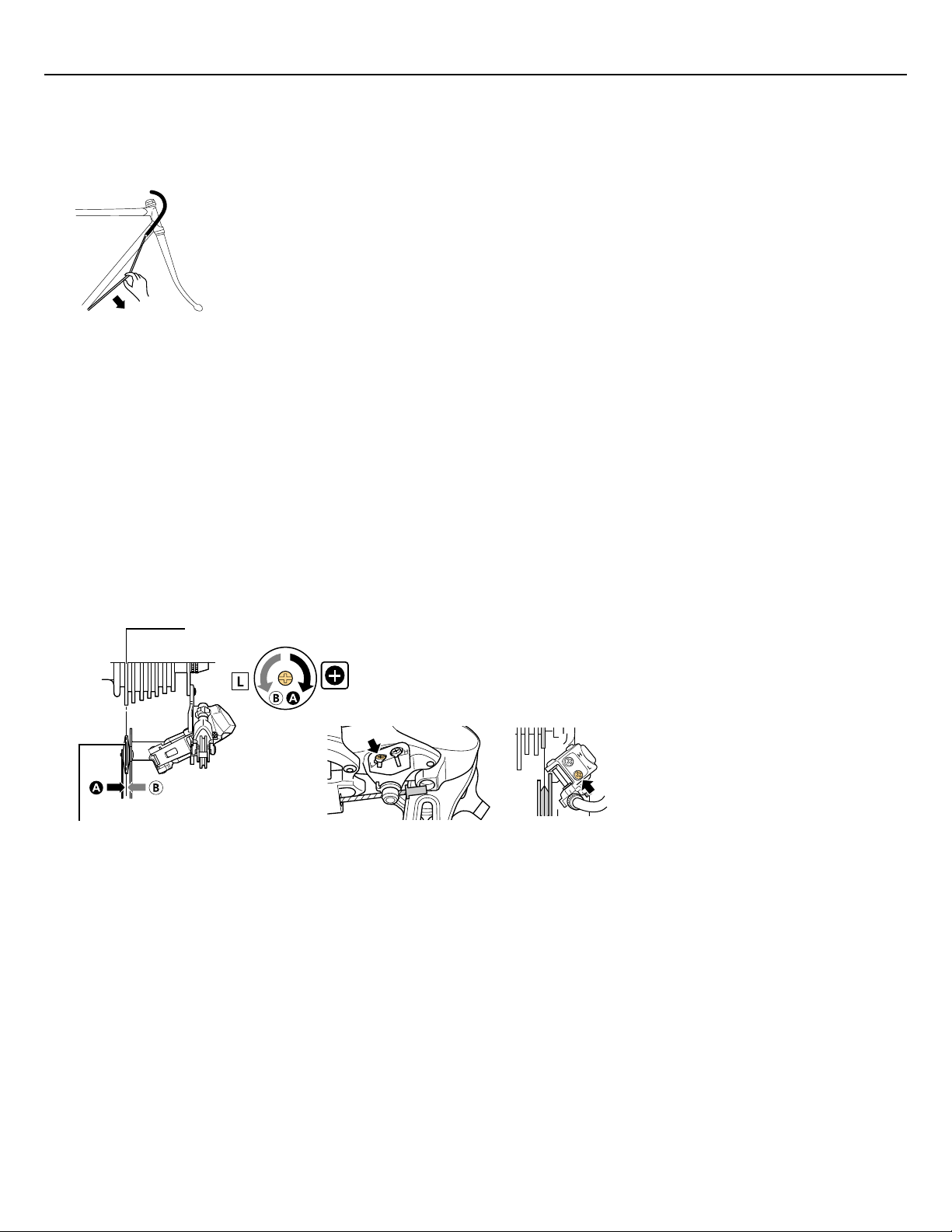

Adjusting the cable tension
Adjusting the low limit
After taking up the initial slack in the inner cable, re-secure to the rear derailleur.
Pull
1.
Cut off the excess length of inner cable, then install the inner end cap.2.
While turning the crankset, operate the lever to shift to the largest sprocket.1.
Adjust by turning the low limit screw.
Adjust so that the center of the guide pulley is aligned with the center of the largest sprocket.
* The position of the low limit screw differs depending on the model.
Low limit screw
Example
Guide pulley
Largest sprocket
2.
Adjustment
Right-hand lever adjustment
15

B-tension screw adjustment
RD-M360 / RD-M310 / RD-TX800 / RD-TY500 / RD-TY200-SS / RD-TY200-GS
RD-TY21B / RD-TZ500
SIS adjustment
Set the chain on the largest sprocket and smallest chainring, and turn the crank arm backward.1.
Turn the B-tension screw to adjust the guide pulley to be as close to the gear as possible but not so close
that it touches.
2.
Set the chain on the smallest sprocket and repeat the above to make sure that the chain tension is correct.3.
In order to obtain suitable gear shifting performance, set the chain onto the largest sprocket and the
smallest chainring.
1.
Turn the B-tension screw to adjust so that the distance between the tip of the freewheel and the tip of the
guide pulley is 10 mm.
B-tension screw
Largest sprocket
Smallest sprocket
2.
Set the chain on the smallest sprocket and repeat the above to make sure that the chain tension is correct.3.
Operate the shift lever once to move the chain from the smallest sprocket to the 2nd sprocket.1.
Adjustment
SIS adjustment
16

While operating the lever just enough to close the play in the lever, turn the crank arm.
When shifting to the 3rd sprocket counting from the smallest sprocket

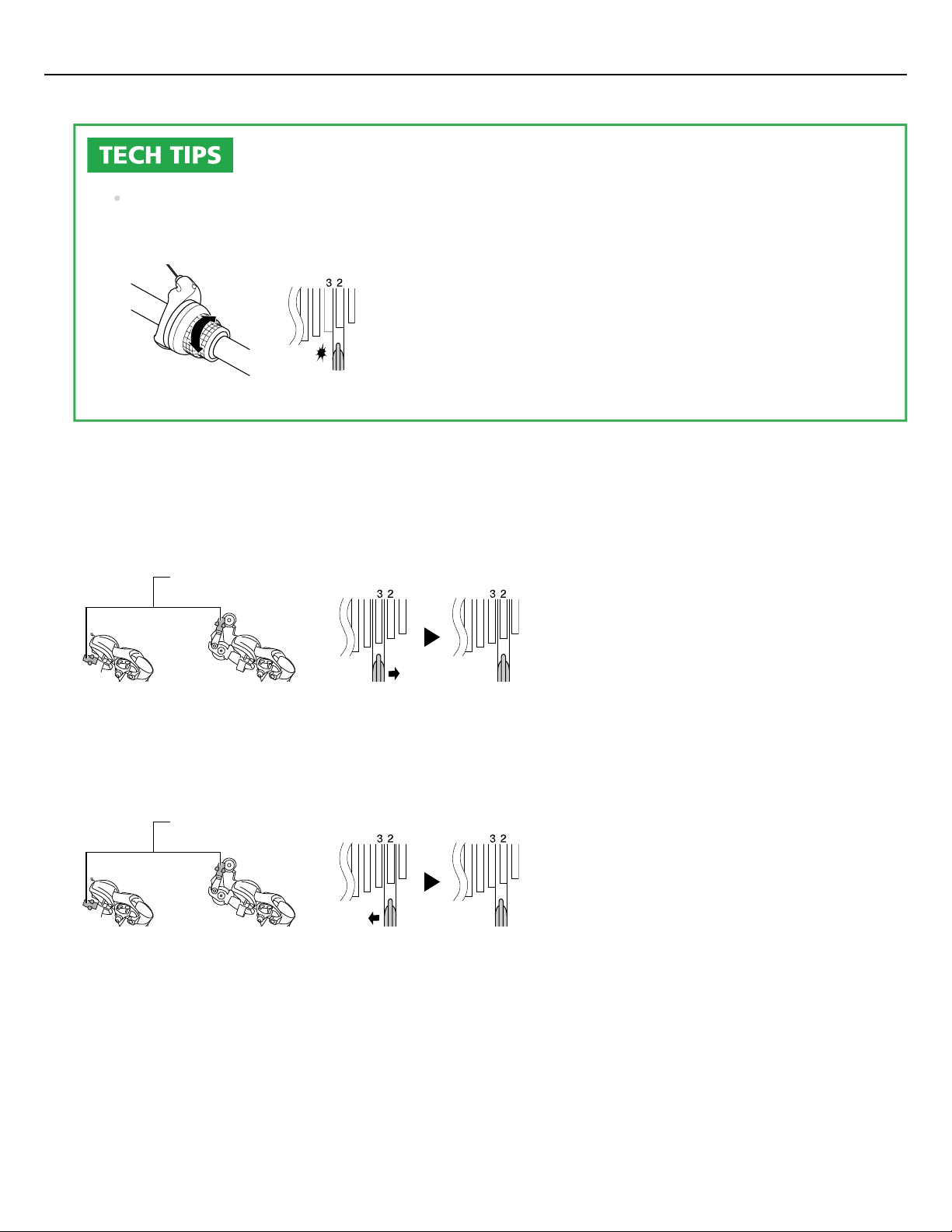

Tighten the adjustment barrel until the chain returns to the 2nd sprocket counting from the smallest
sprocket. (Clockwise)
* The position of the adjustment barrel differs depending on the model.
Adjustment barrel
When no sound at all is generated
Loosen the adjustment barrel until the chain touches the 3rd sprocket counting from the smallest sprocket
and makes noise. (Counterclockwise)
Adjustment barrel
The best setting is when the shift lever is operated just enough to close the lever play and the chain
touches the 3rd sprocket counting from the smallest sprocket and makes noise.
Play
2.
Return the lever to its original position (the position where the lever is at the 2nd sprocket setting counting
from the smallest sprocket and it has been released), then turn the crank arm.
If the chain is touching the 3rd sprocket counting from the smallest sprocket and making noise, turn the
adjustment barrel clockwise slightly to tighten it just enough until the noise stops.
3.
Operate the lever to change gears, and check that no noise occurs in any of the gear positions.4.
Adjustment
SIS adjustment
17

For the best SIS performance, periodically lubricate all power-transmission parts.5.
Adjustment
SIS adjustment
18

Maintenance
Replacing the inner cable
SL-RS47 / SL-RS45 / SL-RS36 / SL-RS35 / SL-RS34 / SL-RS25 / SL-RV400
Operate the shifter to align the gear with the top (for the rear) or low (for the front) position.1.
Remove the cover.
SL-RS47 / SL-RS45 /
SL-RS36 / SL-RS34 /
SL-RV400
SL-RS35 / SL-RS25
Left-hand lever
SL-RS47 / SL-RS45 /
SL-RS36 / SL-RS34 /
SL-RV400
SL-RS35 / SL-RS25
Right-hand lever
2.
Follow the procedures in (1) - (3) to replace the inner cable.
(1) (1)
(2) (2)
(3) (3)
3.
Maintenance
Replacing the inner cable
19

SL-RV100 / SL-RV200 / SL-RV300
Install the cover.
SL-RS47 / SL-RS45 /
SL-RS36 / SL-RS34 /
SL-RV400
SL-RS35 / SL-RS25
Left-hand lever
0.1 - 0.25 N·m
(SL-RS47 / SL-RS45 / SL-RS36 / SL-RV400)
0.1 - 0.2 N·m
(SL-RS34)
0.1 - 0.25 N·m
(SL-RS47 / SL-RS45 / SL-RS36 / SL-RV400)
0.1 - 0.2 N·m
(SL-RS34)
SL-RS47 / SL-RS45 /
SL-RS36 / SL-RS34 /
SL-RV400
SL-RS35 / SL-RS25
Right-hand lever
0.1 - 0.25 N·m
(SL-RS47 / SL-RS45 / SL-RS36 / SL-RV400)
0.1 - 0.2 N·m
(SL-RS34)
0.1 - 0.25 N·m
(SL-RS47 / SL-RS45 / SL-RS36 / SL-RV400)
0.1 - 0.2 N·m
(SL-RS34)
4.
Turn over the rubber grip from the area with the triangle mark.
Ensure that the inner head of the inner cable can be seen.
Rubber grip
Triangle mark
1.
Maintenance
Replacing the inner cable
20
