Shindaiwa M262 User manual

X7502342701
© 06/20 ECHO Incorporated
Operator’s
Manual
M262 Multi-Tool
The engine exhaust from this product contains chemicals
known to the State of California to cause cancer, birth defects,
or other reproductive harm.
Read and understand all provided literature before
use. Failure to do so could result in serious injury.
Note: This product complies with CAN ICES-2/NMB-2.

TABLE OF CONTENTS M262
2 X7502342701
© 06/20 ECHO Incorporated
TABLE OF CONTENTS
Introduction ................................................................................................. 3
Servicing Information .................................................................................. 3
Parts/Serial Number............................................................................. 3
Service................................................................................................. 4
Consumer Product Support ................................................................. 4
Product Registration ............................................................................ 4
Additional Literature............................................................................. 4
Safety.......................................................................................................... 5
Manual Safety Symbols and Important Information............................. 5
International Symbols .......................................................................... 6
Personal Condition and Safety Equipment .......................................... 8
Equipment.......................................................................................... 13
Emission Control (Exhaust & Evaporative) .............................................. 14
CARB And EPA Emissions Control Information ................................ 14
Description ................................................................................................ 15
Contents.................................................................................................... 16
Assembly................................................................................................... 17
Power Head Shaft to Lower Shaft Assembly..................................... 17
Support Handle Installation................................................................ 18
Operation .................................................................................................. 19
Fuel.................................................................................................... 19
Starting Cold Engine.......................................................................... 23
Starting Warm Engine........................................................................ 24
Stopping Engine ................................................................................ 25
Maintenance ............................................................................................. 26
Skill Levels ......................................................................................... 26
Maintenance Intervals........................................................................ 27
Air Filter ............................................................................................. 28
Fuel Filter........................................................................................... 29
Spark Plug ......................................................................................... 30
Cooling System.................................................................................. 31
Exhaust System................................................................................. 32
Carburetor Adjustment....................................................................... 34
Lubrication ......................................................................................... 35
Troubleshooting ........................................................................................ 36
Storage ..................................................................................................... 38
Long Term Storage (Over 30 Days)................................................... 38
Specifications............................................................................................ 39
SHINDAIWA Optional Attachments ................................................... 40
Product Registration.................................................................................. 40
Notes ........................................................................................................ 42

M262 INTRODUCTION
X7502342701 3
© 06/20 ECHO Incorporated
INTRODUCTION
Specifications, descriptions and illustrative material in this literature are as
accurate as known at the time of publication, but are subject to change
without notice. Illustrations may include optional equipment and
accessories, and may not include all standard equipment.
Read and understand all provided literature.
Literature contains specifications and
information for safety, operation,
maintenance, storage and assembly specific
to this product. Scan QR codes for more
information.
For additional literature, including safety manuals where applicable, or
questions regarding terms used in this manual, visit:
https://www.echo-usa.com/manuals
OR
https://www.shindaiwa-usa.com/manuals
SERVICING INFORMATION
Parts/Serial Number
Genuine SHINDAIWA Parts and
Assemblies for your SHINDAIWA
products are available only from an
Authorized SHINDAIWA Dealer.
When you do need to buy parts
always have the Model Number and
Serial Number of the unit with you.

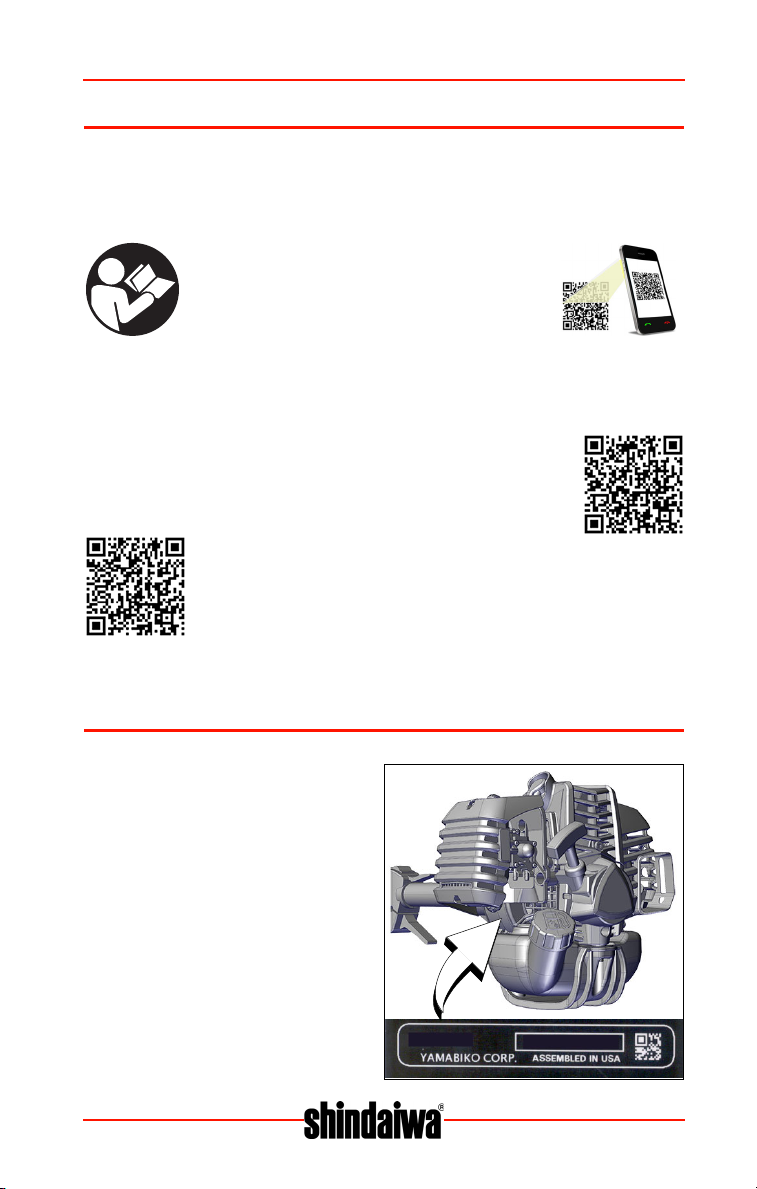

You can find these numbers on the
engine housing. For future
reference, write them in the space
provided below.

SERVICING INFORMATION M262
4 X7502342701
© 06/20 ECHO Incorporated
Model No. _________________ Serial No. _________________
Service
Service of this product during the warranty period must be performed by an
Authorized SHINDAIWA Service Dealer. For the name and address of the
Authorized SHINDAIWA Service Dealer nearest you, ask your retailer or
call: 1-877-986-7783. Dealer information is also available on
WWW.SHINDAIWA-USA.COM. When presenting your unit for Warranty
service/repairs, proof of purchase is required.
Consumer Product Support
If you require assistance or have questions concerning the application,
operation or maintenance of this product you may call the SHINDAIWA
Consumer Product Support Department at 1-877-986-7783 from 8:00 am to
5:00 pm (Central Standard Time) Monday through Friday. Before calling,
please know the model and serial number of your unit.
Product Registration
To ensure trouble free warranty coverage it is important that you register
your SHINDAIWA equipment on-line at WWW.SHINDAIWA-USA.COM or by
filling out the product registration sheet included in this manual. Registering
your product confirms your warranty coverage and provides a direct link
between you and ECHO if we find it necessary to contact you.
Additional Literature
In addition to finding information online, information is available from your
Authorized Shindaiwa Service Dealer, or by contacting ECHO Inc., 400
Oakwood Road, Lake Zurich, IL 60047 (1-800-432-ECHO (3246)).

M262 SAFETY
X7502342701 5
© 06/20 ECHO Incorporated
SAFETY
Manual Safety Symbols and Important Information
Throughout this manual and on the product itself, you will find safety alerts
and helpful, informational messages preceded by symbols or key words.
The following is an explanation of those symbols and key words and what
they mean to you.
The safety alert symbol accompanied by the word “DANGER”
calls attention to an act or condition which WILL lead to serious
personal injury or death if not avoided.
The safety alert symbol accompanied by the word “WARNING”
calls attention to an act or condition which CAN lead to serious
personal injury or death if not avoided.
The safety alert symbol accompanied by the word “CAUTION”
calls attention to an act or condition which may lead to minor or
moderate personal injury if not avoided.
The enclosed message provides information necessary for the
protection of the unit.
Note: This enclosed message provides tips for use, care and
maintenance of the unit.
CIRCLE AND SLASH SYMBOL
This symbol means the specific action shown is prohibited.
Ignoring these prohibitions can result in serious or fatal injury.

SAFETY M262
6 X7502342701
© 06/20 ECHO Incorporated
International Symbols
Symbol Description Symbol Description
Warning, See
Operator’s Manual
Carburetor Adjustment -
High Speed Mixture
Wear Eye, Ear and
Head Protection
Carburetor Adjustment -
Idle Speed
Wear Hand and Foot
Protection
Carburetor Adjustment -
Low Speed Mixture
Safety / Alert Emergency Stop
Hot Surface Fuel and Oil Mixture
AVOID KICKOUT
Keep Bystanders At Least
15 m (50 ft.) Away
Beware Thrown Objects
Wear Eye Protection
Keep Bystanders and Helpers
Away 15 m (50 ft.)
DO NOT Allow Flames
or Sparks Near Fuel
Ignition
ON / OFF
H
T
L

M262 SAFETY
X7502342701 7
© 06/20 ECHO Incorporated
DO NOT Smoke Near
Fuel Primer Bulb
Choke Control “RUN”
Position (Choke Open)
Choke Control “COLD
START” Position (Choke
Closed)
Keep Feet Away
From Blade
Rotating Cutting
Attachment
Thrown Objects Wear Face Shield
Finger Severing Wear Slip Resistant
Footwear
Do not operate closer
than 15 m (50 ft.) from
electrical hazards.
Keep bystanders at
least 15 m (50 ft.)
away.
DO NOT USE BLADES -
Line Head Only
Plan retreat path from
falling objects.
Symbol Description Symbol Description

SAFETY M262
8 X7502342701
© 06/20 ECHO Incorporated
Personal Condition and Safety Equipment
Cancer and Reproductive Harm
www.P65Warnings.ca.gov
The muffler or catalytic muffler and surrounding cover
may become extremely hot. Always keep clear of
exhaust and muffler area, otherwise serious personal
injury may occur.
Users of this product risk injury to themselves and others if the
unit is used improperly and/or safety precautions are not
followed. Proper clothing and safety gear must be worn when
operating unit.
Physical Condition
Your judgment and physical dexterity may not be good:
• If you are tired or sick
• If you are taking medication
• If you have taken alcohol or drugs
Operate unit only if you are physically and mentally well.
Eye Protection
◆Eye protection that meets ANSI Z87.1 or CE requirements
must be worn whenever you operate the unit.
◆For additional safety, a full-face shield may be worn over
safety glasses or goggles to provide protection from sharp
branches or flying debris.

M262 SAFETY
X7502342701 9
© 06/20 ECHO Incorporated
Hand Protection
Wear sturdy, no-slip, rubber work gloves to improve your grip on the
handles. Gloves also provide protection against cuts and scratches, cold
environments, and reduce the transmission of machine vibration to your
hands.
Hearing/Ear Protection
ECHO recommends wearing personal protection whenever unit is used.
Breathing Protection
Operators who are sensitive to dust or other common airborne allergens
may need to wear a dust mask to prevent inhaling these materials while
operating unit. Dust masks can provide protection against dust, plant debris,
and other plant matter such as pollen. Make sure the mask does not impair
your vision, and replace the mask as needed to prevent air restrictions.
Proper Clothing
Wear snug-fitting, durable clothing:
• Pants should have long legs, shirts should have long sleeves.
• DO NOT WEAR SHORTS.
• DO NOT WEAR TIES, SCARVES, JEWELRY, or clothing with loose or
hanging items that could become entangled in moving parts or
surrounding growth.
• Keep clothing buttoned or zipped, and keep shirt tails tucked in.
Wear sturdy work shoes with nonskid rubber soles:
• DO NOT WEAR OPEN TOED SHOES.
• DO NOT OPERATE UNIT BAREFOOTED.
Keep long hair away from engine and air intake. Retain hair with cap or net.
Heavy protective clothing can increase operator fatigue, which may lead to
heat stroke. Schedule heavy work for early morning or late afternoon hours
when temperatures are cooler.

SAFETY M262
10 X7502342701
© 06/20 ECHO Incorporated
The components of this machine generate an electromagnetic
field during operation, which may interfere with some
pacemakers. To reduce the risk of serious or fatal injury,
persons with pacemakers should consult with their physician
and the pacemaker manufacturer before operating this
machine. In the absence of such information, ECHO does not
recommend the use of this machine by anyone who has a
pacemaker.
Extended Operation / Extreme Conditions
Prolonged exposure to cold and/or vibration may result in
injury. Read and follow all safety and operation instructions to
minimize risk of injury. Failure to follow instructions may result
in painful wrist/hand/arm injuries.
It is believed that a condition called Raynaud’s Phenomenon, which affects
the fingers of certain individuals, may be brought about by exposure to
vibration and cold. Exposure to vibration and cold may cause tingling and
burning sensations, followed by loss of color and numbness in the fingers.
The following precautions are strongly recommended, because the
minimum exposure, which might trigger the ailment, is unknown.
• Keep your body warm, especially the head, neck, feet, ankles, hands, and
wrists.
• Maintain good blood circulation by performing vigorous arm exercises
during frequent work breaks, and also by not smoking.
• Limit the hours of operation. Try to fill each day with jobs where operating
the unit or other hand-held power equipment is not required.
• If you experience discomfort, redness, and swelling of the fingers followed
by whitening and loss of feeling, consult your physician before further
exposing yourself to cold and vibration.

M262 SAFETY
X7502342701 11
© 06/20 ECHO Incorporated
Repetitive Stress Injuries (RSI)
It is believed that overusing the muscles and tendons of the fingers, hands,
arms, and shoulders may cause soreness, swelling, numbness, weakness,
and extreme pain in those areas. Certain repetitive hand activities may put
you at a high risk for developing a Repetitive Stress Injury (RSI). An extreme
RSI condition is Carpal Tunnel Syndrome (CTS), which could occur when
your wrist swells and squeezes a vital nerve that runs through the area.
Some believe that prolonged exposure to vibration may contribute to CTS.
CTS can cause severe pain for months or even years.
To reduce the risk of RSI/CTS, do
the following:
• Avoid using your wrist in a bent,
extended, or twisted position.
Instead try to maintain a straight
wrist position. Also, when
grasping, use your whole hand,
not just the thumb and index
finger.
• Take periodic breaks to minimize
repetition and rest your hands.
• Reduce the speed and force with
which you do the repetitive
movement.
• Do exercises to strengthen the hand and arm muscles.
• Immediately stop using all power equipment and consult a doctor if you
feel tingling, numbness, or pain in the fingers, hands, wrists, or arms. The
sooner RSI/CTS is diagnosed, the more likely permanent nerve and
muscle damage can be prevented.
All over head electrical conductors and communications wires
can have electricity flow with high voltages. This unit is not
insulated against electrical current. Never touch wires directly
or indirectly, otherwise serious injury or death may result.

SAFETY M262
12 X7502342701
© 06/20 ECHO Incorporated
Do not operate this product indoors or in inadequately
ventilated areas. Engine exhaust contains poisonous emissions
and can cause serious injury or death.
Read the Manuals
• Provide all users of this equipment with the Operator’s Manual for
instructions on Safe Operation.
Clear the Work Area
• Spectators and fellow workers must be warned, and children and animals
prevented from coming nearer than 15 m (50 ft.) while the unit is in use.
Keep a Firm Grip
• Always hold throttle handle and support handle with thumbs and fingers
tightly encircling the handles.
Keep a Solid Stance
• Maintain footing and balance at all times. Do not stand on slippery,
uneven or unstable surfaces. Do not work in odd positions or on ladders.
Do not overreach.
Avoid Hot Surfaces
• During operation, the drive shaft housing and
attachment bearing housing may become very hot,
too hot to touch. Avoid contact during and
immediately after operation.

M262 SAFETY
X7502342701 13
© 06/20 ECHO Incorporated
Equipment
Use only ECHO attachments. Serious injury may result from the
use of a non-approved attachment combination. ECHO, INC. will
not be responsible for the failure of cutting devices,
attachments or accessories which have not been tested and
approved by ECHO. Read and comply with all safety
instructions listed in this manual and safety manual.
◆Check unit for loose/missing nuts, bolts, and screws.
Tighten and/or replace as needed.
◆Inspect guards and shields for damage and to ensure that
they are securely in place. Replace if damaged or missing.
◆Check that the attachment is firmly attached and in safe
operating condition.
◆Check that handle and harness (if included) are adjusted
for safe, comfortable operation. See Assembly Section for
proper adjustment.
Moving parts can amputate fingers or cause severe injuries.
Keep hands, clothing and loose objects away from all openings.
◆ALWAYS stop engine, disconnect spark plug, and make
sure all moving parts have come to a complete stop before
removing obstructions, clearing debris, or servicing unit.
◆DO NOT start or operate unit unless all guards and
protective covers are properly assembled to unit.
◆NEVER reach into any opening while the engine is running.
Moving parts may not be visible through openings.
Periodically check fuel system (fuel lines, vent, grommet, fuel
tank, and fuel cap) for leaks especially if the unit is dropped. If
damage or leaks are found, do not use unit, otherwise serious
personal injury or property damage may occur. Have unit
repaired by an authorized servicing dealer before using.

EMISSION CONTROL M262
14 X7502342701
© 06/20 ECHO Incorporated
EMISSION CONTROL (EXHAUST &
EVAPORATIVE)
CARB And EPA Emissions Control Information
The emission control system for
the engine is EM (engine
modification) and, if the second to
last character of the Engine Family
on the Emission Control
Information label (sample below) is
“B”, “C”, “K”, or “T”, the emission
control system is EM and TWC (3-
way catalyst). The fuel tank/fuel
line emission control system is EVAP (evaporative emissions). Evaporative
emissions for California models are only applicable to fuel tanks and fuel
feed lines.

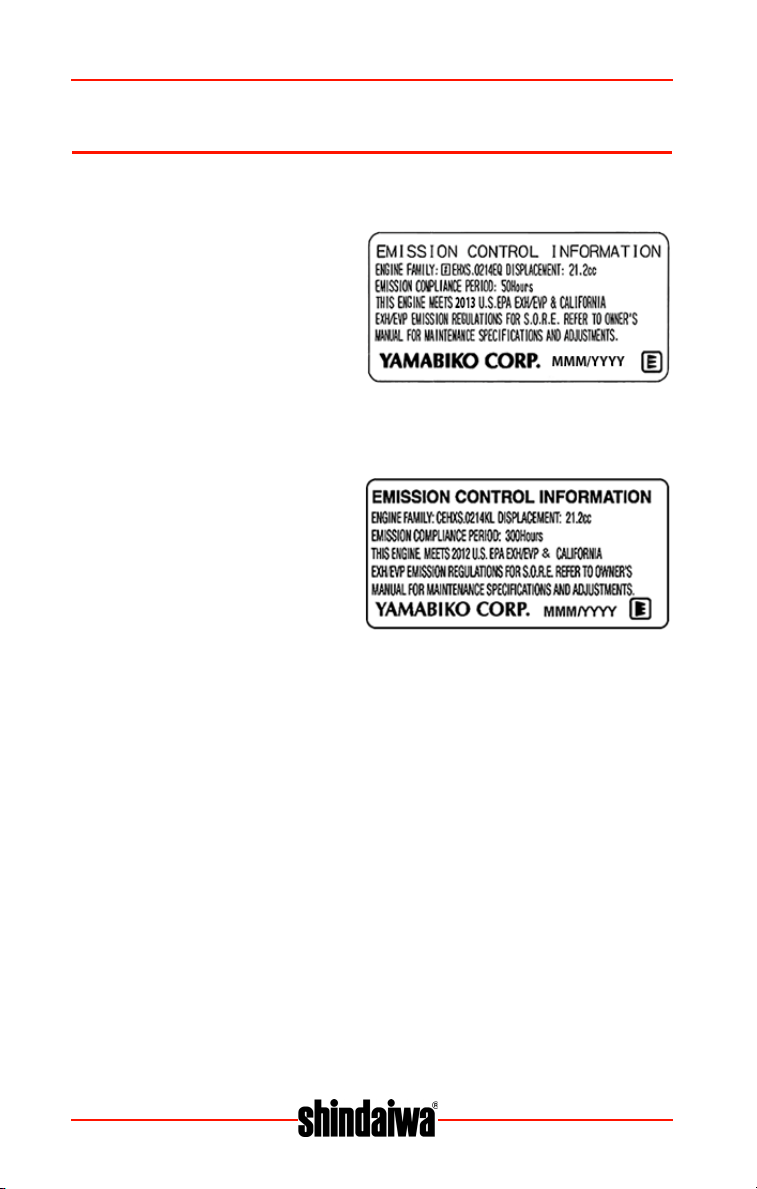

An Emission Control Label is
located on the engine. (This is an
EXAMPLE ONLY, information on
label varies by engine FAMILY).
Product Emission Durability
(Emission Compliance
Period)
The 50 or 300 hour emission compliance period is the time span selected by
the manufacturer certifying the engine emissions output meets applicable
emissions regulations, provided that approved maintenance procedures are
followed as listed in the Maintenance Section of this manual.

M262 DESCRIPTION
X7502342701 15
© 06/20 ECHO Incorporated
DESCRIPTION
Locate the safety decal(s) on your unit. Make sure the decal(s) is legible and
that you understand and follow the instructions on it. If a decal cannot be
read, a new one can be ordered from your SHINDAIWA dealer. The safety
label is for example only. Your label may appear slightly different.
1
2
3
4
567
8
9
10
11 12
13
14
15
16
17

CONTENTS M262
16 X7502342701
© 06/20 ECHO Incorporated
CONTENTS
The SHINDAIWA product you purchased has been factory pre-assembled
for your convenience. Due to packaging restrictions, some assembly may be
necessary.
After opening the carton, check for damage. Immediately notify your retailer
or SHINDAIWA Dealer of damaged or missing parts. Use the contents list to
check for missing parts.
1. Drive Shaft Coupler
2. Stop Switch
3. Throttle Trigger Lockout
4. Throttle Trigger
5. Upper Drive Shaft Assembly
6. Support Handle - For Left Hand
7. Throttle Handle - For Right Hand
8. Power Head
9. Choke Control
10. Air Cleaner
11. Purge Bulb
12. Spark Plug
13. Top Guard
14. Recoil Starter Handle
15. Spark Arrestor Muffler or Spark Arrestor Muffler With Catalyst
16. Fuel Tank Cap
17. Fuel Tank
1 Power Head / Drive Shaft Assembly
1 Operator's Manual
1 Warranty Sheet

M262 ASSEMBLY
X7502342701 17
© 06/20 ECHO Incorporated
ASSEMBLY

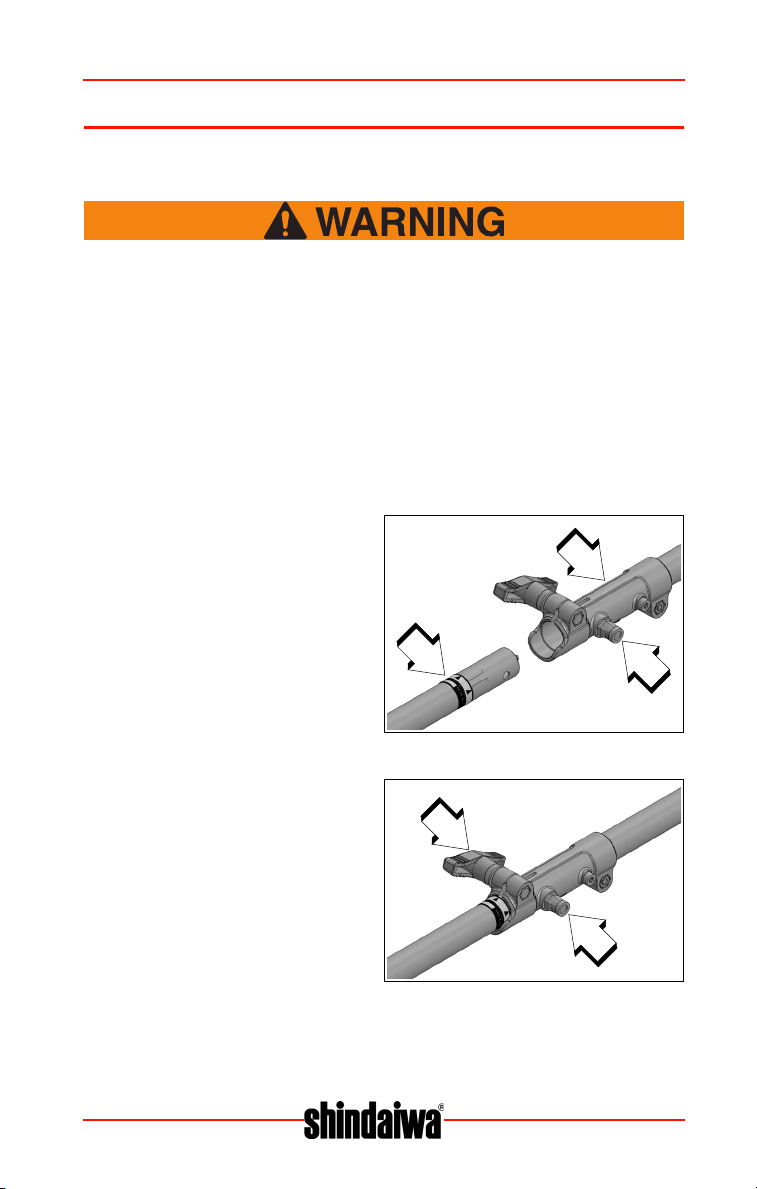

Power Head Shaft to Lower Shaft Assembly
Do not perform maintenance or assembly procedures with
engine running.
1. Set Power Head/Shaft Assembly on a level surface.
2. Pull locater pin (A) out, and turn counterclockwise one-quarter turn to
lock-out position.
3. Remove vinyl cap from attachment drive shaft.
4. Remove cardboard spacer, if necessary.
Note: Your coupler may appear different than coupler shown.
5. Carefully fit attachment drive
shaft assembly into coupler (B)
to decal assembly line (C), if
applicable, making sure that the
inner lower drive shaft engages
the square upper drive shaft
socket.
Note: Earlier model power
heads may have shorter
couplings.
Note: Lower bearing housing
and head assembly must be in line with the engine.
6. Rotate locater pin (A) one-
quarter turn clockwise to
engage lower shaft hole. Insure
locater pin is fully engaged by
twisting lower drive shaft.
Locater pin should snap flush in
coupler. Full engagement will
prevent further shaft rotation.
7. Secure lower shaft assembly to
coupler by tightening clamping
knob (D).
Parts Required: PAS or SRM-SB Power Head Shaft and Coupling
B
A
C
D
A

ASSEMBLY M262
18 X7502342701
© 06/20 ECHO Incorporated

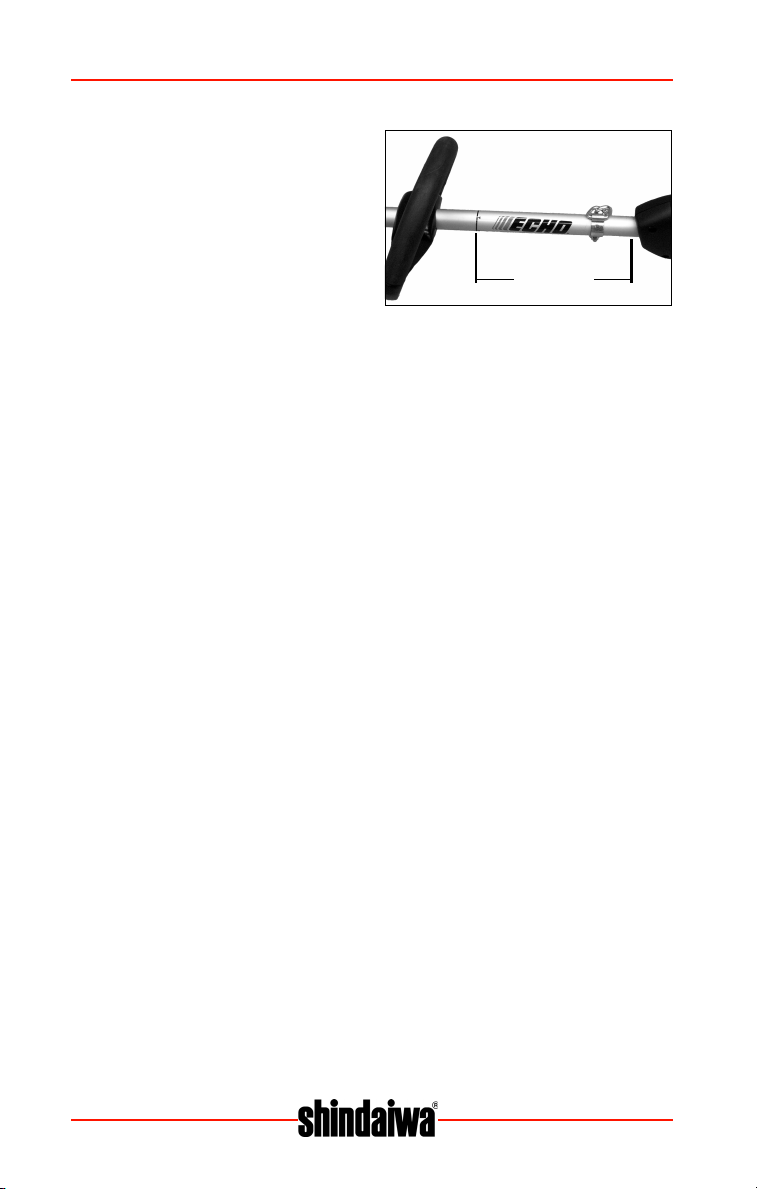

Support Handle Installation
Note: Label shows minimum
spacing for support handle
location.
1. If necessary, position support
handle for comfortable operation
and securely tighten screws.
MINIMUM
SPACING

M262 OPERATION
X7502342701 19
© 06/20 ECHO Incorporated
OPERATION
Moving parts can amputate fingers or cause severe injuries.
Keep hands, clothing and loose objects away from all openings.
Always stop engine, disconnect spark plug, and make sure all
moving parts have come to a complete stop before removing
obstructions, clearing debris, or servicing unit.
Engine exhaust IS HOT, and contains Carbon Monoxide (CO), a
poison gas. Breathing CO can cause unconsciousness, serious
injury, or death. Exhaust can cause serious burns. ALWAYS
position unit so that exhaust is directed away from your face
and body.
Operation of this equipment may create sparks that can start
fires around dry vegetation. This unit is equipped with a spark
arrestor to prevent discharge of hot particles from the engine.
Metal cutters can also create sparks if the cutter strikes rocks,
metal, or other hard objects. Contact local fire authorities for
laws or regulations regarding fire prevention requirements.
Fuel
Diesel fuels and alternative fuels, such as E15 (15% ethanol),
E85 (85% ethanol) or any fuels not meeting Shindaiwa
requirements are NOT approved for use in Shindaiwa 2-stroke
or Hybrid 4-stroke gasoline engines. Use of diesel or alternative
fuels may cause performance problems, loss of power,
overheating, fuel vapor lock, and unintended machine
operation, including, but not limited to, improper clutch
engagement. Diesel or alternative fuels may also cause
premature deterioration of fuel lines, gaskets, carburetors and
other engine components.

OPERATION M262
20 X7502342701
© 06/20 ECHO Incorporated
Fuel Requirements
Gasoline - Use 89 Octane [R+M/2] (mid grade or higher) gasoline known to
be good quality. Gasoline may contain up to 10% Ethanol (grain alcohol) or
15% MTBE (methyl tertiary-butyl ether). Gasoline containing methanol
(wood alcohol) is NOT approved. Use of ECHO branded fuel is
recommended to extend engine life in all air-cooled 2-stroke and 2/4-stroke
hybrid engines.
Two Stroke Oil - A 2-stroke engine oil, such as Shindaiwa branded 2-stroke
oils, meeting ISO-L-EGD (ISO/CD 13738) and J.A.S.O. FD Standards must
be used. Shindaiwa branded 2-stroke oils meet these standards. Engine
problems due to inadequate lubrication caused by failure to use an ISO-L-
EGD (ISO/CD 13738) and J.A.S.O. M345-FD certified oil will void the 2-
stroke engine warranty.
2-Stroke engine oil contains petroleum distillates and other
additives that may be harmful if swallowed. Heated oil can
release vapors that can cause flash fire, or ignite with explosive
force. Read and follow the oil manufacturer’s instructions, and
observe all safety warnings and precautions for handling
flammable liquids. For more detailed safety and first aid
information, visit www.echo-usa.com for a copy of the Material
Safety Data Sheet.
◆KEEP OUT OF REACH OF CHILDREN.
◆If swallowed, do not induce vomiting. CALL PHYSICIAN OR
A POISON CONTROL CENTER IMMEDIATELY.
◆WEAR SAFETY GLASSES when mixing or handling.
◆AVOID repeated or prolonged skin contact.
◆AVOID inhaling oil mists or vapors.
Shindaiwa branded 2-stroke oils may be mixed at 50:1 ratio for
application in all Shindaiwa engines sold in the past, regardless of
ratio specified in those manuals.
