Shire Guernsey 7x10 User manual

Version 5 28/11/2013 Valerio Coraggio
These instructions are for your safety. Please read through them thoroughly before use .
PLEASE KEEP THIS LEAFLET FOR FUTURE REFERENCE
© Guernsey 7x10
© 7bi10 DDA
Batch No.3943

GB
IE
02
Let’s
get started...
Important information...
Safety 03
Preparation of base 04
Warranty 04
Care, maintenance & Recycling 05
[e-mail]
Brigstock Road Wisbech Cambridgeshire PE13 3JJ
Tel [phone]
F Pour obtenir un exemplaire des instructions ou une copie dans une autre
langue s'il vous plaît envoyez un e-mail ou écrire à l'adresse ci-dessous.
PL Na kopii instrukcji lub kopii w innym języku prosimy o wysłanie maila
lub pisać na adres podany poniżej.
RUS
Для получения копии инструкции или копия на другом языке,
пожалуйста, отправьте по электронной почте или написать по
указанному ниже адресу.
TR Başka bir dilde talimatları veya bir kopyasını bir kopyası için bir e-posta
gönderebilir veya aşağıdaki adrese yazınız.
EN For a copy of the instructions or a copy in another language please send
an email or write to the address below.
I Per richiedere una copia del libretto di istruzioni, in italiano, o in un’altra
lingua, per favore, invia una e-mail o scrivi a l’indirizzo sottostante.
In more detail...
Parts List 06
Hardware chart 08
Before you start 09
14-32 Assembly instructions
Detailed Technical Drawing 10-13
Fascia & Nail List 07

Getting Started…..
GB
IE
03
We advise the use of non slip protective gloves throughout
the assembly process.
We advise the use of steel capped protective footwear
throughout the assembly process.
We advise the use of protective headwear and safety
goggles throughout the assembly process.
Where a ladder is in use another person must hold the
ladder.
Do not attempt to work in windy conditions.
We advise the use of a scaffold tower when fitting the roof,
for felting or if you cannot reach from the ground.
Do not allow children near the tools and work area.
Follow any safety precautions quoted by the manufacturer
for any equipment you use.
We advise that you use a helper to hold the glass in position
whilst you nail the beading in place.
Check all parts before assembly.
Only use child and animal safe wood preservative.
Do not use creosote.
Allow the wood preservative to fully dry before use.
Regularly check the building for wear and tear.
EVERY PRECAUTION IS TAKEN TO ENSURE THAT YOUR BUILDING HAS NO
ELEMENT INCORRECTLY PLACED OR POSSIBLY HAZARDOUS, HOWEVER
PRIOR TO USE PLEASE CHECK ALL SURFACES FOR THE FOLLOWING:
(1) RAISED GRAIN, SPLINTERS: Sand down timber to smooth finish
(2) NAIL/SCREW/PIN HEADS PROUD: Tap home to be flush with surface of
timber
(3) DAMAGED SCREW HEADS RESULTING IN SHARP SPLINTERS OF
METAL: Replace
(4) SHARP ENDS OF NAILS/ SCREWS/ PINS PROTRUDING THROUGH THE
PANEL: Remove and reposition
(5) ENSURE ALL PARTS ARE SECURED AGAINST REASONABLE FORCE:
Remove and refit
(6) ENSURE THERE ARE NO LOOSE PARTS: Remove and refit/discard
Important!
Safety
IMPORTANT ! For your safety please
read carefully the safety warnings
Check that you have noted all the following instructions:

Getting Started…..
GB
IE
04
Base and Warranty
The following are also excluded:
 Damage resulting from poor assembly
 Poor treatment application
 Poor care and maintenance
 Changes to the design
 Misuse
 General wear and tear.
Warranty...
10 Year anti rot warranty subject to the following:
 The building must be raised so it is not in contact with any water
retaining base surface (for example grass)
 This can be achieved using a timber, concrete or slab base
 When using a concrete or slab base use damp proofing strips
under the bearers
 The building must have been completely treated and sealed
immediately prior to or after assembly
 The building must have been re-treated and re-sealed annually
NOTE: Wood is a natural product, and therefore the following are
excluded from the warranty:
- Colour change
- Warping
- Splitting.
Preparation of base...
We recommend that the base onto which your building will stand should be at least
75mm larger in each direction than the total floor size of the building.
Actual floor area of the building: 2048mm x 2970mm
Total height clearance: 2160mm
Roof size: 2200mm wide x3348mm long
The chosen position in your garden for your building should be excavated to a depth
of 75mm to allow a base of sand, on to which paving slabs can be evenly laid.
You may also use an adjustable timber base or a concrete base. Whatever base you
decide upon IT MUST BE LEVEL AND FIRM.

Getting Started…..
GB
IE
05
Care, Maintenance and Recycling
1. Pallet and timber widely recycled
2. Cardboard widely recycled
3. Plastic strapping subject to local regulations
4. Plastic sheeting subject to local regulations.
(1) Visually check for weather damage.
(2) Check and replace if necessary any Silicone sealant if used on your
building.
(3) Check the roofing material for wear.
(4) The doors and windows may require periodical adjustment.
(5) Ensure your building is well ventilated especially during hot weather.
(6) During extremely hot periods humidify your building to prevent the timber
from drying out.
The 5 golden rules of care:
The 6 golden rules of maintenance:
1. Timber widely recycled
2. Metal fixings widely recycled
3. Glass widely recycled
4. Roofing felt not currently recycled.
packaging
Building
(1) Ensure your base is level and firm.
(2) Ensure the building is not sitting directly on the ground using damp proof
membrane or the optional timber base.
(3) Ensure every piece of timber and surface, especially that is hidden upon
assembly is treated with a top quality wood preservative at least twice
(before assembly). Turn the panels upside down whilst painting so the
treatment runs into the seams.
(4) Garden buildings are not waterproof, therefore we recommend you seal
between all the panels with a silicone based sealant.
(5) Regularly check your roofing felt for weather damage and leaks.
Recycling and disposal:

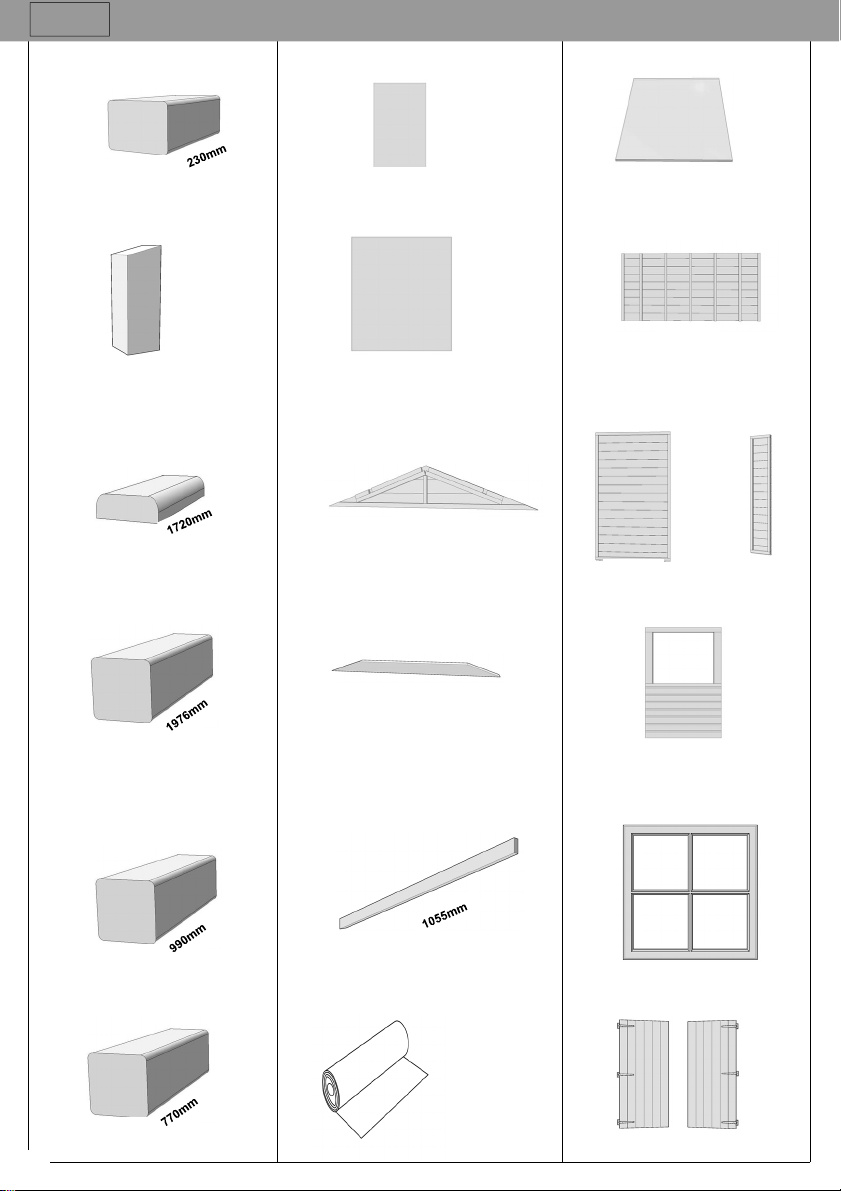

Stacked parts list
Truss block (A0042) x04
Roof bearers (A0043) x04
Roof bearers/ Roof edging (A0044) x06
Roof panel (A0045) x06
Roof Edging (A0047) x06
Cover strips (A0016) x10
Roof panel (A0046) x02
Gable Panel (A0007) x02
Truss brace (A0041) x2
Truss frame (A0040) x4
3.5m Felt strips (A0054) x03
Glazing (A0055) x08
Floor (A0001) x03
Plain Panel
(A0004) x06
Doors (A0048) x02
Window Panel (A0037) x02
Window insert (A0039) x02
Floor Joiners (A0002) x12
06
Description --
(part No ) - q.ty:
355mm
355mm
1712mm
676mm 676mm
34mm
34mm
8210mm
821mm
1710mm
990mm
2048mm
990mm
990mm
1710mm
310mm
1710mm
2048mm
333mm
44x44mm
762mm
44x44mm
990mm
1125mm
770mm
1125mm
34mm
34mm
34mm
34mm
44mm
12mm
44x44mm
170mm
46mm
36mm
Plain Panel
(A0006) x02

07
8.5mm
8.5mm
(A0050) x01
(A0011) x02 (A0019) x02
(A0018) x04
Roof support Diamond
Fascia
Door stop
(A0056) x32
Beading
(A0051) x02
Door stop
(A0065) x02
Door block
70x12 mm
34mm
34mm
28mm
12mm
34mm
34mm
Fascia & nail bag contents
Description --
(part No ) - q.ty:
(A0038) x02
Casement set
(A0013) x04
Window Hinges
(A0049) x06
Tee hinge
Pad Bolt
(A0014) x02
Door Bolt
(A0053) x01
(A0052) x02
Bolt shim
44mm
12mm
28mm
12mm

08
Hardware Chart
Scale 1:1
Nail bag contents
Description --
(part No ) - q.ty:
(A0024) x64
16mm Panel Pin
(A0025) x246
40mm Round head nail
(A0032) x110
25mm Posi-drive screw
(A0035) x71
60mmPosi-drive screw
(A0036) x24
80mm Posi-drive screw
8mm
(A0266) x170
08mmFelt Nail

09
Before you start
Things to check before you start:
Check all parts as listed in the parts lists
Read the instructions fully before starting work
Follow all the health and safety guidelines
Ensure your base is ready– See page 3
You will need:
Hammer
Spirit level
Ladder
1mm,3mm 6mm & 8mm
drill bit
Drill
Tape measure & Ruler
Sand paper
Gloves
Saw
Pencil
Goggles
A helper for some
tasks
 Screwdriver
 Sharp knife
When you see the drill icon
Only ever drill through the first
piece of framework which will be a
pilot hole for the screw to attach the
second piece of framework
The required drill bit size is
shown with the icon.
6mm
In more detail…..
GB
IE

In more detail…..
GB
IE
A0004
A0039
A0037
A0038
STH A0013
A0001
A0006
A0007
A0046
A0046
DR1
34S-309 A0011
A0048
TEE
TEE TEE
TEE A0049
A0006
28R-1698 A0051
A0050
A0014 & A0052
A0049
A0056
A0016
44C-
A0016
70FC-A0018
A0044
A0019
A0055
A0053
10
A0065
34S-309 A0043

In more detail…..
GB
IE
Detailed Technical drawing 1:30
A0004
A0004
A0004
A0004 A0004
A0001
A0001
A0002
A0007
34S-1976 A0044
A0047
A0045
44C-1720 A0016
A0037
A0054
A0054
A0018
A0019
A0045
A0045
11

In more detail…..
GB
IE
A0040
A0042
A0041
A0042
A0040
12
75mm

Ongoing Photographic Opportunity:
We are always looking for additions to our library of
photographs.
Please send us (preferably by e-mail, or in any way that
suits) an image of your completed building.
If we use your image we will pay you a one off
payment of £100.00 for the right to do so.
E-mail your pictures to: [email protected]
Mail: Building photographs, Shire Brigstock Road
Wisbech Cambridgeshire PE13 3JJ
In more detail…..
GB
IE
13

14
01
Assembly instructions:
These instructions are for your safety. Please read through them thoroughly before use.
Treat all the parts before assembly – see page 5!
GB-IE The hinges fit the top of the window. Try the window in position to check that you have it the correct
way around.
Window panel
(A0037)x02
02
25mmScrews
(A0032)x20
Window Insert
(A0039)x02
Window Hinges
(A0013) x04
25mmScrews
(A0032)x08
GB-IE
Get a helper to hold the window in the open position. Put one screw in each hinge first and check the
window closes correctly before adding the remaining screws.

15
GB-IE
25mmScrew
(A0032)x12
Casement set
(A0038) x02
GB-IE
Doors
(A0048)x 02
25mm Screws
(A0032)x24
Tee hinge
(A0049)x06
Hinge over door
framework
Fix the hinges as shown so the screws go into the horizontal framework on the back of the door.
04
GB-IE
Casement stay and pins ”A0038” must fit together loosely. Position as shown.
Fix the casement stay to the window insert first.
Then mark and fix the pins as shown.
03

16
GB-IE
Roof Edging
(A0047)x06
34mm
34mm
Roof Edging
(A0044)x02
34mm
34mm
Roof Panel
(A0046)x02
Roof Panel
(A0045)x06
40mm Nails
((A0025)x32
Position the roof edging under the short edge of the roof panels "A0045 & A0046" and fix as shown.
05
GB-IE
Read Section ahead. See pages 12/13 for detailed drawing.
Drill the truss components as shown in steps 6, and use the gable panel "A0007" as a template
to align the truss parts.
Do not fix to the gable panel"A1403"!
06
Truss Brace
(A0041)x02
80mm Screw
(A0036)x12
Truss Frame
(A0040)x04

17
X2
GB-IE
2 truss assemblies required.
Drill positions for step 6.
07
GB-IE
Truss Brace
(A0041)x02
80mm Screw
(A0036)x12
Truss Frame
(A0040)x04
6mm
08
Truss Frame
(A0040)x04
Truss Brace
(A0041)x02

18
GB-IE

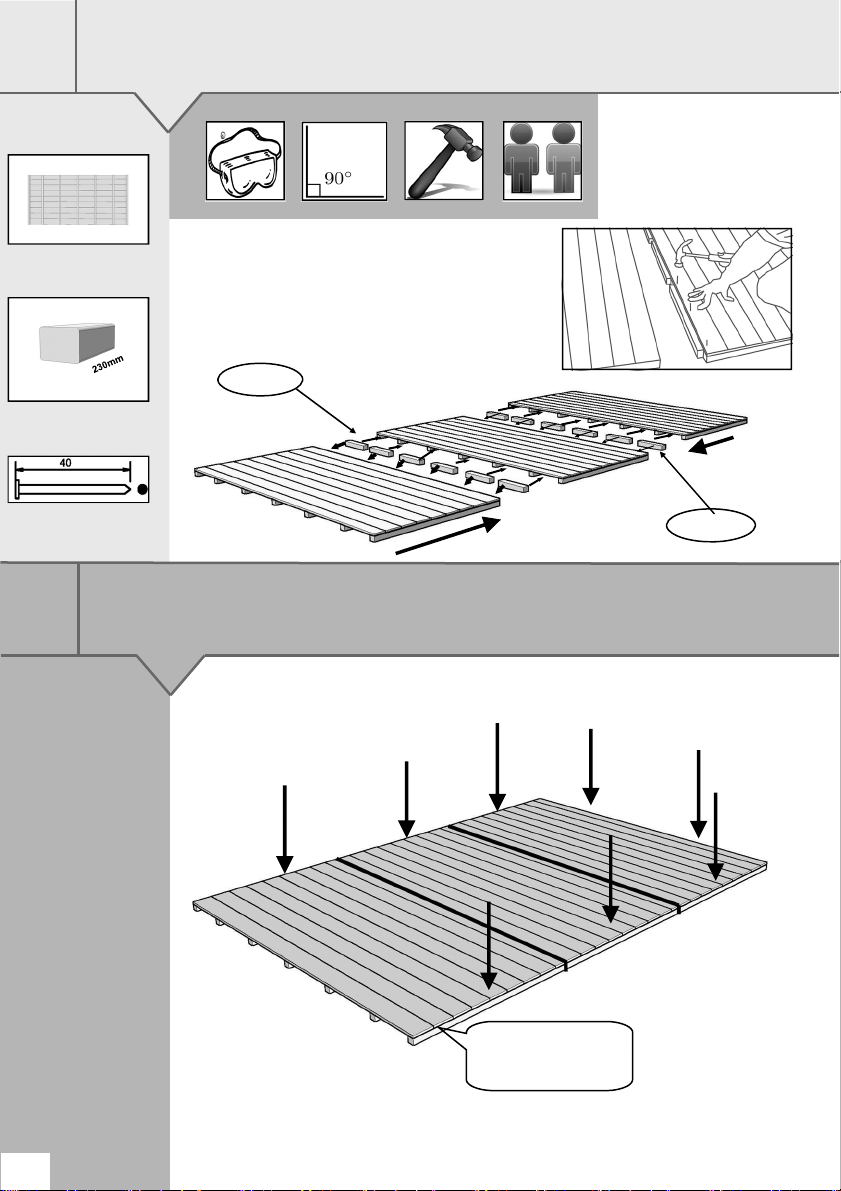

Position the floor joiners “A0002” widest side down so they protrude half out from 1 floor, and fix with
3x40mm nails. Push the next floor over the joiners and flush with the first floor then attach as before.
Repeat with the last floor.
09
GB-IE

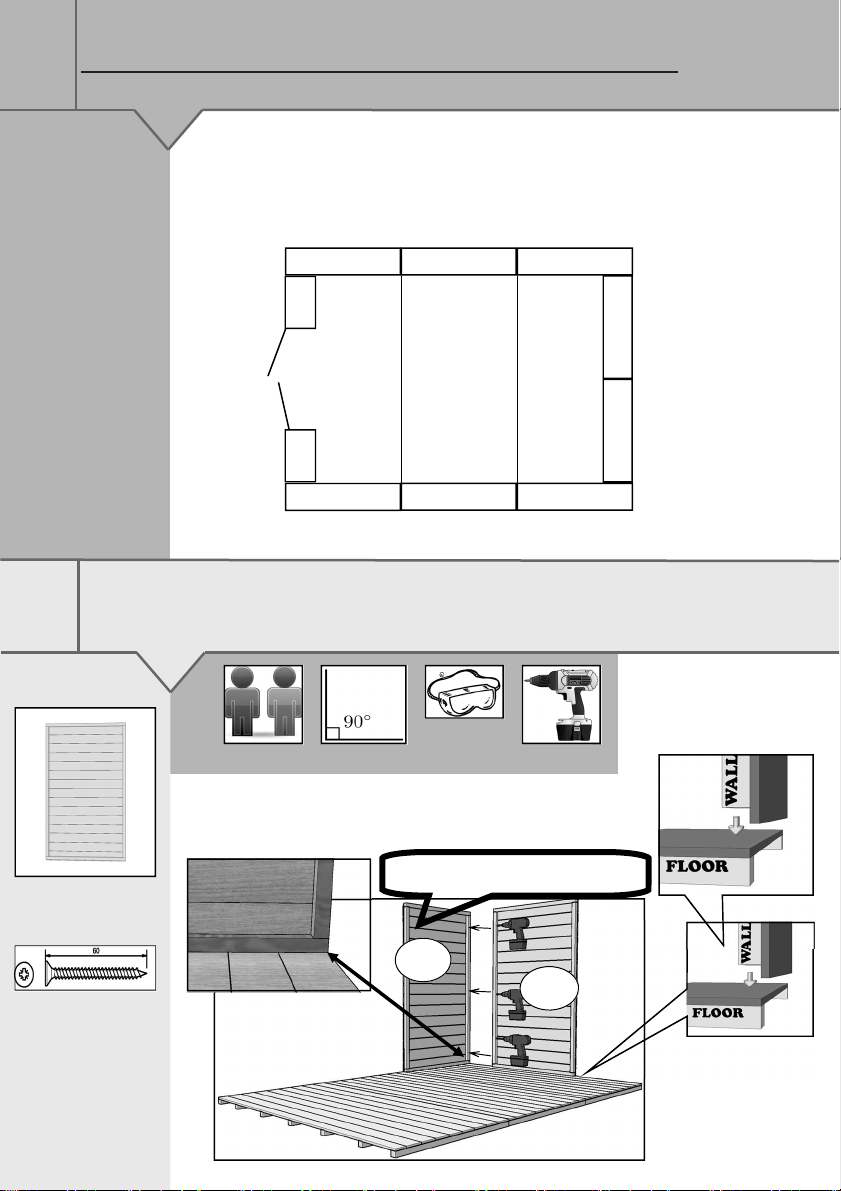

Before you start decide where you want the two window panels “A0037” (8 choices).
You can swap them around with any plain panel “A0004”!
10
See step 5 for
floor assembly
A0002
A0002
Floor panel
(A0001)x03
Floor Joiners
(A0002)x12
40mmNails
(A0025)x72
46mm
36mm

19
A0004/A0037 A0004/A0037
A0004/A0037
A0004/A0037
A0006 A0006
Panel
layout
A0004/A0037
A0004/A0037
A0004/A0037
A0004/A0037
6mm
60mmScrew
(A0035)x03
Plain Panel
(A0004) x02
GB-IE
Note: the end panels to be fix inside the side panel!
Doors go at the open end of the floor .
The door end panels and the opposite end panels FIT INSIDE THE SIDE PANELS!
11
GB-IE
A panel "A0004" for the side goes into the corner, the cladding overlaps the floor, push another panel
"A0004" for the end up to it.
12
A0004
A0004
This panel into the corner

20
60mm Screws
(A0035)x24??
Plain panels
(A0004) x05
6mm
GB-IE
A panel "A0004" for the side goes into the corner, the cladding overlaps the floor, push another
panel"A0004" for the end up to it. Drill 3 places and fix with 60mm screws.
Fix the walls to the floor with 1x60mm screw x panel.
13
A0004
A0004
2
3
REVERSE VIEW
A0004
1
