Shire 4X6 Overlap 2018 User manual

© Shire 4X6 Overlap 2018
Version 13 12/05/2022 Sasha Leney
These instructions are for your safety. Please read through them thoroughly before use .
PLEASE KEEP THIS LEAFLET FOR FUTURE REFERENCE

Let’s
get started...
GB
IE
Important information...
Safety 03
Base and positioning 04
Warranty 04
Care maintenance & Recycling 05
In more detail...
Stacked and Fascia Parts List 06-07

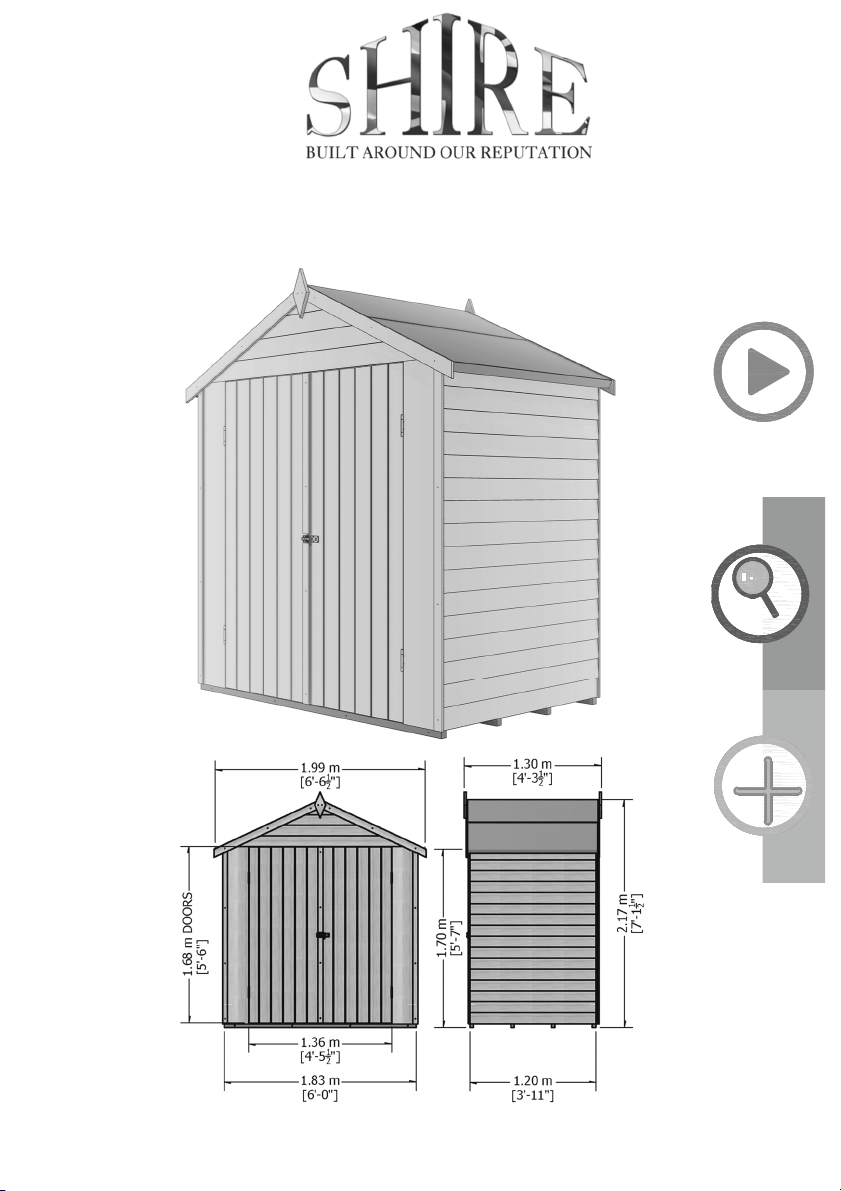

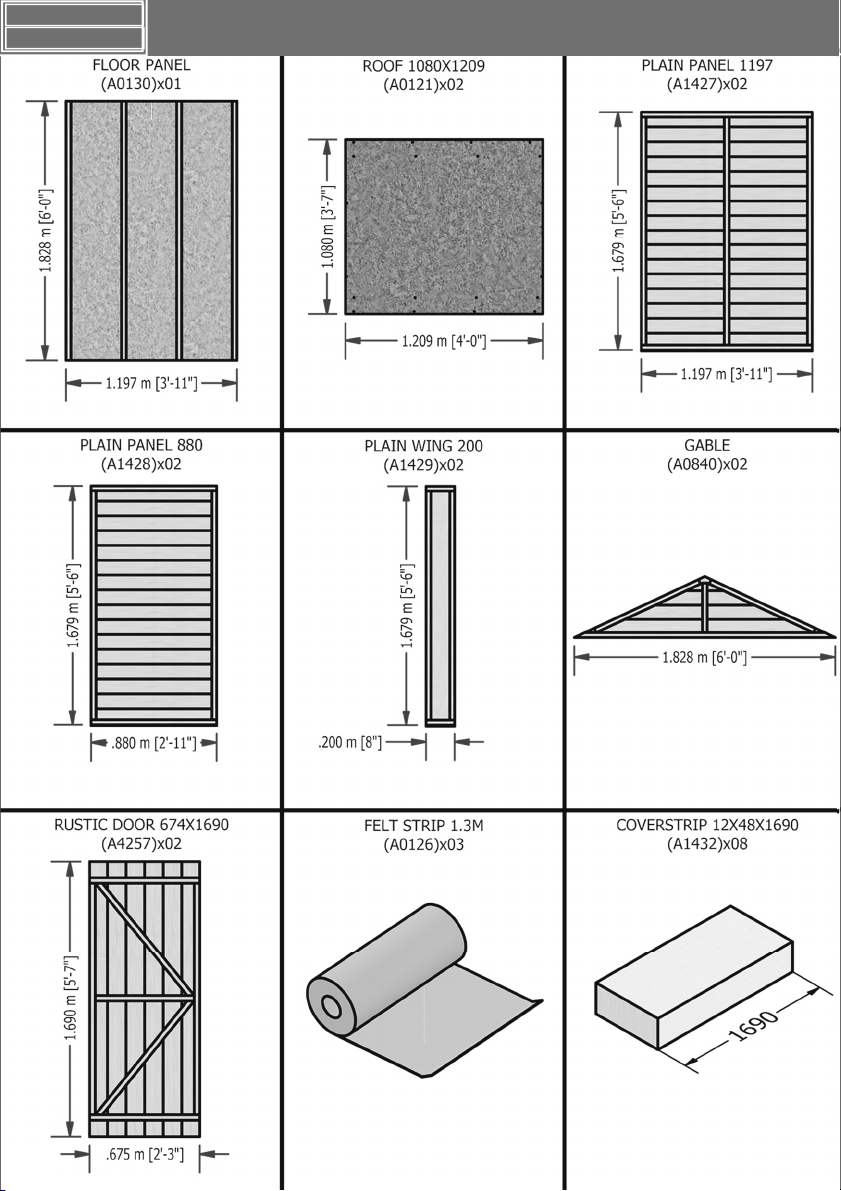

Detailed Technical Drawings 08-09
Hardware 10-11
11Before you start
Assembly instructions 12-24
[e-mail]
Brigstock Road Wisbech Cambridgeshire PE13 3JJ
Tel [phone]
F Pour obtenir un exemplaire des instructions ou une copie dans une autre
langue s'il vous plaît envoyez un e-mail ou écrire à l'adresse ci-dessous.
PL Na kopii instrukcji lub kopii w innym języku prosimy o wysłanie maila
lub pisaćna adres podany poniżej.
RUS
Для получения копии инструкции или копия на другом языке,
пожалуйста, отправьте по электронной почте или написать по
указанному ниже адресу.
TR Başka bir dilde talimatlarıveya bir kopyasınıbir kopyasıiçin bir e-posta
gönderebilir veya aşağıdaki adrese yazınız.
EN For a copy of the instructions or a copy in another language please send
an email or write to the address below.
02

Getting Started…..
GB
IE
EVERY PRECAUTION IS TAKEN TO ENSURE THAT YOUR BUILDING HAS NO
ELEMENT INCORRECTLY PLACED OR POSSIBLY HAZARDOUS, HOWEVER
PRIOR TO USE PLEASE CHECK ALL SURFACES FOR THE FOLLOWING:
(1) RAISED GRAIN, SPLINTERS: Sand down timber to smooth finish
(2) NAIL/SCREW/PIN HEADS PROUD: Tap home to be flush with surface of
timber
(3) DAMAGED SCREW HEADS RESULTING IN SHARP SPLINTERS OF MET-
AL: Replace
(4) SHARP ENDS OF NAILS/ SCREWS/ PINS PROTRUDING THROUGH THE
PANEL: Remove and reposition.
(5) ENSURE ALL PARTS ARE SECURED AGAINST REASONABLE FORCE:
Remove and refit
(6) ENSURE THERE ARE NO LOOSE PARTS: Remove and refit/discard
Important!
IMPORTANT ! For your safety please read
carefully the safety warnings
Safety
Check that you have noted all the following instructions
We advise the use of non slip protective gloves throughout
the assembly process.
We advise the use of steel capped protective footwear
throughout the assembly process
We advise the use of protective headwear and safety
goggles throughout the assembly process
Where a ladder is in use another person must hold the
ladder.
Do not attempt to work in windy conditions
We advise the use of a scaffold tower when fitting the roof ,
for felting or if you cannot reach from the ground.
Do not allow children near the tools and work area
Follow any safety precautions quoted by the manufacturer
for any equipment you use
We advise that you use a helper to hold the glass in position
whilst you nail the beading in place
Check all parts before assembly
Only use child and animal safe wood preservative
Do not use creosote
Allow the wood preservative to fully dry before use
Regularly check the building for wear and tear
03

Getting Started…..
GB
IE Base and Warranty
The following are also excluded
 Damage resulting from poor assembly
 Poor treatment application
 Poor care and maintenance
 Changes to the design
 Misuse
 General wear and tear
Warranty...
10 Year anti rot warranty subject to the following -
 The building must be raised so it is not in contact with any water
retaining base surface (for example grass).
 This can be achieved using a timber, concrete or slab base
 When using a concrete or slab base use damp proofing strips
under the bearers
 The building must have been completely treated and sealed
immediately prior to or after assembly
 The building must have been re-treated and re-sealed annually
 If your building has been pressure treated or has any pressure treated
parts additional treatment must still be applied .
 Wood is a natural product and therefore the following are excluded
from the warranty
Colour changes
Warping
Splitting
Preparation of base...
We recommend that the base onto which your building will stand should be at least
75mm larger in each direction than the total floor size of the building.
Actual floor area of the building: 1828mm x 1197mm
Total height clearance: 2166mm
Roof size: 1994mm x 1302mm l
The chosen position in your garden for your building should be excavated to a depth
of 75mm to allow a base of sand, on to which paving slabs can be evenly laid.
You may also use an adjustable timber base or a concrete base. Whatever base you
decide upon IT MUST BE LEVEL AND FIRM.
04

The 5 golden rules of care
Care, Maintenance and Recycling
The 7 golden rules of maintenance
Recycling and disposal
1. Pallet and timber widely recycled
2. Cardboard widely recycled
3. Plastic strapping subject to local regulations
4. Plastic sheeting subject to local regulations
1. Timber widely recycled
2. Metal fixings widely recycled
3. Glass widely recycled
4. Roofing felt not currently recycled
packaging
Building
(1) Ensure your base is level and firm
(2) Ensure the building is not sitting directly on the ground using damp proof
membrane or the optional timber base.
(3) Ensure every piece of timber and surface, especially that is hidden upon
assembly is treated with a top quality wood preservative at least twice (see
note on pressure treated buildings in warranty section). Turn the panels
upside down whilst painting so the treatment runs into the seams.
(4) Garden buildings are not waterproof, therefore we recommend you seal
between all the panels with a silicone based sealant .
(5) Regularly check your roofing felt for weather damage and leaks
(1) Re apply the timber treatment annually. (see note on pressure treated
buildings in warranty section)
(2) Visually check for weather damage
(3) Check and replace if necessary any Silicone sealant if used on your
building.
(4) Check the roofing material for wear
(5) The doors and windows may require periodical adjustment
(6) Ensure your building is well ventilated especially during hot weather
(7) During extremely hot periods humidify your building to prevent the timber
from drying out .
In more Detail…..
GB
IE
05

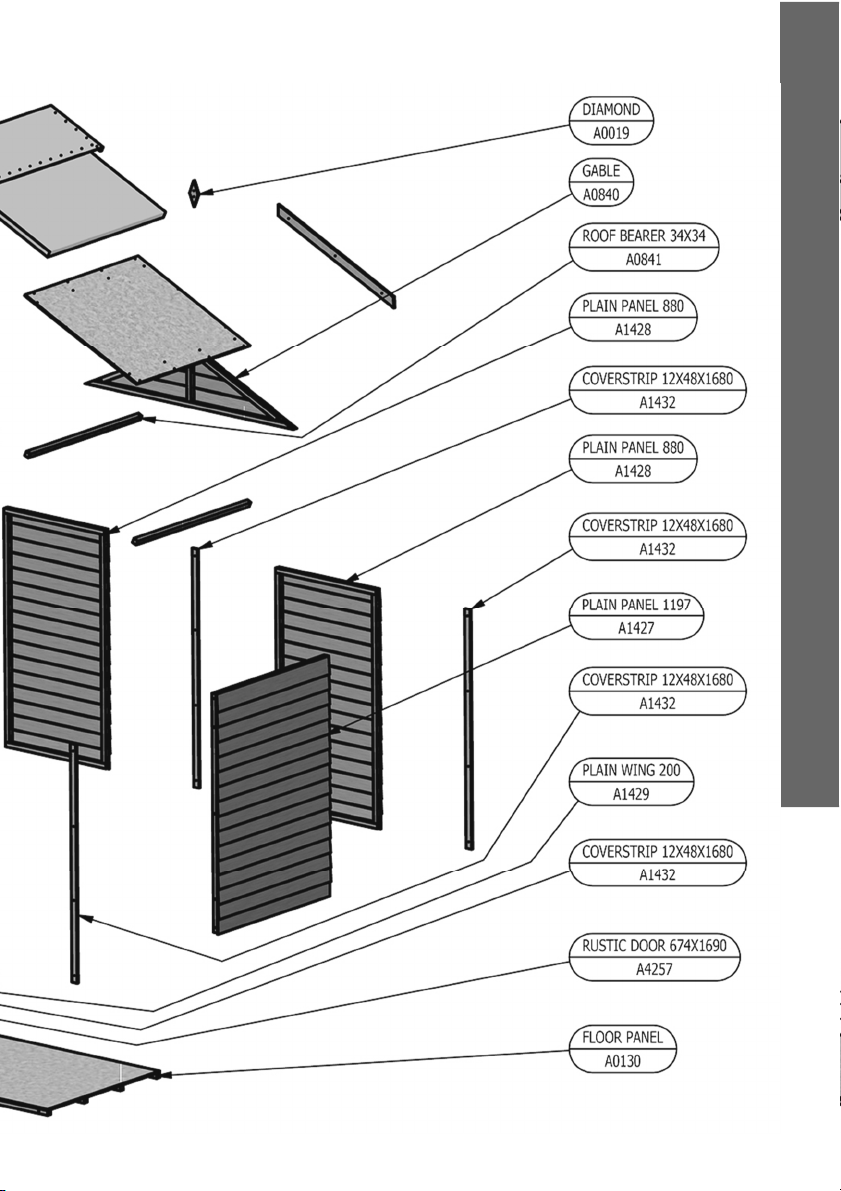

Stacked parts list
(part No ) qty
Description
06

Stacked, Fascia & Nail bag contents
07

08
In more detail…..

09
In more detail…..

10
Nail bag contents

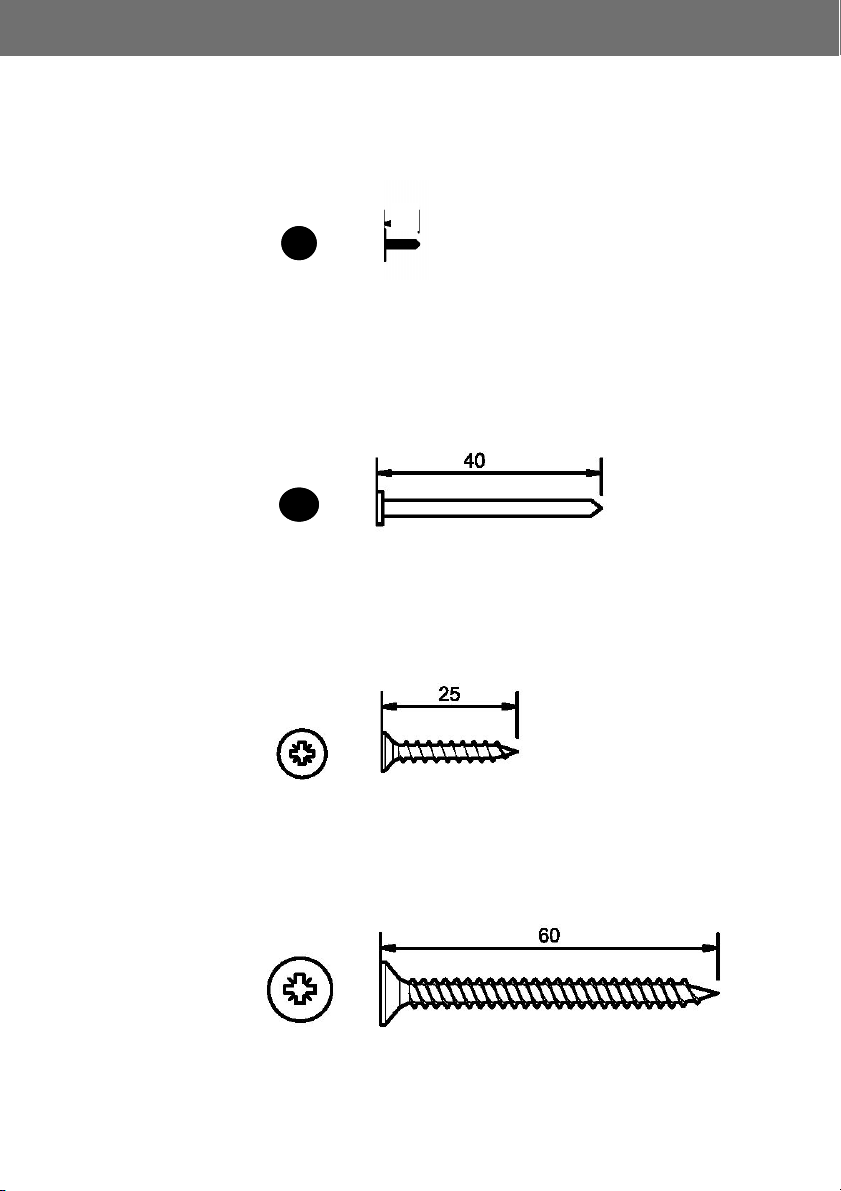

Hardware Chart
Scale 1:1
(A0025) x96
40mmRound head nail
(A0032) x50
25mm Posi-drive screw
(A0035) x44
60mmPosi-drive screw
8
(A0266) x100
8mmFelt Nail

In more detail…..
GB
IE
Before you start
Things to check before you start
Check all parts as listed in the parts lists
Read the instructions fully before starting work
Follow all the health and safety guidelines
Ensure your base is ready– See page 3
You will need
Hammer
Spirit level
Ladder
1mm,3mm 5mm
 & 8mm drill bit
Drill
Tape measure & Ruler
Sand paper
Gloves
Saw
Pencil
Goggles
A helper for some tasks
 Screwdriver
 Safety knife
When you see the drill icon
Only ever drill through the first
piece of framework which will be a
pilot hole for the screw to attach the
second piece of framework
The required drill bit size is
shown with the icon.
6mm
11

Assembly
The “Panel layout” is showing you how you layout the panels.
The door end panels and the opposite end panels FIT INSIDE THE SIDE PANELS!
01
GB-IE
These instructions are for your safety. Please read through them thoroughly before use .
Treat all the parts before assembly –see page 5
Floor panel
(A0130)x01
A1428 A1428
A1427
A1427
A1429 A1429
Panel
Layout
(A0130)
GB-IE
12
Place the Floor Panel (A0130) onto your chosen base.
FRONT

GB-IE
02
Drill one Plain Panel 1197 (A1427), making sure the holes are inline with the floor bearers.
Drill one Plain Panel 880 (A1428) as below.
Place the plain panel 1197 onto the floor, so that the cladding overlaps.
Push the plain panel 880 up to the 1197 panel and secure with 3x 60mm Screws (A0035)
using the pilot holes drilled.
13
60mm Screw
(A0035)x03
Plain Panel 1197
(A1427)x01
5 mm
Plain Panel 880
(A1428)x01
INLINE WITH FLOOR BEARERS

14
GB-IE
03
Drill the other Plain Panel 880 (A1428) as below. Place onto the floor, next to the other 880
panel and secure with 3x 60mm Screws (A0035) using the pilot holes drilled in the other
panel.
Drill the other Plain Panel 1197 (A1427), making sure the holes are inline with the floor
bearers as below. Place onto the floor and secure with 3x 60mm Screws (A0035) as below.
5 mm
60mm Screw
(A0035)x06
Plain Panel 1197
(A1427)x01
Plain Panel 880
(A1428)x01
INLINE WITH FLOOR BEARERS

GB-IE
04

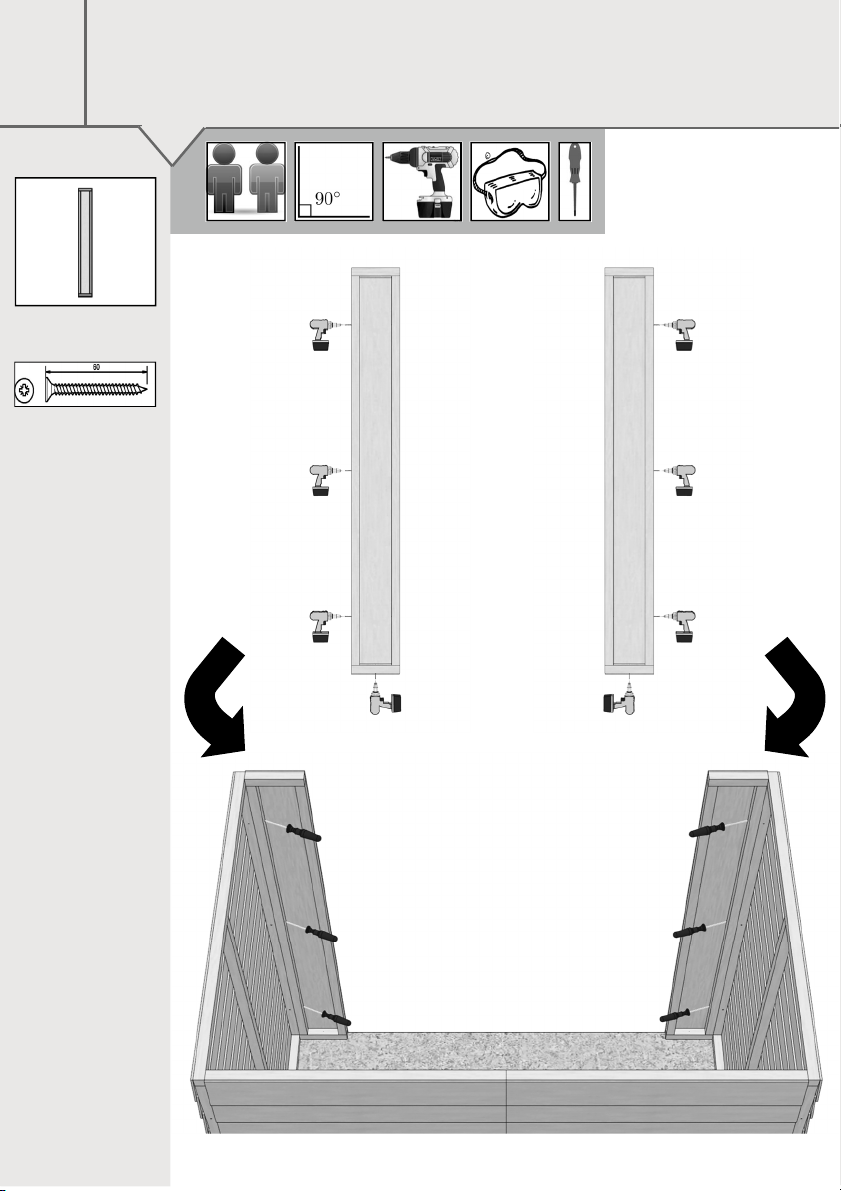

Drill the Plain Wing 200 (A1429) panels as below.
Place onto the floor in between the plain panels 1197 as below.
Secure with 3x 60mm Screws (A0035) in each side.
Note: May have to screw at an angle.
15
60mm Screw
(A0035)x06
5 mm
Plain Wing 200
(A1429)x02

Place the Roof Bearers 34x34 (A0841) within the gable slots as below. Secure into the
gable framework using 1x 60mm Screw (A0035) in each end of the bearers as below.
Then secure the two bearers together with 3x 60mm Screws (A0035).
GB-IE
16
GB-IE
05
Place the Gables (A0840) onto the building so that the framework is flush.
Secure with 4x 60mm Screws (A0035) through the back gable as below.
For the front gable, secure with 2 screws on the outer edges, then screw through the top of
the wing panels as below.
5 mm
60mm Screw
(A0035)x08
Gable
(A0840)x02
06
5mm
60mm Screw
(A0035)x07
Roof Bearer 34x34
(A0841)x02

17
GB-IE
40mm Nails
(A0025)x34
07

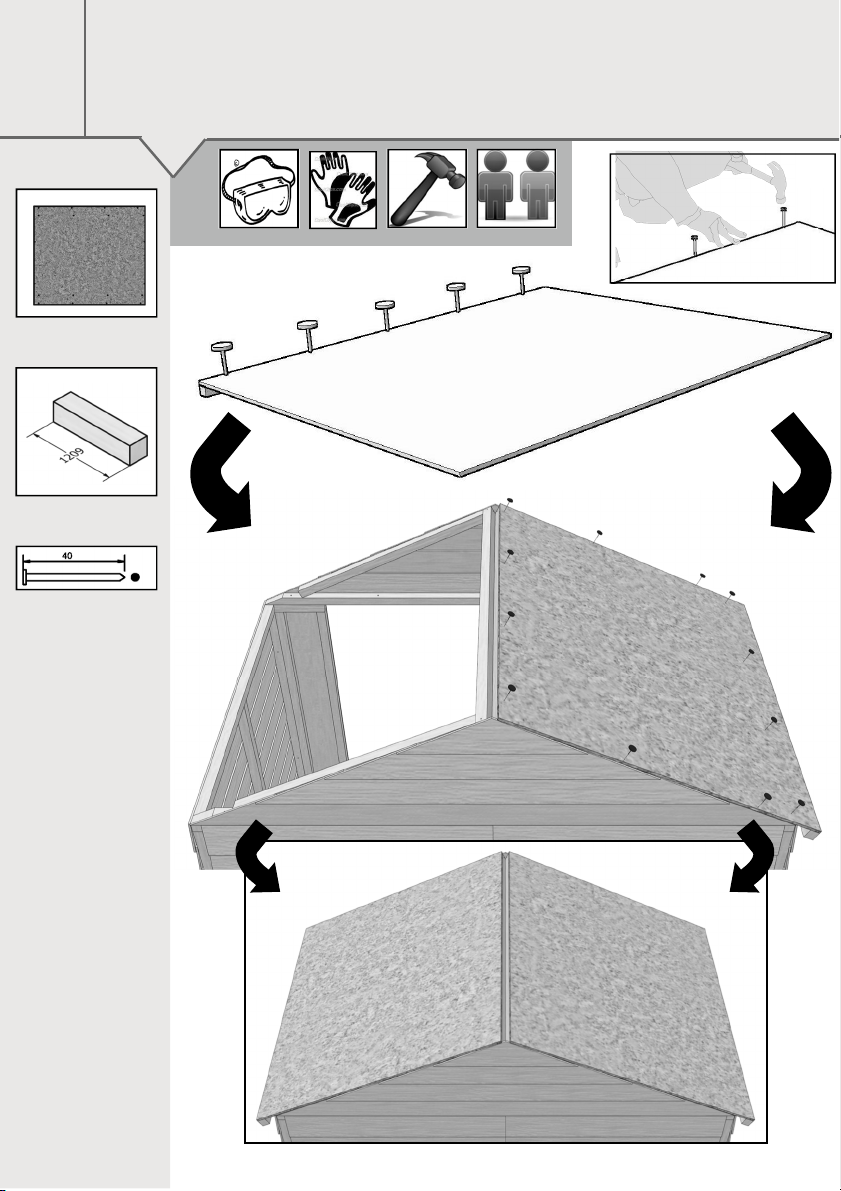

Fix one Roof Edge 34x34 (A0842) along the 1209mm edge of the Roof 1080x1209 (A0121)
using 5x 40mm Nails (A0025). Repeat so you have 2 osb roof panels.
Place onto the building as below. Make sure the top of the roof panel is flush with the top of
the roof bearers. Secure the roof with 4x 40mm Nails (A0025) along the top roof bearer.
Fix with 4 nails along the side walls and 2 nails along each gable side.
Repeat with the other roof panel.
17
Roof 1080x1209
(A0121)x02
Roof Edge 34x34
(A0842)x02

25mm screws
(A0032)x12
The larger outer part of the Hurling Hinge 4” (A4241) fixes to the Rustic Door (A4257) framework
that is flush with the cladding on the end of the door.
The round pivot part protrudes just over the cladding.
The countersink must be facing outwards and fix with 3 screws through the outer hinge. Repeat.
GB-IE
08
3mm
Rustic Door
(A4257)x02
Hurling Hinge 4”
(A4241)x04
18
Carefully hang the doors using 1x 25mm Screw (A0032) per hinge at first to ensure they
are square before adding the rest of the screws. The hinge fits to the end of the wing so
only the round pivot is visible when the door is closed.
GB-IE
09
3mm
25mm screws
(A0032)x12

19
Make sure everything is square and true.

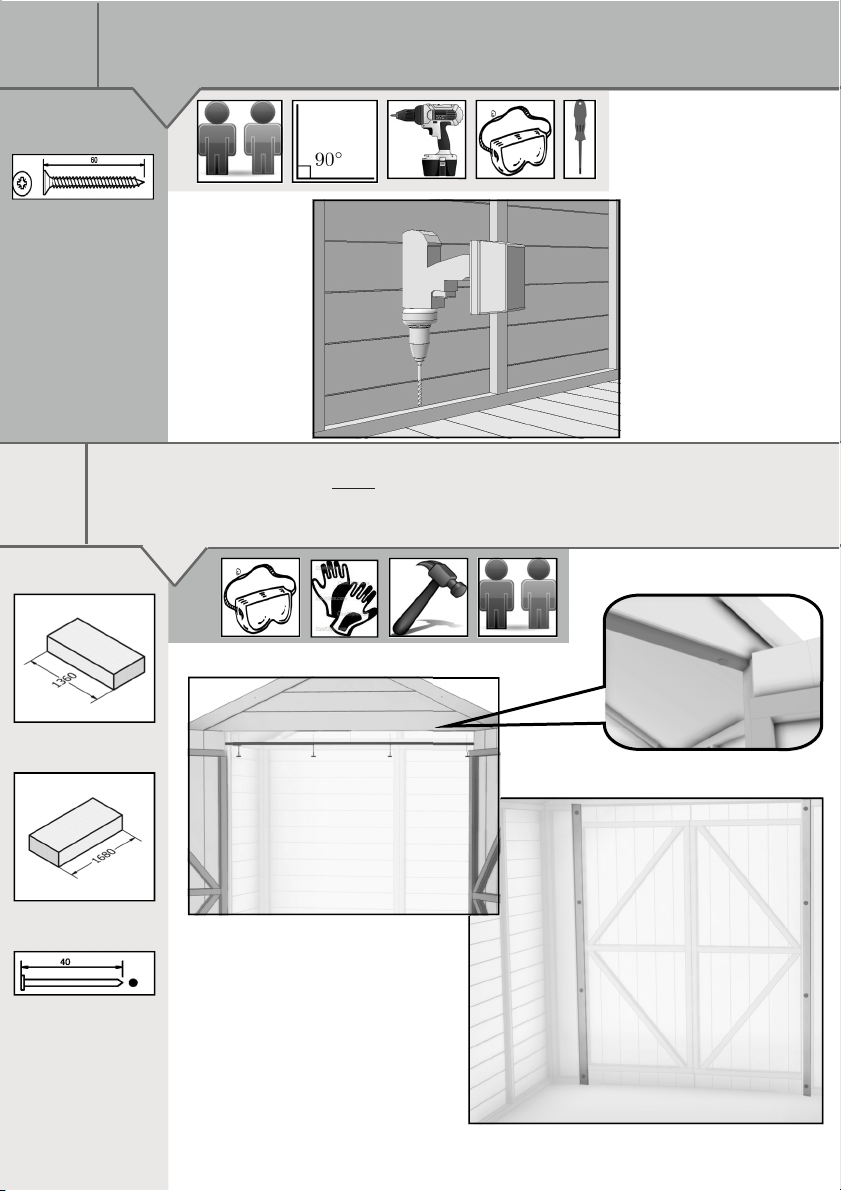

Fix the walls to the floor with 1x 60mm screw (A0035) using the holes drilled previously.
GB-IE
10
5mm
60mm Screw
(A0035)x08
GB-IE
11
Fix the Door Stop 12x28x1360 (A0050) to the gable as below. Make sure the edge is flush
with outside gable framework NOT the cladding. Secure with 4x 40mm Nails (A0025).
Fix two Coverstrips 12x48x1680 (A1432) using 4x 40mm Nails (A0025) to the wing
Framework, making sure it stick outs to act as a door stop.
Door Stop 12x28x1360
(A0050)x01
Coverstrip 12x48x1680
(A1432)x02
40mm Nails
(A0025)x12

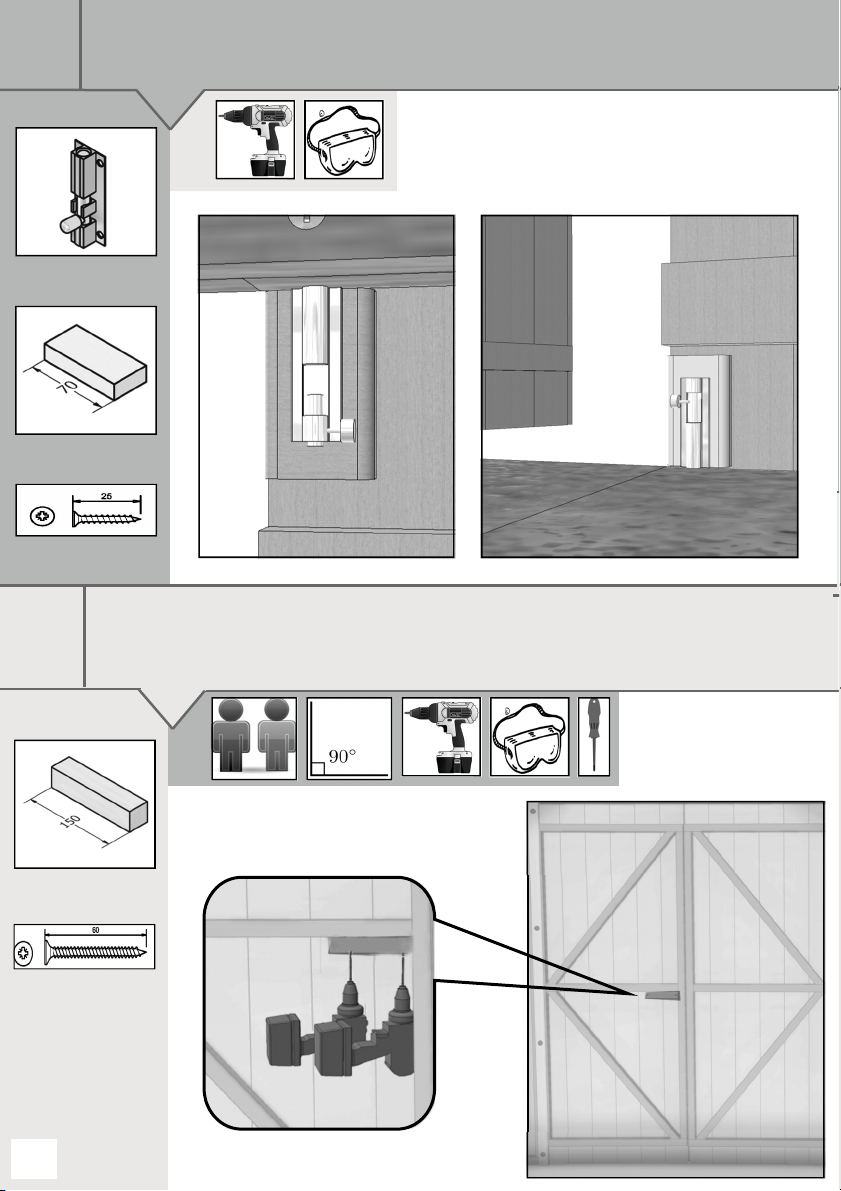

Fit a Barrel Bolt (A0014) to the top and bottom of the secondary door with a Bolt Spacer
(A0542) between the bolt and the door using 4x 25mm Screws (A0032).
Make sure the screws go through the door bolt and the shim directly into the door.
Then drill an 8mm hole for the bolt shaft. Repeat for bottom of the door.
GB-IE
12
3mm
8mm
25mm screws
(A0032)x08
Barrel Bolt
(A0014)x02
Bolt Spacer
(A0542)x02
20
GB-IE
13
Fix the Block 34x34x150 (A0065) to the middle bar on the back of the primary door as
below.
Secure with 2x 60mm Screws (A0035).
3mm
60mm Screw
(A0035)x02
Block 34x34x150
(A0065)x01
