Shire 7x5 Haddon 2022 User manual

Version 01 Sasha Leney 23/11/2021
These instructions are for your safety. Please read through them thoroughly before use.
PLEASE KEEP THIS LEAFLET FOR FUTURE REFERENCE
© 7x5 Haddon 2022
© 7x5(7) Houghton 2022
Mass: 171.5 kg Batch No: 5060

Let’s
get started...
GB
IE
Important information...
Safety 03
Preparation of base 04
Warranty 04
Care, maintenance & Recycling 05
[e-mail]
Brigstock Road Wisbech Cambridgeshire PE13 3JJ
Tel [phone]
F Pour obtenir un exemplaire des instructions ou une copie dans une autre
langue s'il vous plaît envoyez un e-mail ou écrire à l'adresse ci-dessous.
PL Na kopii instrukcji lub kopii w innym języku prosimy o wysłanie maila
lub pisaćna adres podany poniżej.
RUS
Для получения копии инструкции или копия на другом языке,
пожалуйста, отправьте по электронной почте или написать по
указанному ниже адресу.
TR Başka bir dilde talimatlarıveya bir kopyasınıbir kopyasıiçin bir e-posta
gönderebilir veya aşağıdaki adrese yazınız.
EN For a copy of the instructions or a copy in another language please send
an email or write to the address below.
I Per richiedere una copia del libretto di istruzioni, in italiano, o in un’altra
lingua, per favore, invia una e-mail o scrivi a l’indirizzo sottostante.
02
In more detail...
Parts List 06
Fascia & Nail List 07
Detailed Technical Drawing 08-10
Hardware Chart 10
Before you start 11
Assembly Instructions 12-24

We advise the use of non slip protective gloves throughout
the assembly process.
We advise the use of steel capped protective footwear
throughout the assembly process.
We advise the use of protective headwear and safety
goggles throughout the assembly process.
Where a ladder is in use another person must hold the
ladder.
Do not attempt to work in windy conditions.
We advise the use of a scaffold tower when fitting the roof
for felting or if you cannot reach from the ground.
Do not allow children near the tools and work area.
Follow any safety precautions quoted by the manufacturer
for any equipment you use.
We advise that you use a helper to hold the glass in position
whilst you nail the beading in place.
Check all parts before assembly.
Only use child and animal safe wood preservative.
Do not use creosote.
Allow the wood preservative to fully dry before use.
Regularly check the building for wear and tear.
Getting Started…..
GB
IE
EVERY PRECAUTION IS TAKEN TO ENSURE THAT YOUR BUILDING HAS NO
ELEMENT INCORRECTLY PLACED OR POSSIBLY HAZARDOUS, HOWEVER
PRIOR TO USE PLEASE CHECK ALL SURFACES FOR THE FOLLOWING:
(1) RAISED GRAIN, SPLINTERS: Sand down timber to smooth finish
(2) NAIL/SCREW/PIN HEADS PROUD: Tap home to be flush with surface of
timber.
(3) DAMAGED SCREW HEADS RESULTING IN SHARP SPLINTERS OF
METAL: Replace.
(4) SHARP ENDS OF NAILS/ SCREWS/ PINS PROTRUDING THROUGH THE
PANEL: Remove and Reposition.
(5) ENSURE ALL PARTS ARE SECURED AGAINST REASONABLE FORCE:
Remove and Refit.
(6) ENSURE THERE ARE NO LOOSE PARTS: Remove and Refit/Discard.
Important!
Safety
IMPORTANT ! For your safety please read
carefully the safety warnings
Check that you have noted all the following instructions:
03

Getting Started…..
GB
IE
Base and Warranty
The following are also excluded:
 Damage resulting from poor assembly.
 Poor treatment application.
 Poor care and maintenance.
 Changes to the design.
 Misuse.
 General wear and tear.
Warranty...
10 Year anti-rot warranty subject to the following:
 The building must be raised so it is not in contact with any water
retaining base surface (for example grass).
 This can be achieved using a timber, concrete or slab base.
 When using a concrete or slab base use damp proofing strips
under the bearers.
 The building must have been completely treated and sealed
immediately prior to assembly.
 The building must have been re-treated and re-sealed annually.
NOTE: Wood is a natural product, and therefore the following are
excluded from the warranty:
- Colour change.
- Warping.
- Splitting.
Preparation of base...
We recommend that the base onto which your building will stand should be at least
75mm larger in each direction than the total floor size of the building.
Haddon without Verandah:
Actual floor area of the building: 2048mm x 1550mm
Total height clearance: 2100mm (same for both buildings)
Roof size: 2173mm x 1834mm
Houghton inc Verandah Sizes:
 Actual floor area of the building: 2048mm x 2154mm
 Roof Size: 2166mm x 2225mm
The chosen position in your garden for your building should be excavated to a depth
of 75mm to allow a base of sand, onto which paving slabs can be evenly laid.
You may also use an adjustable timber base or a concrete base. Whatever base you
decide upon IT MUST BE LEVEL AND FIRM.
04

Care, Maintenance and Recycling
1. Pallet and timber widely recycled.
2. Cardboard widely recycled.
3. Plastic strapping subject to local regulations.
4. Plastic sheeting subject to local regulations.
(1) Visually check for weather damage.
(2) Check and replace if necessary any silicone sealant if used on your
building.
(3) Check the roofing material for wear.
(4) The doors and windows may require periodical adjustment.
(5) Ensure your building is well ventilated especially during hot weather.
(6) During extremely hot periods, humidify your building to prevent the timber
from drying out.
The 5 golden rules of care:
The 6 golden rules of maintenance:
1. Timber widely recycled.
2. Metal fixings widely recycled.
3. Glass widely recycled.
4. Roofing felt not currently recycled.
packaging
Building
(1) Ensure your base is level and firm.
(2) Ensure the building is not sitting directly on the ground using damp proof
membrane or the optional timber base.
(3) Ensure every piece of timber and surface, especially that is hidden upon
assembly, is treated with a top quality wood preservative at least twice
(before assembly). Turn the panels upside down whilst painting so the
treatment runs into the seams.
(4) Garden buildings are not waterproof, therefore you must seal between all the
panels with a silicone based sealant.
(5) Regularly check your roofing felt for weather damage and leaks.
Getting Started…..
GB
IE
05
Recycling and disposal:

Stacked Parts List
Description
(part No ) - Qty
06

Fascia and Nail Bag Parts List
Description
(part No ) - Qty
07

In more detail…..
GB
IE
08

In more detail…..
GB
IE
09

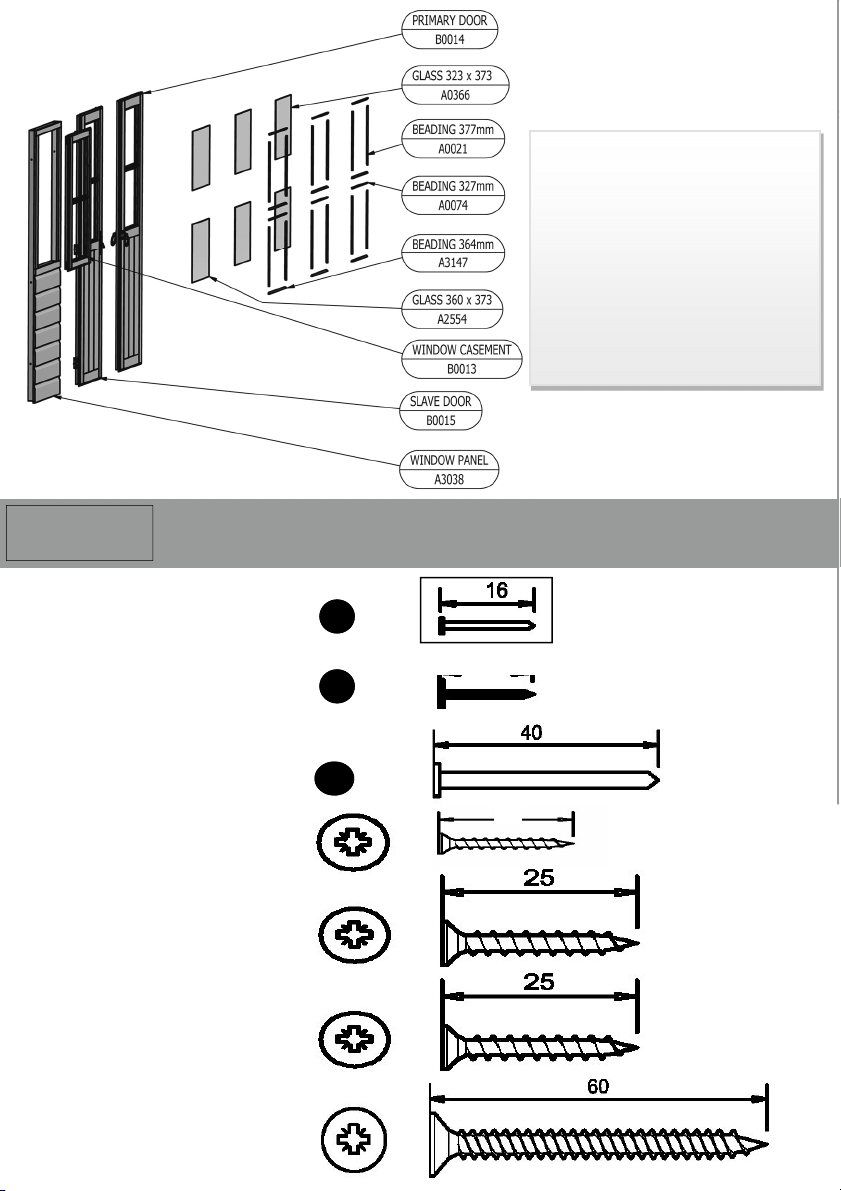

(A0266) x 112
8mm Felt Nail
(A0025) x 122
40mm Round Head Nail
(A0035) x 51
60mm Posi-Drive Screw
Nail bag contents
Building
Photographs
It will be greatly
appreciated if you could
forward images of your
completed building to -
[email protected].
Description
(part No ) - Qty
8mm
(A0029) x 10
Black 25mm Posi-Drive Screw
10
(A0024) x 96
16mm Panel Pins Hardware Chart
Scale 1:1
(A0032) x 42
25mm Posi-Drive Screw
10mm Posi-Drive Screws
(A0028)x08
10

11
Before you start...
Things to check before you start:
Check all parts as listed in the parts lists.
Read the instructions fully before starting work.
Follow all the health and safety guidelines.
Ensure your base is ready – See page 4.
You will need:
Hammer
Spirit level
Ladder
1mm + 5mm drill bit
Drill
Tape measure & Ruler
Sand paper
Gloves
Saw
Pencil
Goggles
A helper for some
tasks
 Screwdriver
 Sharp knife
Masking tape
When you see the drill icon
Only ever drill through the first
piece of framework which will be a
pilot hole for the screw to attach the
second piece of framework
The required drill bit size is
shown with the icon.
5mm
In more detail…..
GB
IE

GB-IE
01
Assembly instructions:
These instructions are for your safety. Please read through them thoroughly before use.
Treat all the parts before assembly – see page 5!
GB-IE The “Panel layout” is showing you how to position the panels.
The Plain 990 and 310 Panels FIT INSIDE THE PLAIN 990 AND 560
PANELS!
Primary Door
(B0014)x01
Panel Layout

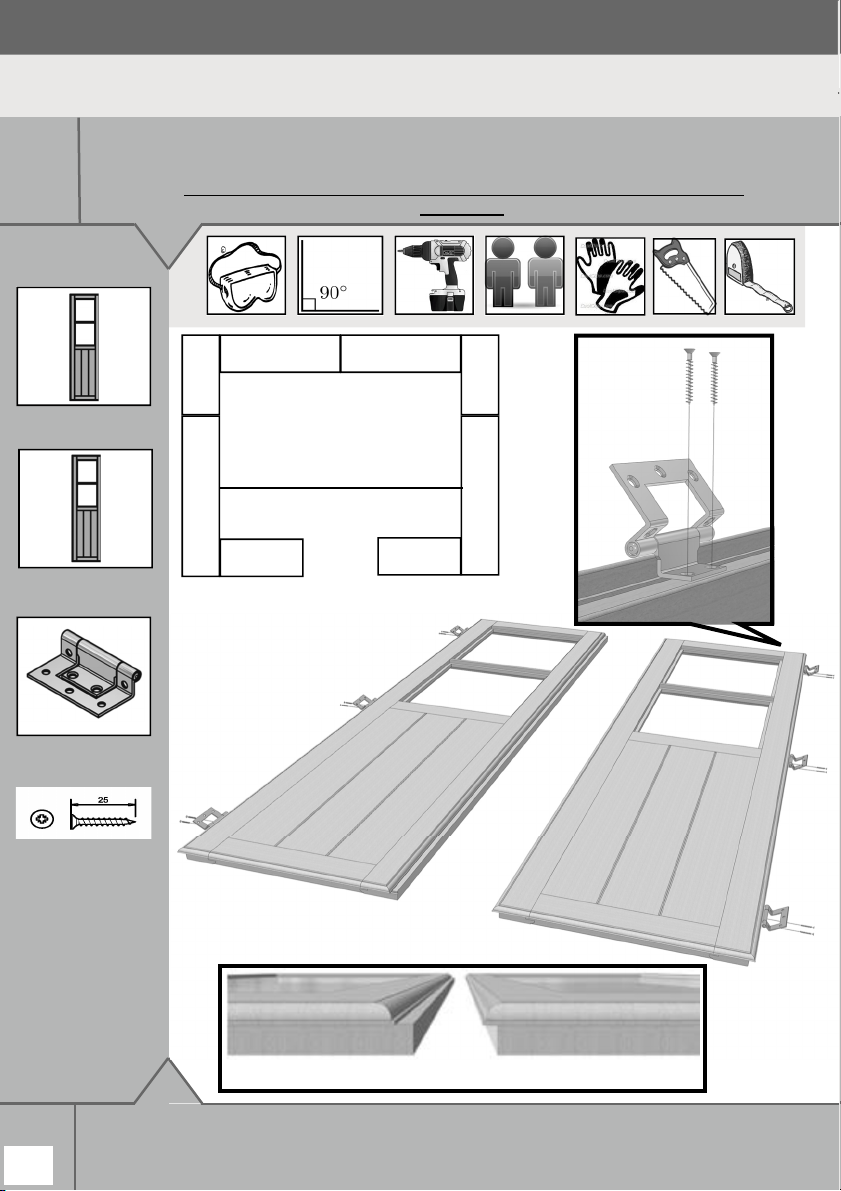

Fit the Storm Hinges 2.5” (A0013) to the Primary and Slave Door (B0014) and (B0015) as
above. Position them equally apart.
Fix with 2x 25mm Screws (A0032) in each hinge.
12
3mm
A0004
A3038
A0003
A0001
A3038
A0004
A0005
A0005 A0004
A0004
Slave Door
(B0015)x01
Storm Hinge 2.5”
(A0013)x06
25mm Screws
(A0032)x12
PRIMARY
(DOOR THAT OPENS FIRST)
SECONDARY

GB-IE

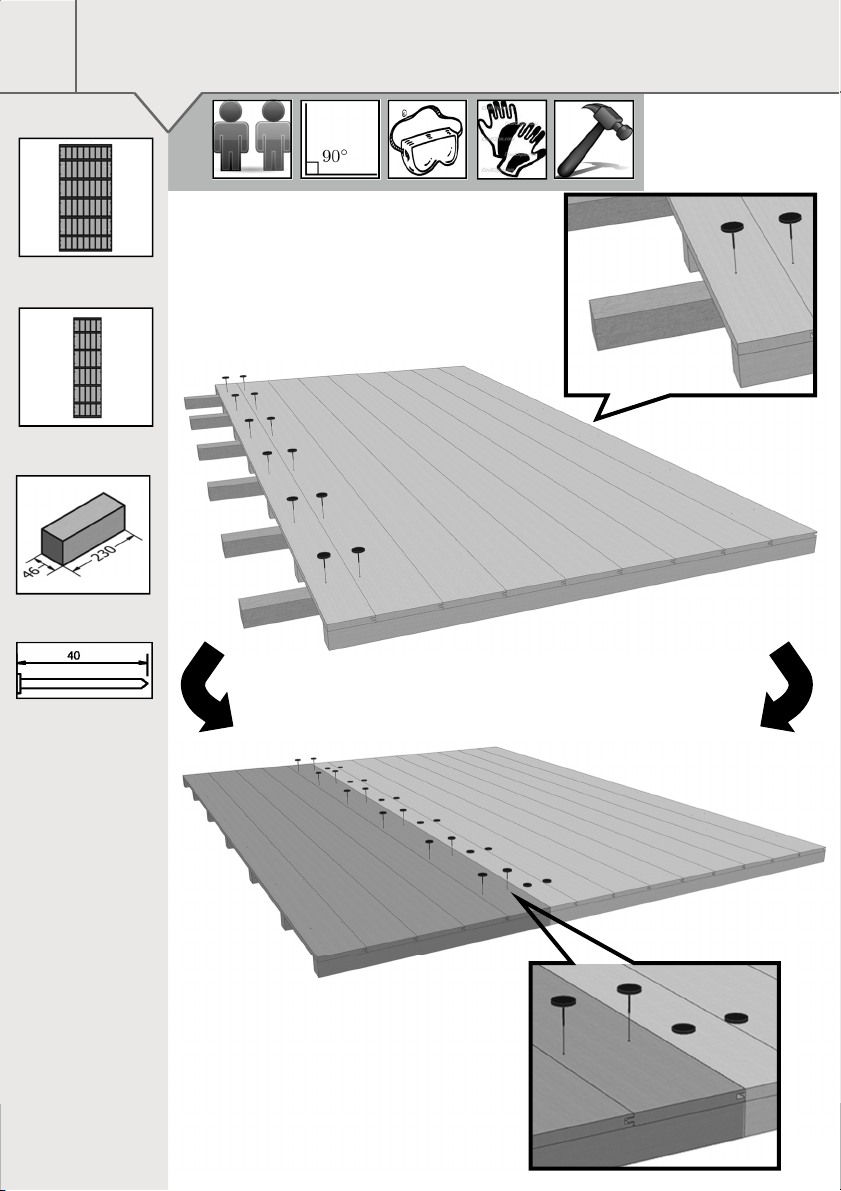

Nail the Joiners 34x46x230 (A0002) to the larger Floor Panel (A0001) as below.
Use 2x 40mm Nails (A0025) per joiner. Make sure you nail no less then 20mm from the
edge. Place the other Floor Panel (A0003) onto the joiners and nail with 2x 40mm Nails as
before. Carefully put the floor onto your chosen base.
02
13
Floor Panel
(A0001)x01
Floor Panel
(A0003)x01
Joiner 34x46x230
(A0002)x06
40mm Nails
(A0025)x24
If building Houghton with
verandah
you must read
supplement first
13

GB-IE
Drill one Plain Panel 990 (A0004) as below. Make sure the bottom hole is inline with the floor
bearer. Drill one Plain Panel 560 (A0005) as below. Place the 560 into the corner, so that the
cladding overlaps the floor. Push the 990 panel up to it and fix with 3x 60mm Screws
(A0035).
14
03
5 mm
NOTE
Some holes
drilled for
later use
Plain Panel 560
(A0005)x01
60mm Screws
(A0035)x03
In line with floor bearers
DO NOT
FIX WALLS TO
FLOOR
UNTIL ASKED
Plain Panel 990
(A0004)x01

GB-IE
Drill another Plain Panel 990 (A0004) as below, making sure the bottom hole is inline with the floor bearers. Fix with 3x
60mm Screws (A0035) using the pilot holes drilled in the other 990 panel.
Drill the other Plain Panel 560 (A0005) as below. Fix with 3x 60mm Screws (A0035) using the pilot holes drilled.
04
5 mm
15
Plain Panel 560
(A0005)x01
60mm Screws
(A0035)x06
Plain Panel 990
(A0004)x01
In line with floor bearers
DO NOT
FIX WALLS TO
FLOOR
UNTIL ASKED

16

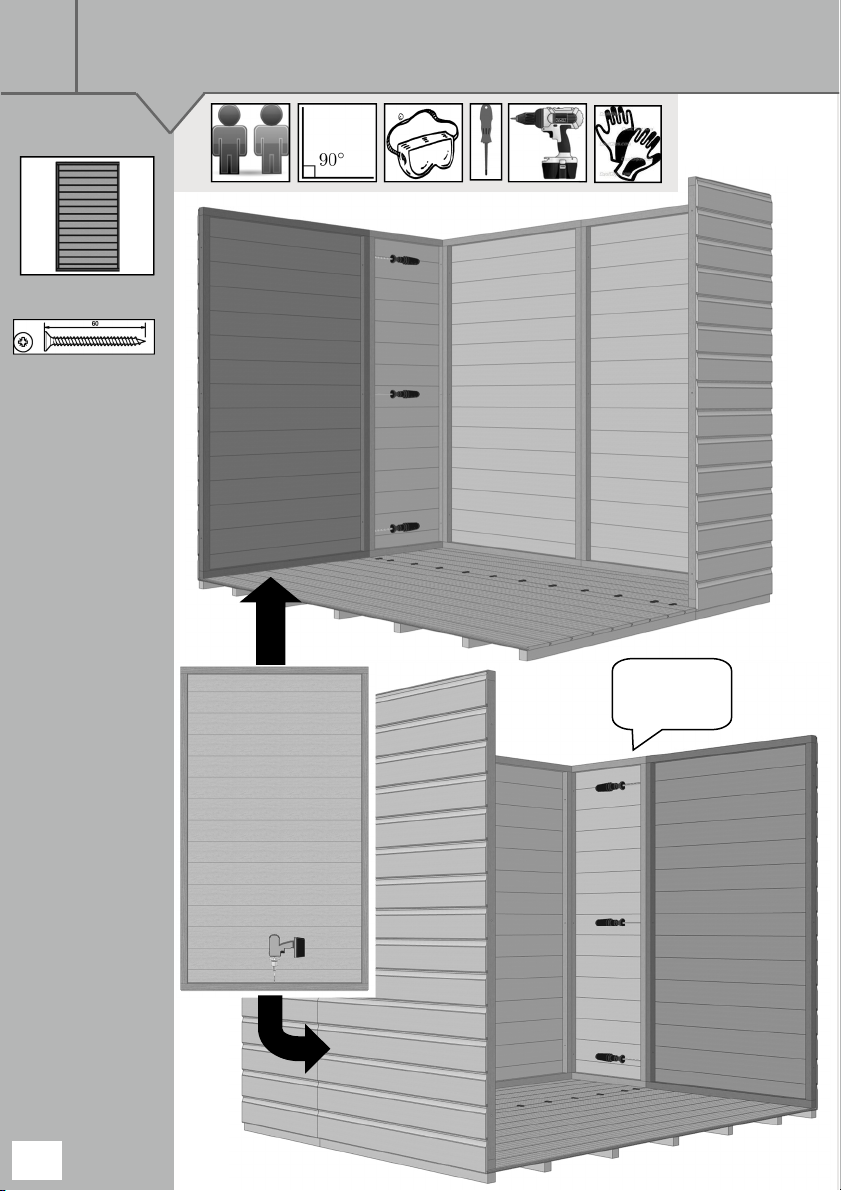

GB-IE Drill the last two Plain Panels 990 (A0004) as below.
Fix to your building with 3x 60mm Screws (A0035) in each, using the pilot holes
drilled in the 560 panels.
05
5mm
DO NOT
FIX WALLS TO
FLOOR
UNTIL ASKED
Plain Panel 990
(A0004)x02
60mm Screws
(A0035)x06

17
GB-IE
Drill the two Window Panels (A3038) as below. Make sure the bottom holes are inline with
the floor bearers. Fix with 3x 60mm Screws (A0035) in each.
Make sure the aperture measures 910mm top and bottom.
06
5mm
Window Panel
(A3038)x02
60mm Screws
(A0035)x06
910mm
DO NOT
FIX WALLS TO
FLOOR
UNTIL ASKED
In line with
floor bearers
In line with
floor bearers
NOTE
Some holes
drilled for
later use

18
GB-IE
Drill the two Gables (A0007) as below. Make sure the gables can be screwed into the wall
panels underneath. Fix the back gable with 4x 60mm Screws (A0035) and the front gable
with 2x 60mm Screws (A0035).
07
Gable
(A0007)x02
60mm Screws
(A0035)x06
5mm
GB-IE
Place the Roof Bearers 34x34 (A0008) onto your building into the slots in the gables. Drill and
screw the bearers into the gables and fix with 2x 60mm Screws (A0035) in each as below.
08
5mm
Roof Bearer 34x34
(A0008)x04
60mm Screws
(A0035)x08

GB-IE

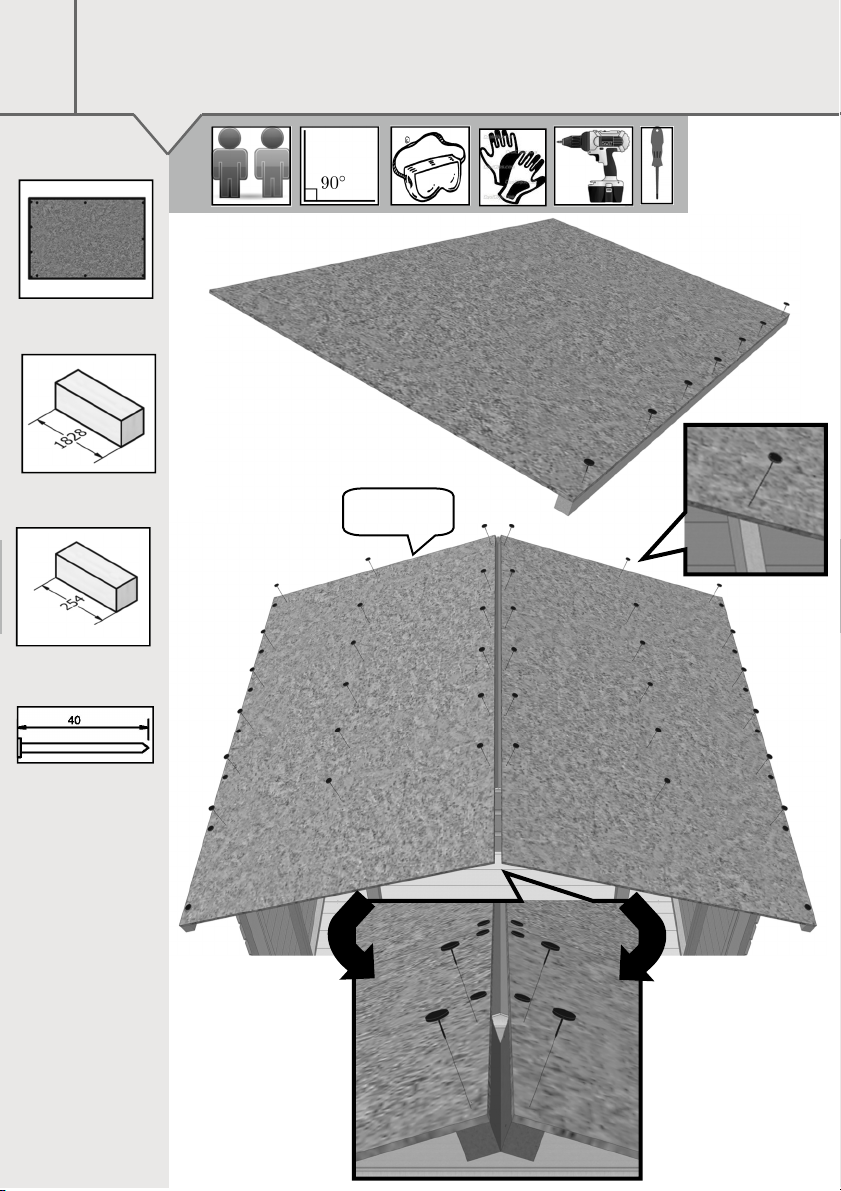

Nail one Roof Edging 34x34 (A2808) to each OSB 1125x1828 (A0009-1) using 7x 40mm
Nails (A0025). Repeat so you have two Roof Panels. Place them onto your building as below,
so that the edge is flush with the cladding on the back gable. Nail with 6x 40mm Nails
(A0025) along each of the roof bearers and the sides, making sure the nails go into the walls.
Attach the Roof Overhang 34x34 (A07109) with 2x 40mm Nails (A0025) in each as below.
09
5mm
OSB 1125x1828
(A0009-1)x02
40mm Nails
(A0025)x54
Roof Overhang 34x34
(A07109)x02
Roof Edging 34x34
(A2808)x02 Flush with
gable cladding
If building
Houghton
with
verandah
you must read
supplement
first
small roof to
be fiƩed first

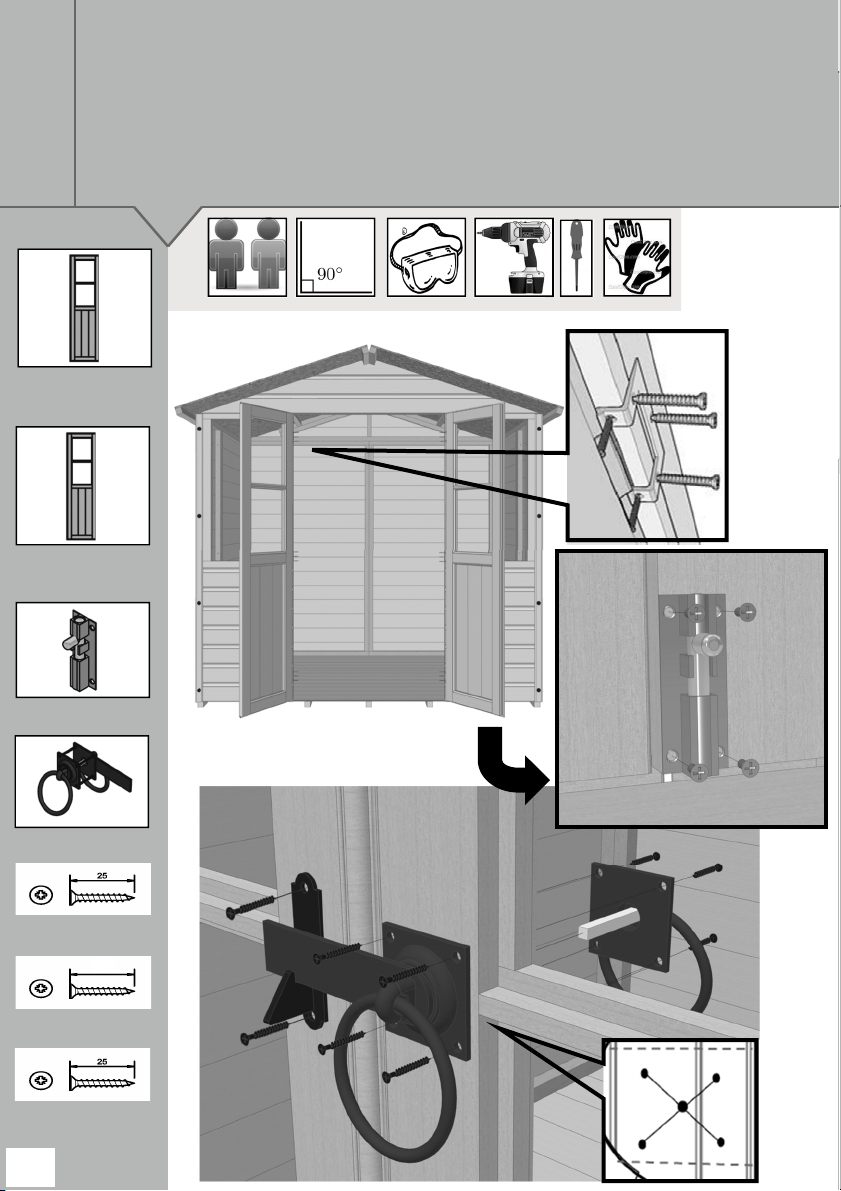

Hang the Primary and Slave Doors (B0014) and (B0015) as below.
Use 1x 25mm Screw (A0032) per hinge first to align the doors. Once happy, finish the rest of the screws
into the hinges. Test doors open and close correctly.
Tip: Use coins or something similar as packing under the doors to help level them out.
Fix the Barrel Bolts (A0014) on the slave door as below. Fix both to the door using 4x 10mm Screws
(A0028) in each. One at the top, one at the bottom. Make sure you mark and drill a hole in the gable and
floor panel for the bolt to slot into when the door is closed.
Mark a centre point onto the Primary Door and drill a hole. Then fix the Gate Latch (A0015) through as
below. Fix the plates using 4x Black 25mm Screws (A0029) in each.
Then attach the Latch holder onto the slave door using 2x Black 25mm Screws (A0029).
Tip: Mark where the holes go first before drilling.
10
GB-IE
20
Black 25mm Screws
(A0029)x10
Primary Door
(B0014)x01
(Step 01)
Slave Door
(B0015)x01
(Step 01)
Gate Latch
(A0015)x01
25mm Screws
(A0032)x30
3+5mm
10mm Screws
(A0028)x08
Barrel Bolt
(A0014)x02
10
