Shire 6x4 Bar User manual

© 6x4 Bar
Version 6 11//05/2020 Julian Shepherd
7These instructions are for your safety. Please read through them thoroughly before use.
PLEASE KEEP THIS LEAFLET FOR FUTURE REFERENCE

Let’s
get started...
GB
IE
Important information...
Safety 03
Preparation of base 04
Warranty 04
Care, maintenance & Recycling 05
[e-mail]
Brigstock Road Wisbech Cambridgeshire PE13 3JJ
Tel [phone]
F Pour obtenir un exemplaire des instructions ou une copie dans une autre
langue s'il vous plaît envoyez un e-mail ou écrire à l'adresse ci-dessous.
PL Na kopii instrukcji lub kopii w innym języku prosimy o wysłanie maila
lub pisaćna adres podany poniżej.
RUS
Для получения копии инструкции или копия на другом языке,
пожалуйста, отправьте по электронной почте или написать по
указанному ниже адресу.
TR Başka bir dilde talimatlarıveya bir kopyasınıbir kopyasıiçin bir e-posta
gönderebilir veya aşağıdaki adrese yazınız.
EN For a copy of the instructions or a copy in another language please send
an email or write to the address below.
I Per richiedere una copia del libretto di istruzioni, in italiano, o in un’altra
lingua, per favore, invia una e-mail o scrivi a l’indirizzo sottostante.
02
In more detail...
Parts List 06
Hardware chart 08
Before you start 09
12-24Assembly instructions
Detailed Technical Drawing 10-11
Fascia & Nail List 07

We advise the use of non slip protective gloves throughout
the assembly process.
We advise the use of steel capped protective footwear
throughout the assembly process.
We advise the use of protective headwear and safety
goggles throughout the assembly process.
Where a ladder is in use another person must hold the
ladder.
Do not attempt to work in windy conditions.
We advise the use of a scaffold tower when fitting the roof,
for felting or if you cannot reach from the ground.
Do not allow children near the tools and work area.
Follow any safety precautions quoted by the manufacturer
for any equipment you use.
We advise that you use a helper to hold the glass in position
whilst you nail the beading in place.
Check all parts before assembly.
Only use child and animal safe wood preservative.
Do not use creosote.
Allow the wood preservative to fully dry before use.
Regularly check the building for wear and tear.
Getting Started…..
GB
IE
EVERY PRECAUTION IS TAKEN TO ENSURE THAT YOUR BUILDING HAS NO
ELEMENT INCORRECTLY PLACED OR POSSIBLY HAZARDOUS, HOWEVER
PRIOR TO USE PLEASE CHECK ALL SURFACES FOR THE FOLLOWING:
(1) RAISED GRAIN, SPLINTERS: Sand down timber to smooth finish
(2) NAIL/SCREW/PIN HEADS PROUD: Tap home to be flush with surface of
timber
(3) DAMAGED SCREW HEADS RESULTING IN SHARP SPLINTERS OF
(4) METAL: Replace
(5) SHARP ENDS OF NAILS/ SCREWS/ PINS PROTRUDING THROUGH THE
PANEL: Remove and reposition
(6) ENSURE ALL PARTS ARE SECURED AGAINST REASONABLE FORCE:
Remove and refit
(7) ENSURE THERE ARE NO LOOSE PARTS: Remove and refit/discard
Important!
Safety
IMPORTANT ! For your safety please read
carefully the safety warnings
Check that you have noted all the following instructions:
03

Getting Started…..
GB
IE
Base and Warranty
The following are also excluded:
 Damage resulting from poor assembly
 Poor treatment application
 Poor care and maintenance
 Changes to the design
 Misuse
 General wear and tear.
Warranty...
10 Year anti rot warranty subject to the following:
 The building must be raised so it is not in contact with any water
retaining base surface (for example grass)
 This can be achieved using a timber, concrete or slab base
 When using a concrete or slab base use damp proofing strips
under the bearers
 The building must have been completely treated and sealed
immediately prior to or after assembly
 The building must have been re-treated and re-sealed annually
NOTE: Wood is a natural product, and therefore the following are
excluded from the warranty:
- Colour change
- Warping
- Splitting.
Preparation of base...
We recommend that the base onto which your building will stand should be at least
75mm larger in each direction than the total floor size of the building.
Actual floor area of the building: 1790mm x 1190mm
Total height clearance: 2550mm
Roof size: 1950mm wide x2330mm deep
The chosen position in your garden for your building should be excavated to a depth
of 75mm to allow a base of sand, on to which paving slabs can be evenly laid.
You may also use an adjustable timber base or a concrete base. Whatever base you
decide upon IT MUST BE LEVEL AND FIRM.
04

Care, Maintenance and Recycling
1. Pallet and timber widely recycled
2. Cardboard widely recycled
3. Plastic strapping subject to local regulations
4. Plastic sheeting subject to local regulations.
(1) Visually check for weather damage.
(2) Check and replace if necessary any Silicone sealant if used on your
building.
(3) Check the roofing material for wear.
(4) The doors and windows may require periodical adjustment.
(5) Ensure your building is well ventilated especially during hot weather.
(6) During extremely hot periods humidify your building to prevent the timber
from drying out.
The 5 golden rules of care:
The 6 golden rules of maintenance:
1. Timber widely recycled
2. Metal fixings widely recycled
3. Glass widely recycled
4. Roofing felt not currently recycled.
packaging
Building
(1) Ensure your base is level and firm.
(2) Ensure the building is not sitting directly on the ground using damp proof
membrane or the optional timber base.
(3) Ensure every piece of timber and surface, especially that is hidden upon
assembly is treated with a top quality wood preservative at least twice
(before assembly). Turn the panels upside down whilst painting so the
treatment runs into the seams.
(4) Garden buildings are not waterproof, therefore we recommend you seal
between all the panels with a silicone based sealant.
(5) Regularly check your roofing felt for weather damage and leaks.
Getting Started…..
GB
IE
05
Recycling and disposal:

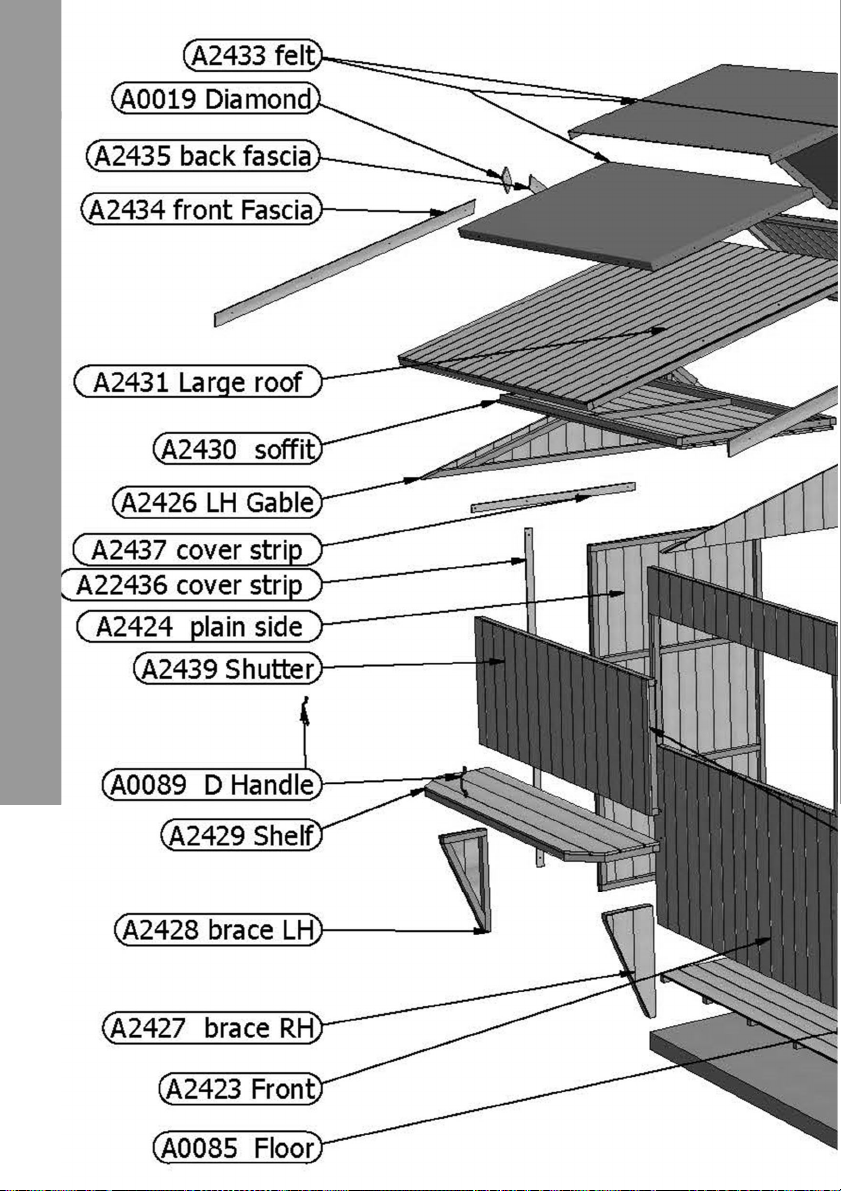

Stacked Parts List Scale 1:70 unless stated
Description
(part No ) - Qty
06

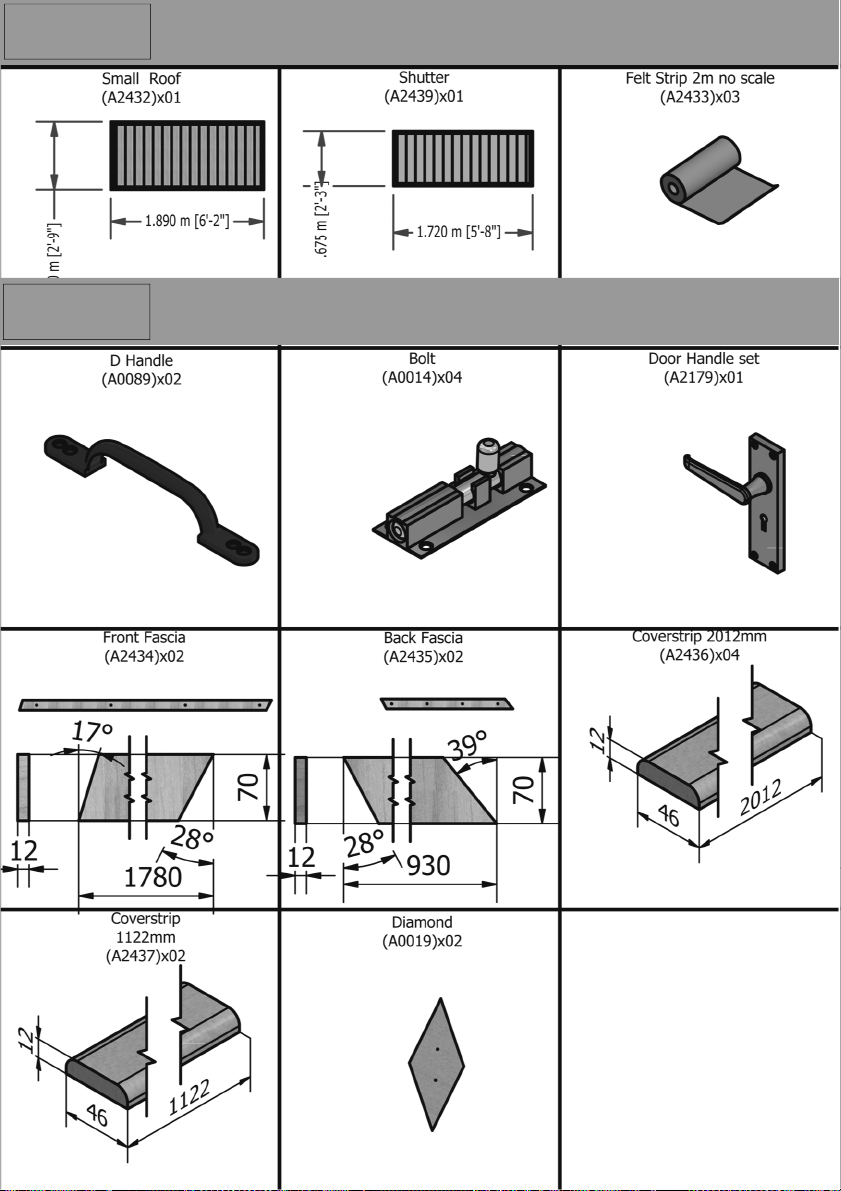

Fascia Bag Parts List no scale
Description
(part No ) - Qty
Stacked Parts List Scale 1:70 unless stated
Description
(part No ) - Qty
07

08

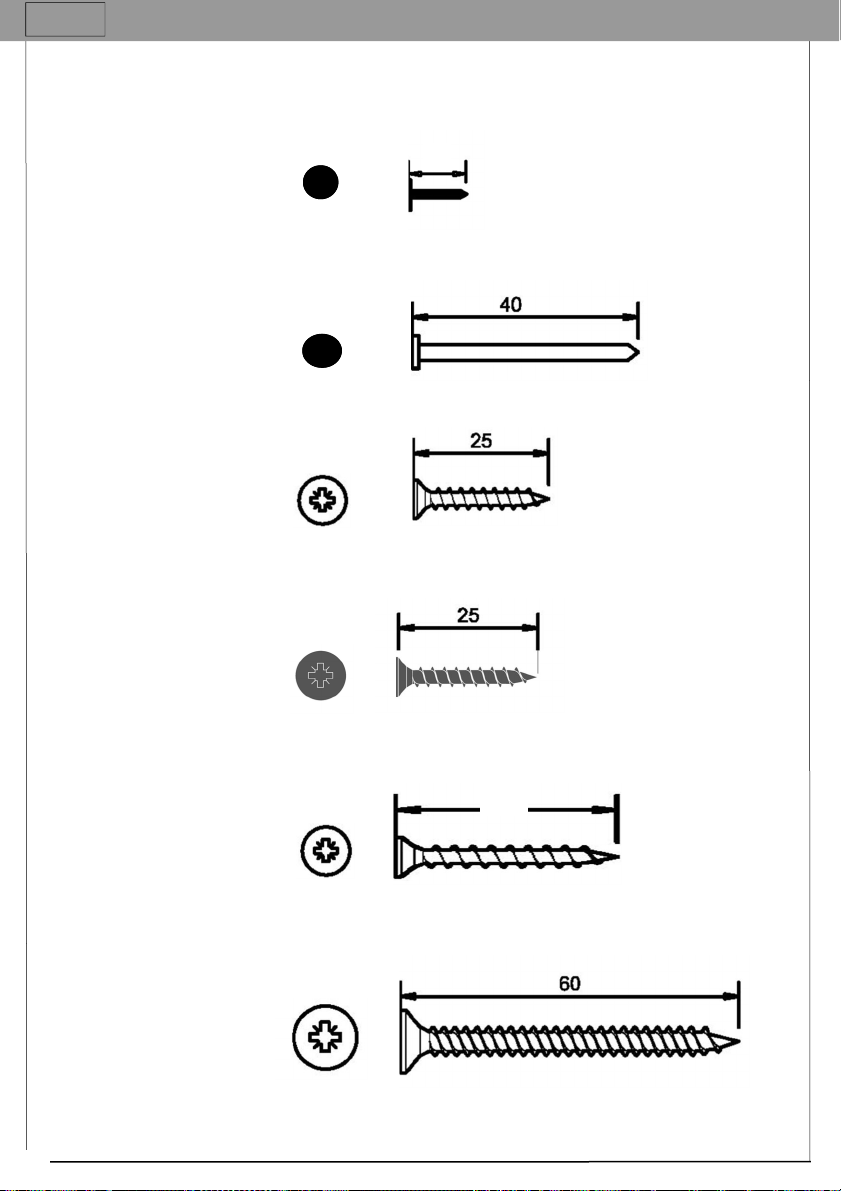

Hardware Chart
Scale 1:1
(A0025) x60
40mmRound head nail
(A0032) x24
25mm Posi-drive screw
(A0035) x68
60mm Posi-drive screw
Nail bag contents
Description --
(part No ) - qty:
13
(A0023) x124
13mmFelt Nail
(A0031 ) x08
Posi-drive screw
Black 25mm
(A0033) x04
40mm Posi-drive screw
40

09
Before you start...

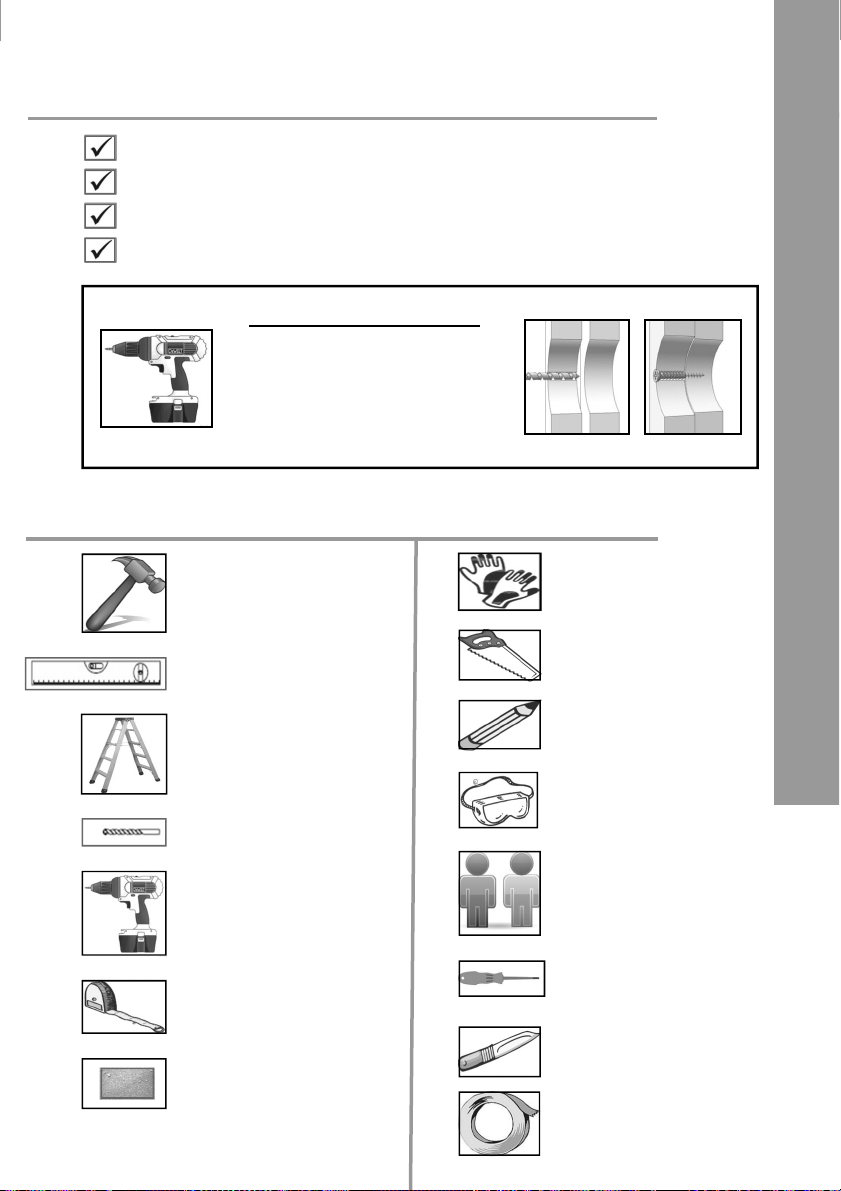

Things to check before you start:
Check all parts as listed in the parts lists
Read the instructions fully before starting work
Follow all the health and safety guidelines.
Ensure your base is ready – See page 4
You will need:
Hammer
Spirit level
Ladder
1mm 3mm 5mm 8mm
drill bits
Drill
Tape measure & Ruler
Sand paper
Gloves
Saw
Pencil
Goggles
A helper for some
tasks
 Screwdriver
 Sharp knife
Masking tape
When you see the drill icon
Only ever drill through the first
piece of framework which will be a
pilot hole for the screw to attach the
second piece of framework
The required drill bit size is
shown with the icon.
6mm
In more detail…..
GB
IE

10
In more detail…..
GB
IE

11
In more detail…..
GB
IE

12
01
Assembly instructions:
These instructions are for your safety. Please read through them thoroughly before use.
Treat all the parts before assembly – see page 5!

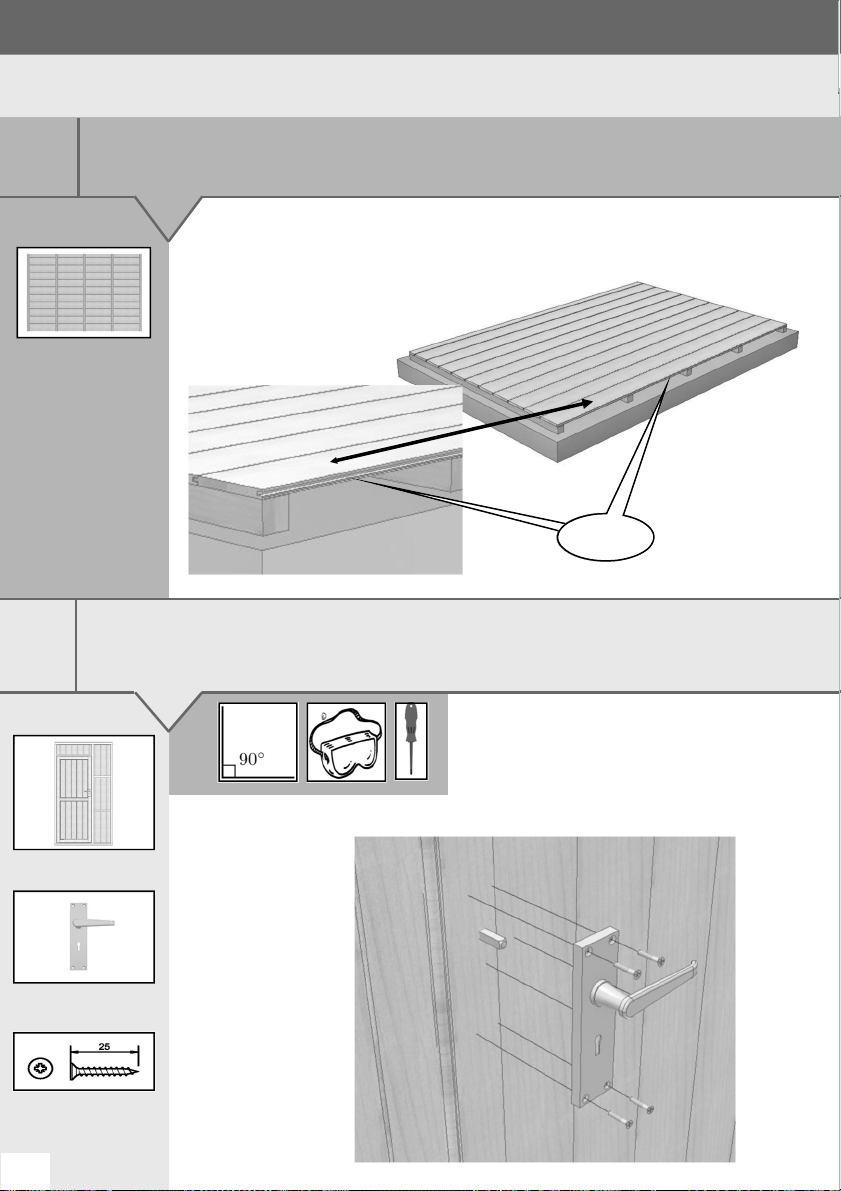

GB-IE See page 4 for base recommendation. We have used concrete for our example.
Make sure the floor is situated as shown. The open long side of the floor is the front.
Door Panel
(A2422)x01
02
25mmScrews
(A0032)x08
Front
Floor panel
(A0085)x01
GB-IE
Place the square shaft into the lock and then locate the handle onto the shaft and screw into position
Repeat on the inside of the door.
The Key is usually screwed to the panel on in the nail bag. Unlock the door and keep the key safe.
Front
Handle set
(A2179)x01

13
Sutter
(A2439) x01
GB-IE

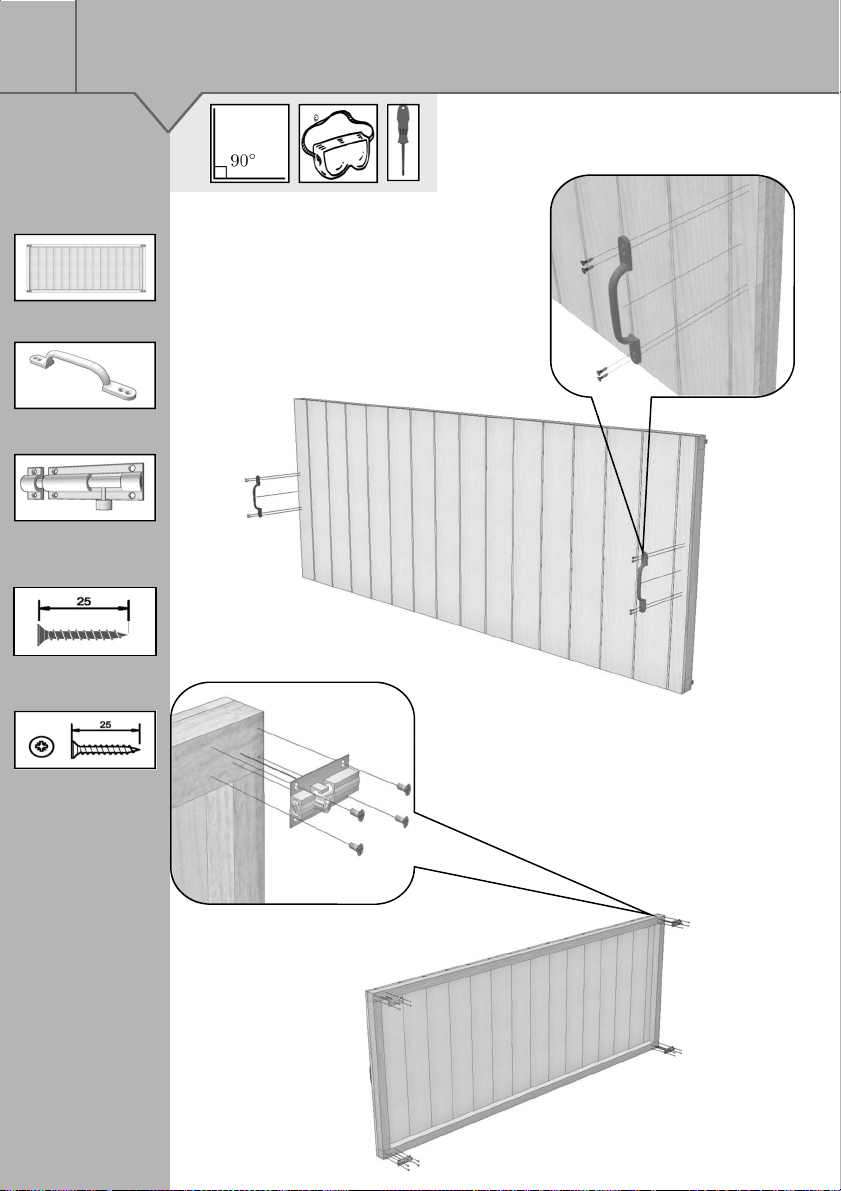

Fix the two D-handles A0089 to the outside of the shutter so the 25mm black screws go into the
framework.
Fix a A0014 Bolt at each corner framework with 4x25mm screws each.
03
D-handle
(A0089) x02
Bolt
(A0014) x04
25mm Black Screw
(A0031)x08
25mmScrew
(A0032)x16

14
60mm Screws
(A0035)x03
Back Panel
(A2421) x01
GB-IE
Remove the transport blocks from the bottom of the panels gently with a hammer
Drill the panels as shown. Some of the holes will be used in later steps.
The Back panel A2421 fits the full length of the floor and the cladding overhangs the floor.
Push the door panel A2422 up to it and ensure both panels are tight to the floor and the framework is
flush before fixing. Do not screw to the floor yet!
04
If using a drill or elec-
tric screwdriver care-
fully but firmly push
the opposite end to the
screwdriver bit into the
screw head and keep
the pressure on to prevent the screw-
driver spinning in the screw
DoorPanel
(A2422) x01
Transport block
5 mm

Building
Photographs
It will be greatly
appreciated if you could
forward images of your
completed
building to -
[email protected].
15
60mm Screws
(A0035)x03
Plain Side
(A2424) x01
GB-IE
Again drill holes in both sides and the bottom of the plain side although only 3 holes are for this step.
Position the A2424 plain side flush and true as before.
Fix to the back with 3x 60mm screws.
05 5 mm

GB-IE
16
Front panel
(A2423) x01

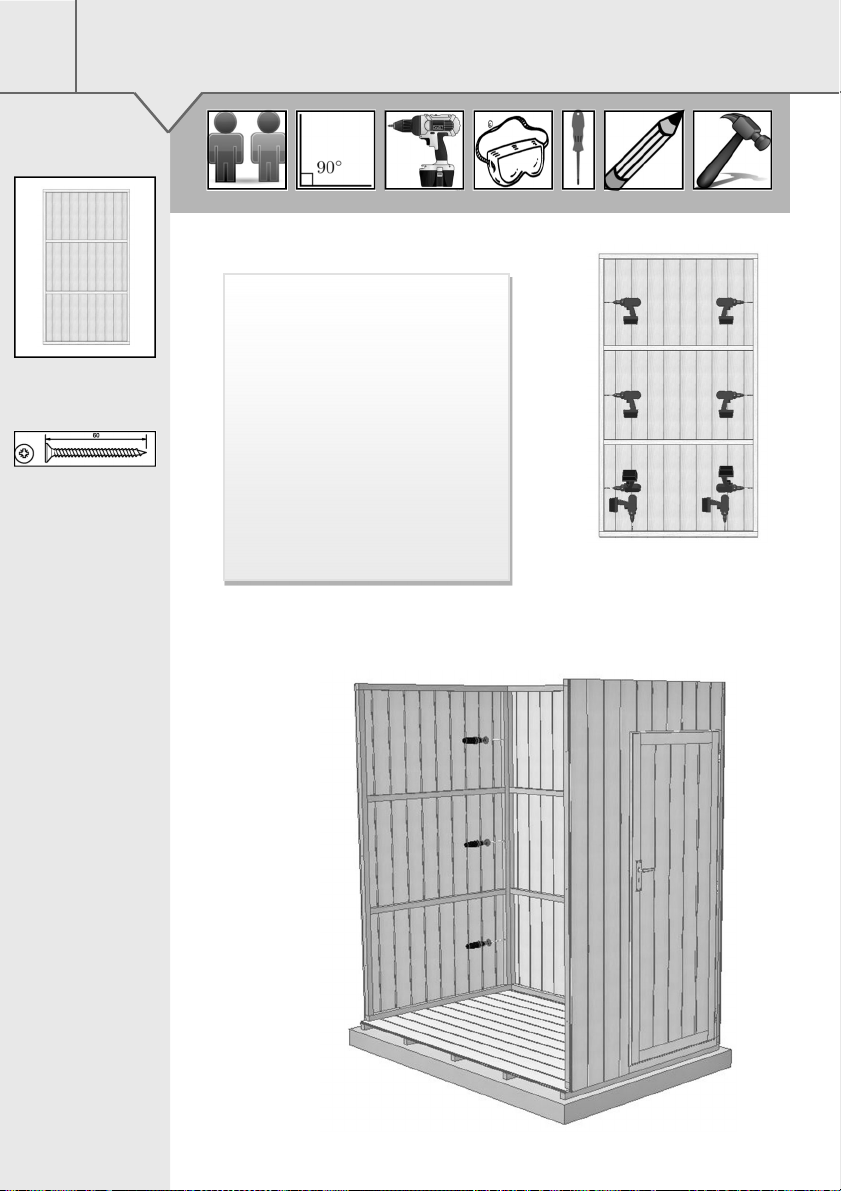

Make sure all the wall panels are square and there are no framework gaps.
Make sure the panels cladding is against the floor
Fix to the floor with the 10 holes drilled previously.
07
GB-IE
The A2423 front panel needs no holes in the end framework
Again the bottom edge must be drilled inline with the floor framework
Like the back the front fits in front of the sides and runs the length of the floor.
Fix using the holes drilled in steps 4&5
06
60mmScrew
(A0035)x06
60mmScrew
(A0035)x10
5 mm

17
Rh Gable Panel
(A2425)x01
GB-IE
Drill the A2425 RH gable panel making sure both holes are within 1m of the steep end.
Align the framework and fix to the panel below
08
GB-IE Repeat at the other end with the A2426 LH gable.
09
60mmScrew
(A0035)x02
60mmScrew
(A0035)x02
5 mm
Lh Gable
(A2426)x 01
5 mm

GB-IE
18
Soffit Panel
(A2430) x01
Small Roof
(A2432)x 01
Place the A2423 Small roof in position so the framework drops over and into the w shape in the top of
the gables and push it tight to the blocks and measure and position with an even overhang each end.
Mark and drill 3 holes up each slope 67mm (make sure the upper one goes into the location block) in
from the roof edge and screw into the frame below and not too low as to be outside the bottom edge.
The lower holes just nip the screws up so not to crack the cladding.
Mark a line 95mm up from the bottom edge and drill 4 holes and again just nip he screws up.
11
GB-IE
Drill 6 holes in the A2430 soffit panel
Align the framework on top of and with the inside of the front panel frame and with the gables framework.
Fix to the gables first and then to the front panel with the holes drilled earlier.
10
60mmScrew
(A0035)x09
60mmScrew
(A0035)x10
5 mm
You must have at least
two helpers to hold this
panel in place
5 mm

19
Large Roof
(A2431)x01
GB-IE
Position the A2431 Large roof as for the back one
Drill and fix the up the gable slopes as before NOTE using nail lines as a guide drill through the support
bars.
Mark and drill 180mm from the low edge and screw to the soffit’
12
GB-IE From the inside drill and fix the visible roof support at each end.
13
60mmScrew
(A0035)x02
60mmScrew
(A0035)x12
5 mm
5 mm

2.0m Felt strip
(A2433)x01
20
GB-IE
3 Strips of felt have been supplied. Fit the front lower strip first folding the felt over the roof edging,
with an even overhang front and back then secure with a couple of nails at the top to hold the felt
in position and at the bottom nail at approximately 100mm centres.
14
Tidying the corner
13
13mm Felt nails
(A0023) x40
