Hiboy S2 User manual

Hiboy S2 Lite

Electric Scooter

ＵＳＥＲ　ＭＡＮＵＡＬ

The manufacturer reserves the right to make changes to the product, and update this manual at any time.

Visit www.hiboy.com to download the latest user materials.

ＵＳＥＲ　ＭＡＮＵＡＬ

www.hiboy.com

HIB Y

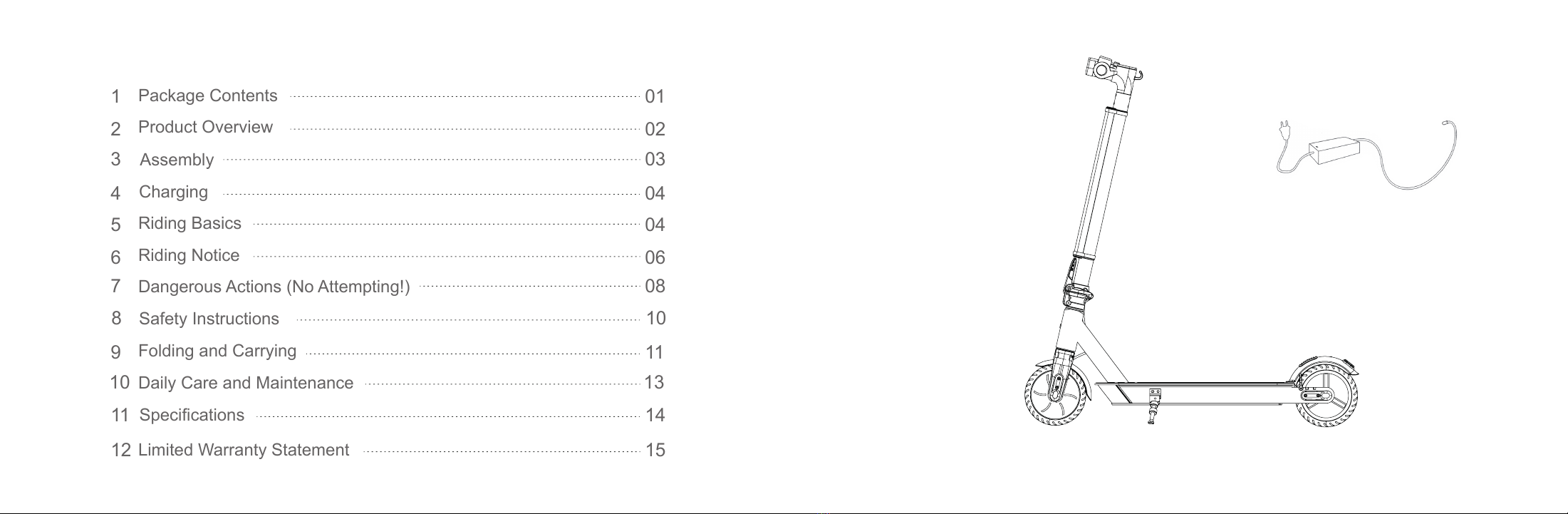

Contents 1. Package Contents

Carefully check package contents, if anything is missing or

damaged, please contact Hiboy customer service for support:

us.support@hiboy.com

Charger

Package Contents

Product Overview

Charging

Riding Basics

Folding and Carrying

Daily Care and Maintenance

Limited Warranty Statement

Specifications

Dangerous Actions (No Attempting!)

Riding Notice

Assembly

Safety Instructions

Rear brake

Coollight

Electric brake

Bell

2. Product Overview

1. Unfold the stem and push it until you hear a click.

Then unfold the kickstand to support the scooter.

3. Screw four of the screws provided(two on each side)

with the provided Allen wrench.

4. Ensure your scooter powers on and off.

2. Slide the handlebar onto the stem.

Make sure it's right way round.

3. Assembly

Control Panel Power Button

Battery Indicator

Light

Mode

Cruise

Unplug the scooter charger, click the power button to turn on the scooter. Hold down the power button for three seconds to turn off

the scooter.

The power level is indicated by five power lights on the control panel.　

When the scooter is on, one-tap will turn on/off the front light and side LED lights.

Triple to turn on / off the cruise control function.

Double-tap to change the riding mode. Green indicates sports mode, and not light indicates comfort mode.

Ｓ

Ｍph Ｋm／h

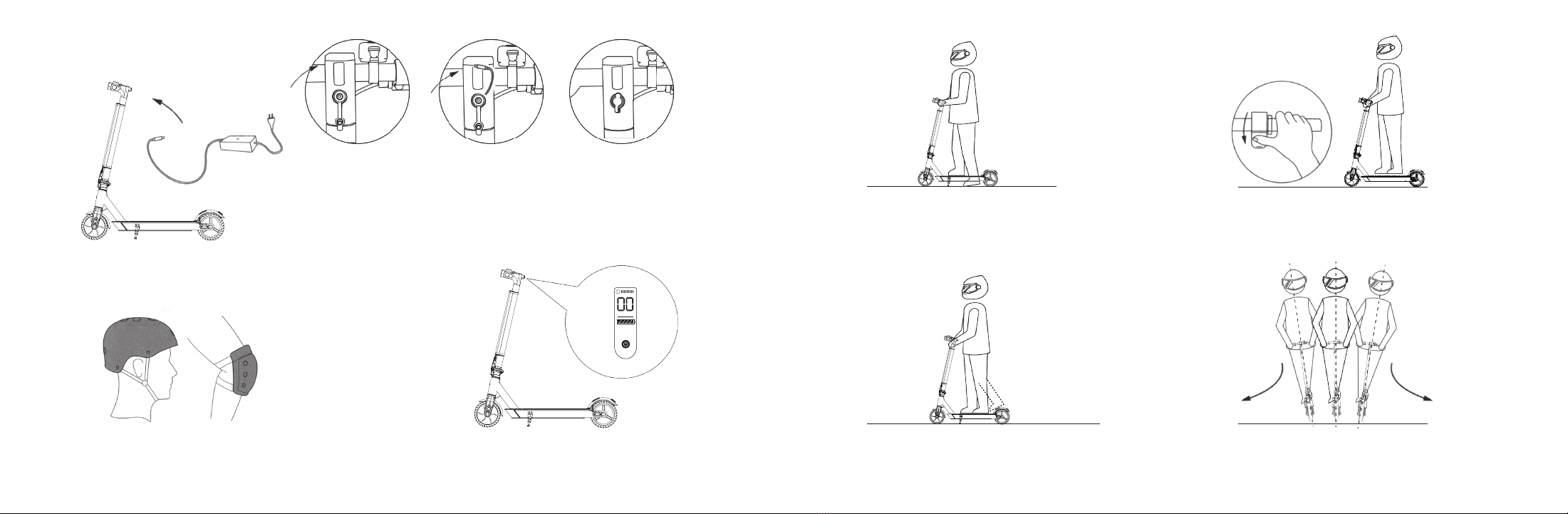

4. Charging

5. Riding Basics

Always wear a helmet and safety gear so to

avoid falling and injury during the driving

learning,　as shown in the figure.

1. Turn the power on,　and check the electricity indicator.

2. Stand on the base with one foot and propel

yourself with the other foot.

Insert the charging plug in

Your scooter will be fully charged when the LED light on the charger changes from red （charging）to green.

After a period of full charge, the charging　will automatically cut off.

Even so, we still don't recommend charging your scooter for a long time.

Do not connect the charger if the charging port is wet. Cover the charging port when not use.

Fill and fix the rubber

plug after the charging

Open the rubber plug

3. When the electric scooter begins to glide, put

both feet on the deck and press the accelerator.

The speed shall be kept above 3.1mph (5km/h)

for starting the throttle.

4. Release the throttle and reduce the speed

slowly. Step on the rear brake and press the

brake lever down for a sudden brake.

5. Tilt your body to the steering direction as you

turn, and turn the handlebar slowly.

Ｓ

Ｍph Ｋm／h

6. Riding Notice

Do not accelerate when you go downhill.

Look out for doors, elevators and other overhead

obstacles.

Please keep a medium or low speed (５mph) when you ride through

speed bumps, elevator door sills, bumpy roads or other uneven surfaces

Slightly bend your knee to better adjust mentioned surfaces.

Do not press the throttle when walking with the

scooter.

Always steer clear of obstacles.

Keep both feet on the deck all time.Do not hang bags or other heavy stuff on the

handlebar.

Do not ride in the rain.

Do not keep your hands away from

handlebar.

Do not try riding up or down stairs, and

jumping over obstacles

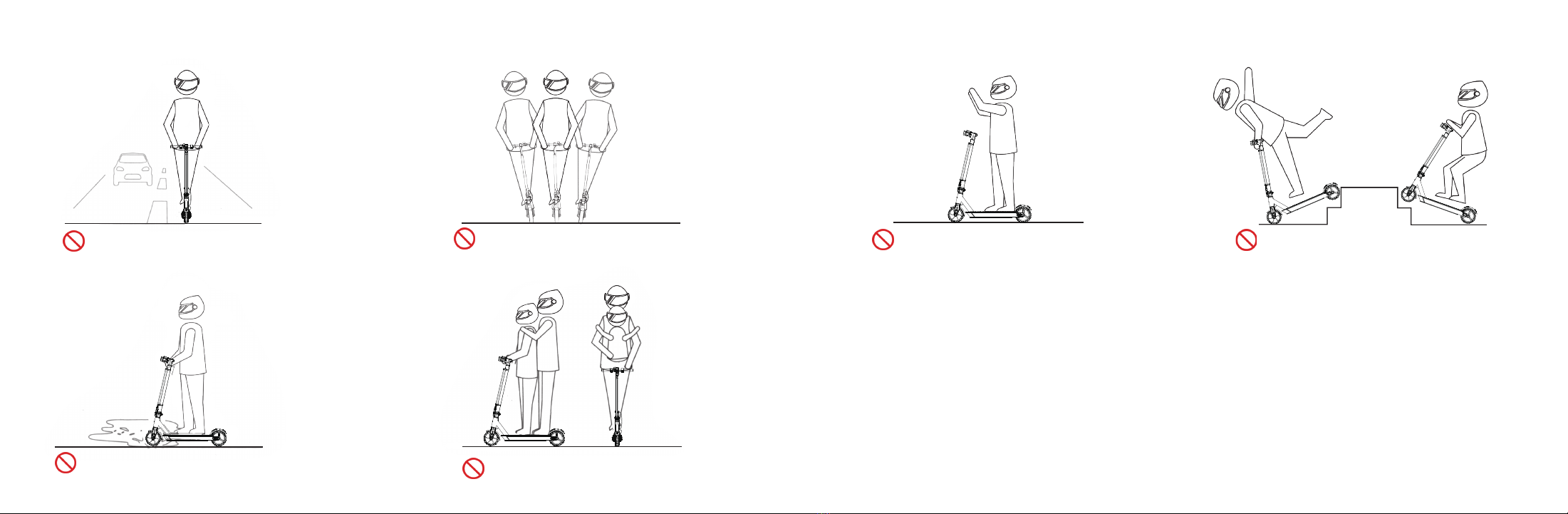

7. Dangerous Actions (No Attempting!)

Do not ride in traffic lanes or residential

areas where vehicles and pedestrians are

both allowed.

Do not ride in a ponding that is

higher than 0.79 inches.

Do not turn the handlebar violently

during high-speed riding

Do not ride with anyone else,

including children.

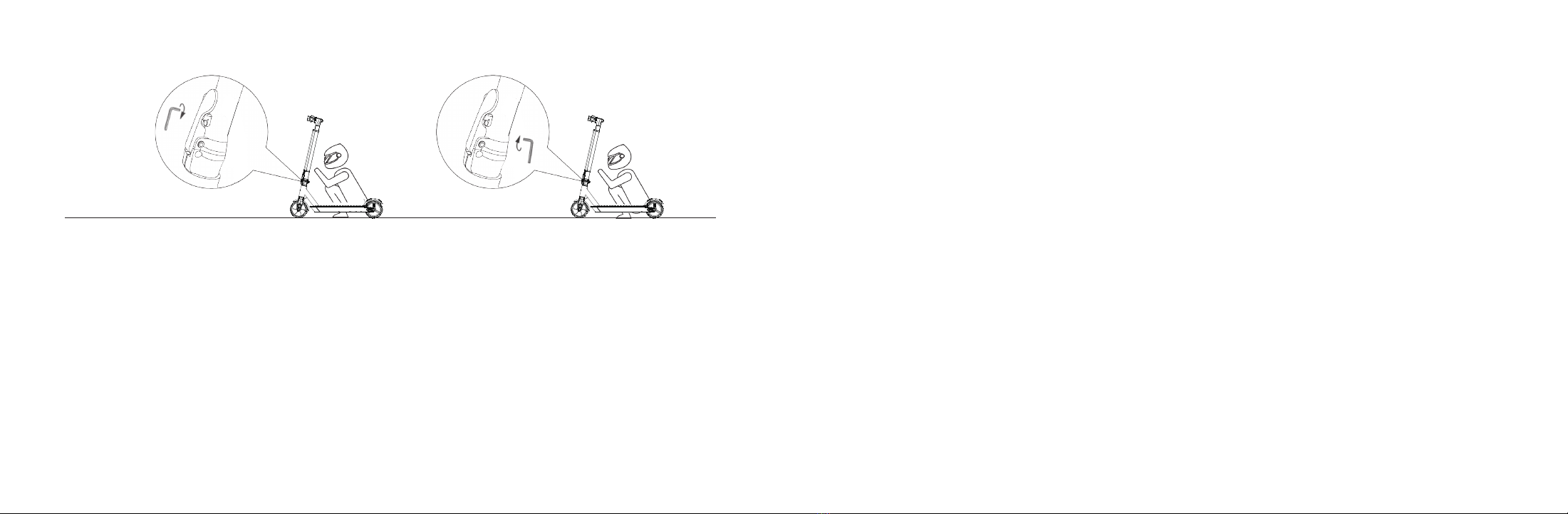

8. Safety Instructions 9. Folding and Carrying

The Hiboy S2 Lite electric scooter is a leisure device. But once they're in a public area, they'll be seen as vehicles,

subjecting to any risks faced by vehicles. For your safety, please follow instructions in the manual and traffic laws and

regulations set forth by government and regulatory agencies.

● At the same time, you should understand that risks cannot be entirely avoided as others may violate traffic regulations

and drive incautiously, and you're exposed to road accidents just as when you're walking or biking. The faster the scooter

is, the longer it takes to stop. On a smooth surface, the scooter may slip, lose balance, and even result in a fall. Thus it is

crucial that you use caution, keep proper speed and distance, especially so when you're unfamiliar with the place.

● Respect pedestrians' Right of Way. Try not to startle them while driving, especially children. When you ride from behind

pedestrians, ring your bell to give them a heads-up and slow your scooter to pass from their left (applicable to countries

where vehicles drive on the right). When you ride across pedestrians, keep to the right at a low speed. When you drive

across pedestrians, keep the lowest speed or getting off the vehicle.

● Closely follow the safety instructions in the manual. Hiboy shall not be liable for any financial losses, physical injuries,

accidents, legal disputes and other interest conflicts resulted from actions that violate user instructions.

● Do not lend your scooter to whoever doesn't know the operations. And when you do lend it to your　friends, please take

the responsibility to ensure he/she knows the operation and wears the safety　gear.

● Check the scooter before every use. When you note loosen parts, low battery alerts, excessive wear, strange sounds,

malfunctions and other abnormal conditions, stop riding.

● WARNING – Risk of Fire – No User Serviceable Parts.

Make sure that the scooter's turned off. To fold, unlock the folding mechanism, and bend the handlebar stem to hook the buckle

on the rear fender. To open, press the bell trigger to remove from the buckle, erect the handlebar and lock the folding structure.

Hold the handlebar stem with either one hand or both hands to carry.

1110

10.Daily Care and Maintenance

Cleaning and storage

Battery maintenance

If you see stains on the scooter's body, wipe them off with a damp cloth. If the stains won't scrub off, put on some toothpaste,

and brush them with a toothbrush, then wipe them off with a damp cloth.

Notes: do not clean the scooter with alcohol, gasoline, kerosene or other corrosive and volatile chemical solvents to prevent

dire damage. Do not wash the board with a high-pressure water spray. During cleaning, make sure that the scooter's turned

off, the charging cable is unplugged, and the rubber flap is closed as water leakage may result in electric shock or other major

problems.When the scooter not in use, keep it indoors where it is dry and cool. Do not put it outdoors for a long time.

Excessive sunlight, overheating and overcooling accelerate the battery pack's lifespan．

1. Use original battery packs, use of other models or brands may bring about safety issues;

2. Do not touch the contacts. Do not dismantle or puncture the casing. Keep the contacts away from metal objects to prevent short

circuit which may result in battery damage or even injuries and deaths;

3. Use original power adapter to avoid potential damage or fire;

4. Mishandling of used batteries may do tremendous harm to the environment. To protect natural environment, please follow local

regulations to properly dispose used batteries.

5.After every use, fully charge the battery to prolong its lifespan.

Storage and Disposal

1.Please try to store the scooter in a cool and dry place between 14℉and 104℉. In extremely humid environments the interior of the

scooter may suffer condensation or even water accumulation, which may damage the battery rapidly.Devices are not intended for

use at elevations greater than 2000 m above sea level Prolonged Exposure to UV Rays, Rain and the Elements May Damage the

Enclosure Materials, Store Indoors When Not in Use.

2. In daily use, try to avoid recharging the scooter after completely exhausting the battery. If the battery is low, charge it as soon as

possible.

3. Please charge the scooter every other month to preserve the battery.

If the handlebar and its stem sway during riding, use the proper Allen wrench to tighten the screws on the folding mechanism.

1312

11. Specifications

Operating Temperature

(1) The height of the body:　distance from the ground to the highest end of the body.

(2) Description of the battery life:　it is measured under the condition of full charge,　a load of 150lb (68kg) at 77°F（25℃）, on a flat road without wind,　

and at a speed of 9.3mph.　The real battery life will differ with different factors of the load, humidity,　wind speed and operationhaits.

(3) The maximum allowable weight shall be kept within 180lbs(82kg ) (driver and objects included)in any case.　Consider an extra weight of the clothes

or other accessories with us during the trip and the gravity generated by speed,　the scooter will not support it if this load limit is exceeded.

30 DAY SATISFACTION GUARANTEED RETURN POLICY

If you are unsatisfied with your purchase, Hiboy’s return policy allows you to return the product purchased on the Authorization channel within 30 days counting from the date

of receipt of shipment, and request a refund from the Authorization channel for any reason. Note: Express shipping cost is non-refundable.

For the return request, Hiboy is not responsible for lost packages due to the carrier, or products received that cannot be verified. Received products that have damage determined

to have been caused by the end-user may be subject to denial of the return request.

LIMITED PRODUCT WARRANTY

Hiboy warrants the original purchaser that your Hiboy product shall be free from defects in materials and workmanship under normal use for a period aforementioned.

Hiboy does not warrant the operation of the product will be uninterrupted or error-free.

Hiboy is not responsible for damage arising from failure to follow instructions relating to the product's usage.

TO QUALIFY FOR A REFUND, ALL THE FOLLOWING CONDITIONS MUST BE MET:

1.A Return Merchandise Authorization (RMA) must be requested from Hiboy within 30 days from the date of receipt of shipment. To request an RMA, contact Hiboy Service

Team at [email protected].

2.The cost of return shipping will be borne by the customer.

3.For warranty service, please keep your receipt and/or invoice to validate proof of purchase.

4.Returned product must be in good physical condition (not physically broken or damaged).

5.All accessories originally included with your purchase must be included with your return.

6.If you return a product to Hiboy, (a) without an RMA from Hiboy(b) without all parts included in the original package, Hiboy retains the right to refuse delivery of such return.

12. Limited Warranty Statement

43.3*17.7*42.5inch (110*45*28cm)

43.3*17.7*11 inch (110*45*108cm)

21lb (9.95kg)

180lbs(82kg)

13mph（21km/h）

8-10.6mile(13-17km)

14-104 °F(-10℃-40℃ )

5 Ah

15%

Max. Range

Load

S2 Lite

3.5h-4.5h

250W

1.5A

SHENZHEN FENGCHI

ELECTRIC CO.,LTD

MODEL:FCA133-42105

Manufacturer：

REMEDIES

If a hardware defect is found and a valid claim is received by Hiboy within the Warranty Period, Hiboy will, at its option and to the extent permitted by law, either (1) repair the

product at no charge, using new or refurbished replacement parts or, (2) replace the product with a new or refurbished product. In the event of a defect, to the extent permitted

by law, these are your sole and exclusive remedies. Shipping and handling charges may apply except where prohibited by applicable law. This Limited Warranty is valid only in

the jurisdictions where the products are sold by www.hiboy.com, and is valid to the extent permitted by the applicable laws of such jurisdictions. Any replacement hardware

product will be warranted for the remainder of the original warranty period or thirty (30) days, whichever is longer, or for any additional period of time that may be applicable in

your jurisdiction.

HOW TO OBTAIN WARRANTY SERVICE

A Warranty Service Order must be requested from Hiboy within Warranty Period from the date of receipt of shipment. To request a Warranty Service Order, contact Hiboy

Service Team us.support@hiboy.com.

To obtain warranty service, you must deliver the product, in either its original packaging or packaging providing an equal degree of protection, to the address specified by

Hiboy. In accordance with applicable law, Hiboy may require the customer to furnish proof of purchase details and/or comply with registration requirements before receiving

warranty service.period or thirty (30) days, whichever is longer, or for any additional period of time that may be applicable in your jurisdiction.

LIMITATION OF DAMAGES

Except to the extent prohibited by applicable law, Hiboy shall not be liable for any incidental, indirect, special, or consequential damages, including but not limited to loss of

profits, revenue or data, resulting from any breach of express or implied warranty or condition, or under any other legal theory, even when Hiboy has been advised of the

possibility of such damages. Some jurisdictions do not allow the exclusion or limitation of special, indirect, incidental or consequential damages, so the above limitation or

exclusion may not apply to you.

16 17

Question & Answer

1. What if the E-Scooter arrived missing accessory or broken part?
