Show Tec Quick DMX Rack 1024 User manual

Quick DMX Rack 1024 V1
Highlite International B.V. –Vestastraat 2 –6468 EX –Kerkrade –the Netherlands
Ordercode: 50058
MANUAL
ENGLISH

1
Ordercode: 50058
Quick DMX Rack 1024
Table of contents
Warning ...............................................................................................................................................................................2
Safety Instructions .........................................................................................................................................................2
Operating Determinations ..........................................................................................................................................3
Connection with the mains.........................................................................................................................................4
Return Procedure..........................................................................................................................................................4
Claims..............................................................................................................................................................................4
Description of the device.................................................................................................................................................5
Frontside..........................................................................................................................................................................5
Backside .........................................................................................................................................................................5
Installation...........................................................................................................................................................................6
Set Up and Operation .......................................................................................................................................................6
Saving DMX Files to the Memory Buttons .................................................................................................................6

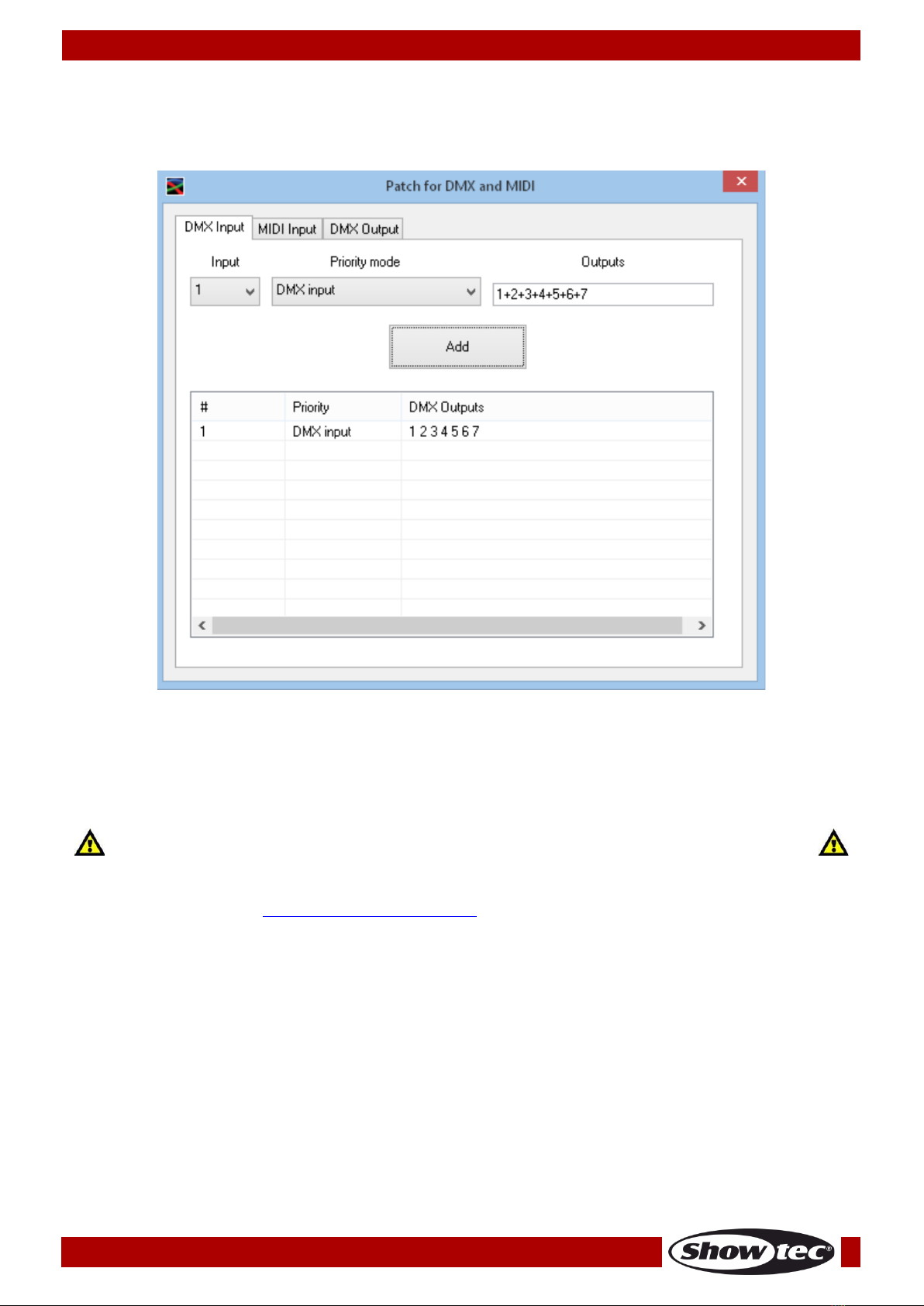

Patching DMX Input .....................................................................................................................................................9
LED indicators ..............................................................................................................................................................13
Troubleshooting........................................................................................................................................................13
Standalone Playback ................................................................................................................................................14
Timelines.....................................................................................................................................................................14
Zones ..........................................................................................................................................................................14
Buttons .......................................................................................................................................................................14
Triggers .......................................................................................................................................................................14
IR Remote Control ...................................................................................................................................................15
IR Extension Cable ...................................................................................................................................................15
Art-Net™ Universe Access......................................................................................................................................15
Patching DMX Input ...................................................................................................................................................16
Control Modes.............................................................................................................................................................18
DMX Control..............................................................................................................................................................18
DMX Setup.................................................................................................................................................................18
Data Cabling...............................................................................................................................................................19
Maintenance....................................................................................................................................................................19
Troubleshooting ...............................................................................................................................................................19
No Function..................................................................................................................................................................19
No Response to DMX..................................................................................................................................................19
Product Specifications....................................................................................................................................................20

2
Ordercode: 50058
Quick DMX Rack 1024

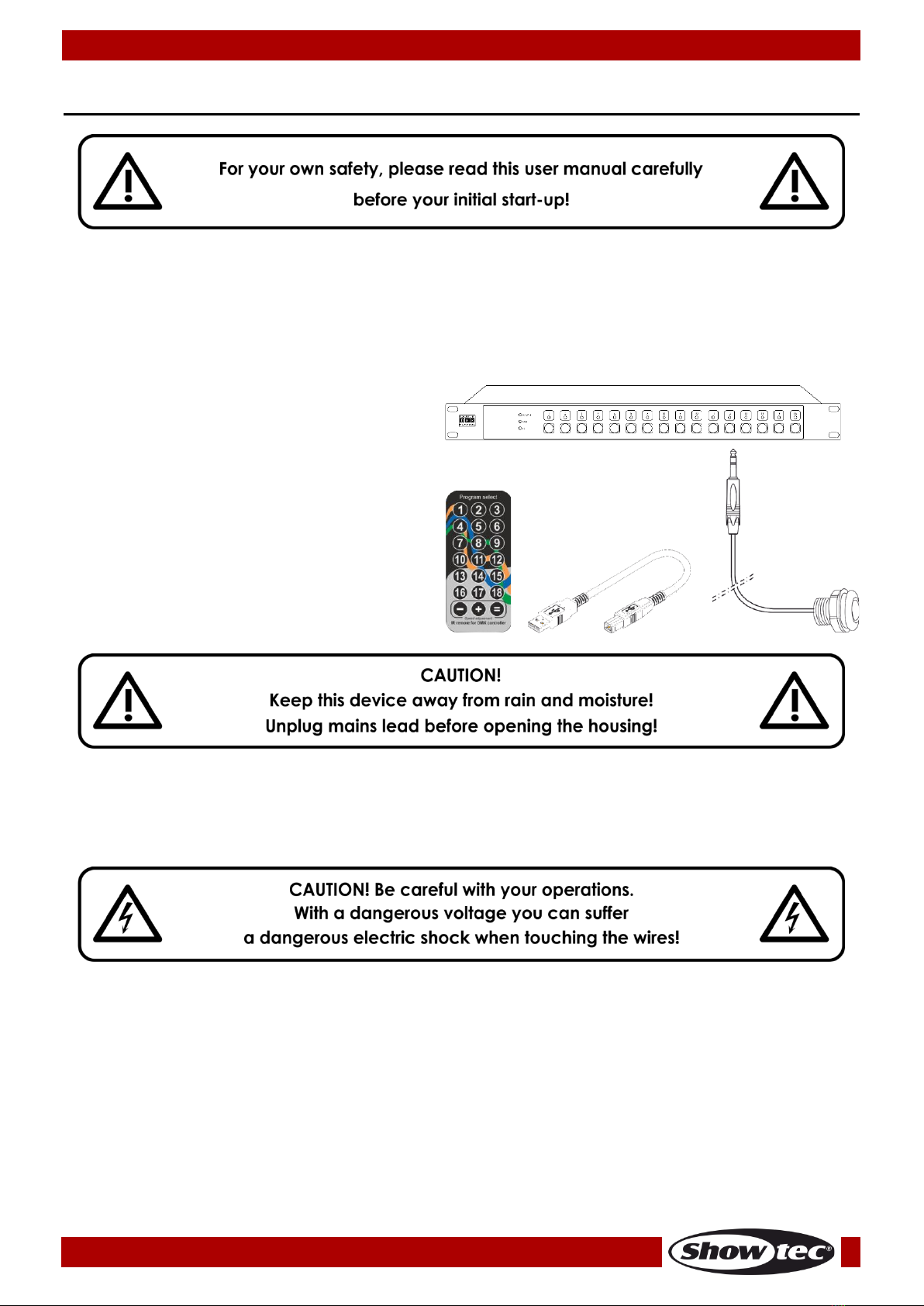

Warning
Unpacking Instructions
Immediately upon receiving this product, carefully unpack the carton and check the contents to ensure
that all parts are present, and have been received in good condition. Notify the dealer immediately and
retain packing material for inspection if any parts appear damaged from shipping or the carton itself
shows signs of mishandling. Save the carton and all packing materials. In the event that a fixture must be
returned to the factory, it is important that the fixture be returned in the original factory box and packing.
Your shipment includes:
Quick DMX Rack 1024
USB-A to USB-B cable
IR eye
IR remote control
User manual
Safety Instructions
Every person involved with the installation, operation and maintenance of this device has to:
be qualified
follow the instructions of this manual
Before your initial start-up, please make sure that there is no damage caused by transportation. Should
there be any, consult your dealer and do not use the device.
To maintain perfect condition and to ensure a safe operation, it is absolutely necessary for the user to
follow the safety instructions and warning notes written in this manual.
Please consider that damages caused by manual modifications to the device are not subject to
warranty.
This device contains no user-serviceable parts. Refer servicing to qualified technicians only.

3
Ordercode: 50058
Quick DMX Rack 1024
IMPORTANT:
The manufacturer will not accept liability for any resulting damages caused by the non-observance of
this manual or any unauthorized modification to the device.
Never let the power cord come into contact with other cables! Handle the power cord and all
connections with the mains with particular caution!
Never remove warning or informative labels from the unit. 
Never use anything to cover the ground contact. 
Never leave any cables lying around. 
Never leave various parts of the packaging (plastic bags, polystyrene foam, nails, etc.) within
children’s reach, as they are potential sources of danger. 
Do not open the device and do not modify the device. 
Do not connect this device to a dimmer pack. 
Do not shake the device. Avoid brute force when installing or operating the device. 
Do not switch the device on and off in short intervals, as this would reduce the system’s life. 
Do not touch the device’s housing bare-handed during its operation (housing becomes hot). 
Only use device indoors, avoid contact with water or other liquids. 
Only operate the device after having familiarized with its functions. 
Avoid flames and do not put close to flammable liquids or gases. 
Always keep case closed while operating. 
Always disconnect power from the mains, when device is not used or before cleaning! Only
handle the power cord by the plug. Never pull out the plug by tugging the power cord. 
Make sure that the device is not exposed to extreme heat, moisture or dust. 
Make sure that the available voltage is not higher than stated on the rear panel. 
Make sure that the power cord is never crimped or damaged. Check the device and the power
cord from time to time. 
If the external cable is damaged, it has to be replaced by a qualified technician. 
If device is dropped or struck, disconnect mains power supply immediately. Have a qualified
engineer inspect for safety before operating. 
If the device has been exposed to drastic temperature fluctuation (e.g. after transportation), do
not switch it on immediately. The arising condensation water might damage your device. Leave
the device switched off until it has reached room temperature. 
If your Showtec device fails to work properly, discontinue use immediately. Pack the unit securely
(preferably in the original packing material), and return it to your Showtec dealer for service. 
For adult use only. The device must be installed out of the reach of children. Never leave the unit
running unattended. 
For replacement use fuses of same type and rating only. 
The user is responsible for correct positioning and operating of the Quick DMX Rack 1024. The
manufacturer will not accept liability for damages caused by the misuse or incorrect installation of
this device. 
This device falls under protection class I. Therefore it is essential to connect the yellow/green
conductor to earth. 
Repairs, servicing and electric connection must be carried out by a qualified technician. 
WARRANTY: Till one year after date of purchase. 
Operating Determinations
This system is not designed for permanent operation. Consistent operation breaks will ensure that the
system will serve you for a long time without defects.
If this system is operated in any other way, than the one described in this manual, the product may suffer
damages and the warranty becomes void.
Any other operation may lead to dangers like short-circuit, burns, electric shock, etc.
You endanger your own safety and the safety of others!
Improper installation can cause serious damage to people and property !

4
Ordercode: 50058
Quick DMX Rack 1024
Connection with the mains
Connect the device to the mains with the power-plug.
Always check if the right color cable is connected to the right place.
International
EU Cable
UK Cable
US Cable
Pin
L
BROWN
RED
YELLOW/COPPER
PHASE
N
BLUE
BLACK
SILVER
NEUTRAL
YELLOW/GREEN
GREEN
GREEN
PROTECTIVE
GROUND
Make sure that the device is always properly connected to the earth!
Improper installation can cause serious injuries and/or damage of property!
Return Procedure
Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued.
Package must be clearly labeled with a Return Authorization Number (RMA number). Products returned
without an RMA number will be refused. Highlite will not accept the returned goods or any responsibility.
Call Highlite 0031-455667723 or mail [e-mail] and request an RMA prior to shipping the
fixture. Be prepared to provide the model number, serial number and a brief description of the cause for
the return. Be sure to properly pack fixture, any shipping damage resulting from inadequate packaging is
the customer’s responsibility. Highlite reserves the right to use its own discretion to repair or replace
product(s). As a suggestion, proper UPS packing or double-boxing is always a safe method to use.
Note: If you are given an RMA number, please include the following information on a piece of paper
inside the box:
01) Your name
02) Your address
03) Your phone number
04) A brief description of the symptoms
Claims
The client has the obligation to check the delivered goods immediately upon delivery for any short-
comings and/or visible defects, or perform this check after our announcement that the goods are at their
disposal. Damage incurred in shipping is the responsibility of the shipper; therefore the damage must be
reported to the carrier upon receipt of merchandise.
It is the customer's responsibility to notify and submit claims with the shipper in the event that a fixture is
damaged due to shipping. Transportation damage has to be reported to us within one day after receipt
of the delivery.
Any return shipment has to be made post-paid at all times. Return shipments must be accompanied with
a letter defining the reason for return shipment. Non-prepaid return shipments will be refused, unless
otherwise agreed in writing.
Complaints against us must be made known in writing or by fax within 10 working days after receipt of the
invoice. After this period complaints will not be handled anymore.
Complaints will only then be considered if the client has so far complied with all parts of the agreement,
regardless of the agreement of which the obligation is resulting.

5
Ordercode: 50058
Quick DMX Rack 1024
Description of the device
Features
The Showtec Quick DMX Rack 1024 is a stand-alone interface which can store up to 16 different DMX
files.
It makes the device suitable for fixed installations. In order to edit DMX files, connection with Quick DMX
software is required.
Input voltage: 9V DC, min. 300mA power adapter (not included) or via USB
Memory: 16 slots
1024 Channel output
Internal clock / calendar
8 external trigger contacts (Phoenix connector)
including IR remote, external IR sensor and a USB cable (USB-A to USB-B)
Control protocol: DMX-512
DMX channels: 1024 channels
Housing: Metal & flame-retardant plastic
Connections: 3-pin DMX IN/OUT, USB B-type IN (5V DC)
Dimensions: 483 x 78 x 44,5 mm (LxWxH)
19” x 1 HE
Weight: 1,3 kg

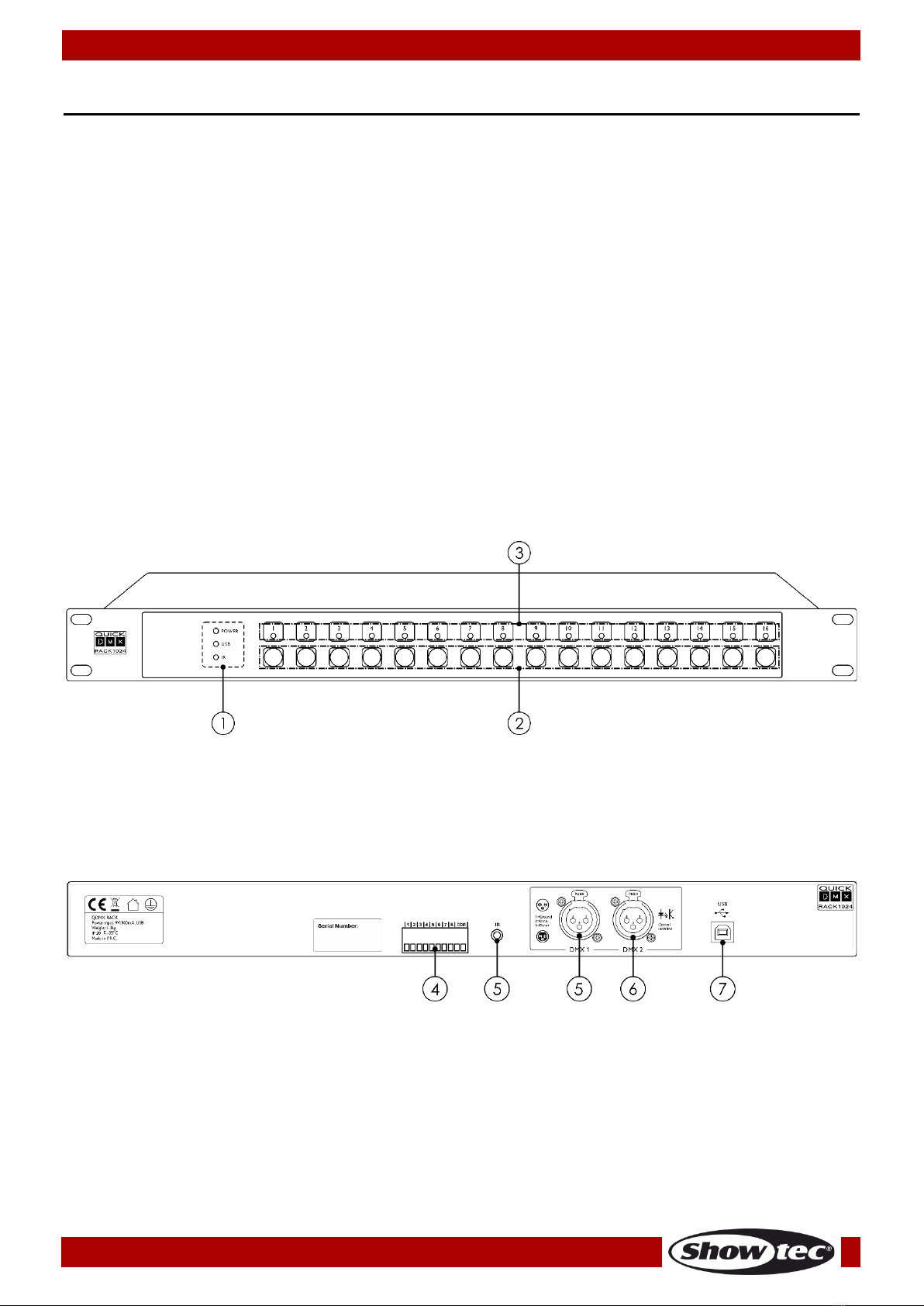

Frontside
Fig. 01
01) LED indicators (POWER/PC LINK/ DMX INPUT)
02) Memory buttons (1-16)
03) Memory LED indicators (1-16)
Backside
Fig. 02
04) 8 external contacts to connect any external switch or trigger
05) 3,5mm Mini Jack socket for external IR sensor (supplied with the IR remote controller)
06) 3-pin DMX signal connector OUT 1
07) 3-pin DMX signal connectors OUT 2
08) USB B-type IN (USB/9V adapter)

6
Ordercode: 50058
Quick DMX Rack 1024
Installation
Remove all packing materials from the Quick DMX Rack 1024. Check if all foam and plastic padding is
removed. Connect all cables.
Do not supply power before the whole system is set up and connected properly.
Always disconnect from electric mains power supply before cleaning or servicing.
Damages caused by non-observance are not subject to warranty.
You are only able to connect the Quick DMX Rack 1024 via the included USB cable (USB-A to USB-B) to
your own computer.
Note: When you do not want to connect the Quick DMX Rack to your computer, but to a mains power
outlet, make sure to also buy the external adapter.
Optional accessory
50040 –Showtec USB Adapter / Charger 1000mA
Set Up and Operation
Follow the directions below, as they pertain to your preferred operation mode.
Before plugging the unit in, always make sure that the power supply matches the product specification
voltage. Do not attempt to operate a 120V specification product on 230V power, or vice versa.
Connect the device to the main power supply.
Saving DMX Files to the Memory Buttons
01) Install Quick DMX software:
02) Download the software via this link: Software Quick DMX
03) For further information, download the user manual: Quick DMX software manual

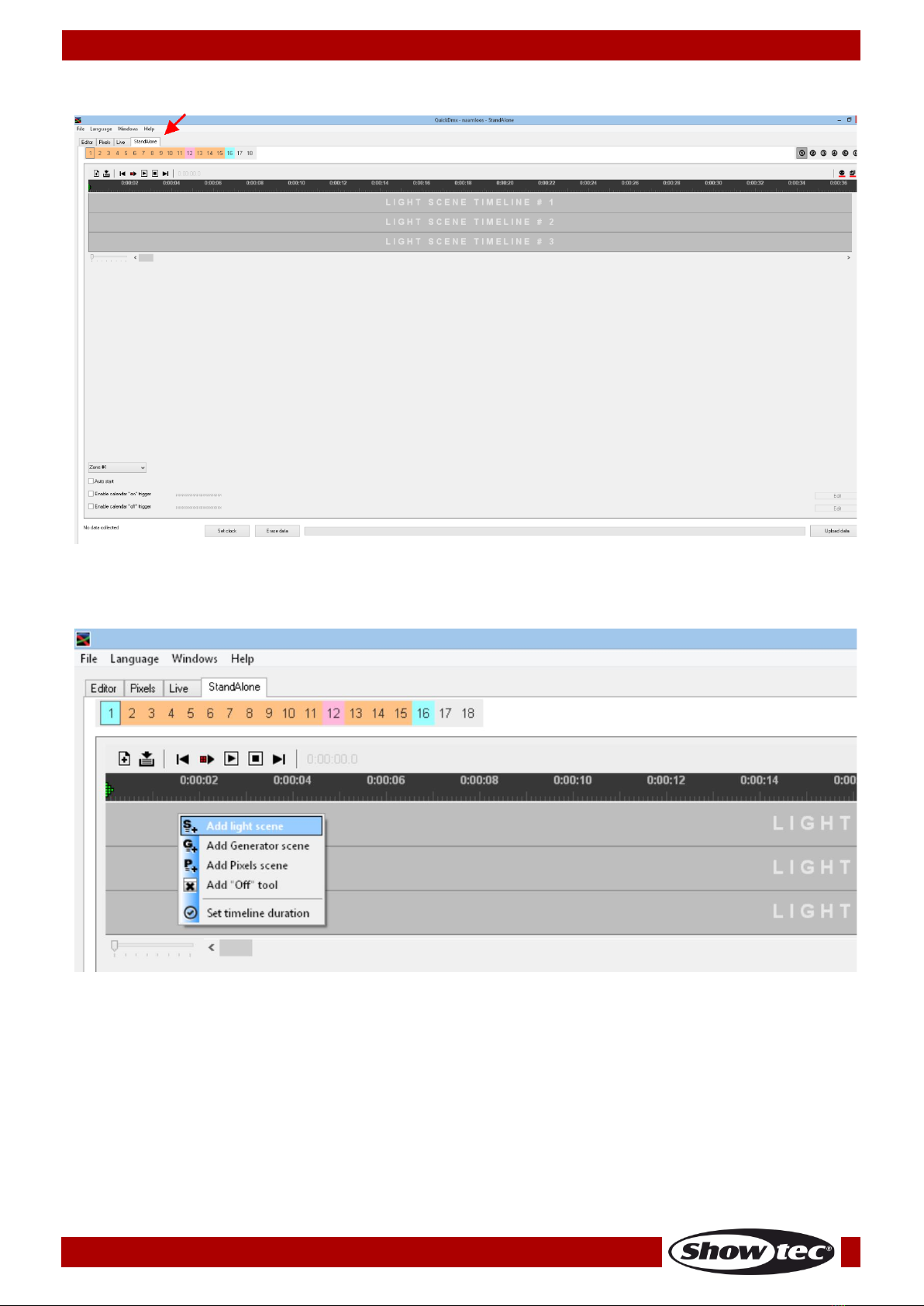

04) Start Quick DMX software, program and save a desired show (scene/chase/pixel/generator).

7
Ordercode: 50058
Quick DMX Rack 1024
05) Click on “StandAlone”tab. The display will show:
06) Click on one of the numbers (1-16) in order to choose the desired memory button.
07) Right-click on the timeline and choose “Add light scene,”“Add Generator scene” or “Add Pixels
scene.” The display will show:

8
Ordercode: 50058
Quick DMX Rack 1024
08) Select the previously created DMX file. It will now appear on the timeline:
09) Use drag-and-drop method to move the scene/chase/pixel/generator across the timeline.
10) Edit the following options:
Zones: The Quick DMX Rack 1024 handles the programmed DMX files using the LTP principle
(Latest Takes Priority). This means that only one DMX file can be played at a time. In order to be
able to play multiple DMX files at the same time, assign them to different zones. The Quick DMX
Rack 1024 offers 4 zones to choose from. Once you have assigned the zones to the desired
memory buttons, the memory buttons in the software will light in one of the following colors: zone
#1 (orange), zone #2 (blue), zone #3 (pink) and zone #4 (yellow).
Auto start: When this option is checked, the scene/chase will start automatically upon start-up of
the Quick DMX Rack 1024, without triggering.
Enable calendar “on” trigger: Click on “Edit”to set the starting time of the scene/chase.
Enable calendar “off” trigger: Click on “Edit”to set the stopping time of the scene/chase.
11) Repeat steps 3-9 in order to assign DMX files to the remaining memory buttons.
12) Once you have assigned all the scenes/chases to the desired buttons, click on “Upload Data,” in
order to export data to the Quick DMX Rack 1024 and wait until the process is finished.

9
Ordercode: 50058
Quick DMX Rack 1024
13) Press the desired 1-16 memory buttons (02) in order to trigger the programmed scenes/chases.
While assigning DMX files to the memory buttons, always start with button #1 and proceed
with buttons #2, 3, 4, up to button #16.
It is NOT RECOMMENDED to assign DMX files to random buttons.
In such case, some DMX files WILL NOT function properly.
Patching DMX Input
Problems with uploading from your PC to your Quick DMX Rack 1024
Pay attention!
Please, first check whether the rack Is connected on a USB Hub.
First remove all other QuickDMX boxes, dongles, etc.

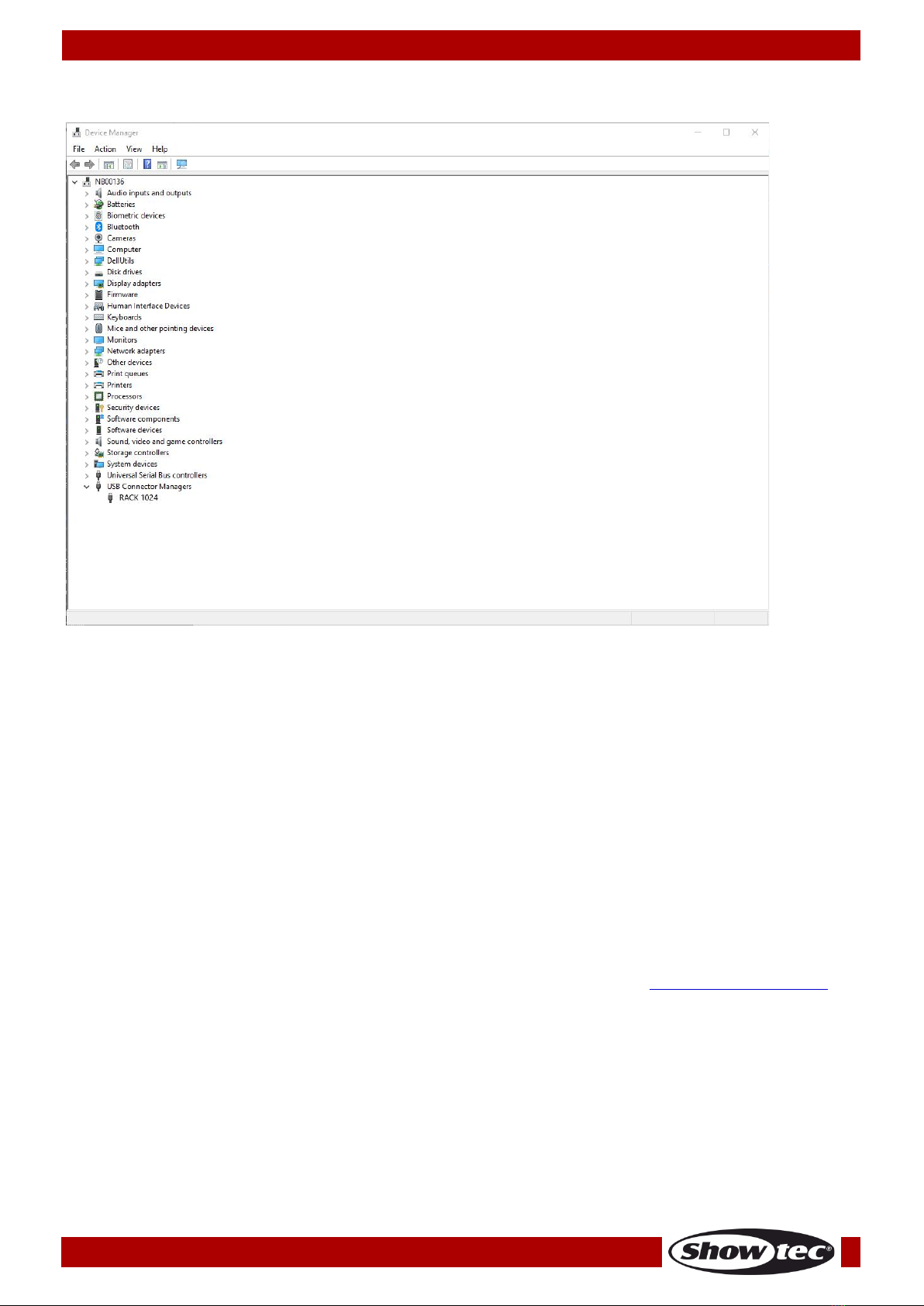

01) Go to Device Manager on your Windows PC:

10
Ordercode: 50058
Quick DMX Rack 1024

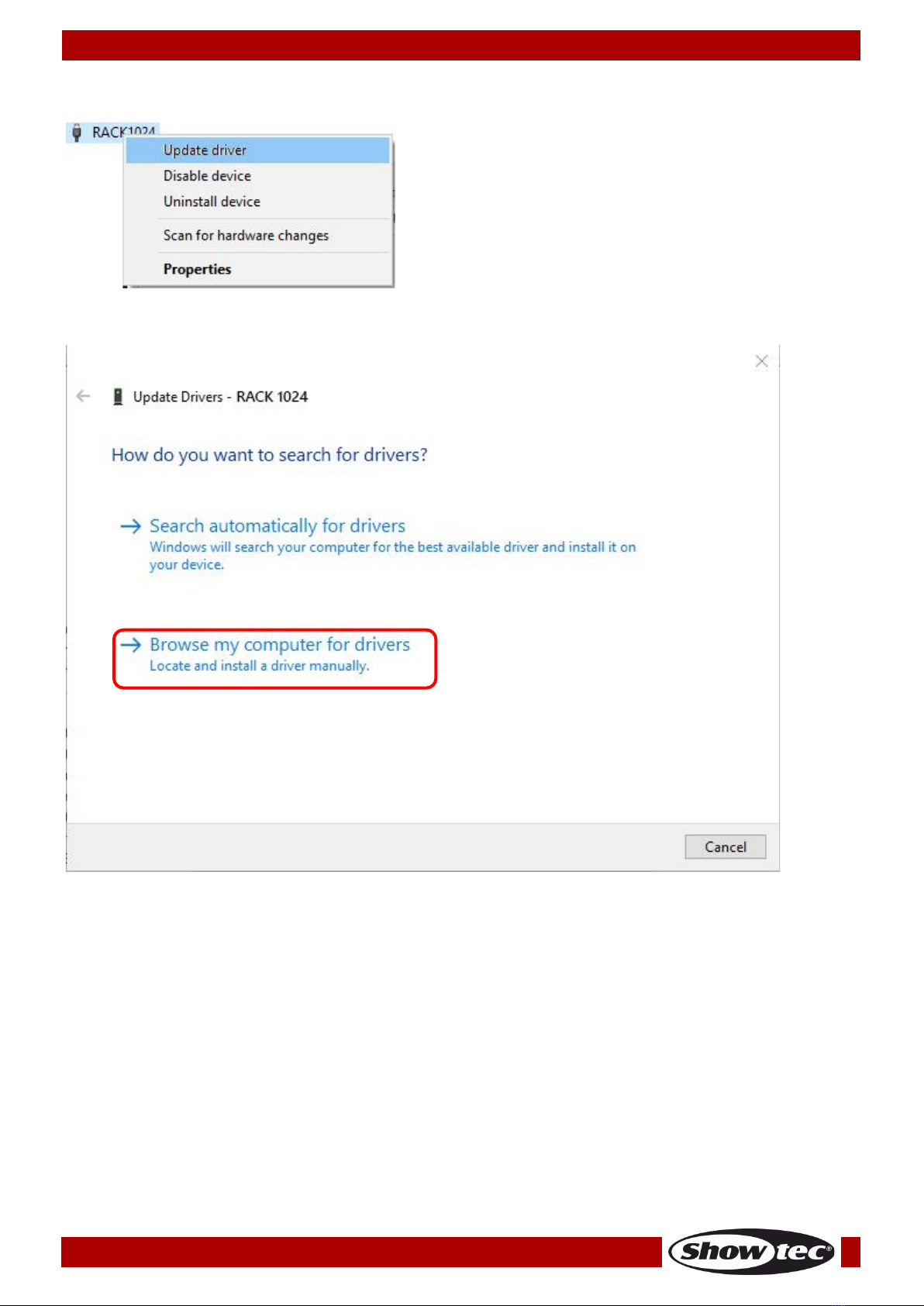

02) When the Quick DMX rack is listed under “other devices”, click Update driver of this device.
03) Click on: Browse my computer for drivers, Locate and Install a Driver manually:

11
Ordercode: 50058
Quick DMX Rack 1024
04) Click on: Let me pick from a list of available drivers on my computer

12
Ordercode: 50058
Quick DMX Rack 1024
05) Uncheck the box Show compatible hardware (if it is checked).
06) Select WinUSB-device from the manufacturer and model column.
After that, you will get a long list of different devices. Select “USB device” here.
07) A popup-window will open and you have to select Yes:

13
Ordercode: 50058
Quick DMX Rack 1024
08) Now the device is in the correct column, and the warning triangle is gone:
LED indicators
When the device is plugged in the LED indicators will show the status of the Quick DMX Rack.
Power LED: Quick DMX Rack is receiving sufficient DC power.
USB LED: Quick DMX Rack is connected to the Quick DMX Rack software, and is receiving a signal from it.
IR LED: Quick DMX Rack is receiving a signal from the IR Remote.
The Program LEDs indicate that the program, assigned to the adjacent button, is running.
Troubleshooting
If the USB LED is not flashing, try the following steps:
01) Shut down/close the Quick DMX Rack software.
02) Disconnect the Quick DMX Rack from the computer.
03) Wait 10 seconds.
04) Re-connect the Quick DMX Rack to the computer.
05) Re-open the Quick DMX Rack software.
06) If this does not work, try re-installing the device driver manually.
07) If re-installing the device driver does not work, call our aftersales or email: [e-mail].

14
Ordercode: 50058
Quick DMX Rack 1024
Standalone Playback
The Quick DMX Rack can store a DMX program and is able to recall the uploaded program when it is no
longer connected to a computer.
After programming the show on your computer you have to upload it to the Quick DMX Rack:
01) Navigate to the StandAlone tab.
02) Add the desired scene or scenes to one or more Timelines.
03) Assign the program to one of the Zones, using the drop-down menu.
04) Assign the program to one of the 16 Buttons.
05) Select from Auto Start, Enable Calendar on-trigger, and/or Enable Calendar off-trigger.
06) Click Upload data.
Timelines
The Timelines allow for the placement and timing of multiple scenes in a Zone.
Only one set of Timelines can be activated in each Zone at one time.
Zones
4 zones are available for independent programming.
Activating a program in one zone does not affect the programs running in the other zones, but it does
replace any program previously running in that particular zone.
Zones may overlap each other, but if a program has the same value as a program in another zone, the
most recently activated value will take precedence.
Buttons
The Quick DMX Rack has 16 programmable buttons, which can each trigger scenes that are assigned via
the Quick DMX Rack StandAlone tab. Pressing a button will override a previously running program, if they
are both in the same Zone.
Phoenix Connector
The Phoenix connector on the back of the product can be wired to trigger any programs assigned to
buttons 1–8. Connect one end of a switch to one of the COM (ground) contacts. Connect the other end
to the contacts for the program(s) to be triggered. Secure each wire to the Phoenix connector by turning
the captive screws tightly. Do not overtighten the small screws.
Triggers
Aside from the Buttons and Phoenix Contacts, a standalone program uploaded to the Quick DMX Rack
can be activated/deactivated in the following ways:
Auto Start: the program will immediately begin when the product is connected to the power of the
Quick DMX Rack.
Enable calendar ON-trigger: the program will begin at the scheduled time, as long as the product is
plugged into the power of the Quick DMX Rack. Click Edit to set the desired date and time to start
the program.
Enable calendar OFF-trigger: the program will stop at the scheduled time, as long as the product is
plugged into the power of the Quick DMX Rack. Click Edit to set the date and time to stop the
program.

15
Ordercode: 50058
Quick DMX Rack 1024
All three options may be selected at once, or none at all.
Note: only the buttons or the phoenix contacts will trigger the programs
IR Remote Control
The included IR Remote can trigger any program assigned to one of the 16 buttons and can control the
speed of the DMX programs.
See page 15, IR Extension Cable for information on how to enable the IR Remote control.
Buttons:
<1>–<16> - Triggers the program assigned to that numbered button via the Quick
DMX Rack software StandAlone tab.
<17>–<18> - No function
<–> - Slows down all running programs
<+> - Speeds up all running programs
<=> - Sets all running programs to their default speed
IR Extension Cable
To enable IR Remote control:
01) Plug the included IR Extension cable in the IR port, on the back of the Quick DMX Rack.
02) Set the sensor on the end of the cable within line of sight of the operator (maximum unobstructed
range of the remote control is 4 m).
03) Aim the IR remote at the sensor and press the buttons as shown above.
Art-Net™ Universe Access
You can unlock the full potential of the Quick DMX Rack by using the Quick DMX software, as it will
unlock an additional Art-Net™ universe. For this extra option to function, the Quick DMX Rack has to be
connected with the Quick DMX software.
If used, this universe counts towards the total maximum number of universes allowed by the software (6
universes).
Note: The use of Art-Net™ may require additional hardware.

16
Ordercode: 50058
Quick DMX Rack 1024
Patching DMX Input
If you have an external fader desk and would like to operate a device present on the DMX data link,
assigned to a channel which cannot be reached by means of your fader desk, the Quick DMX Rack 1024
gives you the possibility to patch DMX input to the desired DMX outputs.
01) Start Quick DMX software and click on “File.”
02) Select “Hard Midi and DMX patch (obsolete).”The display will show:
03) In “Input,” set the fader which you would like to assign to a particular channel(s).
04) Set “Priority mode” to DMX input.

17
Ordercode: 50058
Quick DMX Rack 1024
05) In “Outputs,” insert the number of the channel(s) which you want to be triggered by the selected
fader.
06) Click on “Add” to create the patch (e.g. fader #1 should trigger the DMX channels #1, 2, 3, 4, 5, 6
and 7). The display will show:
07) If you now move the fader #1 on your fader desk, the DMX channels #1, 2, 3, 4, 5, 6 and 7 will be
triggered.
CAUTION: This function will work only when Quick DMX is active.
If you close the software, the patch will stop working.
For more information on other available functions, please read the Quick DMX software
documentation.
Quick DMX (manual):
Download via link: Quick DMX software manual

18
Ordercode: 50058
Quick DMX Rack 1024
Control Modes
DMX Control
01) Fasten the device to a 19-inch rack.
02) Use a 3-pin XLR cable to connect the Quick DMX Rack 1024 and other devices.
03) Connect the Quick DMX Rack’s "in" socket to a light controller. Connect the Quick DMX Rack 1024
to a PC by means of a USB cable.
04) Link the units as shown in fig. 03.
05) Supply electric power: Plug the included USB cable in your Quick DMX Rack and your PC. You can
also use the power adapter (not-included) and plug that into proper electric power supply socket.
Do not supply power before the whole system is set up and connected properly.
DMX Setup
Fig. 03
Note : Link all cables before connecting electric power

19
Ordercode: 50058
Quick DMX Rack 1024
Data Cabling
To link fixtures together, you must obtain data cables. You can purchase DAP Audio certified DMX cables
directly from a dealer/distributor or construct your own cable. If you choose to create your own cable,
please use data-grade cables that can carry a high quality signal and are less prone to electromagnetic
interference.
DAP Audio DMX Data Cables
•DAP Audio Basic microphone cable for allround use. bal. XLR/M 3-pin > XLR/F 3-pin.
Ordercode FL01150 (1,5 m), FL013 (3 m), FL016 (6 m), FL0110 (10 m), FL0115 (15 m), FL0120 (20 m).
•DAP Audio X-type data cable XLR/M 3-pin > XLR/F 3-pin. Ordercode FLX0175 (0,75 m),
FLX01150 (1,5 m), FLX013 (3 m), FLX016 (6 m), FLX0110 (10 m).
•DAP Audio cable for the demanding user with exceptional audio-qualities and connector made by
Neutrik®. Ordercode FL71150 (1,5 m), FL713 (3 m), FL716 (6 m), FL7110 (10 m).
•DAP Audio cable for the demanding user with exceptional audio-qualities and connector made by
Neutrik®. Ordercode FL7275 (0,75 m), FL72150 (1,5 m), FL723 (3 m), FL726 (6 m), FL7210 (10 m).
•DAP Audio 110 Ohm cable with digital signal transmission. Ordercode FL0975 (0,75 m),
FL09150 (1,5 m), FL093 (3 m), FL096 (6 m), FL0910 (10 m), FL0915 (15 m), FL0920 (20 m).
Maintenance
The Showtec Quick DMX Rack 1024 requires almost no maintenance. However, you should keep the unit
clean. Disconnect the mains power supply, and then wipe the cover with a damp cloth. Do not immerse
in liquid. Do not use alcohol or solvents.
Keep connections clean. Disconnect electric power, and then wipe the DMX connections with a damp
cloth. Make sure connections are thoroughly dry before linking equipment or supplying electric power.
Troubleshooting
No Function
This troubleshooting guide is meant to help solve simple problems.
If a problem occurs, carry out the steps below in sequence until a solution is found. Once the unit
operates properly, do not carry out following steps.
01) If the device does not operate properly, unplug the device.
02) Check the power from the wall, all cables etc.
03) If all of the above appears to be O.K., plug the unit in again.
04) If you are unable to determine the cause of the problem, do not open the Quick DMX Rack 1024, as
this may damage the unit and the warranty will become void.
05) Return the Quick DMX Rack 1024 to your Showtec dealer.
No Response to DMX
Suspect the DMX cable or connectors, a distributor malfunction, a controller malfunction, a light effect
DMX card malfunction.
01) Check the DMX setting. Make sure that DMX addresses are correct.
02) Check the DMX cable: Unplug the unit; change the DMX cable; then reconnect to electrical power.
Try your DMX control again.
03) Determine whether the distributor, controller or light effect is at fault. If the distributor or controller
does not operate properly, take the distributor or controller in for repair. Otherwise, take the DMX
cable and the light effect to a qualified technician.
