Shure PA411 User manual

Important Product Information
IMPORTANT SAFETY INSTRUCTIONS
1. READ these instructions.
2. KEEP these instructions.
3. HEED all warnings.
4. FOLLOW all instructions.
5. DO NOT use this apparatus near water.
6. CLEAN ONLY with dry cloth.
7. DO NOT block any ventilation openings. Allow sufficient distances for
adequate ventilation and install in accordance with the manufacturer’s
instructions.
8. DO NOT install near any heat sources such as open flames, radiators,
heat registers, stoves, or other apparatus (including amplifiers) that pro-
duce heat. Do not place any open flame sources on the product.
9. DO NOT defeat the safety purpose of the polarized or grounding type
plug. A polarized plug has two blades with one wider than the other. A
grounding type plug has two blades and a third grounding prong. The
wider blade or the third prong are provided for your safety. If the provided
plug does not fit into your outlet, consult an electrician for replacement
of the obsolete outlet.
10. PROTECT the power cord from being walked on or pinched, particularly
at plugs, convenience receptacles, and the point where they exit from
the apparatus.
11. ONLY USE attachments/accessories specified by the manufacturer.
12. USE only with a cart, stand, tripod, bracket, or table specified by the
manufacturer, or sold with the apparatus. When a cart is used, use caution
when moving the cart/apparatus combination to avoid injury from tip-over.
13. UNPLUG this apparatus during lightning storms or when unused for long
periods of time.
14. REFER all servicing to qualified service personnel. Servicing is required
when the apparatus has been damaged in any way, such as power
supply cord or plug is damaged, liquid has been spilled or objects have
fallen into the apparatus, the apparatus has been exposed to rain or
moisture, does not operate normally, or has been dropped.
15. DO NOT expose the apparatus to dripping and splashing. DO NOT put
objects filled with liquids, such as vases, on the apparatus.
16. The MAINS plug or an appliance coupler shall remain readily operable.
17. The airborne noise of the Apparatus does not exceed 70dB (A).
18. Apparatus with CLASS I construction shall be connected to a MAINS
socket outlet with a protective earthing connection.
19. To reduce the risk of fire or electric shock, do not expose this apparatus
to rain or moisture.
20. Do not attempt to modify this product. Doing so could result in personal
injury and/or product failure.
21. Operate this product within its specified operating temperature range.
WARNING:This product contains a chemical known to the State of California
to cause cancer and birth defects or other reproductive harm.
低功率電波輻射性電機管理辦法
第十二條
經型式認證合格之低功率射頻電機，非經許可，公司、商號或使用者均不得
擅自變更頻率、加大功率或變更原設計之特性及功能。 第十四條
低功率射頻電機之使用不得影響飛航安全及干擾合法通信；經發現有干擾現
象時，應立即停用，並改善至無干擾時方得繼續使用。前項合法通信，指依
電信法規定作業之無線電通信。低功率射頻電機須忍受合法通信或工業、科
學及醫療用電波輻射性電機設備之干擾。
SAFETY PRECAUTIONS
The possible results of incorrect use are marked by one of the two sym-
bols—"WARNING" and "CAUTION"—depending on the imminence of the
danger and the severity of the damage.
WARNING: Ignoring these warnings may cause severe injury or
death as a result of incorrect operation.
CAUTION: Ignoring these cautions may cause moderate injury
or property damage as a result of incorrect operation.
CAUTION
• Never disassemble or modify the device, as failures may result.
• Do not subject to extreme force and do not pull on the cable or failures
may result.
• Keep the product dry and avoid exposure to extreme temperatures and
humidity.
WARNING
• If water or other foreign objects enter the inside of the device, fire or
electric shock may result.
• Do not attempt to modify this product. Doing so could result in personal
injury and/or product failure.
This device is able to produce sound volume higher than 85 dB SPL. Please
check your maximum allowed continuous noise exposure level based on
your national employment protection requirements.
WARNING
LISTENINGTO AUDIO AT EXCESSIVEVOLUMES CAN CAUSE PERMA-
NENT HEARING DAMAGE. USE AS LOW AVOLUME AS POSSIBLE.
Over exposure to excessive sound levels can damage your ears resulting in
permanent noise-induced hearing loss (NIHL). Please use the following
guidelines established by the Occupational Safety Health Administration
(OSHA) on maximum time exposure to sound pressure levels before hearing
damage occurs.
105 dB SPL
at 1 hour
100 dB SPL
at 2 hours
95 dB SPL
at 4 hours
90 dB SPL
at 8 hours
120 dB SPL
Avoid or damage may occur
115 dB SPL
at 15 minutes
110 dB SPL
at ½ hour
General Description
1/4©2017 Shure Incorporated
PA411
Antenna Combiner

The Shure PA411 Antenna Combiner distributes DC power and RF signal
for up to four Shure PSM®300 transmitters. The compact half-rack system
significantly reduces the amount of antennas and power supplies needed
when using multiple systems.
Included Components
• (1) PA411 Antenna Combiner
• (1) 1-to-4 Power Distribution Cable
• (1) PS60 Power Supply
• (1) Rack Mounting Kit
• (1) BNC Bulkhead Adapter
• (4) 22-inch BNC-BNC Coaxial Cables
Note:Antenna is not included. Please use the antenna that shipped with the
PSM transmitters or other antenna from the appropriate frequency range.
Front and Rear Panels
ྙ ྚ ྛ ྜ

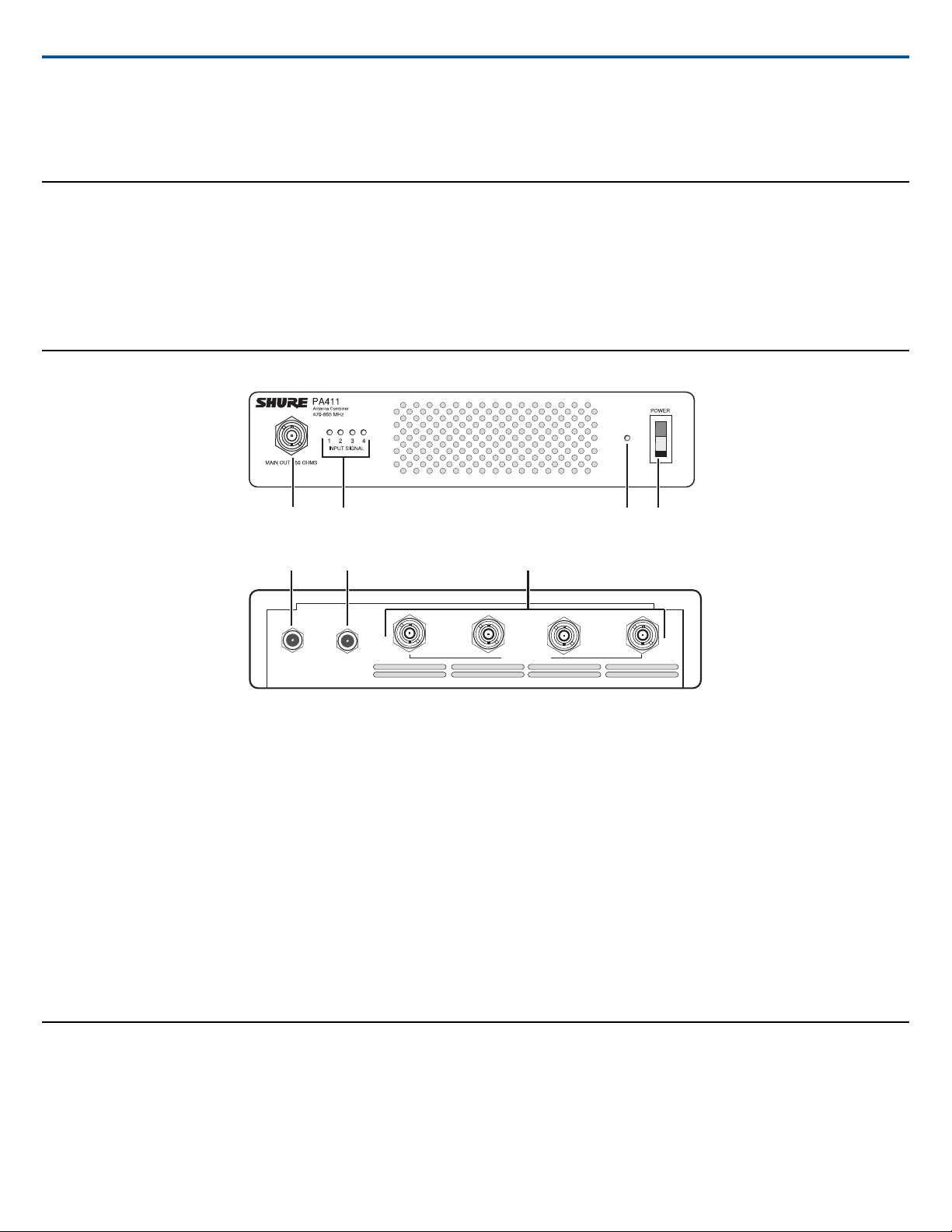

POWER INPUT POWER OUT RF ANTENNA INPUTS
ྜྷྞྟ
① RF Output Antenna Connector
Use the ¼ wave antenna supplied with the P3T transmitter, or any other Shure antennas that cover 470-865 MHz
② RF LED Indicators
Green : RF signal present
Red: RF signal overload
③ Power LED
Green : Power on
Green/red flashing: Power output overload
④ Power Switch
⑤ Power Input
Requires a Shure PS60 power supply
⑥ Power Output
Requires a Shure PS411-PC power distribution cable to deliver power to transmitters
⑦ RF Inputs
Connect to transmitter RF outputs
Power and RF Connections
1. Connect the Shure PS60 power supply to a power outlet and to the power input on the PA411.
2. Connect the 1-to-4 power cable to the DC power output on the PA411.
3. Connect a power terminal from the 1-to-4 power cable to each P3T transmitter power input.
4. Connect an antenna to the P3T antenna output on the front panel. Acceptable antennas include the ¼-wave antenna supplied with the P3T transmitter or
any Shure antennas that cover 470-865 MHz.
5. Connect each P3T antenna output to an antenna input on the PA411, using BNC coaxial cable.
Shure IncorporatedPA411 Antenna Combiner
2017/10/312/4

Optional Accessories and Replacement Parts
PS411-PC1-to-4 Power Distribution Cable
95K203522 in. BNC-BNC Coaxial Cable
UA8022 ft. BNC-BNC Coaxial Cable
UA8066 foot (1.8m) BNC to BNC Coaxial Cable for Remote
Antenna Mounting for ULX Wireless System
UA82525 ft. BNC-BNC Coaxial Cable
UA85050 ft. BNC-BNC Coaxial Cable
UA8100100 ft. BNC-BNC Coaxial Cable
PS45Power supply
95A8994Bulkhead Adapter
UA4001/4 Wave Antenna (748–865 MHz) for SLX Wireless
System
UA400B1/4 wave antenna (470-752 MHz)
UA8-470-5301/2 wave antenna (470-530 MHz)
UA8-500-5601/2 wave antenna (500-560 MHz)
UA8-518-5781/2 wave antenna (518-578 MHz)
UA8-518-5821/2 wave antenna (518-582 MHz)
UA8-518-5981/2 wave antenna (518-598 MHz)
UA8-554-5901/2 wave antenna (554-590 MHz)
UA8-554-6261/2 wave antenna (554-626 MHz)
UA8-554-6381/2 wave antenna (554-638 MHz)
UA8-578-6381/2 wave antenna (578-638 MHz)
UA8-596-6681/2 wave antenna (596-668 MHz)
UA8-596-6981/2 wave antenna (596-698 MHz)
UA8-596-7141/2 wave antenna (596-714 MHz)
UA8-600-6661/2 wave antenna (600-666 MHz)
UA8-626-6981/2 wave antenna (626-698 MHz)
UA8-638-6981/2 wave antenna (638-698 MHz)
UA8-670-7421/2 wave antenna (670-742 MHz)
UA8-710-7901/2 wave antenna (710-790 MHz)
UA8-740-8141/2 wave antenna (740-814 MHz)
UA8-750-8221/2 wave antenna (750-822 MHz)
UA8-774-8651/2 wave antenna (774-865 MHz)
RPW503Single Rack Mount Kit
RPW504Dual Rack Mount Kit
Specifications
Power Requirements
15V DC
DC Output
12V DC (x4)
Output Current
Combined total from all DC outputs
1.4 A, maximum
Operating Temperature Range
−18°C to 63°C
Dimensions
42 x 177 x 198 mm (H x W x D)
Net Weight
1.32 kg (2.9 lbs)
RF Input
Connector Type
BNC
RF Frequency Range
470 to 865 MHz
Maximum Input Level
20 dBm Per Channel
Shure IncorporatedPA411 Antenna Combiner
3/42017/10/31

Input Port Isolation
50 dB, typical
RF Input Power
Operating Range, Per Channel
4.5 to 15 dBm
LED Indicator Minimum Detection Threshold
3 dBm±1.5 dB
RF Overload LED Threshold
17.5 dBm±1 dB
Impedance
50 Ω
RF Output
RF Frequency Range
470 to 865 MHz
Output Intercept Point (OIP3)
48 dBm, typical
Connector Type
BNC
Impedance
50 Ω
Reverse Isolation
Ouput to Input
40 dB, typical
Gain
Input to any output port
−5 to 0 dB
LICENSING INFORMATION
Licensing: A ministerial license to operate this equipment may be required
in certain areas. Consult your national authority for possible requirements.
Changes or modifications not expressly approved by Shure Incorporated
could void your authority to operate the equipment. Licensing of Shure wire-
less microphone equipment is the user’s responsibility, and licensability de-
pends on the user’s classification and application, and on the selected fre-
quency. Shure strongly urges the user to contact the appropriate telecommu-
nications authority concerning proper licensing, and before choosing and
ordering frequencies.
This device complies with Industry Canada licence-exempt RSS standard(s).
Operation of this device is subject to the following two conditions: (1) this
device may not cause interference, and (2) this device must accept any inter-
ference, including interference that may cause undesired operation of the
device.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables
aux appareils radio exempts de licence. L'exploitation est autorisée aux deux
conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2)
l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi,
même si le brouillage est susceptible d'en compromettre le fonctionnement.
Federal Communications Commission RF Exposure Notice:
Antennas used for the purpose of radiating signals are limited to a maximum
gain of 14 dBi. Each antenna must be positioned to observe minimum sepa-
ration requirements from all users and bystanders. The following guidelines
should be used when considering separation distances.
Antennas must be placed such that, under normal conditions, personnel
cannot come within 72 cm (~2.5 ft.) from any antenna. Adhering to this mini-
mum separation will ensure that the employee or bystander cannot exceed
RF exposures beyond the maximum permissible limit as defined by 47 CFR
1.1310, i.e., limits for General Population/Uncontrolled Exposure.
Certifications
Meets essential requirements of the following European Directives:
• Low Voltage Directive 2006/95/EC
Conforms to the relevant requirements of regulation (EC) No.278/2009, for
low voltage external power supplies.
• R&TTE Directive 99/5/EC
• Conforms to European Regulation (EC) No. 1275/2008, as amended.
• WEEE Directive 2002/96/EC, as amended by 2008/34/EC
• RoHS Directive 2011/65/EU
Note: Please follow your regional recycling scheme for batteries and
electronic waste
Meets requirements of the following standards:
Certified under FCC Part 74.
Certified by IC in Canada under RSS-123 and RSS-102.
FCC ID: DD4PA411A. IC: 616A-PA411A.
The CE Declaration of Conformity can be obtained from Shure Incorporated
or any of its European representatives. For contact information please visit
www.shure.com
The CE Declaration of Conformity can be obtained from:
www.shure.com/europe/compliance
Authorized European representative:
Shure Europe GmbH
Headquarters Europe, Middle East & Africa
Department: EMEA Approval
Jakob-Dieffenbacher-Str. 12
75031 Eppingen, Germany
Phone: [phone]
Fax: [phone]
Email: [email protected]
Shure IncorporatedPA411 Antenna Combiner
4/4
Shure Incorporated 5800 West Touhy Avenue Niles, IL 60714-4608 USA Phone:[phone] Email: [email protected]
