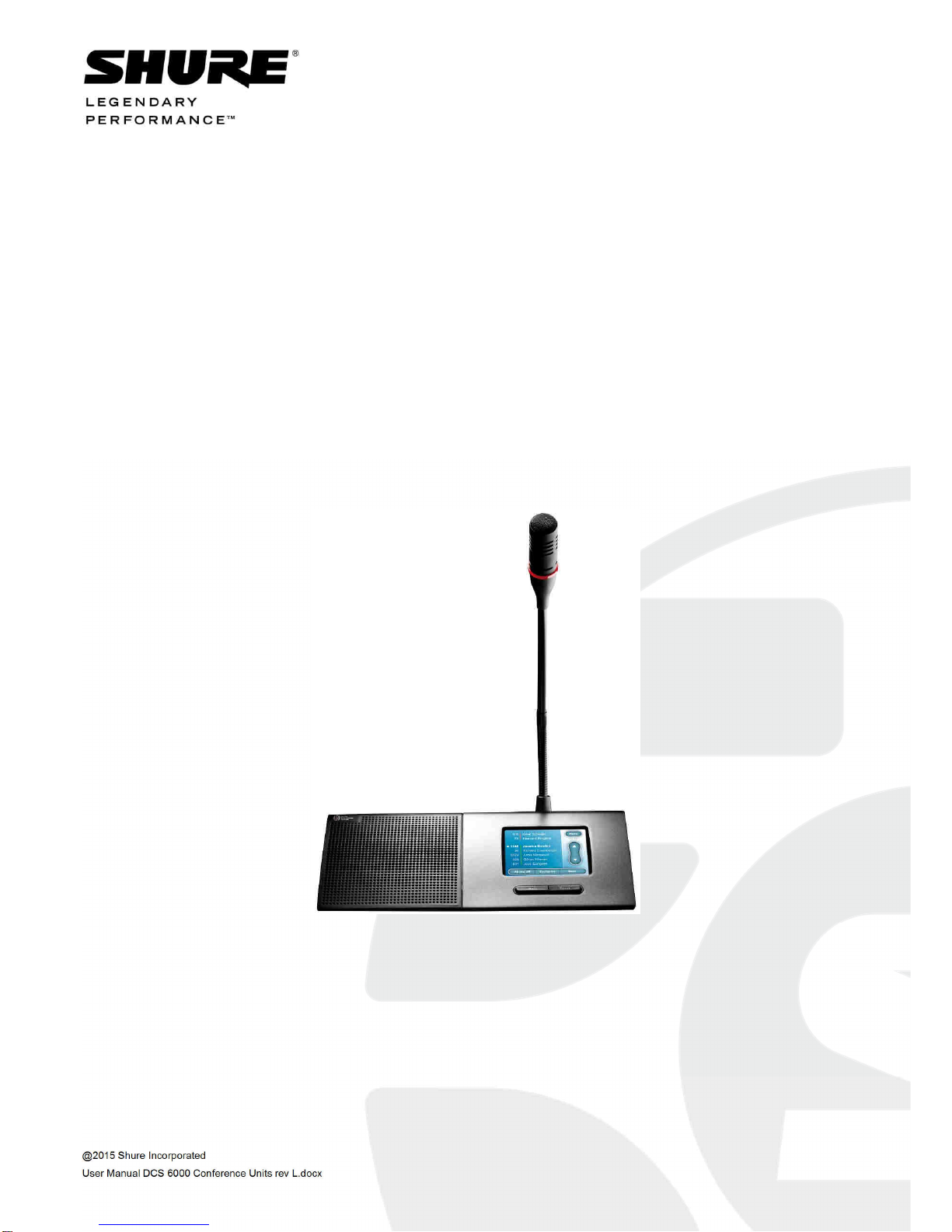

Shure DM 6680 P User manual

@2015 Shure Incorporated
User Manual DCS 6000 Conference Units rev L.docx
Conferencing and Discussion Systems
DCS 6000 Conference Units
USER GUIDE

DCS 6000 Digital Conference System User Manual
@2015 Shure Incorporated User Manual DCS 6000 Conference Units rev L.docx
Table of Contents
Table of Contents .................................... 2
Important ................................................ 3
Installation precautions ....................... 3
Compliance ........................................... 3
Information to the user .......................... 3
Cleaning ............................................... 4
Repacking ............................................. 4
Warranty .............................................. 4
Your DCS 000 Conference System ......... 5
The DCS 000 system ........................... 5
System components .............................
Central equipment etc. ........................... 6
Interpreter equipment ............................ 6
Conference units and Ch. selectors .......... 6
Accessories ........................................... 6
Operating instructions ............................. 7
DCS 000 Conference Units .................. 7
General description ................................ 7
Features ............................................... 7
Conference Units description ................... 7
Portable conference units ..................... 8
Flush-mounted conference units ........ 21
Microphone functionality .................... 25
User Controls & Indications ................... 25
icrophone connections ........................ 25
Locking of the icrophone .................... 25
Operation modes ................................... 27
System modes .................................... 27
Individual modes (only with SW 000)28
Language Selection functionality ........ 29
User Controls & Indications ...................29
Headphone Connectors .........................29
Normal Operation.................................29
Voting functionality ............................ 30
User Controls & Indications ...................30
Normal operation .................................30
Chip Card functionality........................ 31
The use of Chip Cards ...........................31
User Controls & Indications ...................31
System Setup ........................................ 32
DCS-LAN connector ............................. 32
General guidelines .............................. 32
Settings ..............................................32
Electrical termination of DCS LAN Network32
Typical schematics ...............................32
Starting up the system .........................32
Adjusting LCD contrast on units with channel
selector ..............................................32
Accessories ............................................ 34
Technical Specifications ......................... 3
System Specification ........................... 3
Connection Details .............................. 37
Accessories ......................................... 37

DIS Digital Conference System User Manual
3
Important
Installation precautions
Do not install the unit in a location near heat
sources such as radiators or air ducts, or in a place
exposed to direct sunlight, excessive dust or
humidity, mechanical vibration or shock.
Electrostatic discharge may cause the following
conference units to restart. If such events occur,
the conference units will self-recover.
•D 6680 P
•D 6680 F
•D 6588 F
•D 6080 F
•D 6620 F
•D 6501 F
•C 6080 F
•C 6680 F
To avoid moisture condensations do not install the
units where the temperature may rise rapidly.
To avoid moisture condensations do not install the
unit where the temperature may rise rapidly.
Compliance
The equipment is intended to be used in
professional audio applications.
Note: This device is not intended to be connected
directly to a public internet network.
E C conformance to Environment E2: Commercial
and Light Industrial.
Testing is based on the use of supplied and
recommended cable types.
The use of other than shielded (screened) cable
types may degrade E C performance.
Changes or modifications not expressly approved
by Shure Incorporated could void your authority
to operate this equipment.
This Class B digital apparatus complies with
Canadian ICES-003. Cet appareil numérique de la
classe B est conforme à la norme N B-003 du
Canada.
Authorized under the verification provision of FCC
Part 15B.
Please follow your regional recycling scheme for
batteries, packaging, and electronic waste.
Information to the user
This equipment has been tested and found to
comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection
against harmful interference in a residential
installation.
This equipment generates uses and can radiate
radio frequency energy and, if not installed and
used in accordance with the instructions, may
cause harmful interference to radio
communications. However, there is no guarantee
that interference will not occur in a particular
installation. If this equipment does cause harmful
interference to radio or television reception, which
can be determined by turning the equipment off
and on, the user is encouraged to try to correct
the interference by one or more of the following
measures:
•Reorient or relocate the receiving antenna.
•Increase the separation between the
equipment and the receiver.
•Connect the equipment to an outlet on a
circuit different from that to which the
•receiver is connected.
•Consult the dealer or an experienced
radio/TV technician for help.

DIS Digital Conference System User Manual
4
Cleaning
To keep the cabinet in its original condition,
periodically clean it with a soft cloth. Stubborn
stains may be removed with a cloth lightly
dampened with a mild detergent solution. Never
use organic solvents such as thinners or abrasive
cleaners since these will damage the cabinet.
Repacking
Save the original shipping cardboard box and
packing material; they will become handy if you
ever have to ship the unit. For maximum protection,
re-pack the unit as originally packed from the
factory.
Warranty
The individual units in the DCS 6000 system are
minimum covered by 24 months warranty against
defects in materials or workmanship.
.

DCS 6000 Digital Conference System User Manual
5
Your DCS 6000 Conference System
The DCS 6000 system
DCS 6000 Digital Conference System is a system to
be used at meetings, where a number of people are
addressing the ‘Floor’ in a structured manor. The
audio from the Conference units can be heard in the
built in loudspeakers in the units.
The system does also allow for simultaneous
interpretation for international conferences where
multiple languages are used.
To enable all participants to understand the
proceedings, interpreters can simultaneously
translate the speaker’s language as required. These
interpretations are distributed through the
connected Conference units and delegates can
select the language of their choice and listen to it
through headphones.
DCS 6000 Digital Conference System comprises of
one CU 61xx Central Unit and a number of
Conference Units, Gooseneck icrophones and
other accessories depending on the system
configuration.
The DCS 6000 system has the following main
features:
•Fully digital
•Excellent sound quality
•“State of the Art” fully digital integrated
interpretation, discussion and voting system
offering interpretation, language distribution,
conference microphone and voting facilities with
attendance check with Chip Card ™
•Digital transmission of audio from/to the
Conference unit to/from the central unit using a
unique digital DATA and AUDIO bus named
DCS-LAN
•Control of up to 3800 conference units. This
number does not include Channel Selectors,
Repeaters etc. In practical use there are no
limits for the number of Channel Selectors in a
system
•Delegate and Interpreter units are powered and
controlled by the CU 61xx Central Unit, which
drives up to app. 50 units with the PS CU power
supply
•EX 6010 Extension Unit or PS 6001 DCS-LAN
Power Kit is available if more units are required
•Delayed switching on of power to the two
DCS-LAN chains, to minimize the total ‘in-
rush’ current on the ains supply
•Designed for 31 interpretation channels and
8 open microphones
•Audio scrambling of the audio to avoid
eavesdropping
•Designed in a standard 1HE 19” cabinet
•TCP/IP connection on CU 61xx for external
operation of the system using a PC or control
system such as A X ® or Crestron ®
•Functionality on the CU 61xx depends on the
Feature License uploaded into the unit
•Firmware in Delegate units, Interpreter Units,
Central Units etc. is upgradeable
•Operated either stand alone or from a PC
using the CU browser or using SW 6000
software
•Added functionality and comprehensive
features provided by SW 6000 software
package running on PC
The SW 6000 is an optional software package,
which expands the functionality of the DCS 6000
system. The software runs on standard computer
technology (Standard PC with Windows 7, Server
2008 etc.).
ain features of the SW 6000 are:
•icrophone management
•imic panel operation
•Interpretation management
•Voting management
•essage handling
•Agenda handling
•Data stored on SQL data base
•Web service interface available for easy links
to external applications
•ulti language user interfaces
•Supports different User types with different
priorities, user interfaces and control
possibilities

DCS 6000 Digital Conference System User Manual
6
System components
Central equipment etc.
CU 6105 Central Unit
CU 6110 Central Unit
EX 6010 Extension Unit
PS 6001 DCS-LAN Power Kit consisting of one
PS CU and one PI 6000
PS CU Power Supply
PI 6000 DCS-LAN Power Inserter
RC 6000 Redundancy Controller
AO 6004 Audio Output Unit
AO 6008 Audio Output Unit
RP 6004 Repeater for four chains
JB 6104 Junction Box with 4 outputs
Interpreter equipment
IS 6132 P Interpreter Unit
LS 6132 P Interpreter Loudspeaker
Conference units and Ch. selectors
DC 6990 P Conference Unit (portable) with touch
screen with two built-in channel
selector, Chip-card and 5 voting
buttons, configurable as Delegate,
Dual Delegate or Chairman.
DC 6120 P Conference Unit (portable)
DC 6190 P Conference Unit (portable) with two
built-in channel selectors
D 6680 P Conference Unit (portable) with voting
C /D 6080 F Conference Unit (flush mounted)
with built-in channel selectors
D 6620 F Conference Unit (flush mounted)
with, Chip-card and 5 voting
buttons
C /D 6680 F Conference Unit (flush mounted)
with one built-in channel
selector, Chip-card and 5 voting
buttons
U 6040 C/D icrophone Unit for use with
FD/FC front plate with
Loudspeaker, icrophone and
Buttons. Available in Delegate
(D) and Chairman (C) version
U 6042 D Dual icrophone Unit for use
with FD/FC front plate with
Loudspeaker, icrophone and
two delegate Buttons
DV 6501 F Voting Unit
A 6040 Ambient icrophone Unit
CS 6340 FV/H Channel Selector (flush
mounted)
Accessories
In addition to the unit a number of accessories
are available like:
•Storage Boxes
•G 6523 Gooseneck icrophone, 40 cm
•G 6524 Gooseneck icrophone, 50 cm
•G 6525 Gooseneck icrophone, 63 cm
•DH 6021 Delegate Headphone
•DH 6223 Stethoscope Headphone
•DH 6225 Ear Clip Headphone
For detailed instruction in how to use the above
units, please refer to the User anuals for the
relevant products.

DCS 6000 Digital Conference System User Manual
7
Operating instructions
DCS 6000 Conference Units
General description
The DCS 6000 Conference Units are fully digital
microcomputer controlled conference units. All units
include a DSP processor (Digital Signal Processing).
The DCS 6000 Conference Units offers full
compatibility with the DCS 6000 Digital Conference
System with the CU 61xx & EX 6010 Central and
Extension Units.
Features
The Conference Units offers i.e. the following
features (the features depends on the version):
•XRL socket for detachable microphone
•‘Speak’ button
•‘Function’ button
•Built-in loudspeaker
•Language selector
•Voting
•Chip Card reader
•Touch screen
Conference Units description
The conference units are delivered in Chairman
(C ) version, Delegate (D ) version or DC
(configurable) version and in Portable and Flush
ounted versions.

DCS 6000 Digital Conference System User Manual
8
Portable conference units
Type Description Illustration
DC 120P Portable Conference Unit
•Configurable as C and D
•Lockable XLR microphone connector
•Loudspeaker
•ute/all del off and speak/request buttons
•
Headphone connector and volume control
for floor channel
The unit can be configured either as a chairman or
a delegate unit. The unit comes per default w
ith a
delegate configuration.
To configure the unit the mute and the microphone
button must be kept down while pressing the
volume up button for 10 seconds for chairman
functionality or the volume down button for
delegate functionality. The button light gu
ides will
flash when the unit is configured and the unit will
reboot. The configuration is stored in the unit so it
recalls its configuration if it is used in another
system setup.
The left button is a function button that changes
functionality depending o
n the configuration. The
chairman configuration enables 'all delegates off'
functionality in the left button while the delegate
configuration enables 'mute'
and ‘reply’
functionality in the left button.
The function button can be changed to match the
curre
nt functionality by pushing the button out of
the unit from below. The new button
is then simply
clicked into the unit.
The gooseneck microphone G 652x can be l
ocked
to the unit
with a 1.5 mm hex key. The lock is
accessible from the small hole below the D
IS logo
on the side of the XLR socket.
Turn the hex key
counter clockwise to lock the gooseneck
microphone to the unit and turn the hex key
clockwise to unlock the gooseneck microphone
from the unit.

DCS 6000 Digital Conference System User Manual
9
Type Description Illustration

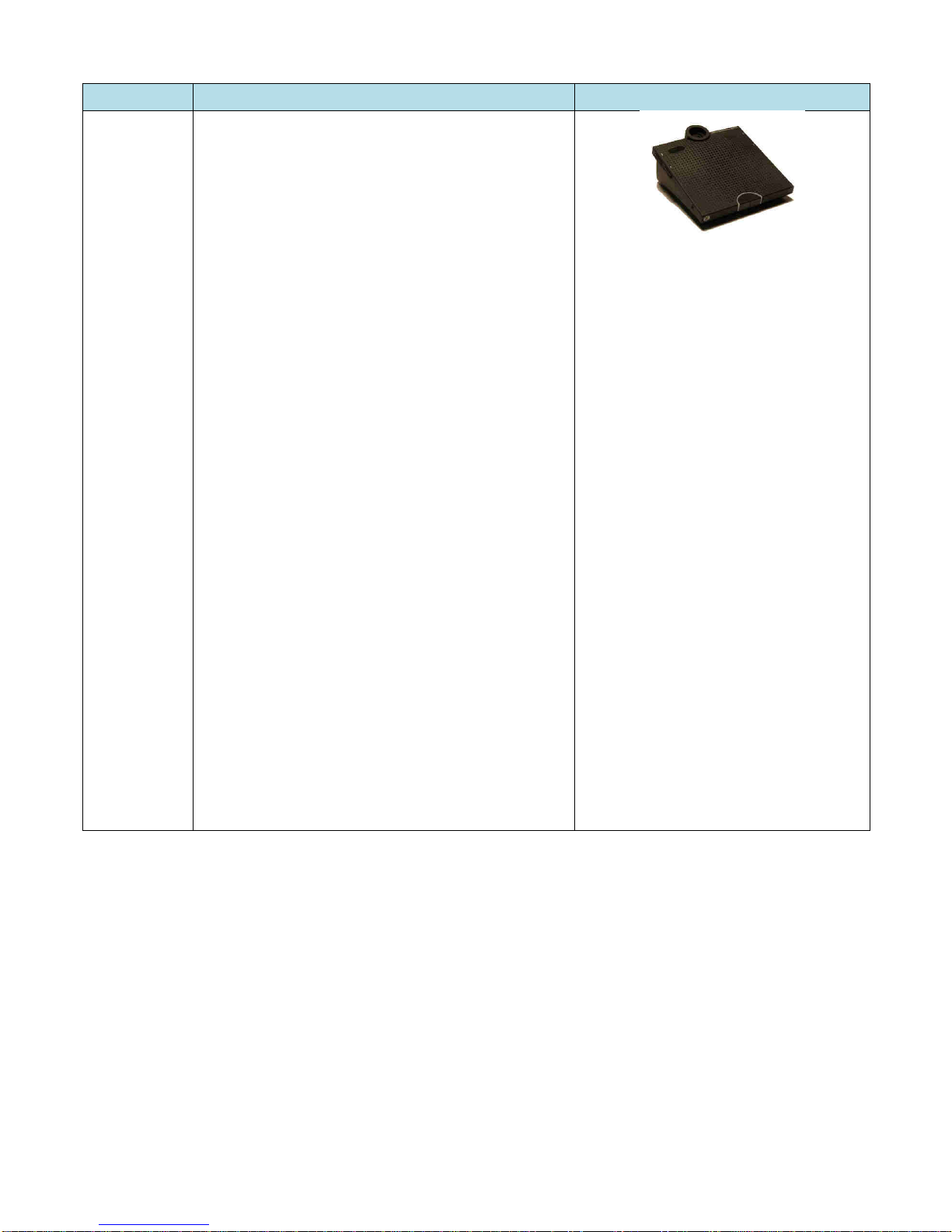

DC 190P Portable Conference Unit
•Configurable as C and D
•Lockable XLR microphone connector
•Loudspeaker
•ute/all del off and speak/request buttons
•2 channel selectors
•2 headphone connectors
The unit can be configured either as a chairman
or a delegate unit. The unit comes per default with
a delegate configuration.
To configure the unit the mute and the
microphone button must be kept down while
pressing the left volume up button for 10 seconds
for chairman functionality or the left volume down
button for delegate functionality. The button light
guides will flash when the unit is configured and
the unit will reboot. The configuration is stored in
the unit so it recalls its configuration if it is used
in another system setup.
The left button is a function button that changes
functionality depending on the configuration. The
chairman configuration enables 'all delegates off'
functionality in the left button while the delegate
configuration enables 'mute' and ‘reply’
functionality in the left button.
The function button can be changed to match the
current functionality by pushing the button out of
the unit from below. The new button is then
simply clicked into the unit.
The gooseneck microphone G 652x can be
locked to the unit with a 1.5 mm hex key. The
lock is accessible from the small hole below the
DIS logo on the side of the XLR socket. Turn the
hex key counter clockwise to lock the gooseneck
microphone to the unit and turn the hex key
clockwise to unlock the gooseneck microphone
from the unit.

DCS 6000 Digital Conference System User Manual
10
Type Description Illustration
DM 80P Portable Delegate Conference Unit
•Lockable XLR microphone connector
•Loudspeaker
•Speak/request button and Function button
•Chip card reader
•Channel selector
•2 headphone connectors
•Exchangeable buttons and button overlays
The unit comes with
two standard button overlays.
The overlay to be used can be attached to
the unit
by removing the paper on the back of the overlay
and fixing the overlay to the unit. Overlays with
other functionality and in other languages can be
ordered as custom overlays.
The mute and speak/request buttons can be
changed to match the local l
anguage. Remove the
plastic caps underneath the unit and insert a thin
device to eject the buttons from underneath.
Insert the new button by clicking it into the unit.
Insert the plastic caps after changing the
button(s).
The gooseneck microphone G 652x can be l
ocked
to the unit
with a 1.5 mm hex key. The lock is
accessible from the small hole to the left of
the XLR
socket.
Turn the hex key counter clockwise to lock
the gooseneck microphone to the unit and turn the
hex key clockwise to unlock the gooseneck
microphone from the unit.
The unit can be fixed to the table top using the
mounting holes on the underneath of the unit. Drill
a hole maximum 10mm deep using an Ø 2.5mm
drill and use a bottoming tap 3x0.5 to cut a
thread. Fasten the unit from below the t
able with
a long screw that fits with the dimension of the
screw hole.

DCS 6000 Digital Conference System User Manual
11
Type Description Illustration
The unit has five buttons that change functionality
depending on the system status. During normal
operation the two
buttons to the left change the
interpretation channels while the two
buttons to
the right change the volume of the channel
selector.
During voting sessions the buttons act as voting
buttons whether it is a 3-button or 5-
button voting
session taking place.
The voting sessions can be
started from a DC 6990P (C configurat
ion) if the
system is running in stand-
alone mode or by using
the SW 6000. The buttons can also be used for
attendance check and proxy voting. The proxy
voting functionality is only available in combination
with the SW 6000.
The chip card reader is used fo
r authentication and
can only be used in combination with the SW 6000.
The chip cards
must be inserted with the chip
facing downwards.
DC 990P Portable Conference Unit
•Configurable as C , D and Dual D
•3.5'' LCD color touch screen
•Lockable XLR microphone connector
•Loudspeaker
•Speak/request button and Function button
•Chip card reader
•2 channel selectors
•2 headphone connectors
•Exchangeable buttons
•ulti-language user interface
The unit can be configured as a chairman,
delegate or dual delegate unit. The unit comes per
default with a delegate configuration. To
configure the unit type, please refer to the section
‘Setup menu’.
The left function button can be configured with
different functionality. The unit comes per default
with mute functionality. To configure the button
functionality, please refer to the section ‘Setup
menu’.
The function and speak/request buttons can be
changed to match the local language and selected
functionality. Remove the plastic caps underneath
the unit and insert a thin device to eject the
buttons from underneath. Insert the new button
by clicking it into the unit. Insert the plastic caps
after changing the button(s).

DCS 6000 Digital Conference System User Manual
12
Type Description Picture
The user interface can be changed to support other
languages. Please refer to the ‘DCS6000 Upgrade
anual’ for information on creating, editing and
deleting languages as well as uploading them to the
DC 6990P.
The start image can also be changed to support
customised start images (other text, logo etc). Please
refer to the ‘DCS6000 Upgrade anual’ for more
information.
The gooseneck microphone G 652x can be locked
to the unit with a 1.5 mm hex key. The lock is
accessible from the small hole to the left of the XLR
socket. Turn the hex key counter clockwise to lock
the gooseneck microphone to the unit and turn the
hex key clockwise to unlock the gooseneck
microphone from the unit.
The unit can be fixed to the table top using the
mounting holes on the underneath of the unit. Drill a
hole maximum 10mm deep using an Ø 2.5mm drill
and use a bottoming tap 3x0.5 to cut a thread.
Fasten the unit from below the table with a long
screw that fits with the dimension of the screw hole.
The chip card reader is used for authentication and
can only be used in combination with the SW 6000.
The chip cards must be inserted with the chip facing
downwards.
Quick Start Guide
To activate the unit:
1. Press the LCD touch screen
2. Login using code or chip card if requested
3.
Navigate on the ain screen using the control
buttons
4.
Navigate to other screens using the enu
button
Start-up screen
When the unit is powered up an initialisation and
start-up screen appears.
It includes the conference name if a conference has
been started in the SW 6000. It also includes a
delegate name if the conference is running with
‘prepared delegate seat table’, ‘login using code and
list’, ‘login using code on preferred seat’ or ‘automatic
login on preferred seat’ mode.
Press the touch screen to enter.
Start-
up screen with
conference name and delegate
name

DCS 6000 Digital Conference System User Manual
13
Type Description Picture
If a conference requiring chip card is running, the
user is prompted to insert chip card before being
granted access.
Login using chip card
If a conference requiring login code is running, the
user is prompted to enter the code on the touch
screen before being granted access.
Login using code
Main screen
When the user leaves the start-up screen, the main
screen appears.
It includes a combined speaker and request list with
scroll functionality.
The enu button provides access to a enu overview
with extended functionality.
A digital clock is available when using the SW 6000.
Three different multi-functional software buttons are
available for the C , D and Dual D at the bottom
of the screen.
The C includes the microphone handling buttons:
•All Del Off/All Req Off (active when the indicator
is on the speaker and the request list,
respectively)
•Exclusive
•Next On/ ic On/ ic Off (active when the
indicator is on the first request on the request
list, on the remaining requests on the request list
and on any speaker on the speaker list,
respectively)
CM Main screen

DCS 6000 Digital Conference System User Manual
14
Type Description Picture
The D includes an audio button:
•Audio
Please refer to the section ‘Audio menu’ for more
information.
DM Main screen
The Dual D includes two audio buttons:
•Audio A (selection button for Delegate A)
•Audio B (selection button for Delegate B)
Please refer to the section ‘Audio menu’ for more
information.
Dual DM Main screen
Menu screen
When the user presses the enu button, the menu
screen with a menu overview appears. The overview
gives access to extended functionality depending on
whether it is running stand-alone or with the SW
6000 (user type dependant):
•C (stand-
alone): Voting, Results, Audio,
Logout
•
C (SW 6000): Conference, Voting, Agenda,
Results, Audio, essages, Logout
•D (stand-alone): Results, Results, Logout
•
D (SW 6000): Agenda, Results, essages,
Logout
•Dual D (stand-
alone): Results, Results,
Logout
•
Dual D (SW 6000): Agenda, Results,
essages, Logout
CM Menu screen (SW 000)
DM and Dual DM Menu screen
(SW 000)

DCS 6000 Digital Conference System User Manual
15
Type Description Picture
Conference menu
The Conference menu displays the available
conferences on a list form. The C can start and stop
a conference using the start/stop conference button.
Conference menu – start
conference
Conference menu – stop
conference
Voting menu
The Voting menu displays the available voting
parameters. In stand-alone four parameters are
available while with the SW 6000 all the parameters
defined in the CAA will be available.
The C can scroll in the list using the scroll buttons
and start a selected voting session or attendance
check.
Voting menu (stand-alone)
Voting menu (SW 000)

DCS 6000 Digital Conference System User Manual
16
Type Description Picture
Agenda menu
The Agenda menu displays the agenda for an active
conference. The agenda is created in the CAA.
The C can set a subject on the agenda and start a
voting session or attendance check by using the ‘Set
Subject’ and ‘Start Voting’ buttons.
By pressing the ‘Details’ button, the full agenda
subject will be displayed.
Agenda menu - no set subject
Agenda menu – set subject
Results menu
The Results menu displays the latest voting or
attendance check result.
CM Results menu (stand-alone)
DM Results menu (SW 000)

DCS 6000 Digital Conference System User Manual
17
Type Description Picture
Dual DM Results menu (SW
000)
Audio menu
The Audio menu contains volume and channel
settings for the channel selector.
Audio menu
Messages menu
The essages menu contains messages that are sent
to the unit from a CUA (SW 6000).
By pressing the ‘Read’ button the selected message
opens up.
By pressing the ‘Delete’ button the selected message
is being deleted.
Messages menu
Logout menu
The Logout menu allows the user to logout and return
to the Start-up screen.
Logout menu

DCS 6000 Digital Conference System User Manual
18
Type Description Picture
Voting
The Voting screen is automatically displayed on all
units when a voting session or attendance check is
started. Users with voting right can cast their vote.
CM Voting screen
DM Voting screen
Dual DM Voting screen

DCS 6000 Digital Conference System User Manual
19
Type Description Picture
Results
The Results screen is displayed on all units when a
voting session or attendance check is stopped. It
displays the latest voting or attendance check result.
CM Results screen (stand-
alone)
DM Results screen (SW 000)
Dual DM Results screen (SW
000)
Setup menu
The Setup menu can be accessed by holding down
the scroll down button and then pressing the left push
button. It contains access to extended setup
functionality: Unit Type, Left Btn, Comm Stat, Unit
Status and Languages.
Setup menu

DCS 6000 Digital Conference System User Manual
20
Type Description Picture
Unit Type
The Unit Type menu gives access to changing the unit
type by selecting the desired unit type and exiting the
menu. The unit will reboot when the unit type is being
changed.
Unit type screen
Left Btn
The Left Btn menu gives access to changing the
functionality of the left push button by selecting the
desired function and exiting the menu. The unit will
reboot when the left button functionality is being
changed.
Left Btn screen
Comm Stat
The Comm Stat menu gives access to an overview of
the communication errors. The counters should be 0
though the Tx Retries may increase slightly during
start-up and if two delegates press their speak button
simultaneously.
Comm Stat screen
Unit Status
The Unit Status menu gives access to an overview of
the serial number plus current firmware versions of
the unit.
Unit Status screen
