Shure PSM 200 User manual

PSM®200
Personal Monitor System User Guide
Guide de l’utilisation du système de retour personnel
Personal Monitor System Bedienungsanleitung
Guía del usuario del sistema de monitoreo personal
Guida all’uso del sistema di monitoraggio personale
Manual do Usuário do Sistema de Monitoração Pessoal
>>Shure Earphones >>P2R >>P2T
27A15805 (Rev. 1) Printed in U.S.A.
©2012 Shure Incorporated
Model PSM200
0682

ENGLISH................................................................................................................................................................1
FRANÇAIS ...........................................................................................................................................................15
DEUTSCH.............................................................................................................................................................30
ESPAÑOL.............................................................................................................................................................45
ITALIANO .............................................................................................................................................................60
PORTUGUÊS .......................................................................................................................................................75

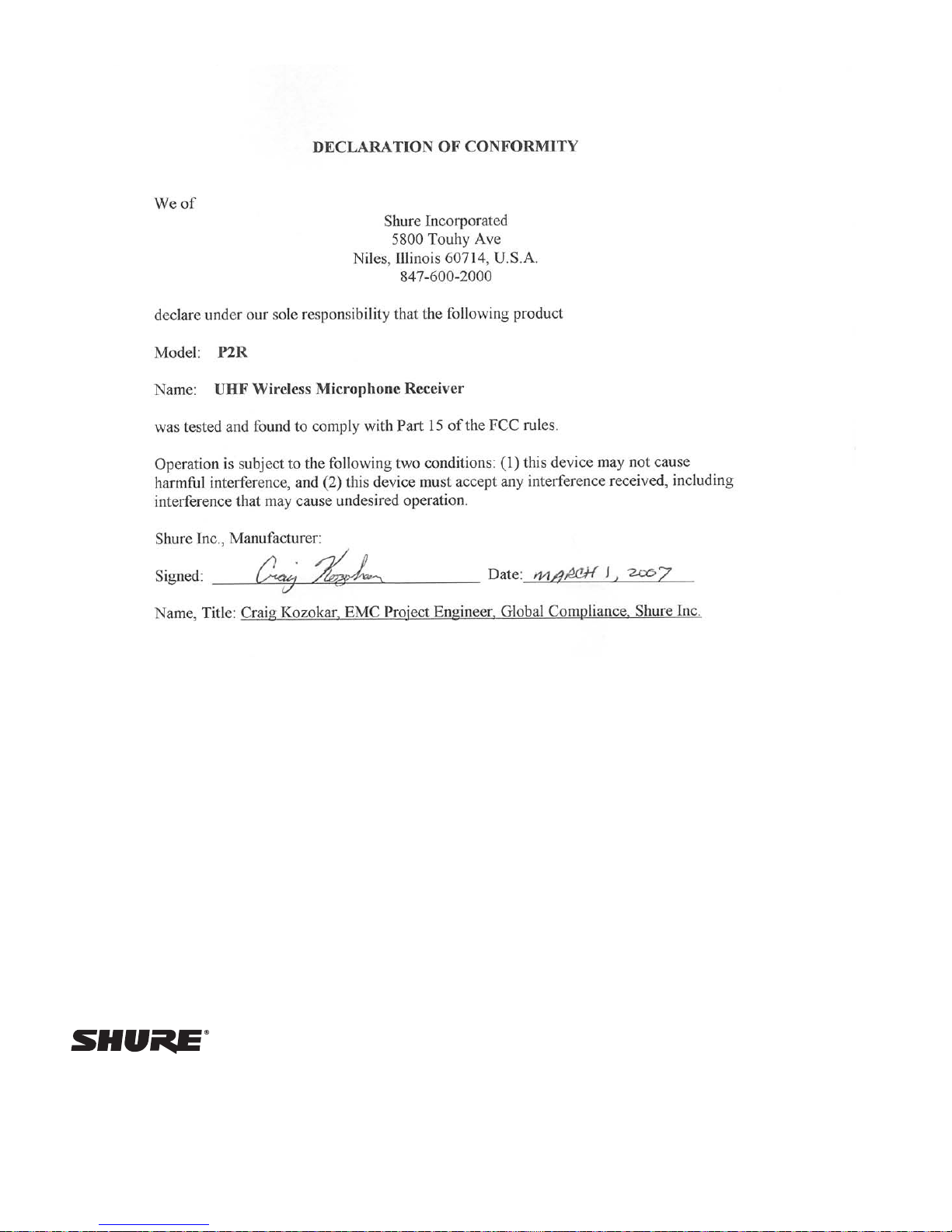

DECLARATION OF CONFORMITY.....................................................................................................................90

1
WARNING!
USING THIS SYSTEM AT EXCESSIVE VOLUMES CAN CAUSE
PERMANENT HEARING DAMAGE. USE AS LOW A VOLUME AS POSSIBLE.
In order to use this system safely, avoid prolonged listening at excessive sound pressure levels. Please use the fol-lowing guidelines
established by the Occupational Safety Health Administration (OSHA) on maximum time exposure to sound pressure levels before
hearing damage occurs.
90 dB SPL at 8 hours
95 dB SPL at 4 hours
100 dB SPL at 2 hours
105 dB SPL at 1 hour
110 dB SPL at 1/2 hour
115 dB SPL at 15 minutes
120 dB SPL — avoid or hearing damage may occur
It is difcult to measure the exact Sound Pressure Levels (SPL) present at the eardrum in live applications. In addition to the volume
setting on the PSM, the SPL in the ear is affected by ambient sound from oor wedges or other devices. The isolation provided by
the t of quality earphones is also an important factor in determining the SPL in the ear.
Here are some general tips to follow in the use of this product to protect your ears from damage:
1. Turn up the volume control only far enough to hear properly.
2. Ringing in the ears may indicate that the gain levels are too high. Try lowering the gain levels.
3. Have your ears checked by an audiologist on a regular basis. If you experience wax buildup in your ears, stop using the sys-
tem until an audiologist has examined your ears.
4. Wipe the earphones with an antiseptic before and after use to avoid infections. Stop using the earphones if they are causing
great discomfort or infection.
This symbol indicates important operating and
maintenance instructions in the literature accompanying this unit.
LICENSING INFORMATION
THIS RADIO EQUIPMENT IS INTENDED FOR USE IN PROFESSIONAL ENTERTAINMENT AND SIMILAR APPLICATIONS.
Changes or modications not expressly approved by Shure Incorporated could void your authority to operate the equipment. Licensing of
Shure wireless microphone equipment is the user’s responsibility, and licensability depends on the user’s classication and application,
and on the selected frequency. Shure strongly urges the user to contact the appropriate telecommunications authority concerning
proper licensing, and before choosing and ordering frequencies.
NOTE: THIS EQUIPMENT MAY BE CAPABLE OF OPERATING ON SOME FREQUENCIES NOT AUTHORIZED IN YOUR REGION.
PLEASE CON-TACT YOUR NATIONAL AUTHORITY TO OBTAIN INFORMATION ON AUTHORIZED FREQUENCIES FOR WIRELESS
MICROPHONE PROD-UCTS IN YOUR REGION
Licensing: Note that a ministerial license to operate this equipment may be required in certain areas. Consult your national authority for
possible requirements.
ENGLISH

2
QUICK SET-UP GUIDES........................................................................................................................................3
PSM®200 Wireless System.........................................................................................................................................................3
PR2 Receiver Quick Set-Up Guide ............................................................................................................................................ 4
INTRODUCTION ....................................................................................................................................................5
The PSM200 Personal Monitor System ..................................................................................................................................... 5
Features ..................................................................................................................................................................................... 5
THE P2T TRANSMIXER ........................................................................................................................................6
Controls and Features ................................................................................................................................................................ 6
Audio Inputs and Outputs ........................................................................................................................................................... 6
Phantom Power .......................................................................................................................................................................... 6
Selecting a Frequency Channel ................................................................................................................................................. 6
P2R RECEIVER......................................................................................................................................................7
Controls and Features ................................................................................................................................................................ 7
Battery Installation ...................................................................................................................................................................... 7
Cable Management Groove ....................................................................................................................................................... 7
Wireless Mode............................................................................................................................................................................ 8
Wired Mode ................................................................................................................................................................................ 8
Scanner Mode ............................................................................................................................................................................ 8
MIX IN Jack ................................................................................................................................................................................ 8
LIM LED...................................................................................................................................................................................... 8
SET-UP...................................................................................................................................................................9
Wireless System Set-Up............................................................................................................................................................. 9
Hybrid Wired/Wireless System Set-Up....................................................................................................................................... 9
P2R Stand-Alone Wired Set-Up ................................................................................................................................................. 9
SYSTEM APPLICATIONS....................................................................................................................................10
APPLICATION ONE: Wireless Set-Up for a Vocalist................................................................................................................ 10
APPLICATION TWO: Combination Wired and Wireless Set-Up for a Drummer...................................................................... 10
APPLICATION THREE: Two PSM200 Wireless Systems Used Simultaneously ..................................................................... 11
RACK MOUNTING THE P2T ............................................................................................................................... 11
TROUBLESHOOTING .........................................................................................................................................12
ACCESSORIES....................................................................................................................................................12
SPECIFICATIONS................................................................................................................................................12
PSM200 System....................................................................................................................................................................... 12
P2T TransMixer ........................................................................................................................................................................ 12
P2R Receiver ........................................................................................................................................................................... 13
PSM200 Channel Frequencies................................................................................................................................................. 13
CERTIFICATIONS................................................................................................................................................14
APPENDIX............................................................................................................................................................14
P2R Receiver MIX IN Jack Wiring Diagram ............................................................................................................................. 14
TABLE OF CONTENTS
ENGLISH

3
QUICK SET-UP GUIDES
PSM®200 Wireless System
The following set-up illustration is for the complete PSM200 Wireless System, which includes the P2T TransMixer,
the P2R Receiver, and the Shure Earphones. If you have purchased the P2R as a stand-alone wired personal monitor,
see page 4.
CHANNEL SELECT
PSM200TransMixer
MIC/LINE1 MIC/LINE2 1INPUTS 2

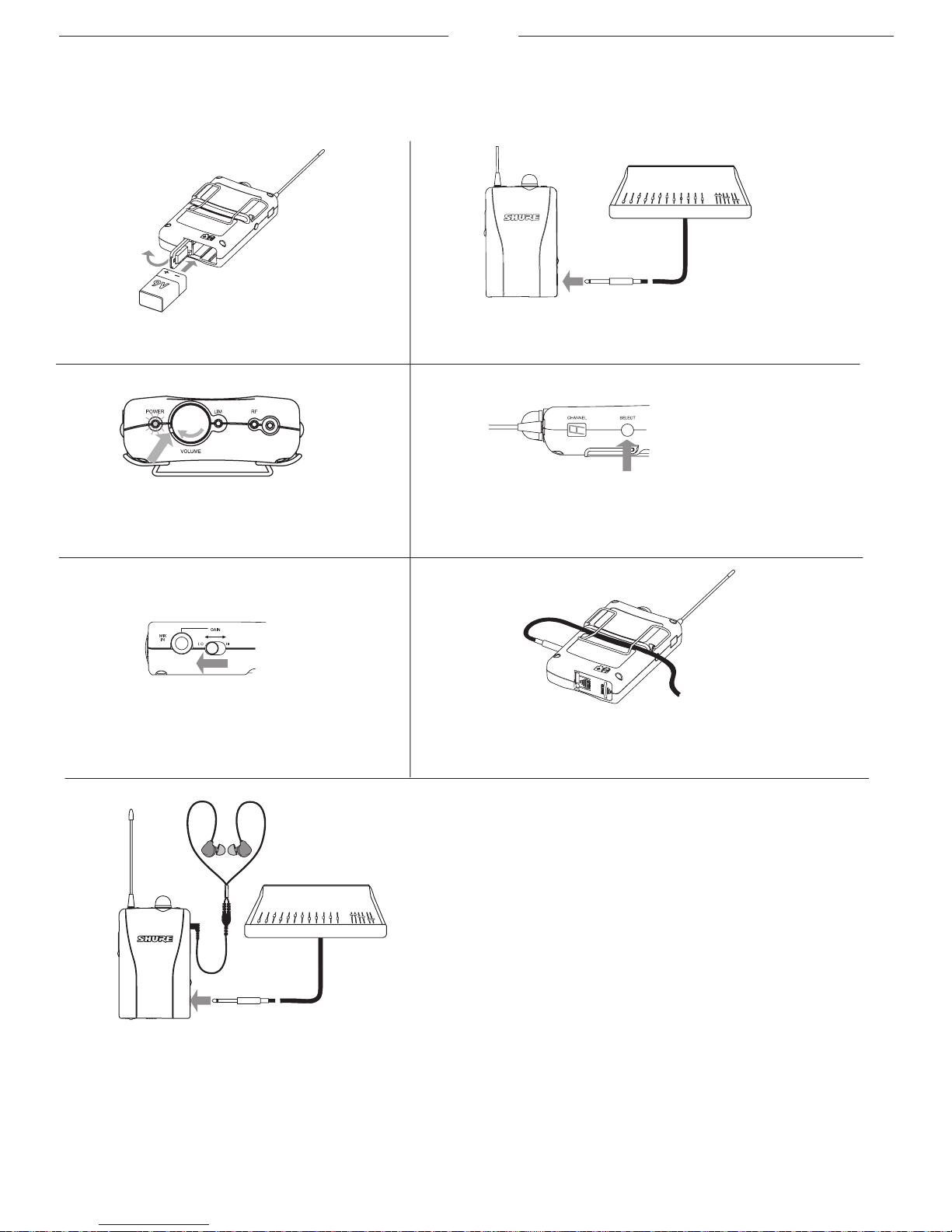

1. Plug in the power supply and connect it to the DC
input on the rear panel of the P2T TransMixer.
2. Insert a 9 Volt battery into the P2R Receiver,
observing proper polarity.
3. Connect audio sources to the MIC/LINE INPUTS on the front
panel of the TransMixer.
4. Turn the Receiver volume knob clockwise past the click (ON).
Keep the volume at a low setting.
5. Set the TransMixer and Receiver to the same frequency chan-
nel. See the Selecting a Frequency Channel section on page 6.
6. Check the RF LED on the top of the Receiver to
conrm that it is receiving signal from the TransMixer.
7. Plug the Earphones into the earphone jack on the
Receiver. Insert the Earphones into your ears.
8. Increase Receiver volume until the knob is turned to
approximately 11 o’clock.
9. On the front panel of the TransMixer, adjust the signal level of each audio input with the INPUT knobs.
10. Check the INPUT LEDs on the TransMixer to verify that signal is present, but not clipping. See the Audio Inputs
and Outputssection on page 6 for details.
11.Slowly adjust the Receiver volume to a comfortable level.
CHANNEL SELECT
PSM200TransMixer
MIC/LINE1 MIC/LINE 2 1INPUTS 2
Mixing Console
Mixing Console
ENGLISH

4
PR2 Receiver Quick Set-Up Guide
When Used as a Wired Stand-Alone Personal Monitor
1. Insert a 9 Volt battery into the P2R Receiver,
observing proper polarity.
6. Attach the P2R onto your belt, waistband, or another
location and slide the cable into the cable management
groove on the back side of the unit.
Mixing Console
3. Turn the P2R volume knob on (past the click).
Keep the volume at a low setting.
2. Connect an audio source to the 1/4-inch MIX IN jack
on the side of the P2R.
4. Set the CHANNEL to “A” with the SELECT Button.
See the Wired Mode section on page 8 for details.
5. Set the GAIN switch to LO initially and set
your source volume to a moderate level.
7. Plug Earphones into the earphone jack on the P2R.
Insert the Earphones into your ears.
8. Slowly adjust the volume to a comfortable level. Set
the GAIN switch to HIGH if the signal level is too low.
Mixing Console
ENGLISH

5
INTRODUCTION
Thank you for buying the PSM200. Like all Shure PSM personal monitoring products, the PSM200 provides the many advantages of
in-ear monitoring including:
• Improved Sound Quality —high delity without the risk of feedback
• Increased Mobility —your mix moves with you
• Personal Control —create a personal mix, and control your own levels
For information on this and other Shure products, visit www.shure.com on the World Wide Web
The PSM200 Personal Monitor System
The PSM200 is a frequency-agile, in-ear monitor system for
use in a wide variety of applications. Its many features help
overcome the difculties associated with stage monitoring.
The P2R Receiver is the world’s rst bodypack receiver to
function as a wired receiver, a wireless receiver, or both at the
same time. This and other unique features, along with excellent
sound quality, make the P2R an exceptional value.
The P2T TransMixer is another breakthrough design for in-ear
monitoring. It allows the user to connect two line-levelor mic–
level inputs directly into the transmitter. The two signals can
then be mixed independently. You can connect microphones or
instruments directly to the inputs, use line outputs from a mixing
console, or connect it to Shure’s Aux-Pander. In short, no matter
what the output device, you can probably plug it into the TransMixer.
The complete PSM200 System includes the Shure Earphones,
which feature Dynamic MicroSpeaker II that produces crisp,
full-spectrum sound. They include a variety of sleeve options
to provide the best t and isolation for your ears. All Shure
earphones, work well with CD players, MP3 players, and anything
else with a 1/8-inch (3.5mm) stereo output.
P2R Receiver
• Combination wired/wireless compatibility
• Gain switch for setting line input sensitivity
• 1/4-inch line-level input jack to connect monitor mix, click-
tracks, effects, or condenser microphones
• Integrated cable management groove secures cables con-
nected to the bodypack
ENGLISH
FEATURES
PSM200 System
• 8 selectable UHF frequencies
• Includes Dynamic MicroSpeaker II earphones
• Mono mix
• Up to 4 systems can be operated simultaneously
P2T TransMixer
• 2 mic/line XLR/1/4-inch combo inputs
• XLR SPLIT OUT connectors
• Input level controls
• Tri-color LED input level indicators

6
THE P2T TRANSMIXER
Controls and Features
12
3
9
8
6
54
7

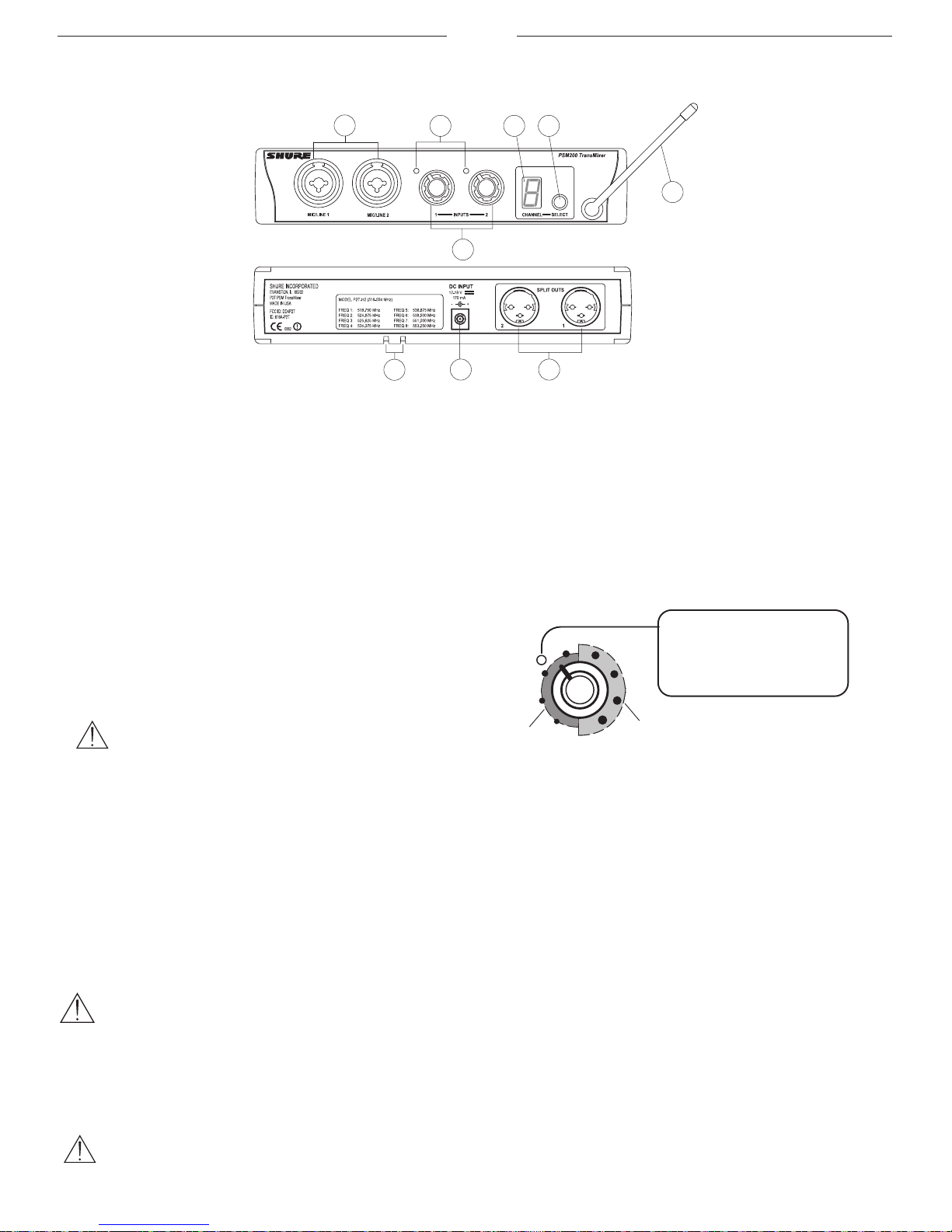

FRONT PANEL
BACK PANEL
1. MIC/LINE INPUT Jacks: Electronically balanced inputs
that accommodate both XLR and 1/4-inch connectors at
mic or line levels.
2. Signal/Clip LEDs: Color indicates the signal status of the
corresponding MIC/LINE input, as explained in the Audio
Inputs and Outputs section below.
3. INPUT Knobs: Control the level of their corresponding
inputs.
4. CHANNEL LED Indicator: Displays the frequency channel
that is being transmitted (1-8).
5. SELECT Button: Press to select a frequency channel.
6. Antenna: Permanently mounted, break–resistant antenna
transmits the mix to the P2R Receiver.
7. Power Cord Strain Relief: Thread the power cable
through these slots to secure the DC connection.
8. DC IN: Plug the power supply into this connector. The
unit remains powered on until you unplug it.
9. SPLIT OUTs: Each male XLR output jack duplicates the
signal of the corresponding mic/line input. Front panel
settings have no effect on split output level.
Audio Inputs and Outputs
The INPUT knobs control both MIC and LINE level signals. As a
general guide-line, set the knob to the left of twelve o’clock for line
level signals, and to the right of twelve o’clock for microphone levels.
Observe the signal/clip LEDs. If they are consistently red, de-
crease the levelwith the corresponding INPUT knob.
NOTE: If the level is decreased all the way and the LED remains
red, the level of the input from the previous device in the audio
chain (mixer, click track, digital sequencer, etc.) is too high and
should be decreased.
To pass audio signal directly through the TransMixer, use the cor-
responding SPLIT OUT on the rear panel of the device. Input
setting do not affect the level of the signal at the SPLIT OUT
connectors.
* The P2T inputs have limiting circuitry that activates automati-
cally when the input level is too high.
INPUT LED
RED — Limited Signal*
YELLOW — Nominal Level
GREEN — Signal Present
Microphone Level
Input Knob
Line Level
Phantom Power
Although the TransMixer itself does not provide phantom power for condenser microphones, the SPLIT OUT connectors pass phan-
tom power from a phantom power supply to a microphone connected to the corresponding input jack. You can connect equipment
that supplies phantom power to the TransMixer without harming the unit.
CAUTION: Use a “direct box” when connecting guitars, keyboards, and other instruments to a mixing console through the
P2T. The phantom power that mixing consoles provide for microphones can damage other instruments. Connect the instru-
ment to the direct box then connect the direct box to the TransMixer input.
Selecting a Frequency Channel
1. Press and hold the SELECT button until the CHANNEL LED indicator begins to ash.
2. When the LED indicator is ashing, press the SELECT button to scroll to the desired frequency channel.
3. Release the button. After 4 seconds the display will stop ashing and the P2T will automatically switch to the specied channel.
IMPORTANT:
Never set more than ONE TransMixer to the same frequency channel, or interference will occur.
ENGLISH

7
P2R RECEIVER
Controls and Features
1234
56
789 10
11
12
13
1. POWER LED: Lights to indicate the unit is powered on
and blinks to indicate low battery. When this LED starts
blinking, you have approximately 15 minutes of battery time
remaining, depending on volume level and battery brand.
2. On/Off/Volume Knob: Turn clockwise past click to
power on. Continue to turn clockwise to increase volume,
counterclockwise to decrease volume.
3. LIM LED: Lights only when limiter is activated. See the
LIM LED section on page 8 for details.
4. RF LED: Lights when the unit is receiving radio
frequency(RF) signal from the P2T TransMixer.
5. Antenna: An attached, exible whip antenna receives RF
signal from the TransMixer.
6. CHANNEL LED Indicator: Displays the number of the
current frequency channel (1-8), or the letter “A” for wired
mode. The CHANNEL LED indicator shuts itself off after
10 seconds to conserve battery life. To view the frequency
channel when the LED indicator is off, simply press and
release the SELECT button.
7. SELECT Button: Press to increment the frequency
channel or set to “A” for wired mode.
8. MIX IN Jack: Connect a 1/4-inch line-level input to this
jack. Use alone, or in combination with wireless reception
from the P2T TransMixer. See the MIX IN Jack section on
page 8 for details.
9. GAIN Switch: Slide to HI or LO position to set the sensi-
tivity of the MIX IN input.
10. Earphone Output Jack: Connect Shure earphones to
this 1/8-inch (3.5mm) jack.
11. Cable Management Groove: For a secure connection,
guide the cable connected to the MIX IN Jack or the
earphone cord into this groove.
12. Belt Clip: Securely attaches the unit to a belt, guitar strap
or waist band.
13. Battery Compartment Door: See the Battery Installation
section below.
Battery Installation*
1. Unlock the battery compartment door by pressing down
on the side of the battery compartment door marked
“OPEN” and sliding it in the direction of the arrow.
2. Flip open the door and insert a fresh 9V alkaline battery,
observing proper polarity.
3. Flip the battery compartment door closed, then press and
slide the compartment door until it snaps shut.
Note: If the battery compartment door will not close
completely, the battery is not correctly inserted.
*Since the average life of a battery varies depending on the manufacturer, Shure recommends that youuse a fresh 9V
battery for performances longer than two hours. You can then reserve used batteries for rehearsals or other less critical
applications.
Cable Management Groove
1. Connect an audio source to the 1/4-inch MIX IN jack on the side of the P2R.
2. Attach the P2R to your belt, waist band, or another location.
3. Slide the audio cable or earphone cord up into the groove, as illustrated.
4. The belt clip will hold them securely in place.
ENGLISH

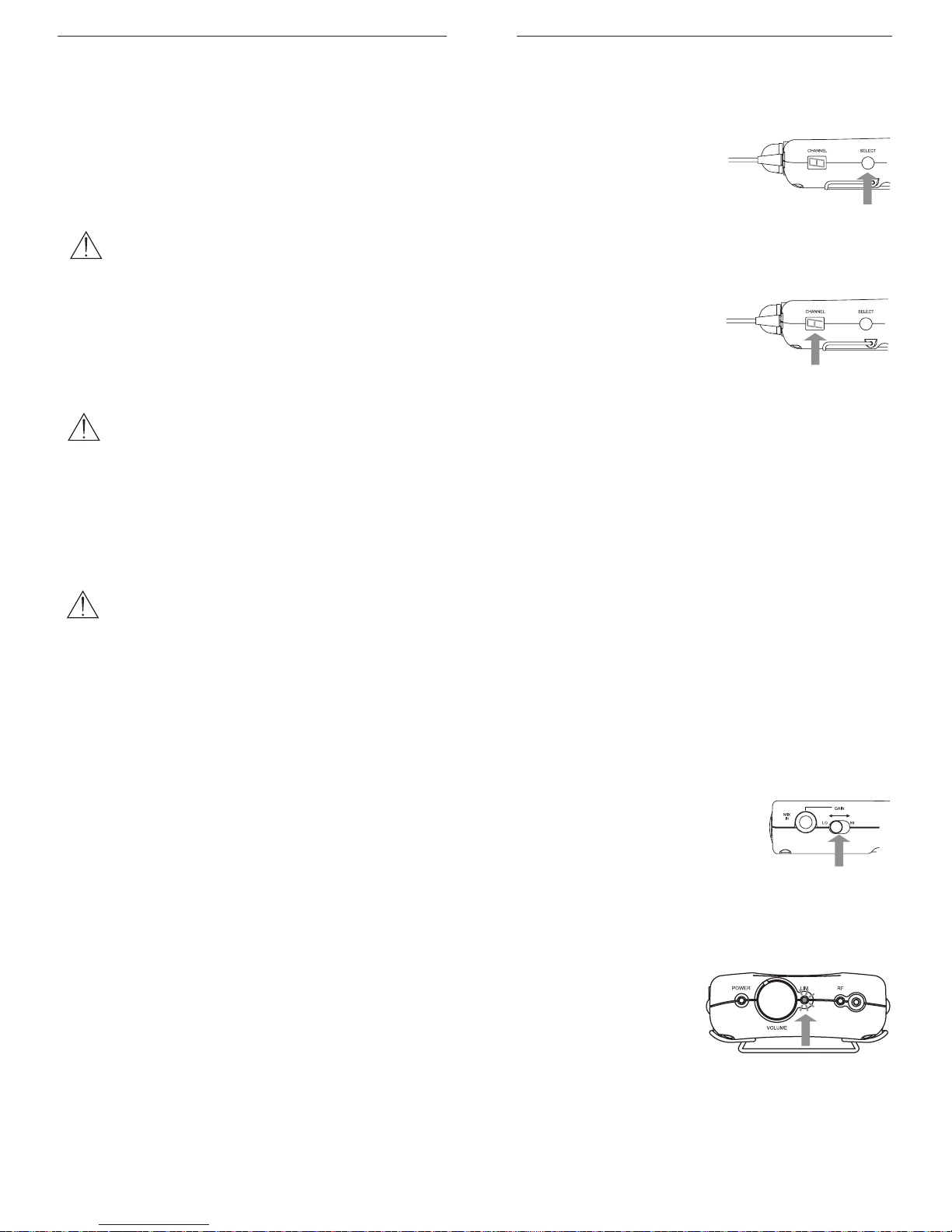

Wireless Mode
When you are using the P2R as a wireless receiver, or as a combination wired and wireless receiver, use the SELECT button on the
side of the P2R Receiver to set the frequency channel (1-8).
To Select a Frequency Channel:
1. Press and hold the SELECT button until the CHANNEL LED indicator begins to ash.
2. When the LED indicator is ashing, press the SELECT button to scroll to the desired
frequency channel.
3. Release the button. After 4 seconds the display will stop ashing and the P2R will
automatically switch to the specied channel.
NOTE: Set the P2R to the same channel as the P2T TransMixer.
Wired Mode
When you are using the P2R Receiver as a stand-alone wired monitor, you can set the unit to
wired mode. This deactivates the RF circuitry and extends the battery life.
To Set the P2R to Wired Mode:
1. Press and hold the SELECT button until the CHANNEL LED indicator begins to ash.
2. When the LED indicator is ashing, press the SELECT button to scroll past channel 8 until the letter “A” appears in the display.
3. Release the button. After 4 seconds the display will stop ashing and the P2R will automatically switch to wired mode.
NOTE: Setting the P2R receiver to wired mode disables its wireless capability.
Scanner Mode
When you are using the P2R as a wireless receiver, Shure recommends that during set–up you rst scan for a frequency channel that
is free from interference:
1. Unplug the P2T TransMixer and turn off the P2R.
2. Hold down the P2R SELECT button while turning its volume knob past the click (ON).
3. Insert the earphones into your ears and slowly increase the P2R volume until you hear noise. The CHANNEL LED will blink to
conrm the unit is in Scanner Mode.
WARNING: Increase the volume slowly, as the noise may be loud.
4. Scroll through the eight available frequencies to locate a clear channel. A channel is clear if you hear uninterrupted whitenoise
from the P2R. Avoid channels that have no sound. This indicates interference on that frequency channel, which makes it unsuit-
able for use.
5. To exit scanner mode, simply turn off the P2R. When you turn the unit back on it will be set to the channel that you last
selected.
6. Set the P2T to the same channel as the P2R.
MIX IN Jack
When you are using the P2R Receiver as a stand-alone personal monitor, the 1/4-inch MIX IN jack serves as the primary audio input.
In addition, the MIX IN jack allows the P2R to function as a hybrid wired and wireless receiver. When you are using the P2R in its
wireless mode, you can add a second audio source via the MIX IN jack, such as.
• Click Tracks
• Pre-Amp Outputs from Guitar or Bass
• Effects Processors
• Condenser Microphones
Next to the jack is a two-position GAIN switch that gives you a choice between LO and HI gain settings for the input. For specic infor-

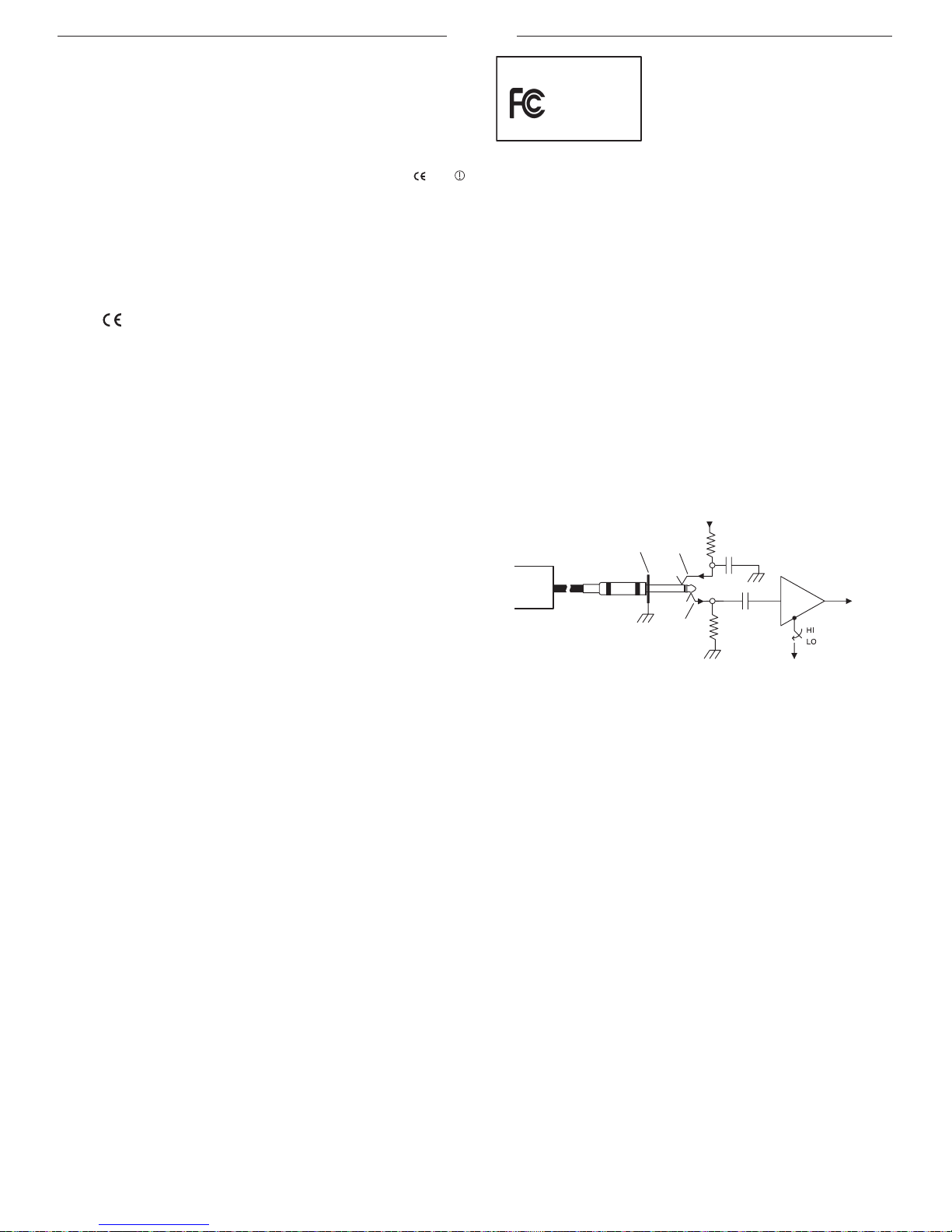

mation on how the MIX IN jack functions, refer to the wiring diagram on page 14.
LIM LED
The P2R Receiver has a non–defeatable (constantly active) limiter that automatically activates
if the receiver output level exceeds a certain volume, which is calibrated specically for the
Shure earphones. The LIM LED on the top of the unit lights up when the limiter is on. If the
LIM LED blinks occasionally, turn down the volume of the receiver.* If the LED is on and you
haven’t reached a high enough listening level, try re-inserting the earphones for a better seal,
or adjust the mix that is being sent to the receiver to include only the most essential inputs.**
* When the LED is on, the volume will not increase.
**The limiter is designed to work best with the Shure earphones. Using the P2R with other Shure earphones or earphones
made by other manufacturers, can result in higher limited volume levels.
8
ENGLISH
