Shure SM48 User manual

Models SM48 and SM48S User Guide
©2006, Shure Incorporated
27C2699 (Rev. 6)
Printed in U.S.A.
MODELS SM48 AND SM48S
UNIDIRECTIONAL DYNAMIC MICROPHONES
Shure Models SM48 and SM48S unidirectional dynamic
microphones are designed for professional sound reinforcement,
studio recording, and broadcasting applications. They maintain a
true cardioid pattern throughout their frequency range, ensuring
high gain before feedback and rejection of off-axis sound. The
tailored frequency response is ideal for vocals. A presence rise
brightens mid-range performance, and a low frequency rolloff
controls proximity effect.
Both models include a shock mounted cartridge, a steel mesh grille,
and an integral “pop” filter. The SM48S also includes a lockable On/
Off switch.
Each microphone is supplied with an adjustable stand adapter and
a zippered carrying/storage bag. Cables are available separately.
FEATURES
• Cardioid pickup pattern rejects off-axis sound and provides
superior gain before feedback
• Frequency response tailored for vocals, with brightened mid-
range and bass rolloff to control proximity effect
• Shock-mounted cartridge for exceptional ruggedness and
reduced handling noise
• Built-in “pop” filter that reduces explosive breath sounds and wind
noise
• Supplied stand adapter and carrying/storage bag
• Lockable On/Off switch (SM48S only)
• Legendary Shure quality and ruggedness
VARIATIONS
SM48
SM48S (with lockable On/Off switch)
SPECIFICATIONS
Type
Dynamic
Frequency Response

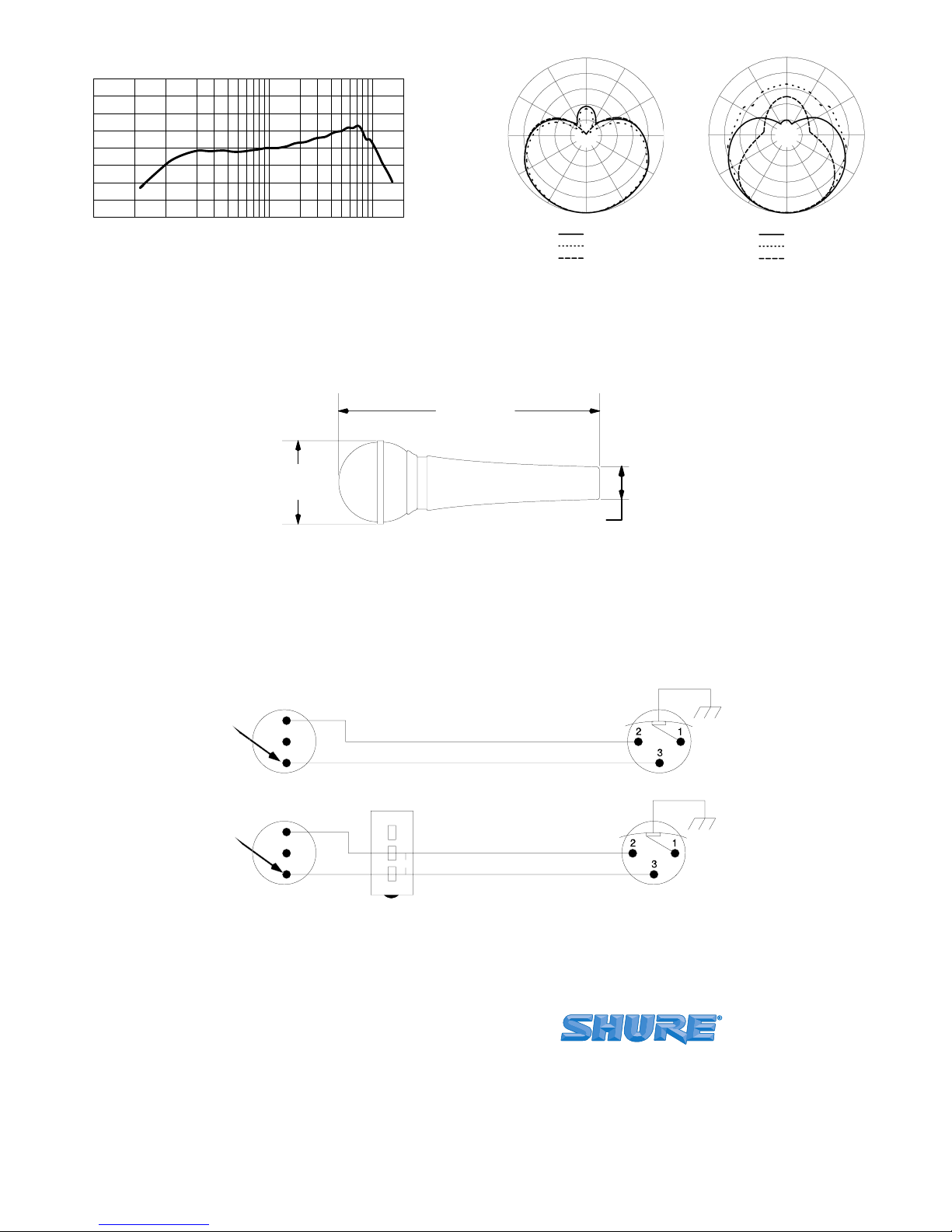

55 to 14,000 Hz (see Figure 1)
Polar Pattern
Cardioid (unidirectional) rotationally symmetrical about
microphone axis, uniform with frequency (see Figure 2)
Impedance
Microphone rating impedance is 150 Ω(270 Ωactual) for
connection to microphone inputs rated at 19 to 300 Ω
Output Level (at 1,000 Hz)
Open Circuit Voltage: *.... ..................–57.5 dBV/Pa (1.3 mV)
*1 Pa = 94 dB SPL
Connector
XLR professional audio
Polarity
Positive pressure on diaphragm produces positive voltage on pin
2 with respect to pin 3. See Figure 3.
Dimensions
See Figure 4
Net Weight
370 grams (13.1 oz)
Packaged Weight
672 grams (1 lb, 8.5 oz)
CERTIFICATIONS
Eligible to bear CE Marking. Conforms to European EMC Directive
89/336/EEC. Meets applicable tests and performance criteria in
European Standard EN55103 (1996) parts 1 and 2, for residential
(E1) and light industrial (E2) environments.
FURNISHED ACCESSORIES
Swivel Adapter ...................................................................A25D
Carrying/Storage Bag....................................................... 26A13
OPTIONAL ACCESSORIES
Windscreen .....................................................................A58WS
Desk Stand............................................................. S37A, S39A
Isolation Mount ................................................... A55M, A55HM
Dual Mount........................................................................ A26M
7.6 m Cable (25 ft) .............................................................C25F
REPLACEMENT PARTS
Cartridge ............................................................................ R136
Screen and Grille Assembly..........................................RK248G
Plug Assembly ................................................................ RK40P
On/Off Switch .................................................................. RK81S
LOCKING THE ON/OFF SWITCH (SM48S ONLY)
To lock the On/Off switch in On position, remove the screw from the
lockplate and rotate the lockplate 180°. Then reinstall the screw.
For additional service or parts information, please contact the
Shure Service Department at 1-800-516-2525. Outside the United
States, please contact your authorized Shure Service Center.

2
MICROPHONES DYNAMIQUES UNIDIRECTIONNELS
MODÉLES SM48 ET SM48S
CARACTÉRISTIQUES
Type
Dynamique
Réponse en frequence
55 à 14.000 Hz (voir la figure 1)
Dispérsion
Carioîde (unidirectionnel) symétrique circulairement sur axe,
uniforme avec la fréquence (voir la figure 2)
Impédance
L'impédance nominale est 150 Ω. (effective 270 Ω) pour entrées
microphones données pour 19 à 300 Ω.
Niveau de sortie (à 1 kHz)
En circuit ouvert (voltage):* . . . . . . .–57.5 dBV/Pa (1.3 mV)
*1 Pa = 94 dB SPL
Polarité
Une pression positive produit une tension positive sur la broche
2 par rapport a la broche 3 (voir la figure 1)
Dimensions hors tout
Voir la figure 4
Poids net
370 grammes
VARIATIONS
SM48
SM48S (avec interupteur d'alimentation electrique)
HOMOLOGATIONS
Autorisé à porter la marque CE. Conforme à la directive CEM
européenne 89/336/CEE. Conforme aux critères applicables de test
et de performances de la norme européenne EN 55103 (1996)
parties 1 et 2 pour les environnements résidentiels (E1) et
d'industrie légère (E2).
ACCESSOIRES FOURNIS
Adaptateur pivotant ........................................................... A25D
Sac de rangement ............................................................26A13
ACCESSOIRES EN OPTION
Bonnet ............................................................................ A58WS
Pied de table...................................................................... S37A
Pied a montage anti-vibrations .......................................... S39A
Câble (7.6 m)..................................................................... C25F
PIÈCES DE RECHANGE
Cartouche .......................................................................... R136
Prise ................................................................................RK40P
Grille avec écran........................................................... RK248G
Interrupteur Marche/Arrêt (SM48S) .................................RK81S
Pour tout renseignement complémentaire, prière de prendre,
contact avec le service Entretien Shure au 1/800-516-2525. En
dehors des États-Unis, prière de prendre contact avec le centre
d'entretien agréé Shure local.
DYNAMISCH RICHTMIKROFON
MODELL SM48 UND SM48S
TECHNISCHE DATEN
Wandlerprinzip
Dynamisch, Tauchspule
Frequenzgang
55...14.000 Hz (siehe Abbildung 1)
Richtcharakteristik
Nierenförmig, frequenz-unabhäningig und symmetrisch zur
Mikrofonachse (siehe Abbildung 2)
Impedanz
Die Nenn-impedanzen betragen 150 Ω. Vorgesehen für den
Anschluss an niederohmige Mikrofoneingänge, die für
Quellimpe-danzen von 150 Ωbemessen sind.
Ubertragungsfaktor (bei 1 kHz)
Feldleerlaufbertragungsfaktor*...........–57,5 dBV/Pa (1,3 mV)
*1 Pa = 94 dB SPL
Polarität
Positiver Schalldruck ergibt positive Spannung am Anschlußstift
2, gemessen tum Anschlußstift 3 (siehe Abbildung 3)
Gesamtabmessungen
Siehe Abbildung 4
Nettogewicht
370 g
Schalter
SM48
SM48S (mit netz ein/aus-kopf)
ZULASSUNG
Zur CE-Kennzeichnung berechtigt. Entspricht der EU-Richtlinie
über elektromagnetische Verträglichkeit 89/336/EEC. Erfüllt die
Prüfungs- und Leistungskriterien der europäischen Norm EN 55103
(1996) Teil 1 und 2 für Wohngebiete (E1) und Leichtindustriegebiete
(E2).
MITOELIEFERTES ZUBEHÖR
Stativhalterung....................................................................A25D
Tragetasche...................................................................... 26A13
SONDERZUBEHÖR
Windschutz .................................................................... A58WS
Tischständer.......................................................................S37A
Schwingungsisolierter Tischständer...................................S39A
Kabel ..................................................................................C25F
ERSATZTEILE
Kapsel ................................................................................ R136
Anschlusskupplung ......................................................... RK40P
Einsprechkorb ..............................................................RK248G
Ein-/Ausschalter (SM48S) ............................................... RK81S
Weitere Informationen hinsichtlich Service oder Ersatzteile erhalten
Sie vom Shure-Zentral-Kundendienst unter der Nummer
1-800-516-2525. Außerhalb der Vereinigten Staaten von Amerika
wenden Sie sich Bitte an das entsprechende autorisierte
Service-Center Ihres Landes.

3
MICROFONO DINAMICO UNIDIRECCIONAL
MODELOS SM48 Y SM48S
CARACTERISTICAS
Tipo
Dinámico
Respuesta a Frecuencias
55 a 14.000 Hz (vea la Figura1)
Dispersión Polar
Cardioide (unidireccional), uniforme respecto a la frecuencia y
simétrica respecto al eje (vea la Figura 2)
Impedancia
La impedancia especificada es de 150 Ω(270 Ωefectivos)
para su conexión a entradas de micróno especificadas entre
19 y 300 Ω..
Nivel de salida (a 1 kHz)
Tensión en circuito abierto*............... –57,5 dBV/Pa (1,3 mV)
*1 Pa = 94 dB SPL
Polaridad
La presión positiva produce un voltaje positivo en el pin 2
respecto al 3 (vea la Figura 3)
Dimensiones totales
Vea la Figura 4
Peso neto
370 g
Variaciones
SM48
SM48S (con interruptor de encidido)
CERTIFICACIONES
Califica para llevar las marcas CE. Cumple la directiva europea 89/
336/EEC de compatibilidad electromagnética. Se ajusta a los
criterios correspondientes de verificación y funcionamiento
establecidos en la norma europea EN 55103 (1996), partes 1 y 2,
para zonas residenciales (E1) y zonas de industria ligera (E2).
ACCESORIOS SUMINISTRADOS
Abrazadera ....................................................................... A25D
Bolsa de transporte...........................................................26A13
ACCESORIOS OPCIONALES
Pantalla antiviento ......................................................... A58WS
Pié de sobremesa ............................................................. S37A
Pié con aislador de vibraciones ........................................ S39A
Cable (7.6 m)..................................................................... C25F
REPUESTOS
Cápsula...............................................................................R136
Enchufe ...........................................................................RK40P
Conjunto de protector y rejilla....................................... RK248G
Interruptor (SM48S).........................................................RK81S
Para información adicional acerca del servicio o de partes, llame al
Departamento de Servicio Shure a 1-800-516-2525. Fuera de los
EE.UU., llame al servicentro autorizado de productos Shure.
MICROFONO DINAMICO UNIDIREZIONALE
MODELLO SM48 Y SM48S
CARATTERISTICA
Tipo
Dinamico
Risposta in frequenza
Da 55 a 14.000 Hz (vedi Figura 1)
Diagrammi Polare
Cardioide (unidirezionale), uniforme rispetto all'asse del
microfono, uniforme con la frequenza (vedi Figura 2)
Impedenza
Valore nominale: 150 Ω(270 Ωeffettivi) per il collegamento a
ingressi microfonici con bassi valori nominali di impedenza (19-
300 Ω).
Livelli de uscita (a 1.000 Hz)
Tensione a circuito aperto*: .............. –57,5 dBV/Pa (1,3 mV)
*1 Pa = 94 dB SPL
Polarità
Una pressione positiva sul diaframma produce una tensione
positiva al piedino 2 rispetto al piedino 3 (vedi Figura 3)
Dimensioni totali
Vedi Figura 4
Peso netto
370 g
Variazioni
SM48
SM48S (con interruttore di alimentazione ON/OFF)
OMOLOGAZIONI
Contrassegnabile con il marchio CE. Conforme alla direttiva
europea sulla compatibilità elettromagnetica 89/336/CEE.
Conforme ai criteri sulle prestazioni e alle prove pertinenti
specificati nella norma europea EN 55103 (1996) parti 1 e 2, per
ambienti residenziali (E1) e industriali leggeri (E2).
ACCESSORI IN DOTAZIONE
Adattore regolabile ........................................................... A25D
Borsa ................................................................................26A13
ACCESSORI OPTIONAL
Schemo antivento.......................................................... A58WS
Base da tavolo ...................................................................S37A
Adattore antivibrazioni .......................................................S39A
Cavo (7.6 m).......................................................................C25F
RECAMBI
Cartuccia ............................................................................R136
Connettore.......................................................................RK40P
Gruppo grilia e schemo .................................................RK248G
Interruttore (SM48S)........................................................RK81S
Per ulteriori informazioni sui ricambi o per assistenza, chiamare
l'assistenza clienti della Shure al numero verde 1-880-516-2525
(solo negli stati Uniti). Fuori dagli Stati Uniti rivolgersi al rivenditore
o ad un centro di assistenza autorizzato.

4
54.2 mm
(2-9/64 in.)
166 mm
(6-17/32 in.)
21.4 mm
(27/32 in.)
CARTRIDGE – CARTOUCHE – KAPSEL
CÁPSULA – CARTUCCIA CONNECTOR – PRISE – ANSCHLUßKUPPLUNG ENCHUFE – CONNETTORE
SM48
SM48S
120o
150o
150o
120o
180o
60o
90o
30o
30o
60o
90o
0
–5 dB
–10 dB
–15 dB
–20 dB
120o
150o
150o
120o
180o
60o
90o
30o
30o
60o
90o
0
–5 dB
–10 dB
–15 dB
–20 dB
250 Hz
500 Hz
1000 Hz
2500 Hz
6300 Hz
10000 Hz
0
+10
9876543298765
Hz
20000100001000
432
100
–10
5020
Bd
TYPICAL FREQUENCY RESPONSE
COURBE DE REPONSE TYPIQUE
TYPISCHES FREQUENZVERHALTEN
RESPUESTA DE FRECUENCIA TIPICA
TIPICA RISPOSTA IN FREQUENZA
TYPICAL POLAR PATTERNS
COURBE DE DIRECTIVITE TYPIQUES
TYPISCHE POLARCHARAKTERISTIK
PATRONES DE CAPTACION POLAR TIPICOS
TIPICI DIAGRAMMI POLARI
OVERALL DIMENSIONS – DIMENSIONS HORS TOUT
GESAMTABMESSUNGEN – DIMENSIONES TOTALES – DIMENSIONI TOTALI
FIGURE 1 – ABBILDUNG 1 – FIGURA 1 FIGURE 2 – ABBILDUNG 2 – FIGURA 2
FIGURE 3 – ABBILDUNG 3 – FIGURA 3
FIGURE 4 – ABBILDUNG 4 – FIGURA 4
CODED TERMINAL
CODÉE
GEKENNZEICHNET
CODIF
CODICE
CODED TERMINAL
CODÉE
GEKENNZEICHNET
CODIF
CODICE
GREEN–VERT–GRUN–VERDE–VERDE
YELLOW–JAUNE–GELB–AMARILLO–GIALLO
INTERNAL CONNECTIONS – CONNEXIONES INTERNES
INTERNE SCHALTUNGEN – CONEXIONES INTERNAS
COLLEGIAMENTI INTERNI
GREEN–VERT–GRUN–VERDE–VERDE
YELLOW–JAUNE–GELB–AMARILLO–GIALLO
SHURE Incorporated http://www.shure.com
United States, Canada, Latin America, Caribbean:
5800 W. Touhy Avenue, Niles, IL 60714-4608, U.S.A.
Phone: [phone] U.S. Fax: [phone] Intl Fax: [phone]
Europe, Middle East, Africa:
Shure Europe GmbH, Phone: [phone] Fax: [phone]
Asia, Pacific:
Shure Asia Limited, Phone: [phone] Fax: [phone]
