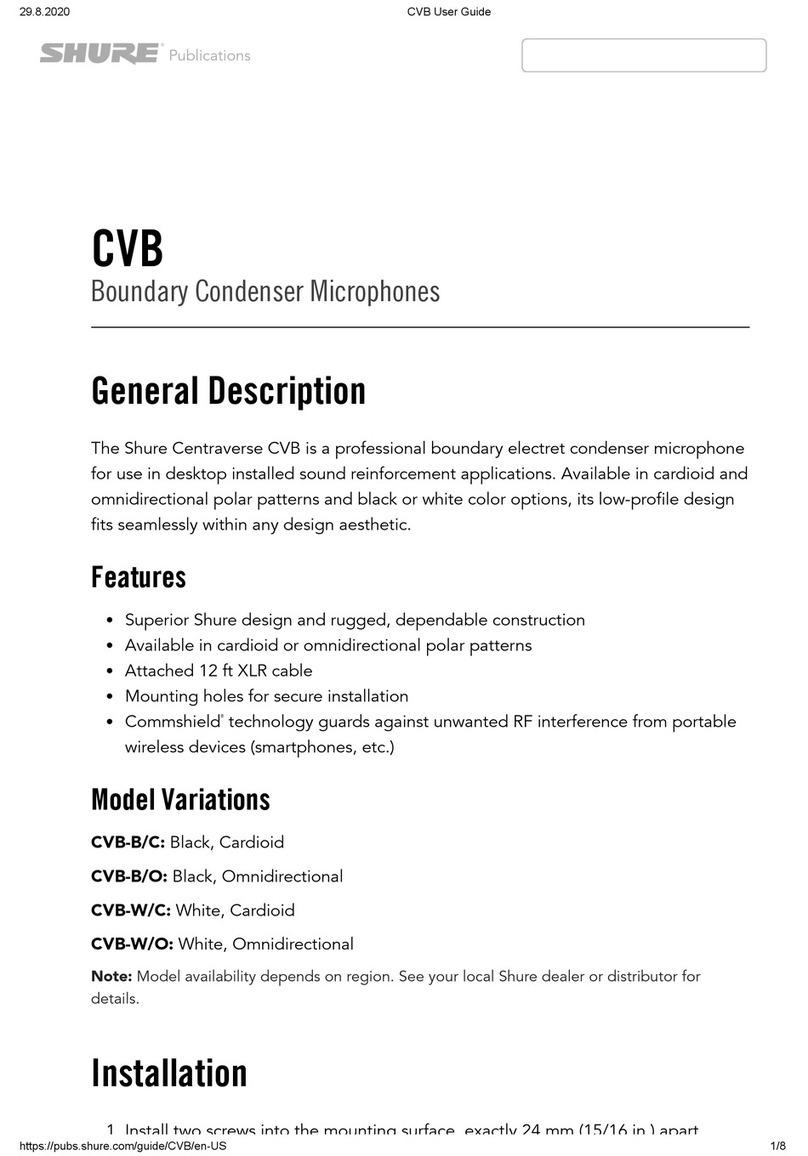

Shure CVB Operator's manual

Cartridge Type
Electret Condenser
Polar Pattern
CVB/O Omnidirectional
CVB/C Cardioid
Frequency Response
70–16000 Hz
Output Impedance
180Ω
Sensitivity
open circuit voltage, @ 1 kHz,
typical
CVB/O –28 dBV/Pa[1]
(40 mV)
CVB/C –32.5 dBV/Pa[1]
(23 mV)
Maximum SPL[2]
1 kHz at 1% THD
CVB/O 117 dB SPL
CVB/C 120 dB SPL
Signal-to-Noise Ratio[3]
Ref. 94 dB SPL at 1 kHz
CVB/O 74 dB
CVB/C 67 dB
Dynamic Range
CVB/O 97 dB
CVB/C 93 dB
Self Noise
equivalent SPL, A-weighted,
typical
CVB/O 20 dB SPL
CVB/C 27 dB SPL
Specifications
Certifications
Meets essential requirements of all applicable European Directives.
Eligible for CE marking.
The CE Declaration of Conformity can be obtained from Shure Incorporated
or any of its European representatives. For contact information please visit
www.shure.com
The CE Declaration of Conformity can be obtained from: www.shure.com/
europe/compliance
Authorized European representative:
Shure Europe GmbH
Headquarters Europe, Middle East & Africa
Department: EMEA Approval
Jakob-Dieffenbacher-Str. 12
75031 Eppingen, Germany
Phone: [phone]
Fax: [phone]
Email: [email protected]
500 Hz
250 Hz
1,000 Hz
4,000 Hz
2,000 Hz
20
15
10
5
0
-30
-25
-20
-15
-10
-5
dB
Hz
20 100 1k 10k 20k
2 ft. (0.6 m) from sound source
500 Hz
250 Hz
1,000 Hz
4,000 Hz
2,000 Hz
20
15
10
5
0
-30
-25
-20
-15
-10
-5
dB
Hz
20 100 1k 10k 20k
2 ft. (0.6 m) from sound source
CVB / C
CVB / O
Preamplifier Output Clipping
Level
@ 1 kHz, at 1% THD
CVB/O -6 dBV
CVB/C -7 dBV
Common Mode Rejection
10 Hz to 100 kHz
>45 dB
Polarity
Positive pressure on diaphragm pro-
duces positive voltage on pin 2 with
respect to pin 3
Environmental Conditions
Operating
Temperature
–18 to 57°C (0
to 135°F)
Storage
Temperature
–29 to 74°C
(–20 to 165°F)
Relative
Humidity
0 to 95%
Power Requirements
11–52 V DC[4], 2.0 mA
Weight
8 oz. (227 g)
[1] 1 Pa=94 dB SPL
[2] THD of microphone preampli-
fier when applied input signal level
is equivalent to cartridge output at
specified SPL
[3] S/N ratio is the difference be-
tween 94 dB SPL and equivalent
SPL of self noise, A-weighted
[4] All specifications measured with
a 48 Vdc phantom power supply.
The microphone operates at lower
voltages, but with slightly decreased
headroom and sensitivity.
