Shure Incorporated
8/28
•
•

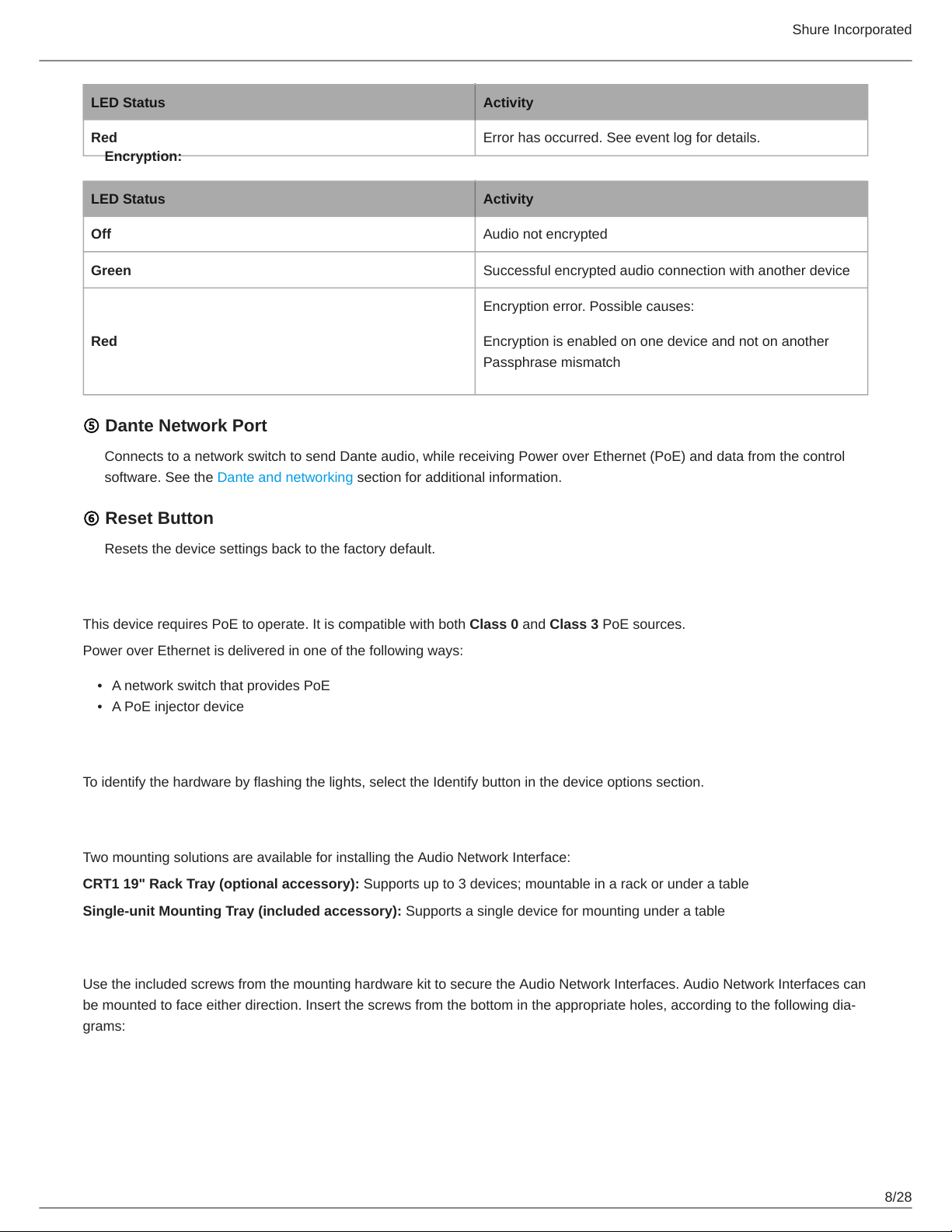

LED Status Activity
Red Error has occurred. See event log for details.
Encryption:
LED Status Activity
Off Audio not encrypted
Green Successful encrypted audio connection with another device
Red
Encryption error. Possible causes:
Encryption is enabled on one device and not on another
Passphrase mismatch
⑤Dante Network Port
Connects to a network switch to send Dante audio, while receiving Power over Ethernet (PoE) and data from the control
software. See the Dante and networking section for additional information.
⑥Reset Button
Resets the device settings back to the factory default.
Power Over Ethernet (PoE)
This device requires PoE to operate. It is compatible with both Class 0 and Class 3 PoE sources.
Power over Ethernet is delivered in one of the following ways:
A network switch that provides PoE
A PoE injector device
Device Identification
To identify the hardware by flashing the lights, select the Identify button in the device options section.
Installation and Rack Mounting
Two mounting solutions are available for installing the Audio Network Interface:
CRT1 19" Rack Tray (optional accessory): Supports up to 3 devices; mountable in a rack or under a table
Single-unit Mounting Tray (included accessory): Supports a single device for mounting under a table
Securing the Devices
Use the included screws from the mounting hardware kit to secure the Audio Network Interfaces. Audio Network Interfaces can
bemountedtofaceeitherdirection.Insertthescrewsfromthebottomintheappropriateholes,accordingtothefollowingdia
grams:
