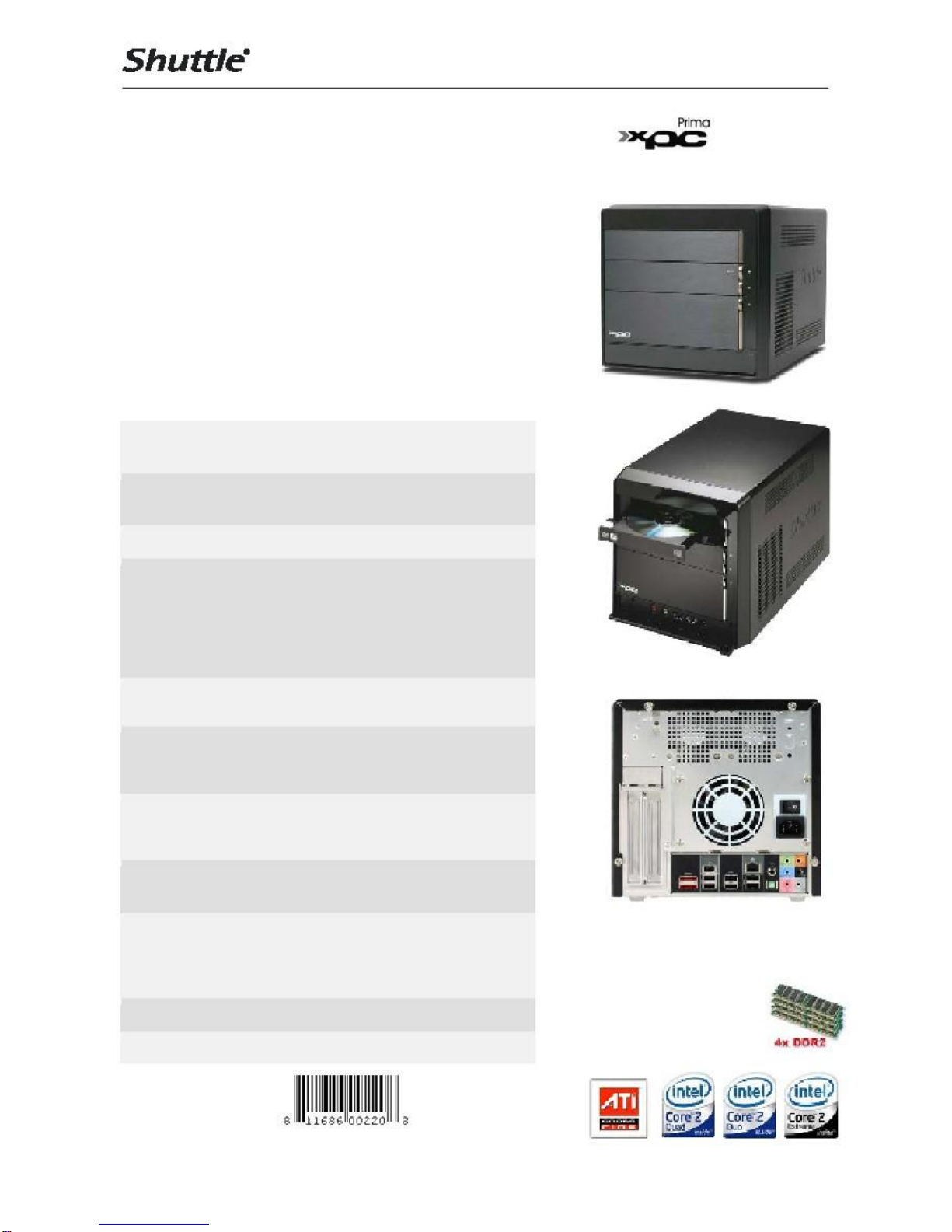

Shuttle Prima XPC Barebone SX38P2 Pro User manual

Product Specification
High-performance platform for two PCI-
Express Graphics Cards
Do you always want more than everyone else? Then choose this
Mini-PC for professional Multi-Monitoring for up to four screens or
as a high-end games PC with two PCI-E 2.0 Crossfire linked
graphics cards. Meet every performance wish with Intel's pio-
neering Core 2 Processors or up to 8 GB DDR2 memories. Hold all
your data on up to three hard disks and enjoy your Mini-PC to the
full. The effective 450 watt power supply speaks a clear language.
As a guarantor for the best sound the SX38P2 delivers Pro 8-ch HD-
Audio with Dolby Digital Live! and DTS Connect. For more security
this Mini-PC-Barebone has an integrated fingerprint scanner. The
I.C.E. Cooling System with the additional OASIS Module
consistently ensures the optimum cooling of the entire PC System.
Barebone
SX38P2 Pro
Feature Highlight
P2 chassis





CPU


Slots

Black aluminum chassis
Drive bays: 1x 5.25“, 3x 3.5“
Intel X38 Express + ICH9R
Socket 775
Supports Core 2 Quad QX6xxx,
Core 2 Duo E6xxx / E4xxx, Pentium Dual-
Core 2xxx
Supports 1333, 1066 and 800MHz FSB
Shuttle 3 zones heat-pipe cooling system
2x PCI-Express 2.0 (x16), ATI CrossFire
1x Mini-PCIe (supports Turbo Memory)
Supports 4x DDR2-667/800
DDR2-1066 in overclocking mode*
Up to 8 GBytes total size
4x SATA (internal) + 2x eSATA (external)
supports RAID 0, 1, 5, 10 and JBOD
1x IDE ATA 100, 1x floppy disk drive
Fingerprint recognition technology
Speed-Link (connects 2 PCs via USB)
8-ch HD-audio, SPDIF in/out
Dolby® Digital Live! and DTS™ Connect
2x Firewire, GigaBit LAN
USB 2.0 (2x front, 6x rear, 4x onboard)
450 Watt ATX power supply (80 PLUS)
Gaming
Note: optical drive sold
separately. Images for
illustration purposes only.
Chipset

Memory

Drive
connectors





Other
connectors




Pro-Features
Power supply
Application
Prduct ID: SX38P2 Pro
UPC (see bar code)
www.shuttleshop.com
DigiteQ B.V. h.o. Shuttleshop.COM
Graafstroomstraat 75
3044 AP Rotterdam The
Netherlands
T el: [phone]
Fax: [phone]
[email protected]

Product Specification

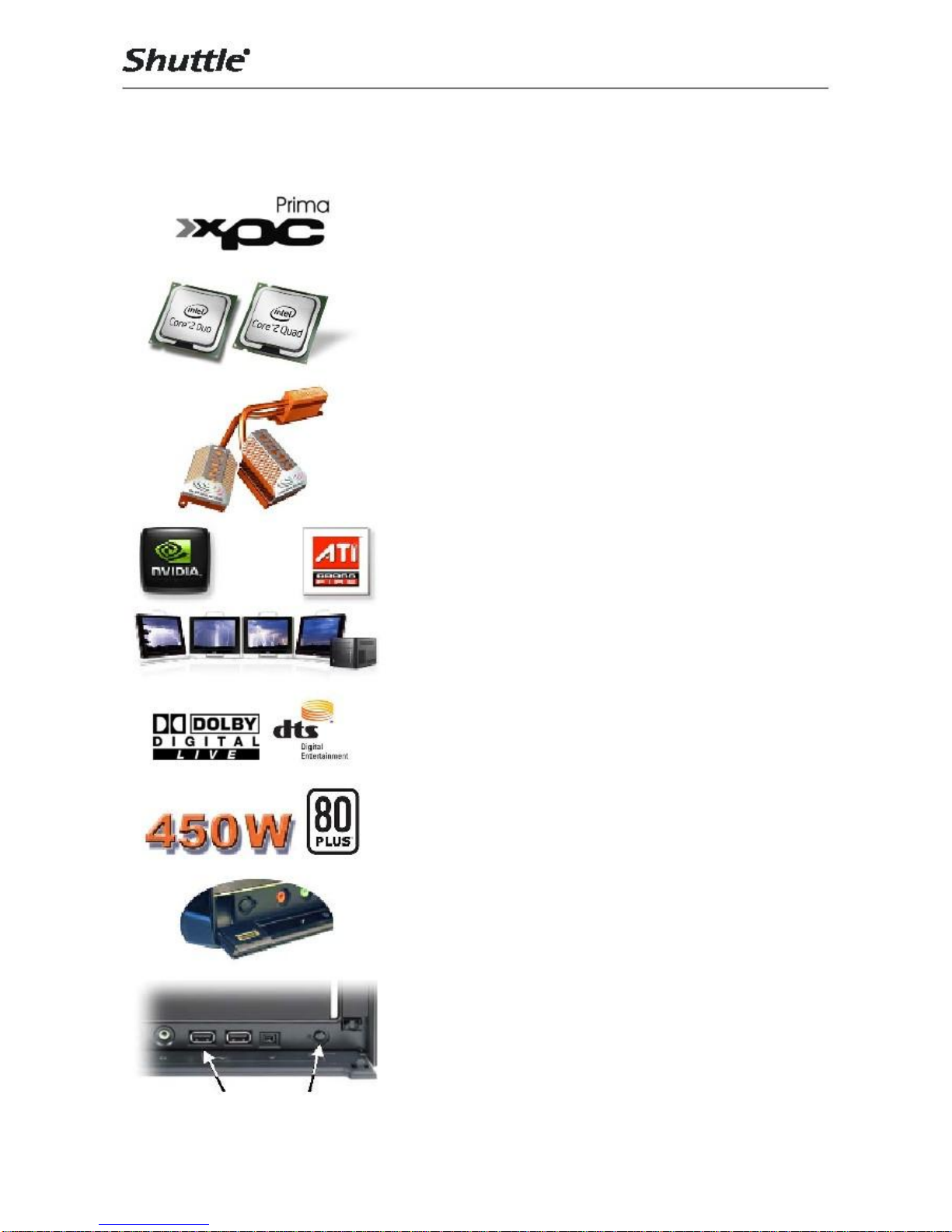

Shuttle XPC Barebone SX38P2 Pro –Special Product Features
Shuttle XPC Prima Series offering extreme performance
Shuttle has introduced the XPC Prima series, with its revolutionary high
performance models, for professional and performance demanding
applications whether they be at work, everyday or for high-tech
gaming.
Supports 1333 MHz FSB and new upcoming 45nm processors
This Shuttle product supports the Intel® Core™2 Duo and Intel®
Core™2 Quad processors with up to 1333 MHz front side bus and even
the new upcoming 45nm Core™2 Multi-core processors. Multi core
brings multi power!
OASIS Cooling Technology
The newly designed OASIS cooling technology deliver a unique system
of heat-sinks covering the MOSFET modules, the north bridge as well as
the south bridge that effectively dissipates heat without the use of fans.
Featuring an all-new Heat pipe design, Shuttle OASIS allows users to
enjoy longer component lifetime through lower temperatures, added
system stability and silent operation.
Supports two PCI Express x16 graphics cards
The Intel X38 chipset takes a major step beyond the P35 with its 32 PCI
Express 2.0 lanes. The Shuttle XPC Barebone SX38P2 supports two slots
PCI Express x16 Version 2.0 delivers up to 16GB/s bandwidth per port,
double that of PCIe 1.0, ensuring plenty of bandwidth for future
graphics cards. Two graphics cards can be used to enable 4-monitor-
operating or ATI CrossFire™ mode for leading-edge gaming
performance.
Finest cinematic surround sound experience
What would a home theater be without booming, immersive 7.1
channel surround sound? Experience state-of-the-art sound quality
provided by Dolby® Digital Live and DTS® Connect functionality.
80 PLUS® Certified Power Supplies
The 80 PLUS® performance specification requires power supplies in
computers and servers to be 80% or greater energy-efficient.
The SX38P2 Pro is in fact the first Shuttle XPC Barebone which has a
powerful 450W power supply built in as standard.
Fingerprint reader
With an added a layer of security protection thru the integrated
biometric fingerprint reader, you can keep your digital identity and
data more secure and no longer worry about having to memorize for
memorizing multiple passwords.
Innovative Speed-Link technology
File sharing among two PCs has never been easier with the innovative
Speed-Link technology, simply connects both systems thru a USB cable
without having the hassle of driver installation or worry about
insufficient space of a DVD disc.
www.shuttleshop.com
DigiteQ B.V. h.o. Shuttleshop.COM
Graafstroomstraat 75
3044 AP Rotterdam The
Netherlands
T el: [phone]
Fax: [phone]
[email protected]

Product Specification

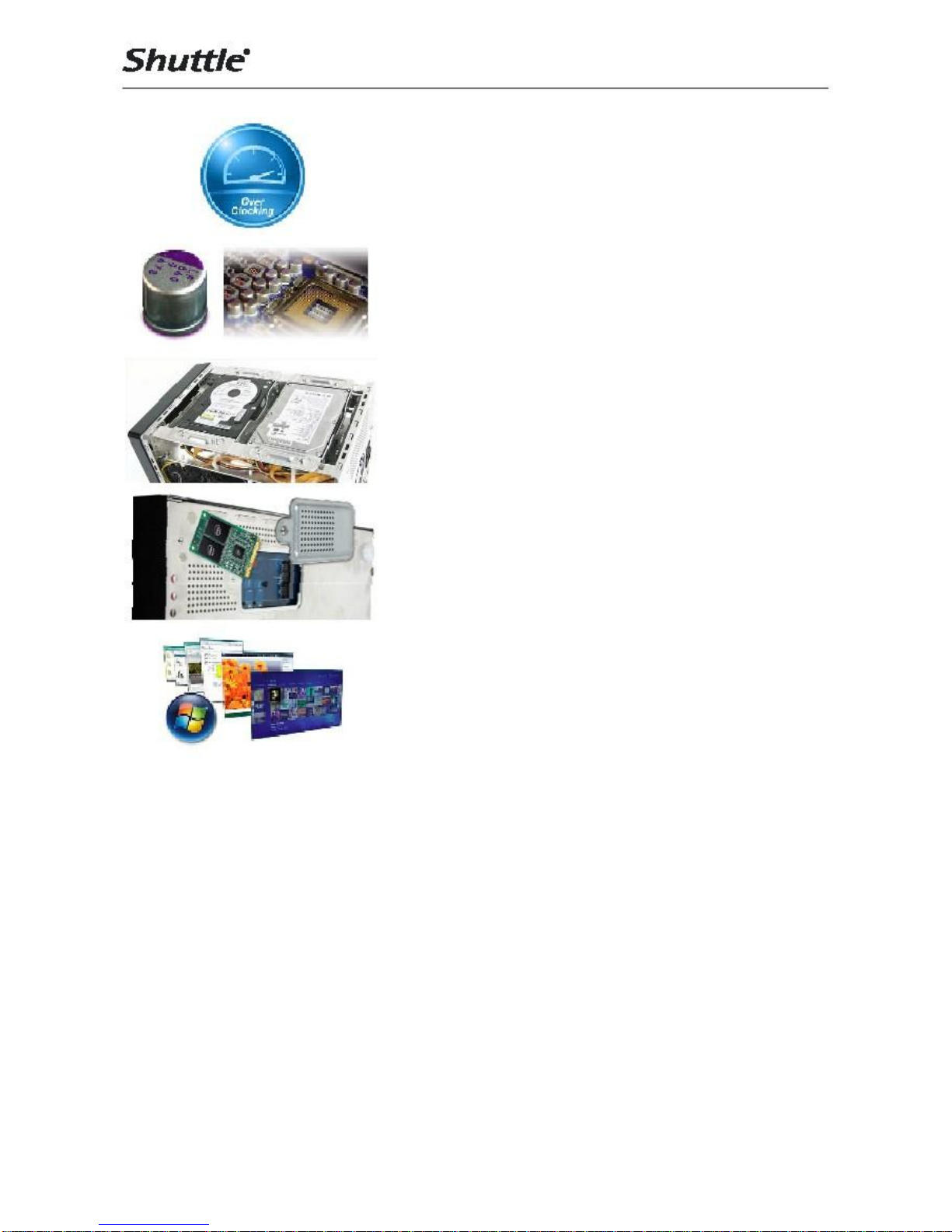

User Friendly Dynamic OverClock feature*)
The user can easily overclock the system through the bios from
3%,5%,7%,10%,15%, to 20%.
New Era of All-Solid Capacitor Shuttle Mainboards
By using all-solid capacitors Shuttle mainboards provide industry
leading stability, reliability and longevity for PC gaming and
entertainment systems. The average lifespan for a solid capacitor is
more than six times greater than the more common and less expensive
electrolytic capacitors.
Supports up to three hard disks and 4 DDR2 modules
The P2 chassis design features four DDR2 memory slots and supports an
incredible 8GB of RAM besides three harddisks, an 3.5" card reader
and an optical drive - which is plenty for the case capacity of just 15
litres.
Mini PCIe slot supports Intel Turbo Memory module
There is one Mini-PCIe x1 slot at the bottom of the chassis which
supports Intel® Turbo Memory (codename: Robson). Intel® Turbo
Memory lets your system actually learn your habits to provide better
system response. That's because it stores frequently used information
near the processor, where it's more quickly available.
Supports Windows Vista Premium
Breathtaking Windows Aero™ 3D visual interface and a host of
groundbreaking new features, Windows® Vista™ Premium promises to
deliver a streamlined computing experience designed to
fundamentally change how users view, find and organize their digital
information.
*) Overclocking Warning:
Please note there is a certain risk involved with overclocking, including adjusting the setting in the BIOS or using third-party overclocking
tools. Overclocking may affect your system stability or even cause damage of the components and devices of your system. It is done at
your own risk and expense. Shuttle cannot be held responsible for possible damage caused by overclocking.
www.shuttleshop.com
DigiteQ B.V. h.o. Shuttleshop.COM
Graafstroomstraat 75
3044 AP Rotterdam The
Netherlands
T el: [phone]
Fax: [phone]
[email protected]

Product Specification
Shuttle XPC Barebone SX38P2 Pro Specifications
Special Pro-
Features
Fingerprint recognition technology
Speed-Link - easily connect 2 PCs via USB and share data
P2-type aluminum chassis, color: black
storage bays: 1 x 5.25", 3 x 3.5" (2 internal)
stealthed drive doors
dimensions: 32.5 x 22 x 21 cm (LWH)
weight: 4.2 kg net / 6.0 kg gross
Shuttle FX38, Shuttle form factor, proprietary design for XPC SX38P2 Pro
Chipset: Intel X38 Express (MCH) + ICH9R (I/O Conroller Hub)
Solid Capacitors for excellent heat resistance for enhanced system durability
Color slots/connectors design (Power switch, USB, PCIe, PCI)
Dimensions: 20.5 x 28 cm
450 Watt ATX mini PSU, AC input voltage: 100~240V
80 PLUS® certified (80% or greater energy-efficient)
Dimensions: 85(W) x 83(H) x150(D) mm
Connectors: 2x3 pin (CPU power), 2x4 pin (mainboard power)
Active PFC circuit (Power Factor Correction)
Socket 775 supports Single, Dual and Quad Core processors from Intel
with Core technology and 800, 1066 or 1333MHz front side bus:
Supports Core 2 Quad QX6xxx, Core 2 Duo 6xxx/4xxx,
Pentium Dual-Core E2xxx
Designed for the upcoming Intel 45nm Core 2 multi-core processors
Supports Pentium 4/D processors at 800MHz FSB.
Intel Celeron and Processors with 533MHz FSB are not supported.
Please refer the support list for detailed processor support information.
CPU frequency, CPU voltage, RAM frequency, RAM voltage
Dynamic Overclock feature:
Easily overclock from 3/5/7/10/15/20% through the BIOS.
New Shuttle I.C.E. heat-pipe module (Integrated Cooling Engine)
SilentX Cooling and Noise Reduction Technology
advanced Heatpipe technology, linear fan control.
3 independent cooling areas.
OASIS Cooling Technology: additional fanless heat-pipe design
covering the MOSFET modules (VRM), north- and southbridge
4 x 240 pin slots, supports Dual Channel
supports DDR2-667/800 SDRAM memory
(DDR2-1066 in overclocking mode*)
max. 2 GB per DIMM, up to a total size of 8 GB
Chassis
Mainboard
Power
Supply
Processor
Support
Over-
clocking *)
Processor
Cooling
Memory
Support
www.shuttleshop.com
DigiteQ B.V. h.o. Shuttleshop.COM
Graafstroomstraat 75
3044 AP Rotterdam The
Netherlands
T el: [phone]
Fax: [phone]
[email protected]

Product Specification
PCI-Express-
Expansion
Slots
2x PCI-Express x16 Version 2.0 expansion slots
for x16 graphics cards (full 16 lanes each slot)
Supports Dual Graphics card by ATI CrossFire™ Technology.
Two graphics cards can be used to enable 4-monitor-operating or ATI CrossFire™ mode
for leading-edge gaming performance.
Supports two single-slot or one double-width graphics card.
1x Mini-PCIe x1 slot at the bottom of the chassis
supports Intel Turbo Memory (codename: Robson)
7.1 channel High Definition Audio, Realtek ALC888DD codec
Supports Dolby® Digital Live! and DTS™ Connect (Digital Theater Systems)
analog: line-out (8-ch), line-in, microphone, CD-in, AUX
digital: optical and coaxial S/PDIF-out
Marvell 88E8056 Ethernet network controller
With PCI Express interface
IEEE 802.3u 1000Base-T compliant
Supports 10 / 100 / 1.000 MBit/s opteration
Supports Wake-on-LAN
IEEE1394 Firewire controller TI TSB43AB22A
Complies with 1394 OHCI specification revision 1.0
2 Firewire connectors (front and rear)
Supports 400Mb/s, 200Mb/s, 100Mb/s data transfer rate
Serial-ATA II, 3 Gb/s (300 MB/s) bandwidth
4x internal (SATA) plus 2x external (eSATA)
Intel Matrix Storage Technology enabled striping and mirroring
Supports RAID 0, 1, 5, 10 and JBOD on just two or three hard disk drives
Supports Native Command Queuing (NCQ)
1x IDE ATA 100 drives (JMicron JMB368 Controller)
1x floppy disk drive
Microphone
Headphone (Line-out)
2x USB 2.0
Firewire (Mini 4 pin connector)
Speed-Link button
Fingerprint recognition
Power button
Reset button
Power indicator (blue LED)
HDD indicator (orange LED)
8-channel
Audio
Gigabit-LAN
Controller
Firewire-
Controller
Drive
connectors
Front panel
connectors
www.shuttleshop.com
DigiteQ B.V. h.o. Shuttleshop.COM
Graafstroomstraat 75
3044 AP Rotterdam The
Netherlands
T el: [phone]
Fax: [phone]
[email protected]

Product Specification
Back panel
connectors
6x USB 2.0
Firewire (6 pin)
GigaBit LAN (RJ45)
2x External Serial ATA Hotplug (eSATA)
8-ch Audio line-out (2x rear/front, bass/center, surround/back)
Digital Audio S/PDIF output: optical and coaxial
Audio Line-in
Microphone input
Clear CMOS button
Perforation for optional Wireless LAN Antenna
4x USB 2.0 (two sets with 2x5 pins)
4x fan connectors (3x 4 pins, 1x 3 pins)
Headers for PS/2 mouse and PS/2 keyboard
Multi-language XPC Installation Guide
Driver DVD with software (Norton Internet Security 2007, Adobe Reader)
Data cables: 1x floppy, 1x PATA, 3x SATA (PATA/2xSATA preinstalled)
1 set to 2 set 6-pin VGA power cable
2x Cross Fire bridges
1 set 4 pin to SATA power cable
Power Cord
Screws, Heatsink Compound
Other
connectors
Accessories
*) Overclocking Warning
Please note there is a certain risk involved with overclocking, including adjusting the setting in the BIOS or using
third-party overclocking tools. Overclocking may affect your system stability or even cause damage of the
components and devices of your system. It is done at your own risk and expense. Shuttle cannot be held
responsible for possible damage caused by overclocking.
www.shuttleshop.com
DigiteQ B.V. h.o. Shuttleshop.COM
Graafstroomstraat 75
3044 AP Rotterdam The
Netherlands
T el: [phone]
Fax: [phone]
[email protected]
