SICK S3000 Expert User manual

GB
OPERATING INSTRUCTIONS
S3000
Safety laser scanner

Operating instructions
S3000
2©SICK AG • Industrial Safety Systems • Germany • All rights reserved 8009942/V430/2011-06-03
Subject to change without notice
This document is protected by the law of copyright, whereby all rights established therein remain with the
company SICK AG. Reproduction of this document or parts of this document is only permissible within the limits
of the legal determination of Copyright Law. Alteration or abridgement of the document is not permitted without
the explicit written approval of the company SICK AG.

Operating instructions
S3000
8009942/V430/2011-06-03 © SICK AG • Industrial Safety Systems • Germany • All rights reserved 3
Subject to change without notice
Contents
Contents
1 About this document.........................................................................................................7
1.1 Function of this document....................................................................................7
1.2 Target group ..........................................................................................................7
1.3 Scope .....................................................................................................................7
1.4 Depth of information.............................................................................................8
1.5 Abbreviations used ...............................................................................................8
1.6 Symbols used ........................................................................................................9
2 On safety...........................................................................................................................10
2.1 Qualified safety personnel..................................................................................10
2.2 Applications of the device...................................................................................10
2.3 Correct use ..........................................................................................................11
2.4 General safety notes and protective measures ................................................11
2.5 Environmental protection ...................................................................................12
2.6 Applicable directives and standards..................................................................13
3 Product description.........................................................................................................14
3.1 Special features ..................................................................................................14
3.2 Function...............................................................................................................15
3.2.1 Principles of operation......................................................................15
3.2.2 Field set comprising of protective field and warning field ..............16
3.2.3 Monitoring cases...............................................................................18
3.3 S3000 variants ...................................................................................................19
3.3.1 Device components ..........................................................................19
3.3.2 Functions of the I/O modules...........................................................21
3.3.3 Applications .......................................................................................22
3.4 Status indicators .................................................................................................25
3.4.1 LEDs and 7-segment display ............................................................25
3.5 Interoperability ....................................................................................................25
3.5.1 Examples for EFI systems.................................................................26
3.5.2 Control inputs ....................................................................................27
3.5.3 Monitoring case switching ................................................................27
3.5.4 Internal or external OSSDs ...............................................................27
3.5.5 Interoperability of the variants .........................................................28
3.5.6 S3000 in combination with a Flexi Soft safety controller...............29
3.5.7 EFI network topologies......................................................................30
4 Configurable functions ...................................................................................................31
4.1 Compatibility mode of the S3000 Expert and S3000 Remote ........................31
4.2 Names for applications and safety laser scanners...........................................31
4.3 Application, resolution, basic response time and scanning range...................32
4.4 External device monitoring (EDM)......................................................................34
4.5 Restart .................................................................................................................35
4.5.1 Restart interlock................................................................................35
4.5.2 Restart delay .....................................................................................36
4.5.3 Reset..................................................................................................37
4.6 Application diagnostic output/universal I/O connections ................................38
4.7 Internal or external OSSDs .................................................................................39

Operating instructions
S3000
4©SICK AG • Industrial Safety Systems • Germany • All rights reserved 8009942/V430/2011-06-03
Subject to change without notice
Contents
4.8 Field sets ............................................................................................................. 40
4.8.1 Configuring the protective field and warning field.......................... 40
4.8.2 Protective field suggested by the safety laser scanner.................. 42
4.8.3 Using the contour as a reference .................................................... 43
4.9 Monitoring cases ................................................................................................ 44
4.9.1 Multiple sampling ............................................................................. 45
4.9.2 Simultaneous monitoring................................................................. 46
4.9.3 Checking of the monitoring case switching..................................... 46
4.9.4 Park/stand-by mode......................................................................... 46
4.10 Inputs .................................................................................................................. 47
4.10.1 Static input signals ........................................................................... 48
4.10.2 Dynamic sampling with incremental encoders ............................... 51
4.10.3 Velocity routing via EFI ..................................................................... 54
5 Mounting.......................................................................................................................... 56
5.1 Stationary application in horizontal operation.................................................. 57
5.1.1 Protective field size........................................................................... 58
5.1.2 Measures to protect areas not covered by the S3000 .................. 63
5.2 Stationary vertical operation for access protection.......................................... 64
5.2.1 Minimum distance............................................................................ 65
5.3 Stationary vertical operation for hazardous point protection .......................... 66
5.3.1 Minimum distance............................................................................ 67
5.4 Mobile applications ............................................................................................ 68
5.4.1 Protective field length....................................................................... 69
5.4.2 Protective field width ........................................................................ 73
5.4.3 Height of the scan plane .................................................................. 73
5.4.4 Methods of preventing unprotected areas...................................... 74
5.5 Time for monitoring case switching................................................................... 76
5.6 Mounting steps ................................................................................................... 78
5.6.1 Direct mounting ................................................................................ 79
5.6.2 Mounting with mounting kit 1.......................................................... 79
5.6.3 Mounting with mounting kit 2.......................................................... 80
5.6.4 Mounting with mounting kit 3.......................................................... 81
5.6.5 Mounting with the Heavy Duty mounting bracket........................... 82
5.6.6 Adhesive label Important information ............................................. 82
5.6.7 Using multiple S3000 safety laser scanners .................................. 82
6 Electrical installation ..................................................................................................... 84
6.1 System connection ............................................................................................. 85
6.1.1 Pin assignments of the I/O modules............................................... 86
6.2 System plug assembly........................................................................................ 88
6.3 Pre-assembled system plugs ............................................................................. 90
6.3.1 Pre-assembled system plugs with flying leads................................ 90
6.4 Configuration connection M8× 4 (serial interface)........................................... 92

Operating instructions
S3000
8009942/V430/2011-06-03 © SICK AG • Industrial Safety Systems • Germany • All rights reserved 5
Subject to change without notice
Contents
7 Application examples and connection diagrams ........................................................93
7.1 Stationary applications .......................................................................................93
7.1.1 Applications with one monitored area (S3000 Standard)..............93
7.1.2 Applications with multiple monitored areas (S3000
Advanced)..........................................................................................94
7.2 Mobile applications.............................................................................................95
7.2.1 Vehicle monitoring for unidirectional travel (S3000
Standard)...........................................................................................95
7.2.2 Velocity-dependent vehicle monitoring for unidirectional
travel (S3000 Professional) .............................................................96
7.2.3 Vehicle monitoring with determination of the surrounding
contour and reflector detection (S3000 Expert) .............................96
7.2.4 Velocity-dependent vehicle monitoring for bi-directional
travel (S3000 Professional with S3000 Remote)...........................97
7.3 Applications with the Flexi Soft safety controller...............................................98
7.3.1 Vehicle monitoring with four safety laser scanners and
dynamic protective field switching using the Flexi Soft safety
controller............................................................................................98
7.4 Applications with sens:Control ...........................................................................99
7.4.1 More complex system expansions ...................................................99
7.4.2 Bus interfaces ...................................................................................99
7.5 Connection diagrams....................................................................................... 100
7.5.1 Restart interlock and external device monitoring ........................ 101
7.5.2 Restart interlock and external device monitoring with UE10
series .............................................................................................. 101
7.5.3 Protective field switching with two static inputs........................... 102
7.5.4 Protective field switching with four static inputs.......................... 102
7.5.5 Protective field switching with static and dynamic inputs ........... 103
7.5.6 Protective field switching between two safety laser scanners
with static inputs............................................................................ 103
7.5.7 Protective field switching between two S3000 with static
and dynamic inputs........................................................................ 104
7.5.8 Protective field switching between an S3000 and an S300
with static and dynamic inputs...................................................... 105
7.5.9 Protective field switching using a Flexi Soft safety controller...... 106
8 Configuration ................................................................................................................ 107
8.1 Default delivery status ..................................................................................... 107
8.2 Preparation of the configuration ..................................................................... 107
9 Commissioning ............................................................................................................. 108
9.1 Initial commissioning ....................................................................................... 108
9.1.1 Power-up sequence........................................................................ 109
9.2 Test notes ......................................................................................................... 110
9.2.1 Pre-commissioning tests................................................................ 110
9.2.2 Regular inspection of the protective device by qualified
safety personnel............................................................................. 110
9.2.3 Daily testing of the protective device by a specialist or
authorized personnel ..................................................................... 111
9.3 Re-commissioning............................................................................................ 112

Operating instructions
S3000
6©SICK AG • Industrial Safety Systems • Germany • All rights reserved 8009942/V430/2011-06-03
Subject to change without notice
Contents
10 Care and maintenance .................................................................................................114
10.1 Cleaning the front screen.................................................................................114
10.2 Replacing the front screen...............................................................................114
10.3 Replacing the I/O module ................................................................................117
10.3.1 Steps for replacing the I/O module ...............................................118
11 Diagnostics ....................................................................................................................120
11.1 In the event of faults or errors .........................................................................120
11.2 SICK support .....................................................................................................120
11.3 Indications and error messages ......................................................................121
11.4 Error messages of the 7-segment display.......................................................123
11.5 Extended diagnostics .......................................................................................128
12 Technical specifications ..............................................................................................129
12.1 Characteristics ..................................................................................................129
12.1.1 Scanning range...............................................................................129
12.1.2 Reset pulse .....................................................................................130
12.2 OSSD response times.......................................................................................131
12.3 Timing behavior of the OSSDs .........................................................................132
12.4 Data sheet.........................................................................................................134
12.5 EFI status information and control commands...............................................143
12.6 Dimensional drawings ......................................................................................145
12.6.1 S3000 .............................................................................................145
12.6.2 Mounting kits ..................................................................................146
12.6.3 Scan plane origin............................................................................147
13 Ordering information ....................................................................................................148
13.1 Items supplied ..................................................................................................148
13.2 Available systems .............................................................................................148
13.3 Accessories/spare parts ..................................................................................149
13.3.1 Sensor heads ..................................................................................149
13.3.2 I/O modules ....................................................................................149
13.3.3 Mounting kits ..................................................................................149
13.3.4 System plug.....................................................................................150
13.3.5 Service cables.................................................................................150
13.3.6 Self assembly connecting cables ..................................................151
13.3.7 Documentation ...............................................................................151
13.3.8 Safety relays/compact safety controller .......................................152
13.3.9 Safety controllers............................................................................152
13.3.10 Network solutions...........................................................................152
13.3.11 SDL connecting cables...................................................................152
13.3.12 Miscellaneous.................................................................................153
14 Annex..............................................................................................................................154
14.1 EC declaration of conformity............................................................................154
14.2 Checklist for the manufacturer........................................................................156
14.3 Glossary.............................................................................................................157
14.4 List of tables .....................................................................................................158
14.5 List of illustrations ............................................................................................160

Operating instructions Chapter 1
S3000
8009942/V430/2011-06-03 © SICK AG • Industrial Safety Systems • Germany • All rights reserved 7
Subject to change without notice
About this document
1About this document
Please read this chapter carefully before working with this documentation and the S3000.
1.1 Function of this document
These operating instructions are designed to address the technical personnel of the
machine manufacturer or the machine operator in regards to correct mounting, electrical
installation, commissioning, operation and maintenance of the S3000 safety laser
scanner.
These operating instructions do not provide instructions for operating the machine, the
system or the vehicle on which the safety laser scanner is, or will be, integrated.
Information on this is to be found in the appropriate operating instructions for the
machine, the system or the vehicle.
1.2 Target group
These operating instructions are addressed to planning engineers, machine designers and
the operators of machines and systems which are to be protected by one or several S3000
safety laser scanners. They also address people who integrate the S3000 into a machine,
asystem or a vehicle, initialize its use, or who are in charge of servicing and maintaining
the device.
1.3 Scope
These operating instructions are original operating instructions.
These operating instructions are only applicable to the safety laser scanner S3000 with
the following entry on the type label in the field Operating Instructions:8009791_V430
This document is part of SICK part number 8009791 (operating instructions “S3000
Safety Laser Scanner” in all available languages).
For the configuration and diagnostics of these devices you require CDS (Configuration &
Diagnostic Software) version 3.6.6 or higher. To determine the version of your software
version, select the Module Info... option in the Help menu.
Note

Chapter 1Operating instructions
S3000
8©SICK AG • Industrial Safety Systems • Germany • All rights reserved 8009942/V430/2011-06-03
Subject to change without notice
About this document
1.4 Depth of information
These operating instructions contain information on the S3000 safety laser scanner:
mounting
electrical installation
commissioning and configuration
care and maintenance
fault, error diagnosis and
troubleshooting
part numbers
accessories
conformity and approval
Planning and using protective devices such as the S3000 also require specific technical
skills which are not detailed in this documentation.
General information on accident prevention using opto-electronic protective devices can
be found in the competence brochure “Guidelines Safe Machinery”.
When operating the S3000, the national, local and statutory rules and regulations must be
observed.
We also refer you to the SICK AG homepage on the Internet at www.sick.com.
Here you will find information on:
application examples
alist of frequently asked questions regarding the S3000
these operating instructions in different languages for viewing and printing
1.5 Abbreviations used
Automated Guided Vehicle
American National Standards Institute
American Wire Gauge = standardization and classification of wires and cables by type,
diameter etc.
SICK Configuration & Diagnostic Software
External device monitoring
Enhanced function interface = safe SICK device communication
Electrostatic discharge
Electro-sensitive protective equipment
Fail-safe programmable logic controller
Output signal switching device = signal output of the protective device that is used to stop
the dangerous movement
Robotic Industries Association
Note
AGV
ANSI
AWG
CDS
EDM
EFI
ESD
ESPE
FPLC
OSSD
RIA

Operating instructions Chapter 1
S3000
8009942/V430/2011-06-03 © SICK AG • Industrial Safety Systems • Germany • All rights reserved 9
Subject to change without notice
About this document
1.6 Symbols used
Recommendations are designed to give you some assistance in your decision-making
process with respect to a certain function or a technical measure.
Refer to notes for special features of the device.
Display indicators show the status of the 7Ksegment display on the S3000:
constant indication of characters, e.g. 8
flashing indication of characters, e.g. 8
 alternating indication of characters, e.g. L and 2
LED symbols describe the status of an LED:
The LED is constantly illuminated.
The LED is flashing.
The LED is off.
These symbols identify which LED is described:
The “Error/contamination” LED is flashing.
The “OSSDs deactivated” LED is constantly illuminated.
Instructions for taking action are shown by an arrow. Read carefully and follow the
instructions for action.
Warning!
Awarning notice indicates an actual or potential risk or health hazard. Observation and
implementation of the warning will protect you from accidents.
Read carefully and follow the warning notices!
Software notes show the location in the CDS (Configuration & Diagnostic Software) where
you can make the appropriate settings and adjustments. In the CDS open the menu View,
Dialog box and select the item File Cards to go straight to the stated dialog fields.
Alternatively, the software wizard will guide you through the appropriate setting.
The term “dangerous state”
The dangerous state (standard term) of the machine is always shown in the drawings and
diagrams of this document as a movement of a machine part. In practical operation, there
may be a number of different dangerous states:
machine movements
vehicle movements
electrical conductors
visible or invisible radiation
a combination of several risks and hazards
Recommendation
Note
,,

,

,






Take action …

WARNING


Chapter 2Operating instructions
S3000
10 ©SICK AG • Industrial Safety Systems • Germany • All rights reserved 8009942/V430/2011-06-03
Subject to change without notice
On safety
2On safety
This chapter deals with your own safety and the safety of the equipment operators.
Please read this chapter carefully before working with the S3000 or with the machine
protected by the S3000.
2.1 Qualified safety personnel
The S3000 safety laser scanner must be installed, connected, commissioned and serviced
only by qualified safety personnel. Qualified safety personnel are defined as persons who
due to their specialist training and experience have adequate knowledge of the power-
driven equipment to be checked
and
have been instructed by the responsible machine owner in the operation of the machine
and the current valid safety guidelines
and
are sufficiently familiar with the applicable official health and work safety regulations,
directives and generally recognized engineering practice (e.g. DIN standards, VDE
stipulations, engineering regulations from other EC member states) that they can assess
the work safety aspects of the power-driven equipment
and
who have access to these operating instructions and who have read them.
As a rule these are qualified safety personnel from the ESPE manufacturer or also those
persons who have been appropriately trained at the ESPE manufacturer, are primarily
involved in checking ESPE and are allocated the task by the organization operating the
ESPE.
2.2 Applications of the device
The S3000 safety laser scanner is used to protect persons and plant. It is intended to be
used to monitor hazardous areas indoors.
The S3000 is not intended to be used outdoors.
The S3000 cannot provide protection from flying parts or from emitted radiation.
The S3000 is only intended for use in industrial environments. When used in residential
areas it can cause radio interferences.
The device is a type 3 ESPE as defined by EN 61496K1and CLC/TS 61496K3and is
therefore allowed for use with category 3 PL d controls as per EN ISO 13849K1or SIL2 as
per IEC 61508.
The S3000 is suitable for:
hazardous area protection
hazardous point protection
access protection
vehicle protection
Depending on the application, other protective devices and measures may be required in
addition to the safety laser scanner.
Note

Operating instructions Chapter 2
S3000
8009942/V430/2011-06-03 © SICK AG • Industrial Safety Systems • Germany • All rights reserved 11
Subject to change without notice
On safety
2.3 Correct use
The S3000 safety laser scanner must be used only as defined in section 2.2 “Applications
of the device” on page 10. It must be used only by qualified personnel and only on the
machine where it has been installed and initialized by qualified safety personnel in
accordance with these operating instructions. It is only permitted to be used on machines
on which the dangerous state can be stopped immediately by the S3000 and/or it is
possible to prevent the machine being placed in operation.
If the device is used for any other purposes or modified in any way — also during mounting
and installation — any warranty claim against SICK AG shall become void.
2.4 General safety notes and protective measures
Pay attention to the safety notes!
Please observe the following items in order to ensure the correct use of the S3000 safety
laser scanner.
The safety laser scanner S3000 is of laser safety class 1.
Additional measures for screening the laser radiation are not
necessary (eye safe).
This device meets the norms: IEC 60825K1as well as CDRH 21 CFR 1040.10 and
1040.11; excluded are deviations due to Laser Notice No. 50, dated 24.06.2007. In the
standards CDRH 21 CFR 1040.10 and 1040.11 the following note is required: “Caution
—use of controls, adjustments or performance of procedures other than those herein
specified may result in hazardous radiation exposure!”
During the mounting, installation and usage of the S3000, observe the standards and
directives applicable in your country. You will find an overview of the most important
regulations in section 2.6 “Applicable directives and standards” on page 13.
The national/international rules and regulations apply to the installation, commissioning,
use and periodic technical inspections of the S3000 safety laser scanner, in particular
–the Machinery Directive 2006/42/EC
–the Work Equipment Directive 2009/104/EC
–the work safety regulations/safety rules
–other relevant health and safety regulations
Manufacturers and operators of the machine on which the S3000 is used are
responsible for obtaining and observing all applicable safety regulations and rules.
The notes, in particular the test notes (see chapter 9 “Commissioning” on page 108) in
these operating instructions (e.g. on use, mounting, installation or integration into the
machine control) must be observed.
Note

WARNING

Chapter 2Operating instructions
S3000
12 ©SICK AG • Industrial Safety Systems • Germany • All rights reserved 8009942/V430/2011-06-03
Subject to change without notice
On safety
Changes to the configuration of the devices can degrade the protective function. After
every change to the configuration you must therefore check the effectiveness of the
protective device. The person who makes the change is also responsible for the correct
protective function of the device. When making configuration changes, please always
use the password hierarchy provided by SICK to ensure that only authorized persons
make changes to the configuration. The SICK service team is available to provide
assistance if required.
The tests must be carried out by qualified safety personnel or specially qualified and
authorized personnel and must be recorded and documented to ensure that the tests
can be reconstructed and retraced at any time.
The operating instructions must be made available to the operator of the machine where
the S3000 is used. The machine operator is to be instructed in the use of the device by
qualified safety personnel and must be instructed to read the operating instructions.
To meet the requirements of the relevant product standards (e.g. EN 61496K1), the
external voltage supply for the devices must be able to bridge a brief mains failure of 20
ms. Power supplies according to EN 60204K1satisfy this requirement. Suitable power
supplies are available as accessories from SICK.
Enclosed with these operating instructions is a checklist for checking by the
manufacturer and OEM (see chapter 14.2 “Checklist for the manufacturer” on
page 156). Use this checklist when checking the system that is protected with the
S3000.
2.5 Environmental protection
The safety laser scanner S3000 is constructed in such a way that it adversely affects the
environment as little as possible. It uses only a minimum of power and natural resources.
At work, always act in an environmentally responsible manner. For this reason please note
the following information on disposal.
Disposal
Always dispose of unserviceable or irreparable devices in compliance with local/national
rules and regulations with respect to waste disposal.
Remove the plastic parts and send the aluminium housing of the safety laser scanner for
recycling.
Dispose of all electronic assemblies as hazardous waste. The electronic assemblies are
straightforward to dismantle.
We would be pleased to be of assistance to you on the disposal of these devices. Contact
your local SICK representative.
Note

Operating instructions Chapter 2
S3000
8009942/V430/2011-06-03 © SICK AG • Industrial Safety Systems • Germany • All rights reserved 13
Subject to change without notice
On safety
2.6 Applicable directives and standards
The most important directives and standards, valid for the use of opto-electronic protective
devices in Europe, are listed below. Further regulations may be of importance to you,
depending on the application. You can obtain further information of machine-specific
standards from national institutions (e.g. DIN, BSI, AFNOR etc.), the authorities or your
trade association.
If you operate the machine or vehicle in a country outside the European Union, please
contact the manufacturer of the plant and the local authorities and obtain information on
the regulations and standards applicable there.
Application and installation of protective devices
Machinery Directive 2006/42/EC, e.g.:
Safety of machinery — Basic concepts, general principles for design (EN ISO 12100)
Industrial automation systems — Safety of integrated manufacturing systems — Basic
requirements (ISO 11161)
Safety of machinery — Electrical equipment of machines — Part 1: General requirements
(EN 60204K1)
Safety of machinery — safety distances to prevent hazard zones being reached by the
upper and lower limbs (EN ISO 13857)
Safety requirements for robots (EN ISO 10218K1)
Safety of industrial trucks. Driverless trucks and their systems (EN 1525)
Safety of machinery — The positioning of protective equipment in respect of approach
speeds of parts of the human body (EN ISO 13855)
Safety of machinery — Principles for risk assessment (EN ISO 14121K1)
Safety of machinery — Safety-related parts of control systems — Part 1: General
principles for design (EN ISO 13849 part 1)
Safety of machinery — electro-sensitive protective equipment — Part 1: General
requirements (EN 61496K1) as well as part 3: Particular requirements for Active Opto-
electronic Protective Devices responsive to Diffuse Reflection (AOPDDR)
(CLC/TS 61496K3)
Foreign standards, for example:
Performance Criteria for Safeguarding (ANSI B11.19)
Machine tools for manufacturing systems/cells (ANSI B11.20)
Safety requirements for Industrial Robots and Robot Systems (ANSI/RIA R15.06)
Safety Standard for guided industrial vehicles and automated functions of named
industrial vehicles (ANSI B56.5)
To some extent these standards require the protective device to have the safety level
“Control reliable”.The S3000 safety laser scanner meets this requirement.
Please request our competence brochure “Guidelines Safe Machinery” on this subject.
Note
Recommendation

Chapter 3Operating instructions
S3000
14 ©SICK AG • Industrial Safety Systems • Germany • All rights reserved 8009942/V430/2011-06-03
Subject to change without notice
Product description

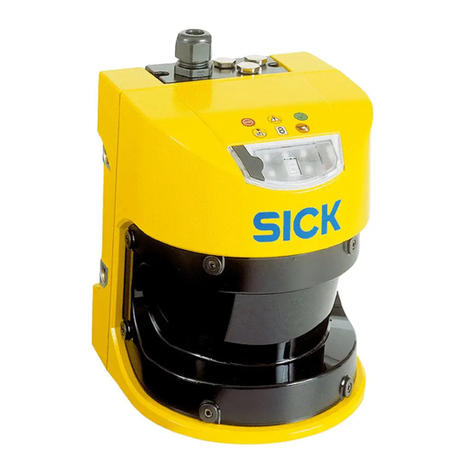

3Product description
This chapter provides information on the special features and properties of the S3000
safety laser scanner. It describes the construction and the operating principle of the
device, in particular the different operating modes.
Please read this chapter before mounting, installing and commissioning the device.
3.1 Special features
190° scan area
dual field mode with field sets consisting of protective field and warning field
increased resilience to external light and dust due to highly effective dazzle and particle
algorithms.
contour monitoring of a protective field1)
integrated external device monitoring (EDM)
restart interlock/restart delay
sensor heads with scanning ranges up to 4 m, 5.5 m or 7 m2)
various I/O modules for different applications
simple replacement of the I/O module (in this way the functionality can be easily
enhanced)
configuration via PC or notebook
configuration memory in the system plug. Down times are shortened by the simple
replacement of the S3000
safe bus interfacing using SICK sens:Control products
From S3000 Advanced
static protective field switching via static inputs or EFI (safe SICK device communication)
up to 4 field sets and up to 4 monitoring cases
From S3000 Professional
dynamic protective field switching using incremental encoder inputs
up to 8 field sets and up to 16 monitoring cases
Extended features from S3000 Expert and Remote3)
triple field mode with field sets consisting of protective field and two warning fields
up to 32 field sets and up to 32 monitoring cases (in dual field mode)
up to 21 field sets and up to 32 monitoring cases (in triple field mode)
velocity routing using a Flexi Soft safety controller
configurable universal I/O connections
compatibility mode for interoperability with older safety laser scanners (see section 3.5.5
on page 28)
1) With S3000 Expert and Remote only possible in compatibility mode.
2) Maximum protective field radii.
3) From sensor head with firmware B02.40 and higher and from I/O module with serial number 1124xxxx and
higher.

Operating instructions Chapter 3
S3000
8009942/V430/2011-06-03 © SICK AG • Industrial Safety Systems • Germany • All rights reserved 15
Subject to change without notice
Product description
3.2 Function
The S3000 safety laser scanner operates correctly as a protective device only if the
following conditions are met:
The control of the machine, system or vehicle must be electrical.
It must be possible to transfer the dangerous state of the machine, the plant or the
vehicle to a safe state at any time using the OSSDs on the S3000 after integration in the
controller.
The S3000 must be mounted and configured such that it detects objects as they enter
the hazardous area (see chapter 5 “Mounting” on page 56).
3.2.1 Principles of operation
The S3000 is an optical sensor that scans its surroundings in two dimensions using
infrared laser beams. It is used to monitor a hazardous area on a machine or a vehicle.
The S3000 works on the principle of time of flight measurement .It sends out very short
pulses of light (S). At the same time an “electronic stopwatch” is started. When the light
hits an object, it is reflected and received by the safety laser scanner (E). From the time
between sending and reception (t) the S3000 calculates its distance to the object.
In the S3000 there is also a mirror rotating at constant speed that deflects the light
pulses such that they cover an arc of 190°. By determining the angle of rotation of the
mirror, the S3000 determines the direction of the object.
From the measured distance and the direction of the object, the safety laser scanner
determines the exact position of the object.
Fig.
1
:
Principle of operation,
time of flight measurement
by the S3000

t
S
E
S ~

t
S
E



Chapter 3Operating instructions
S3000
16 ©SICK AG • Industrial Safety Systems • Germany • All rights reserved 8009942/V430/2011-06-03
Subject to change without notice
Product description
The S3000 uses light pulses precisely radiated in specific directions. Thus the safety laser
scanner does not continuously cover the area to be monitored. In this way resolutions of
between 30 mm and 150 mm are achieved.
Due to its active scanning principle, the S3000 does not require receivers or reflectors.
This has the following advantages:
Your installation effort is lower.
You can easily adapt the monitored area to the hazardous area on a machine.
In comparison with contact sensors, there is less wear when electro-sensitive scanning
is used.
3.2.2 Field set comprising of protective field and warning field
Protective field and warning field(s) form the so-called field set. You can configure these
field sets with the aid of the CDS. The fields can be configured as circular, rectangular or of
arbitrary shape. If the area to be monitored changes, then you can re-configure the S3000
in software without additional mounting effort.
Depending on the I/O module used (see section “I/O modules” on page 20) you can define
up to 32 different field sets and save these in the safety laser scanner. As a result you can
(except on the S3000 Standard) switch to a different field set in case of a change in the
monitoring situation (see section 3.2.3 “Monitoring cases” on page 18).
Fig.
2
:
Principle of operation
of the S3000 — light pulses

Operating instructions Chapter 3
S3000
8009942/V430/2011-06-03 © SICK AG • Industrial Safety Systems • Germany • All rights reserved 17
Subject to change without notice
Product description
Dual field mode
On all S3000 you can configure field sets that comprise two fields, aprotective field and a
warning field.
The protective field secures the hazardous area on a machine or vehicle. As soon as the
safety laser scanner detects an object in the protective field, the S3000 switches the
OSSDs to the off status and thus initiates the shutdown of the machine or stop of the
vehicle.
You can define the warning field such that the safety laser scanner detects an object
before the actual hazardous area and e.g. triggers a warning signal.
Triple field mode of the S3000 Expert and S3000 Remote
On the Expert and Remote variants you can define field sets with three fields. These field
sets comprise one protective field and two warning fields.Warning field 1 can be used in
particular for vehicle protection to detect an object even before the actual hazardous area
and to slowly retard the movement of the vehicle or bring it to a standstill. In this way the
wear on the brakes on an AGV can be reduced. Warning field 2 can also be used to trigger
awarning signal. The protective field secures the hazardous area of the vehicle.
Fig.
3
:
Dual field mode with
protective field and warning
field
Fig.
4
:
Triple field mode with
one protective field and two
warning fields
Protective field
Warning field 2
Warning field 1
Warning
field
Protective
field

Chapter 3Operating instructions
S3000
18 ©SICK AG • Industrial Safety Systems • Germany • All rights reserved 8009942/V430/2011-06-03
Subject to change without notice
Product description
3.2.3 Monitoring cases
Depending on the I/O module used (see section “I/O modules” on page 20) up to 32
monitoring cases can be defined and selected during operation using local static or
dynamic control inputs or via EFI. In this way process-dependent hazardous area
protection or velocity-dependent vehicle monitoring is possible for example.
Simultaneous monitoring
Within a monitoring case, the S3000 can monitor two field sets simultaneously (e.g.
hazardous area on the left and hazardous area on the right). In conjunction with a Flexi
Soft safety controller, which provides two pairs of OSSD, e.g. two machines can be
protected independently of each other using only one S3000.
Monitoring possibilities with the S3000 Expert
Depending on the field mode selected, on the S3000 Expert, it is possible to either
simultaneously monitor two field sets (dual field mode) or monitor one field set with one
protective field and two warning fields (triple field mode).
Fig.
5
:
Monitoring cases
Fig.
6
:
Simultaneous
monitoring
Active
field set
Active
simultaneous field set
Protective field and warning
field of the inactive monitoring
case 1
Protective field and warning
field of the active monitoring
case 2
Changing monitoring situation
Parallel monitoring situation

Operating instructions Chapter 3
S3000
8009942/V430/2011-06-03 © SICK AG • Industrial Safety Systems • Germany • All rights reserved 19
Subject to change without notice
Product description
3.3 S3000 variants
The S3000 variants are formed by three sensor heads and five I/O modules.
3.3.1 Device components
The S3000 safety laser scanner comprises three components:
the sensor head with the opto-electronic acquisition system
the I/O module, this defines the functionality of the S3000
the system plug with the configuration memory (The system plug contains all electrical
connections with the exception of the configuration interface.)
Fig.
7
:
Monitoring possibili-
ties with the S3000 Expert
Fig.
8
:
Sensor head,
I/O module and system plug
System plug
I/O module
Sensor head
Field set
Simultaneous field set
Dual field mode
Triple field mode
Warning field 1
Warning field 2
Protective field

Chapter 3Operating instructions
S3000
20 ©SICK AG • Industrial Safety Systems • Germany • All rights reserved 8009942/V430/2011-06-03
Subject to change without notice
Product description
Sensor heads
The sensor heads differ in the maximum scanning range and the resulting size of the
protective field.
The protective field ranges are the maximum achievable radial distances from the safety
laser scanner. They are achieved in applications with a resolution of 70 mm and coarser. If
rectangular protective fields are configured, then the maximum protective field range is
reached in the corners of the protective field.
I/O modules
Five I/O modules are available for the S3000. With the aid of these I/O modules, the
S3000 covers the various application areas.
Fig.
9
:
Protective field ranges
of the sensor heads
Note
Fig.
10
:
Available
I/O modules
Standard
Advanced
Professional
Remote
Expert
Long-range
sensor head
Medium-range
sensor head
Max. 7 m
Max. 5.5 m
Short-range
sensor head
Max. 4
m
